mp-776890/Rb2O/anharm

Space group: Pbca (61)
Link: Materials Project
Download: mp-776890.tar.gz

Harmonic properties

../../_images/fig_bandos_pr2309.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo2309.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all1267.png — (a) Grüneisen parameters

../../_images/fig_gruneisen1267.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x5x10, supercell: 2x1x2

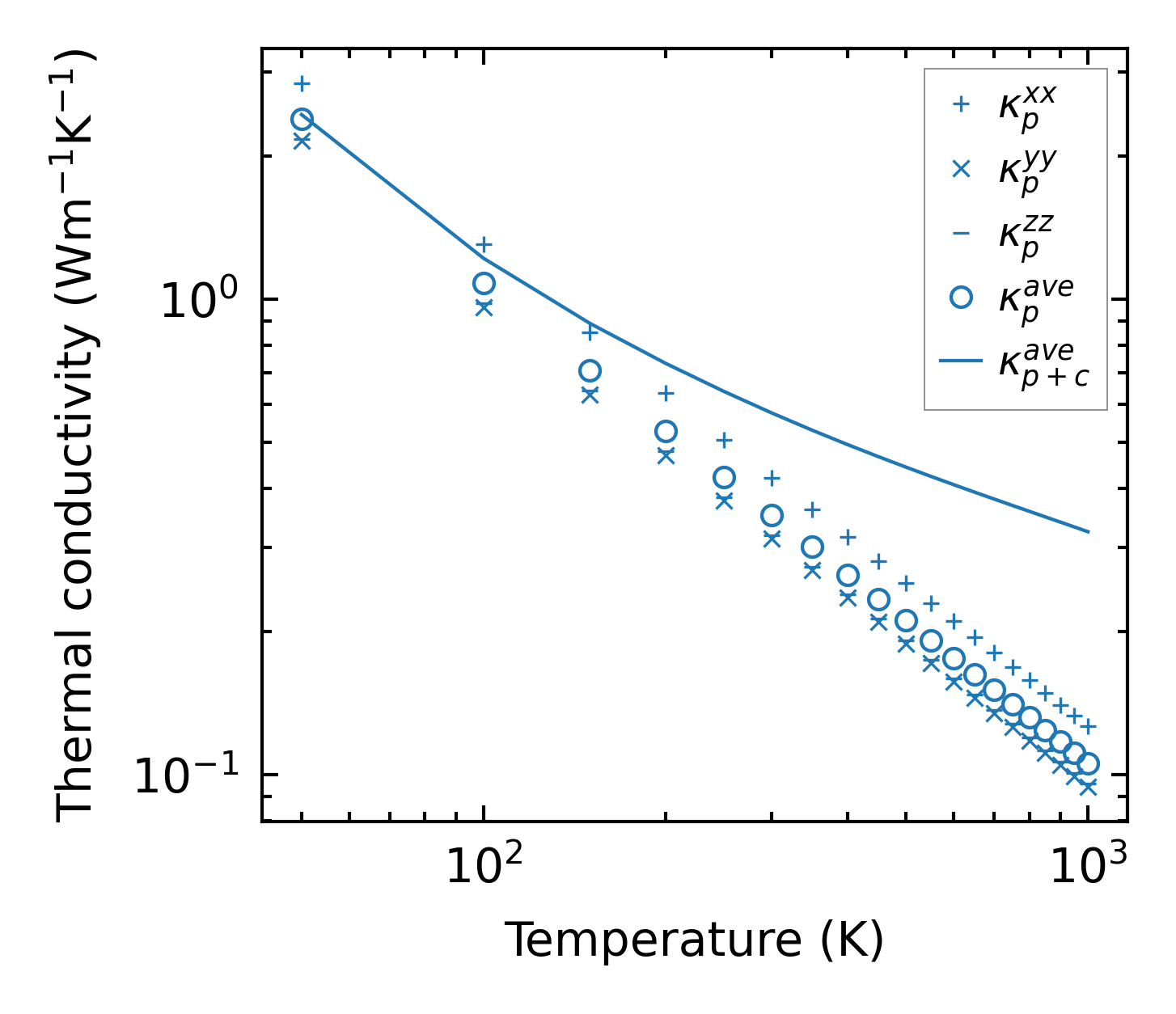

../../_images/fig_kappa2437.png — (a) Temperature-dependent lattice thermal conductivity

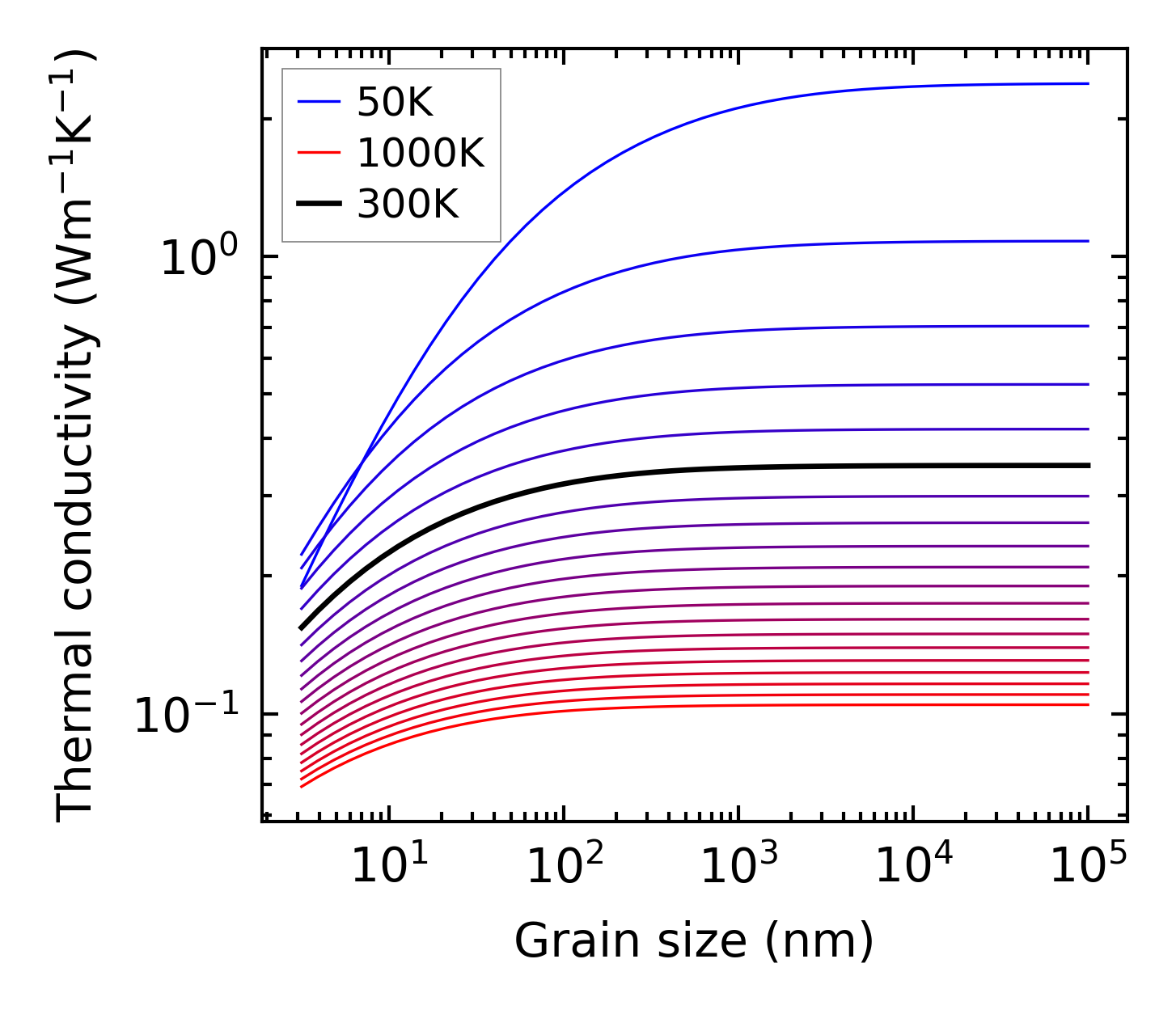

../../_images/fig_kappa_vs_grain_size1283.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

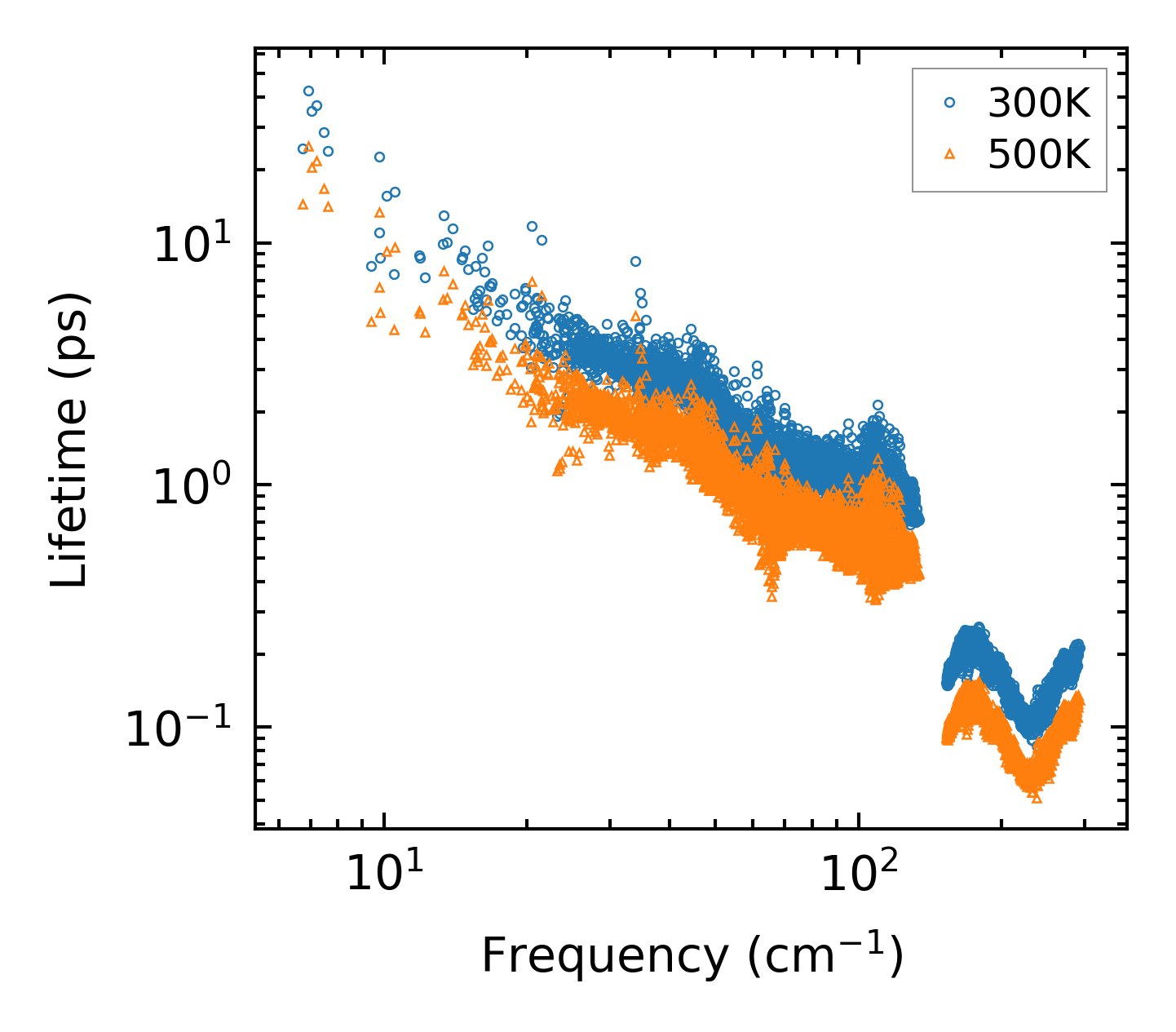

../../_images/fig_lifetime1257.png — (a) Phonon lifetime due to phonon-phonon scattering

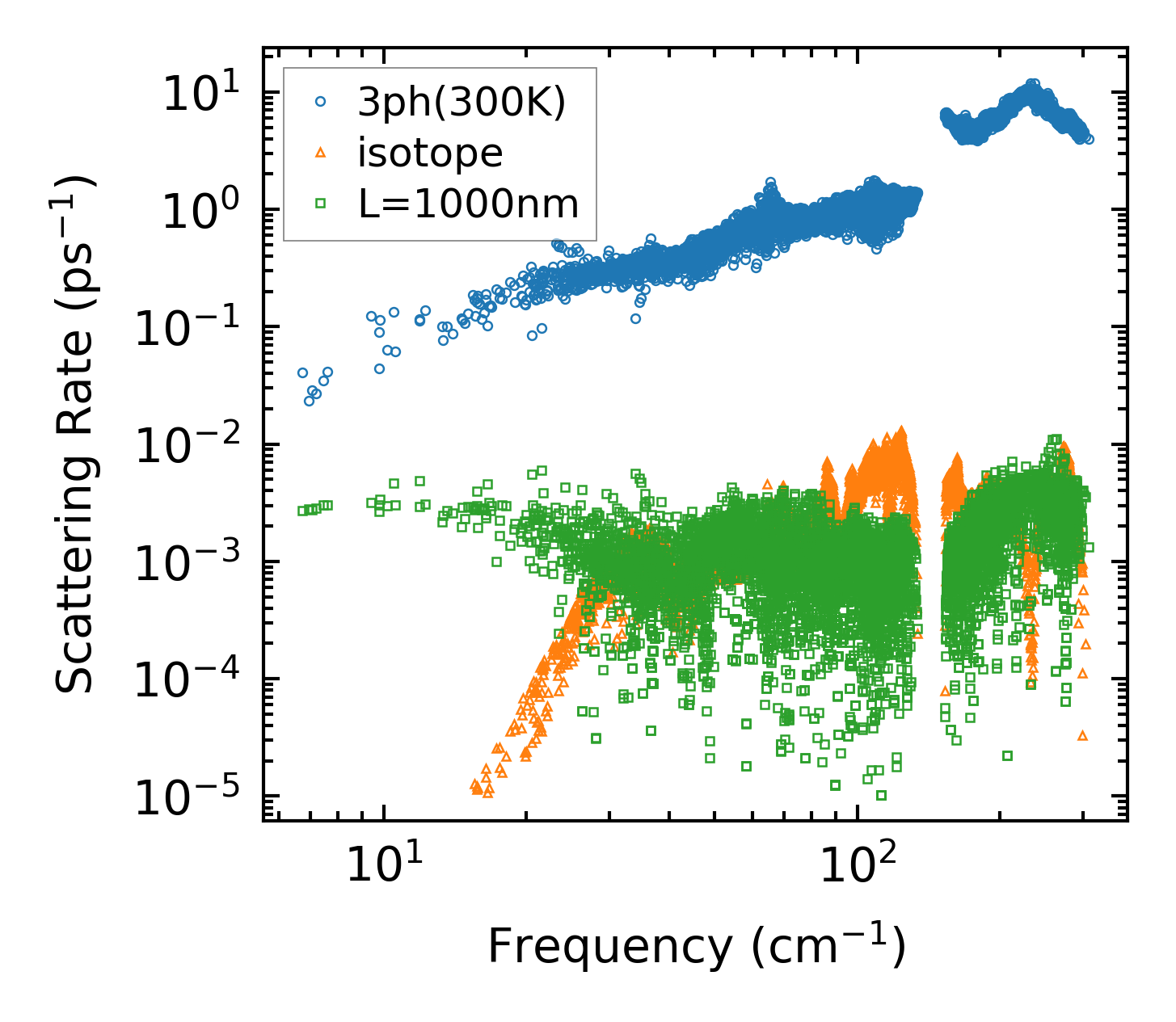

../../_images/fig_scat_rates1256.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

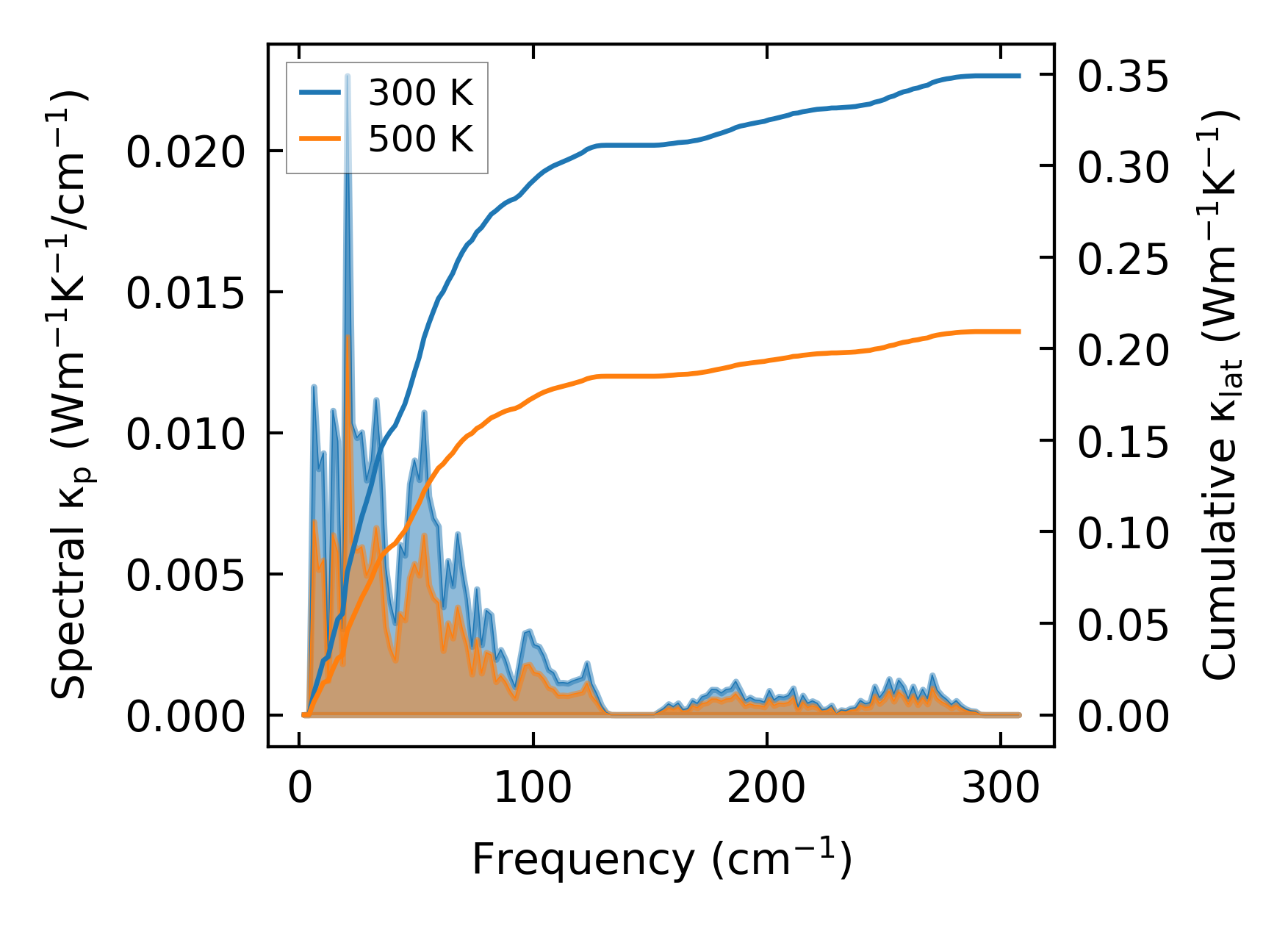

../../_images/fig_cumu_frequency1257.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

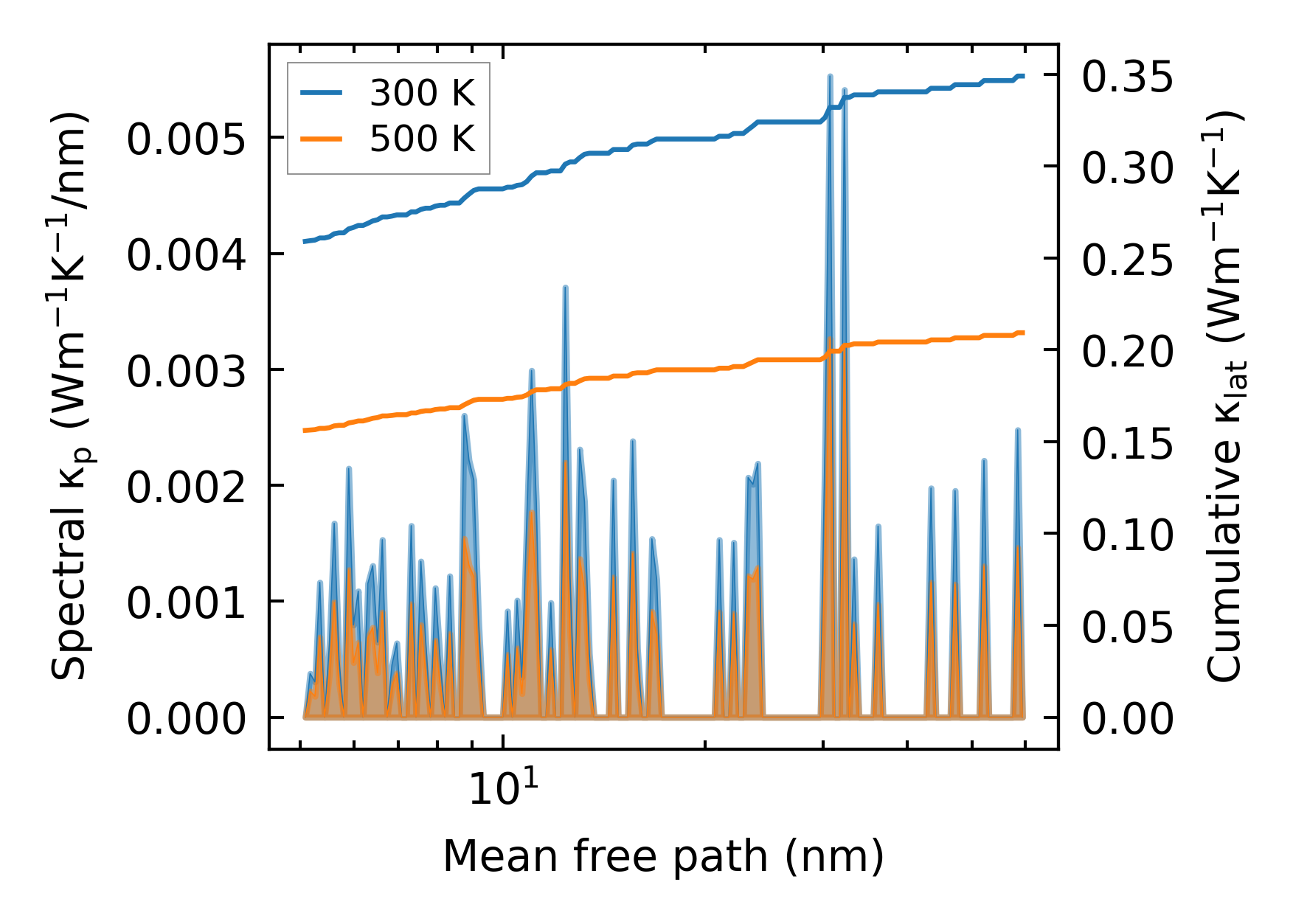

../../_images/fig_cumu_mfp1257.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

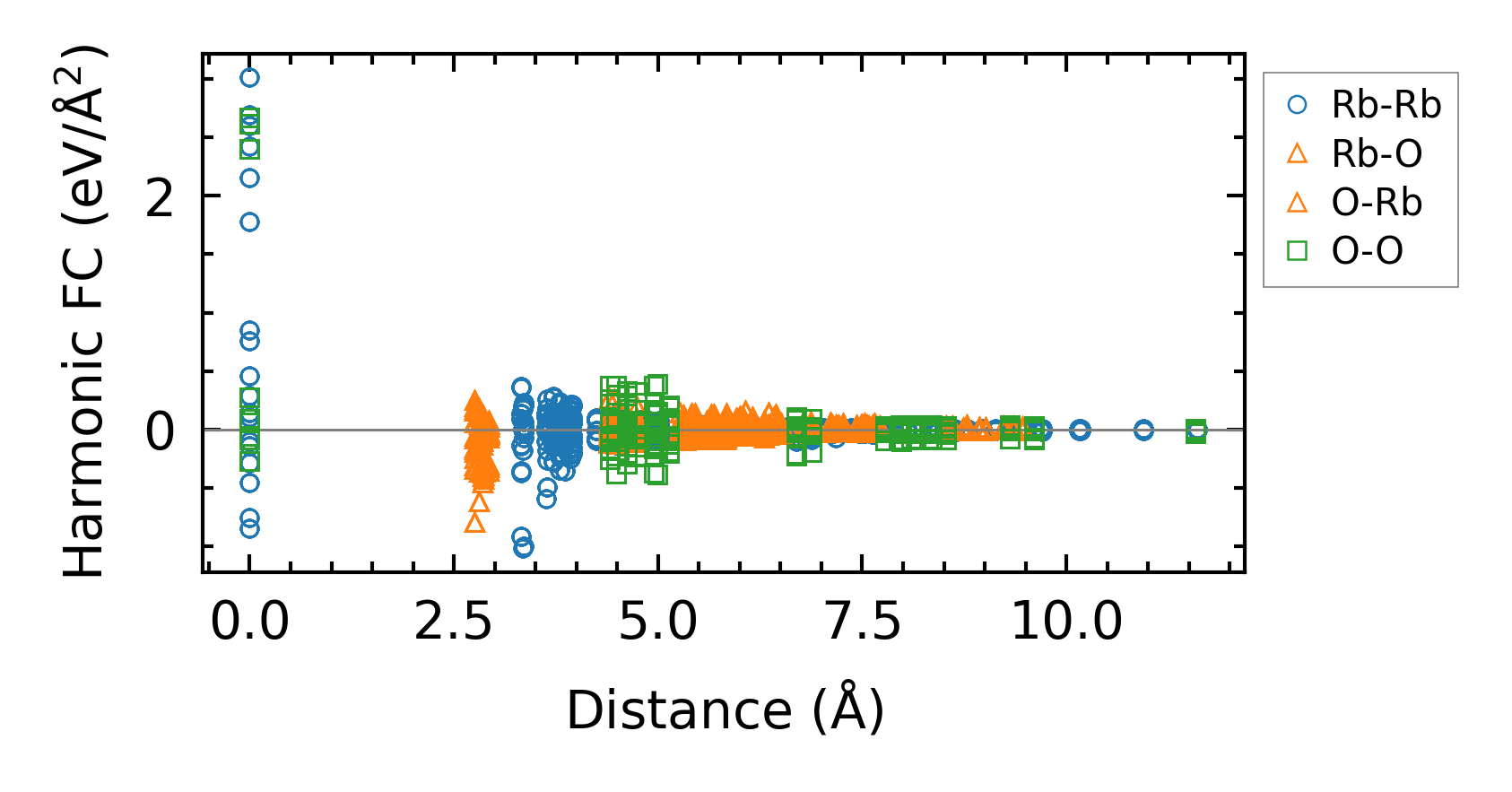

../../_images/fig_fc22130.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa2438.png — (a) Temperature-dependent lattice thermal conductivity

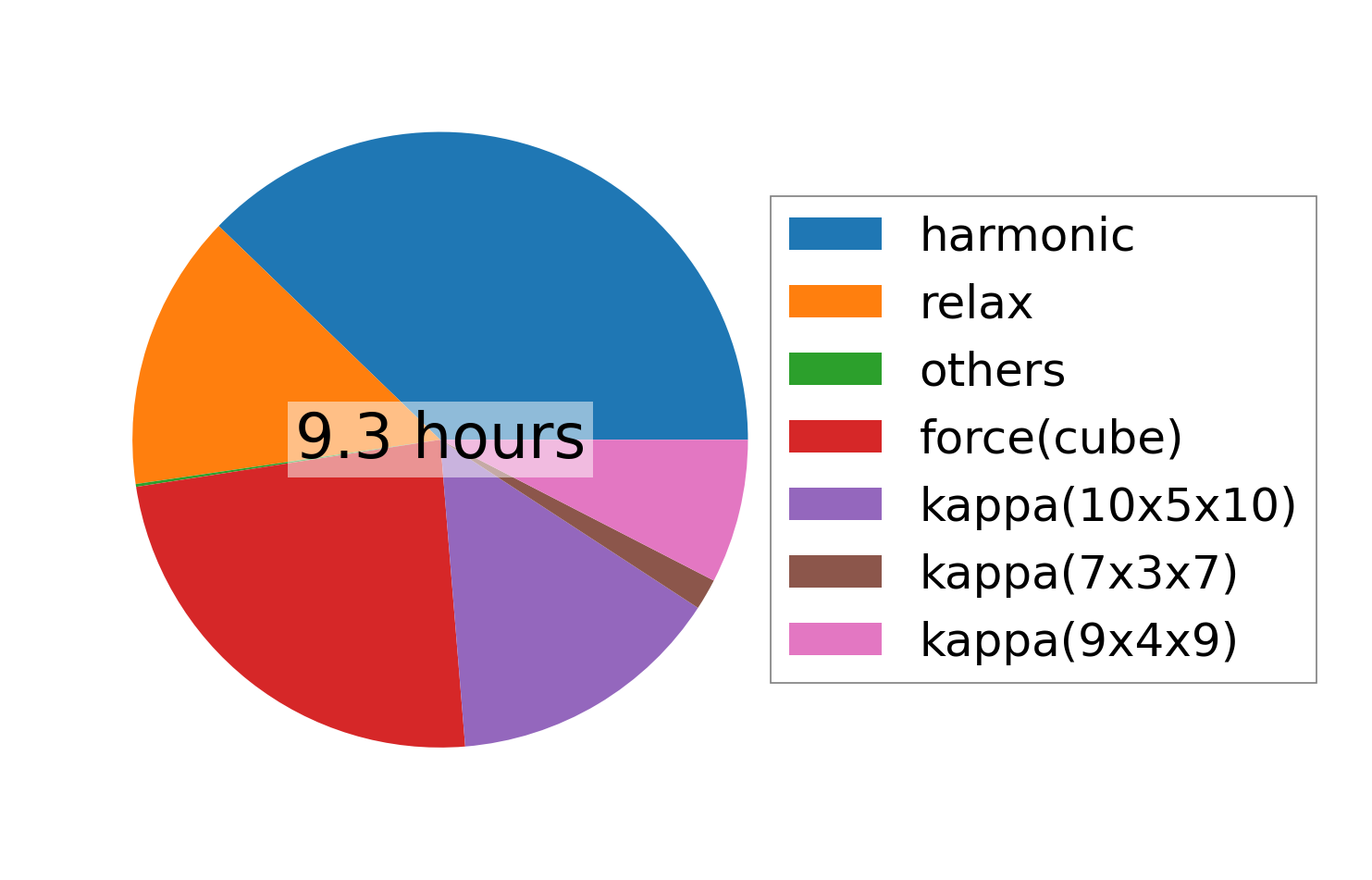

../../_images/fig_times3758.png — (b) Computation time
