mp-776250/Zr2N2O/anharm

Space group: P2_1/m (11)
Link: Materials Project
Download: mp-776250.tar.gz

Harmonic properties

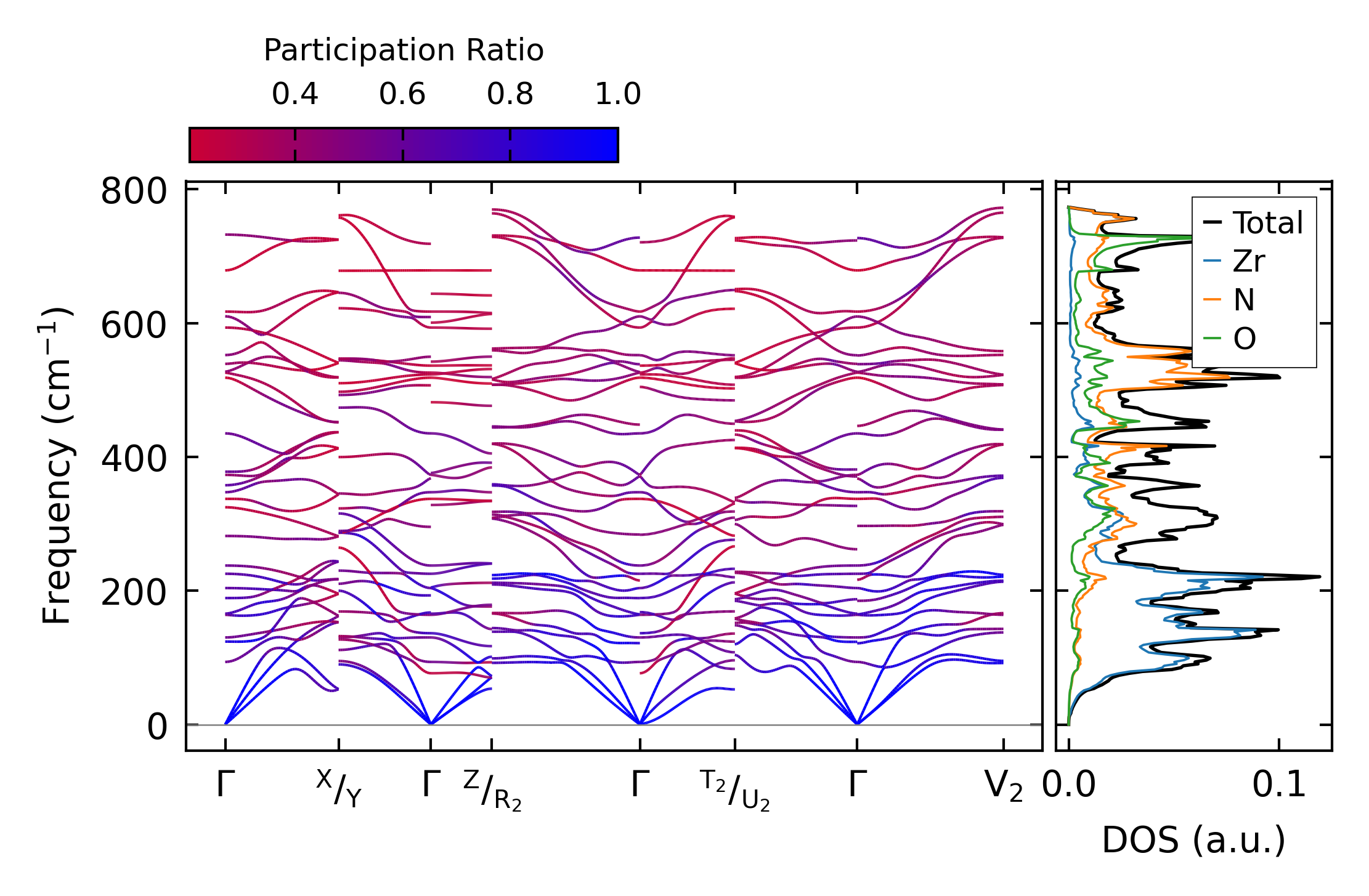

../../_images/fig_bandos_pr2264.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo2264.png — (b) Thermodynamic properties

Grüneisen parameters

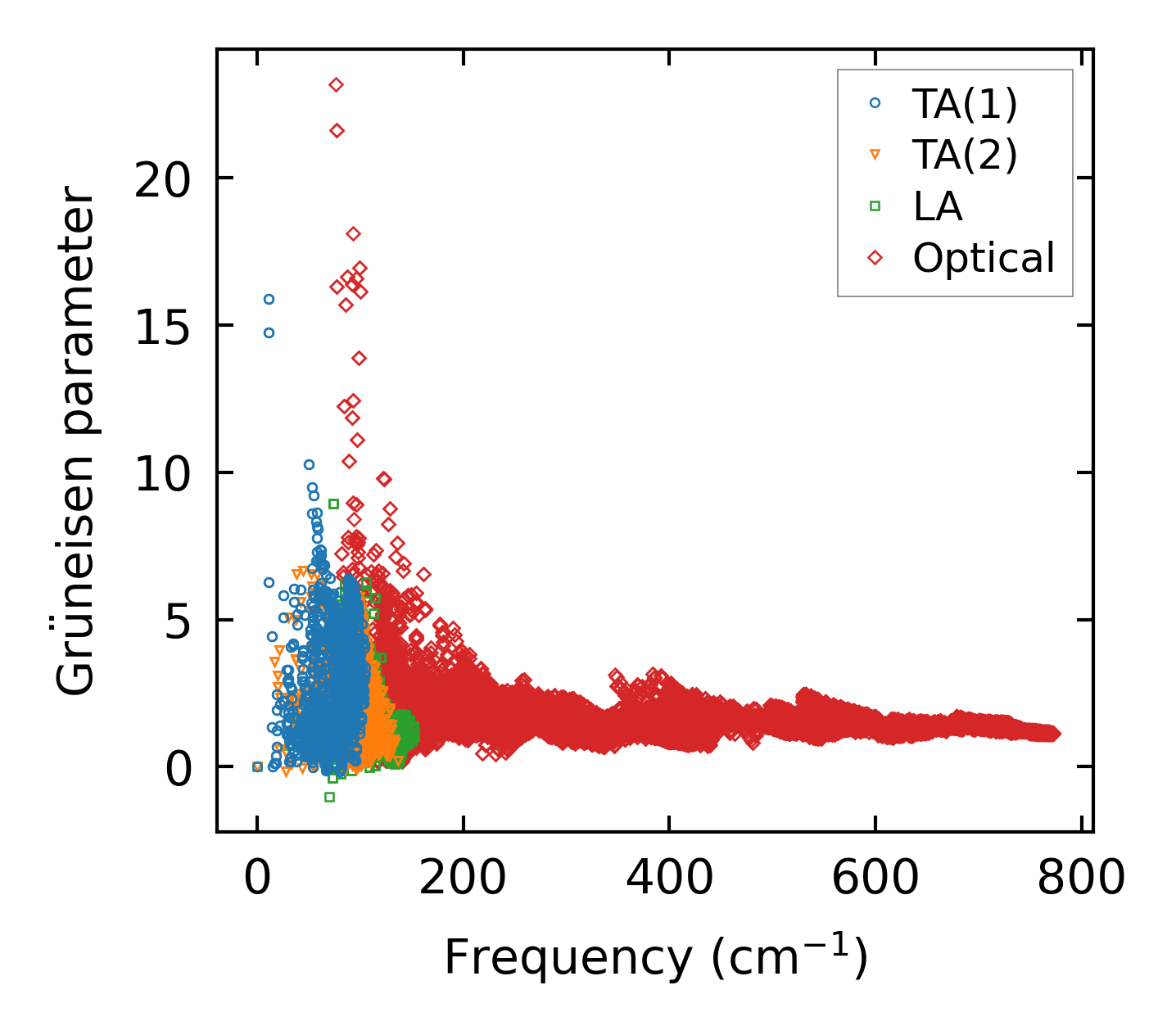

../../_images/fig_gru_all1256.png — (a) Grüneisen parameters

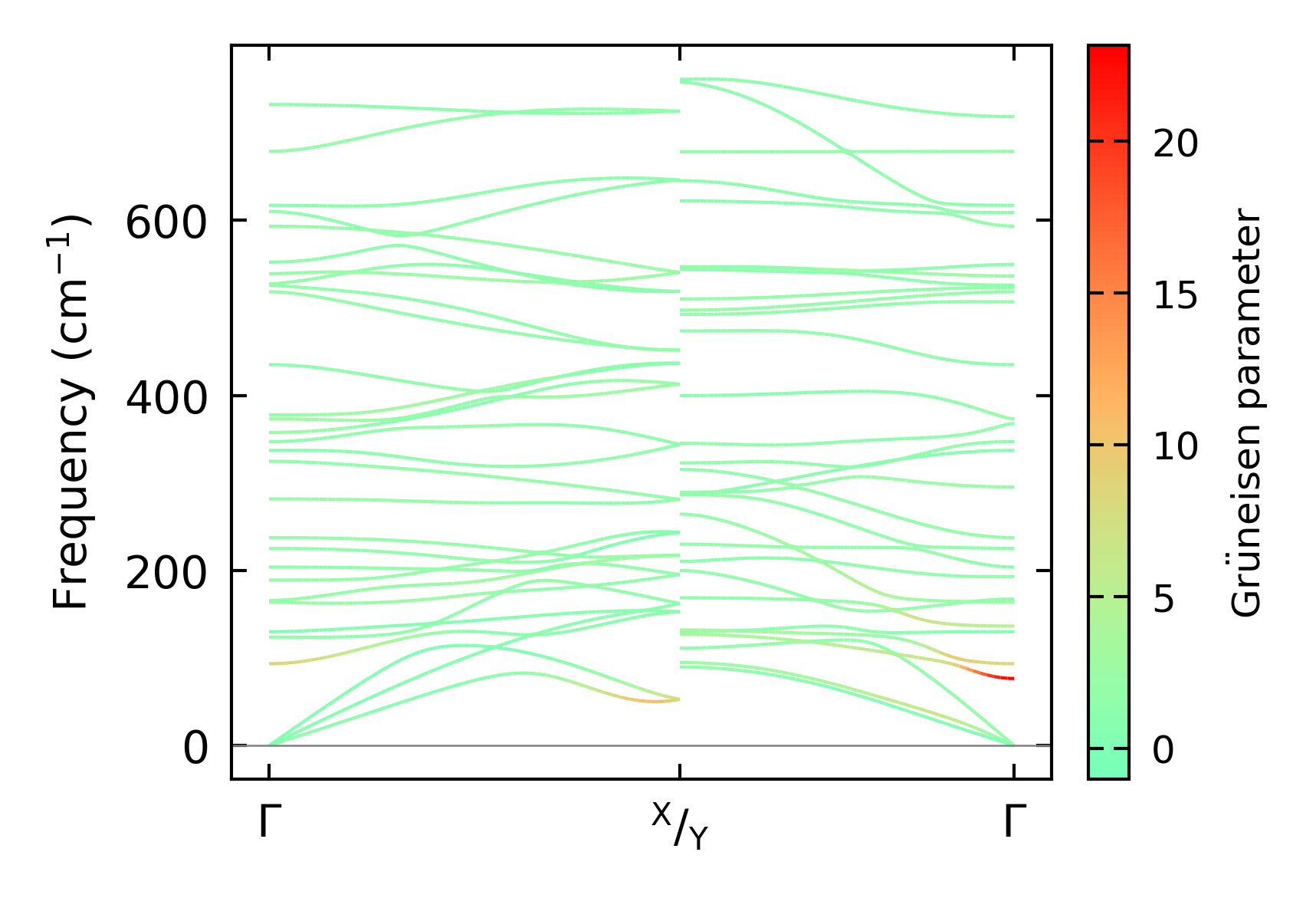

../../_images/fig_gruneisen1256.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 21x16x8, supercell: 3x3x1

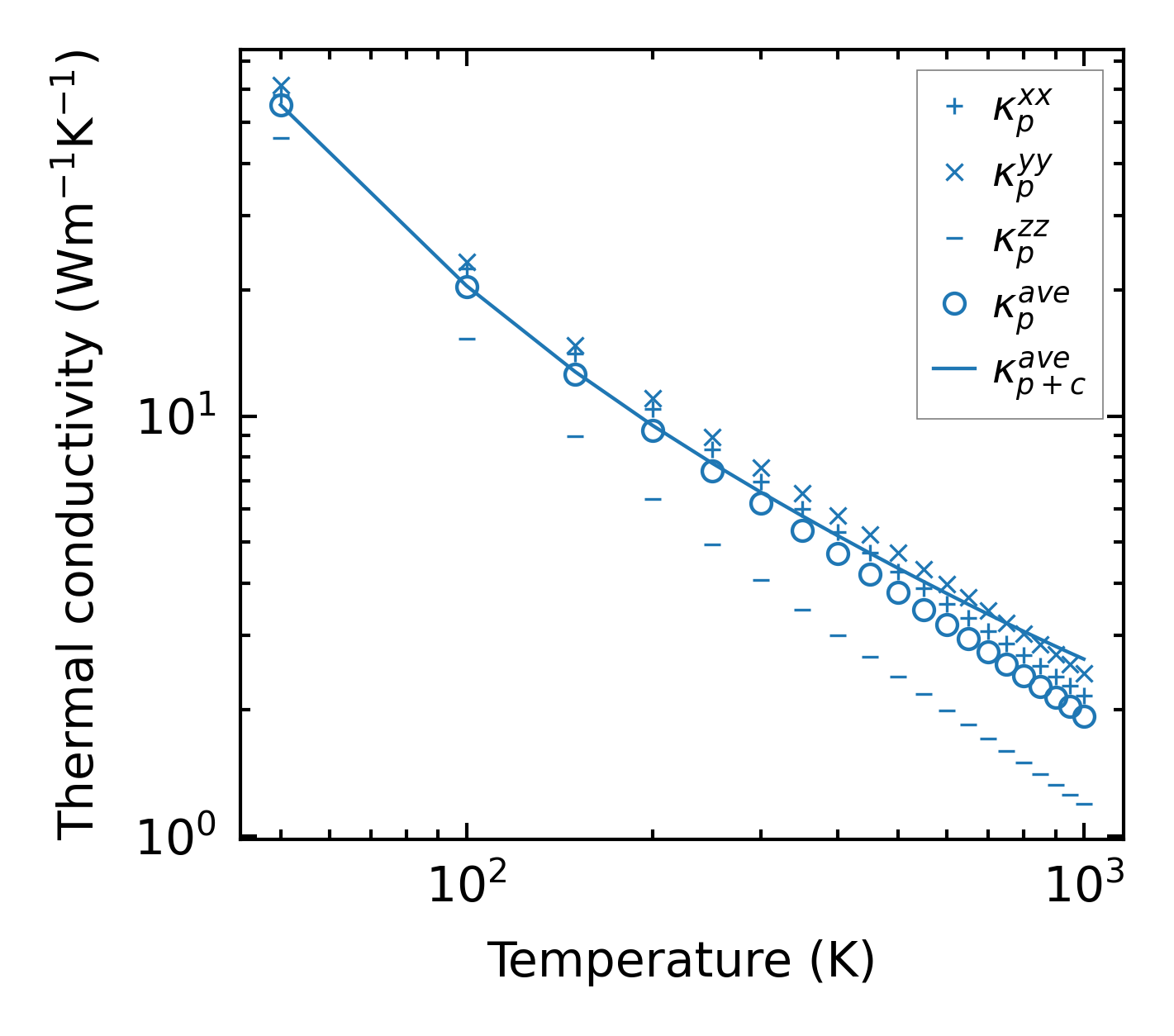

../../_images/fig_kappa2417.png — (a) Temperature-dependent lattice thermal conductivity

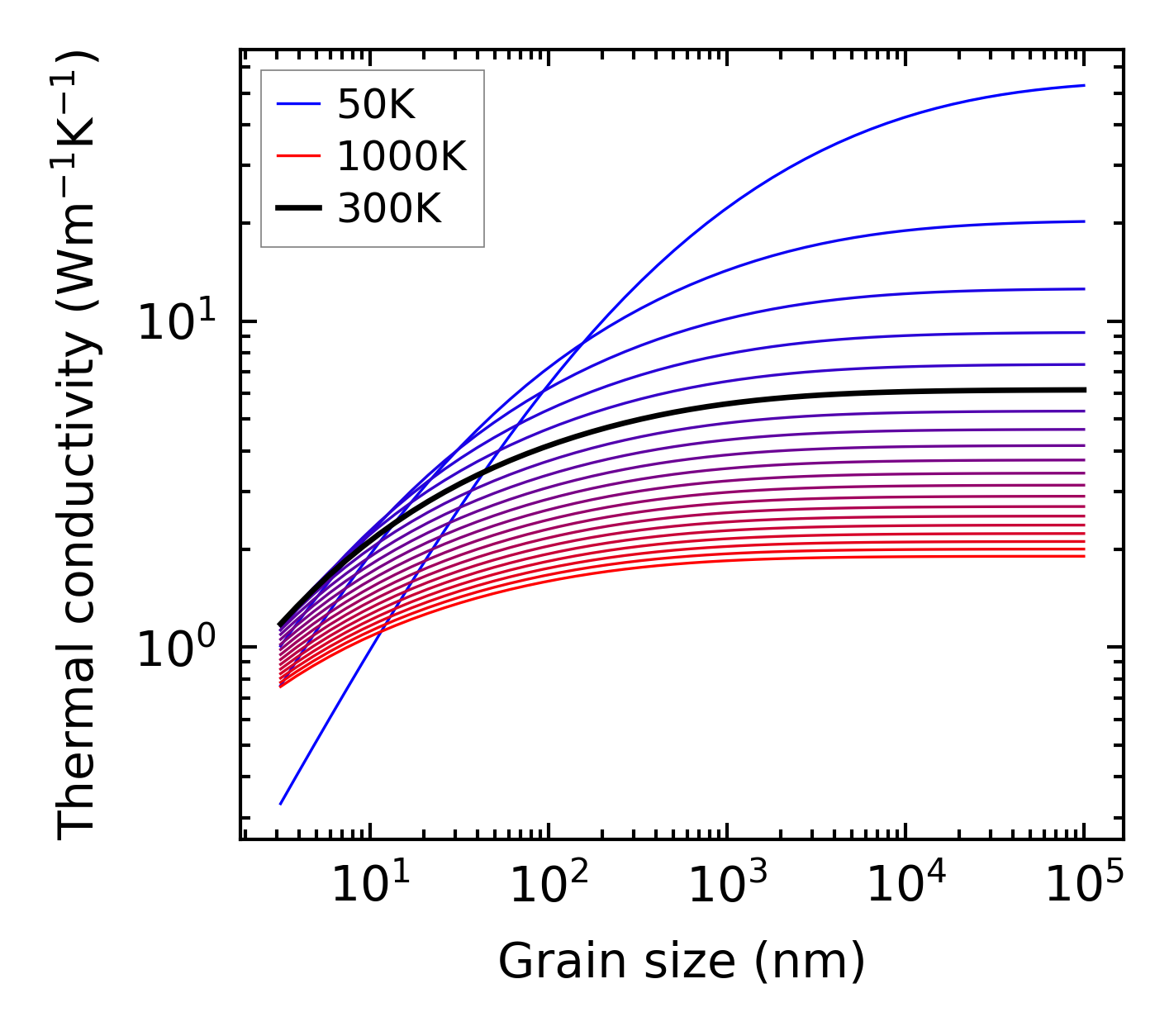

../../_images/fig_kappa_vs_grain_size1272.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

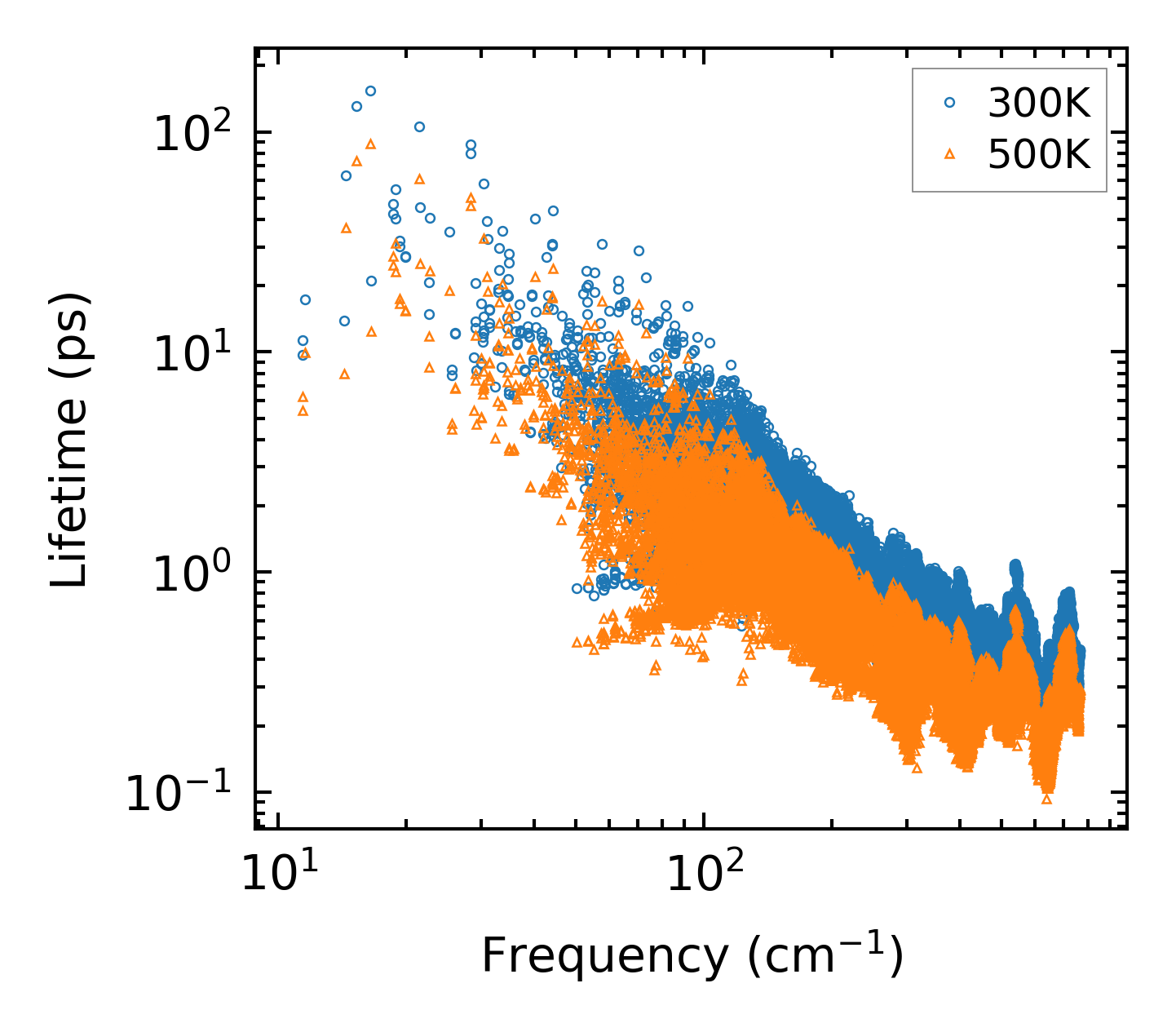

../../_images/fig_lifetime1246.png — (a) Phonon lifetime due to phonon-phonon scattering

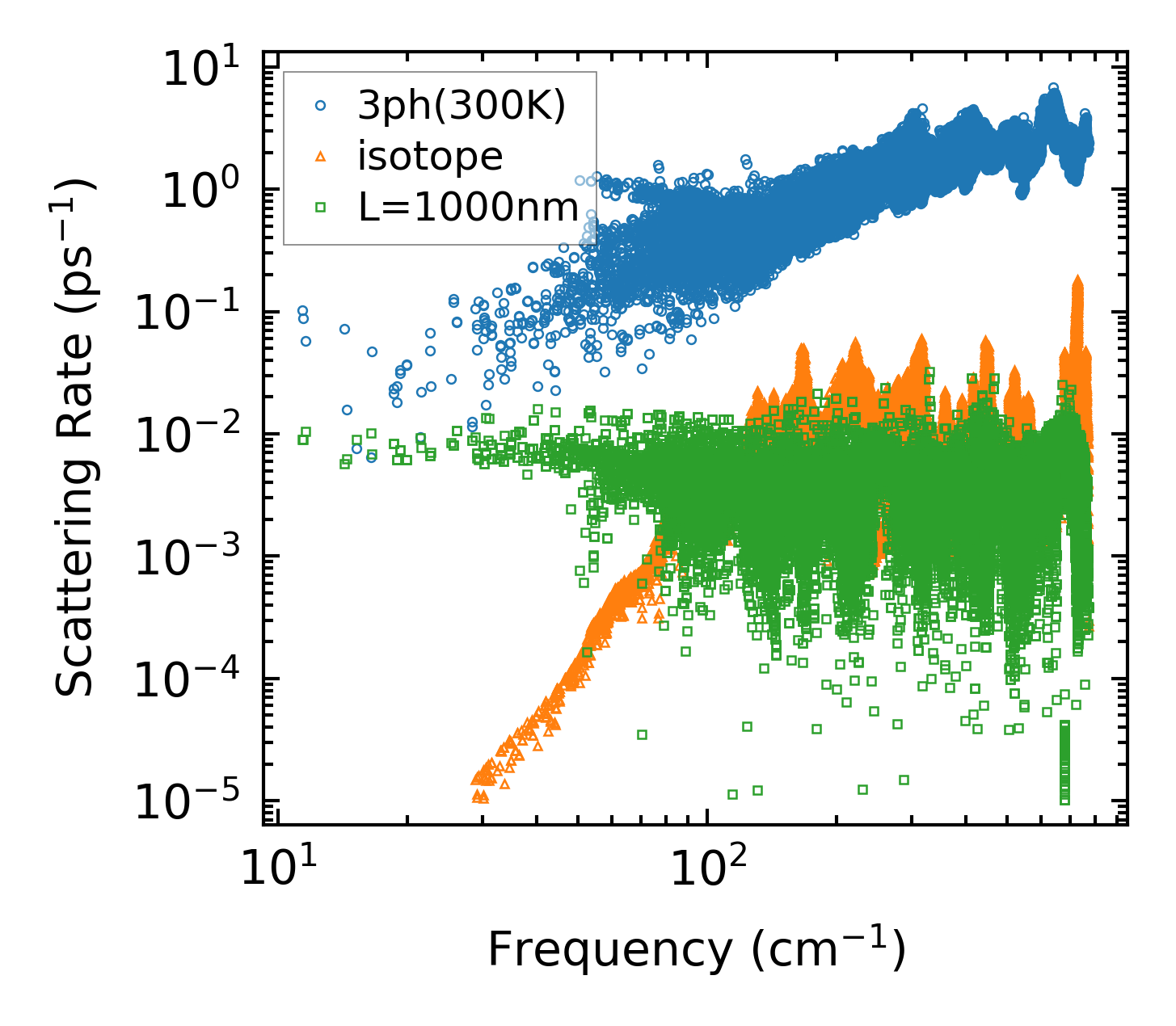

../../_images/fig_scat_rates1245.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

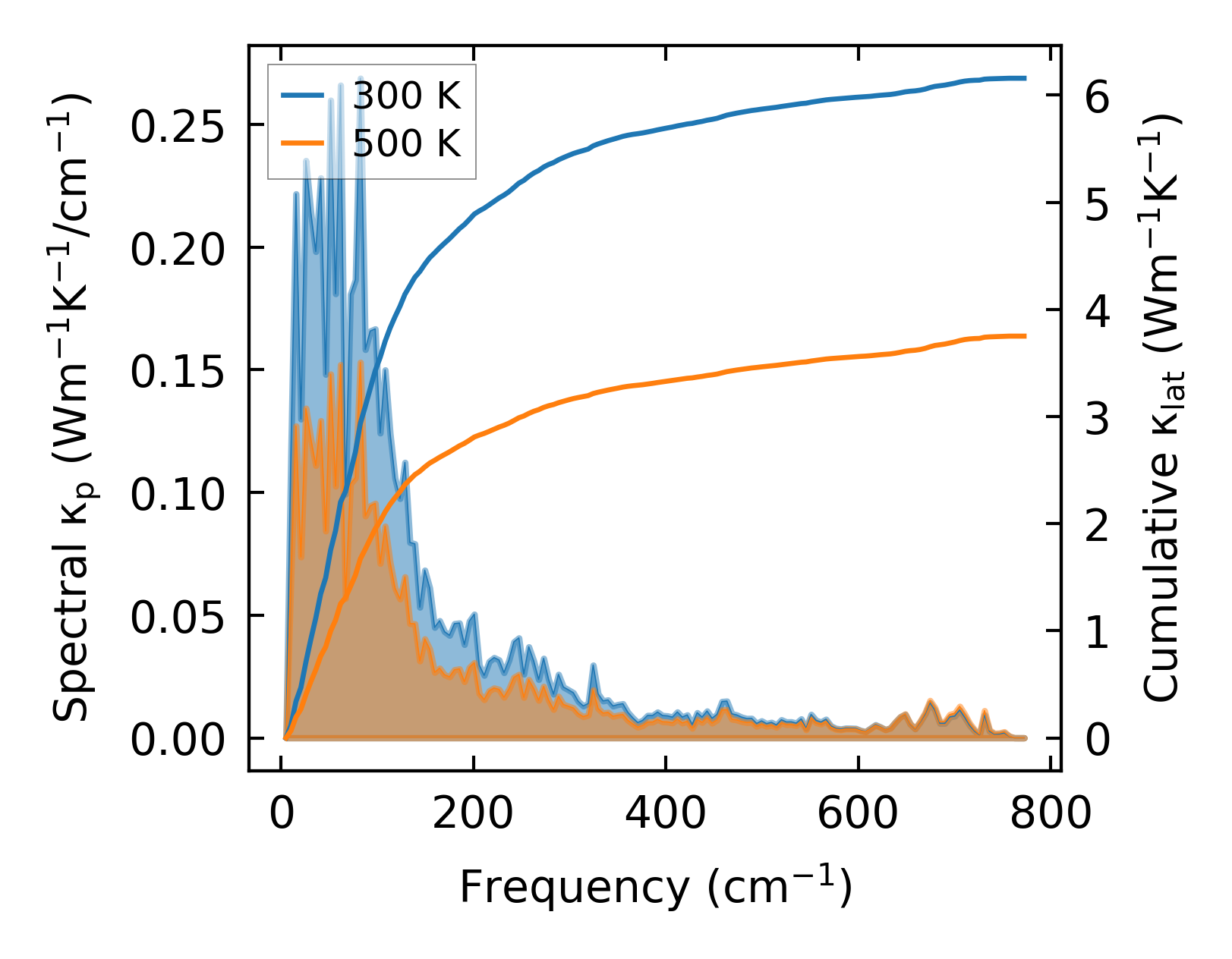

../../_images/fig_cumu_frequency1246.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

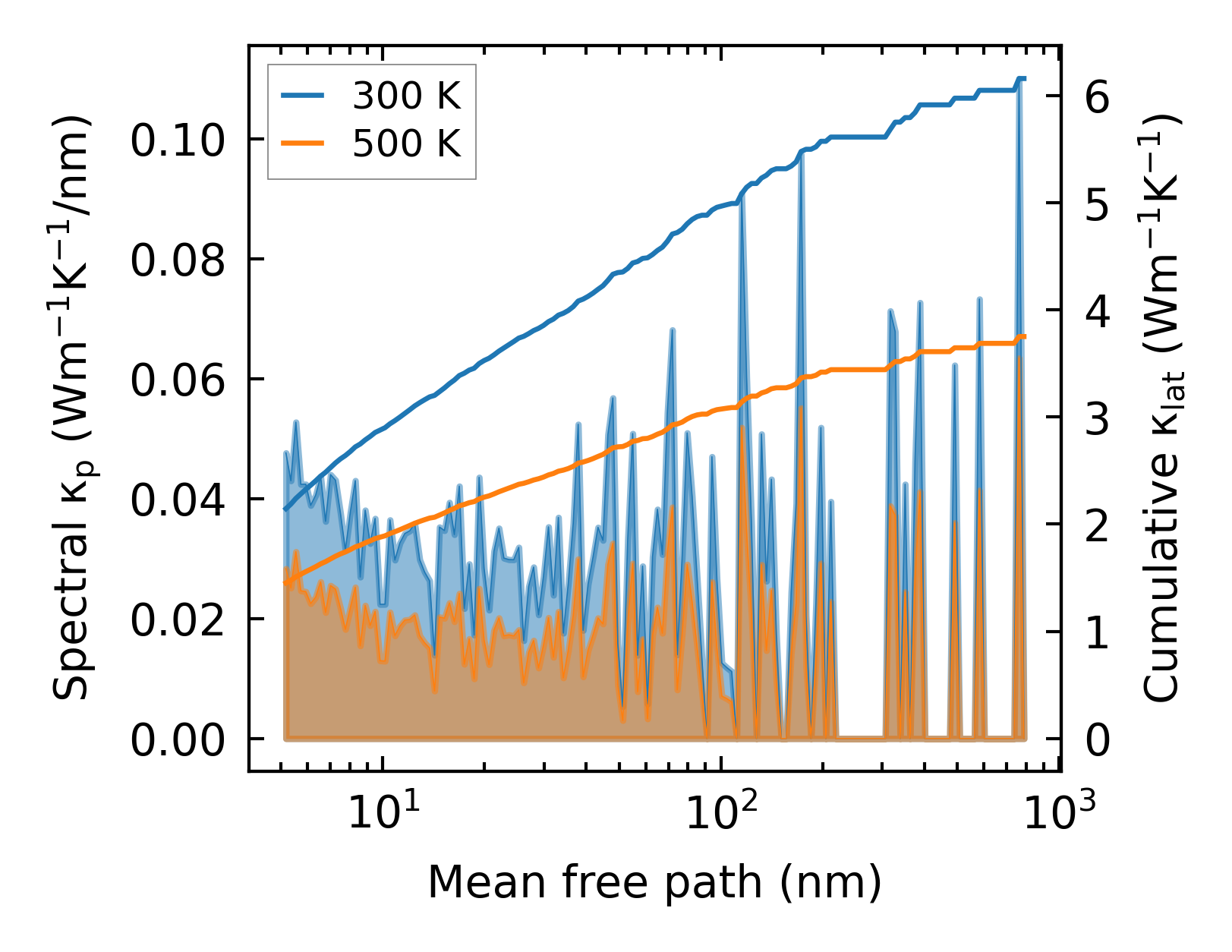

../../_images/fig_cumu_mfp1246.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

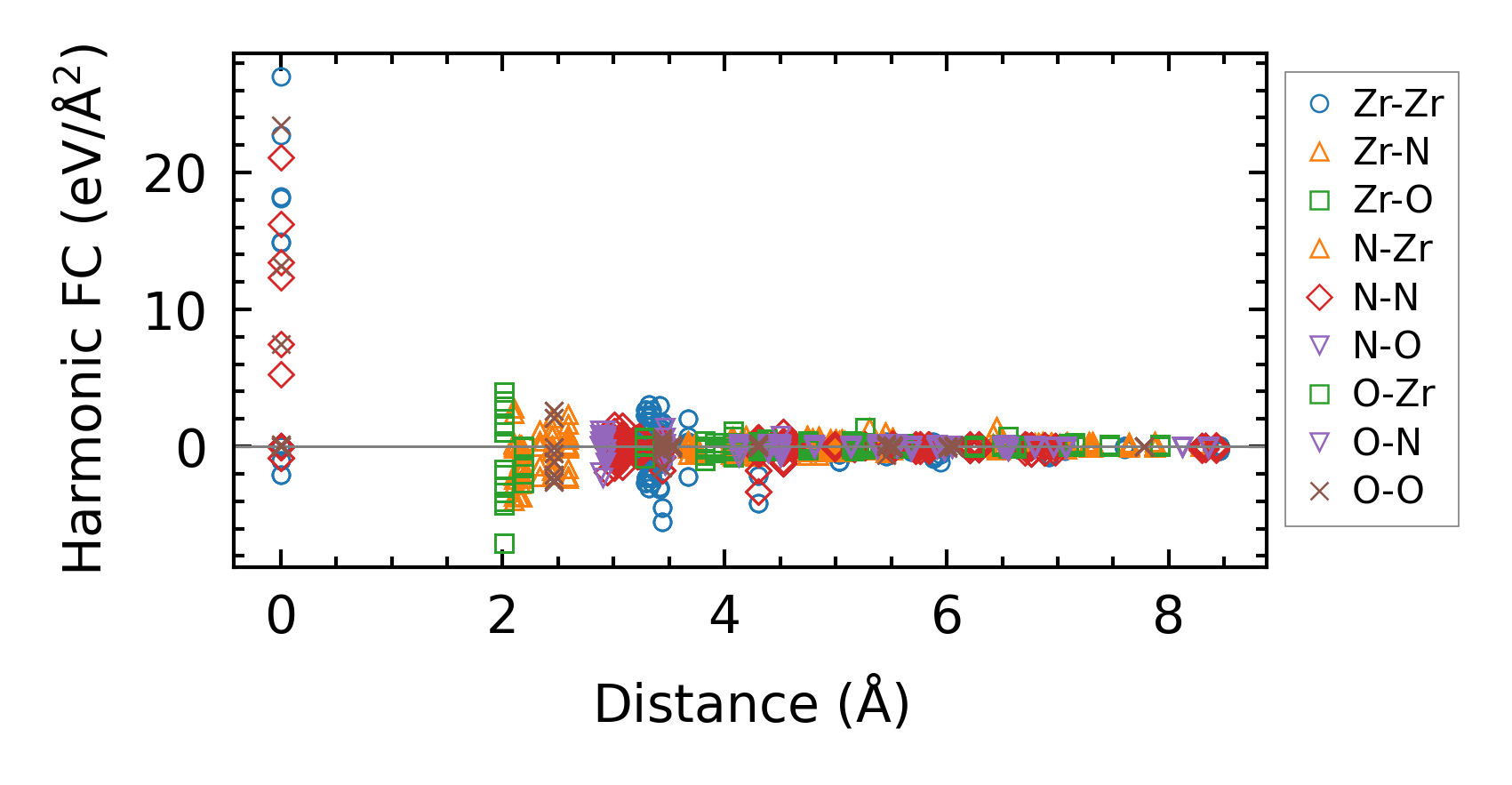

../../_images/fig_fc22085.png — (a) Force constants w.r.t atomic distance

Summary

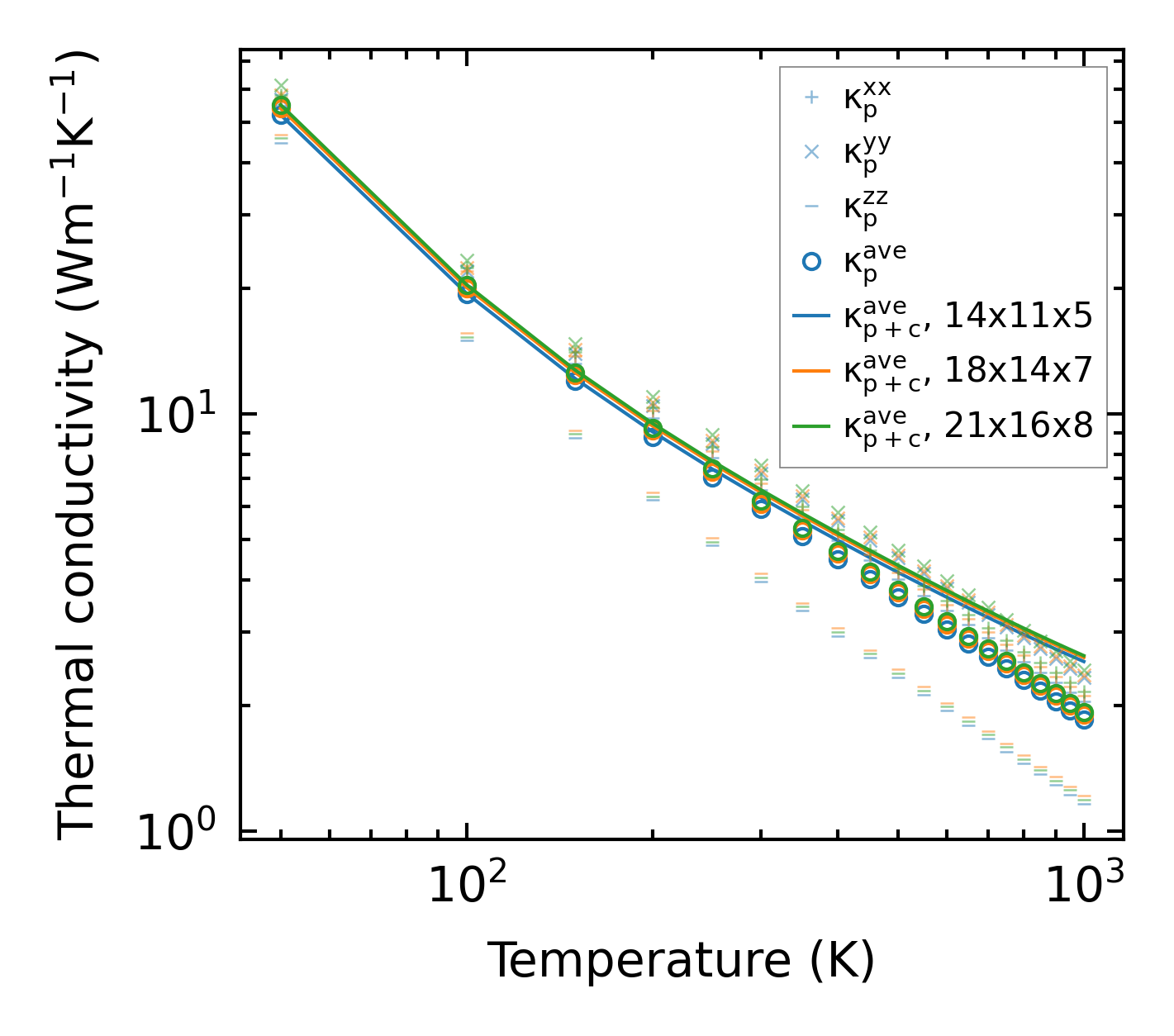

../../_images/fig_kappa2418.png — (a) Temperature-dependent lattice thermal conductivity

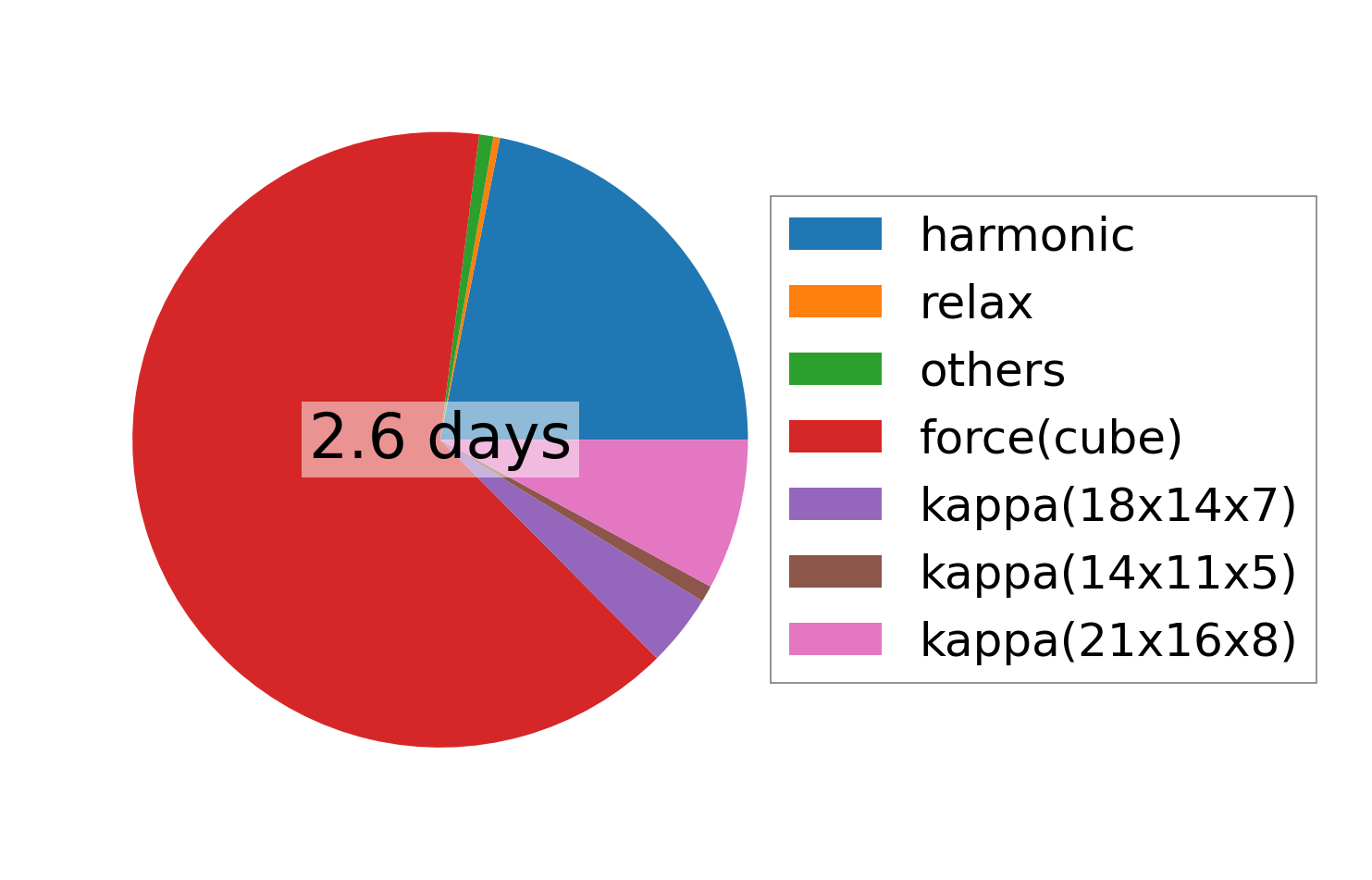

../../_images/fig_times3649.png — (b) Computation time
