mp-505495-2/KP4N7/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-505495-2.tar.gz

Equation of state

../../_images/fig_bm4922.png — (a) Equation of state

Harmonic properties

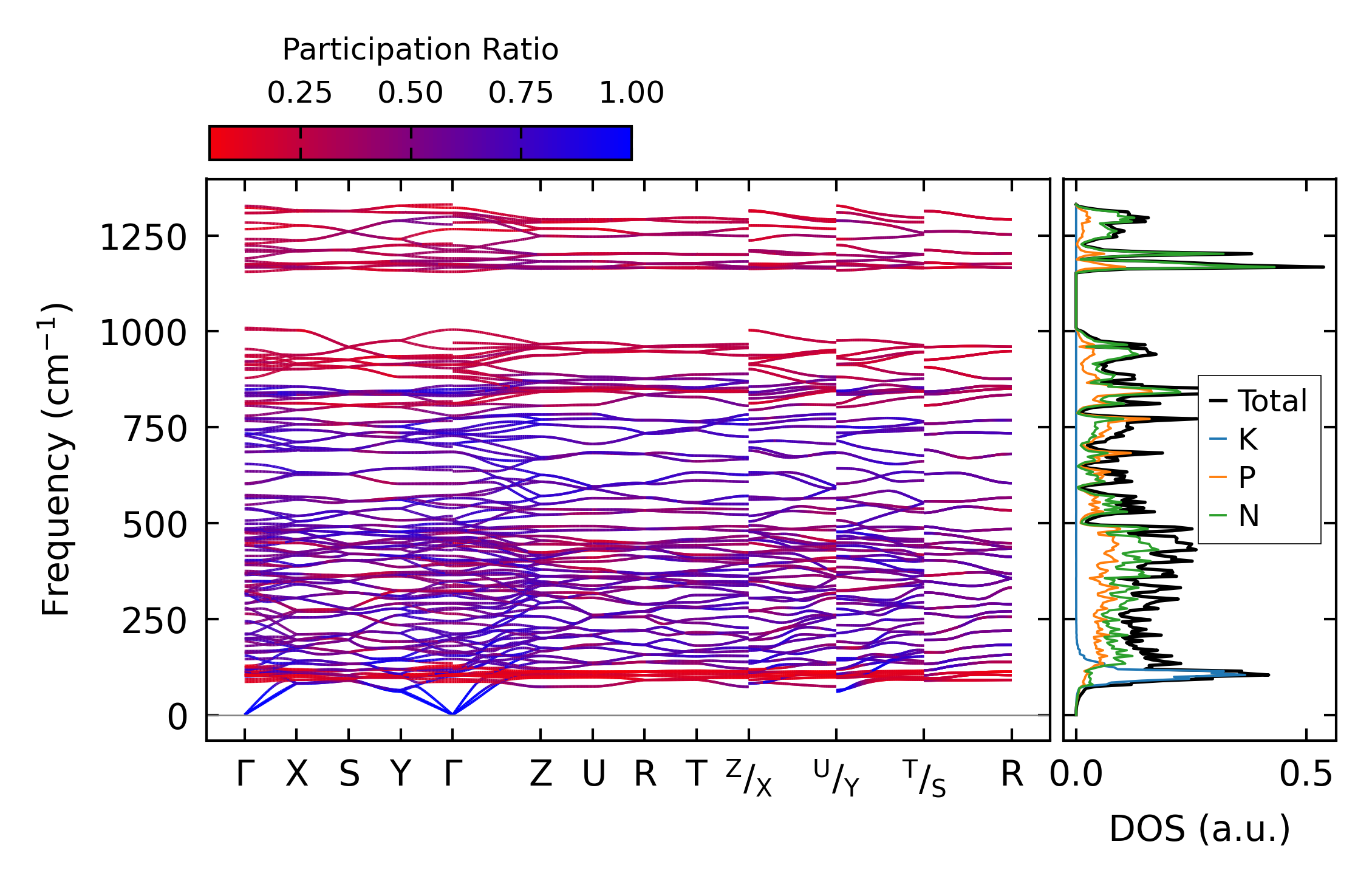

../../_images/fig_bandos_pr9882.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo9882.png — (b) Thermodynamic properties

Grüneisen parameters

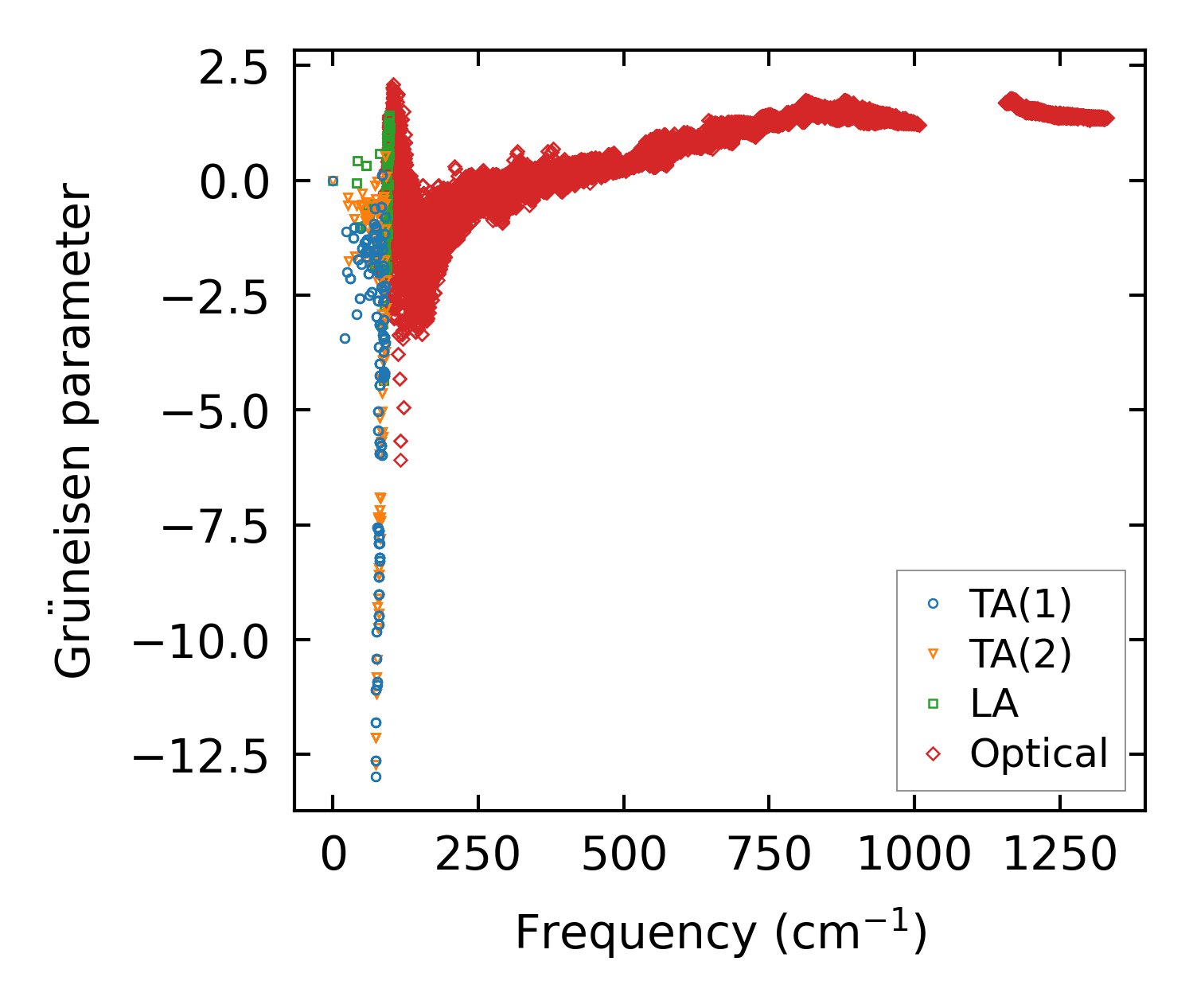

../../_images/fig_gru_all3953.png — (a) Grüneisen parameters

../../_images/fig_gruneisen3953.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x5x15, supercell: 1x1x3

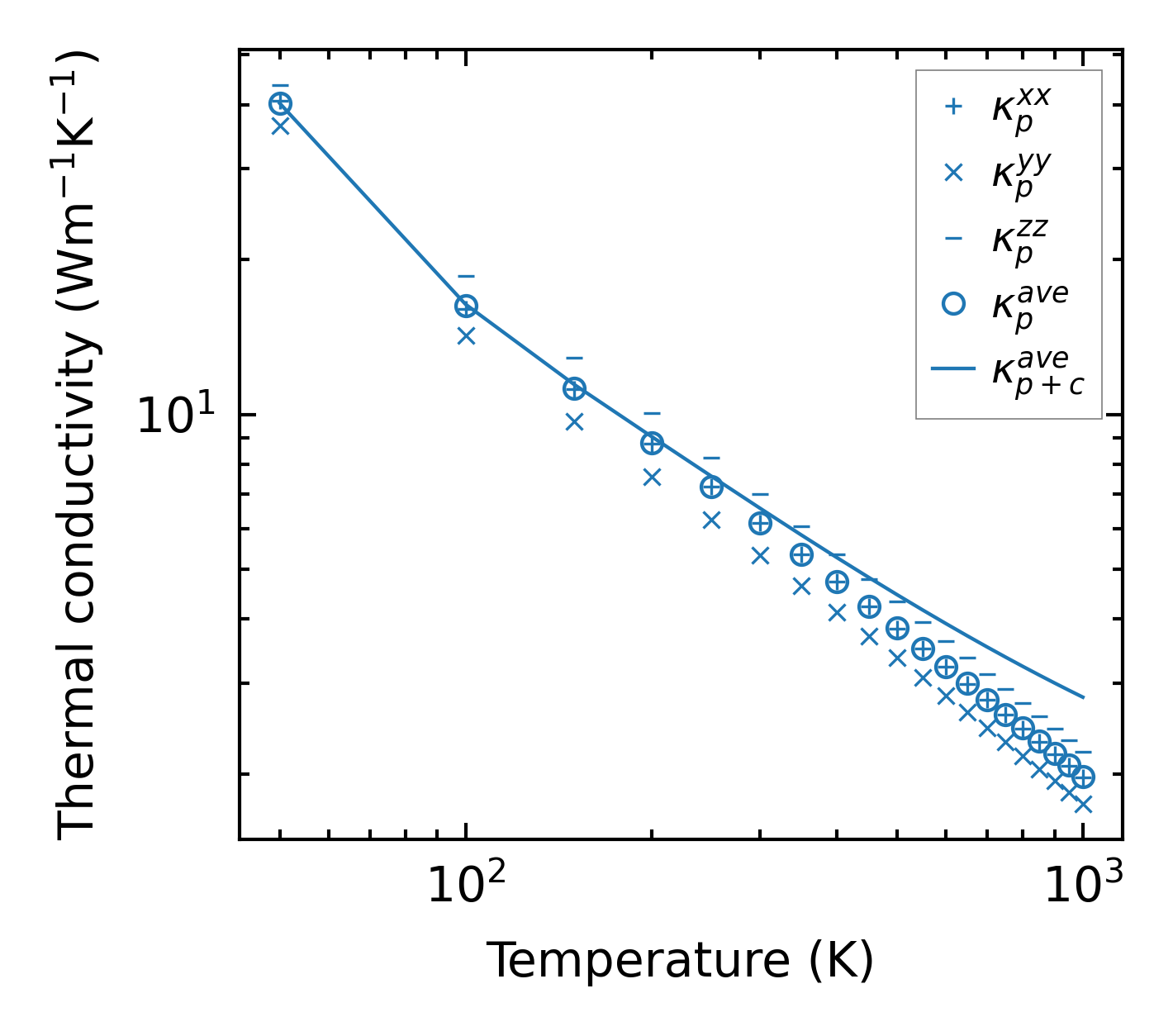

../../_images/fig_kappa7453.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4004.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime3916.png — (a) Phonon lifetime due to phonon-phonon scattering

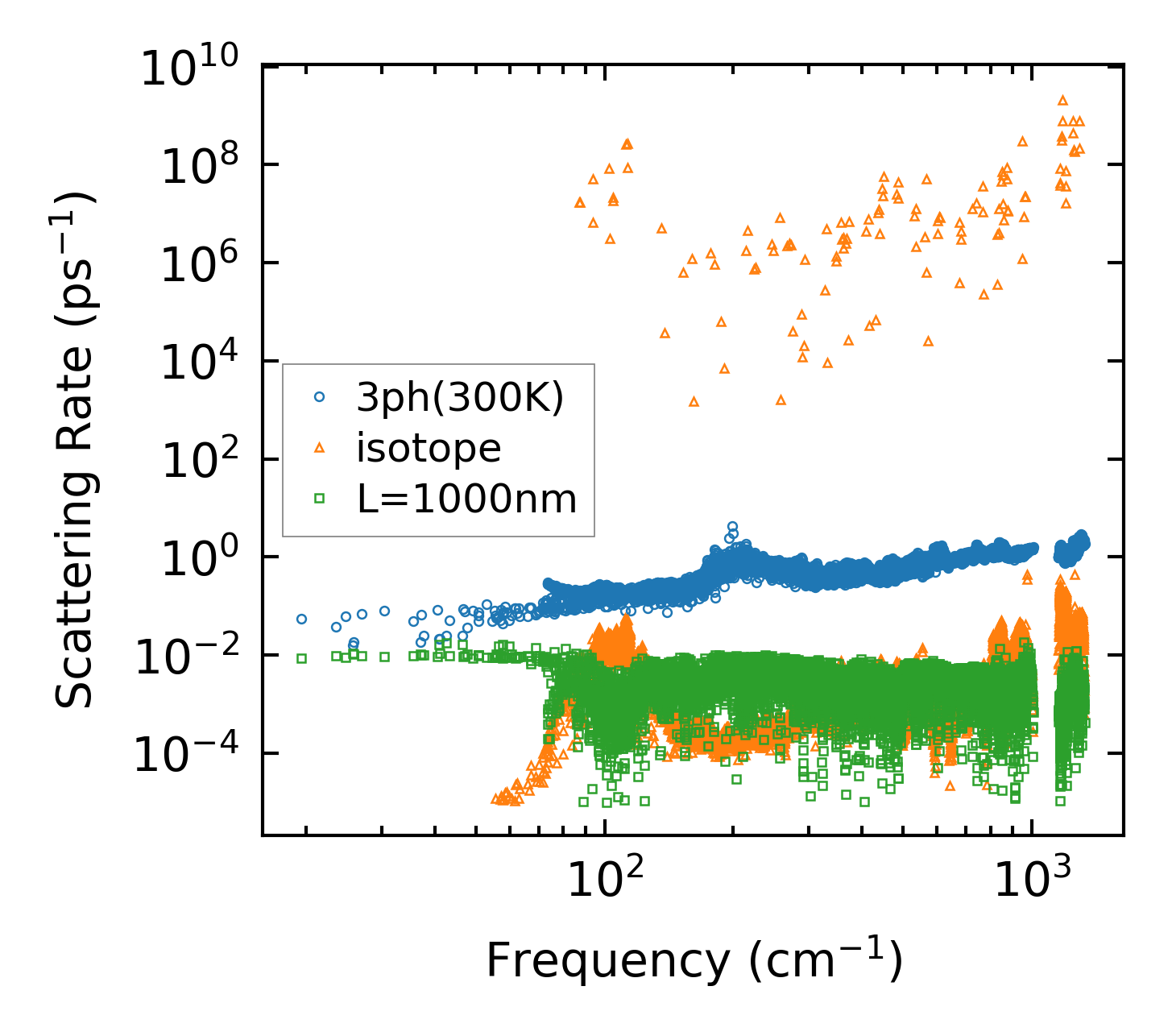

../../_images/fig_scat_rates3915.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

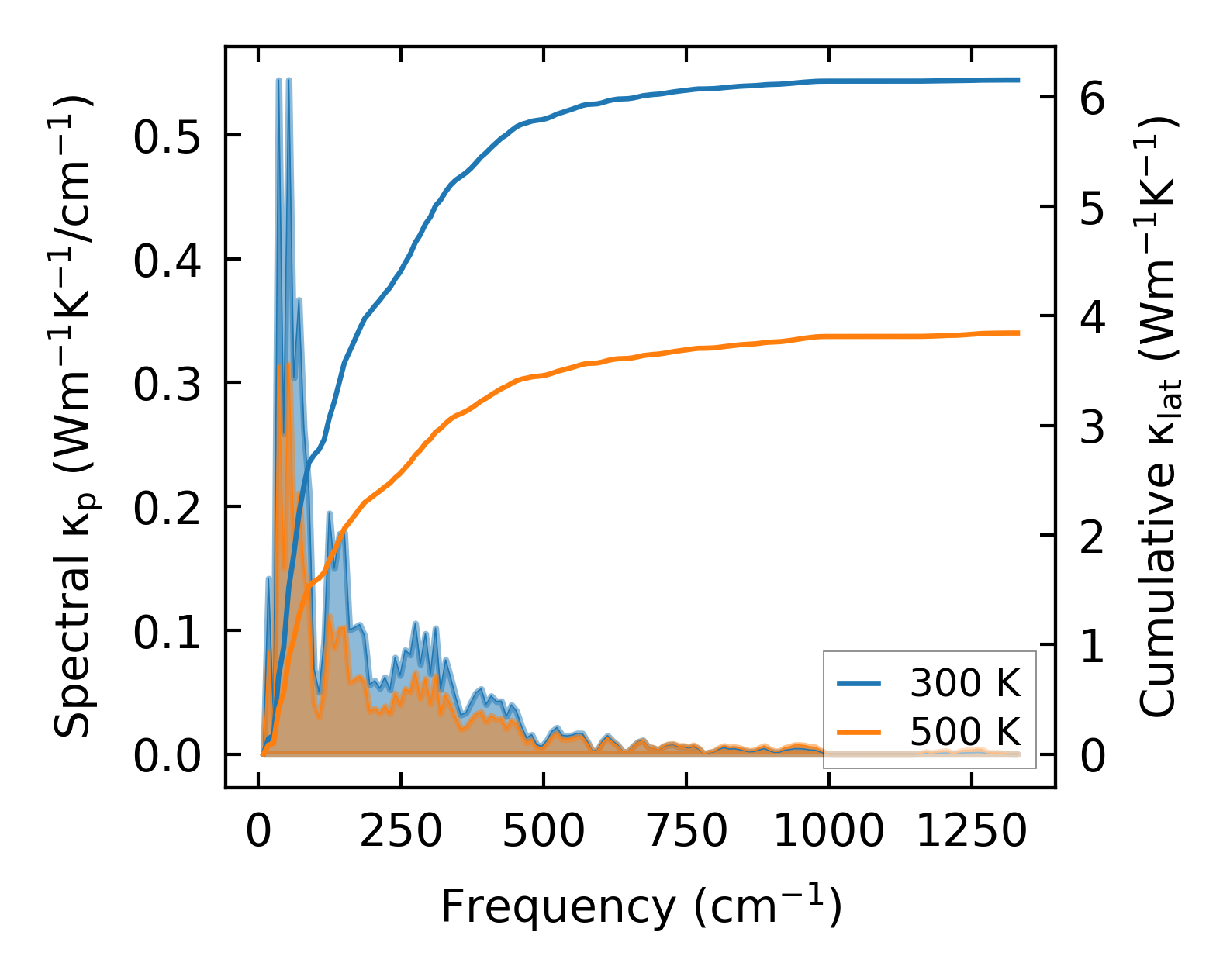

../../_images/fig_cumu_frequency3916.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

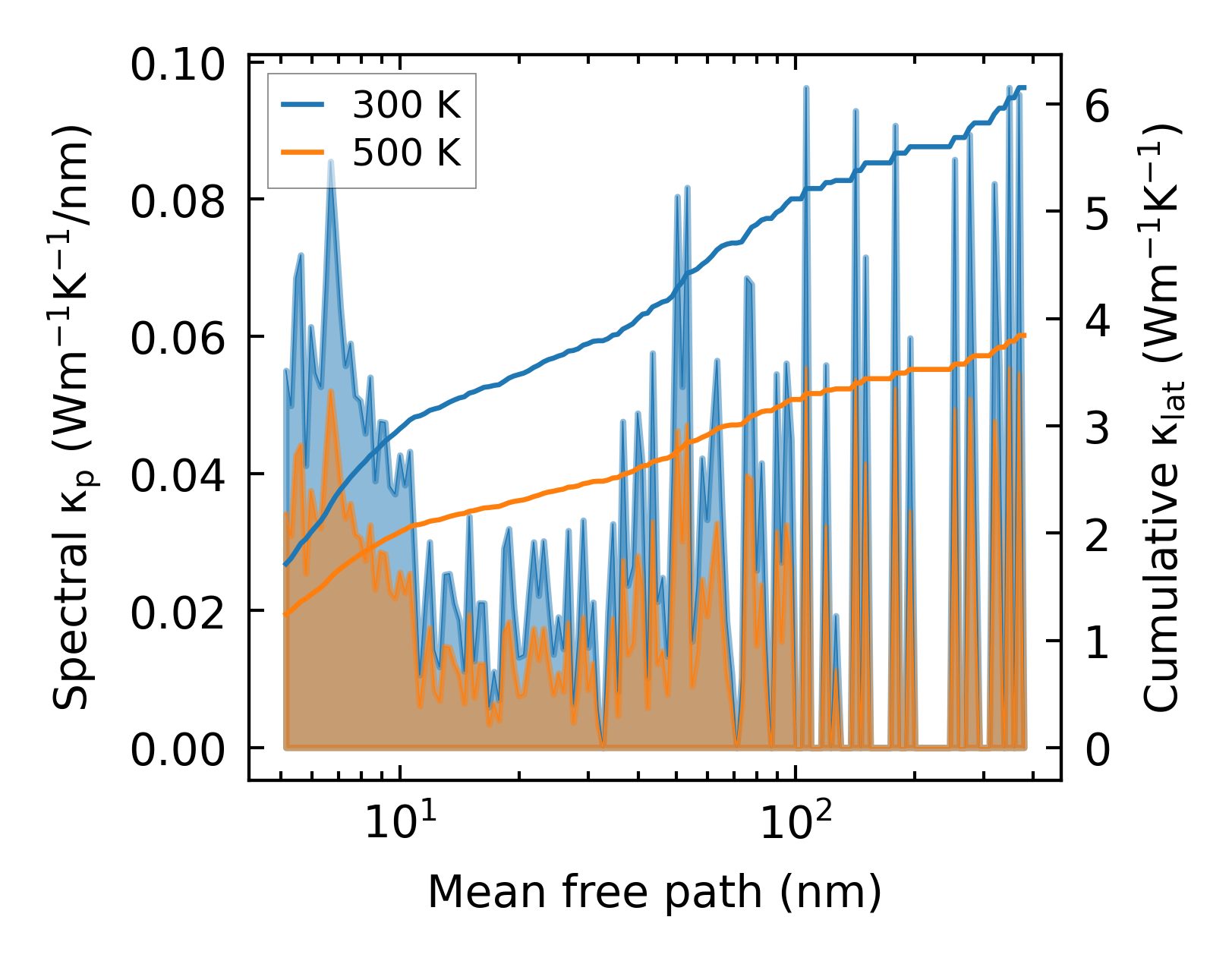

../../_images/fig_cumu_mfp3915.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc29636.png — (a) Force constants w.r.t atomic distance

Summary

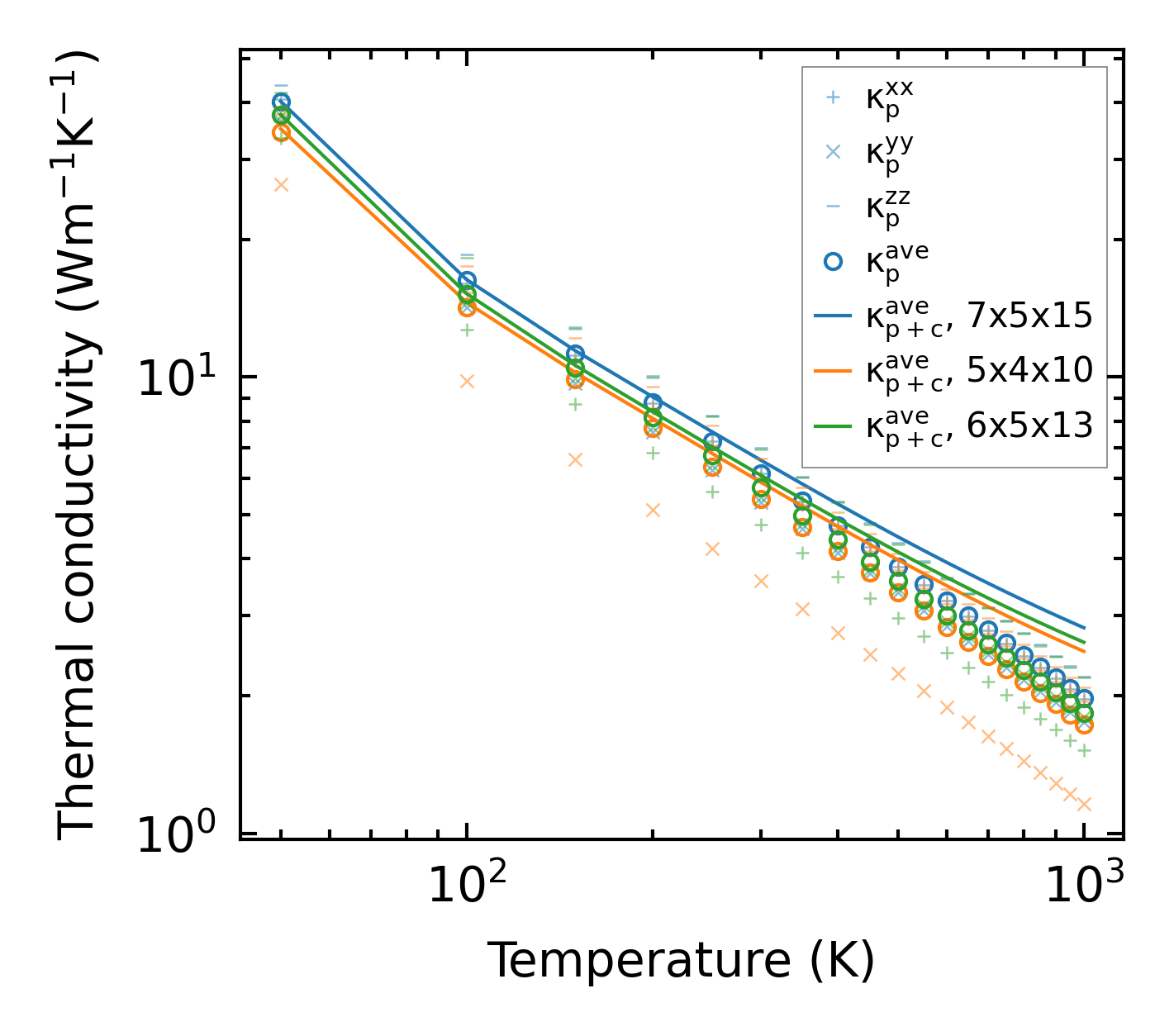

../../_images/fig_kappa7454.png — (a) Temperature-dependent lattice thermal conductivity

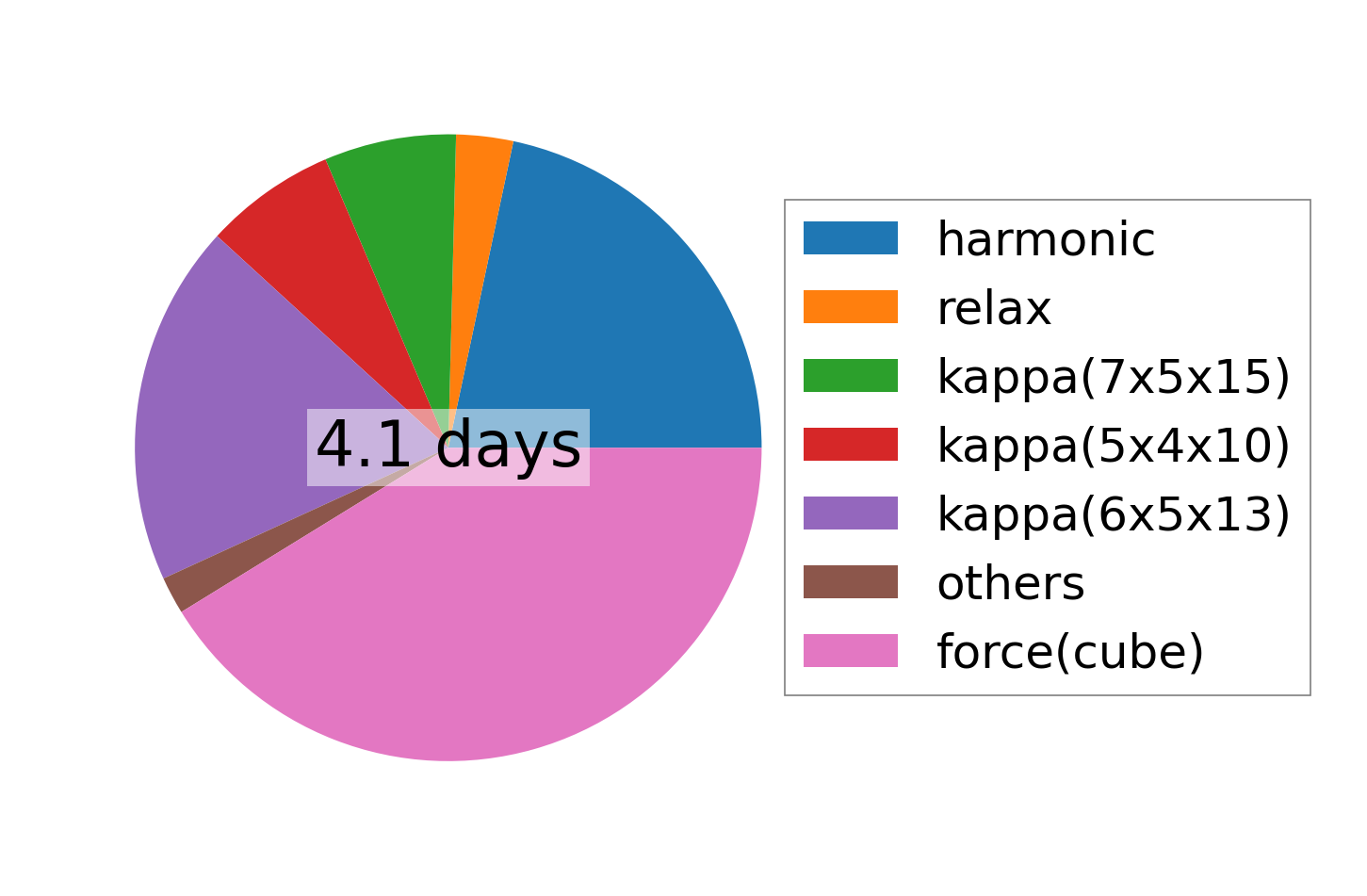

../../_images/fig_times17168.png — (b) Computation time
