mp-505284/Pb3Br2O2/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-505284.tar.gz

Harmonic properties

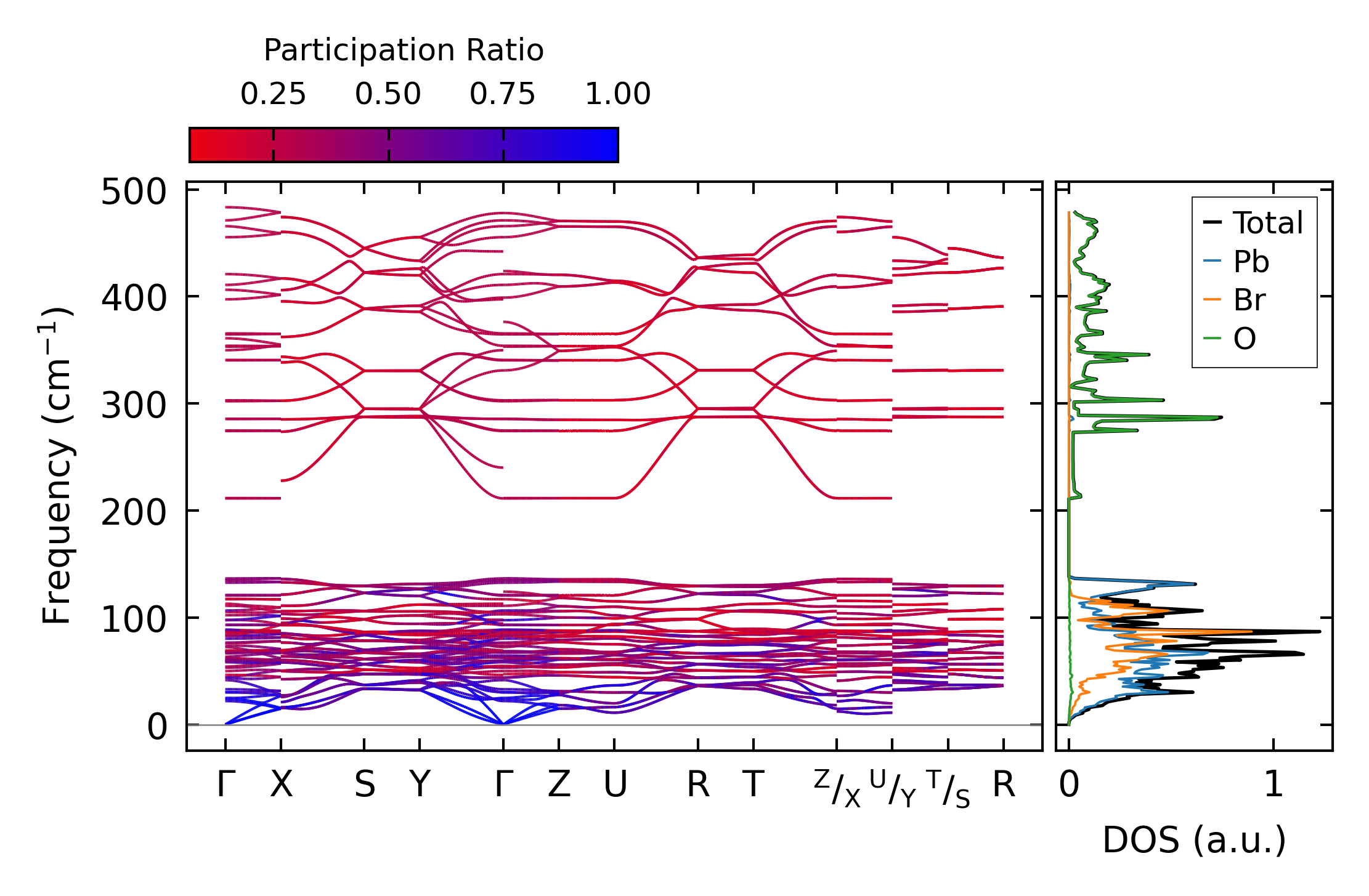

../../_images/fig_bandos_pr9865.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo9865.png — (b) Thermodynamic properties

Grüneisen parameters

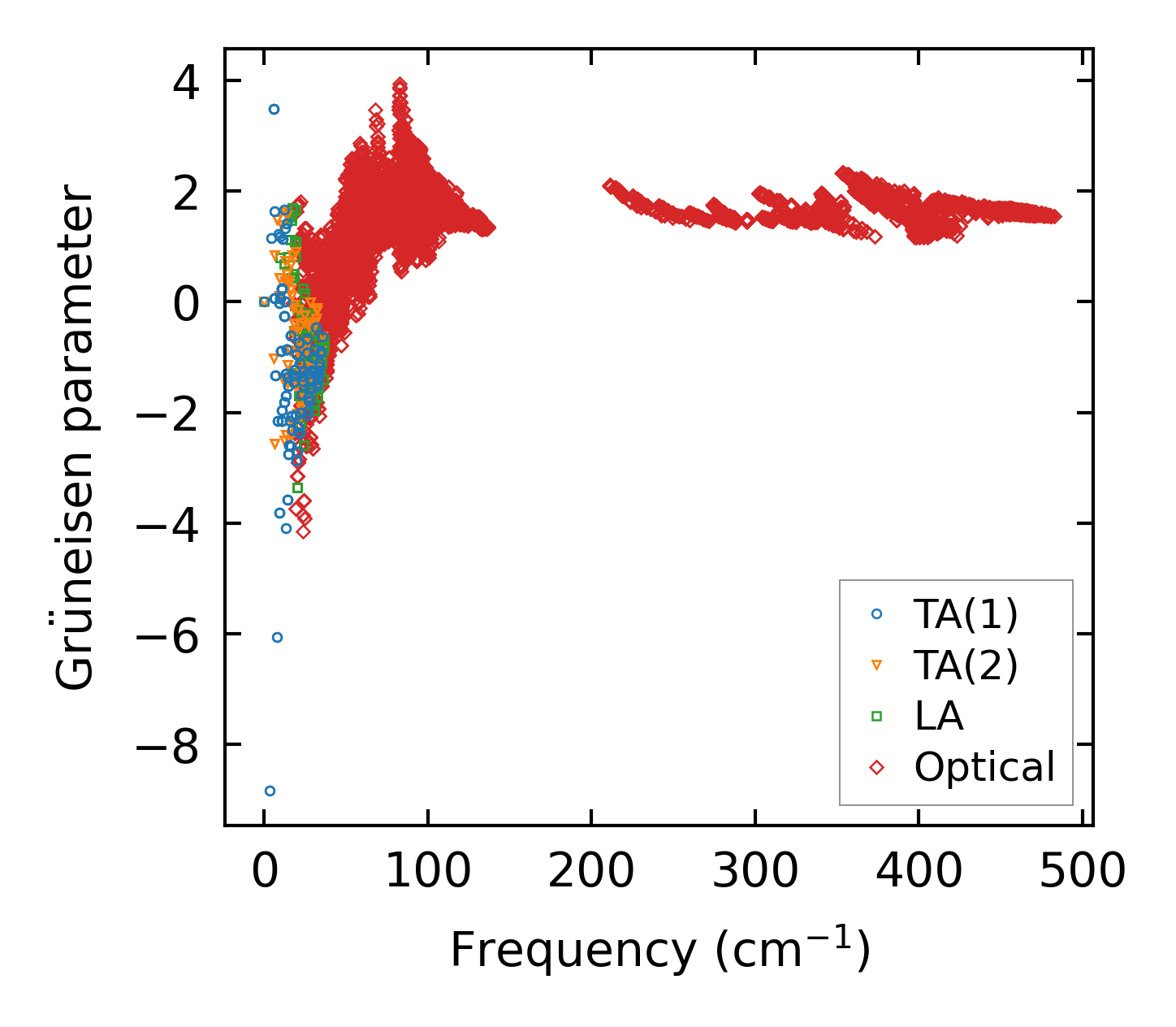

../../_images/fig_gru_all3943.png — (a) Grüneisen parameters

../../_images/fig_gruneisen3943.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 5x12x7, supercell: 1x2x2

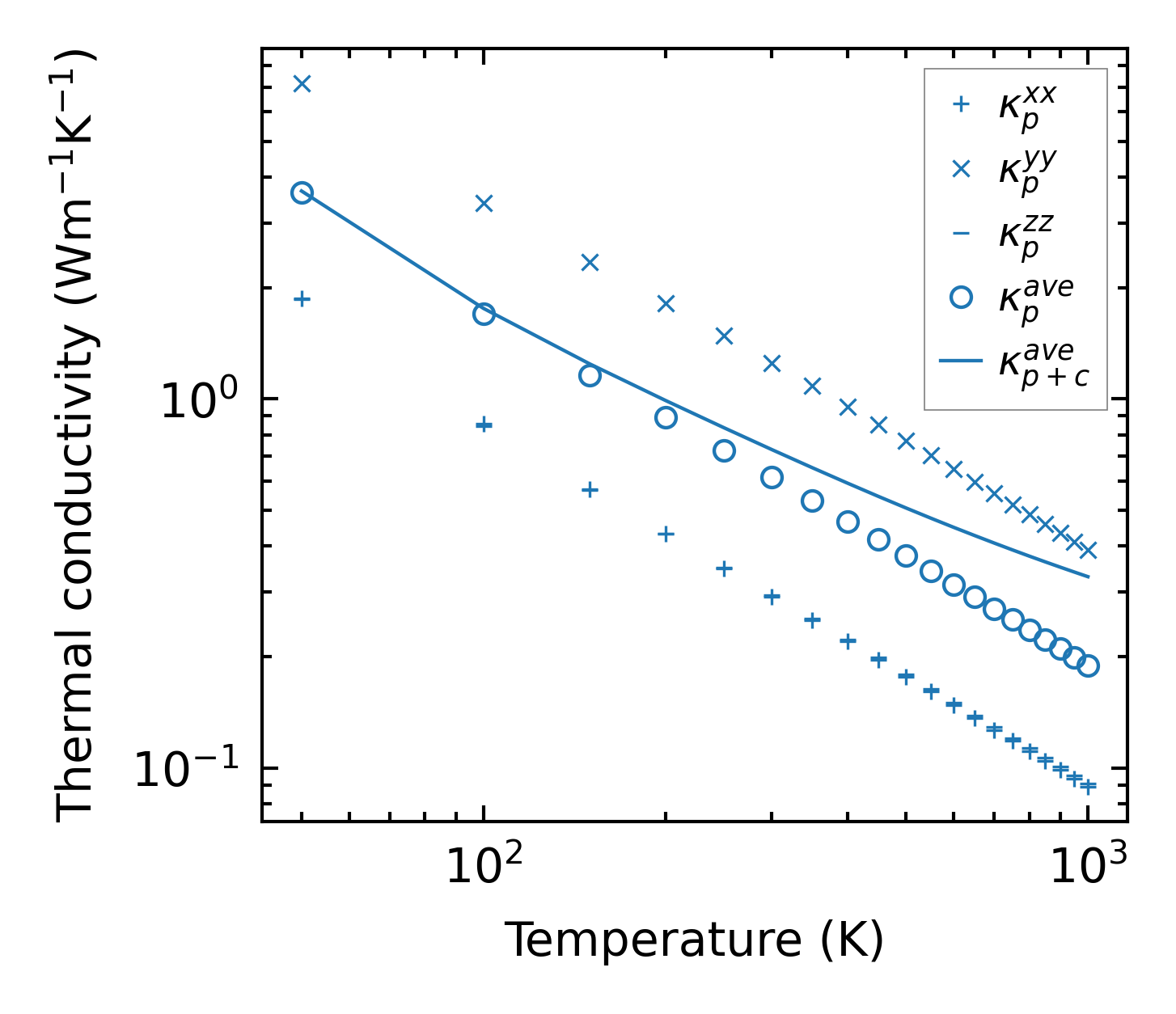

../../_images/fig_kappa7433.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3994.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime3906.png — (a) Phonon lifetime due to phonon-phonon scattering

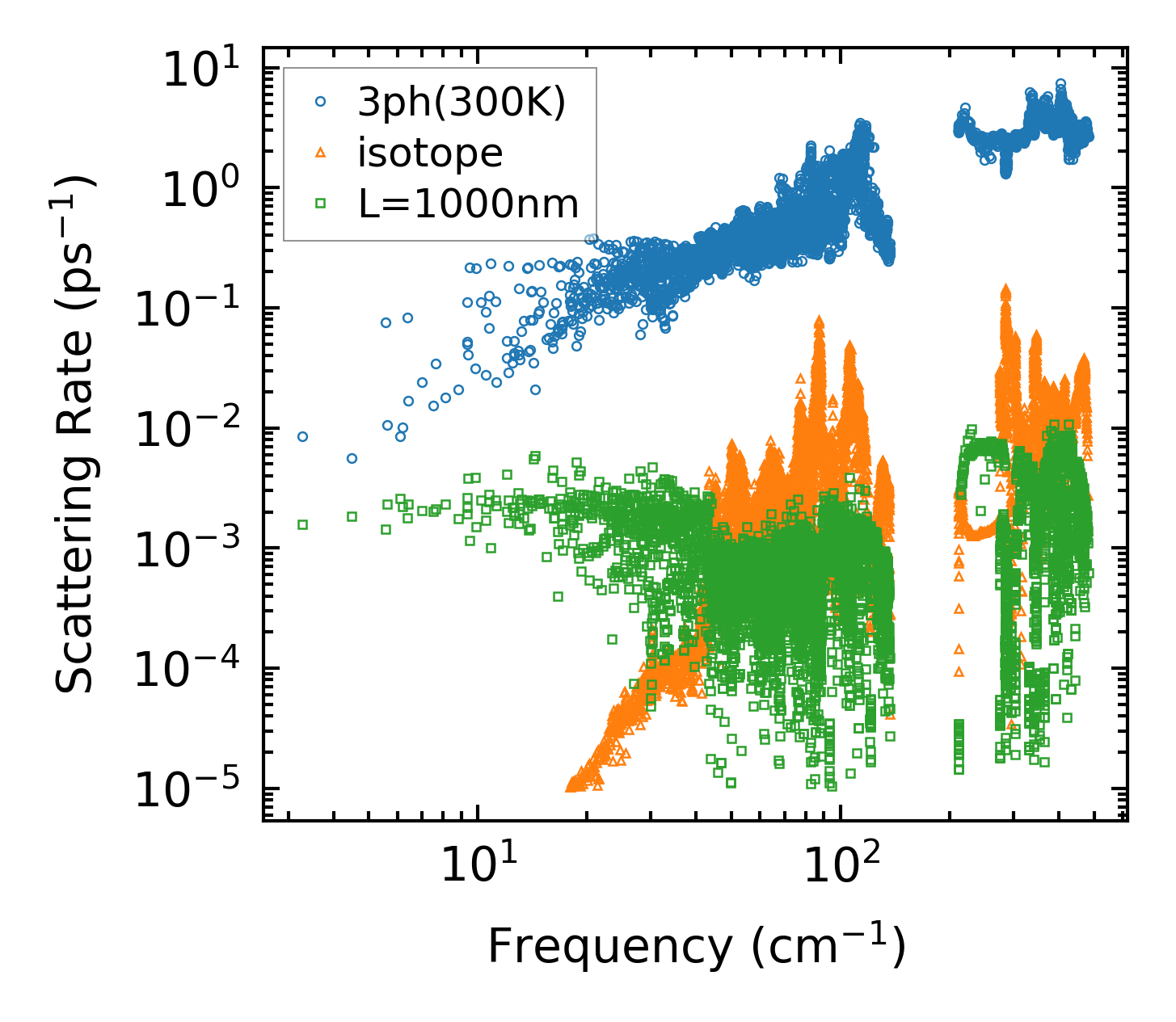

../../_images/fig_scat_rates3905.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

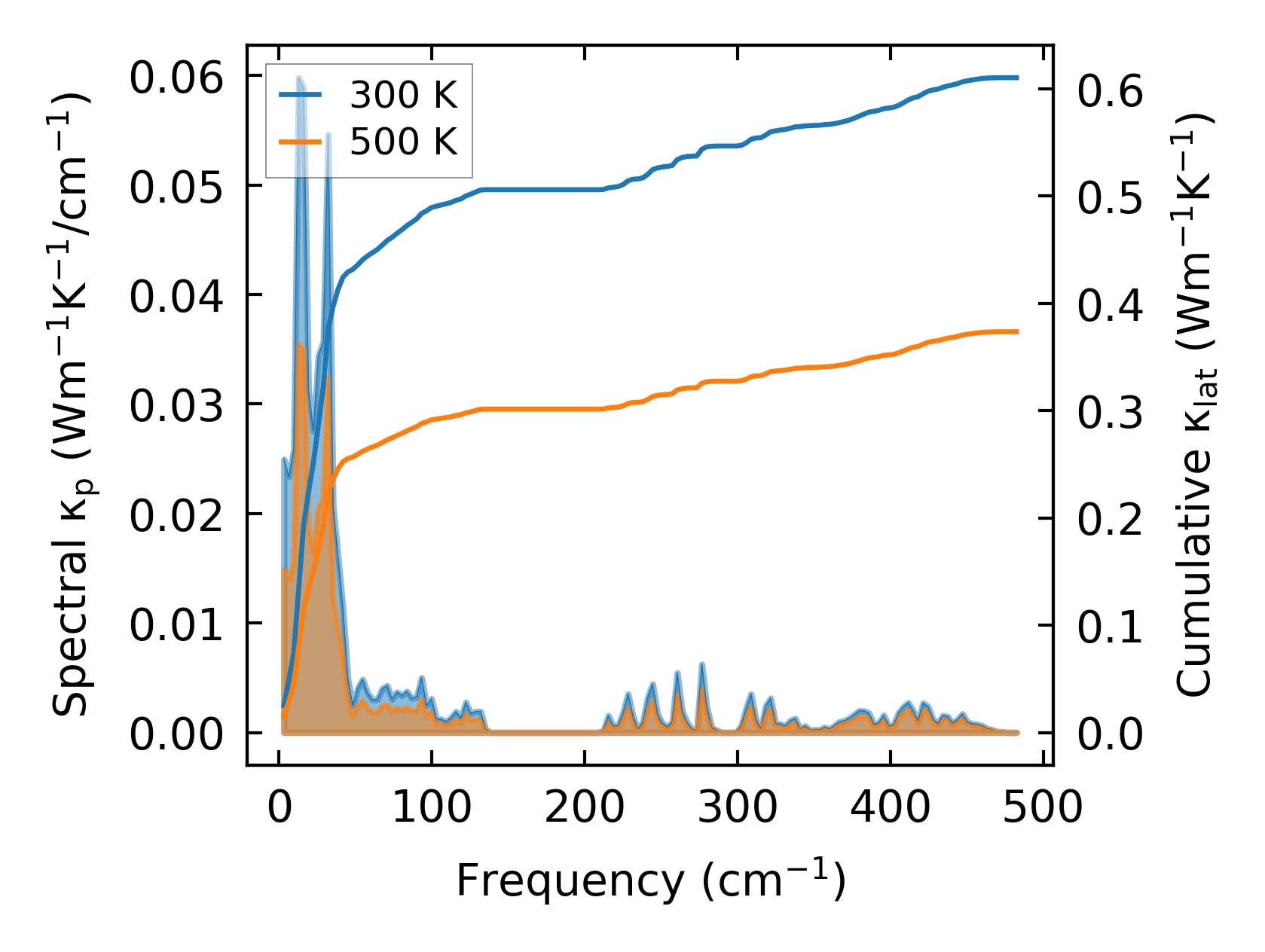

../../_images/fig_cumu_frequency3906.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

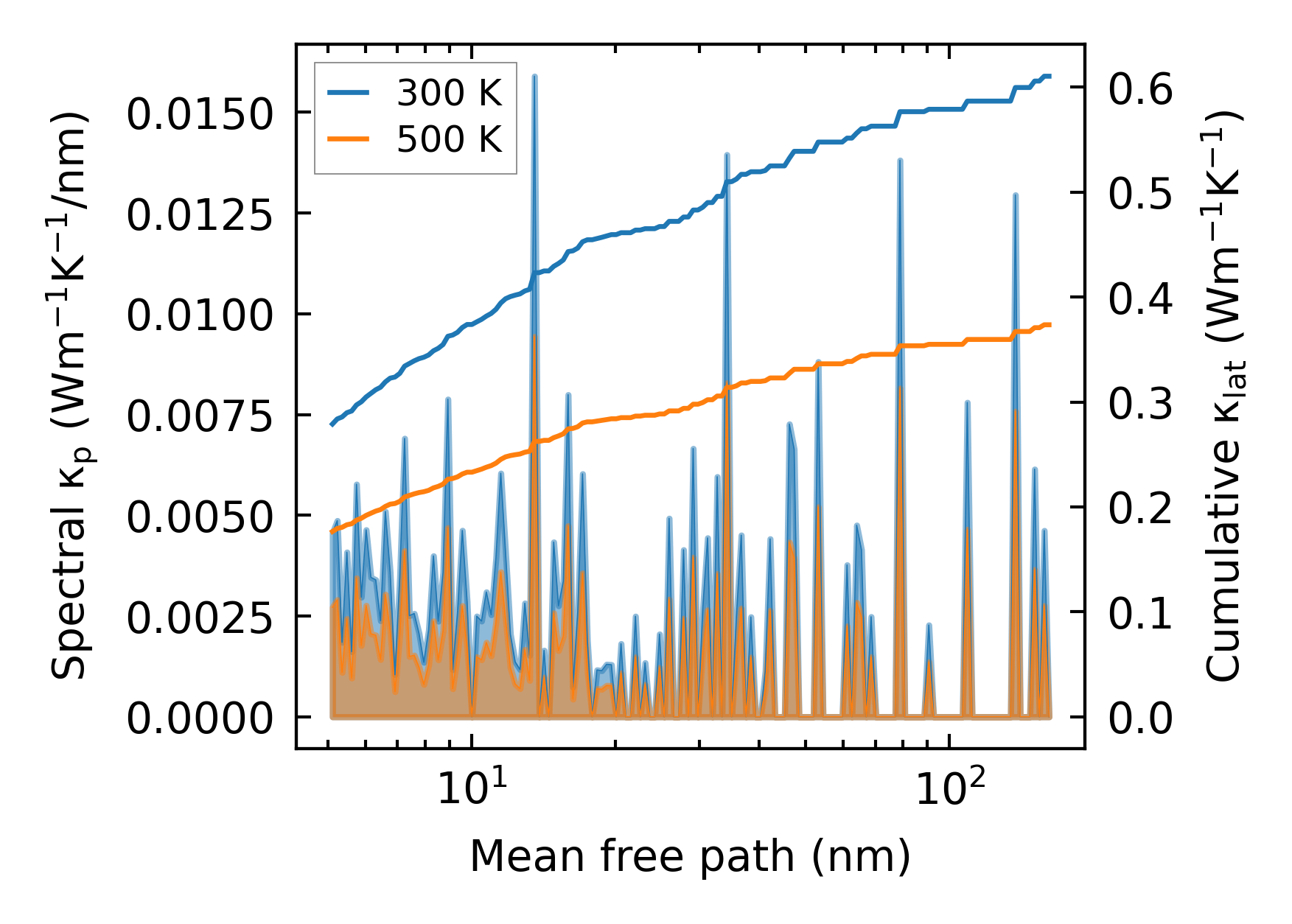

../../_images/fig_cumu_mfp3905.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

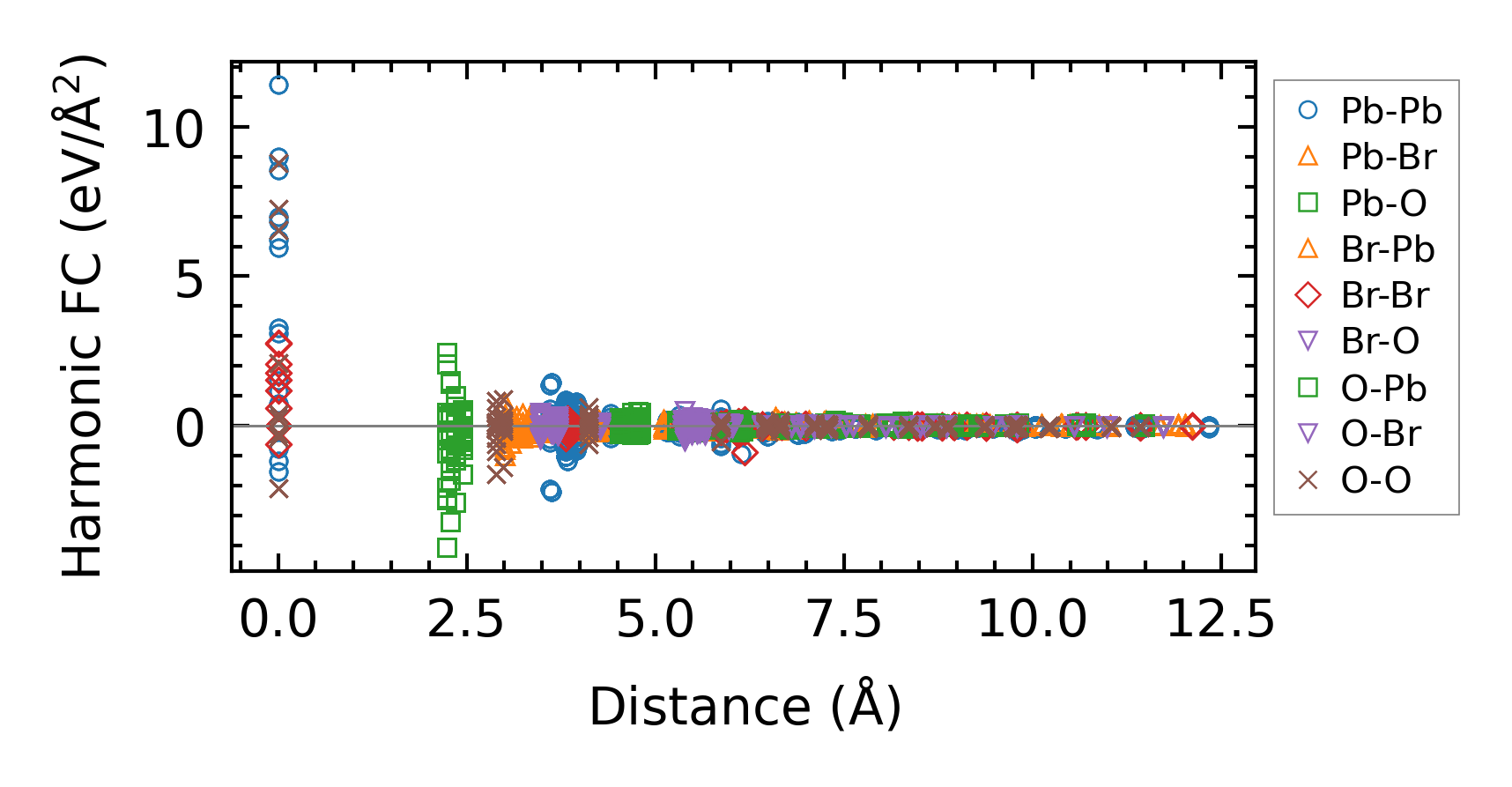

../../_images/fig_fc29620.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa7434.png — (a) Temperature-dependent lattice thermal conductivity

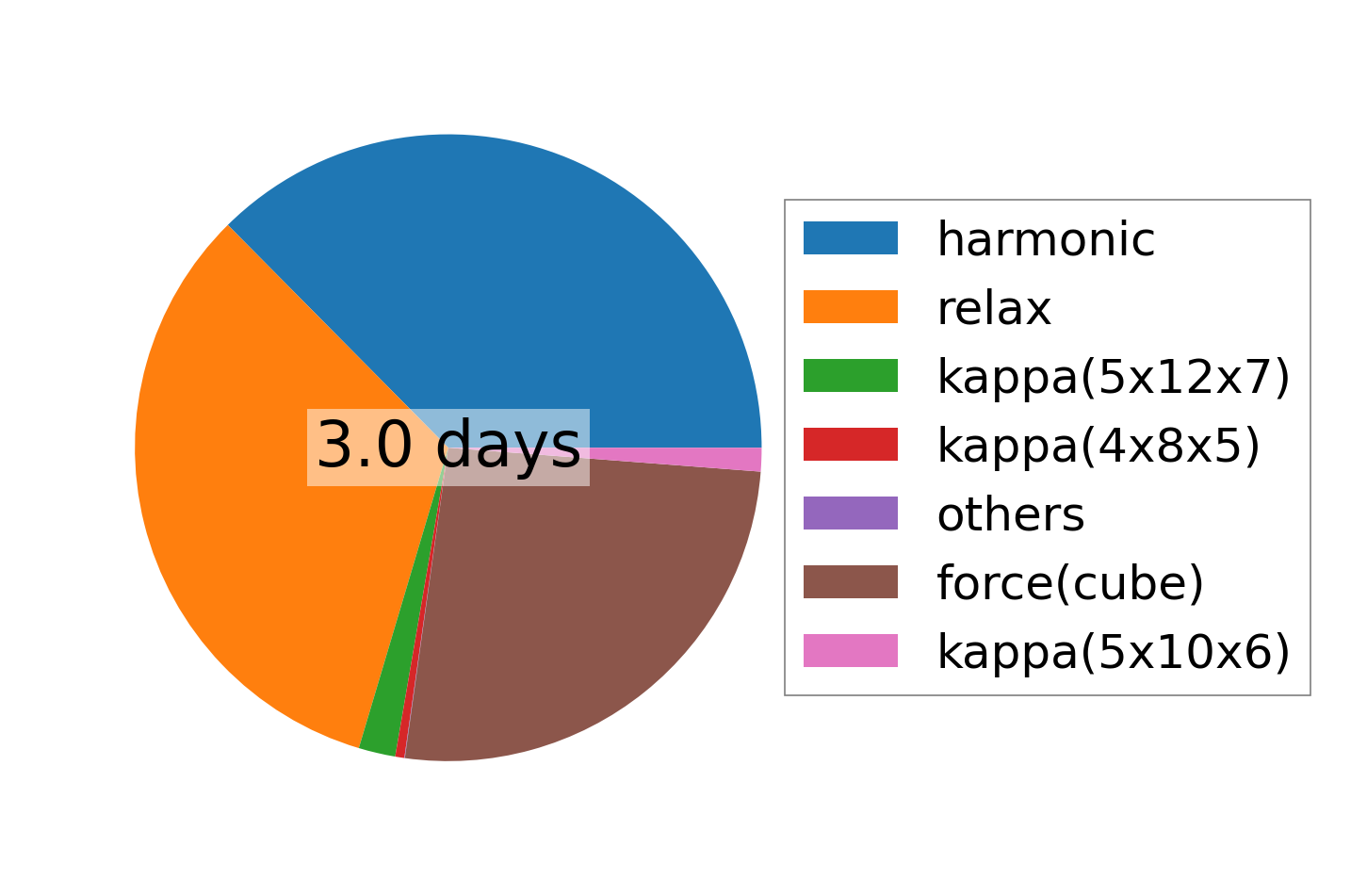

../../_images/fig_times17143.png — (b) Computation time
