mp-505451/HS9N/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-505451.tar.gz

Harmonic properties

../../_images/fig_bandos_pr9879.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo9879.png — (b) Thermodynamic properties

Grüneisen parameters

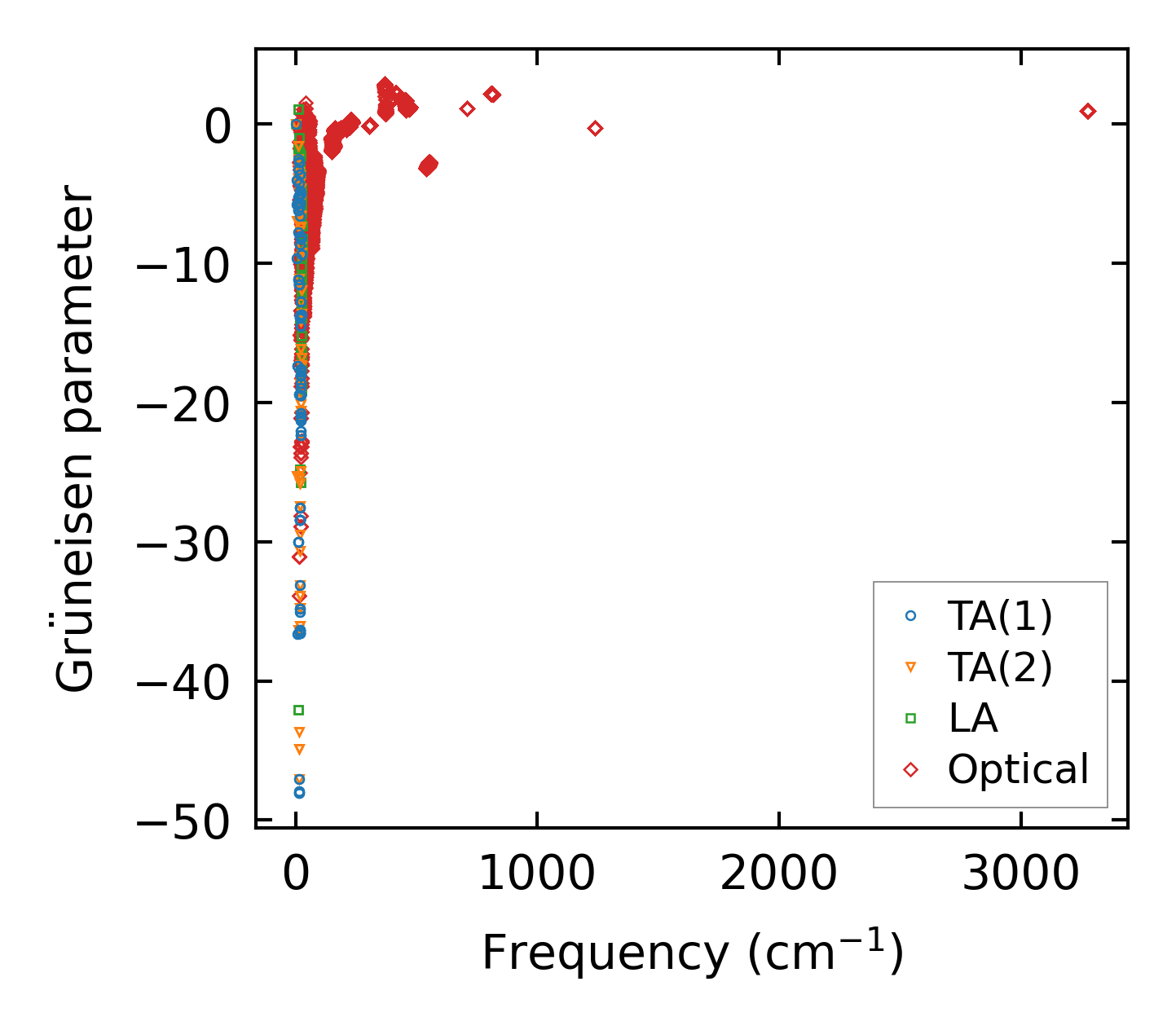

../../_images/fig_gru_all3950.png — (a) Grüneisen parameters

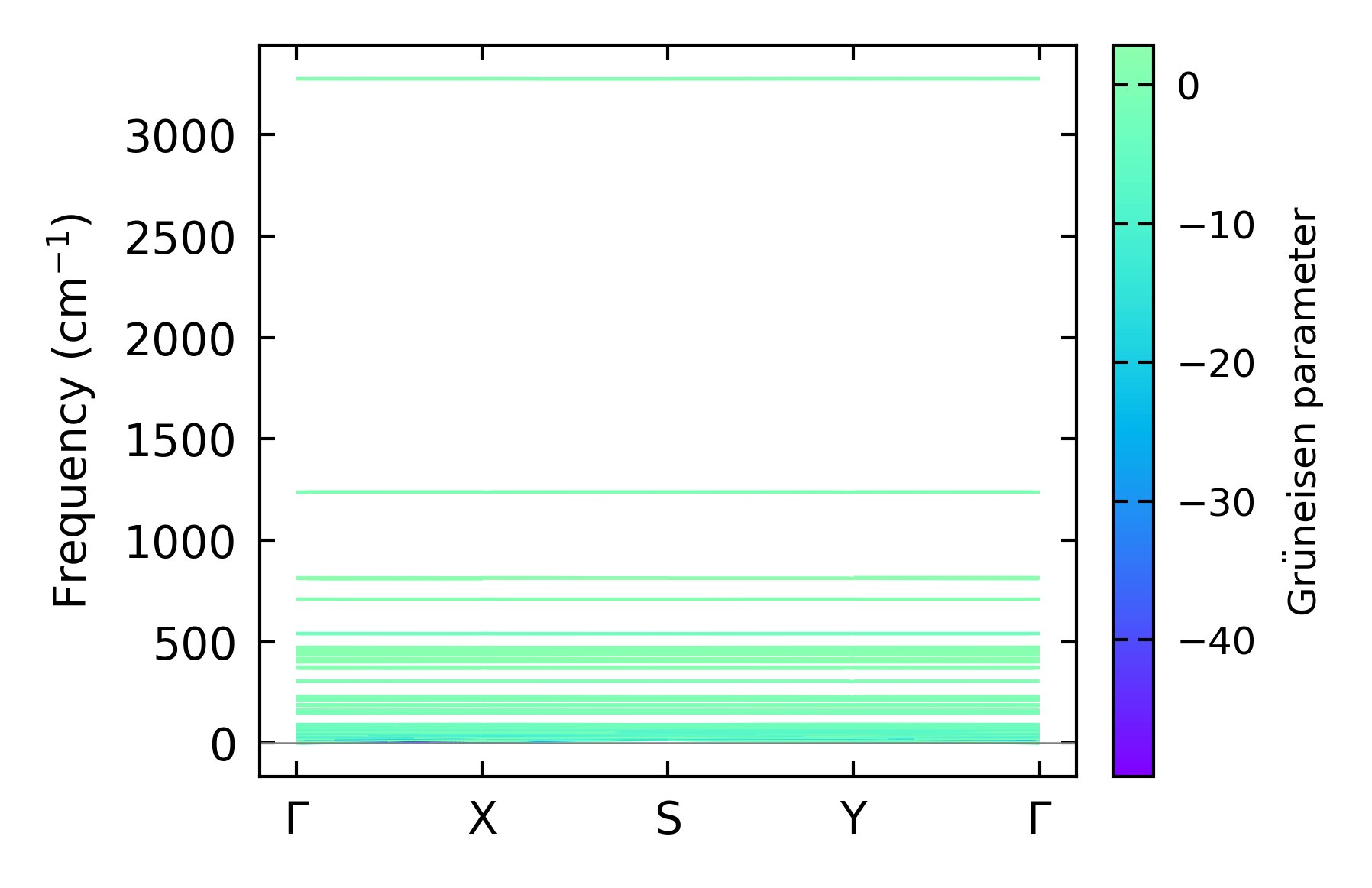

../../_images/fig_gruneisen3950.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 5x4x13, supercell: 1x1x3

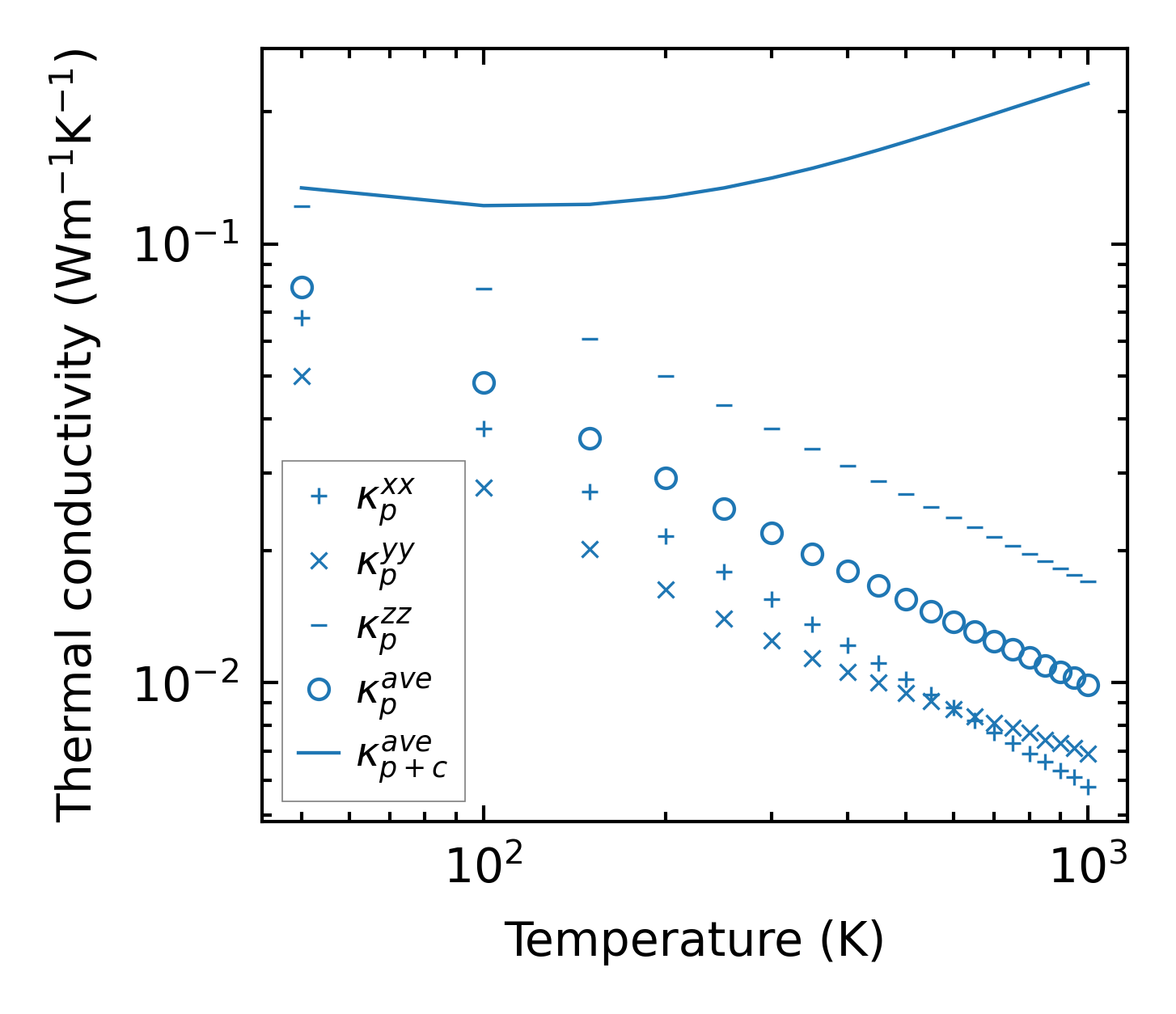

../../_images/fig_kappa7447.png — (a) Temperature-dependent lattice thermal conductivity

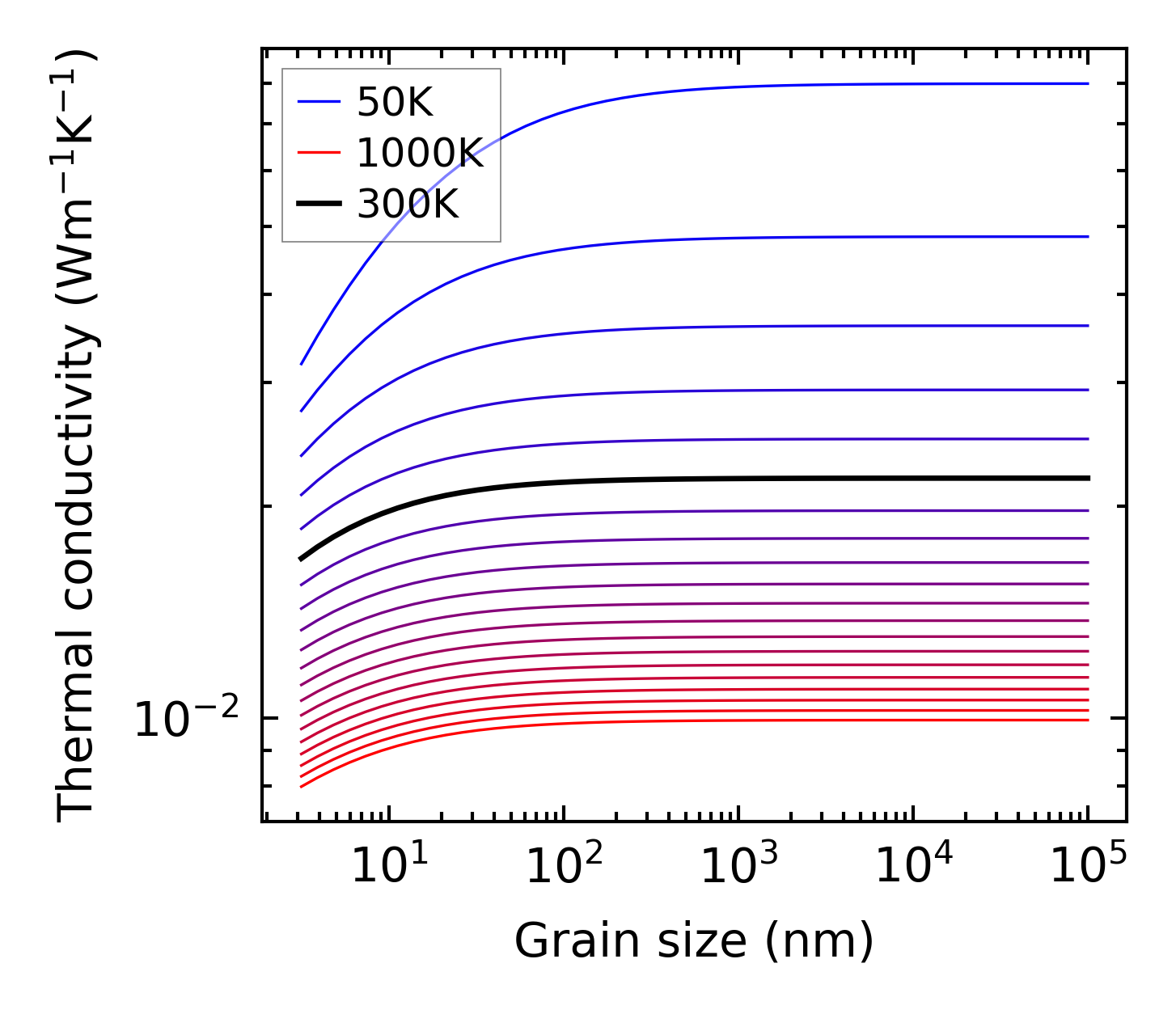

../../_images/fig_kappa_vs_grain_size4001.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime3913.png — (a) Phonon lifetime due to phonon-phonon scattering

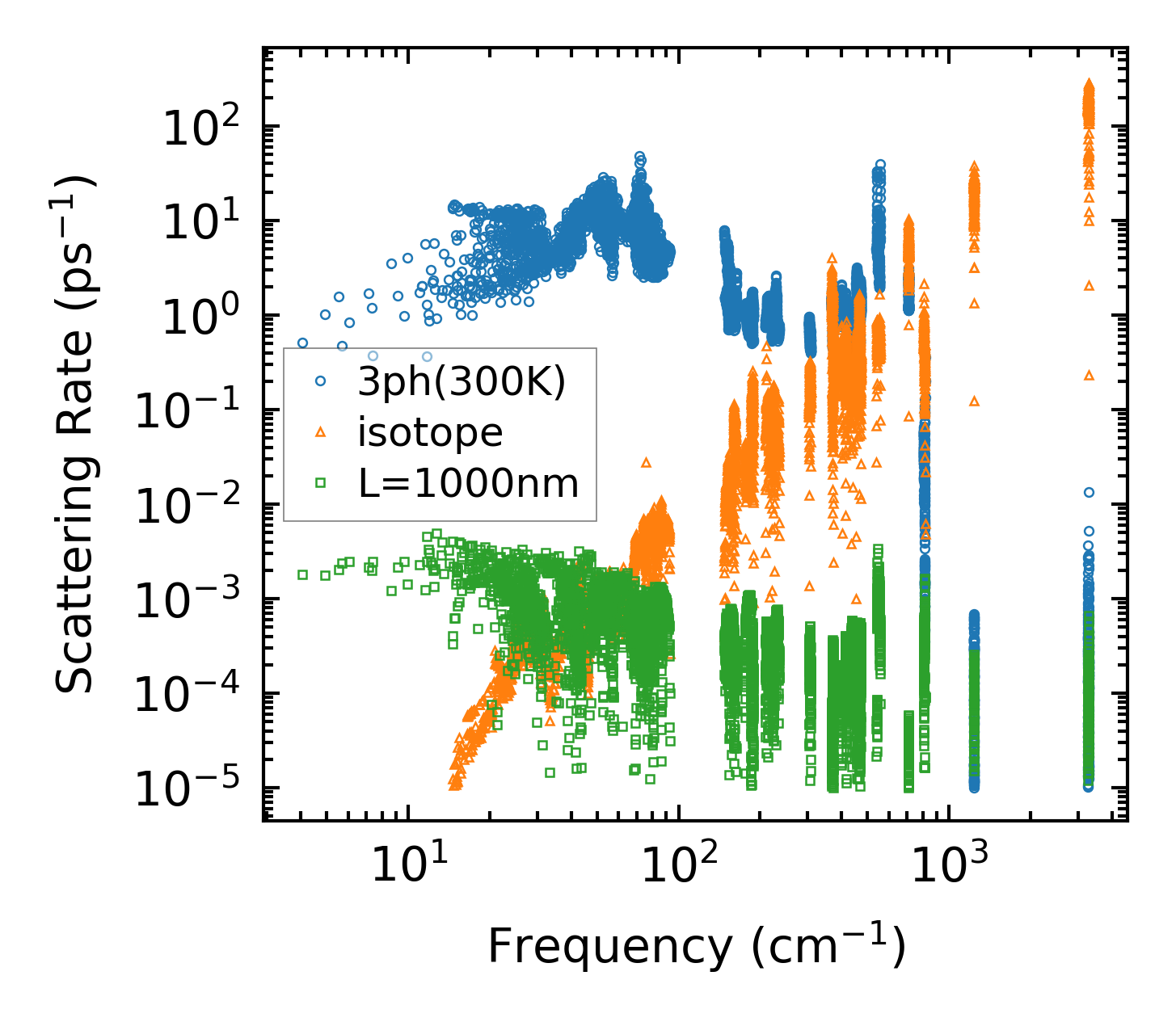

../../_images/fig_scat_rates3912.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

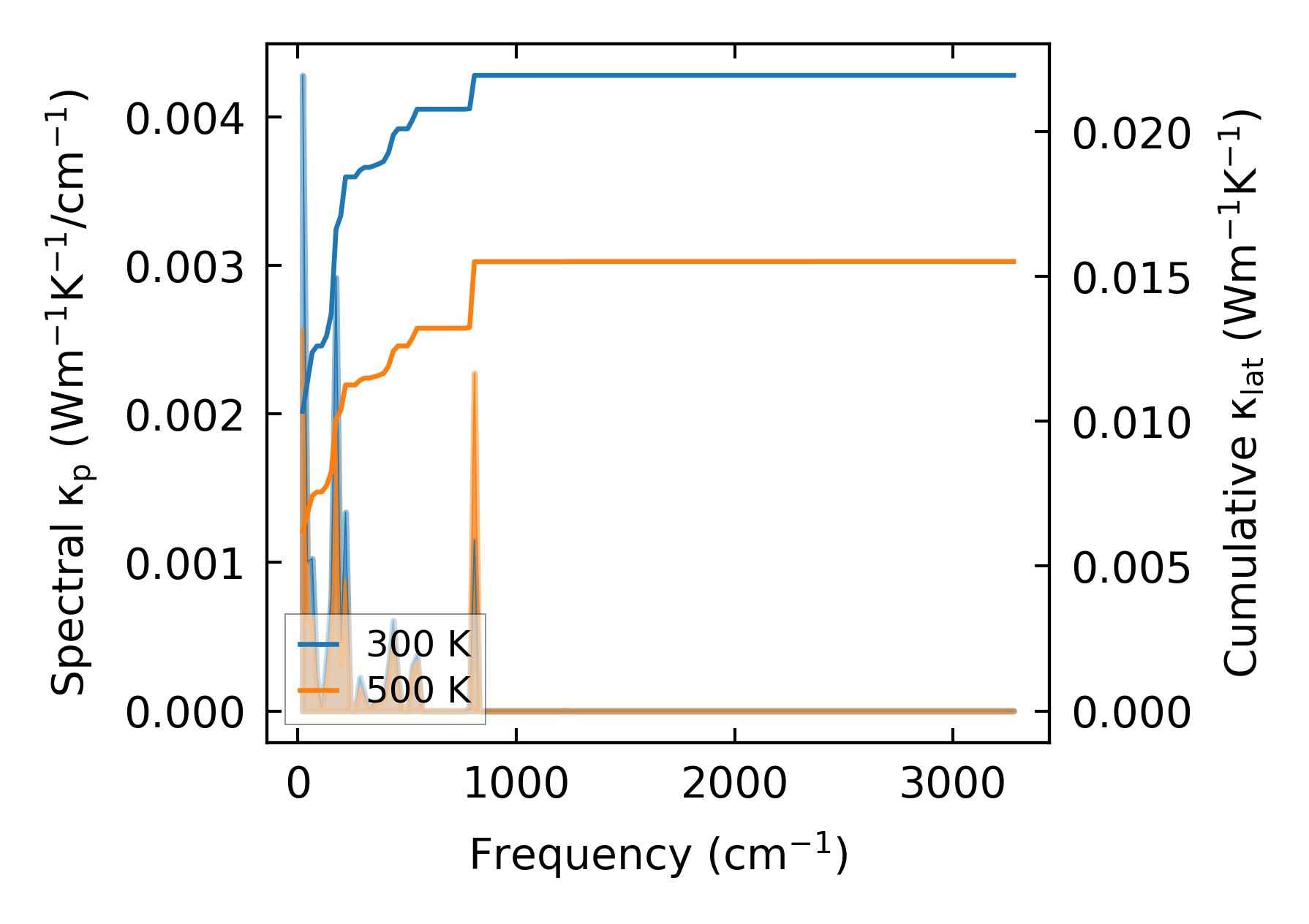

../../_images/fig_cumu_frequency3913.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp3912.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

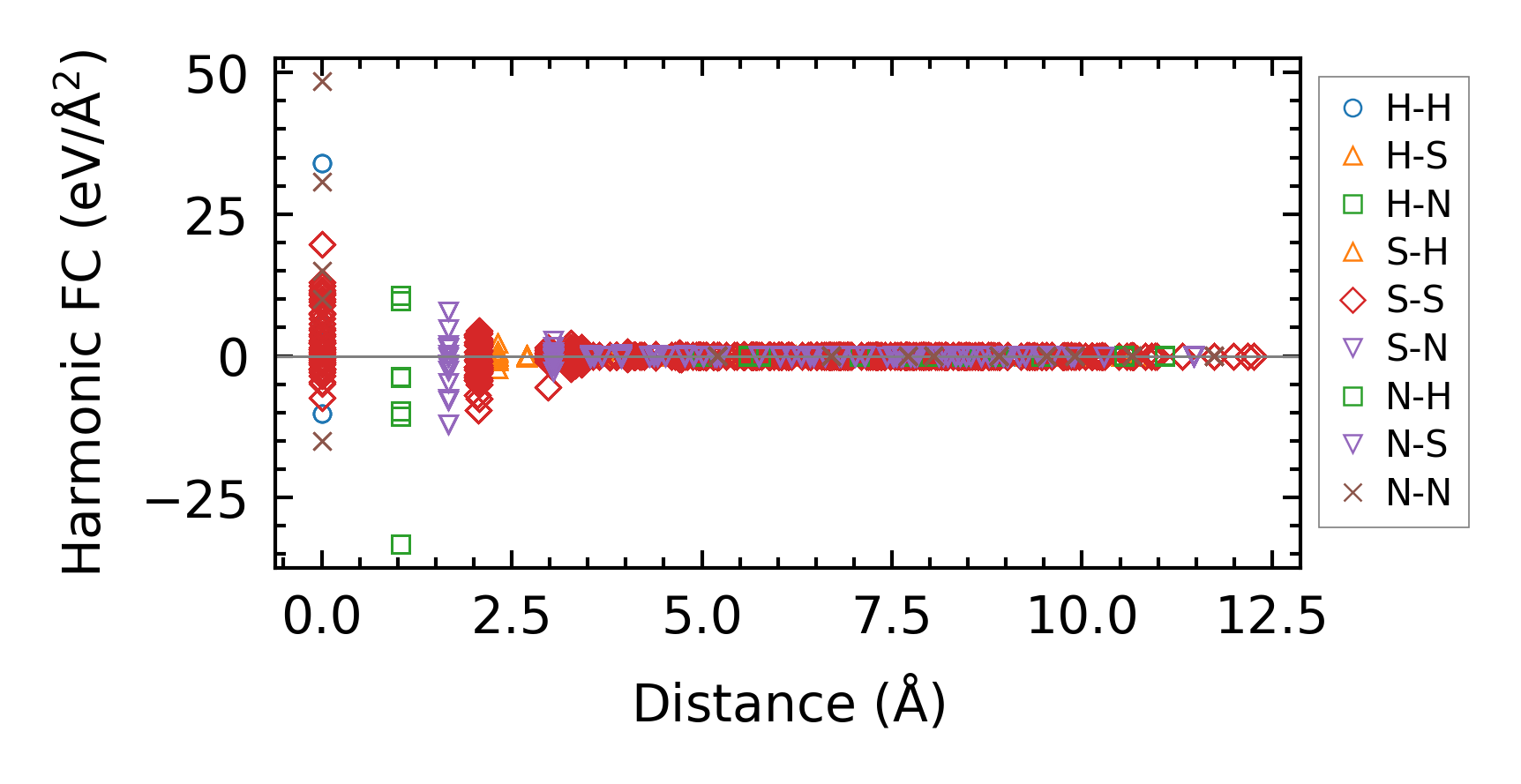

../../_images/fig_fc29633.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa7448.png — (a) Temperature-dependent lattice thermal conductivity

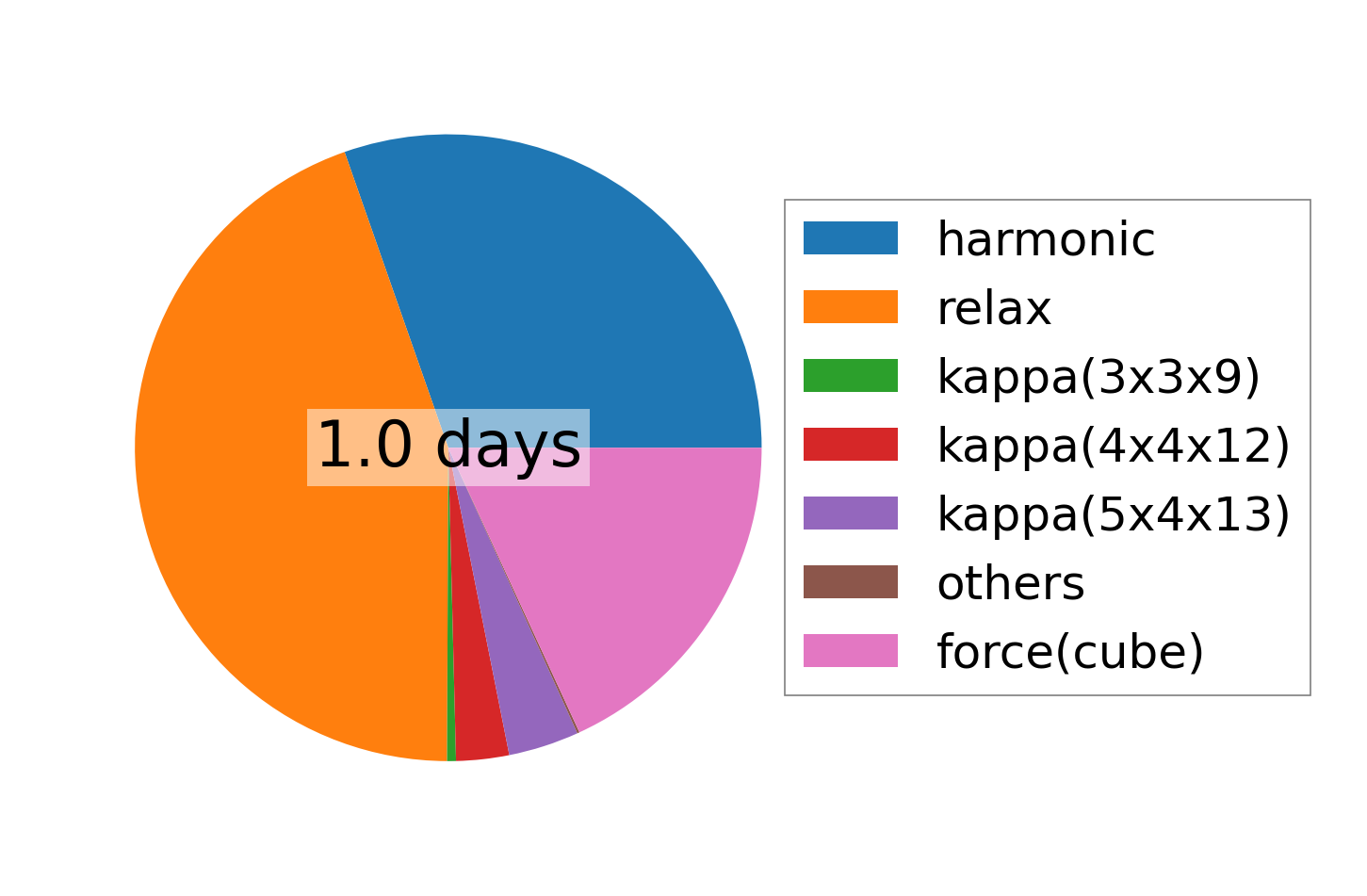

../../_images/fig_times17162.png — (b) Computation time
