mp-1095520/KPd2O3/anharm

Space group: R-3m (166)
Link: Materials Project
Download: mp-1095520.tar.gz

Equation of state

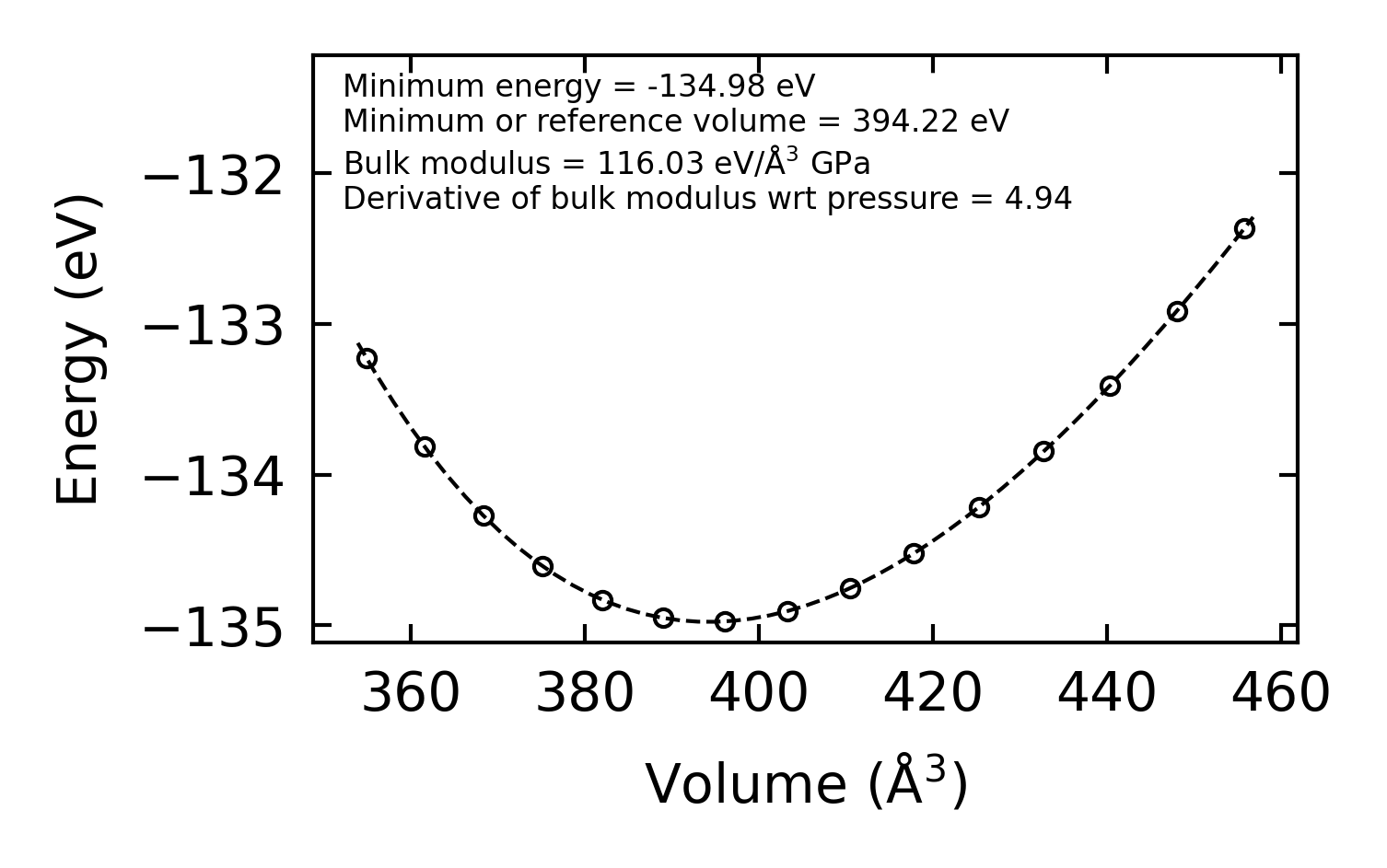

../../_images/fig_bm7746.png — (a) Equation of state

Harmonic properties

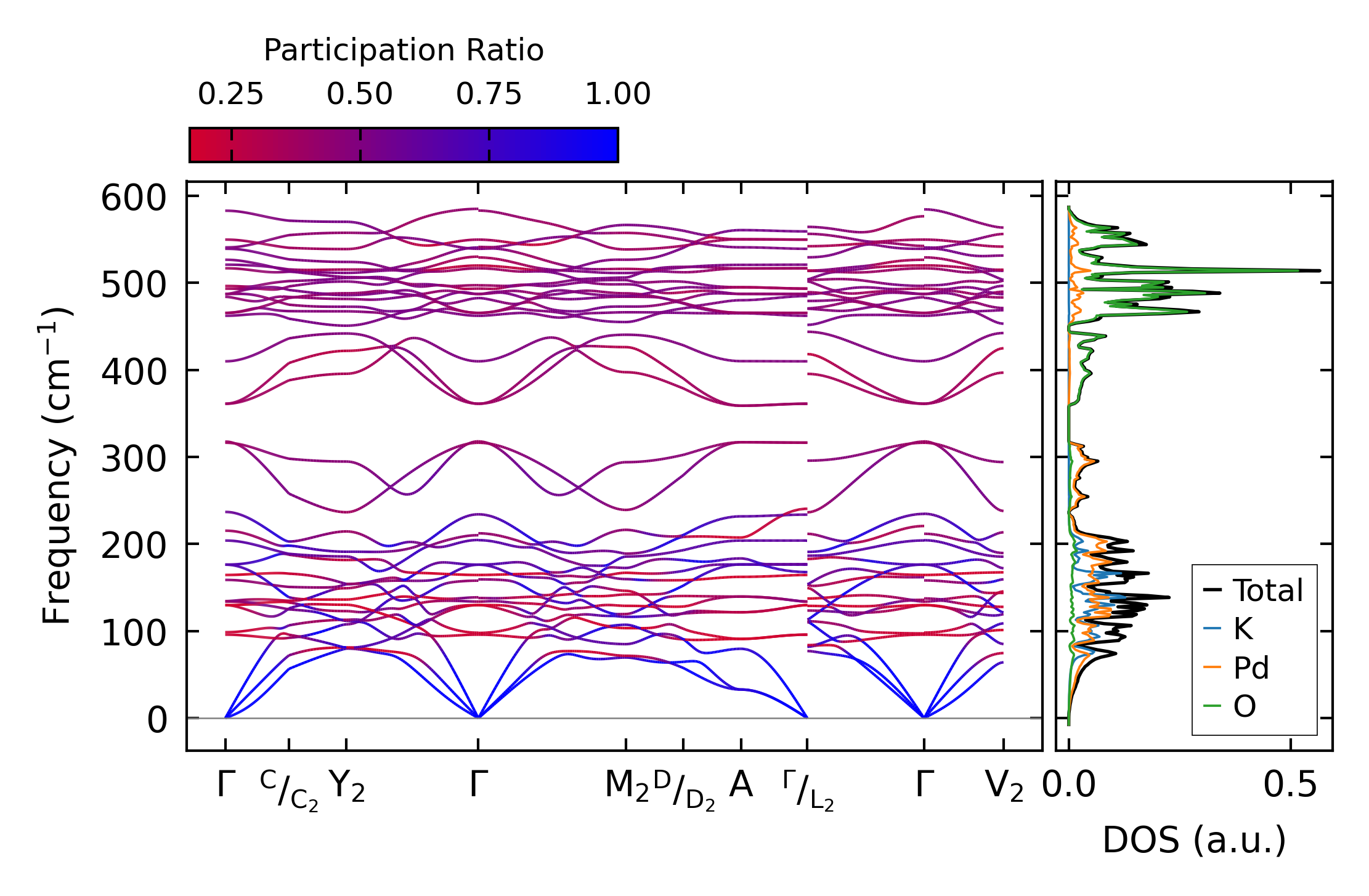

../../_images/fig_bandos_pr16697.png — (a) Phonon dispersion with participation ratio and DOS

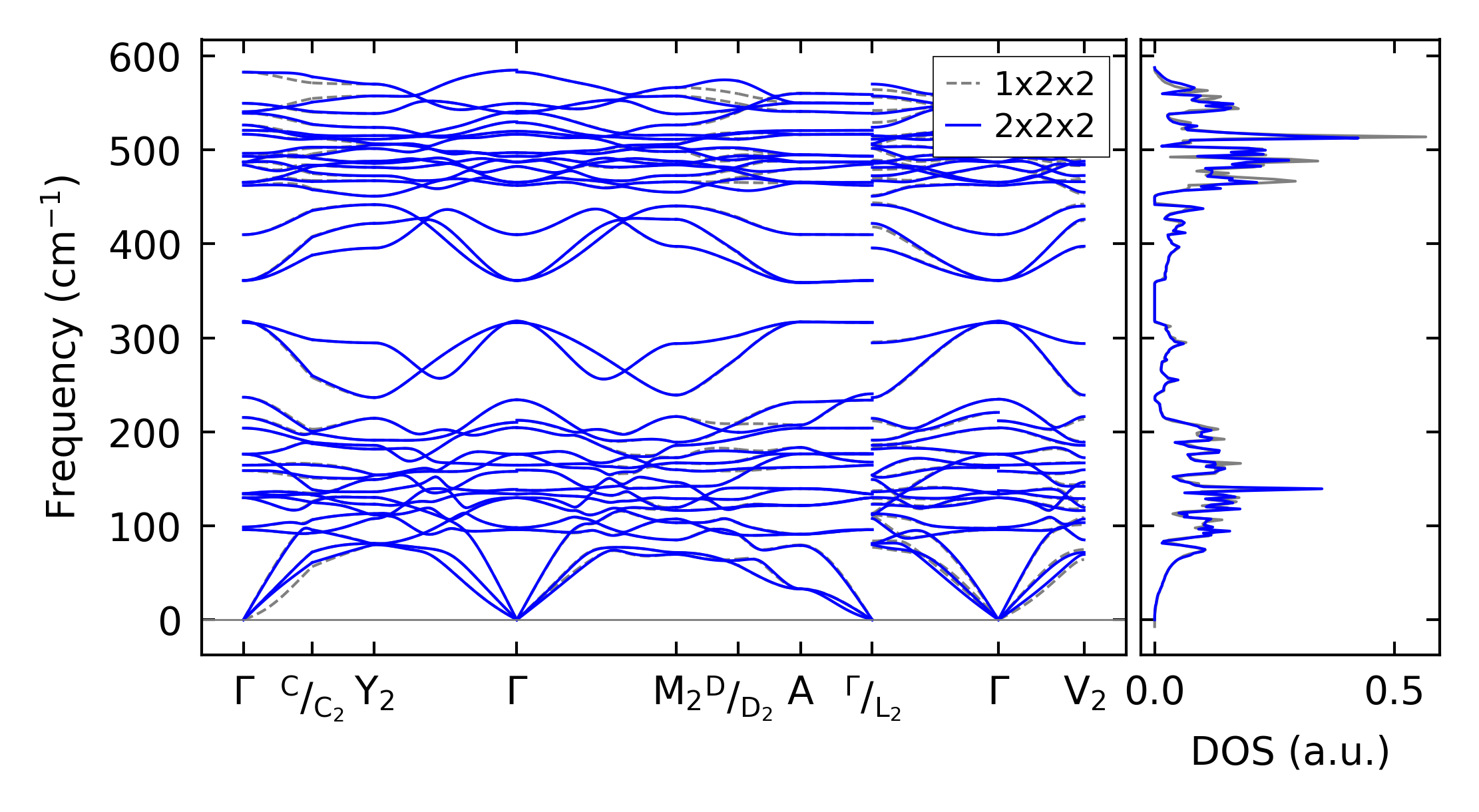

../../_images/fig_bandos21046.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo16696.png — (c) Thermodynamic properties

Grüneisen parameters

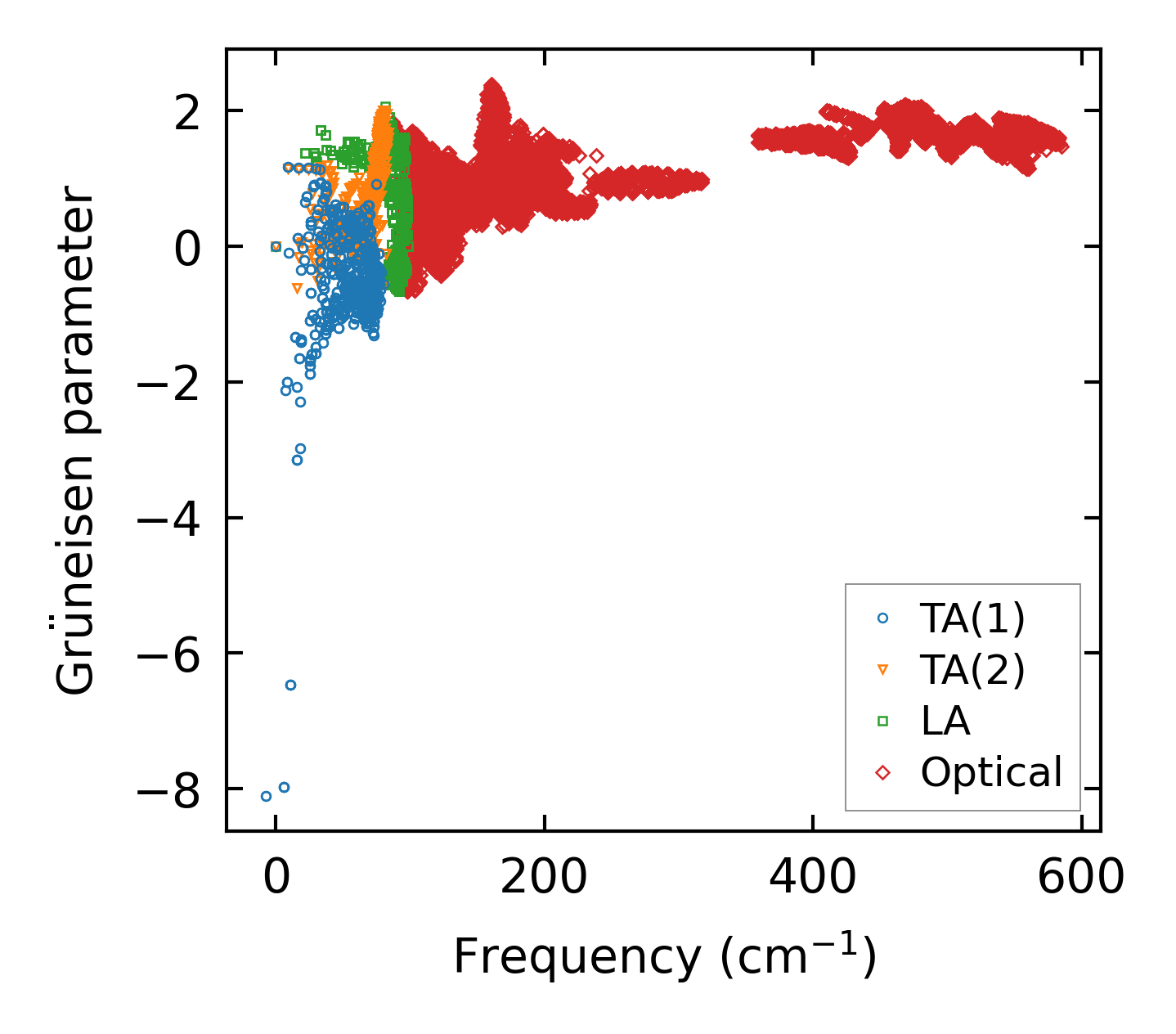

../../_images/fig_gru_all7264.png — (a) Grüneisen parameters

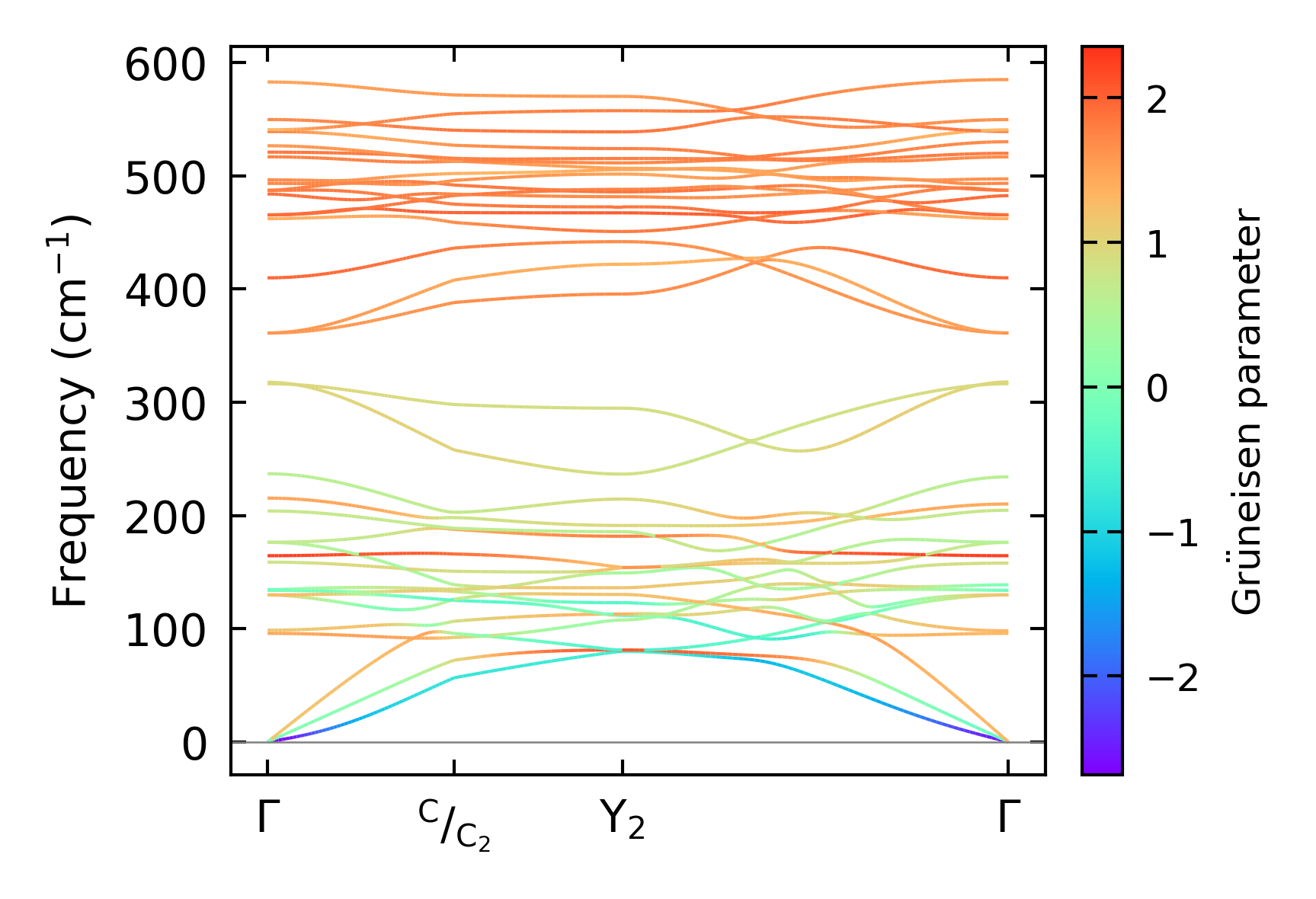

../../_images/fig_gruneisen7264.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x2 — q-mesh: 12x12x11, supercell: 2x2x2

../../_images/fig_kappa13698.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size7350.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime7198.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates7197.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency7198.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp7197.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

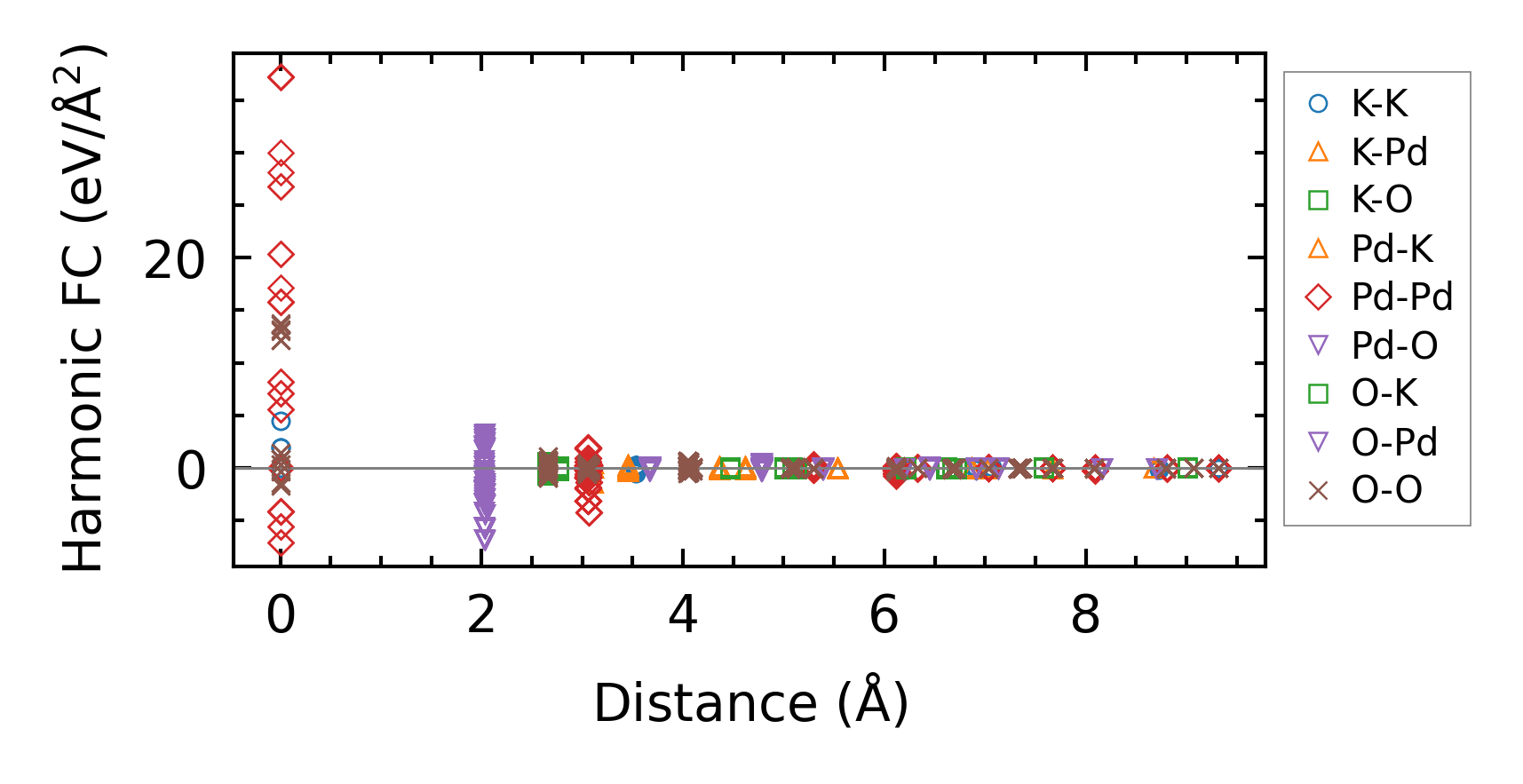

../../_images/fig_fc216266.png — (a) Force constants w.r.t atomic distance

Summary

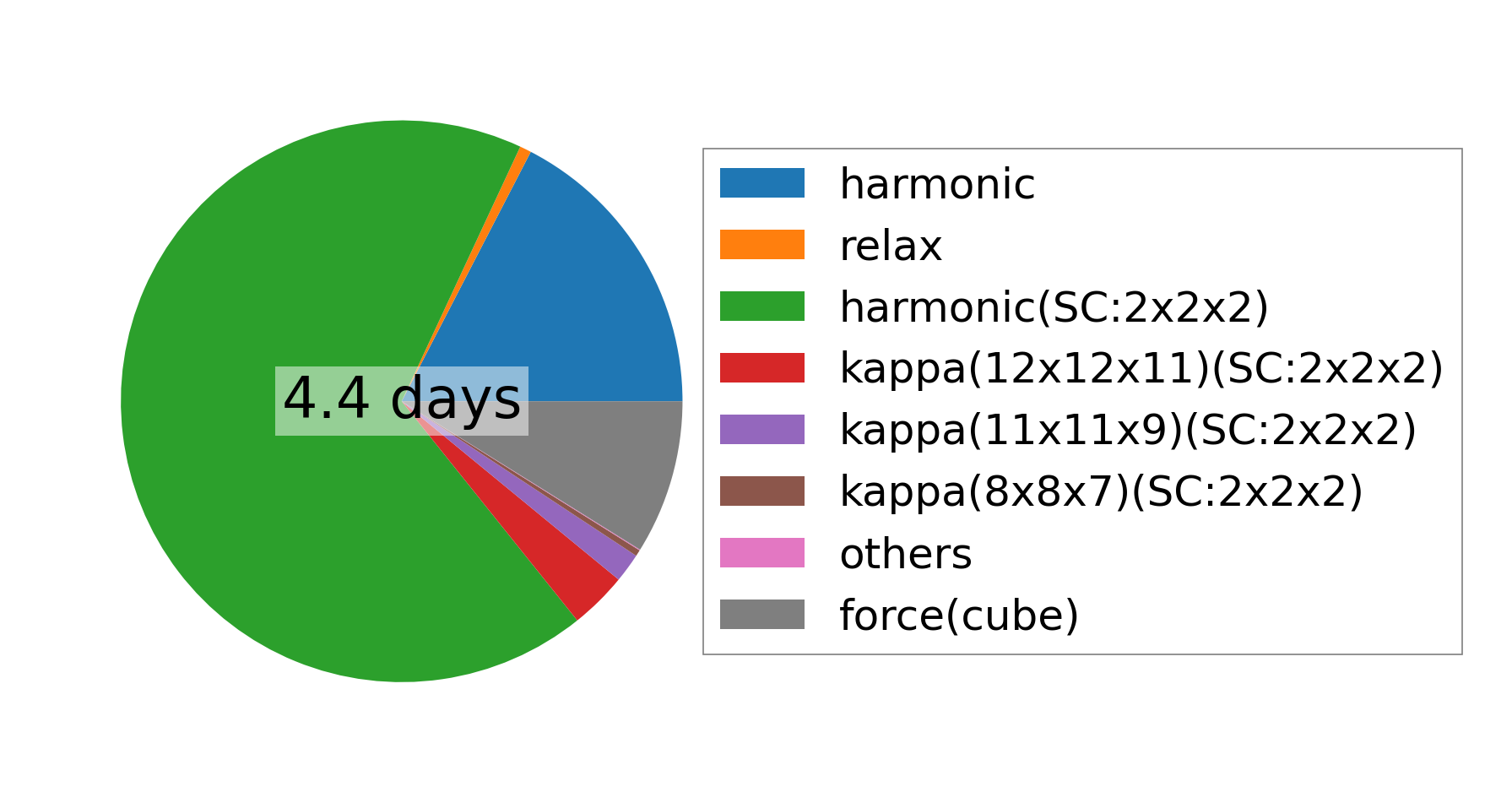

../../_images/fig_times27276.png — (a) Computation time
