mp-1095403/BaTbCuTe3/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-1095403.tar.gz

Harmonic properties

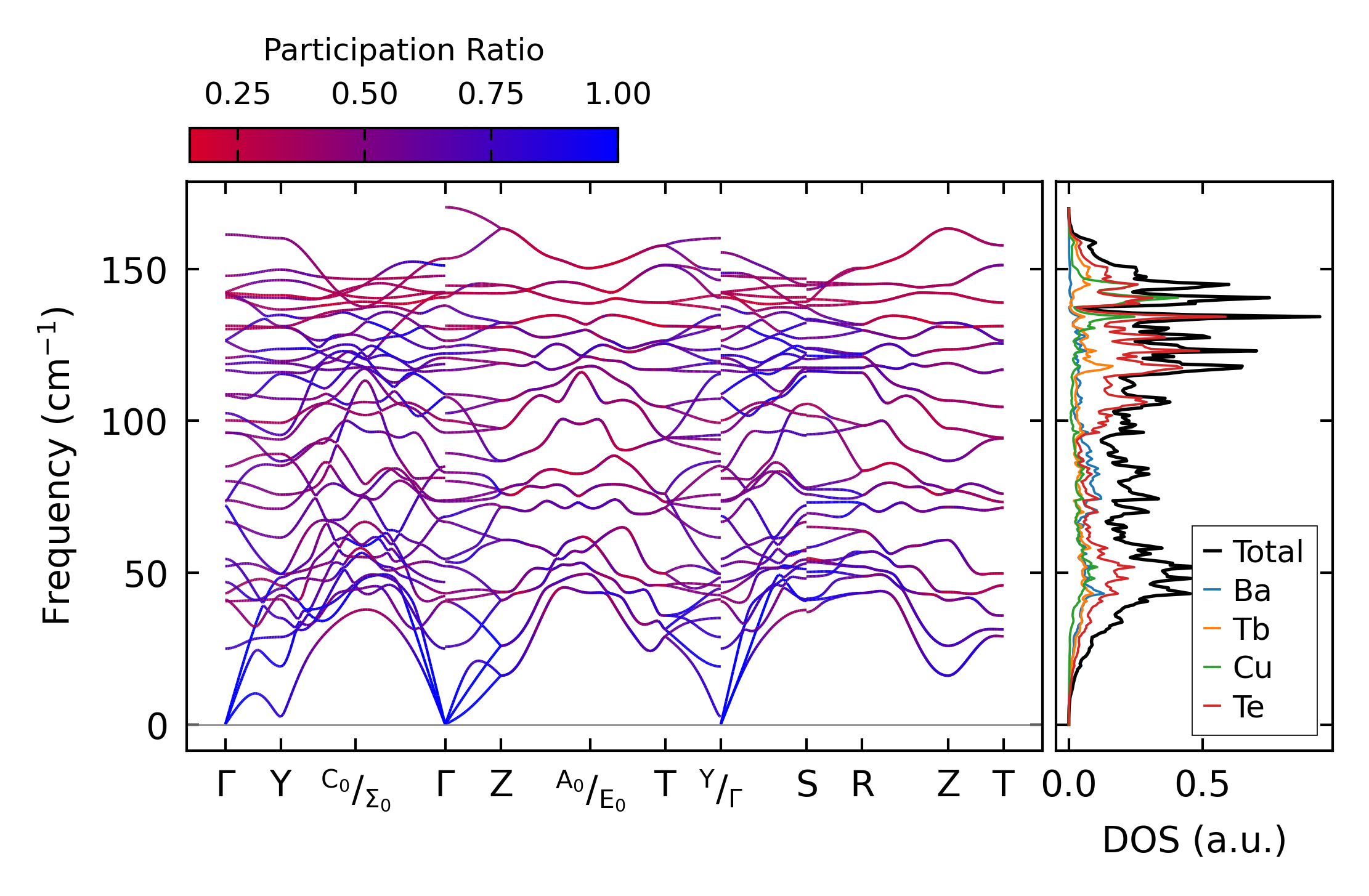

../../_images/fig_bandos_pr16684.png — (a) Phonon dispersion with participation ratio and DOS

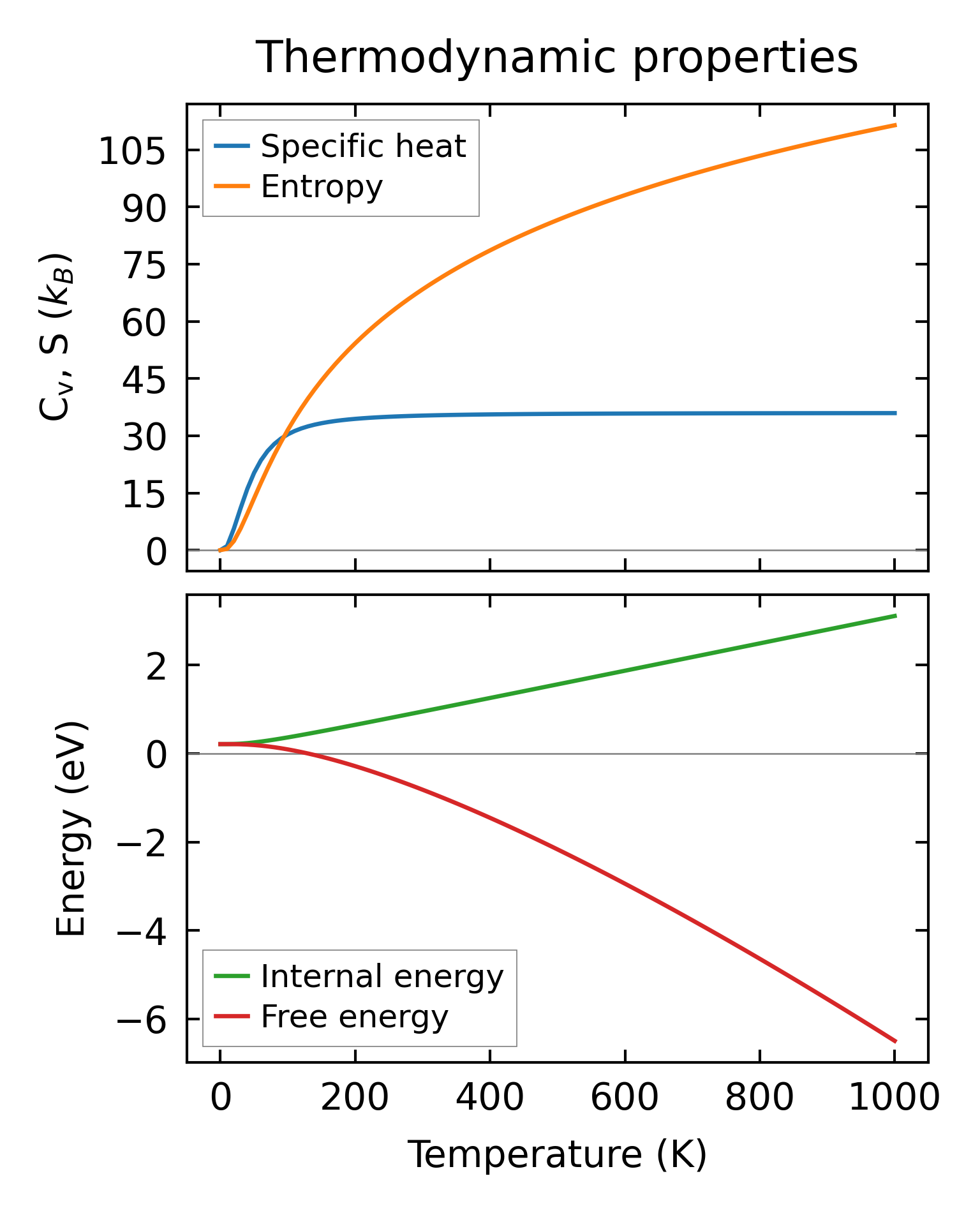

../../_images/fig_thermo16683.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all7255.png — (a) Grüneisen parameters

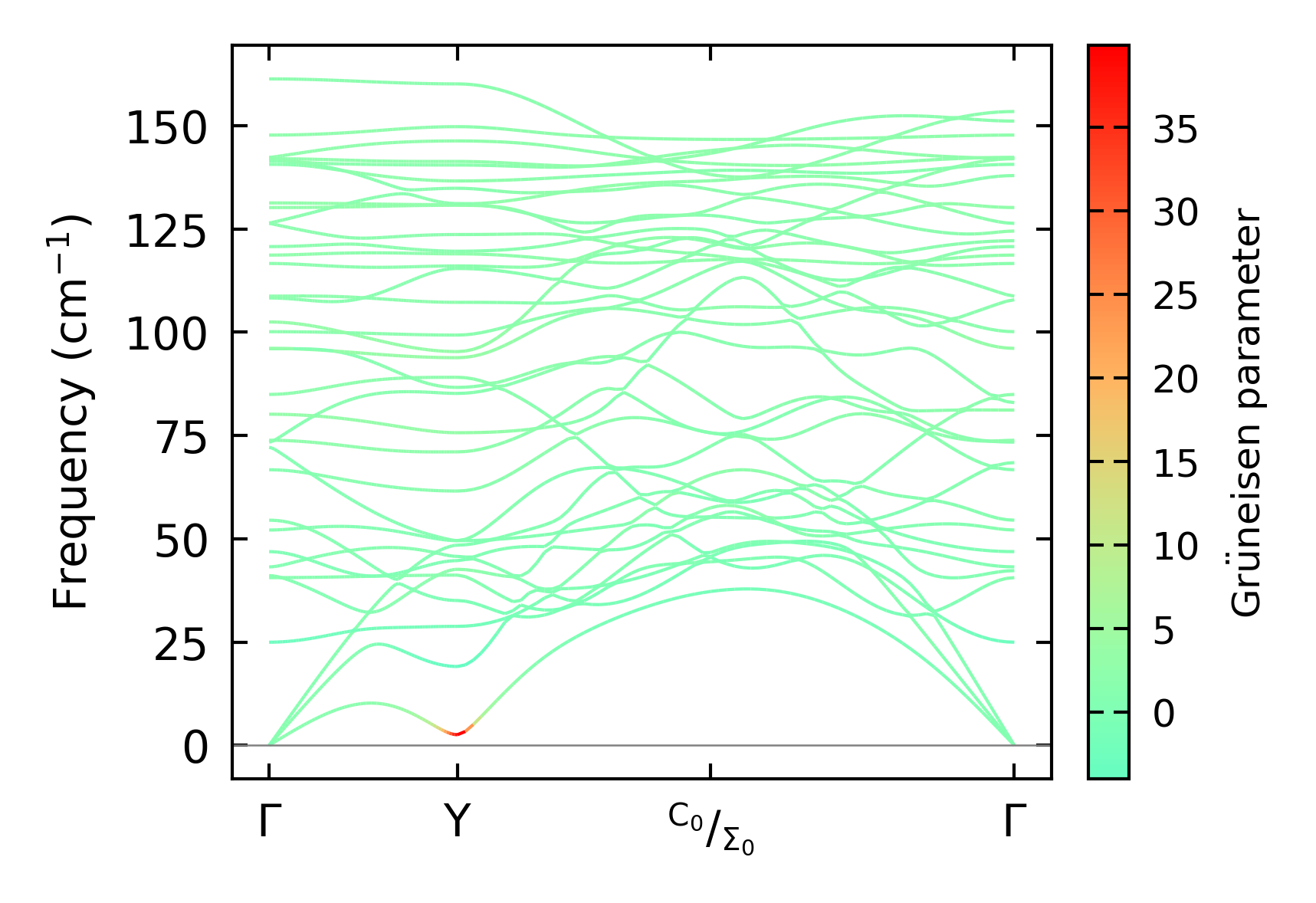

../../_images/fig_gruneisen7255.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x7, supercell: 3x1x2

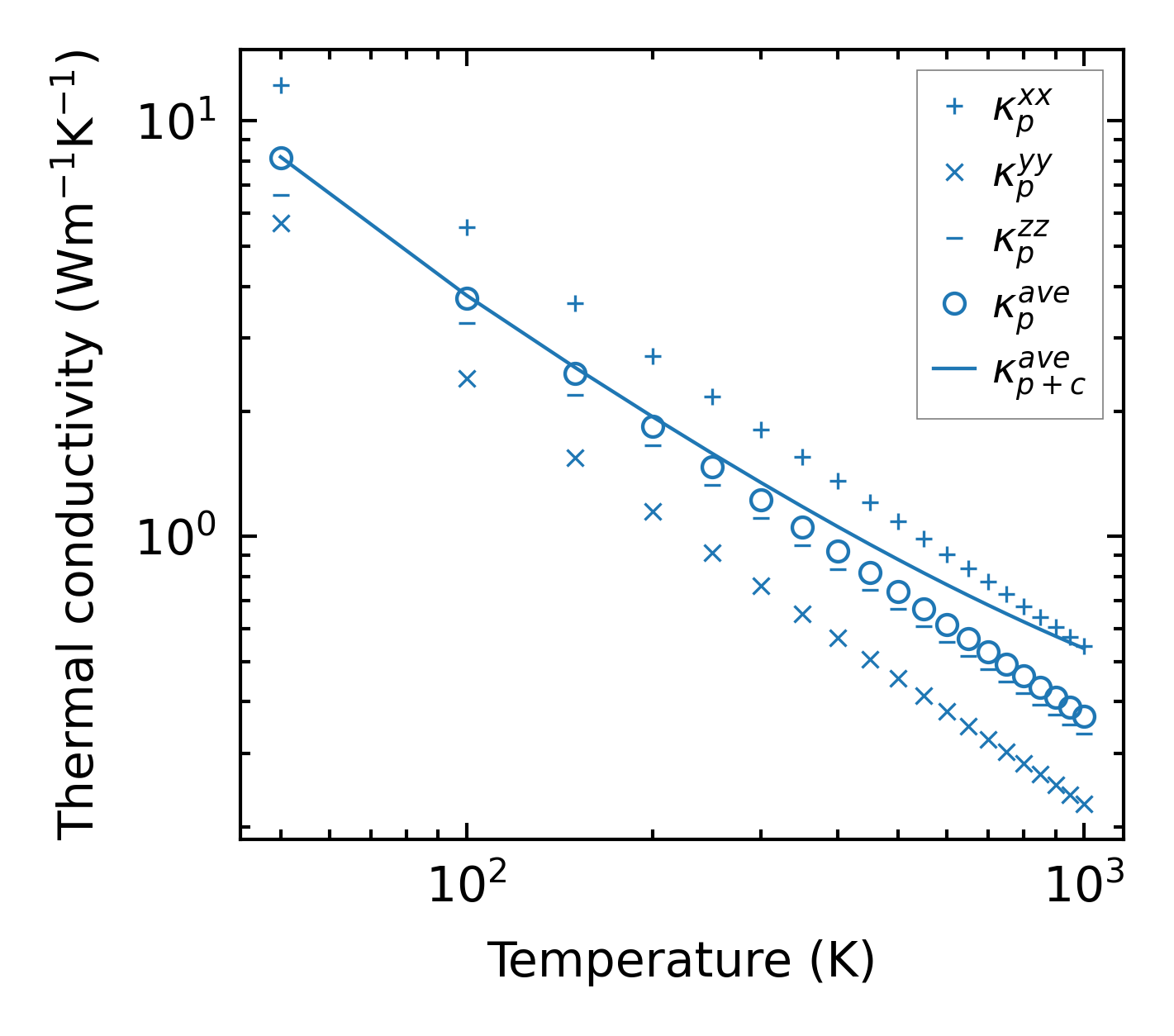

../../_images/fig_kappa13681.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size7341.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

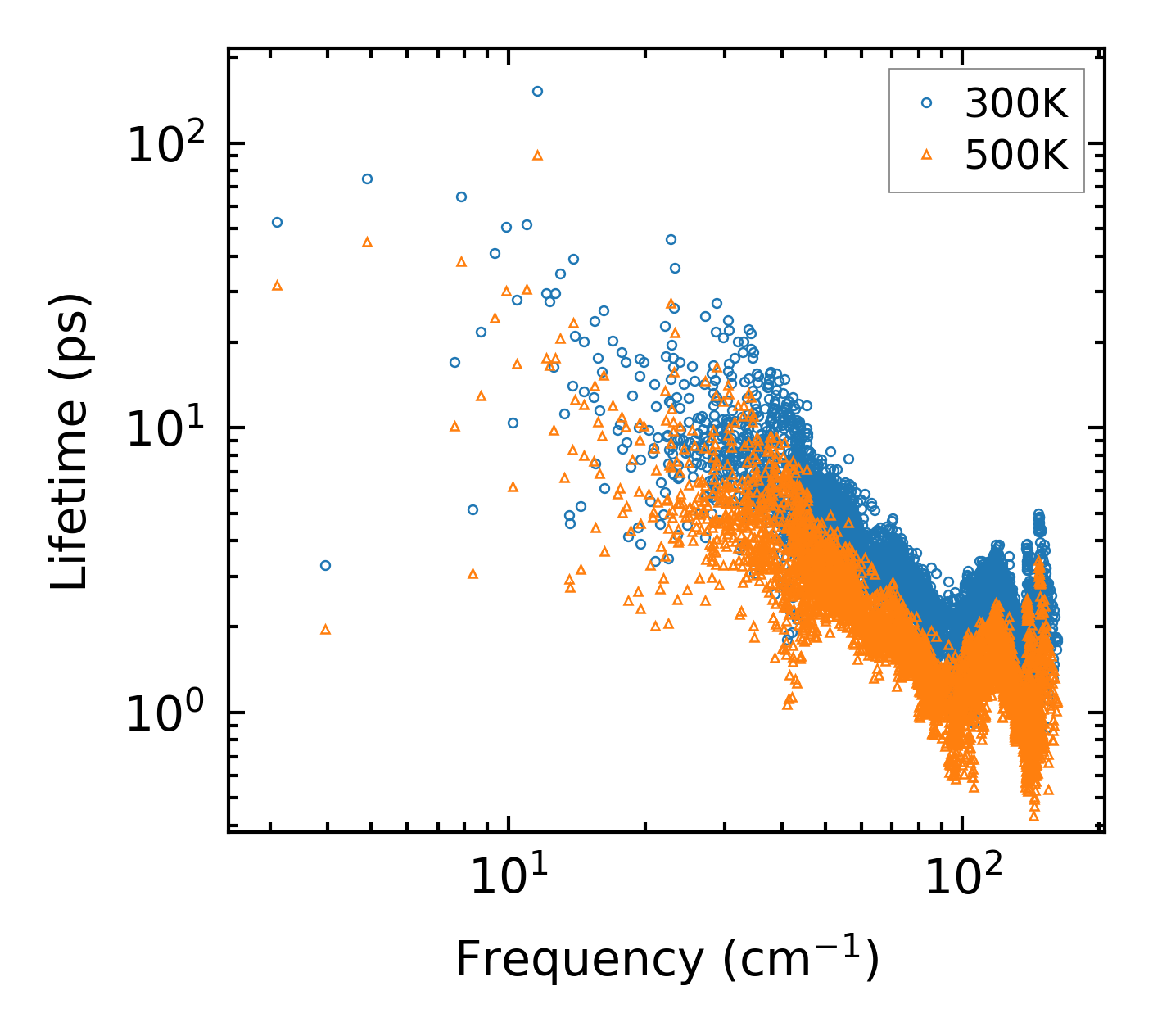

../../_images/fig_lifetime7189.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates7188.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

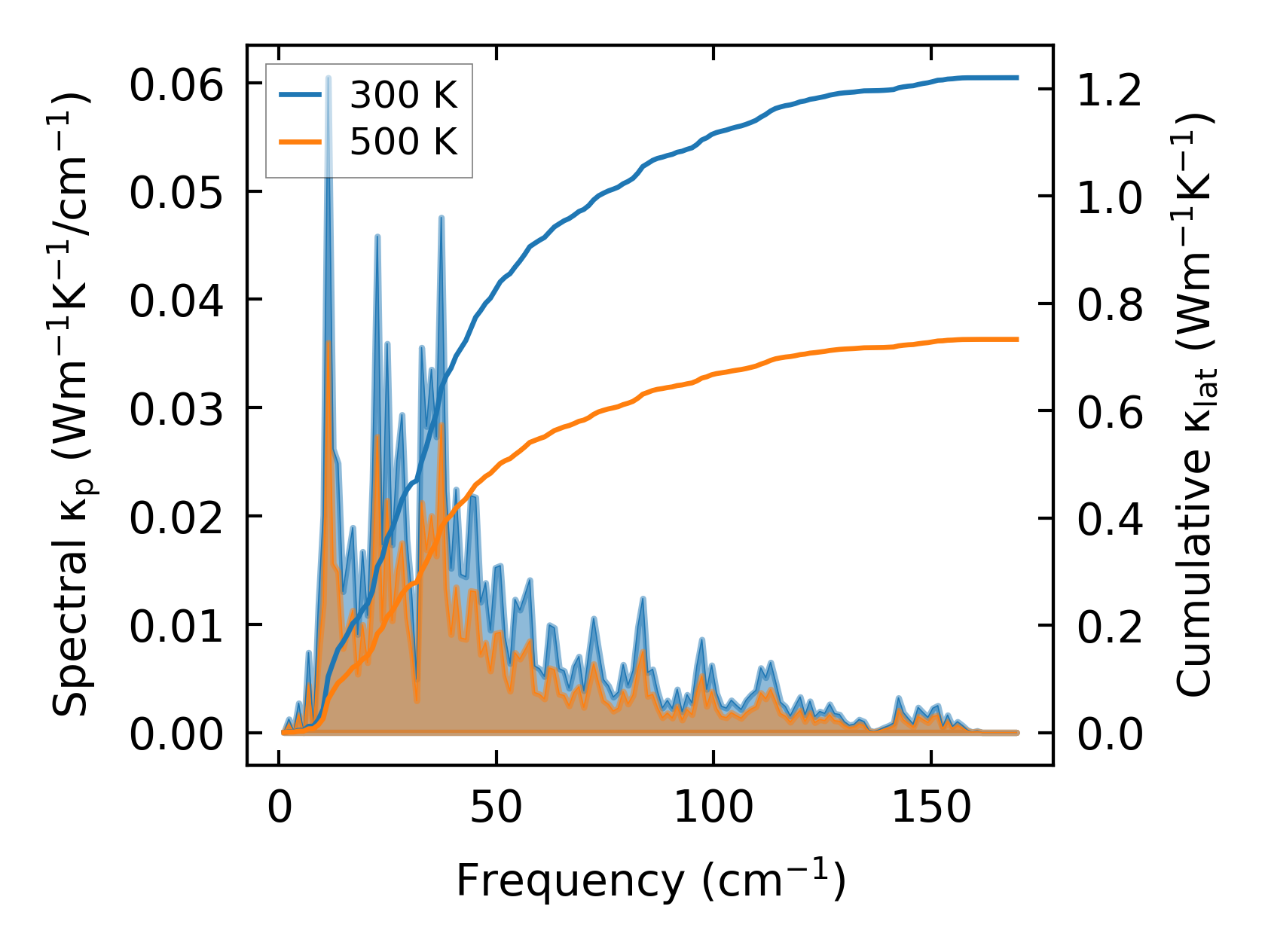

../../_images/fig_cumu_frequency7189.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

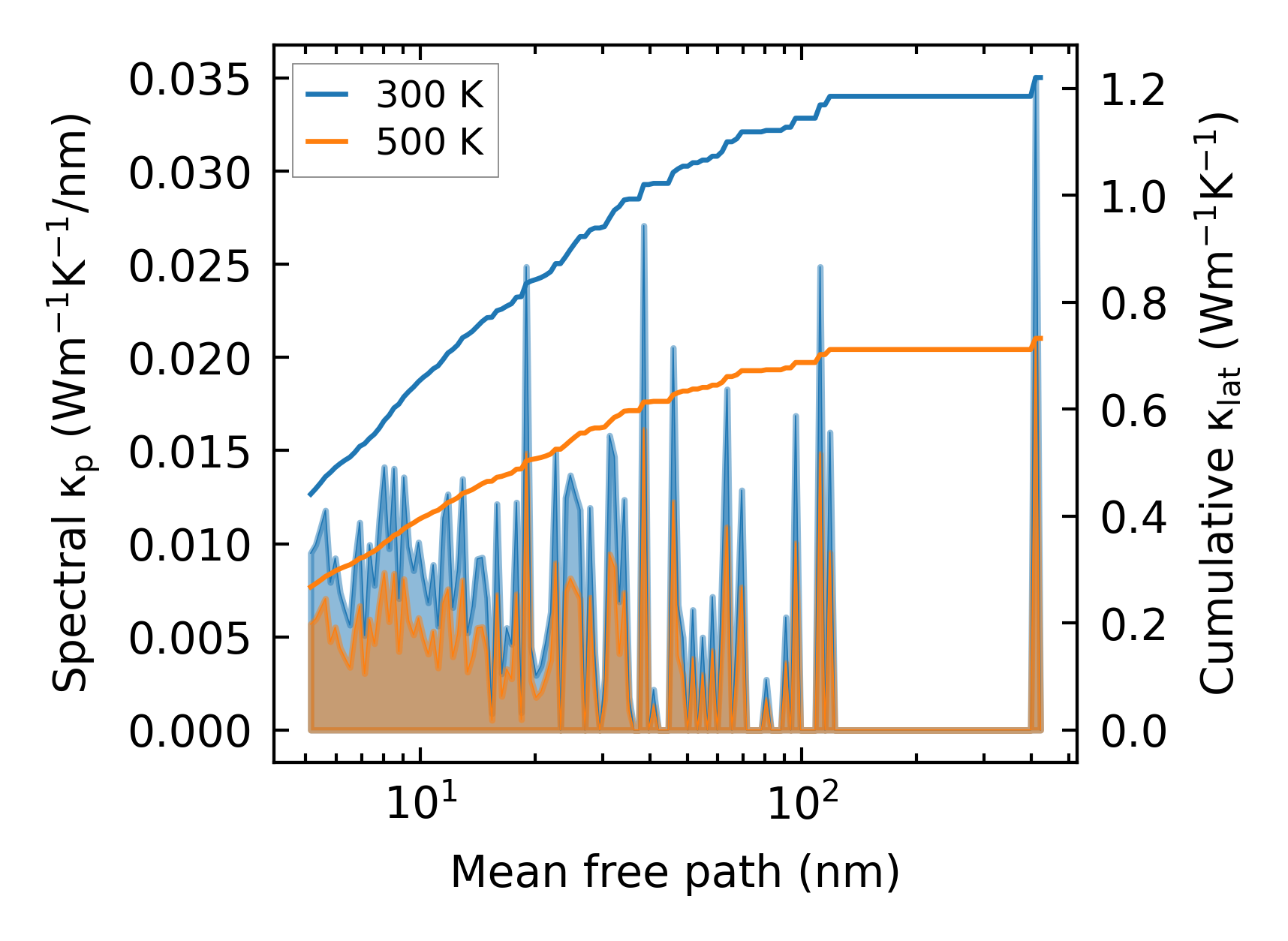

../../_images/fig_cumu_mfp7188.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

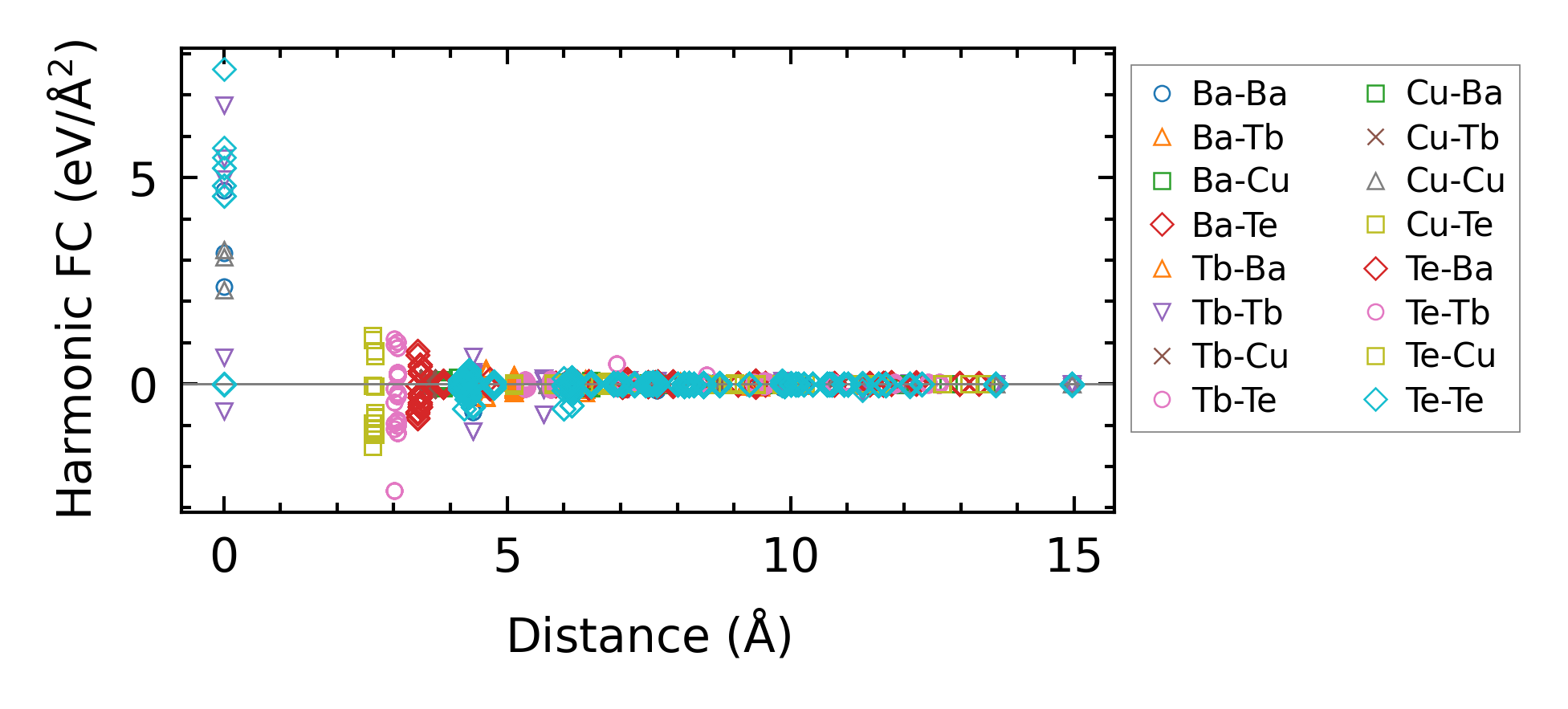

../../_images/fig_fc216253.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa13682.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times27260.png — (b) Computation time
