mp-1095270/Na5NpO6/anharm

Space group: C2/m (12)
Link: Materials Project
Download: mp-1095270.tar.gz

Harmonic properties

../../_images/fig_bandos_pr16670.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16669.png — (b) Thermodynamic properties

Grüneisen parameters

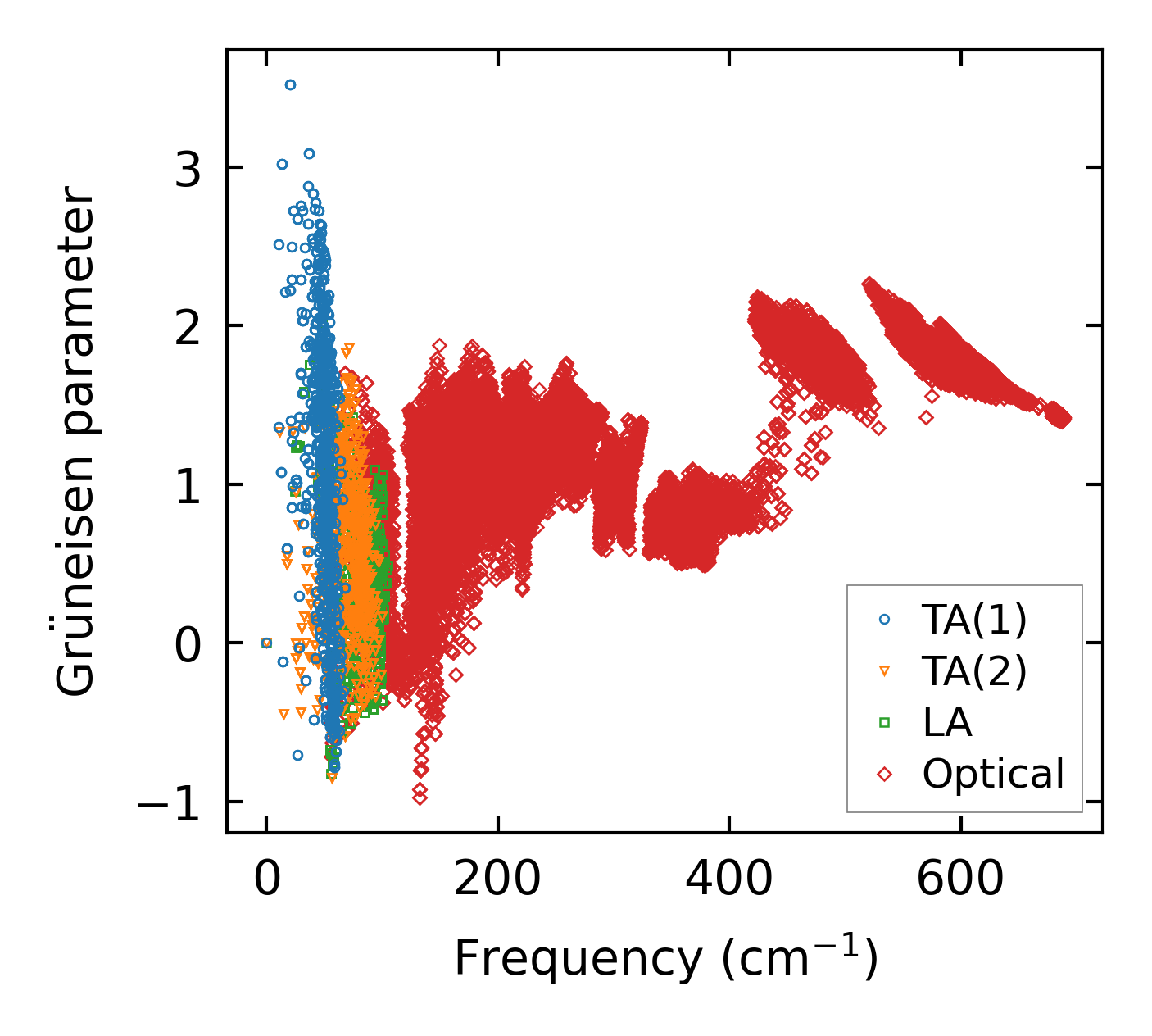

../../_images/fig_gru_all7245.png — (a) Grüneisen parameters

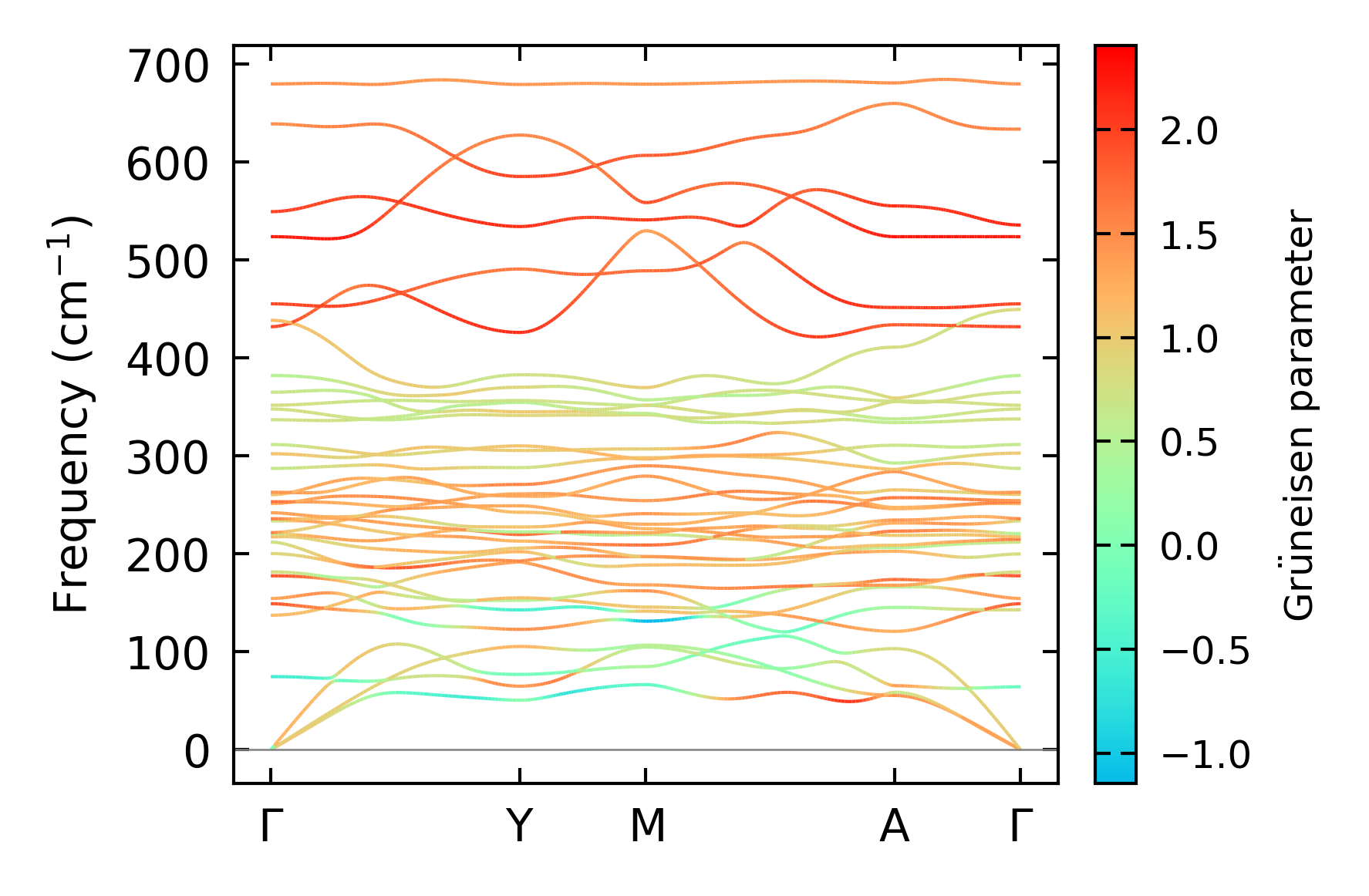

../../_images/fig_gruneisen7245.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x13, supercell: 2x1x2

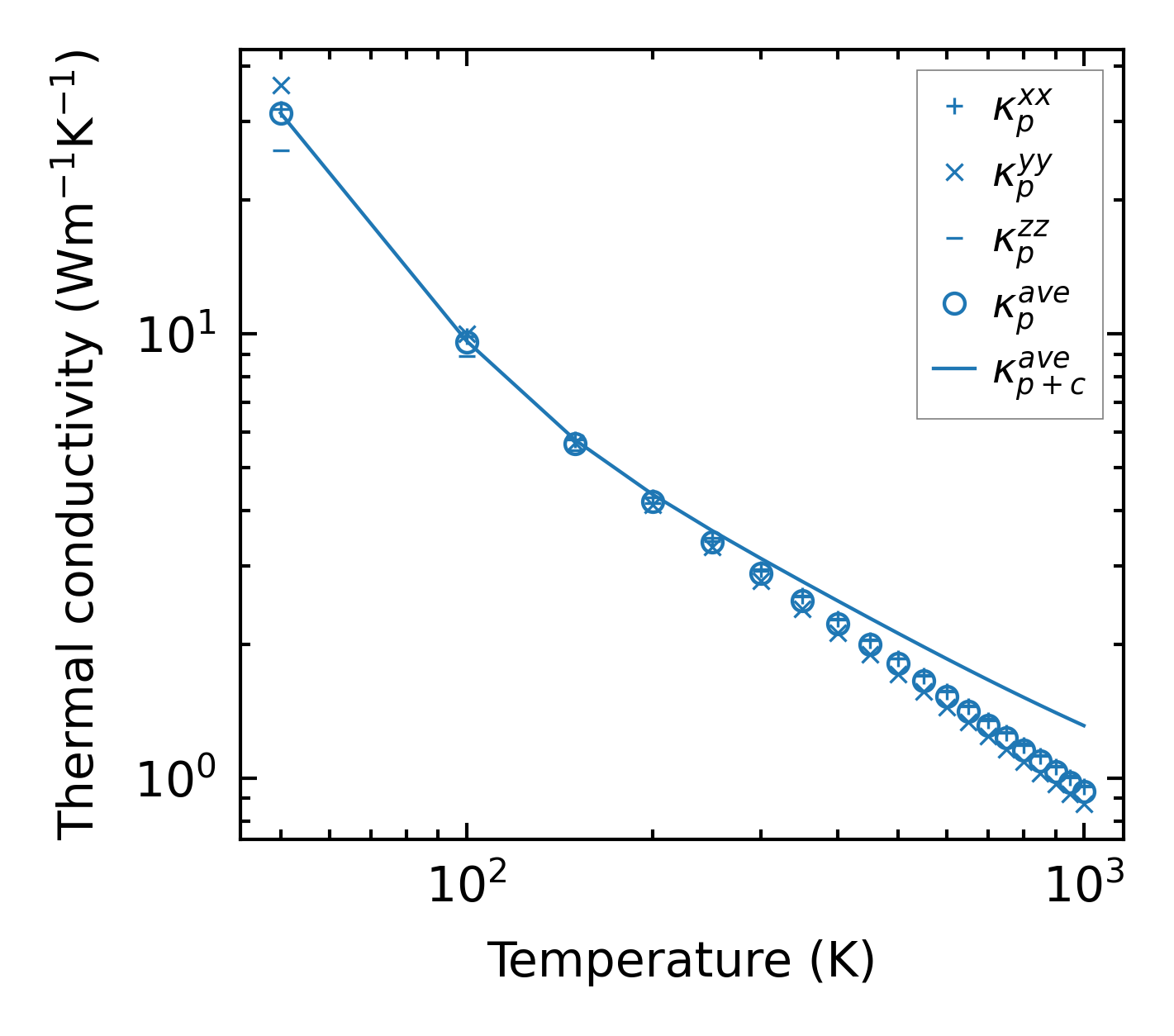

../../_images/fig_kappa13661.png — (a) Temperature-dependent lattice thermal conductivity

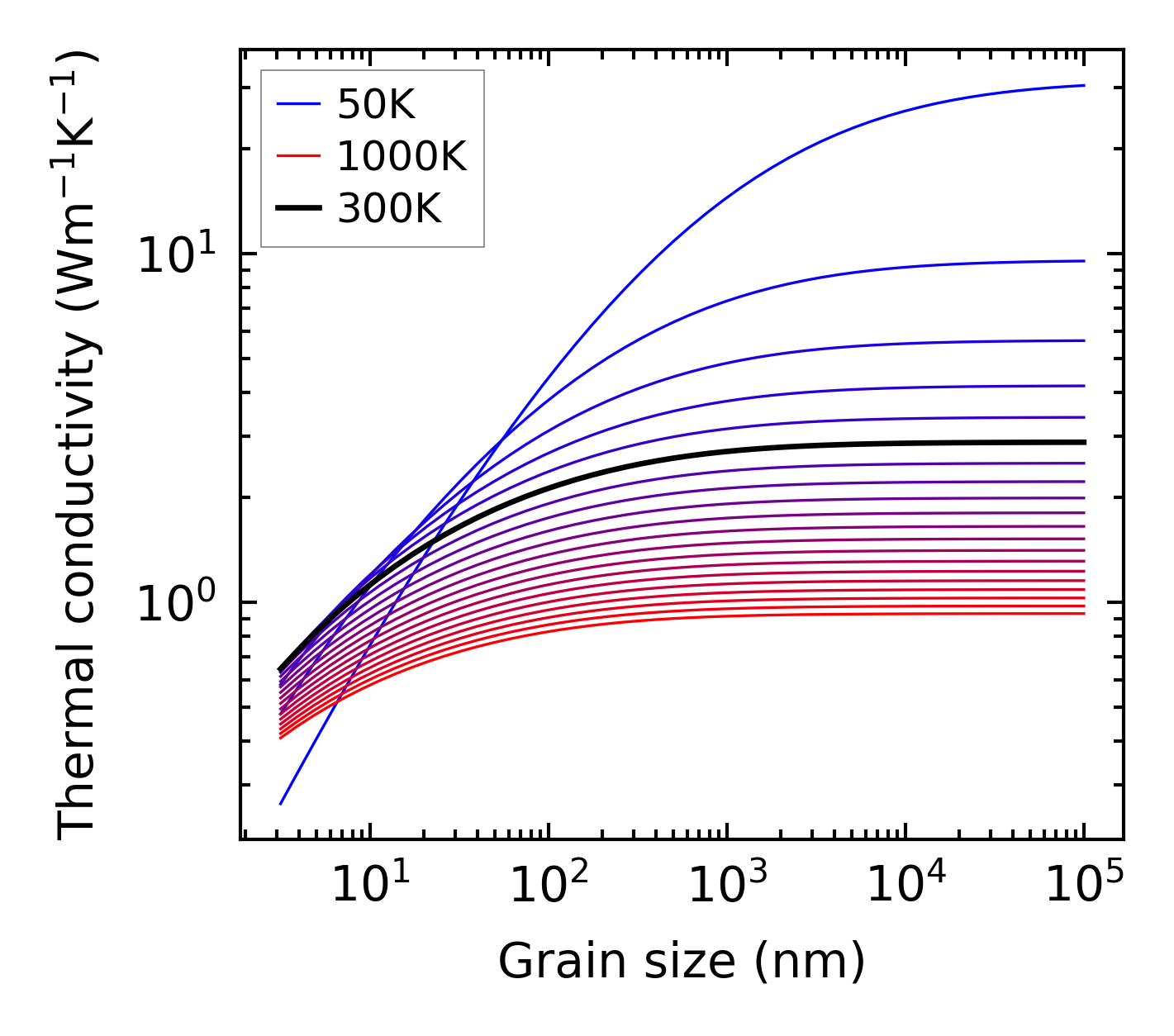

../../_images/fig_kappa_vs_grain_size7331.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime7179.png — (a) Phonon lifetime due to phonon-phonon scattering

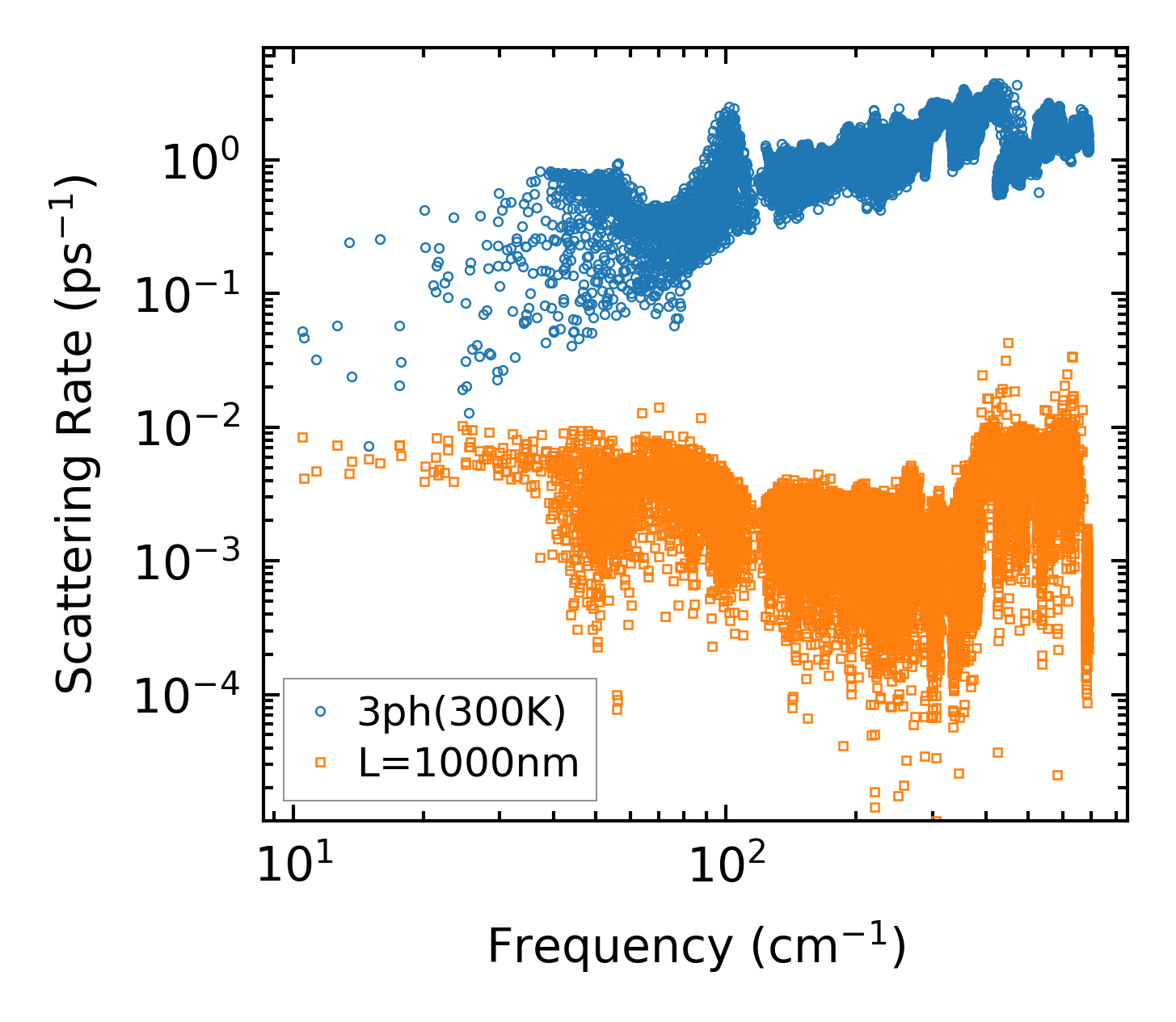

../../_images/fig_scat_rates7178.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

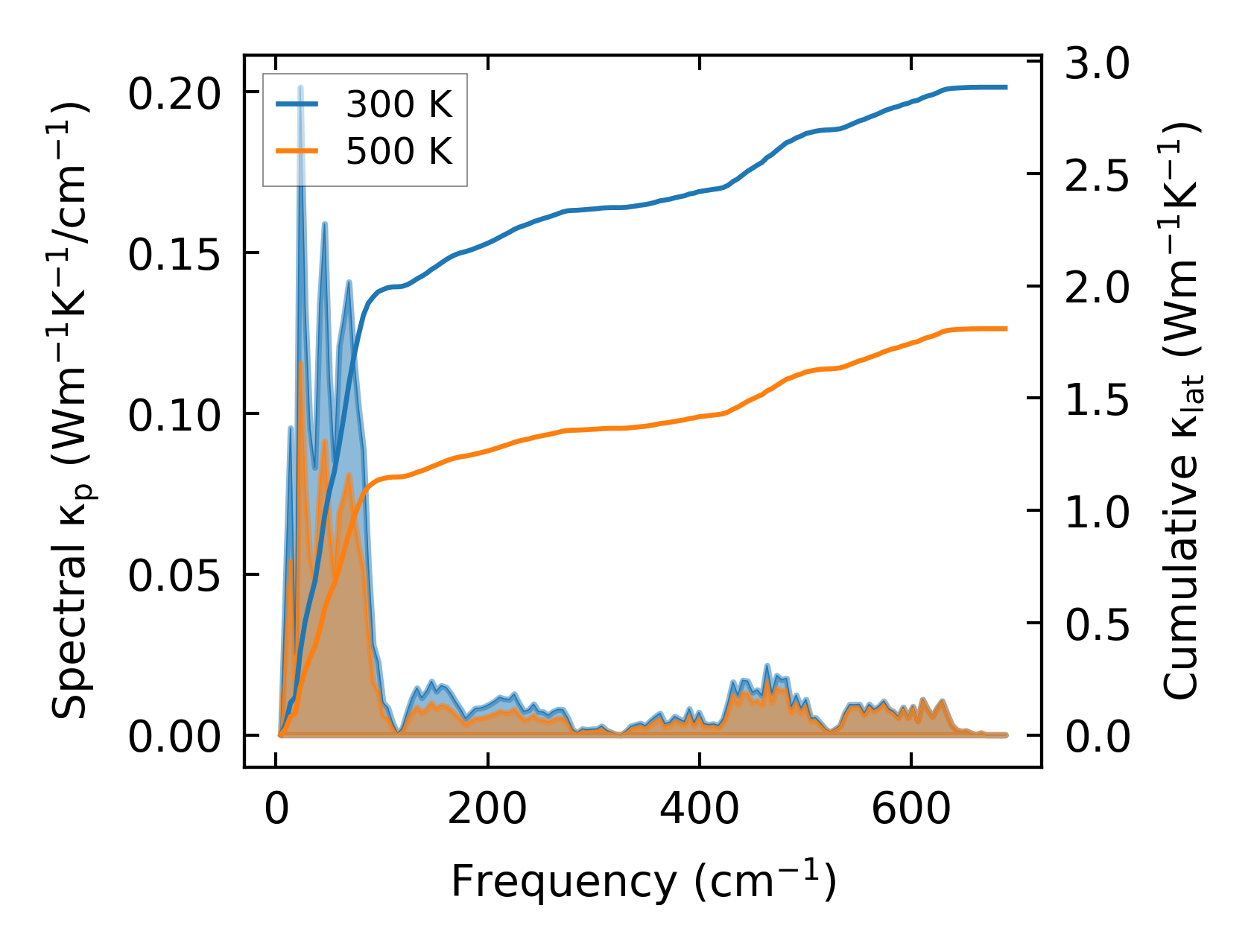

../../_images/fig_cumu_frequency7179.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp7178.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

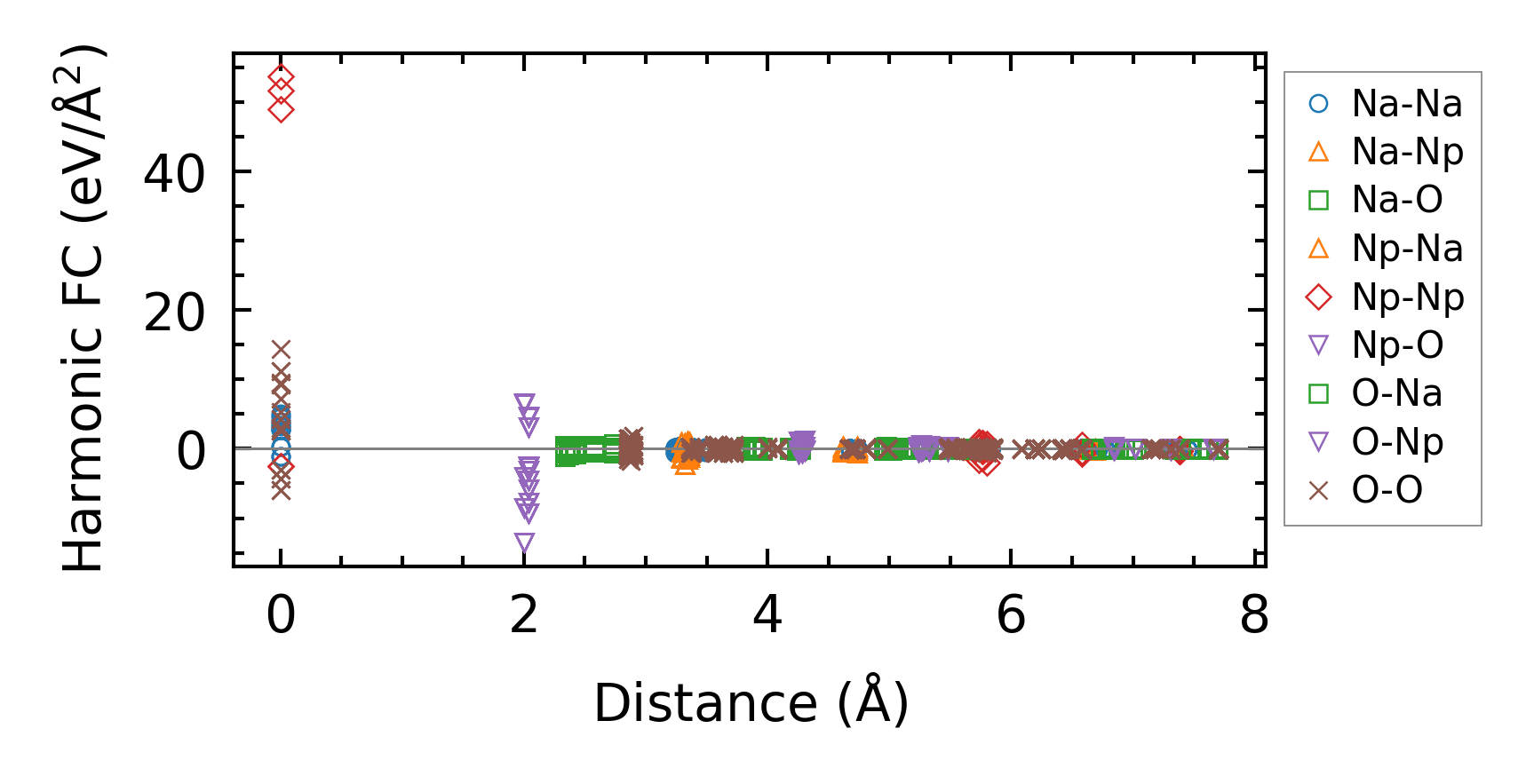

../../_images/fig_fc216240.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa13662.png — (a) Temperature-dependent lattice thermal conductivity

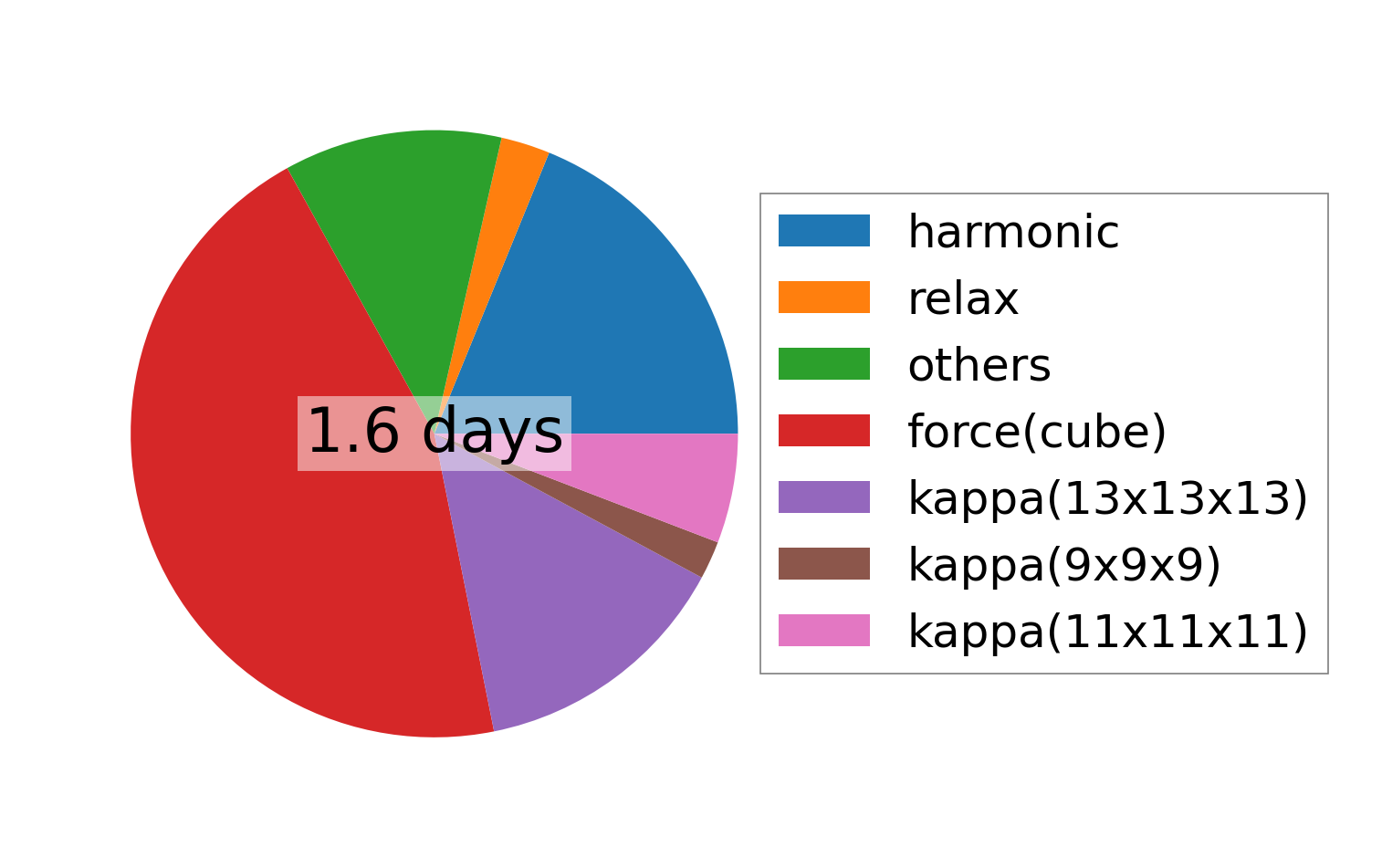

../../_images/fig_times27243.png — (b) Computation time
