mp-772833/Y2HfO5/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-772833.tar.gz

Harmonic properties

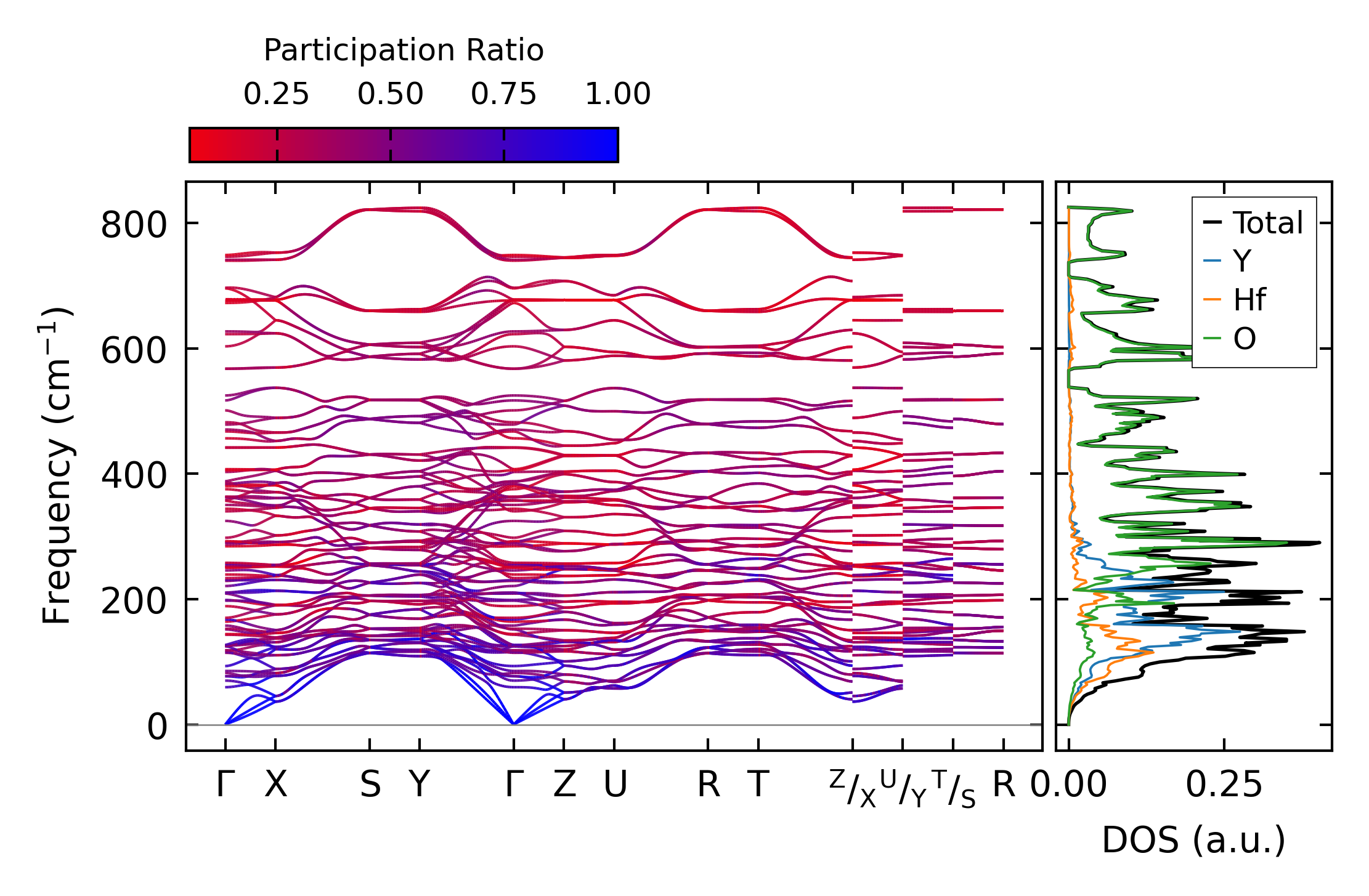

../../_images/fig_bandos_pr2321.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo2321.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all1271.png — (a) Grüneisen parameters

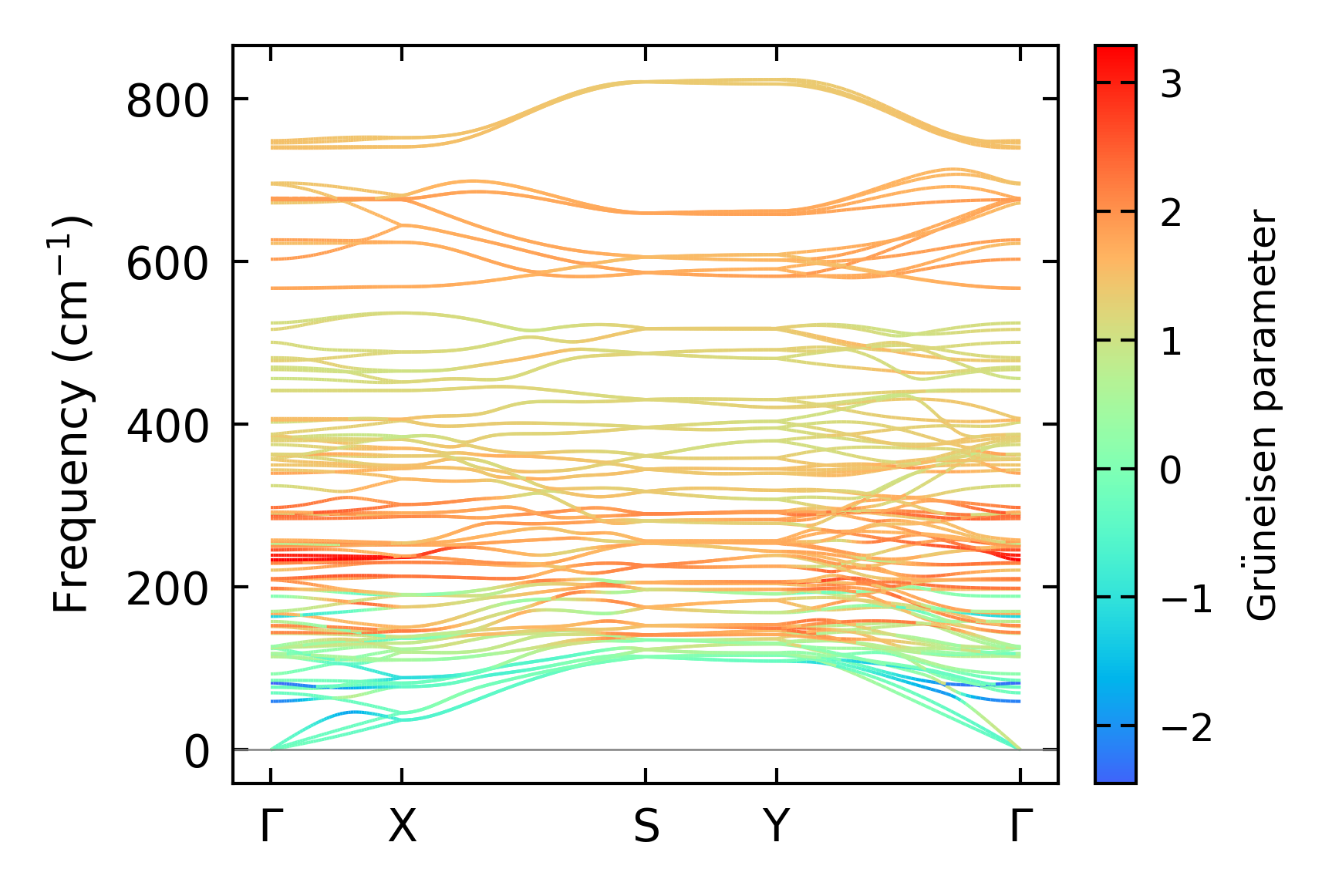

../../_images/fig_gruneisen1271.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x19x6, supercell: 1x3x1

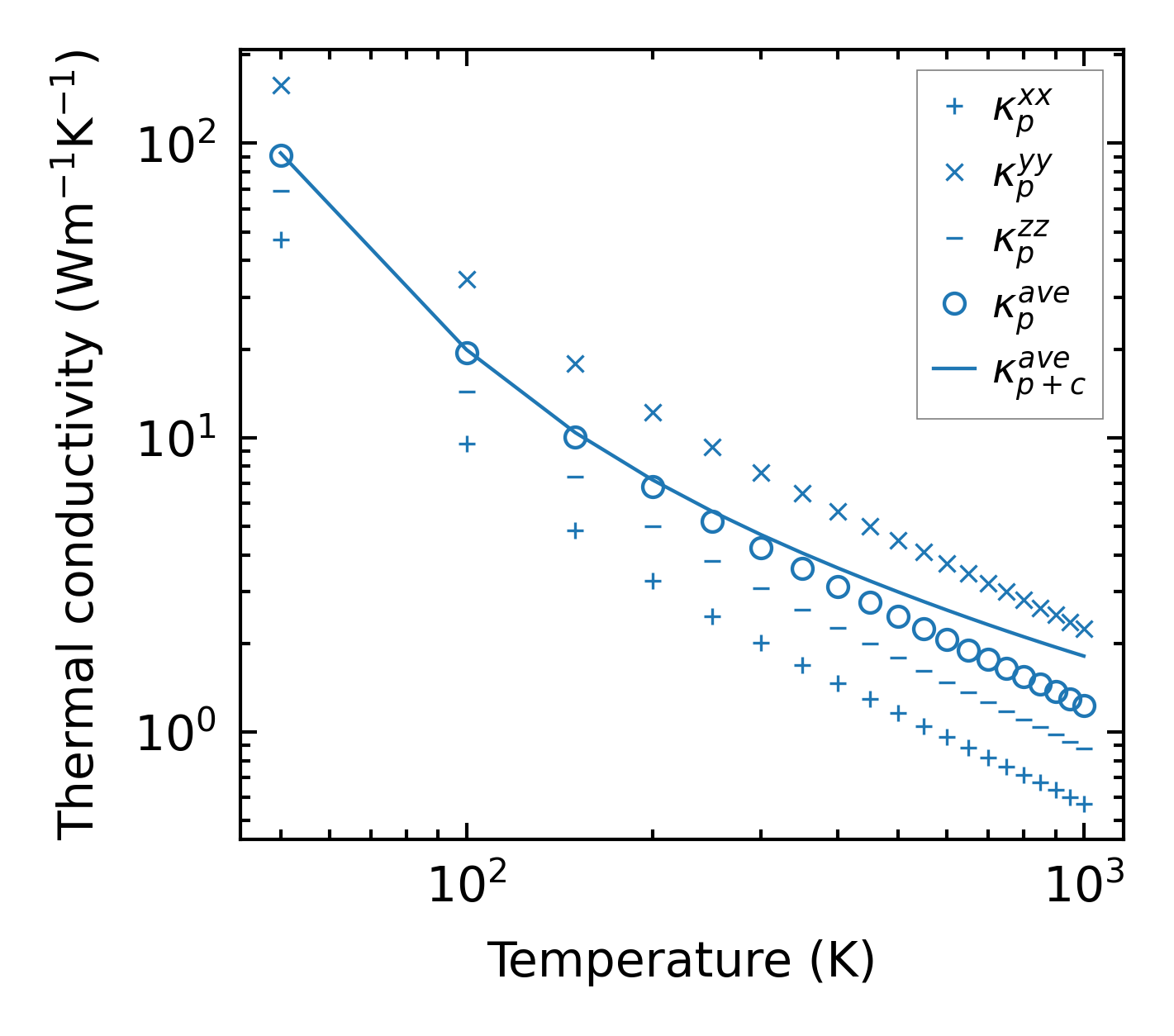

../../_images/fig_kappa2445.png — (a) Temperature-dependent lattice thermal conductivity

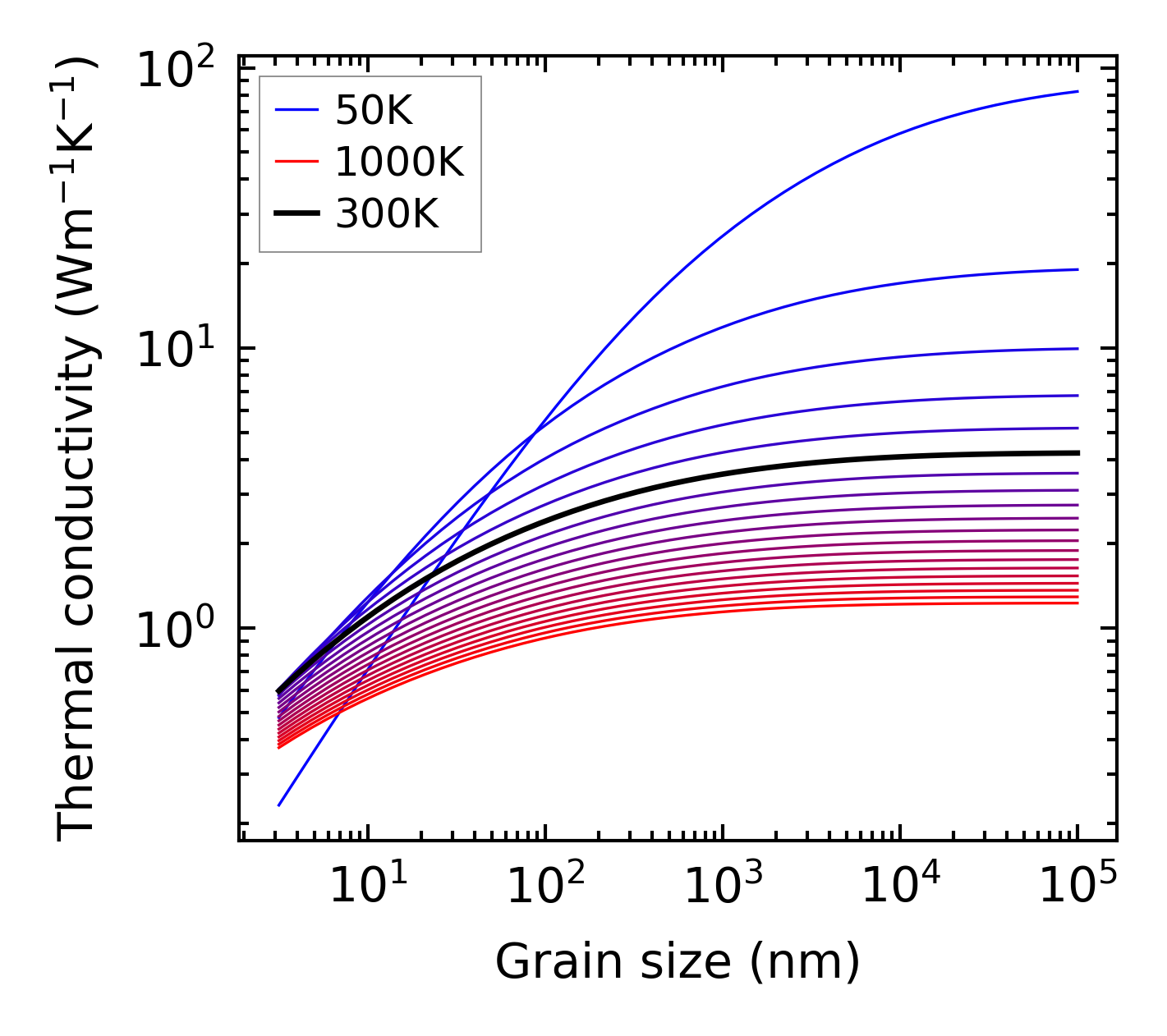

../../_images/fig_kappa_vs_grain_size1287.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

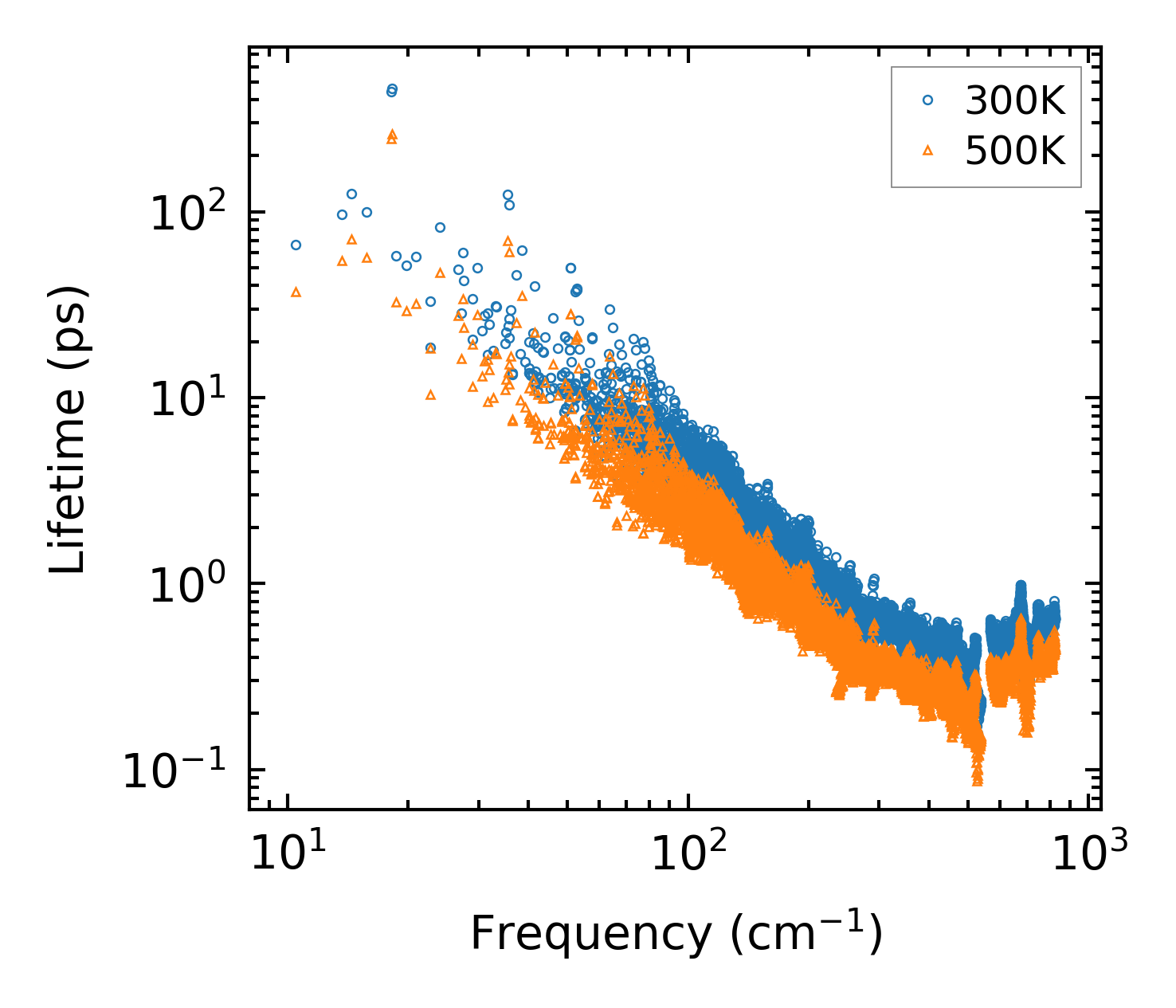

../../_images/fig_lifetime1261.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1260.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

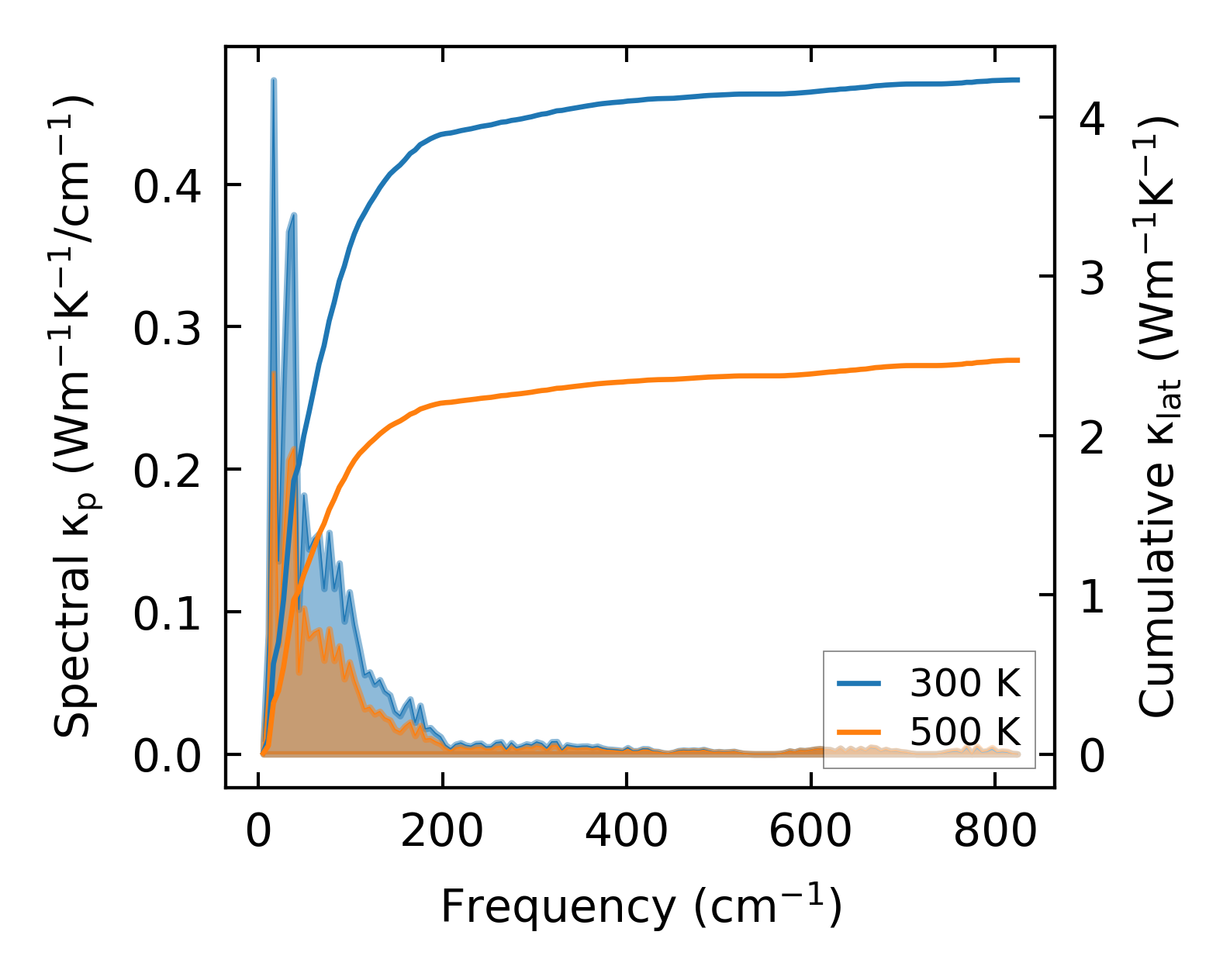

../../_images/fig_cumu_frequency1261.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp1261.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

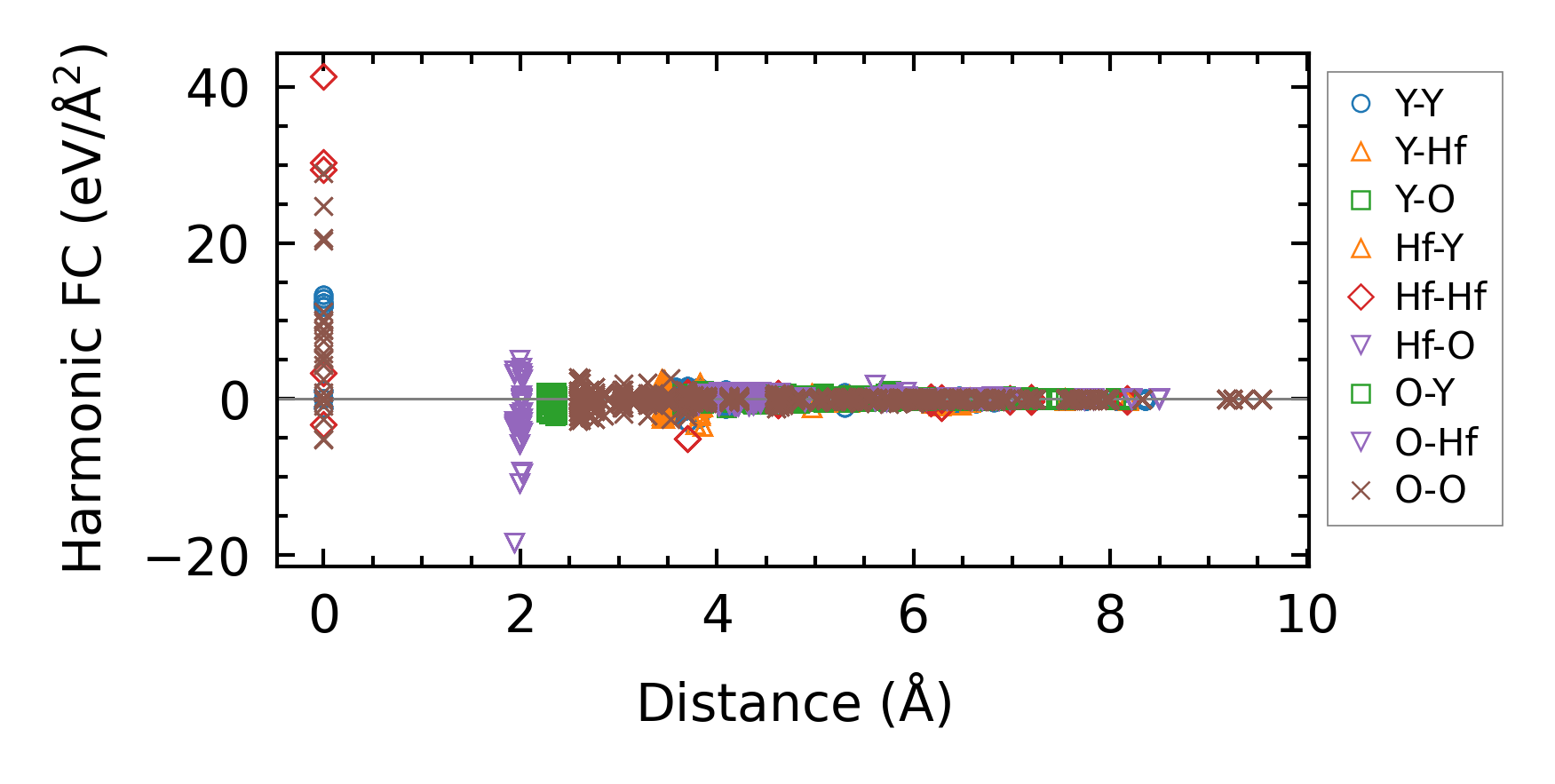

../../_images/fig_fc22142.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa2446.png — (a) Temperature-dependent lattice thermal conductivity

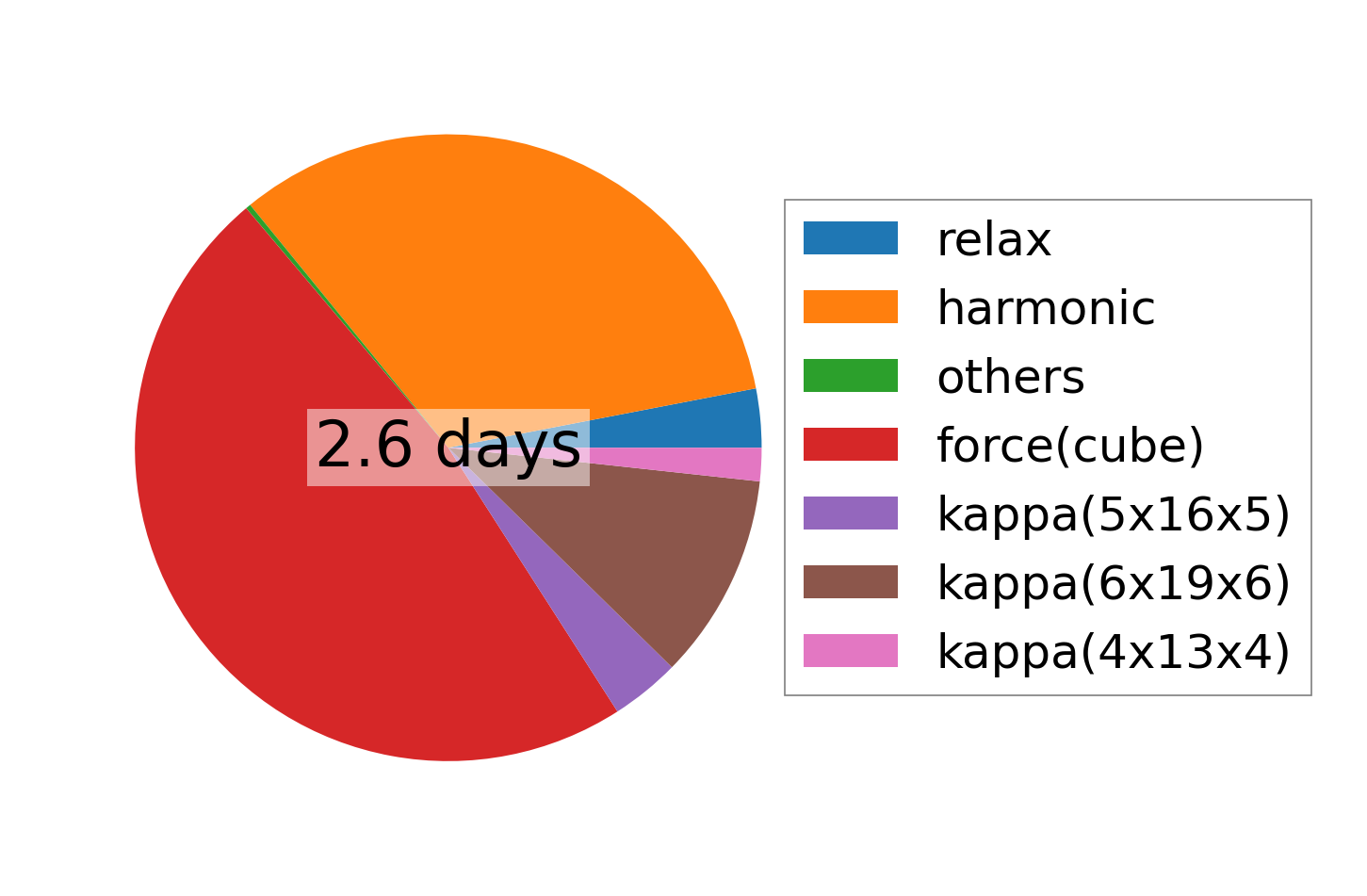

../../_images/fig_times3788.png — (b) Computation time
