mp-772087/Er3Sb5O12/anharm

Space group: I-43m (217)
Link: Materials Project
Download: mp-772087.tar.gz

Harmonic properties

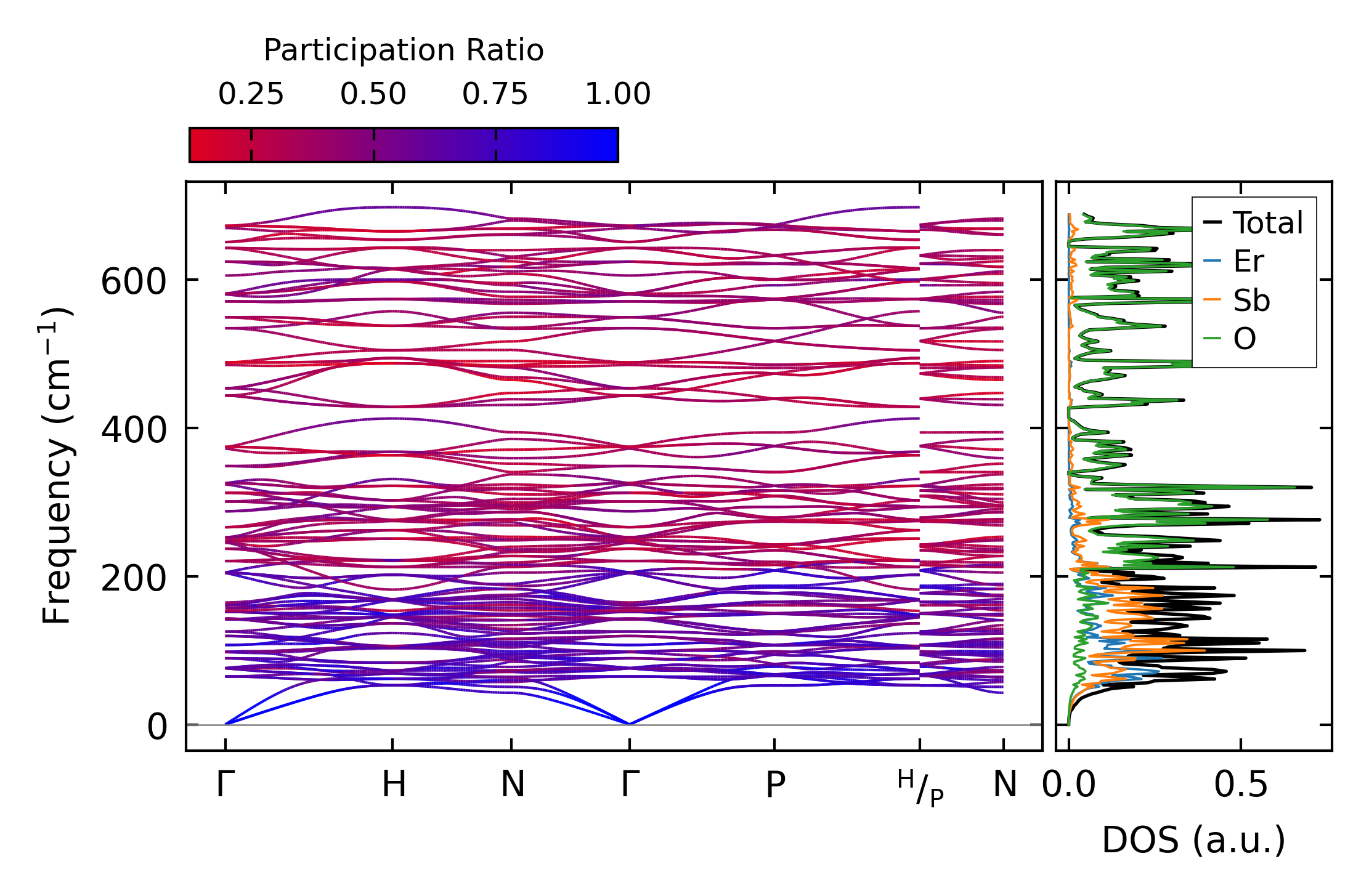

../../_images/fig_bandos_pr2533.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo2533.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all1304.png — (a) Grüneisen parameters

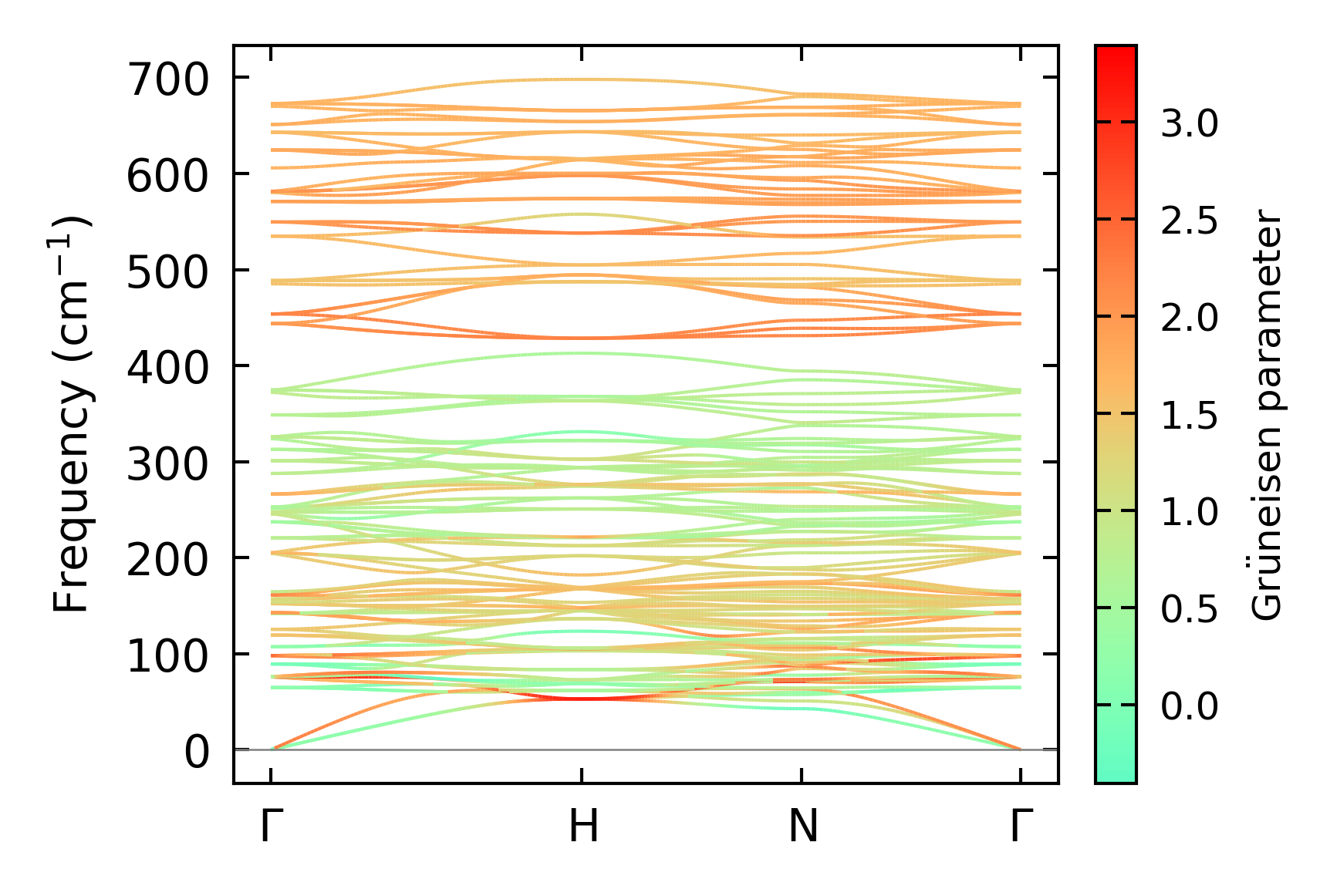

../../_images/fig_gruneisen1304.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x8x8, supercell: 1x1x1

../../_images/fig_kappa2509.png — (a) Temperature-dependent lattice thermal conductivity

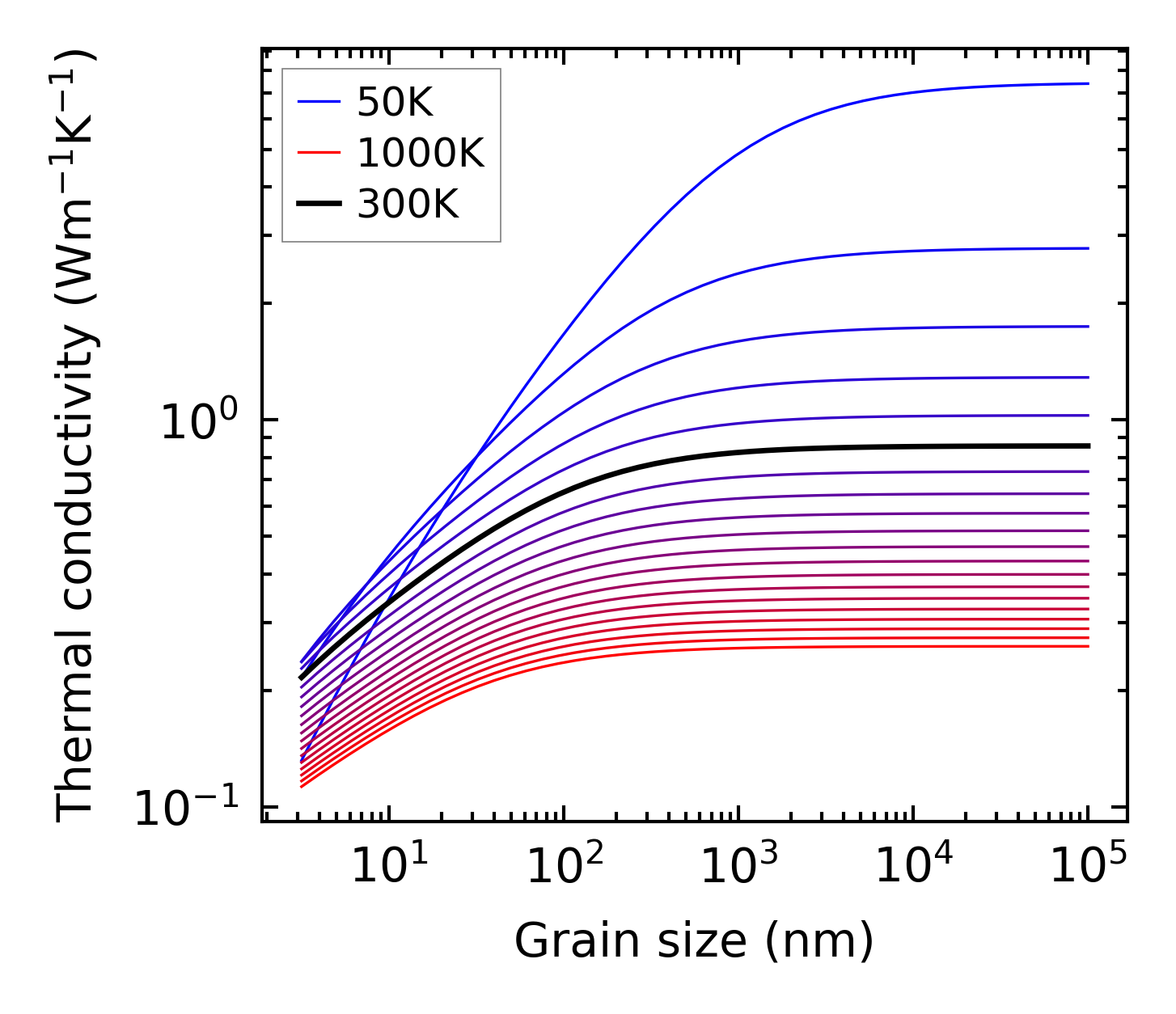

../../_images/fig_kappa_vs_grain_size1320.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

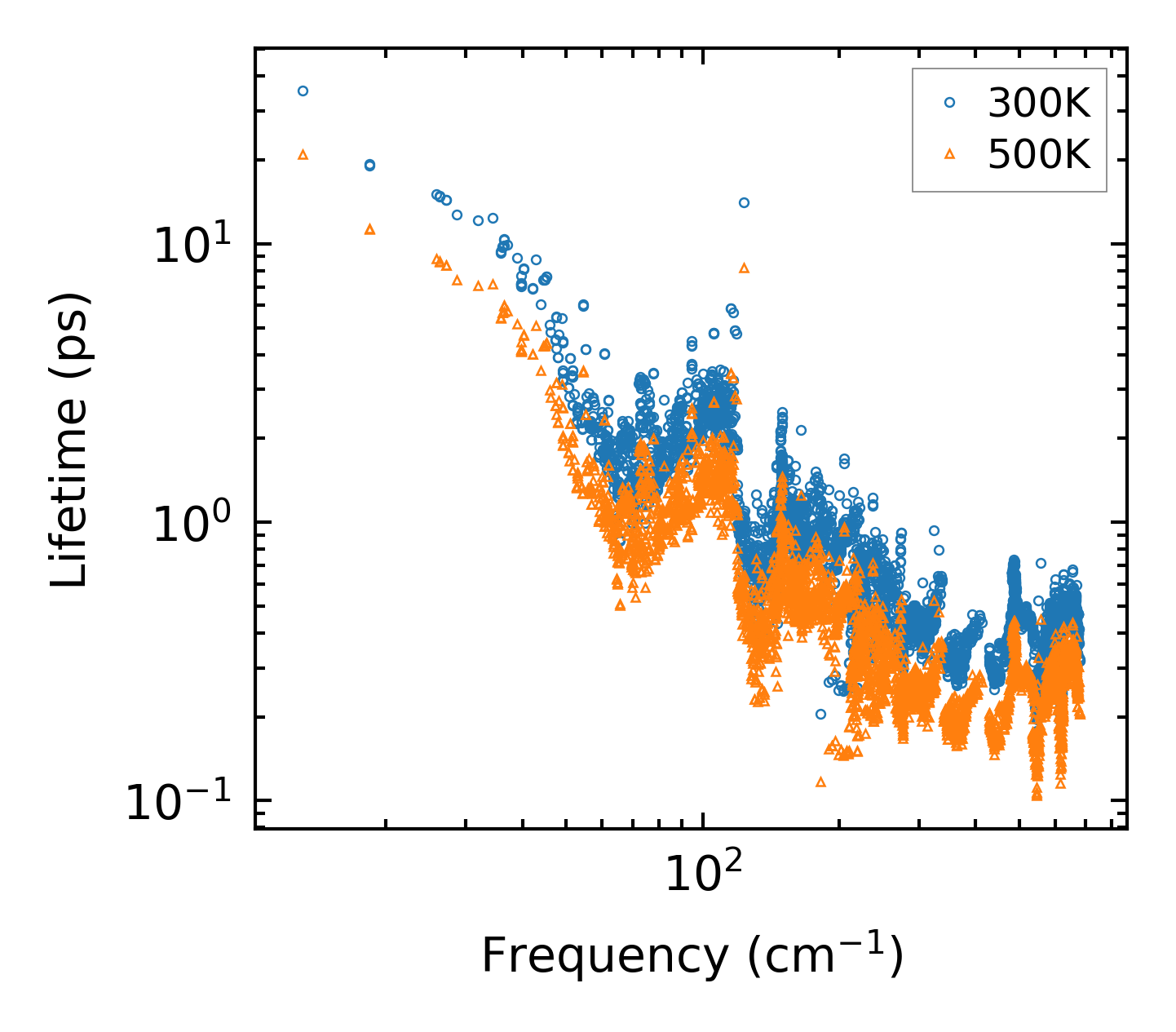

../../_images/fig_lifetime1294.png — (a) Phonon lifetime due to phonon-phonon scattering

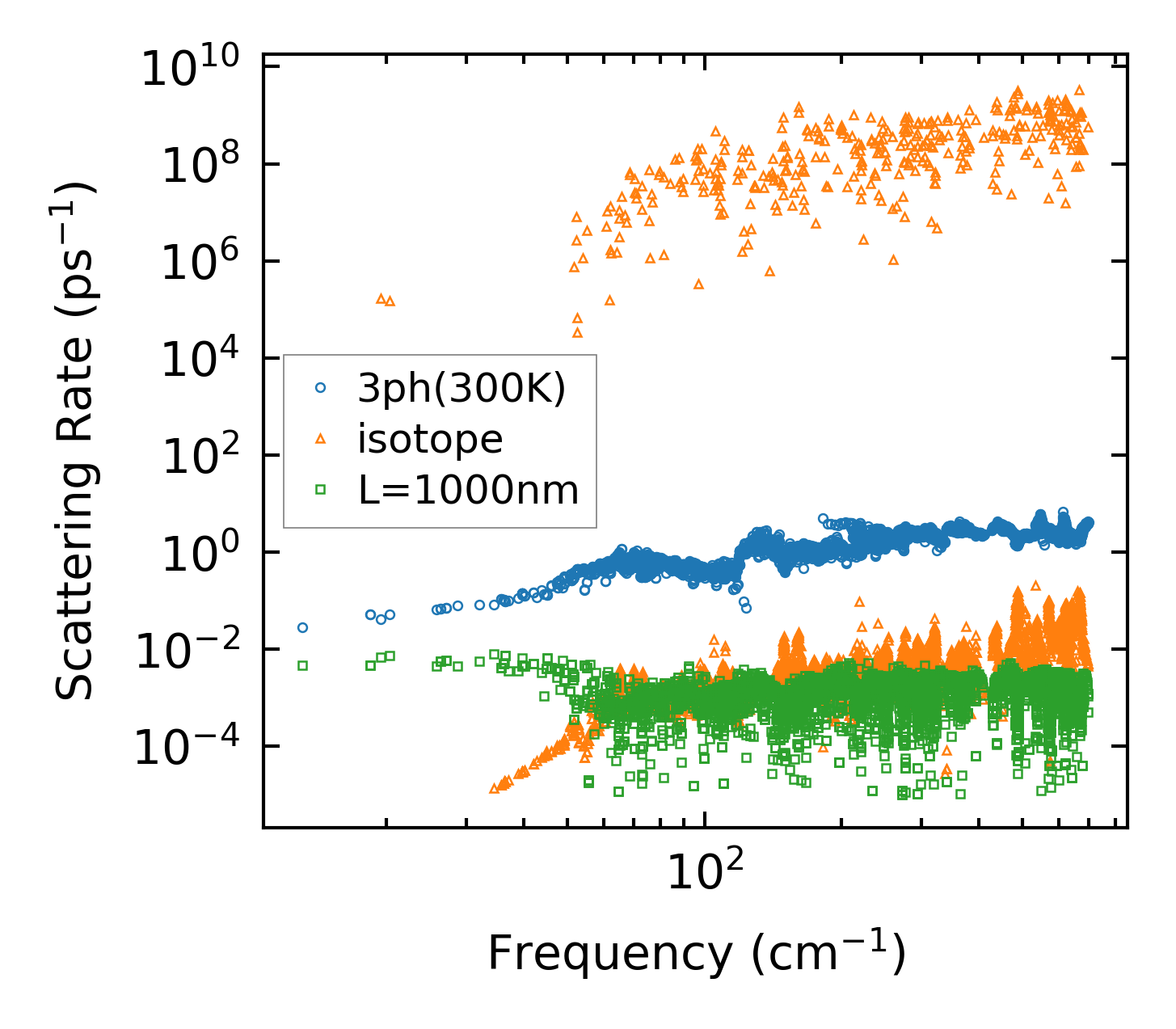

../../_images/fig_scat_rates1293.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

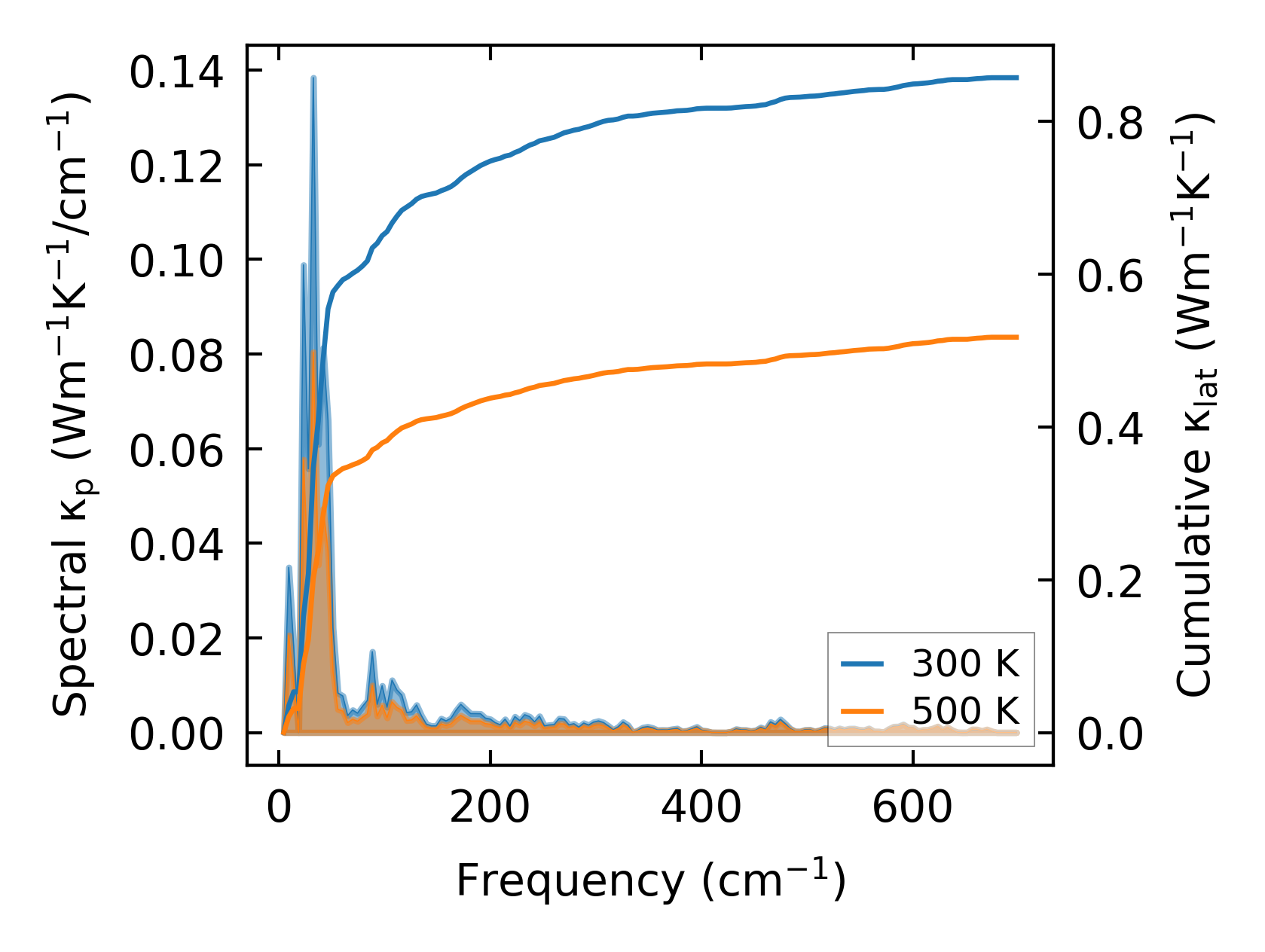

../../_images/fig_cumu_frequency1294.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp1294.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

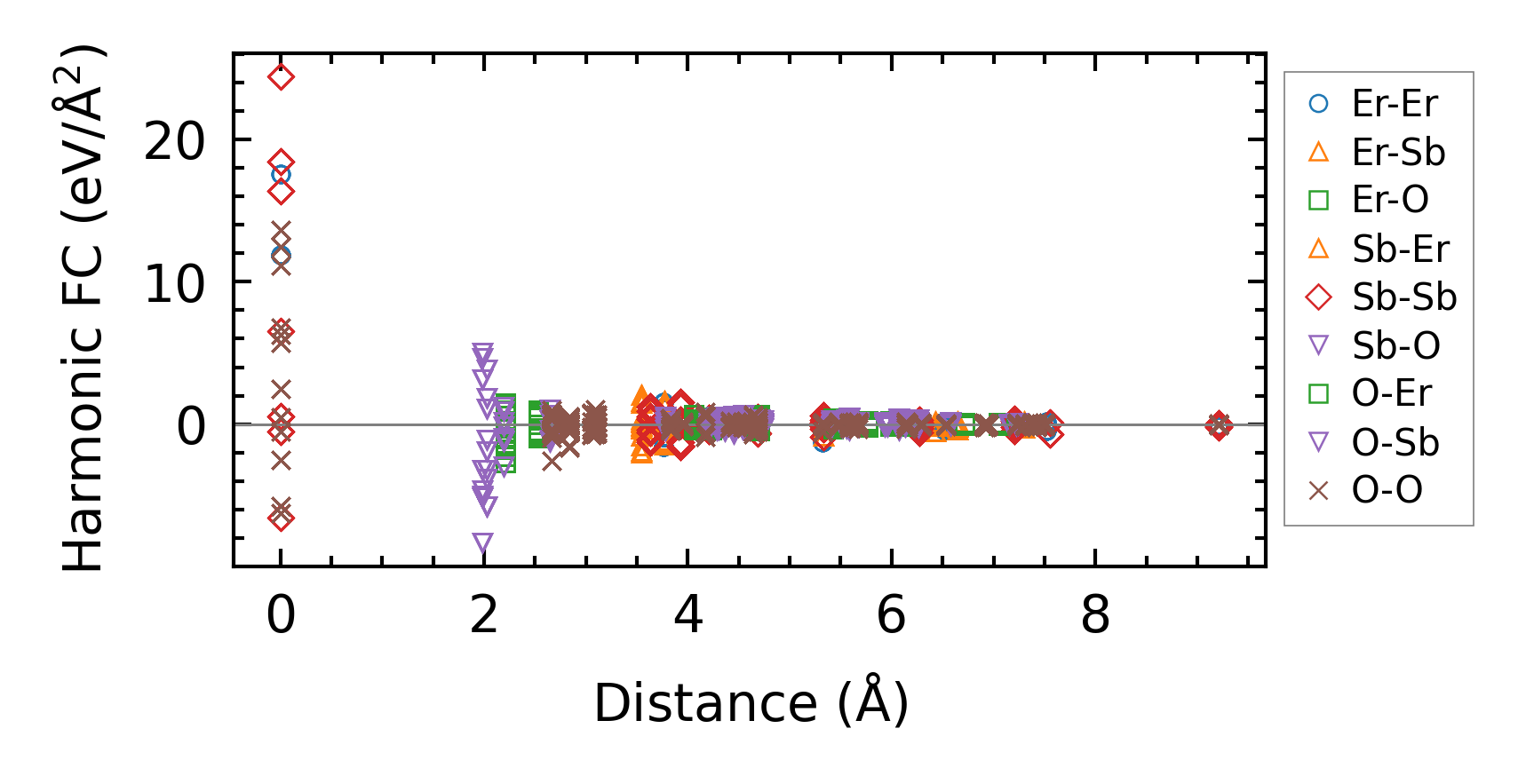

../../_images/fig_fc22354.png — (a) Force constants w.r.t atomic distance

Summary

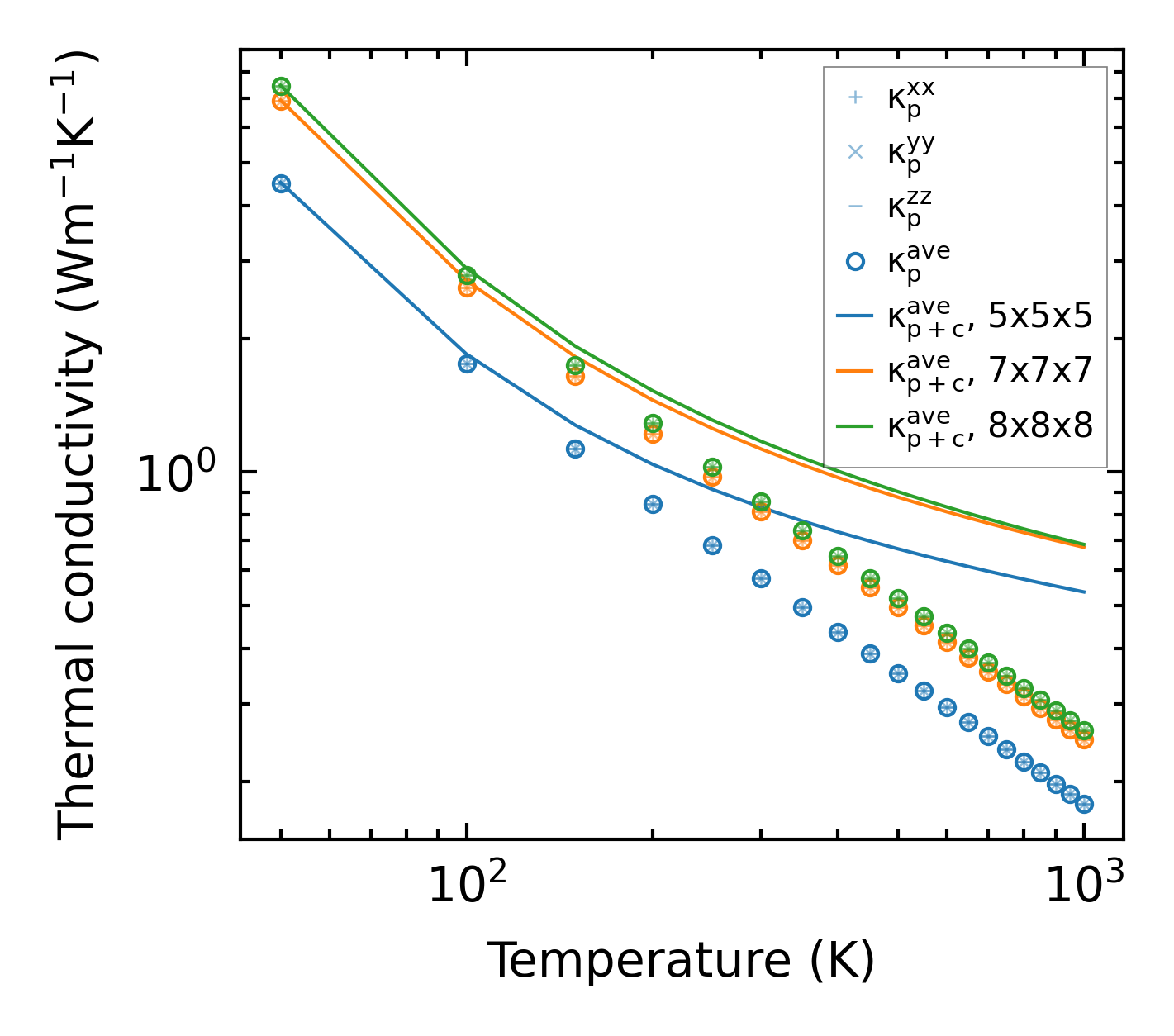

../../_images/fig_kappa2510.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times4198.png — (b) Computation time
