mp-697121/MgZn2H12Br6O6/harm

Equation of state

../../_images/fig_bm2454.png

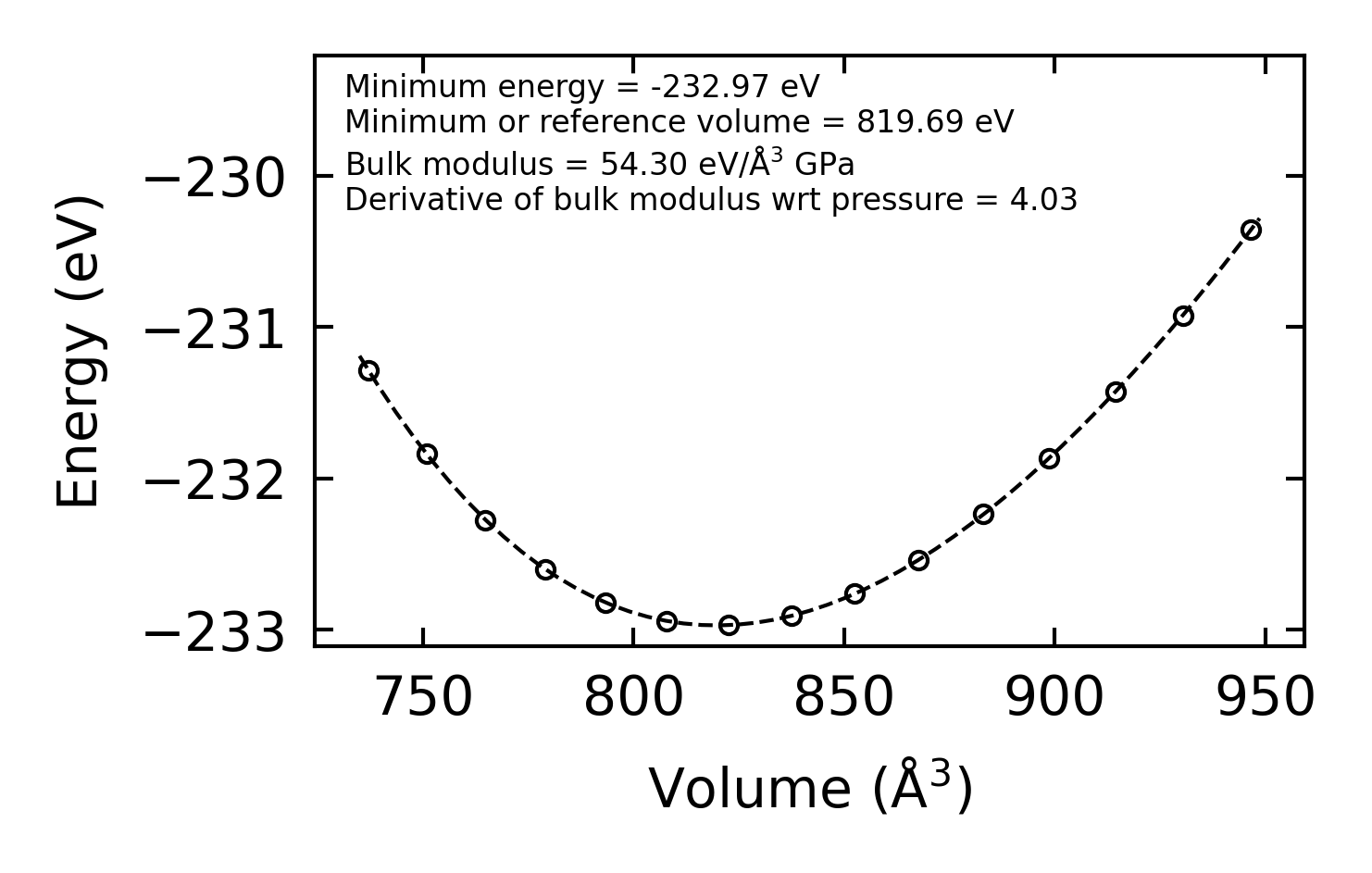

(a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr4957.png

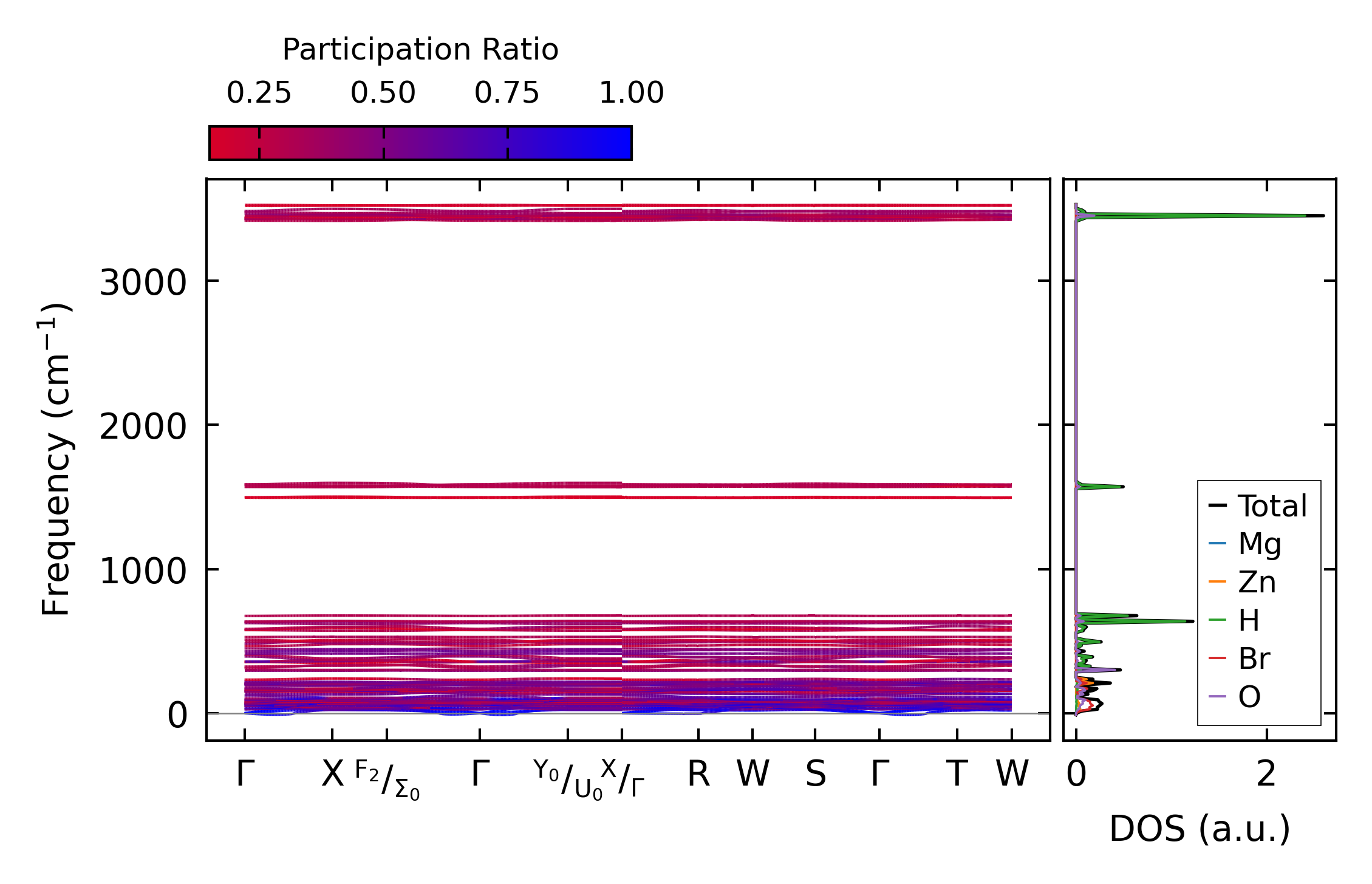

(a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos6916.png

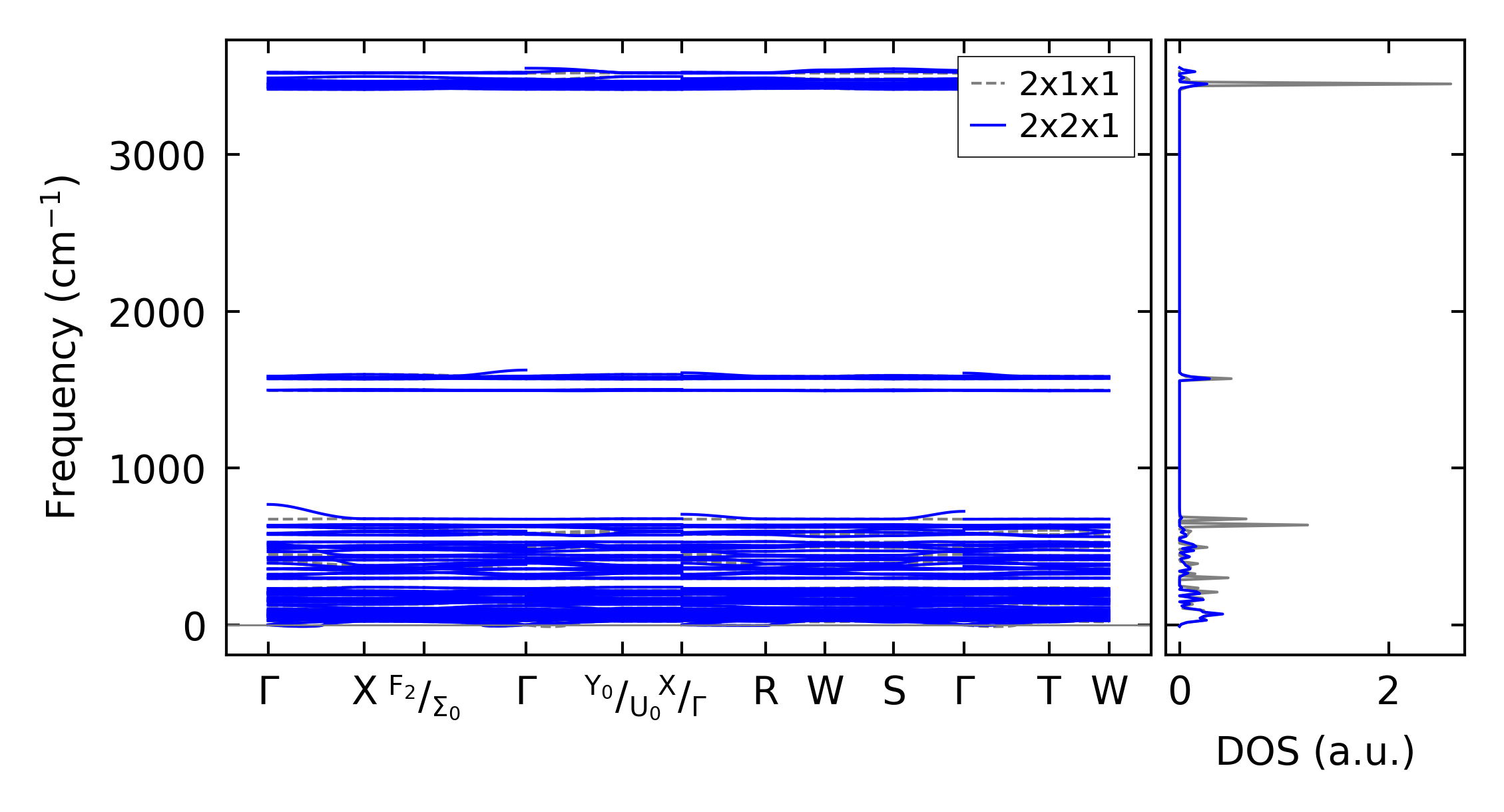

(b) Phonon dispersion and DOS

../../_images/fig_thermo4957.png

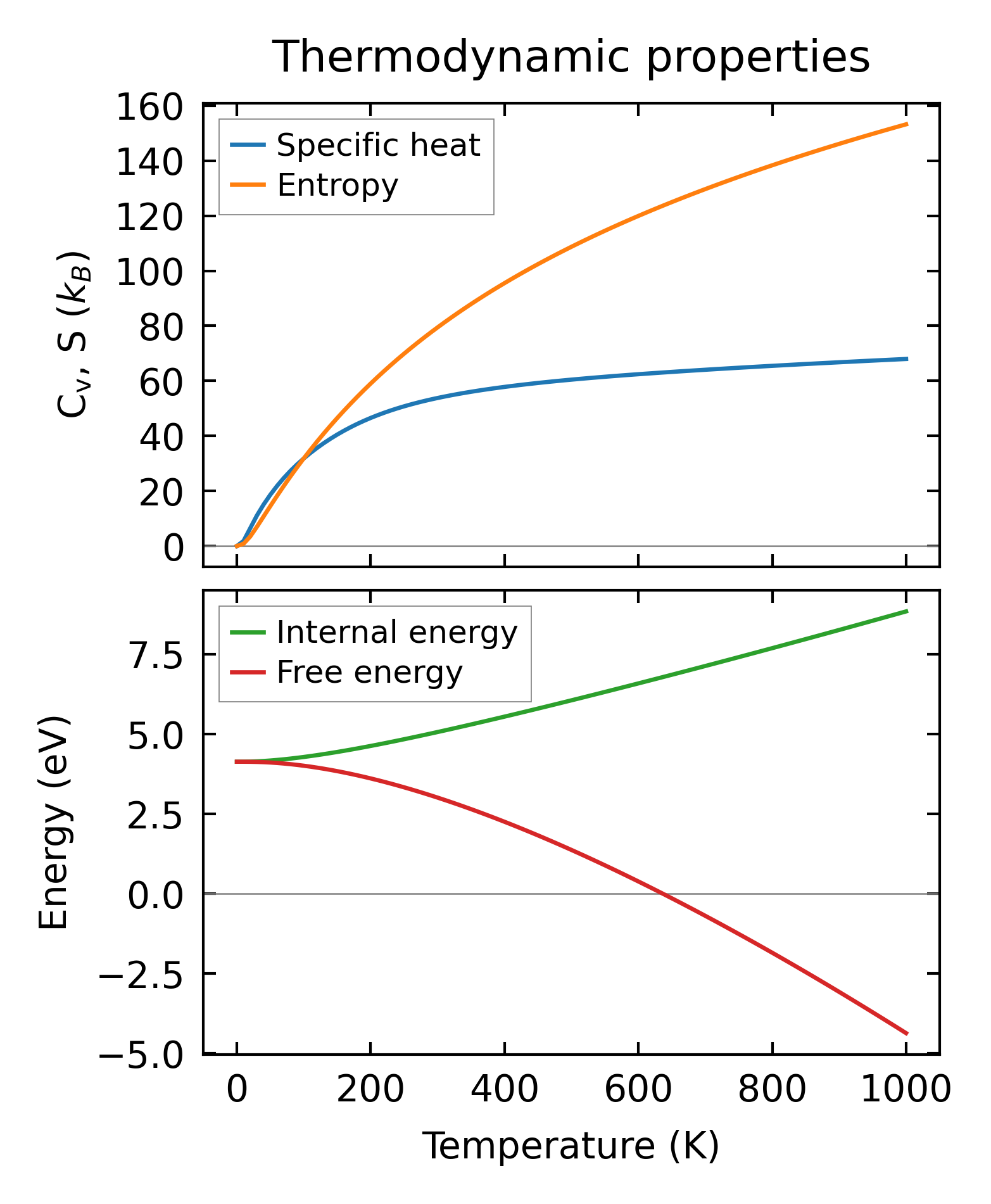

(c) Thermodynamic properties

Force constants

../../_images/fig_fc24764.png

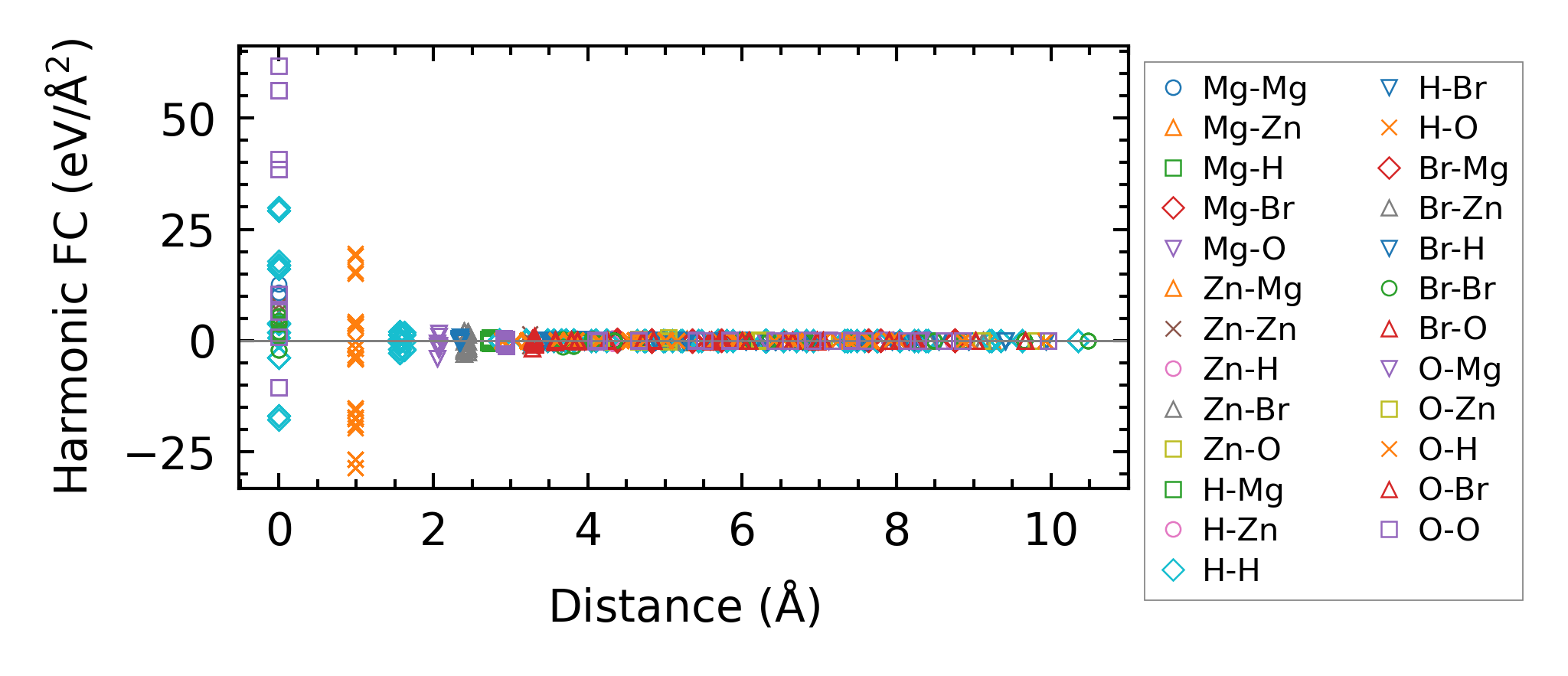

(a) Force constants w.r.t atomic distance

Summary

../../_images/fig_times8790.png

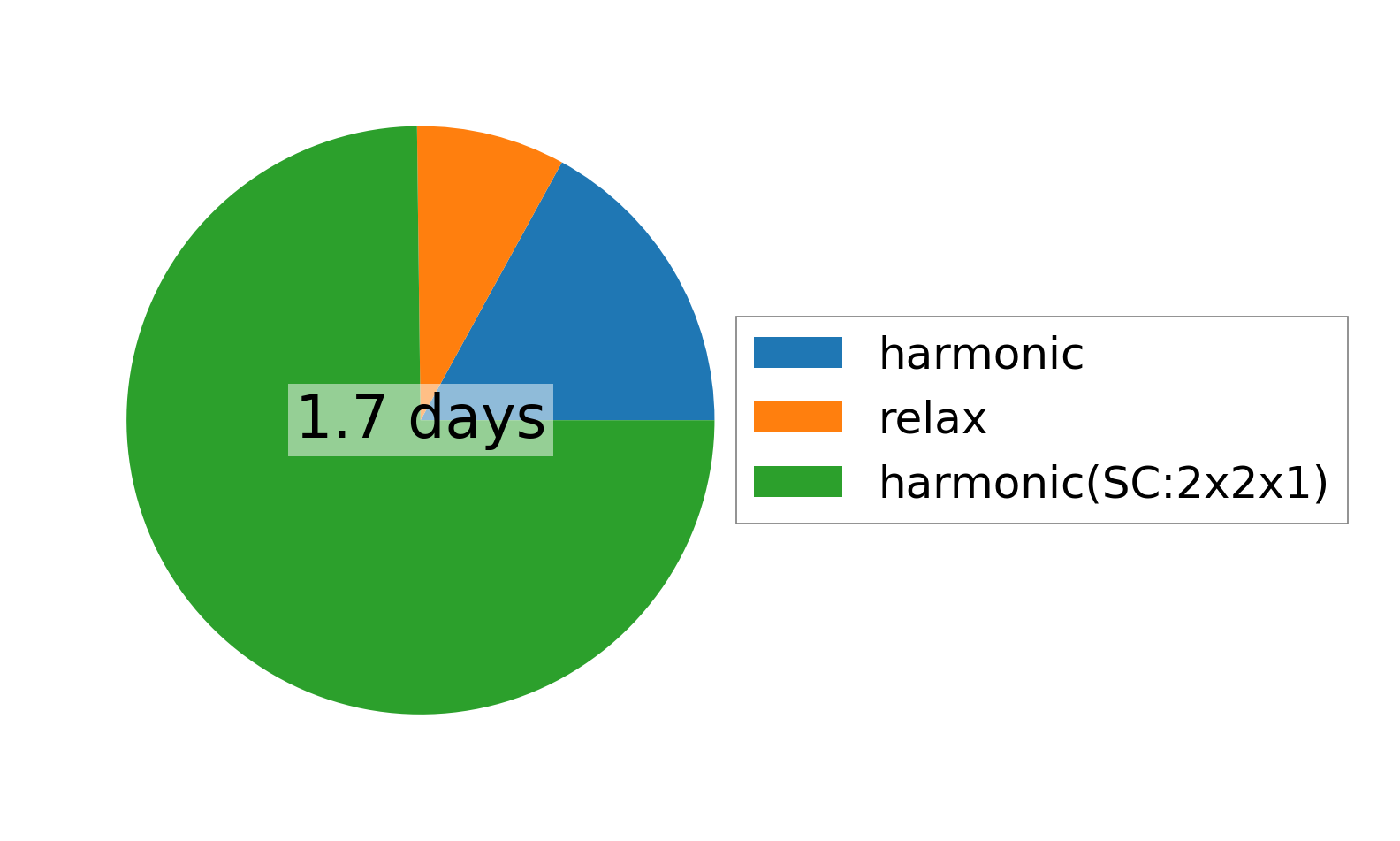

(a) Computation time
