mp-1206742/ErHSe/anharm

Space group: P-6m2 (187)
Link: Materials Project
Download: mp-1206742.tar.gz

Harmonic properties

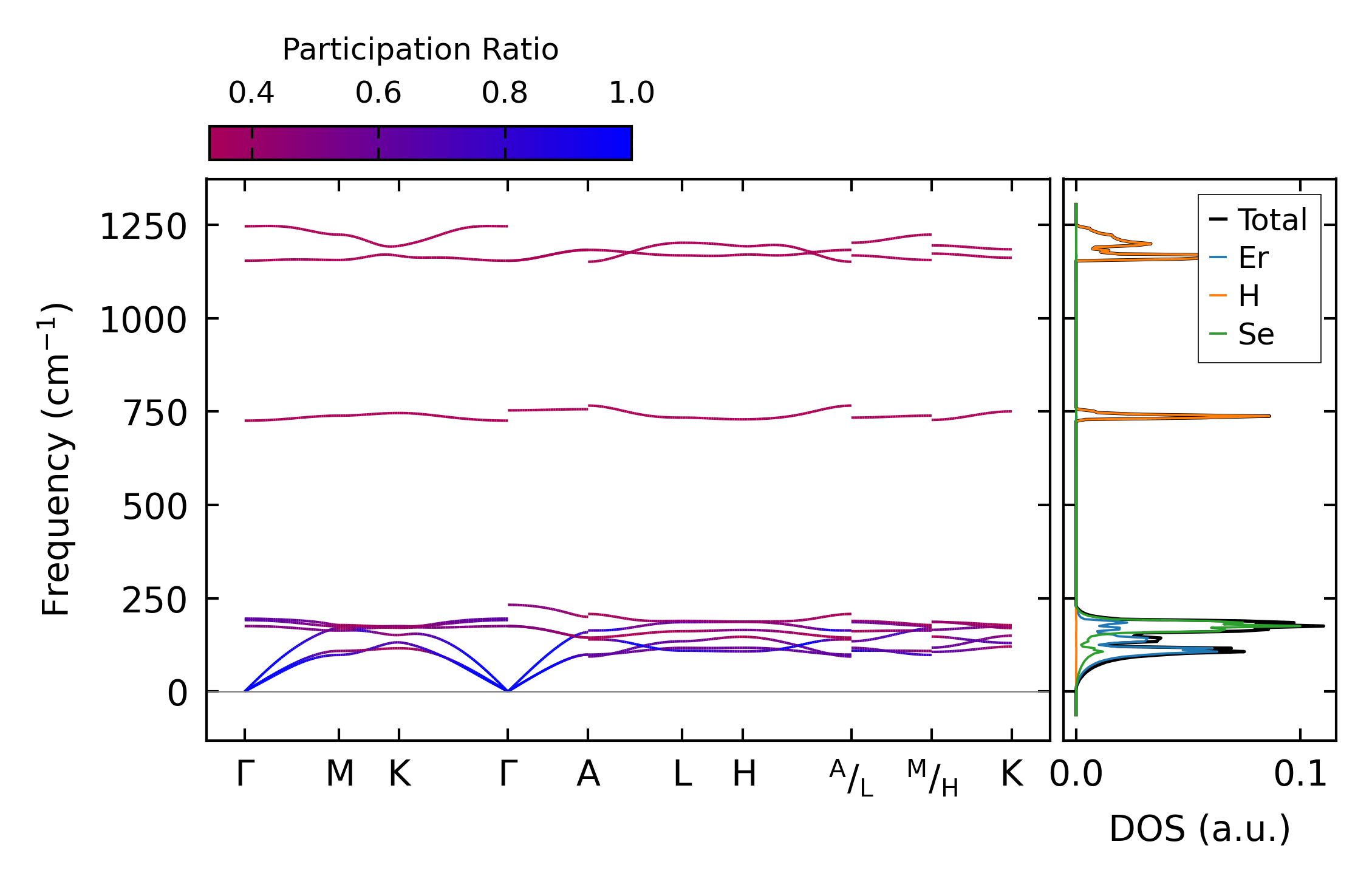

../../_images/fig_bandos_pr15469.png — (a) Phonon dispersion with participation ratio and DOS

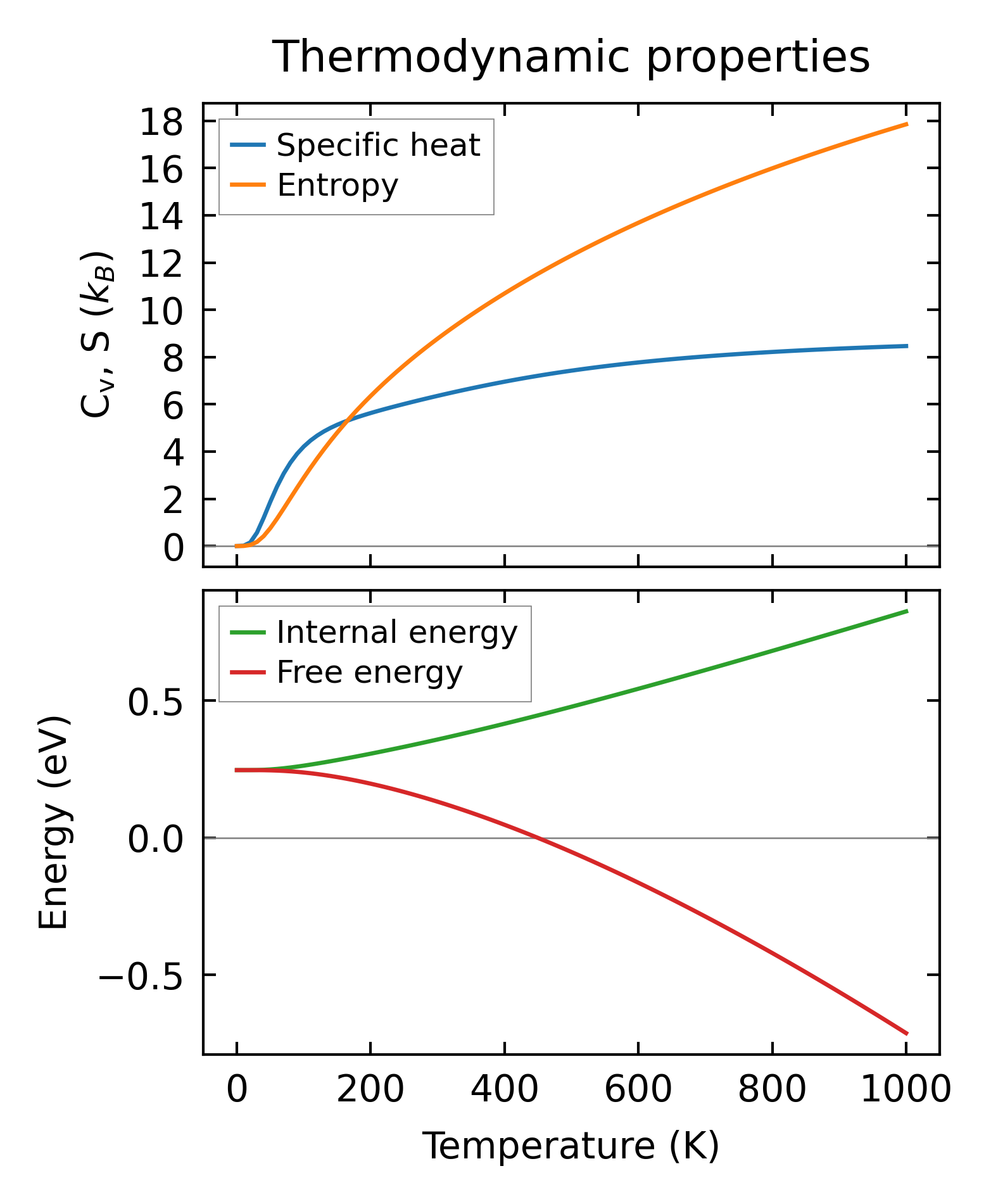

../../_images/fig_thermo15468.png — (b) Thermodynamic properties

Grüneisen parameters

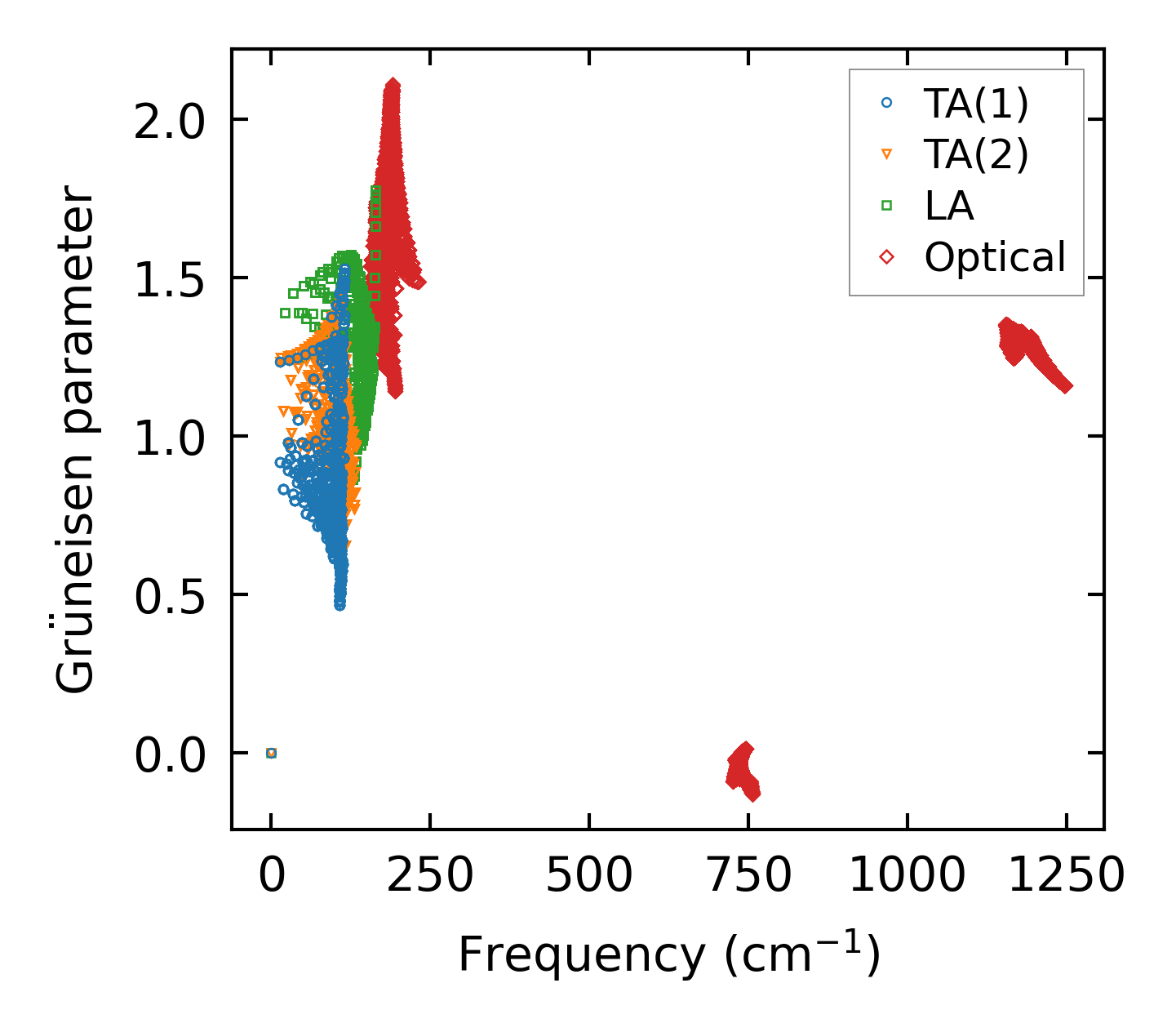

../../_images/fig_gru_all6692.png — (a) Grüneisen parameters

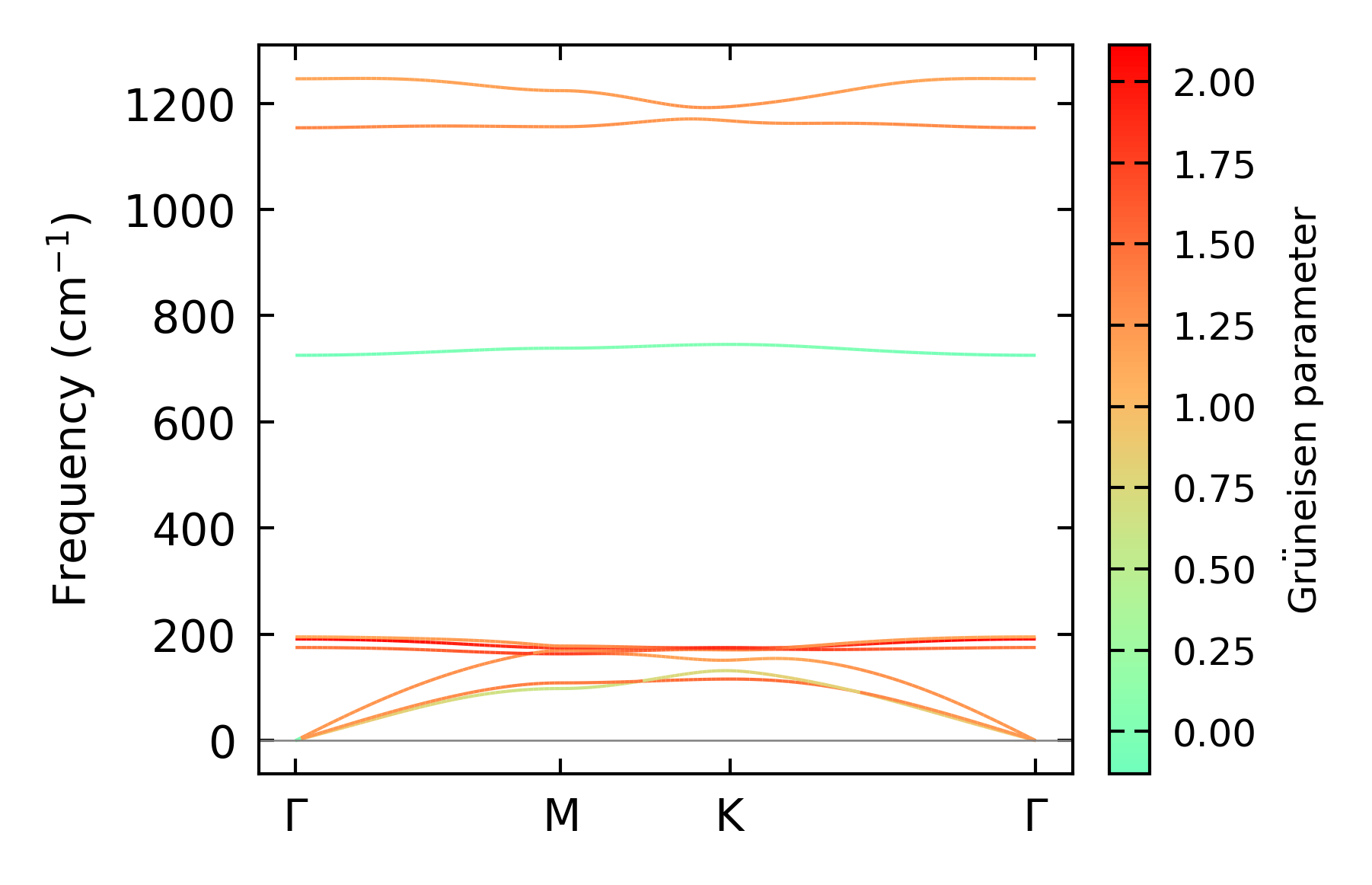

../../_images/fig_gruneisen6692.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 20x20x19, supercell: 4x4x3

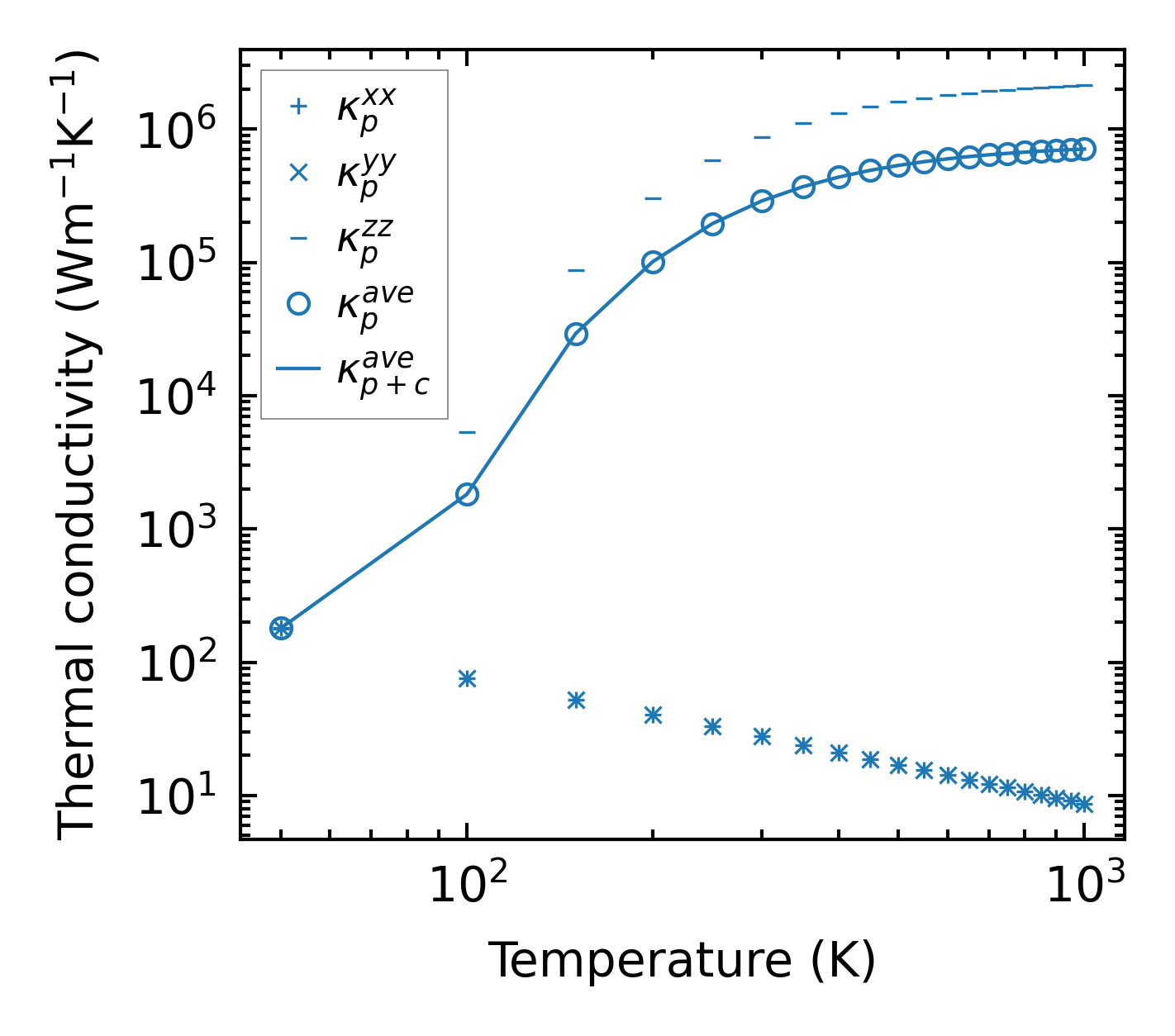

../../_images/fig_kappa12603.png — (a) Temperature-dependent lattice thermal conductivity

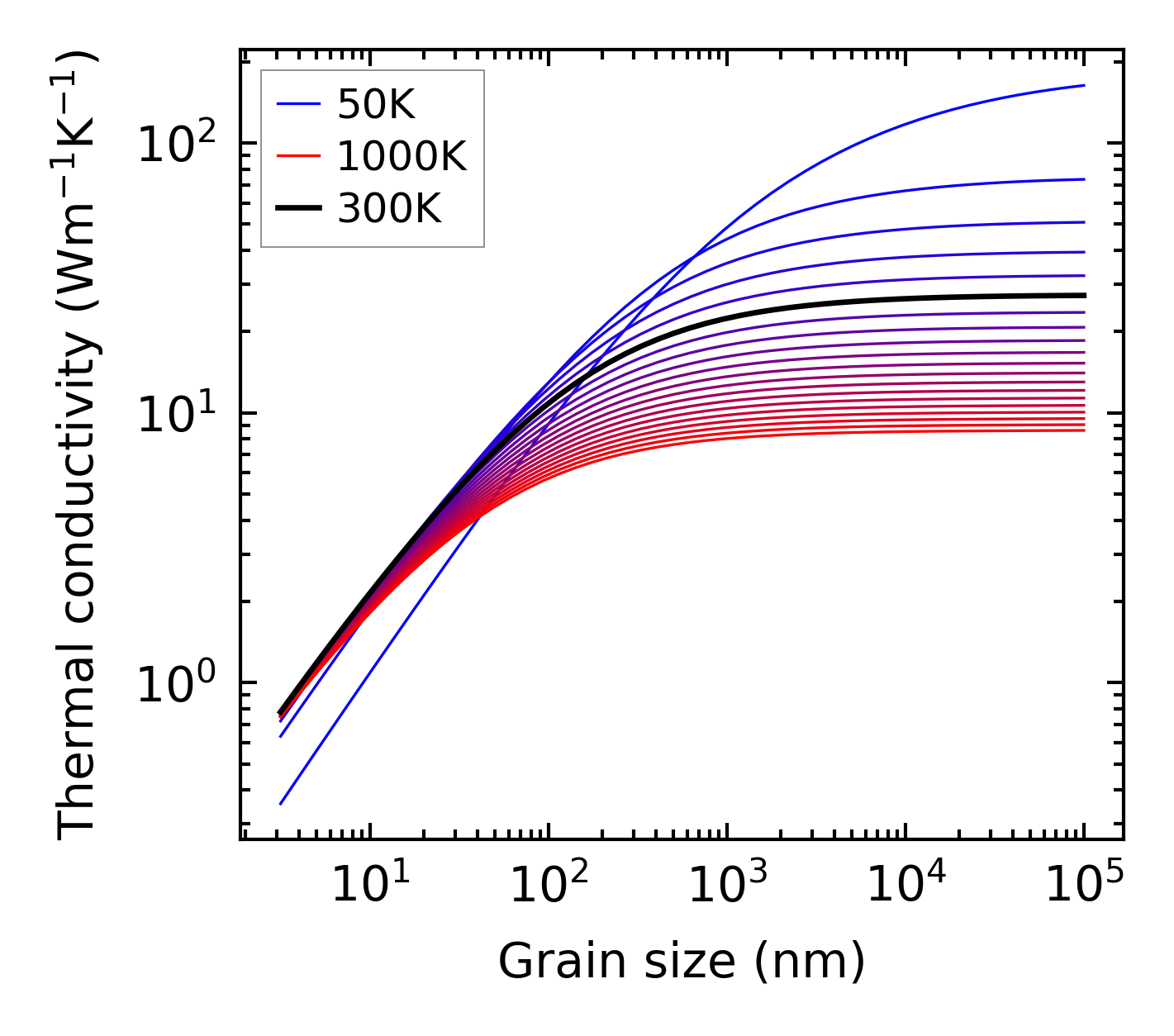

../../_images/fig_kappa_vs_grain_size6770.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

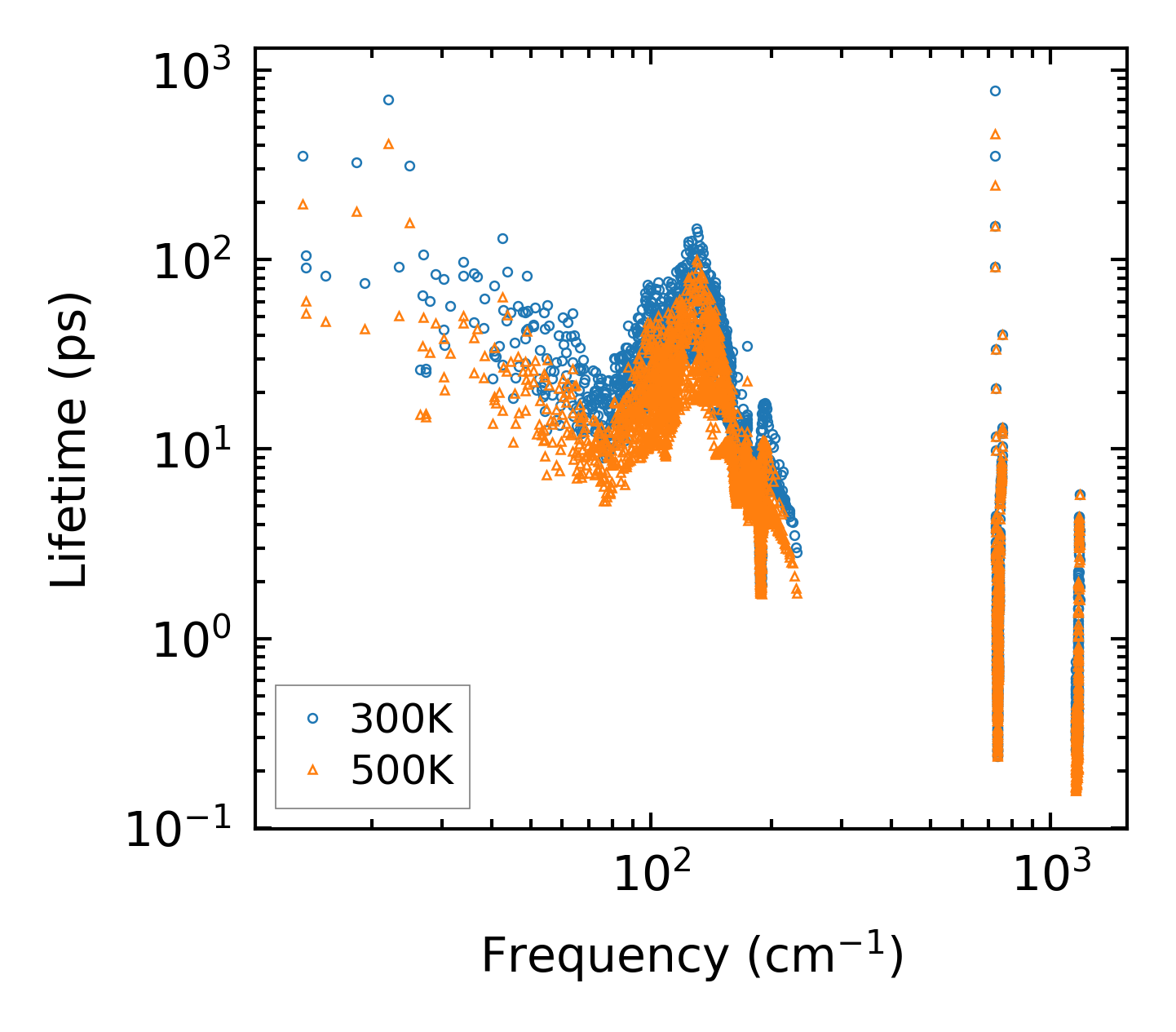

../../_images/fig_lifetime6626.png — (a) Phonon lifetime due to phonon-phonon scattering

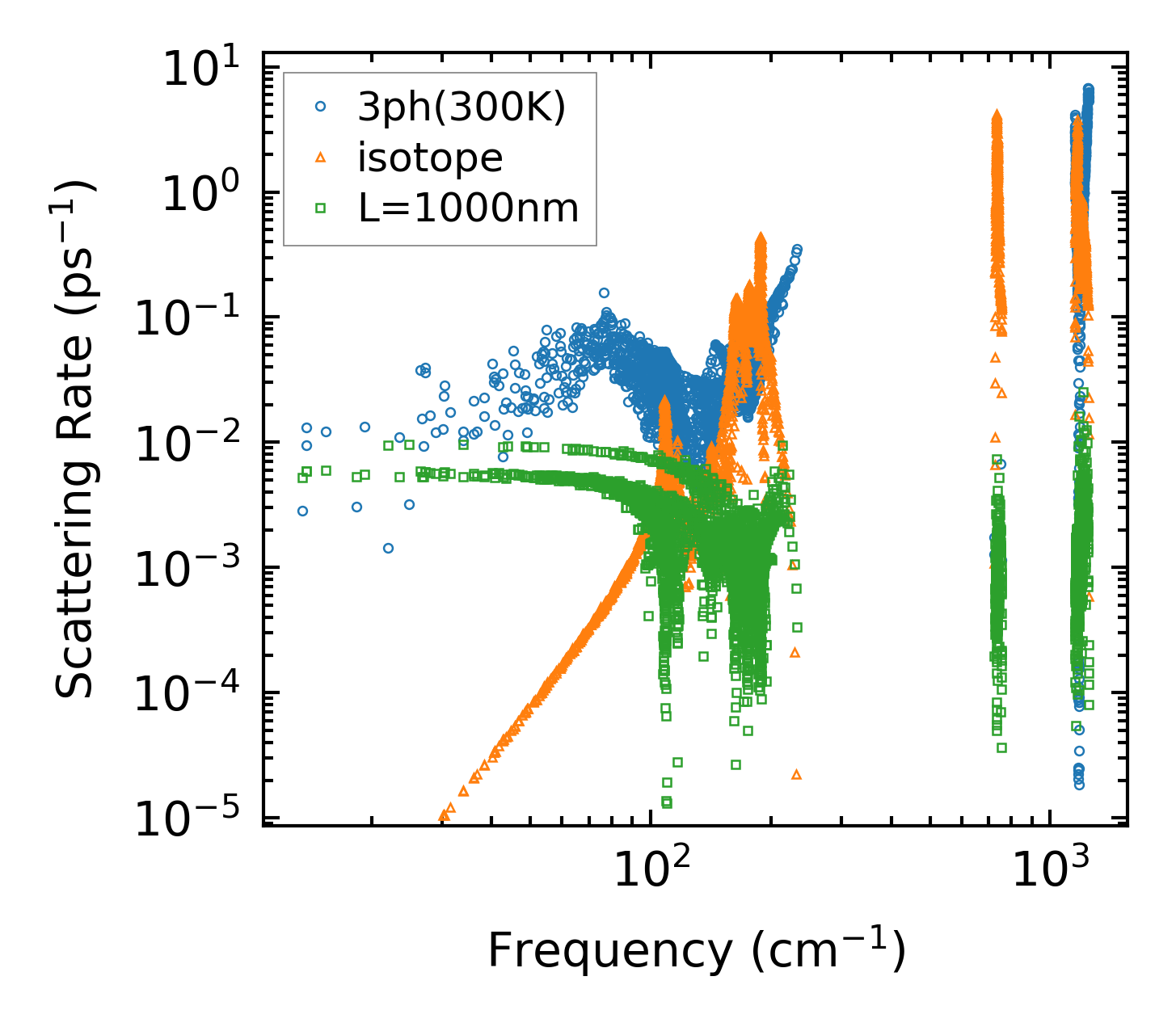

../../_images/fig_scat_rates6625.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

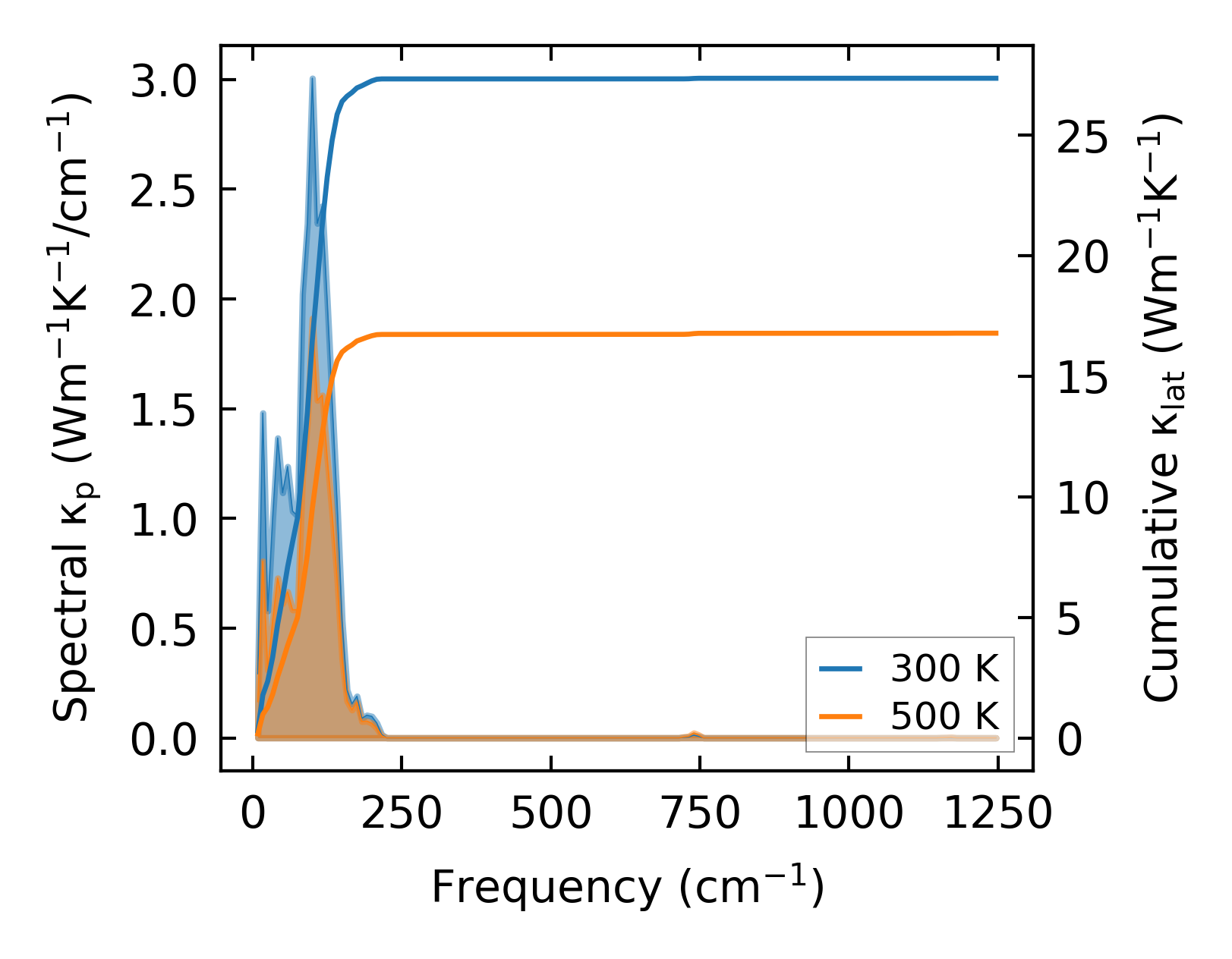

../../_images/fig_cumu_frequency6626.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

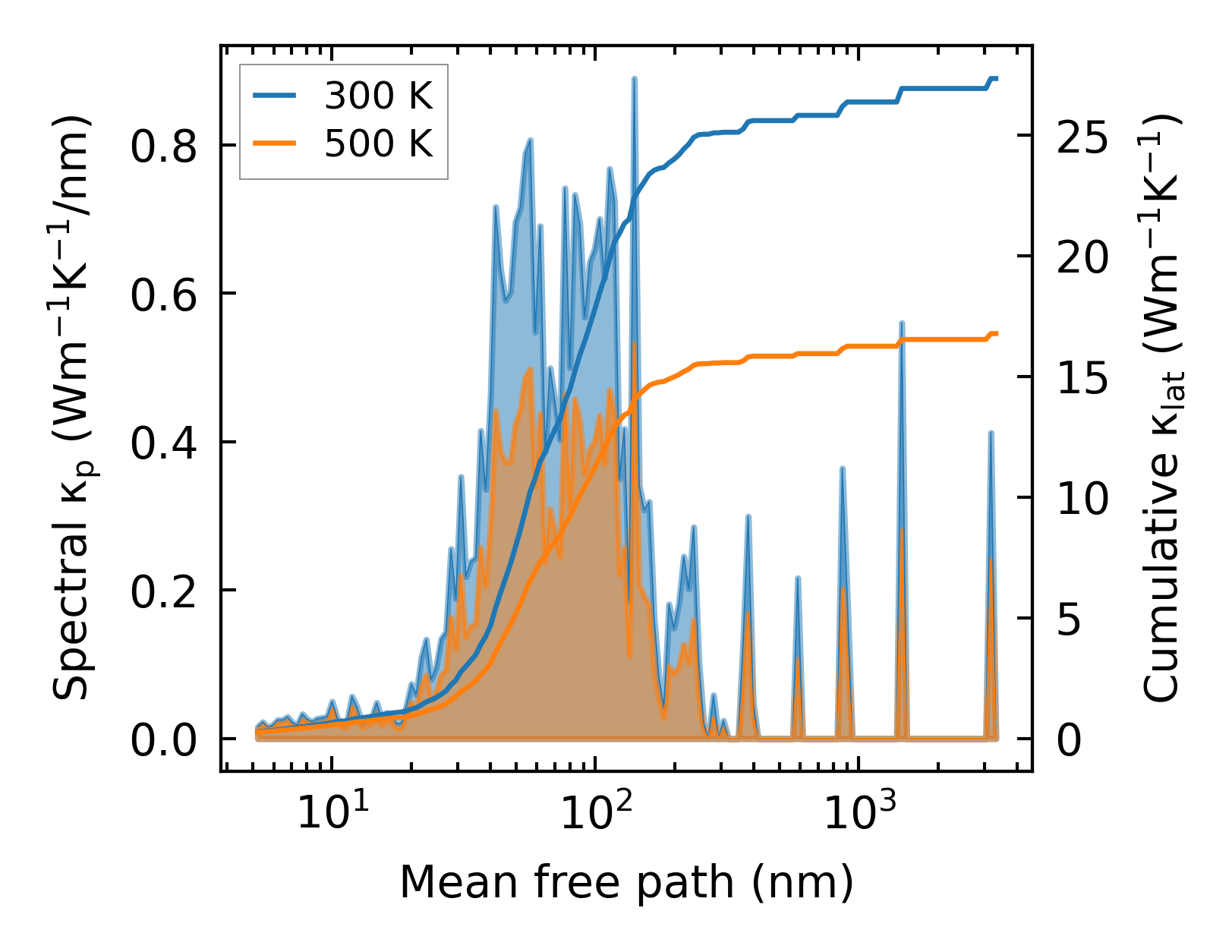

../../_images/fig_cumu_mfp6625.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

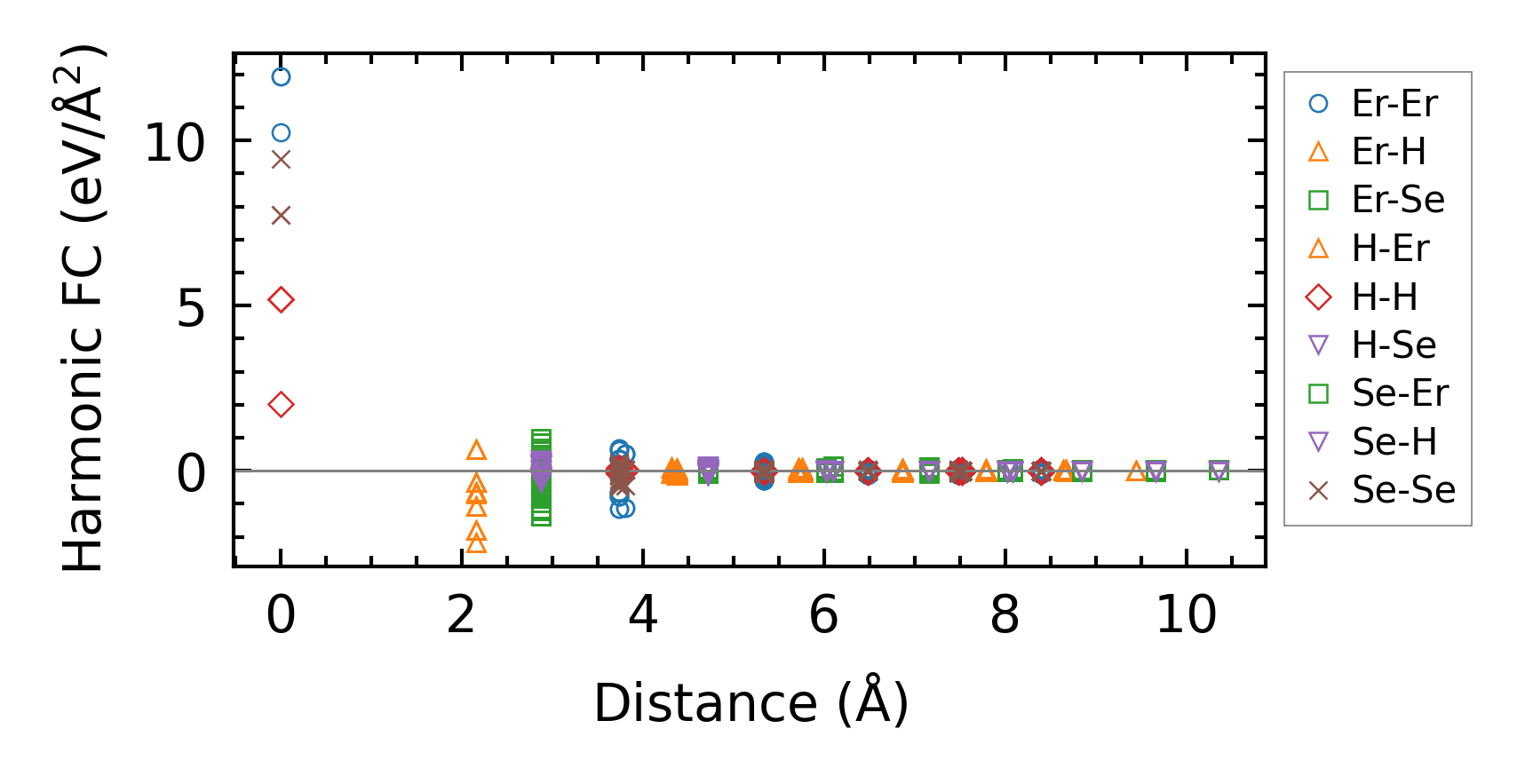

../../_images/fig_fc215066.png — (a) Force constants w.r.t atomic distance

Summary

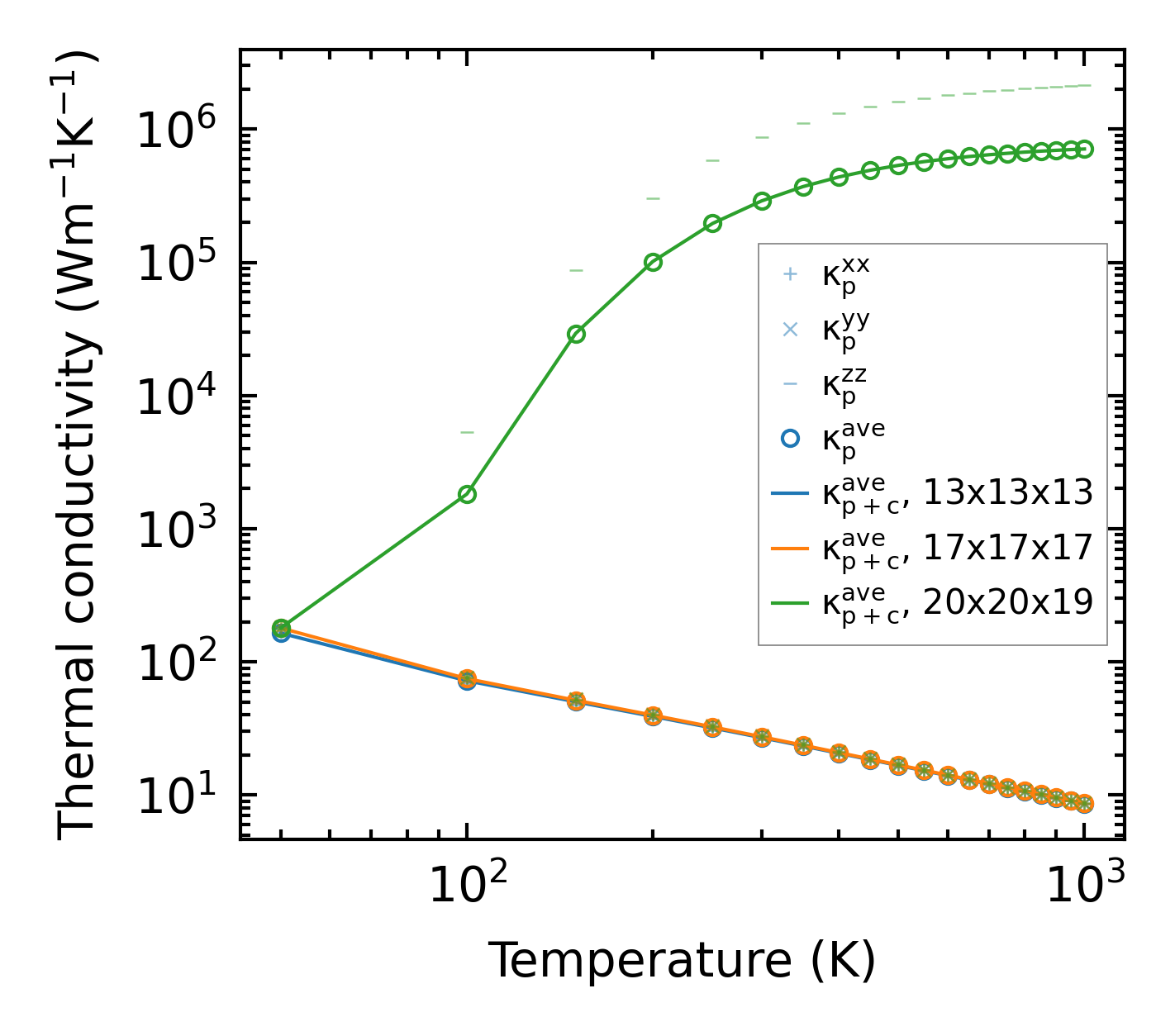

../../_images/fig_kappa12604.png — (a) Temperature-dependent lattice thermal conductivity

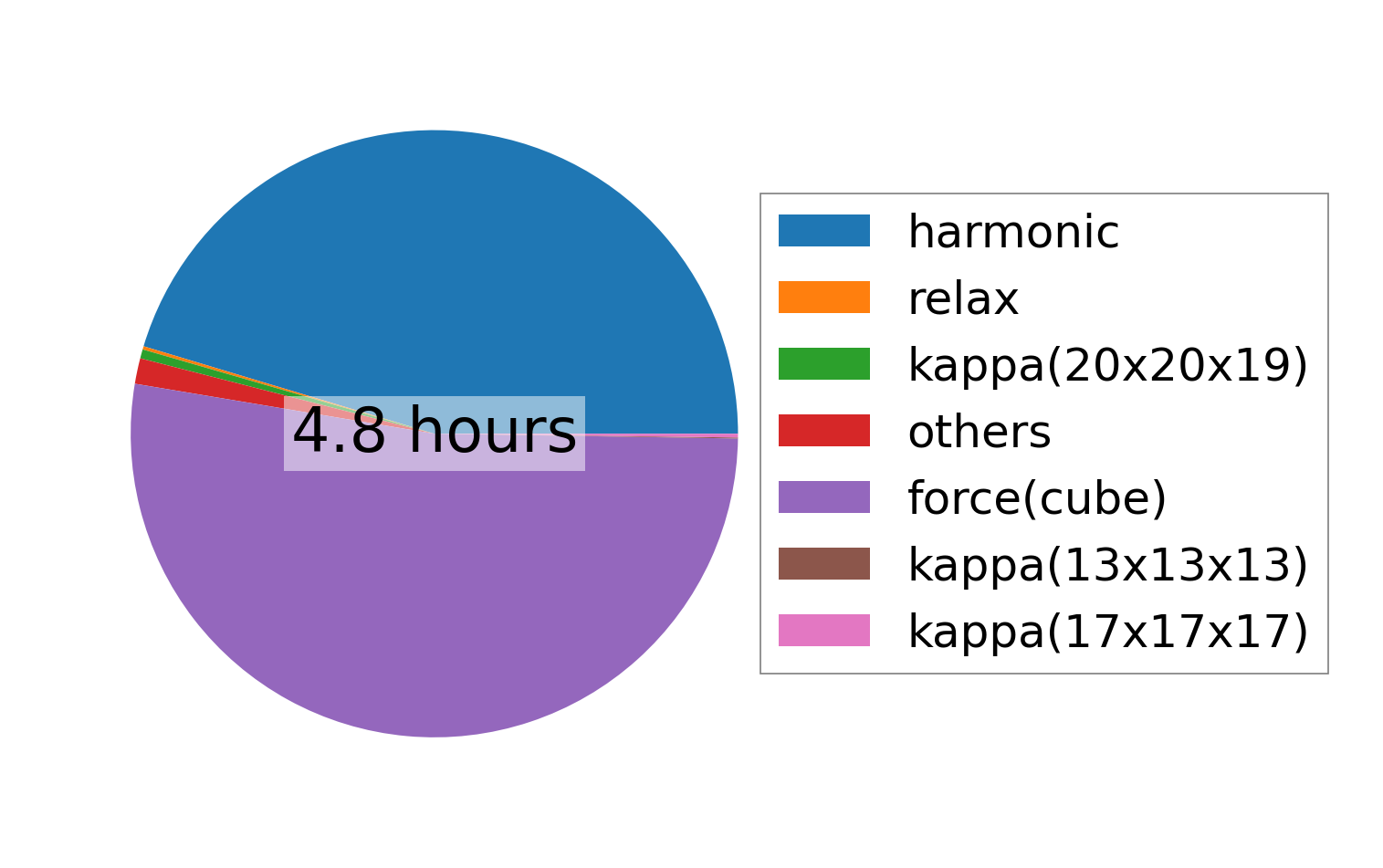

../../_images/fig_times25556.png — (b) Computation time
