mp-1113669/Rb2NaScF6/anharm

Space group: Fm-3m (225)
Link: Materials Project
Download: mp-1113669.tar.gz

Harmonic properties

../../_images/fig_bandos_pr16439.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16438.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all7105.png — (a) Grüneisen parameters

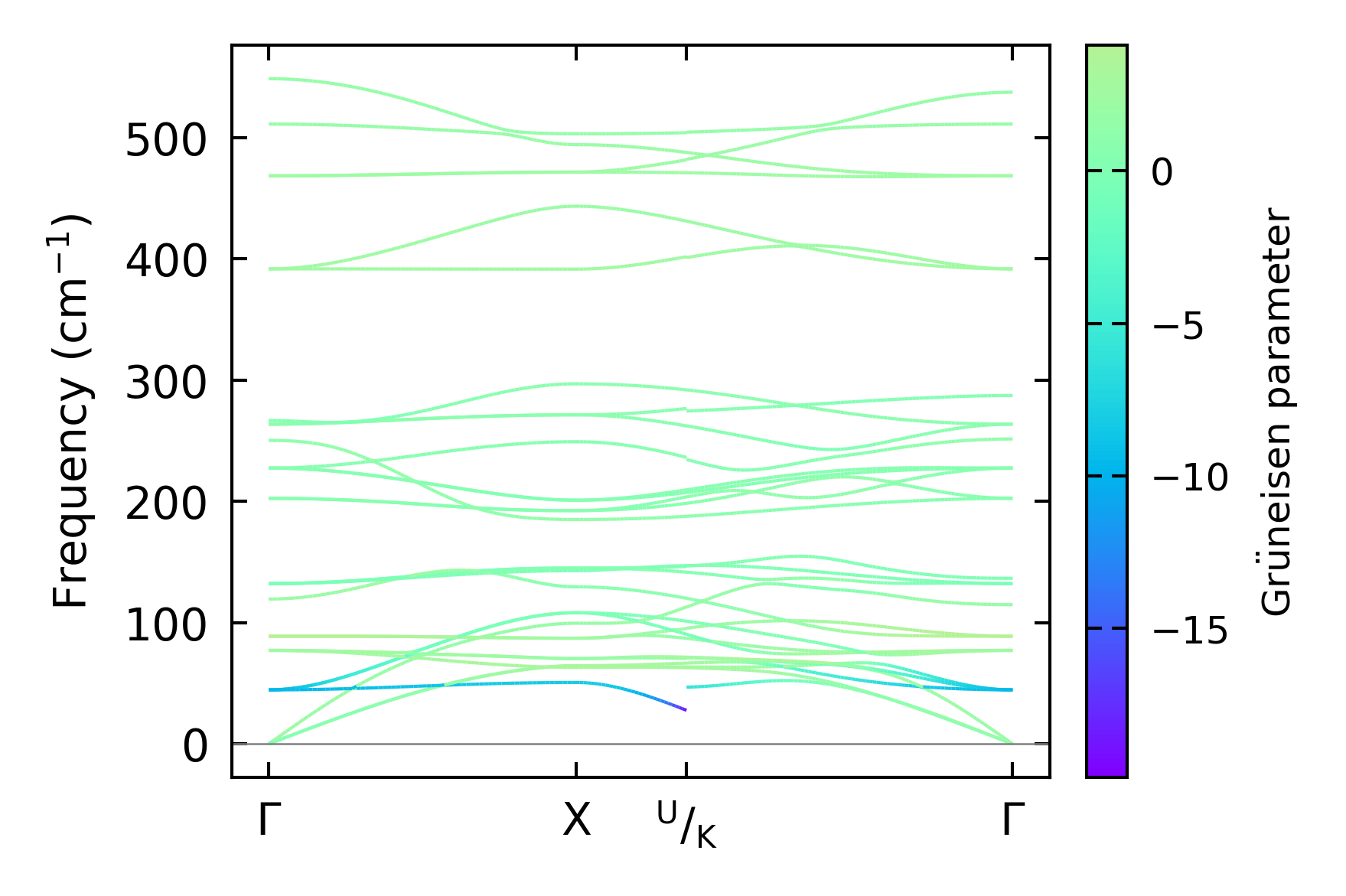

../../_images/fig_gruneisen7105.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x13, supercell: 1x1x1

../../_images/fig_kappa13390.png — (a) Temperature-dependent lattice thermal conductivity

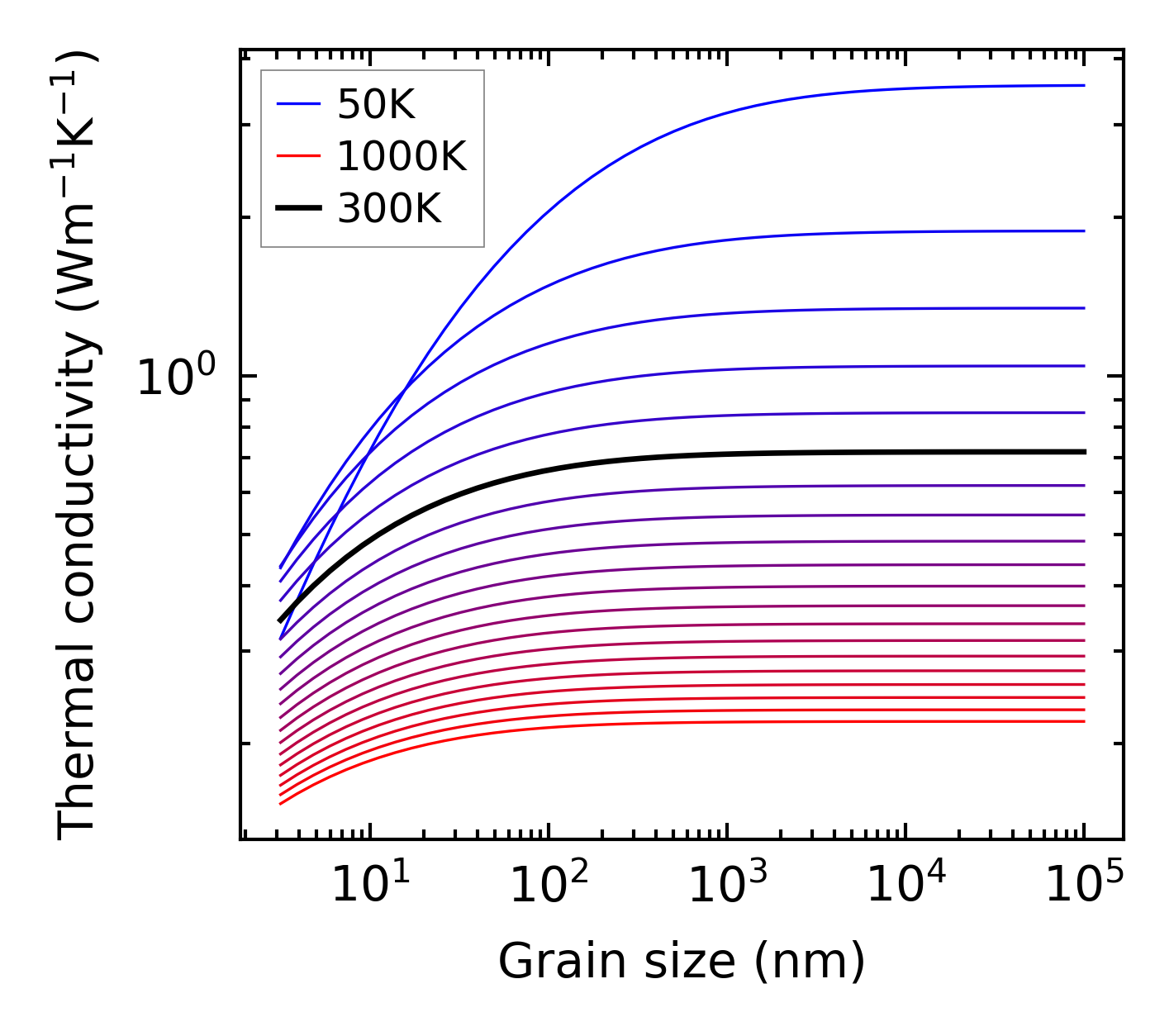

../../_images/fig_kappa_vs_grain_size7187.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

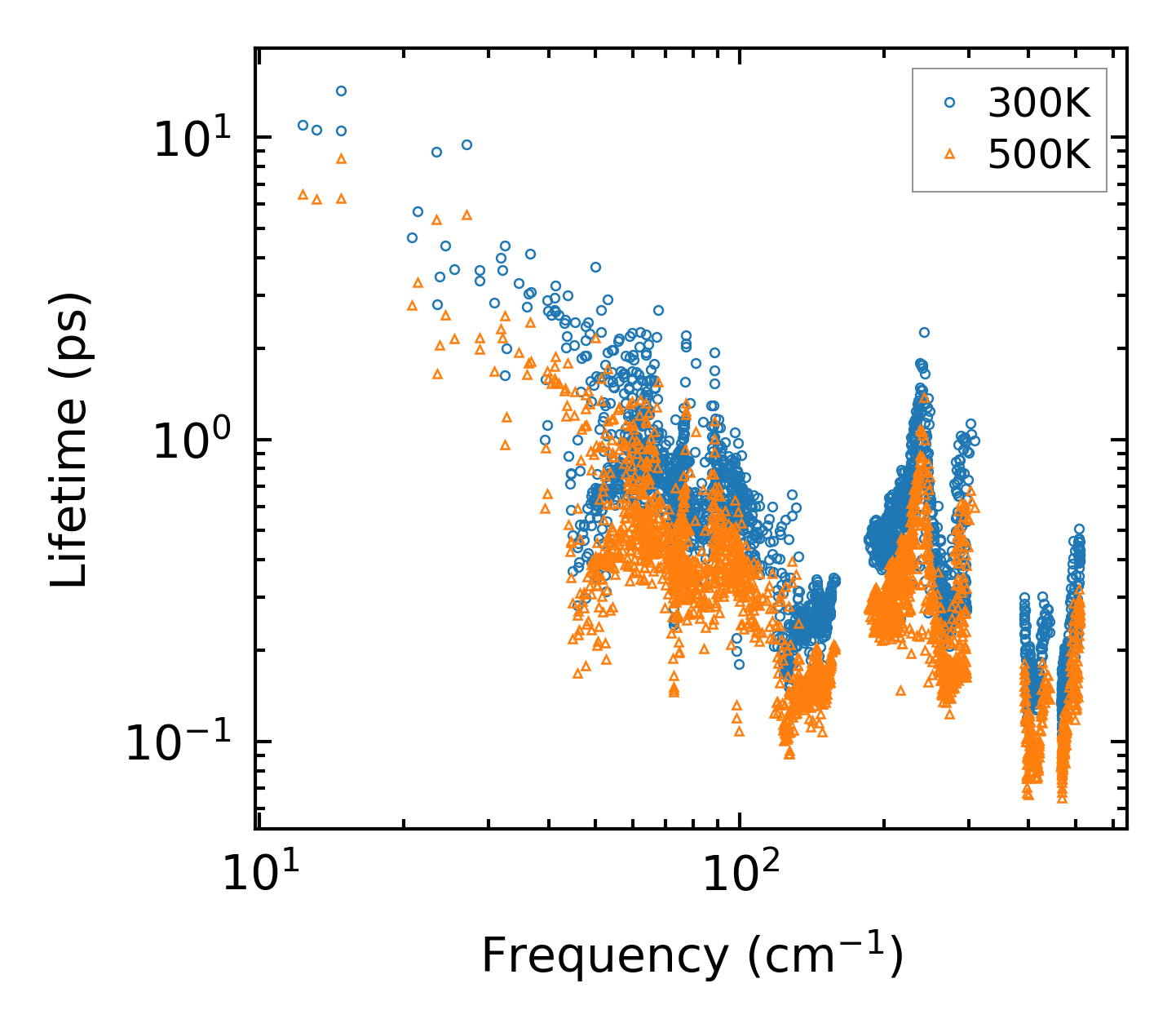

../../_images/fig_lifetime7039.png — (a) Phonon lifetime due to phonon-phonon scattering

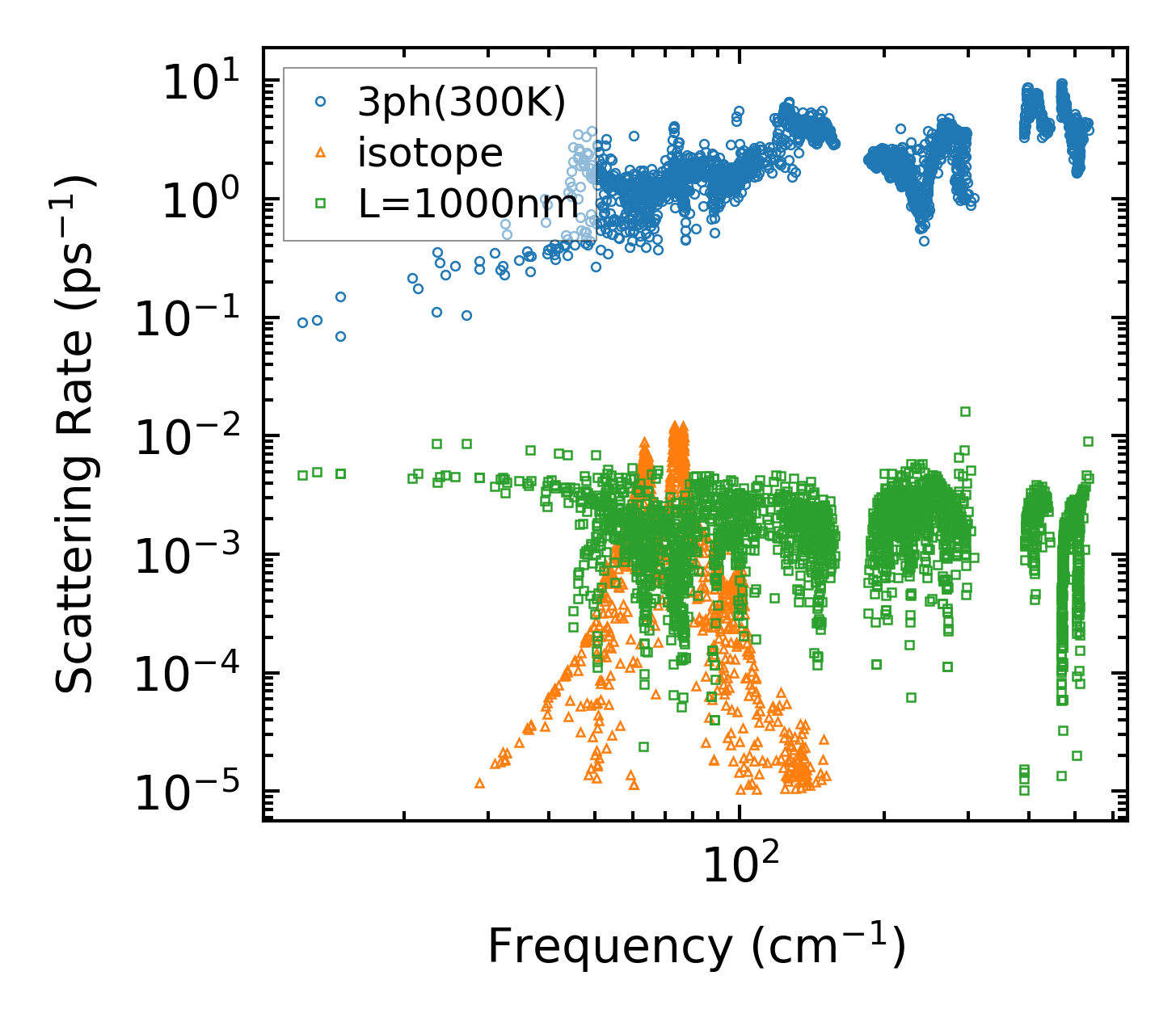

../../_images/fig_scat_rates7038.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

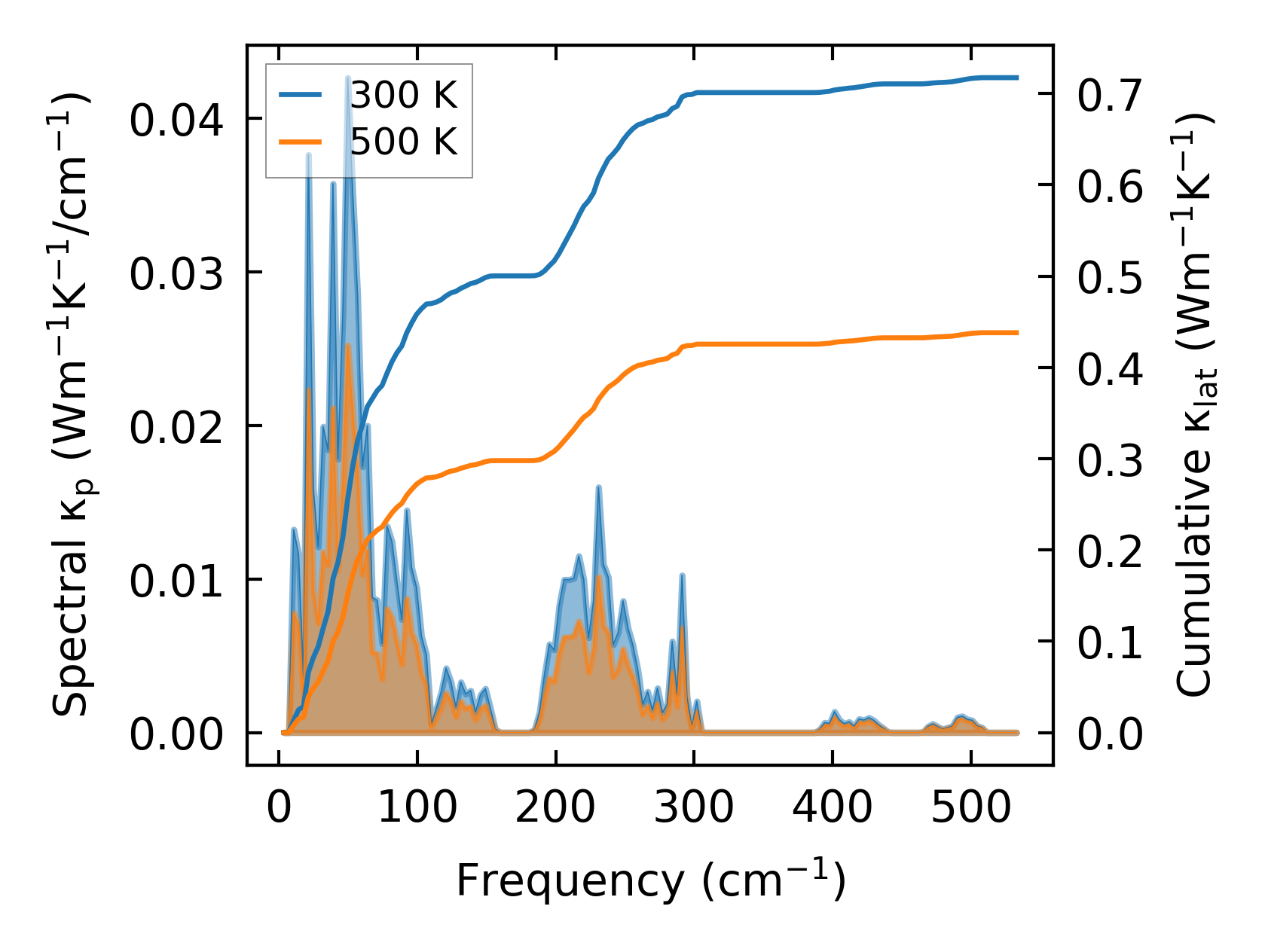

../../_images/fig_cumu_frequency7039.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

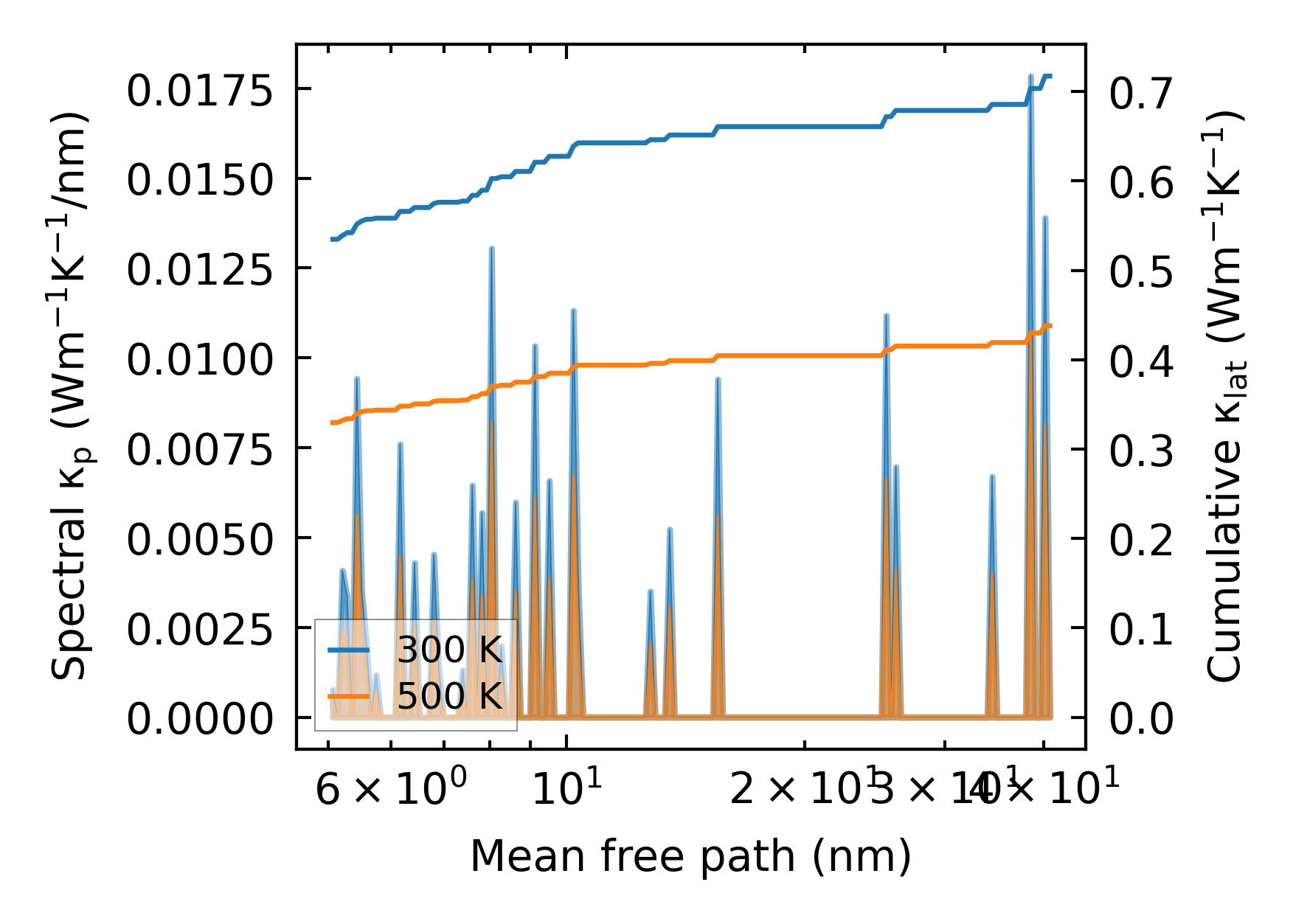

../../_images/fig_cumu_mfp7038.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

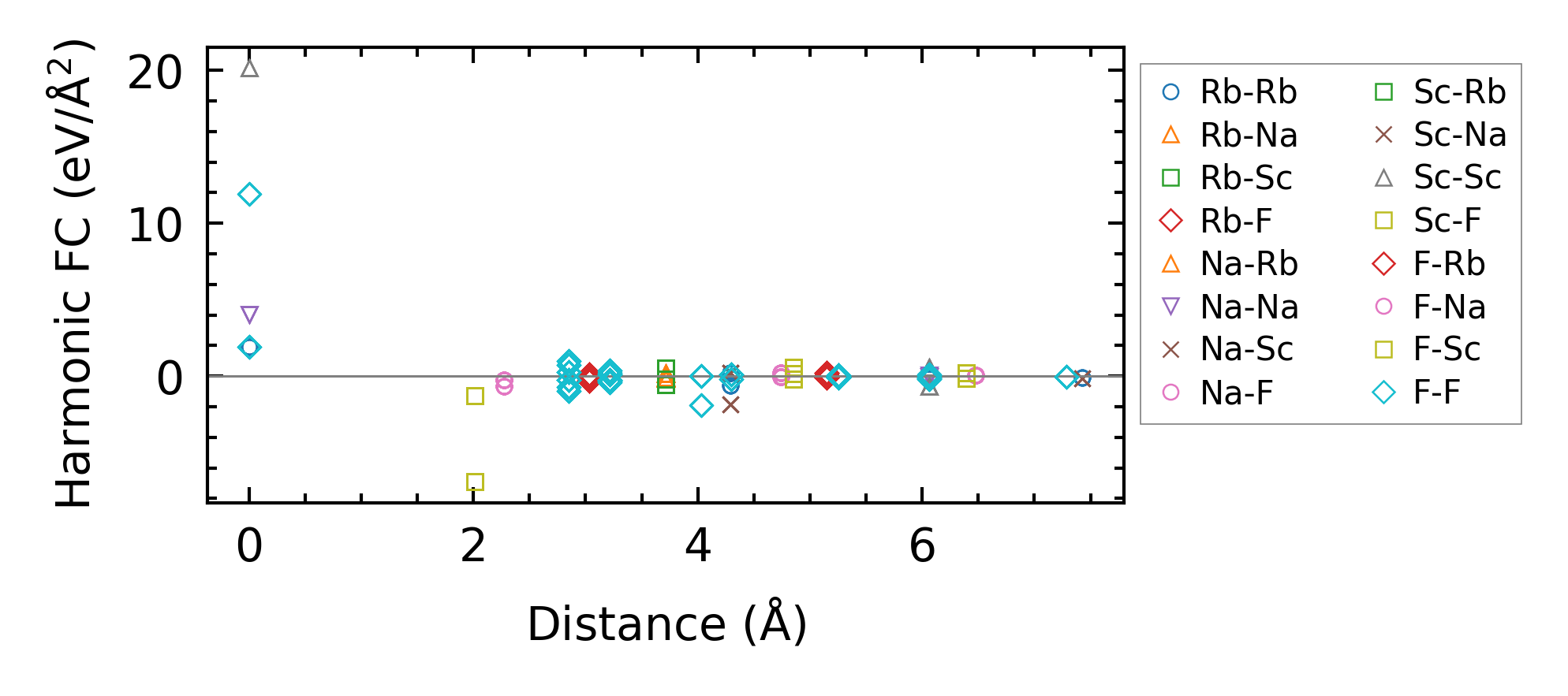

../../_images/fig_fc216019.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa13391.png — (a) Temperature-dependent lattice thermal conductivity

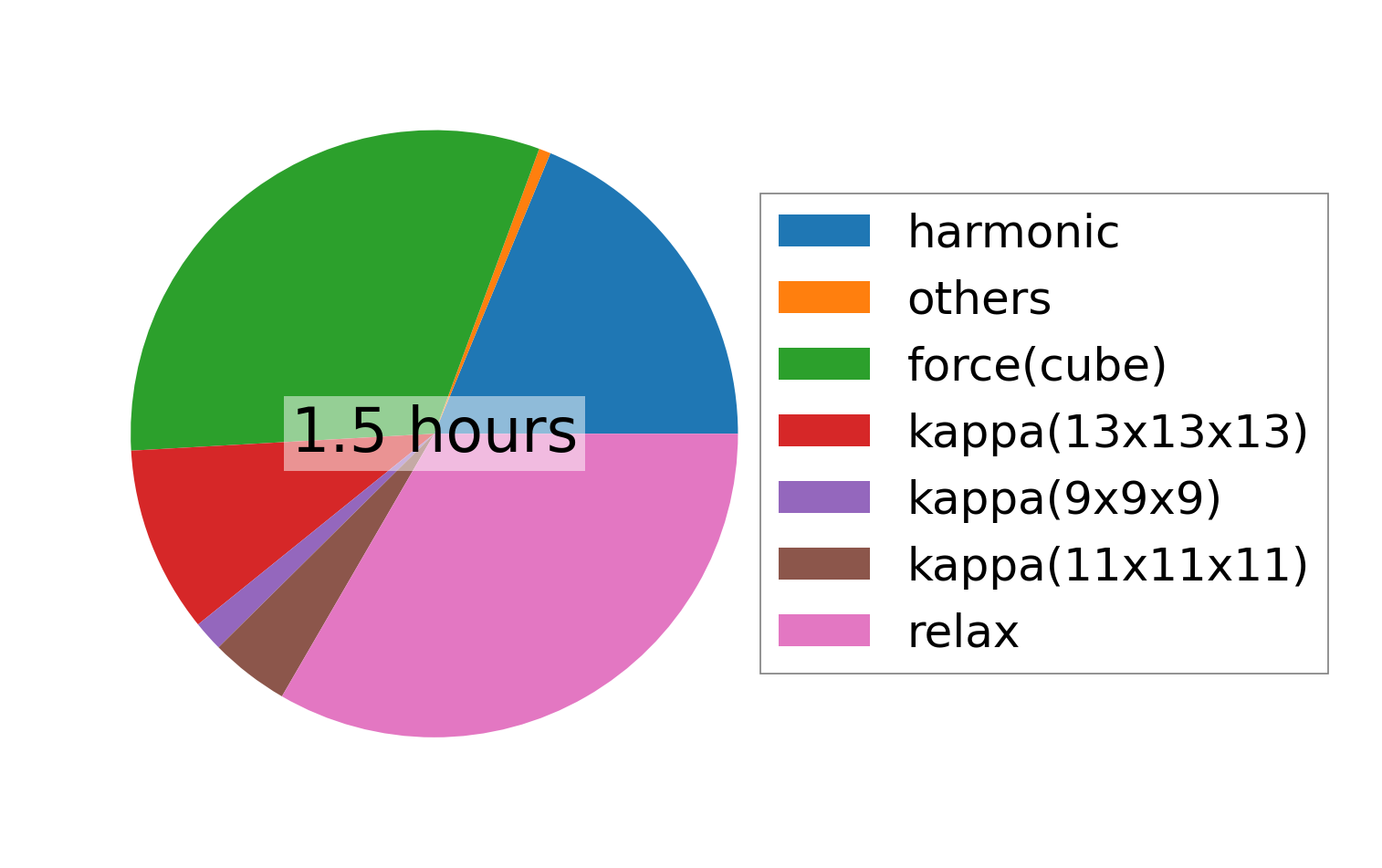

../../_images/fig_times26940.png — (b) Computation time
