mp-1104569/YbGa2S4/anharm

Space group: Cccm (66)
Link: Materials Project
Download: mp-1104569.tar.gz

Harmonic properties

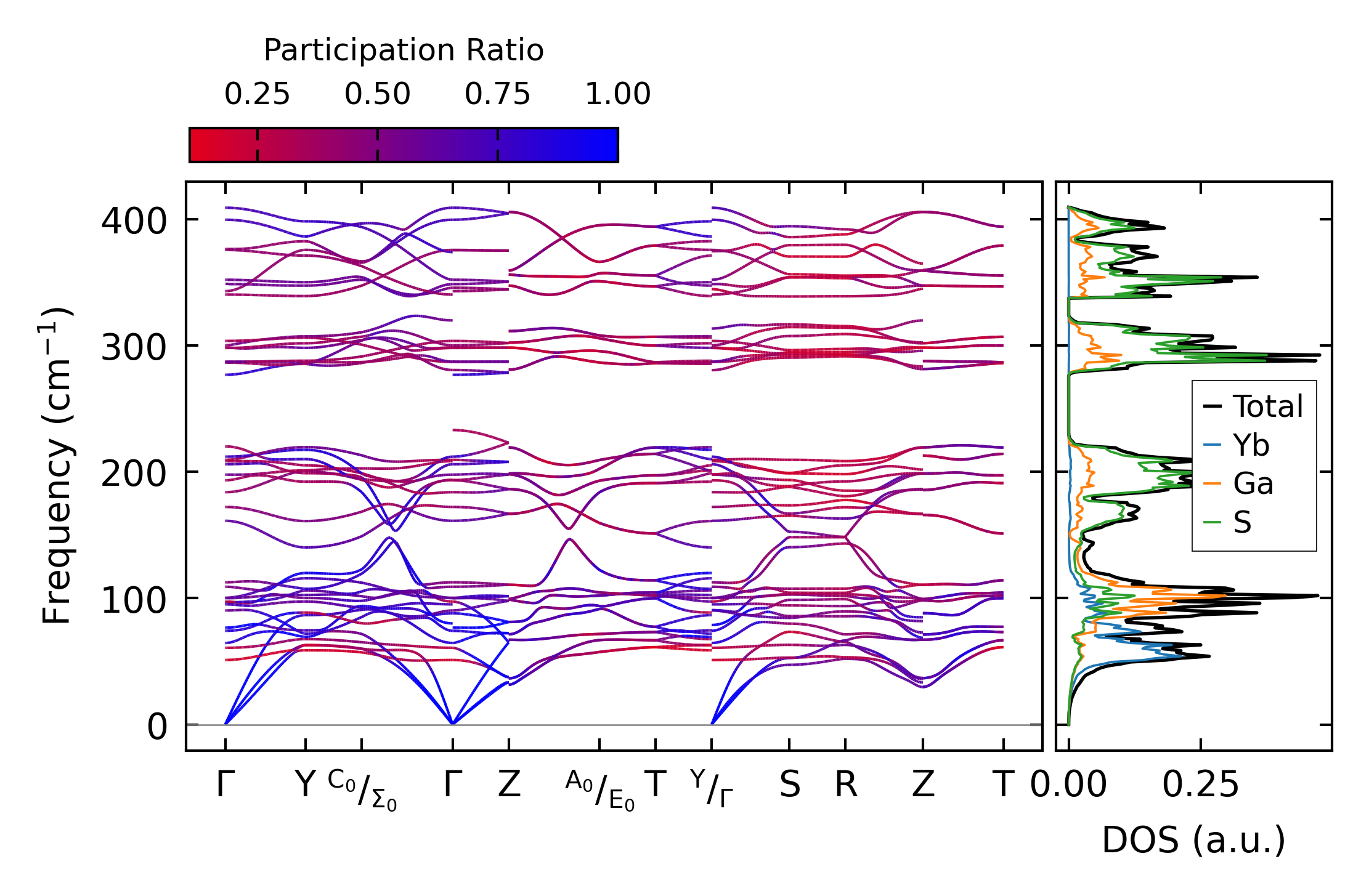

../../_images/fig_bandos_pr16621.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16620.png — (b) Thermodynamic properties

Grüneisen parameters

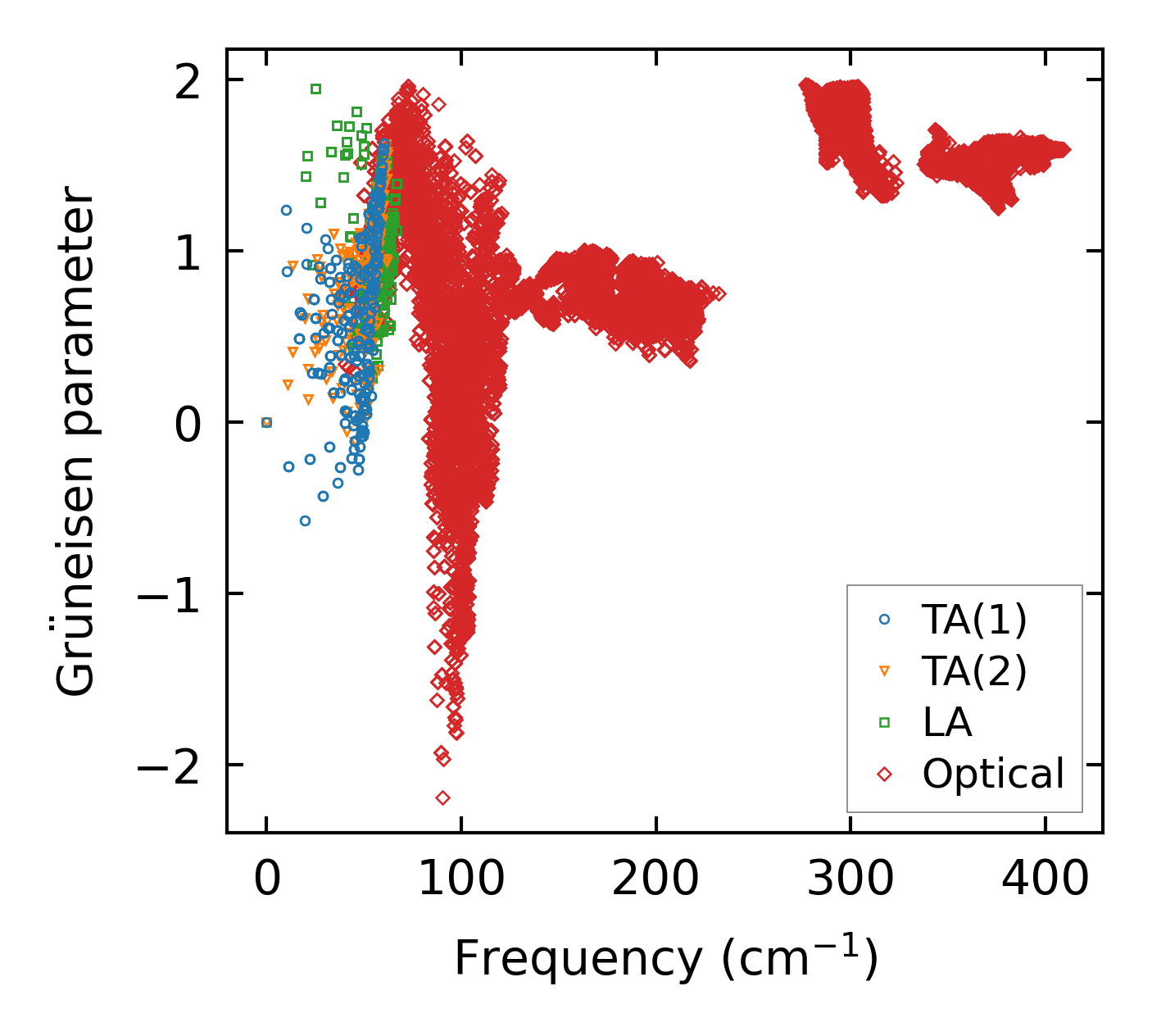

../../_images/fig_gru_all7221.png — (a) Grüneisen parameters

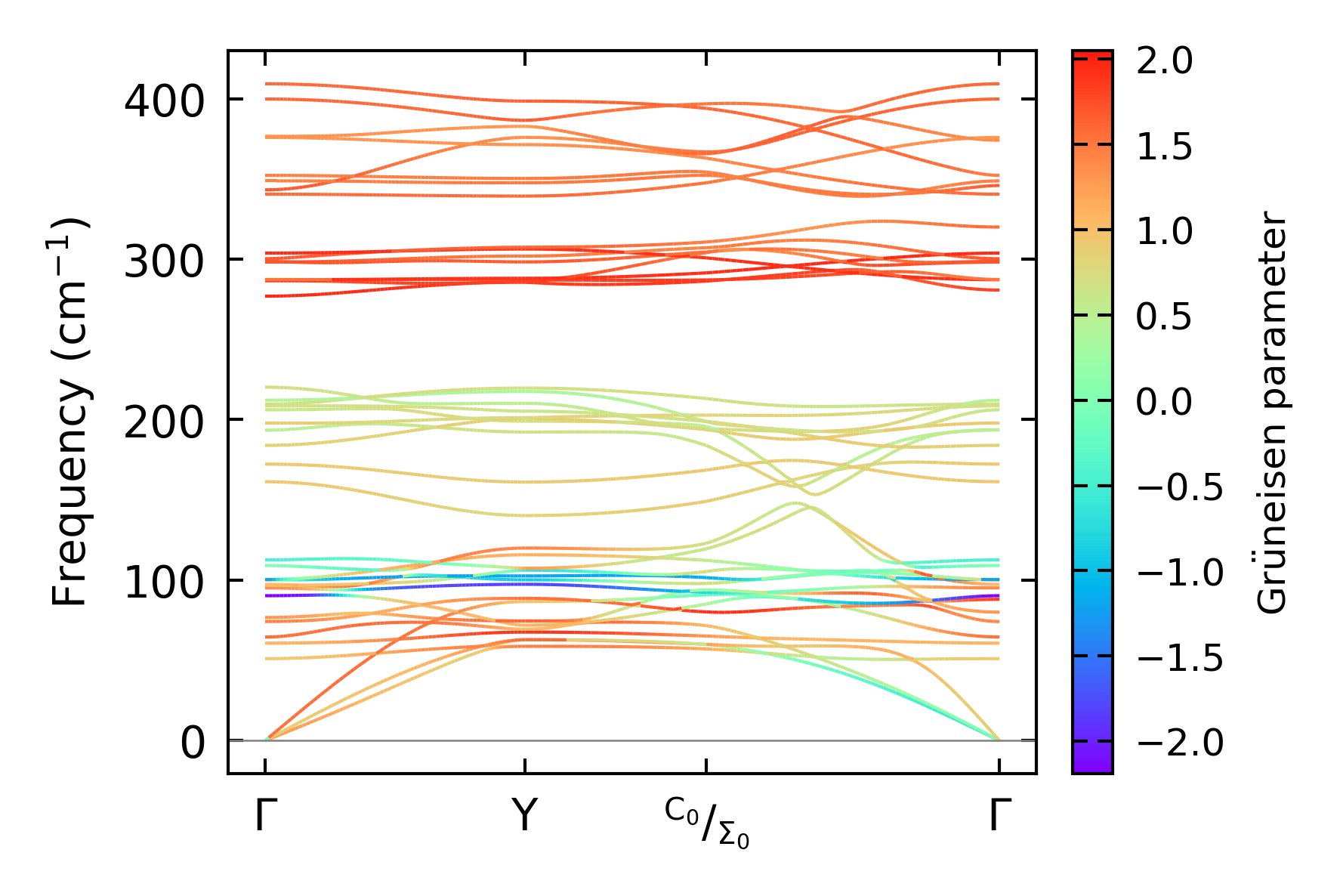

../../_images/fig_gruneisen7221.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x7, supercell: 2x2x1

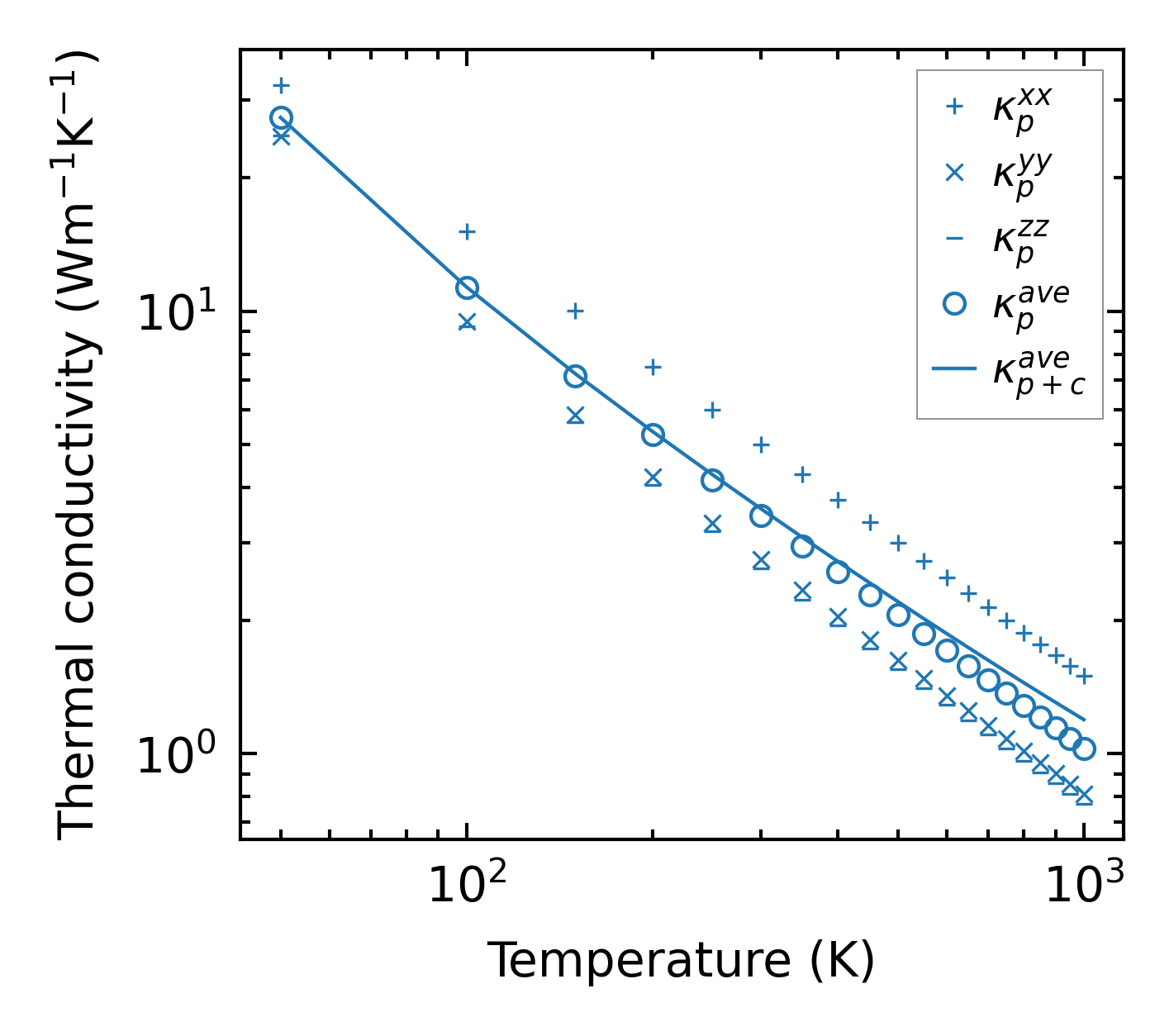

../../_images/fig_kappa13615.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size7307.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

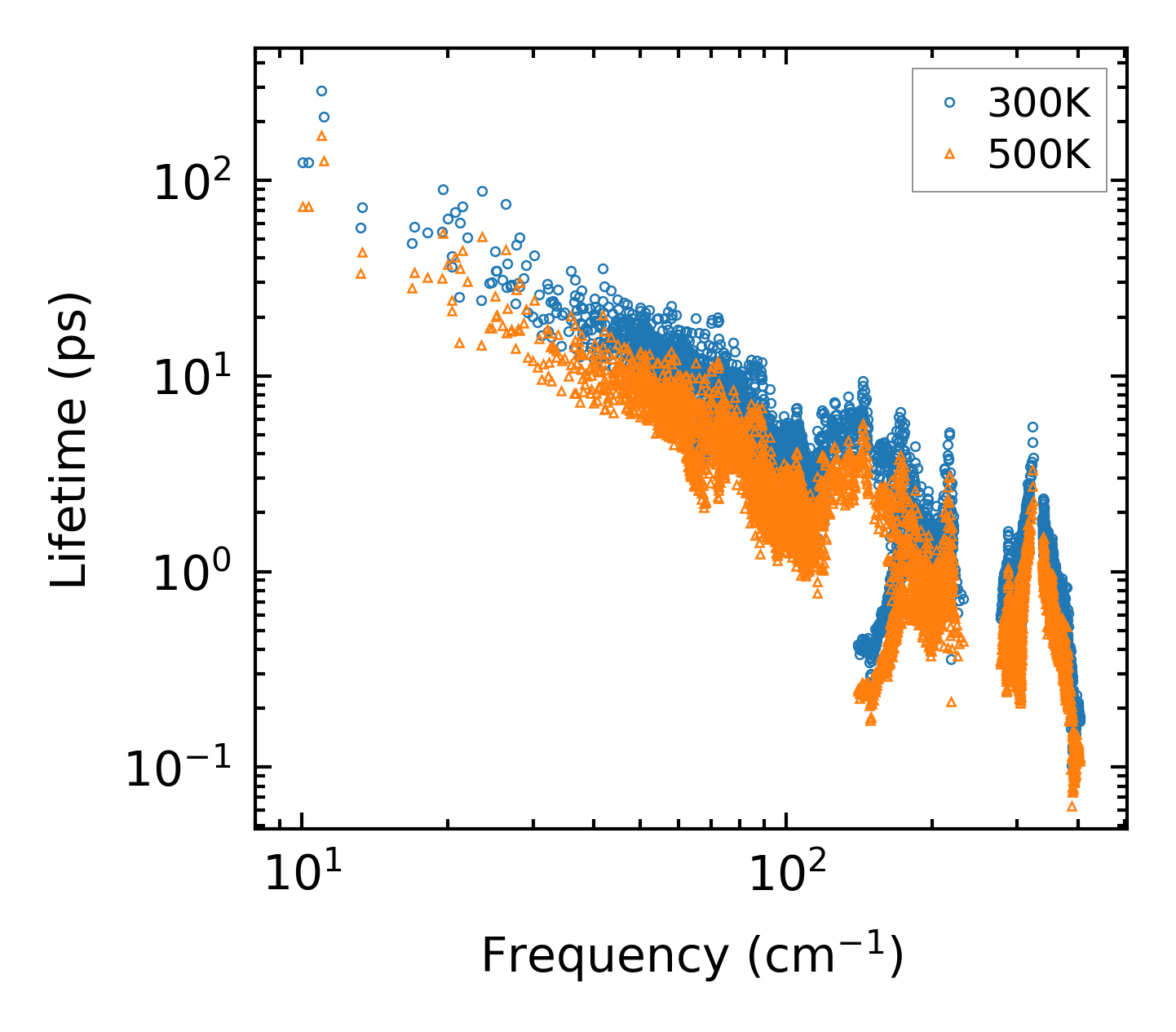

../../_images/fig_lifetime7155.png — (a) Phonon lifetime due to phonon-phonon scattering

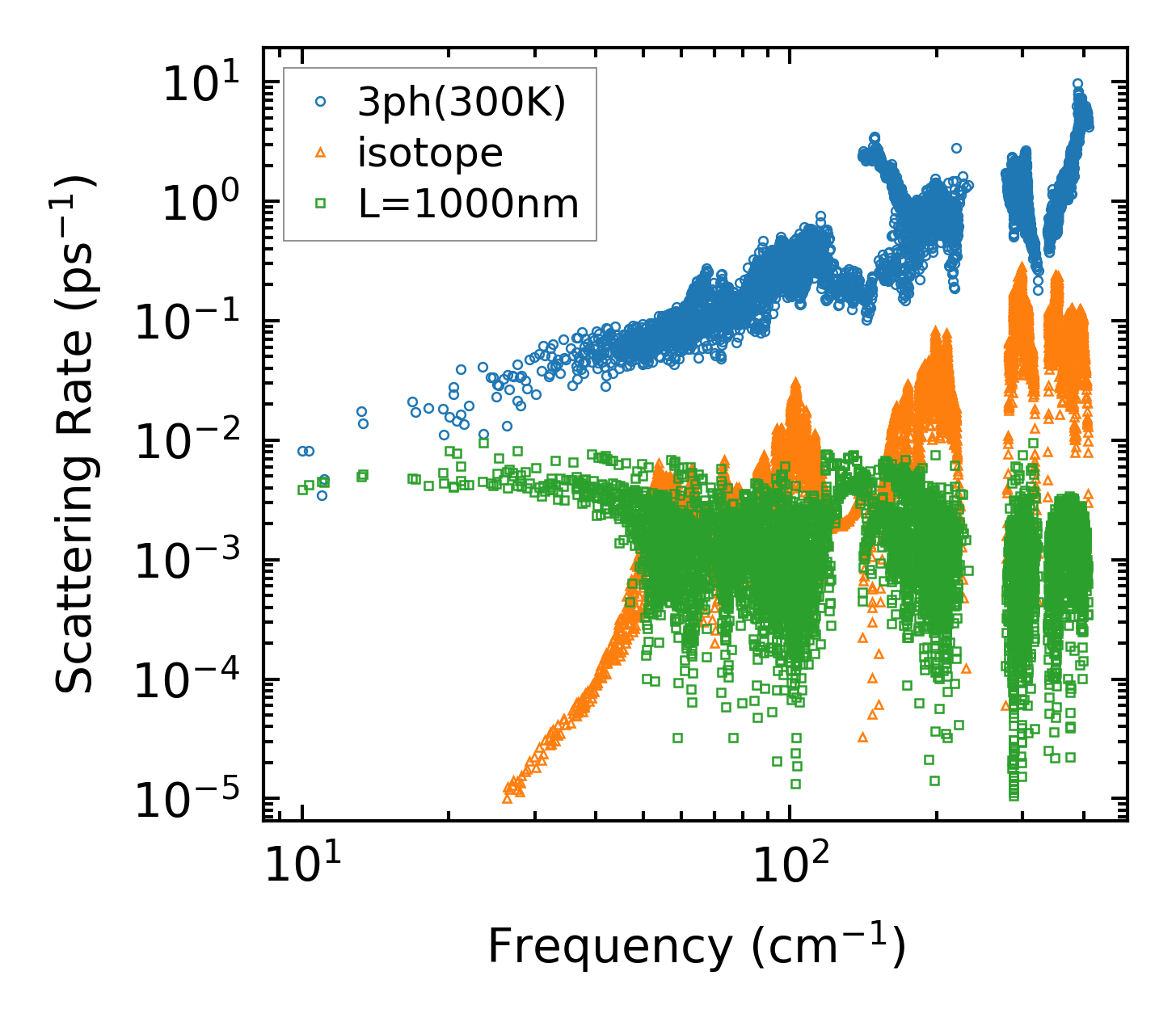

../../_images/fig_scat_rates7154.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency7155.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

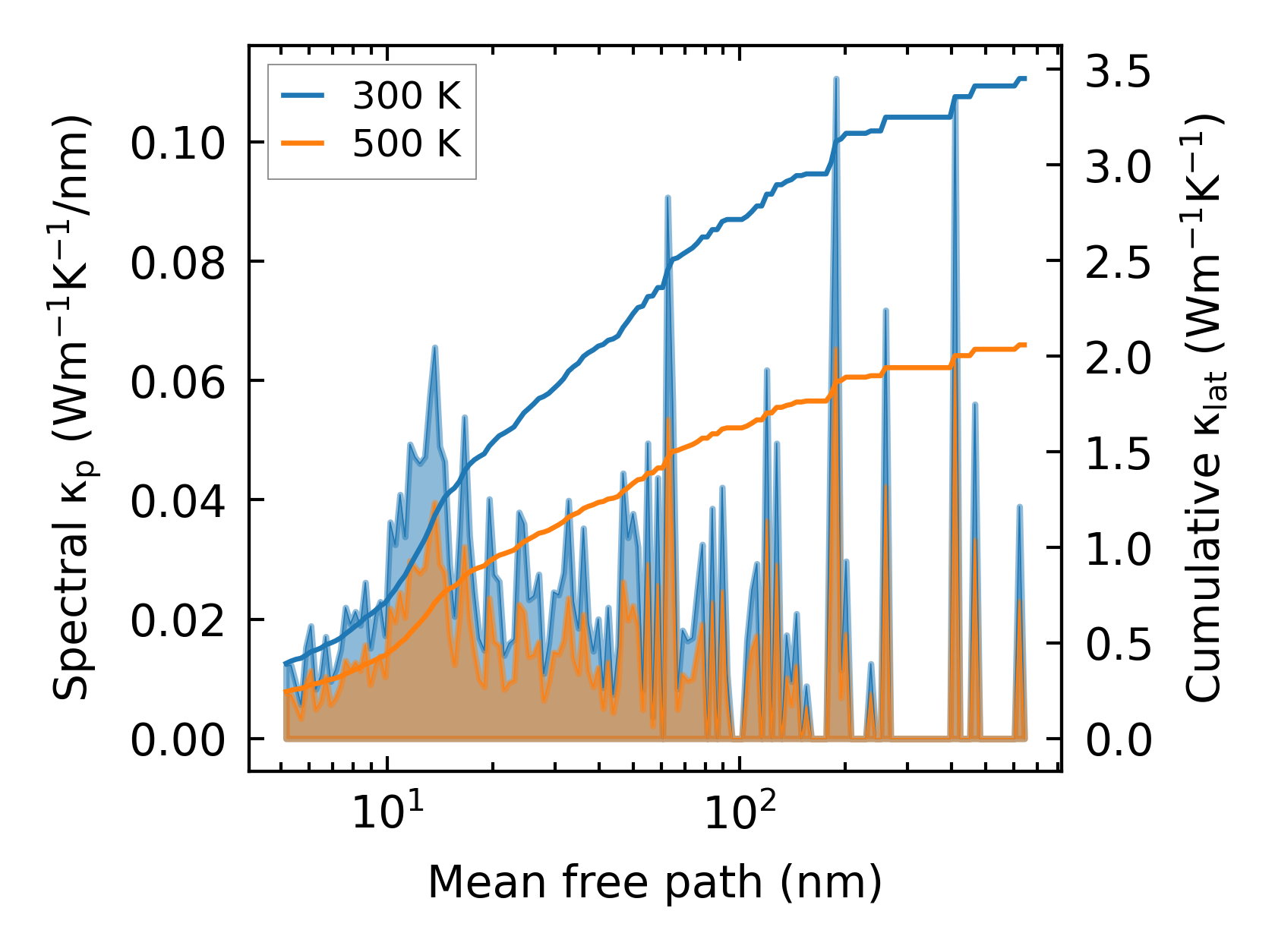

../../_images/fig_cumu_mfp7154.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

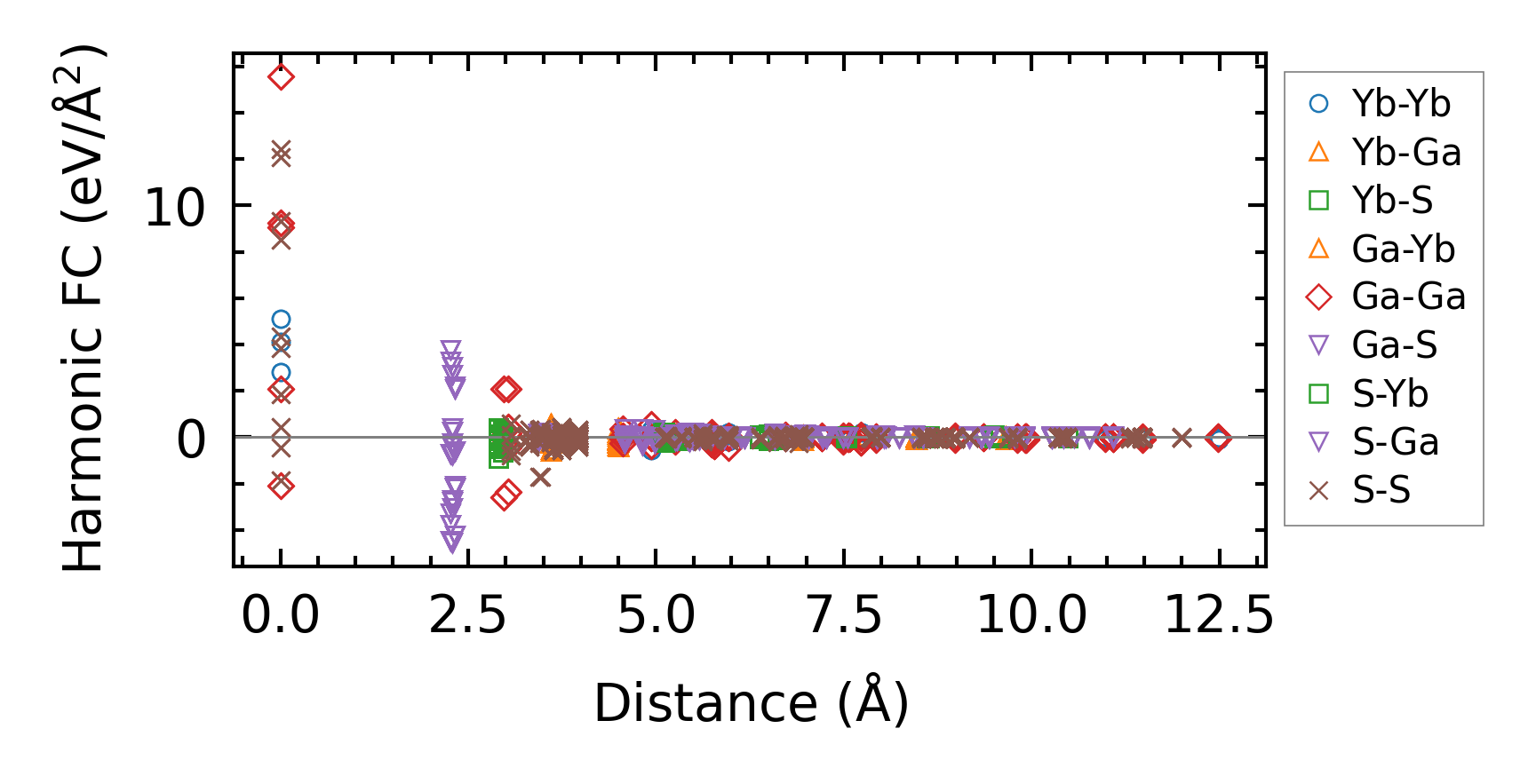

../../_images/fig_fc216193.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa13616.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times27177.png — (b) Computation time
