mp-1104131/NbPO5/anharm

Space group: P4/nmm (129)
Link: Materials Project
Download: mp-1104131.tar.gz

Harmonic properties

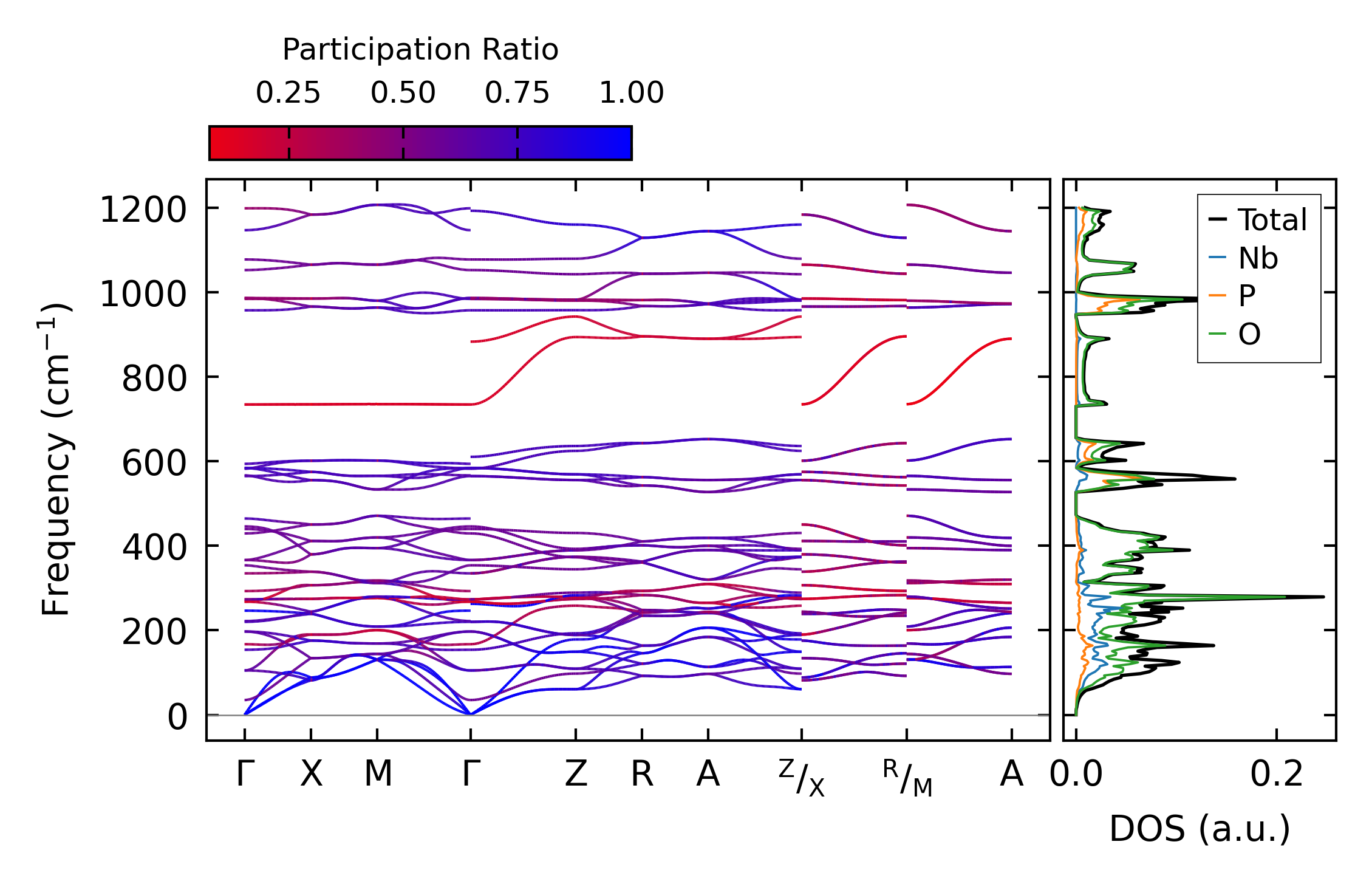

../../_images/fig_bandos_pr16605.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16604.png — (b) Thermodynamic properties

Grüneisen parameters

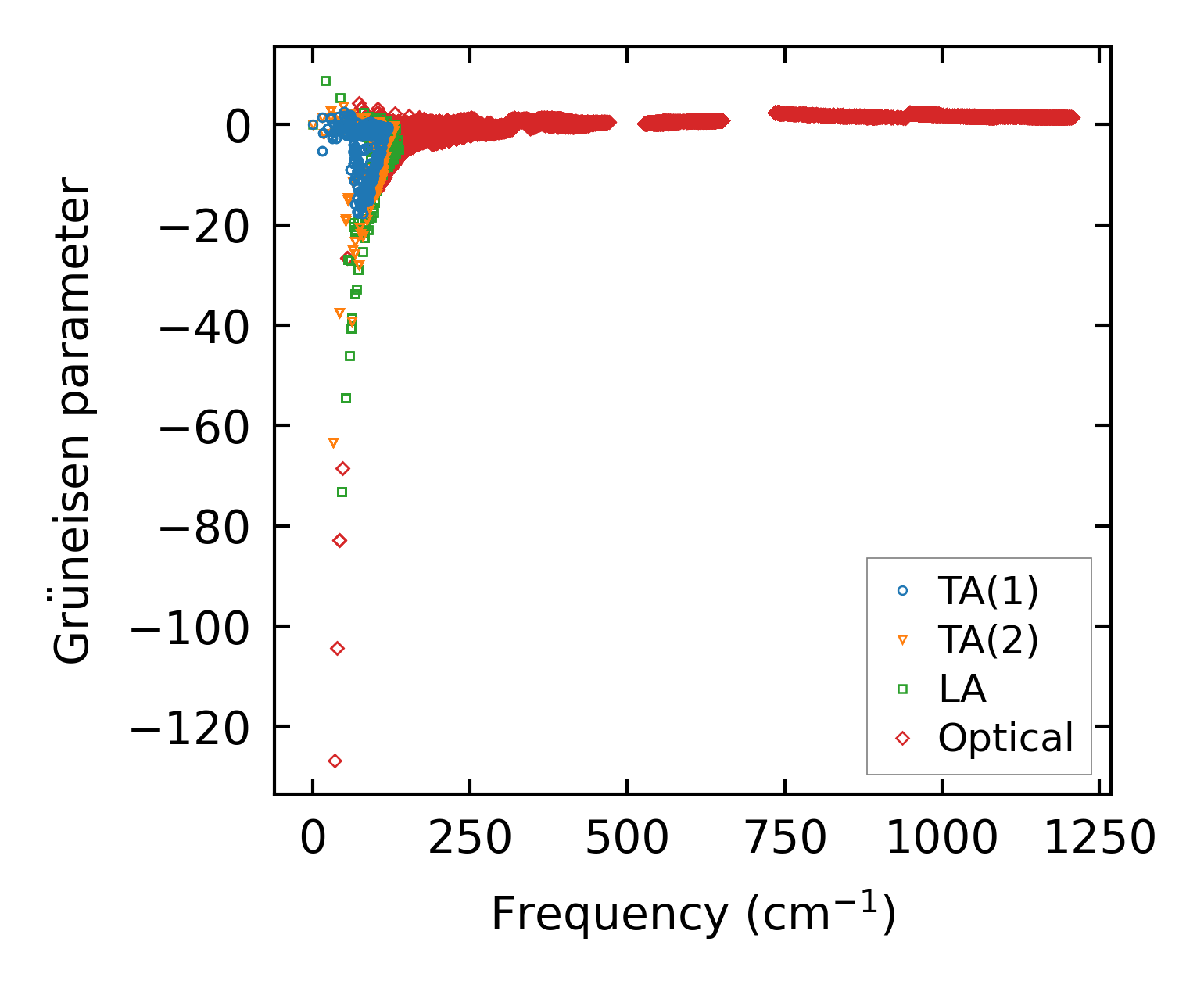

../../_images/fig_gru_all7212.png — (a) Grüneisen parameters

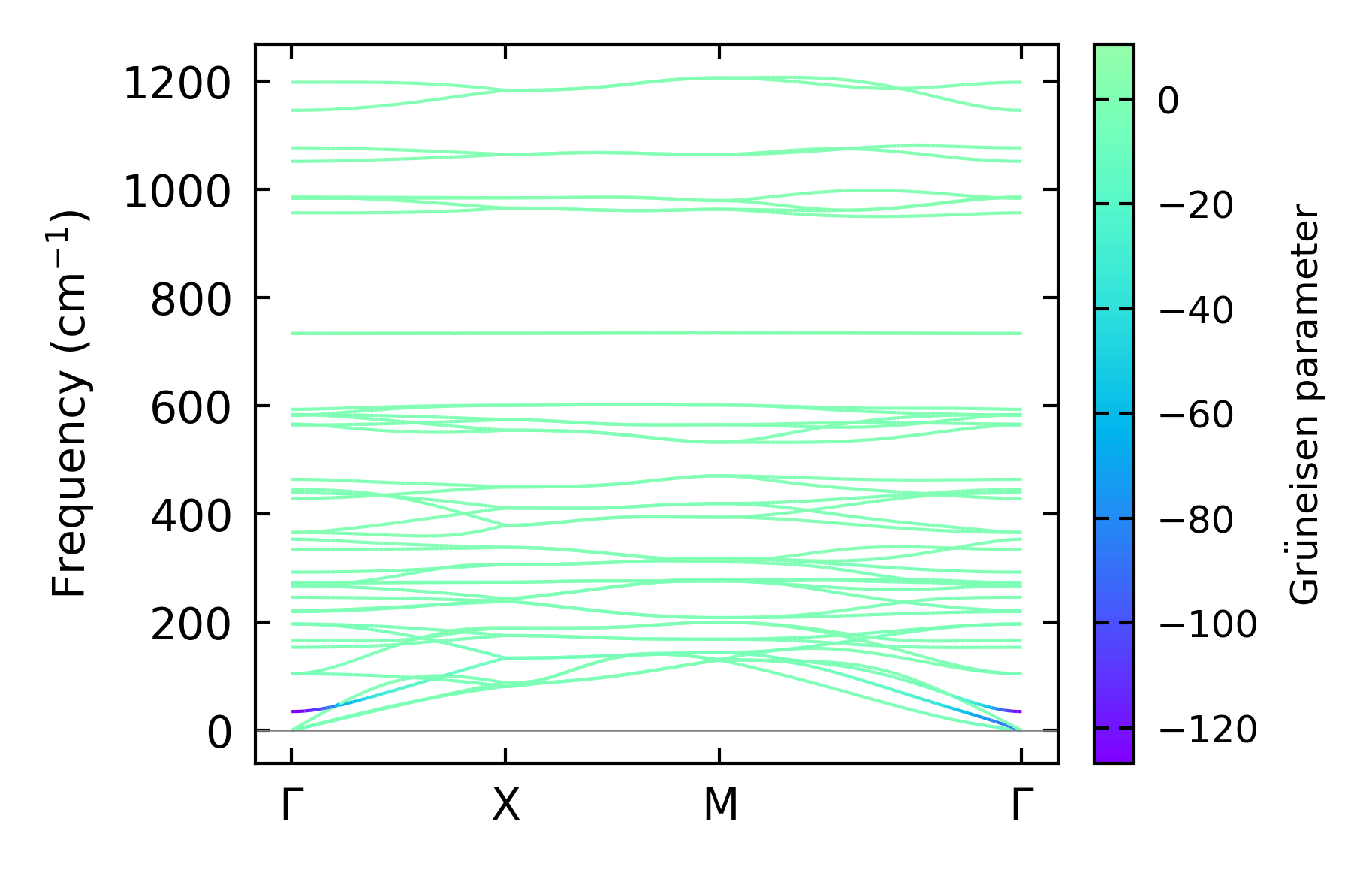

../../_images/fig_gruneisen7212.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x17, supercell: 2x2x2

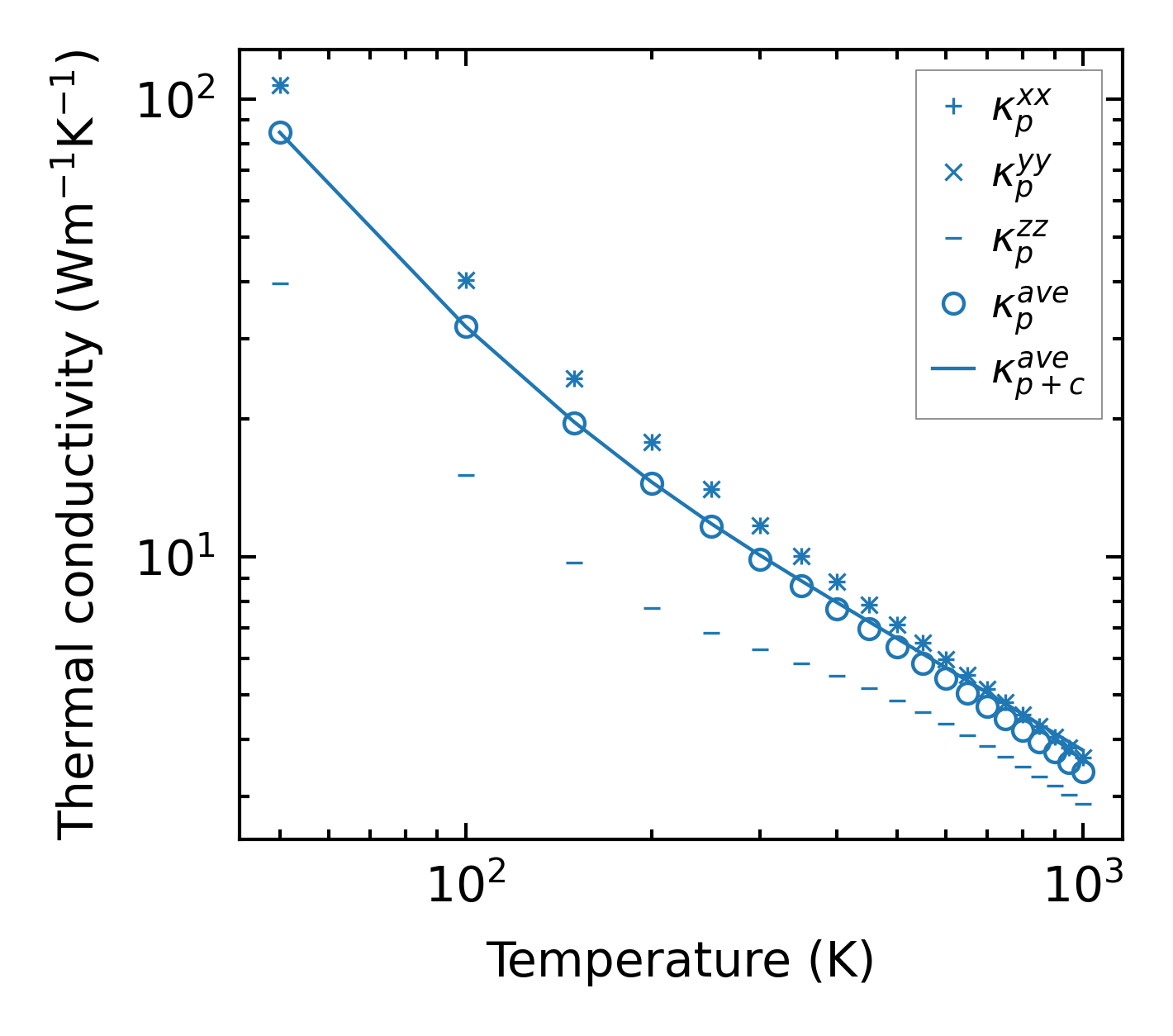

../../_images/fig_kappa13600.png — (a) Temperature-dependent lattice thermal conductivity

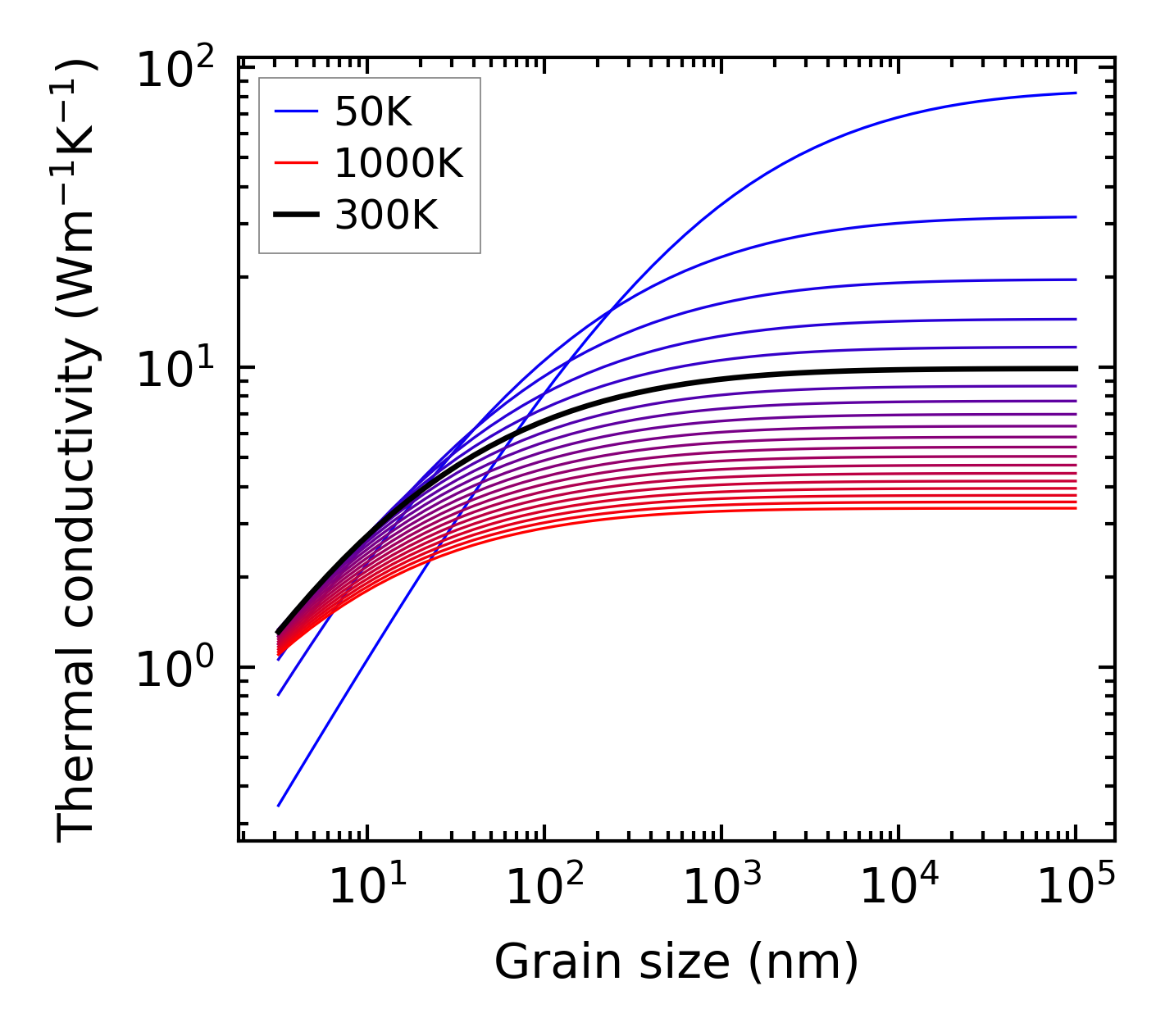

../../_images/fig_kappa_vs_grain_size7298.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

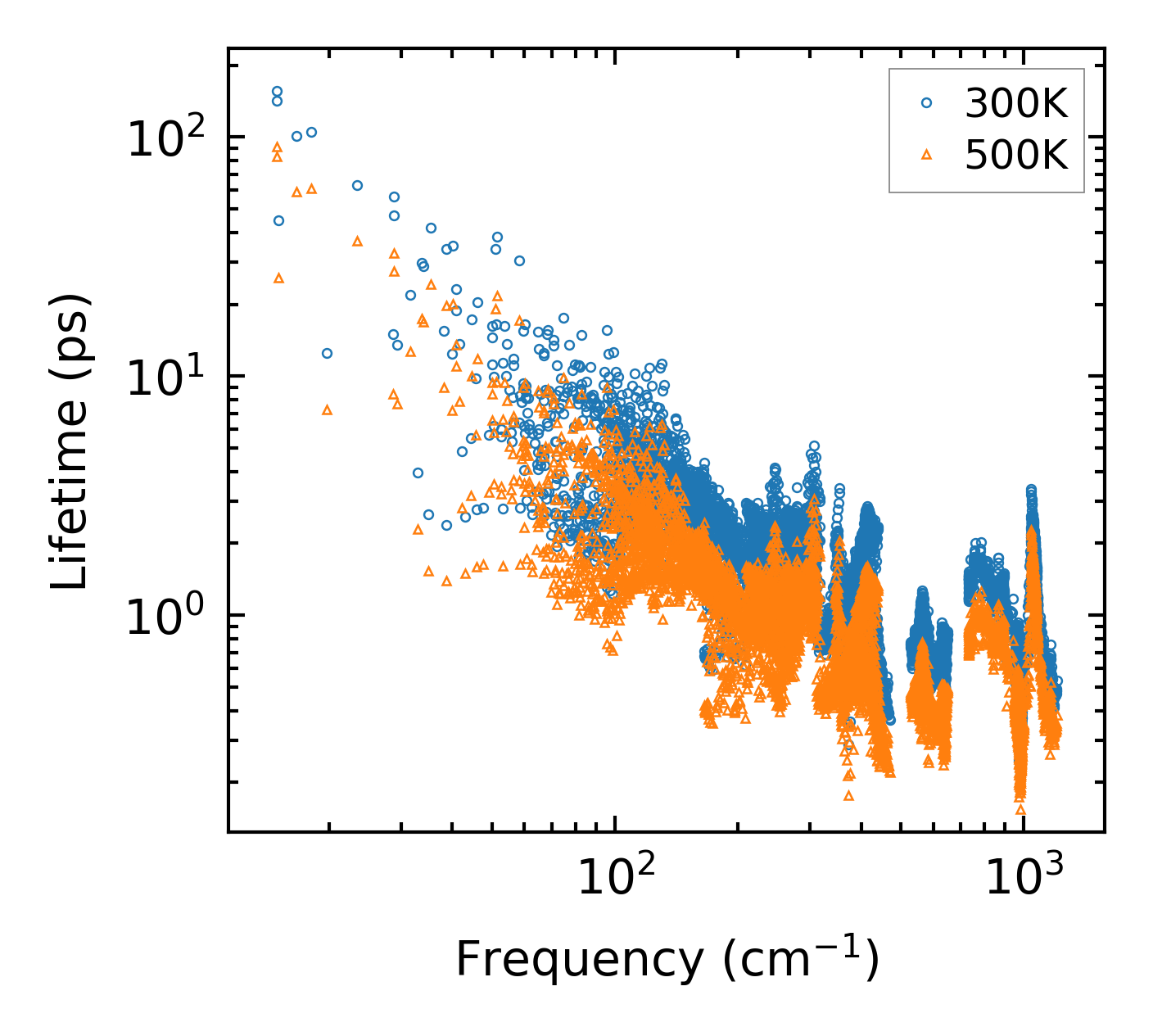

../../_images/fig_lifetime7146.png — (a) Phonon lifetime due to phonon-phonon scattering

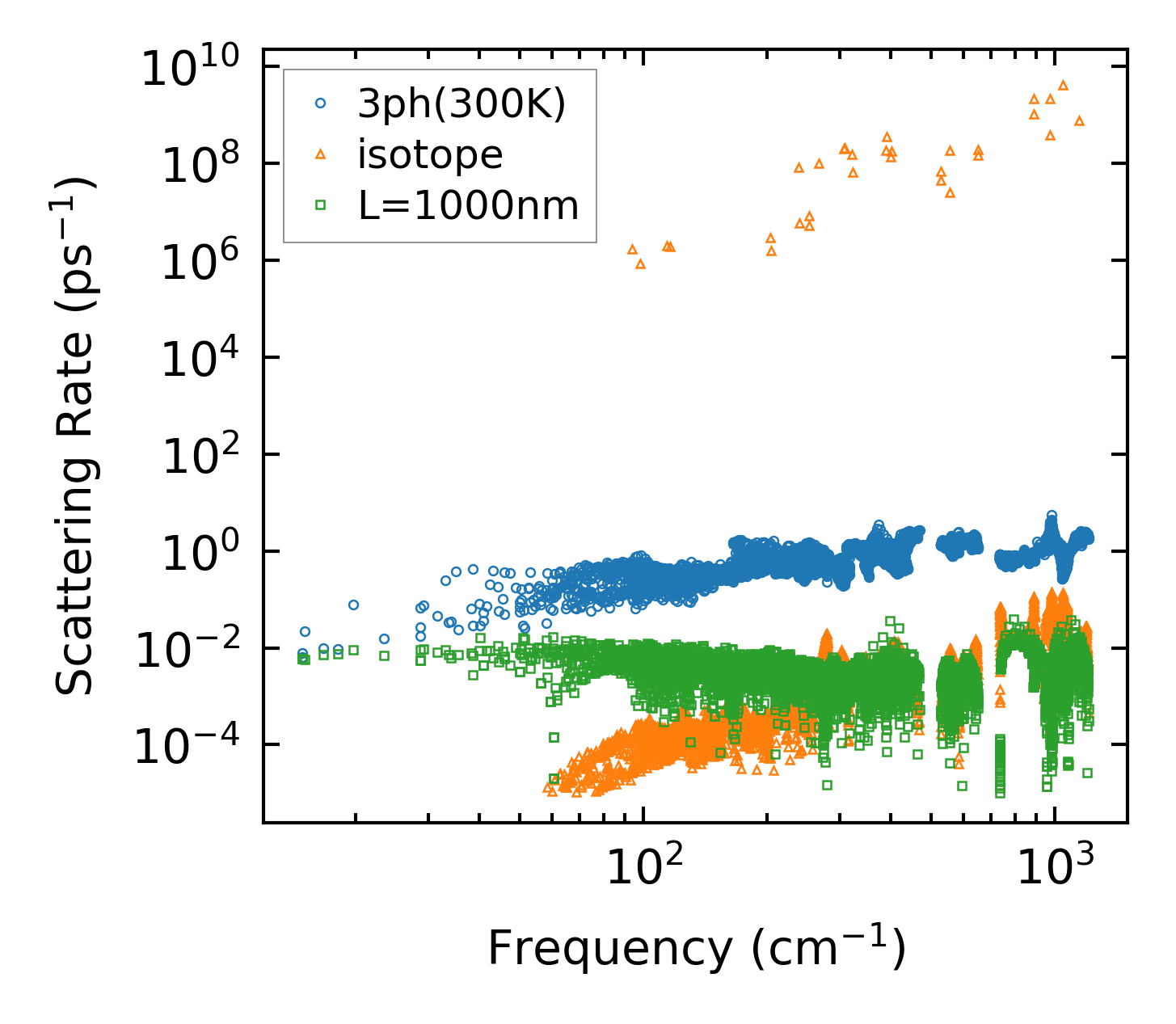

../../_images/fig_scat_rates7145.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

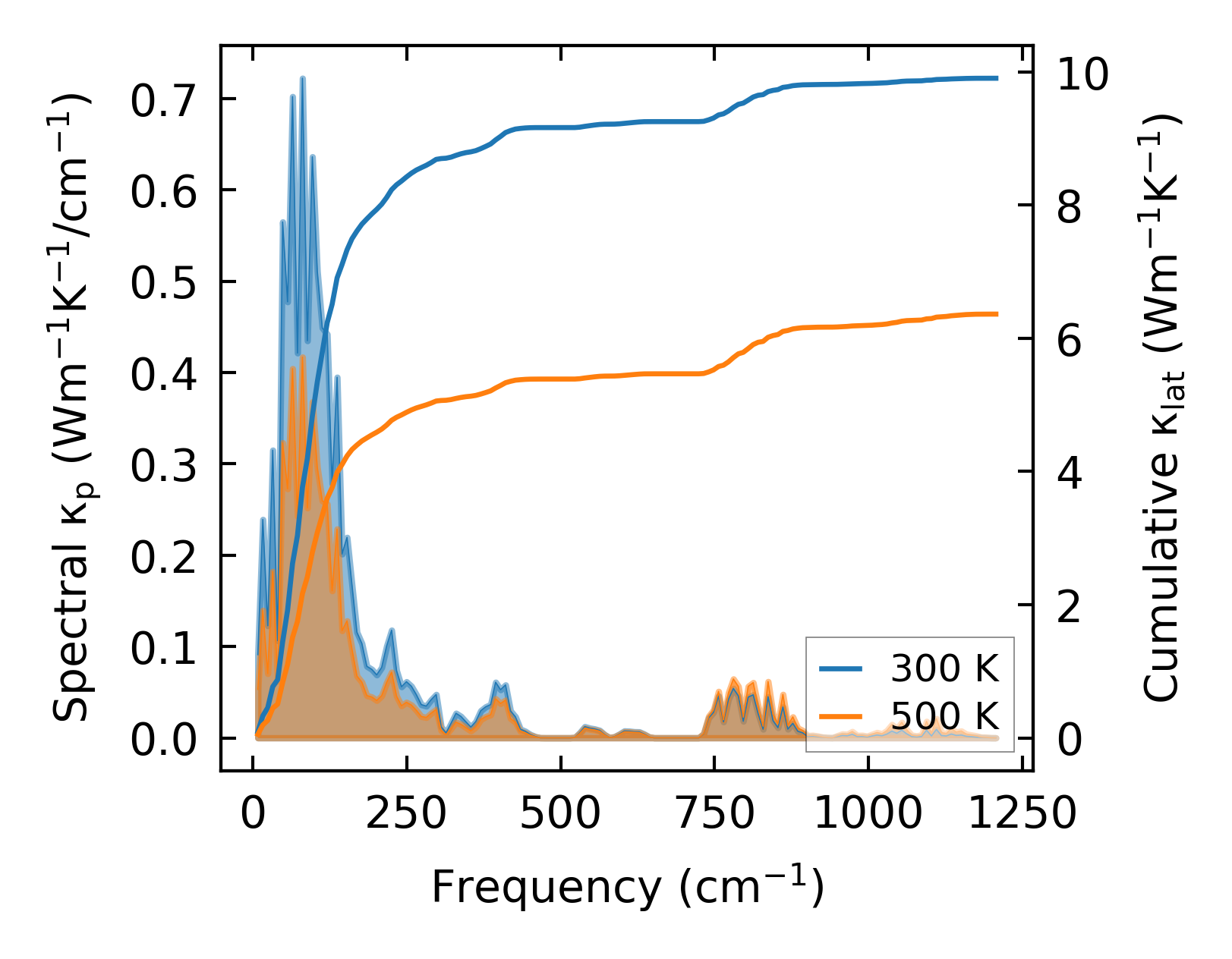

../../_images/fig_cumu_frequency7146.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

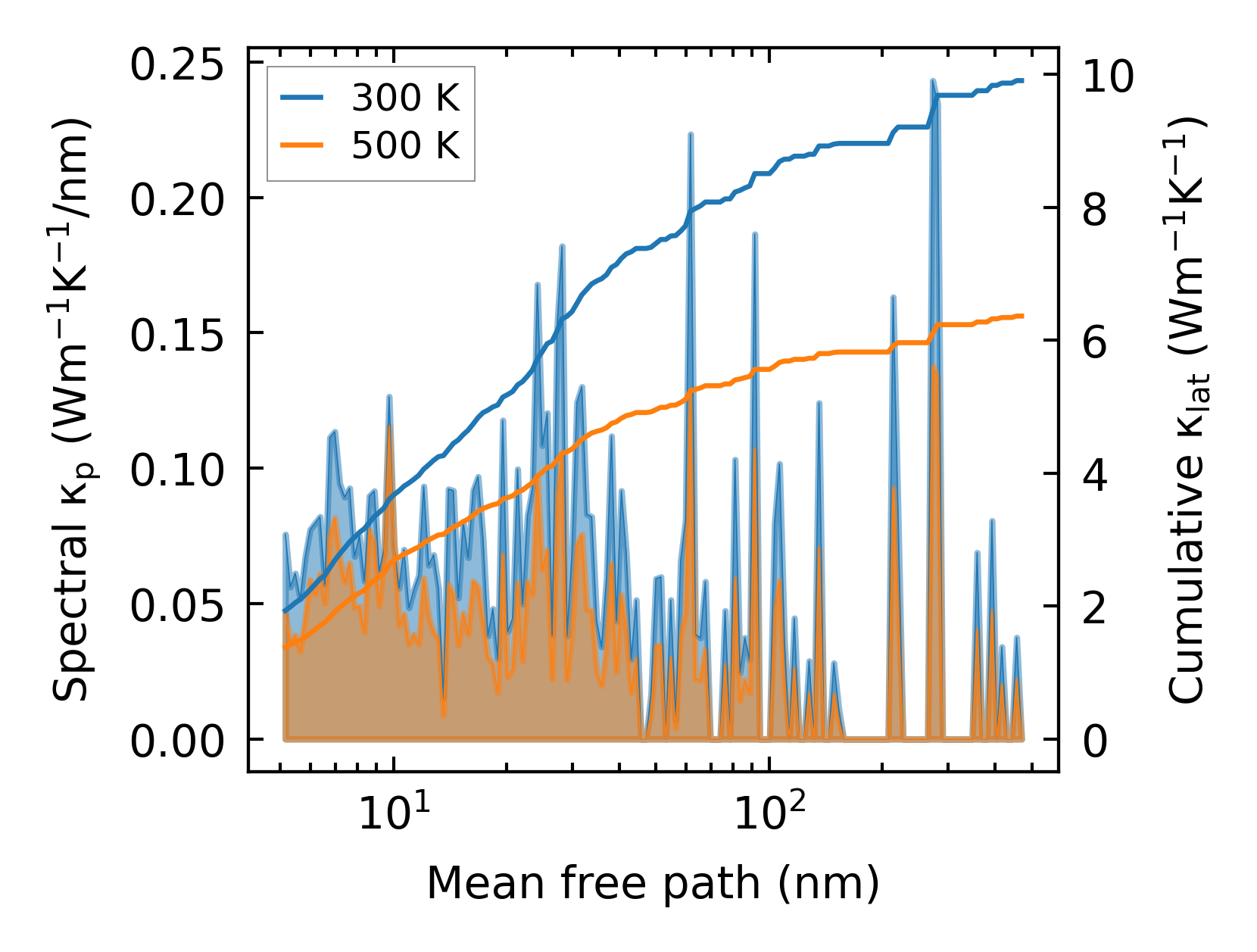

../../_images/fig_cumu_mfp7145.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

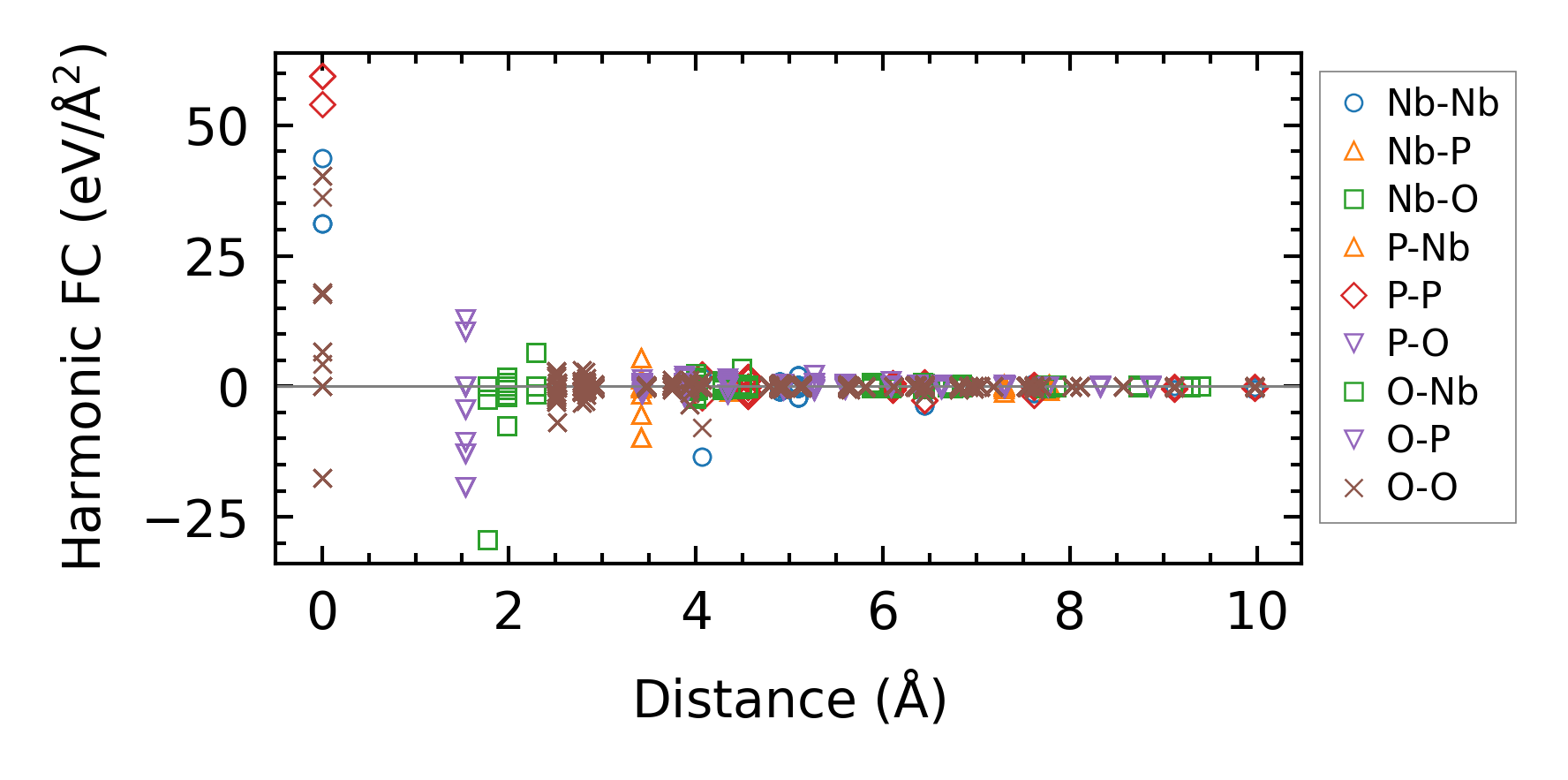

../../_images/fig_fc216177.png — (a) Force constants w.r.t atomic distance

Summary

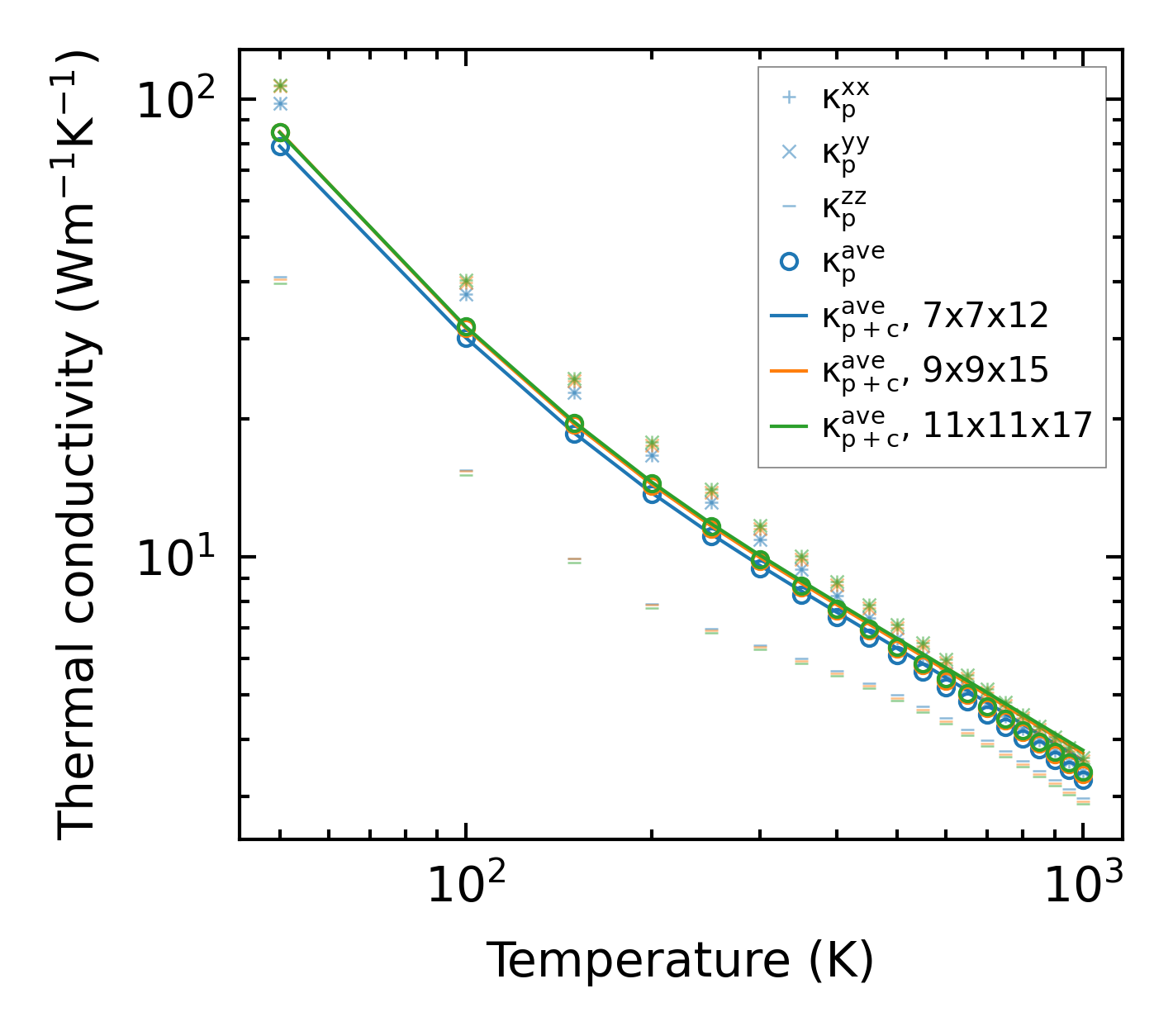

../../_images/fig_kappa13601.png — (a) Temperature-dependent lattice thermal conductivity

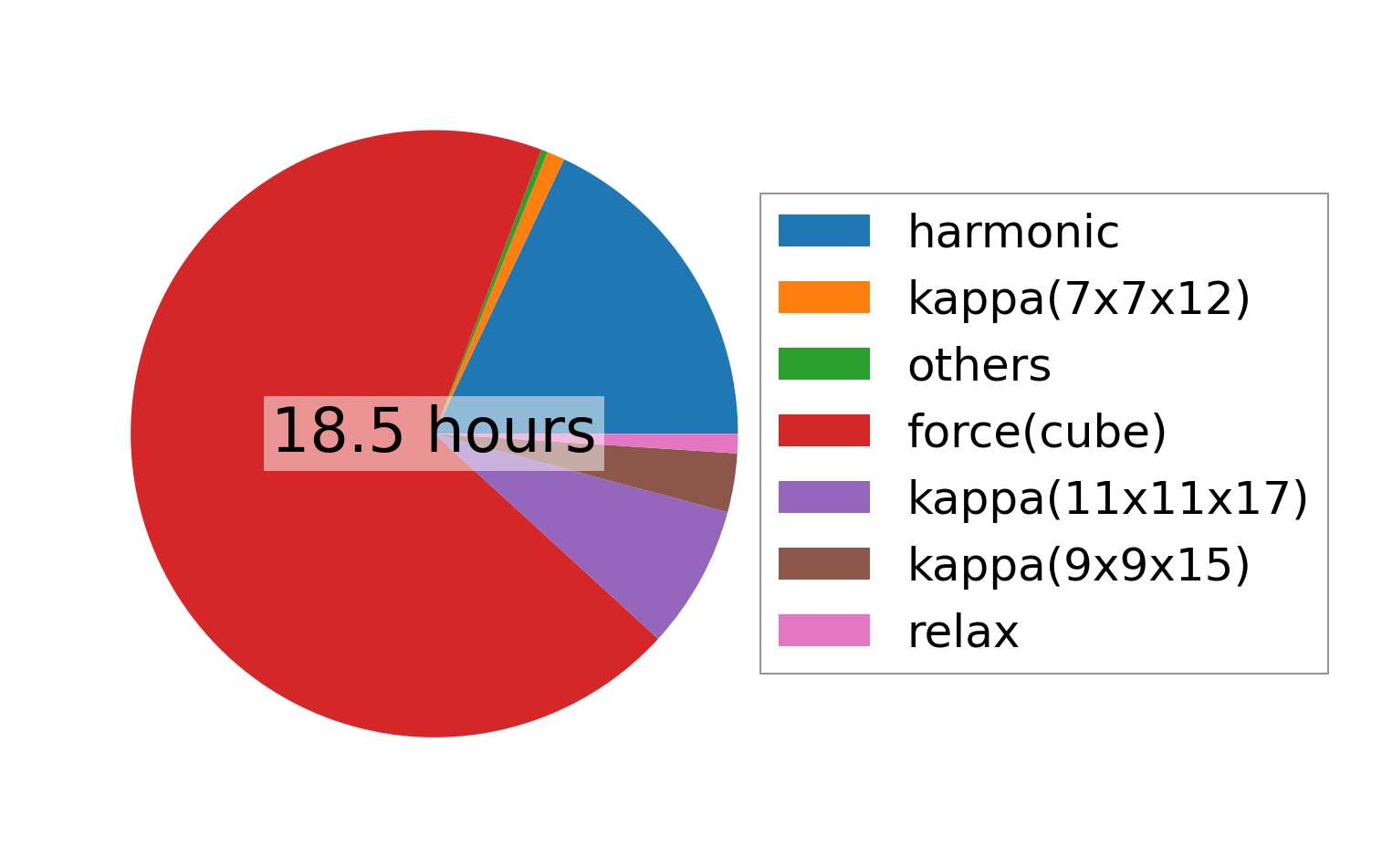

../../_images/fig_times27158.png — (b) Computation time
