mp-1104073/C11N4/anharm

Space group: P-42m (111)
Link: Materials Project
Download: mp-1104073.tar.gz

Harmonic properties

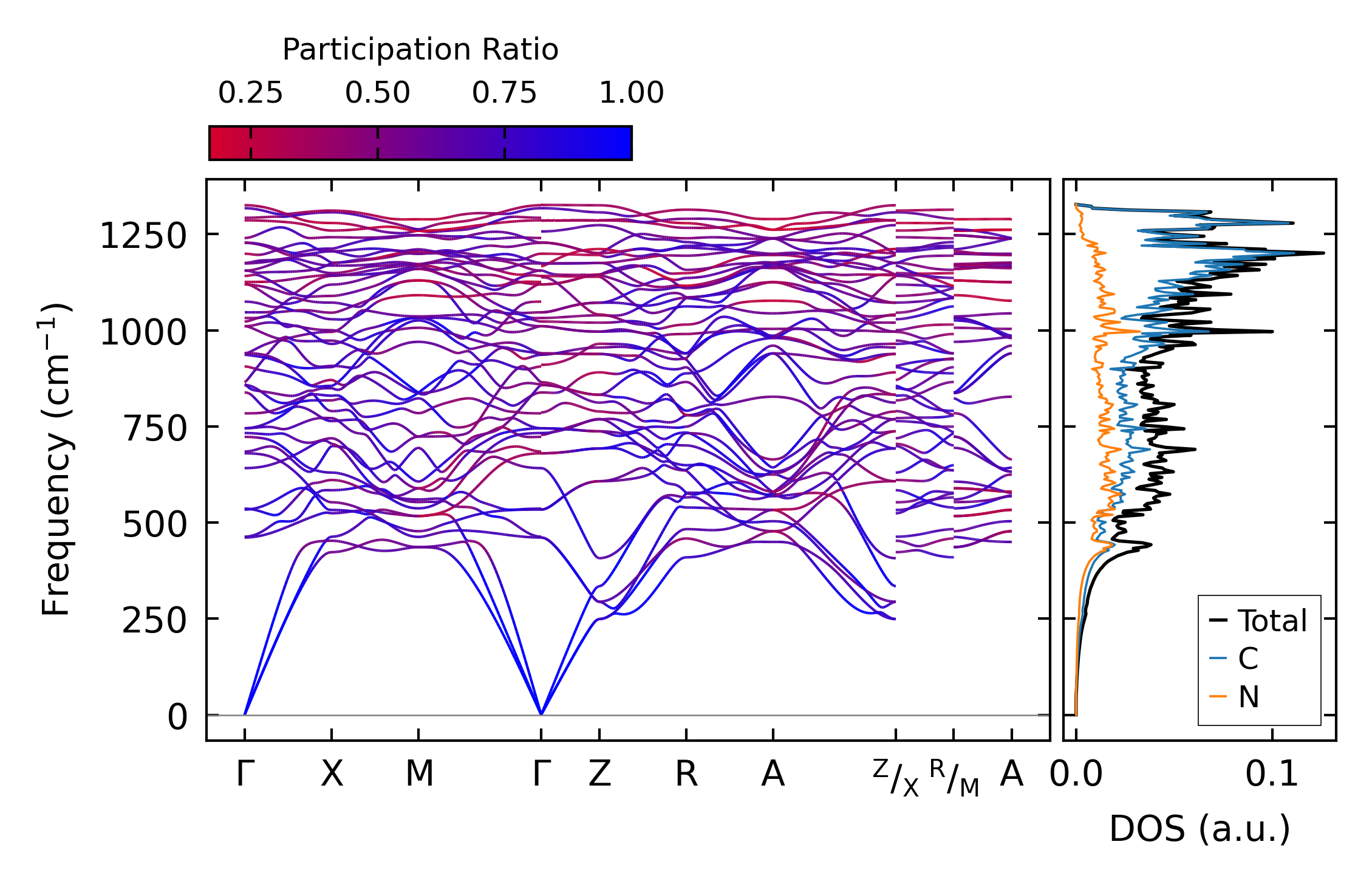

../../_images/fig_bandos_pr16603.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16602.png — (b) Thermodynamic properties

Grüneisen parameters

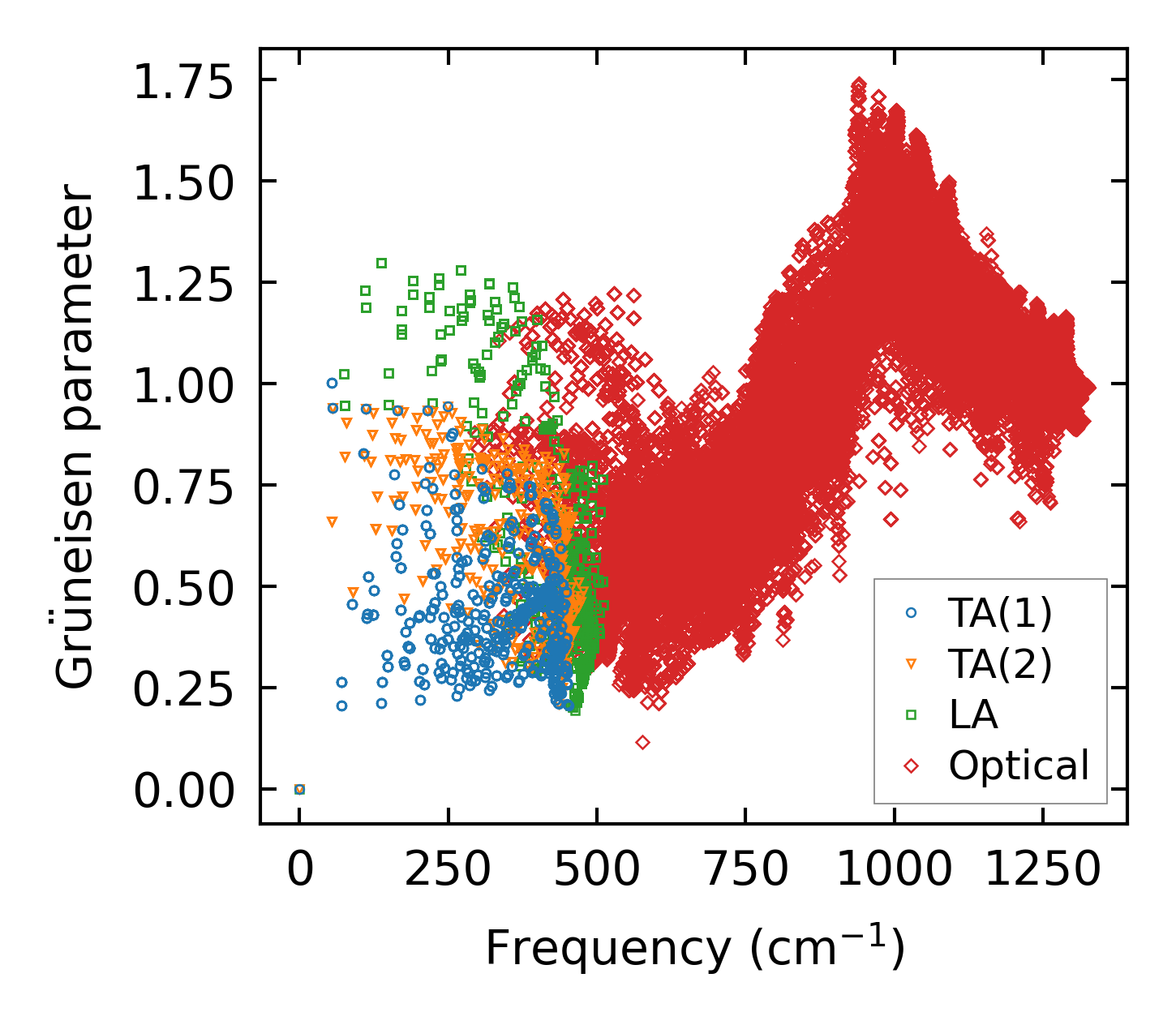

../../_images/fig_gru_all7210.png — (a) Grüneisen parameters

../../_images/fig_gruneisen7210.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 20x20x10, supercell: 2x2x2

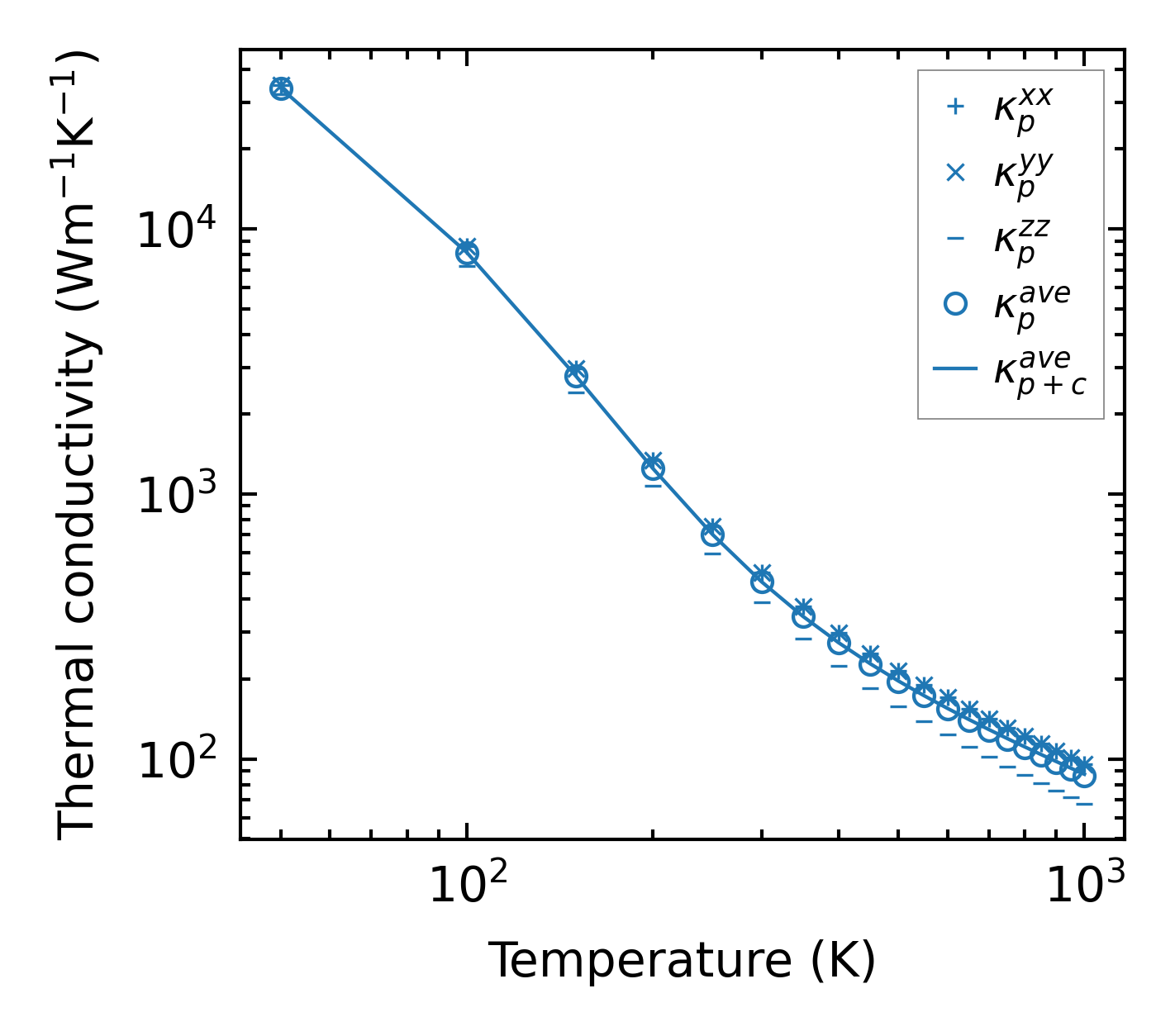

../../_images/fig_kappa13596.png — (a) Temperature-dependent lattice thermal conductivity

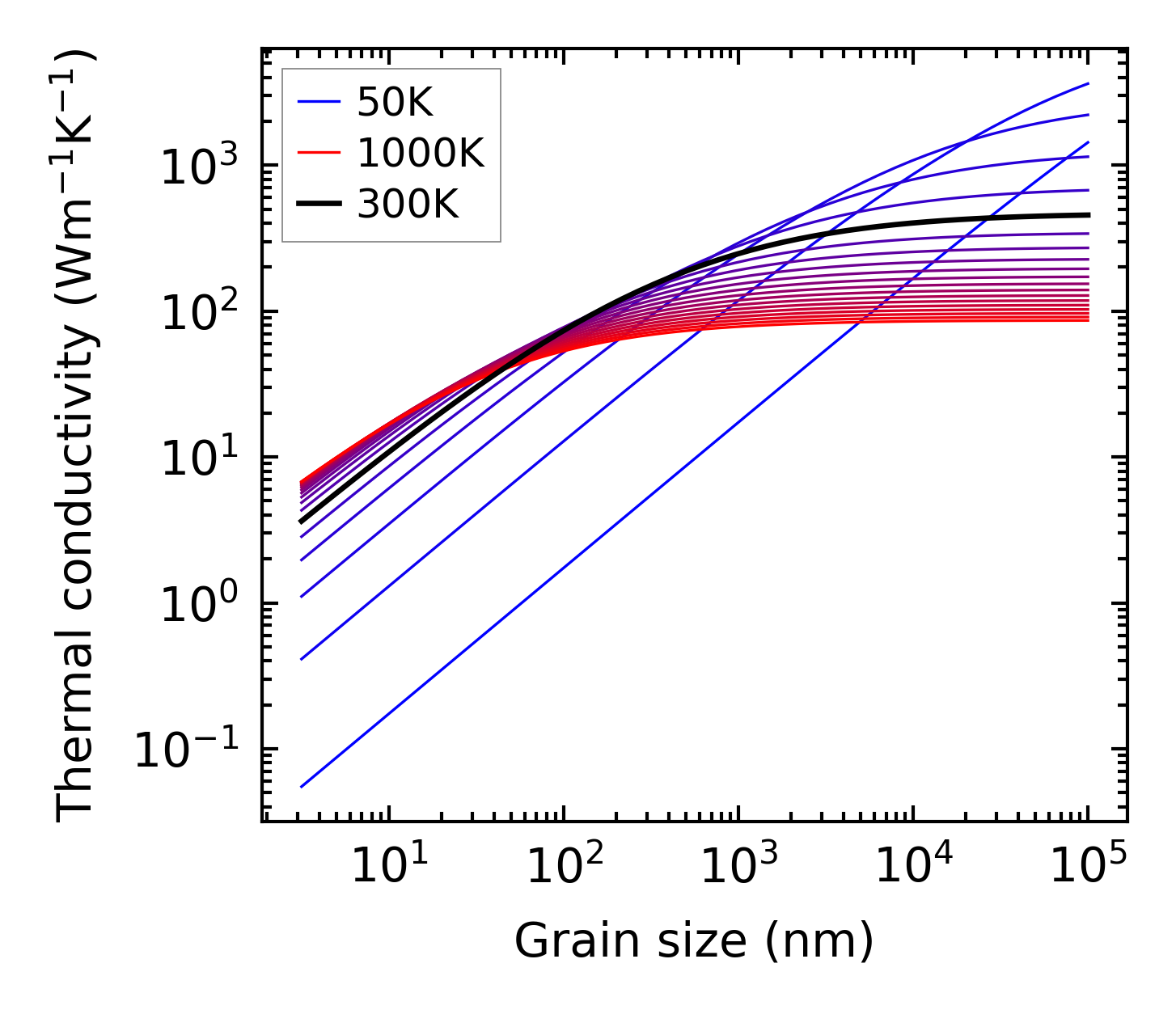

../../_images/fig_kappa_vs_grain_size7296.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

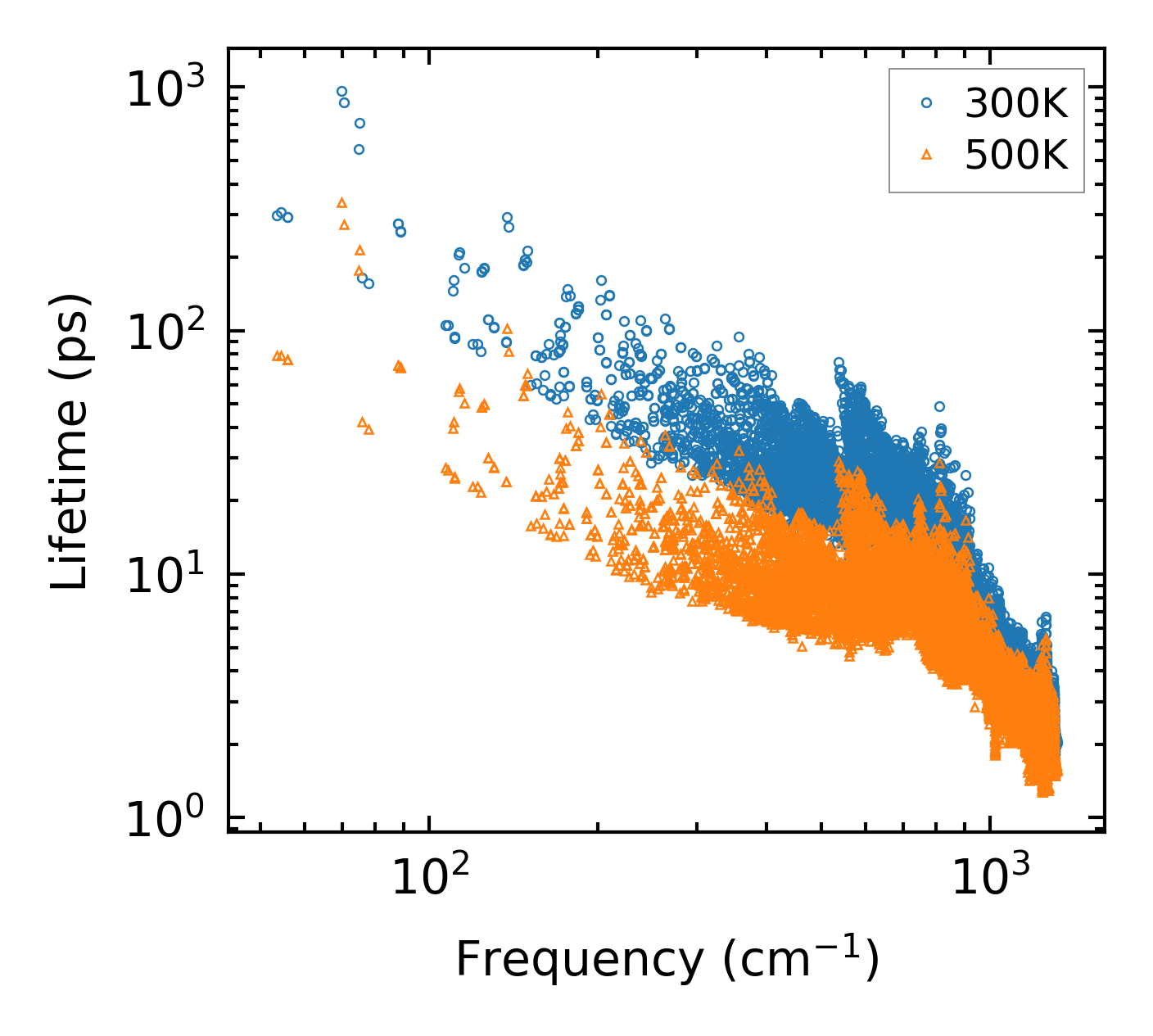

../../_images/fig_lifetime7144.png — (a) Phonon lifetime due to phonon-phonon scattering

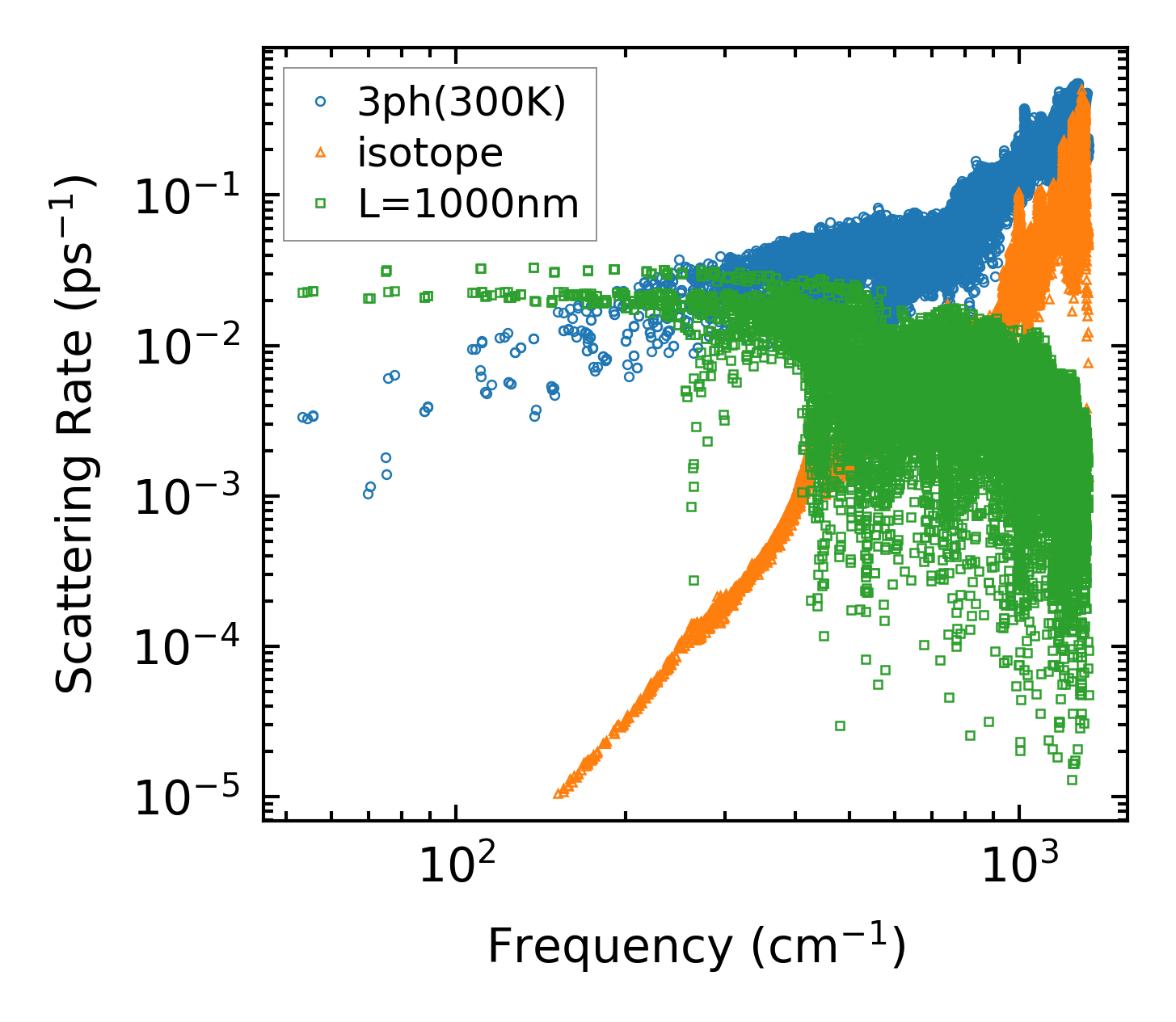

../../_images/fig_scat_rates7143.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency7144.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp7143.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

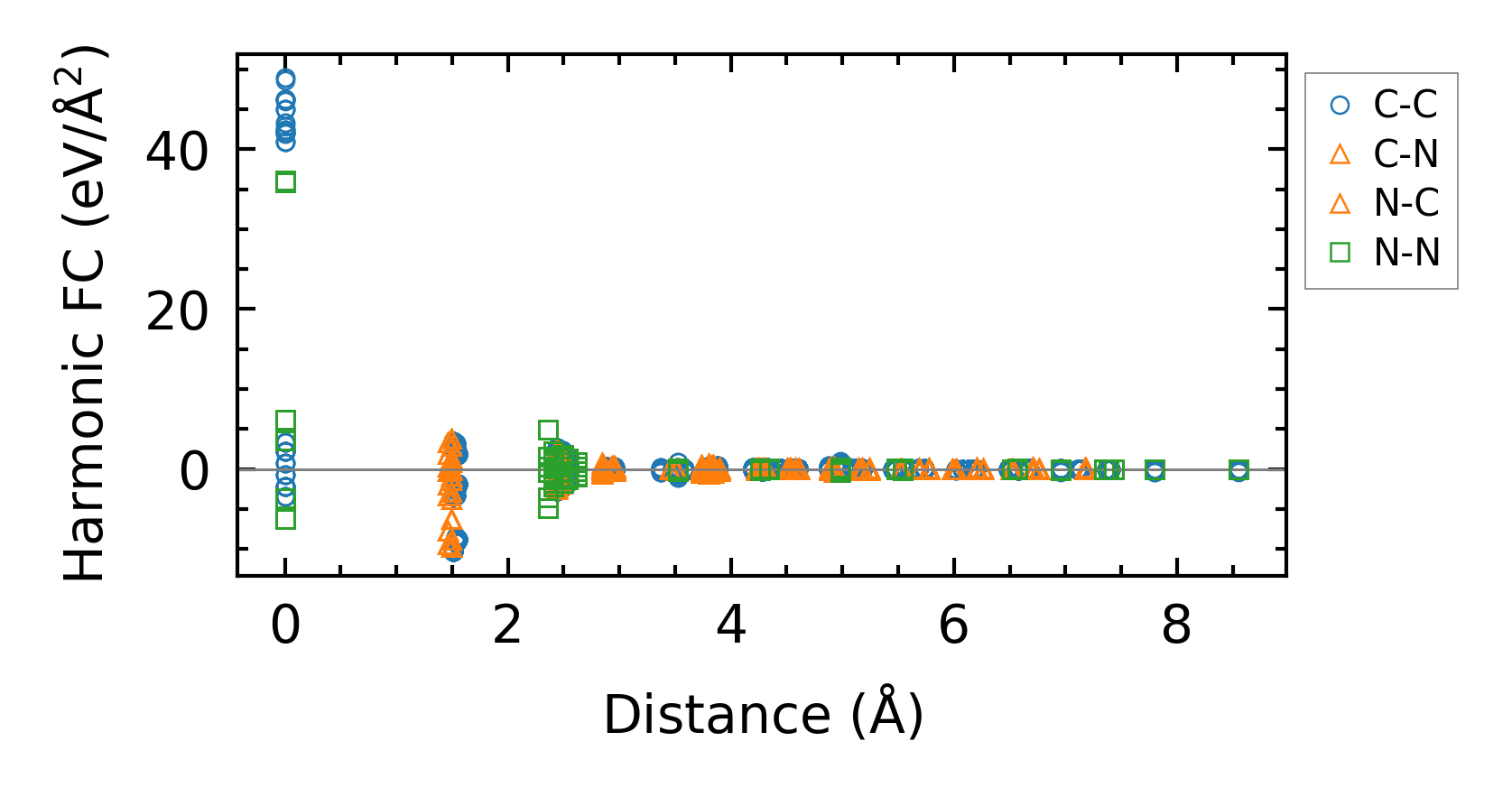

../../_images/fig_fc216176.png — (a) Force constants w.r.t atomic distance

Summary

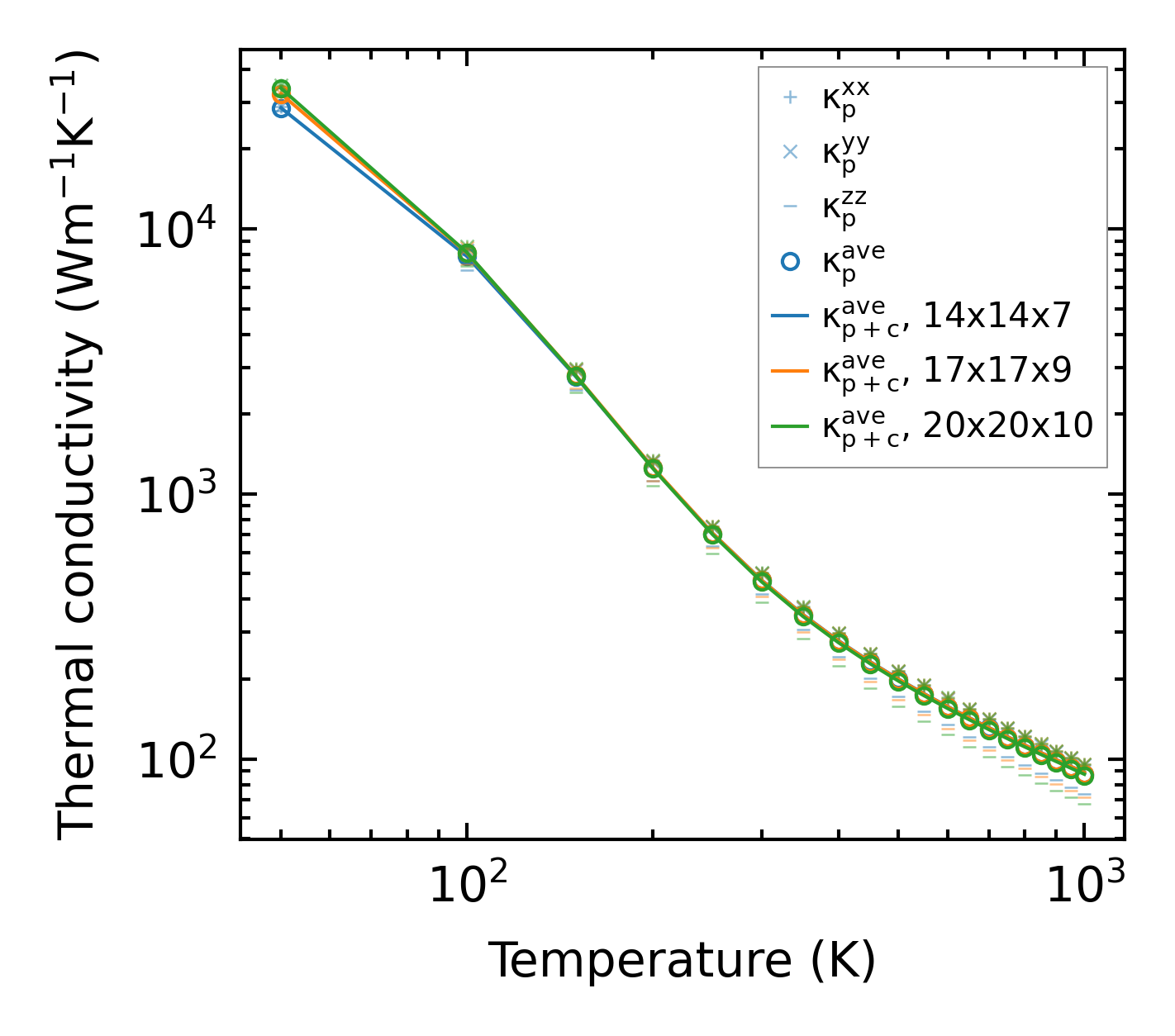

../../_images/fig_kappa13597.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times27155.png — (b) Computation time
