mp-1104167/CaGa2S4/anharm

Space group: Cccm (66)
Link: Materials Project
Download: mp-1104167.tar.gz

Harmonic properties

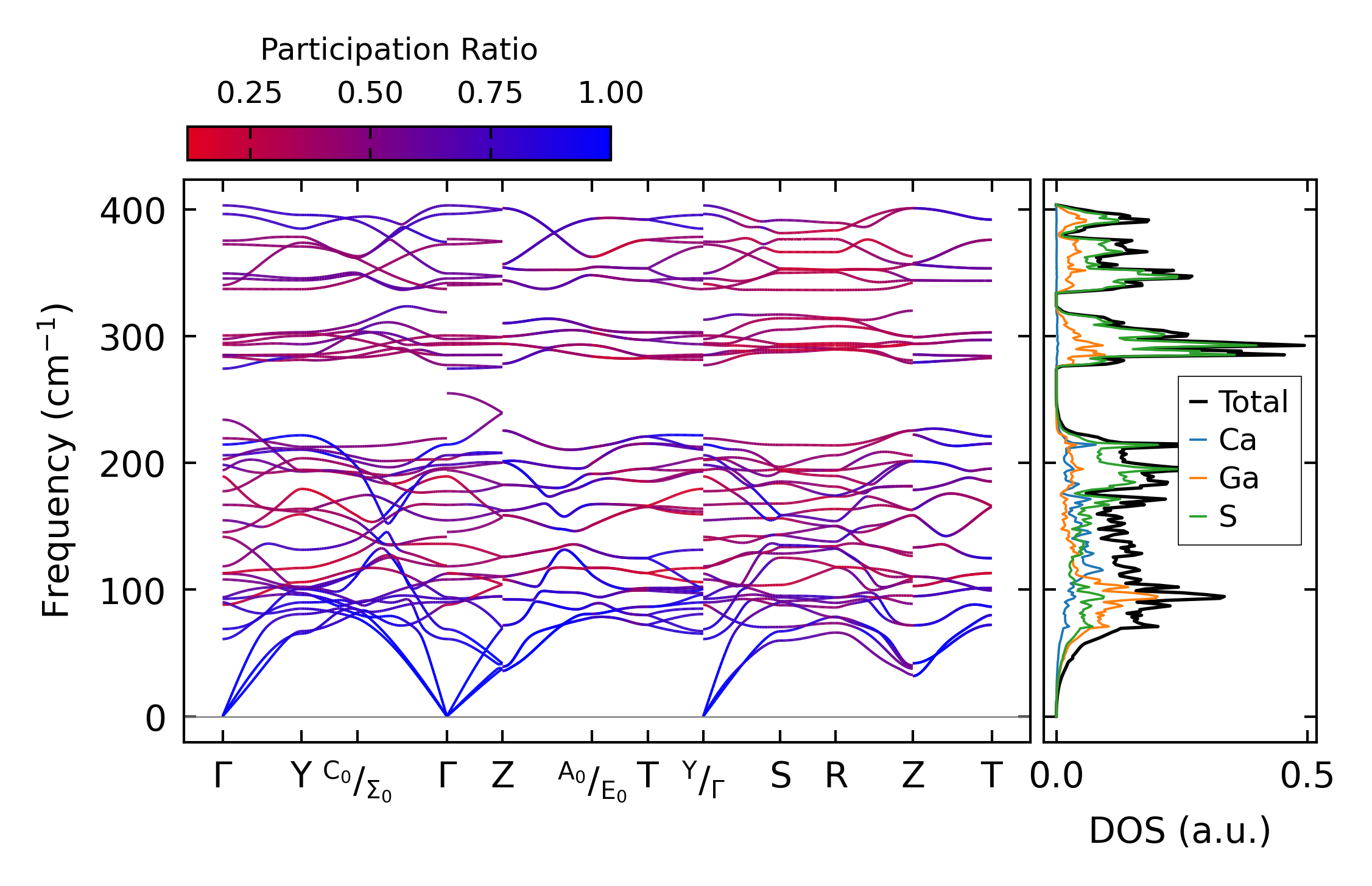

../../_images/fig_bandos_pr16608.png — (a) Phonon dispersion with participation ratio and DOS

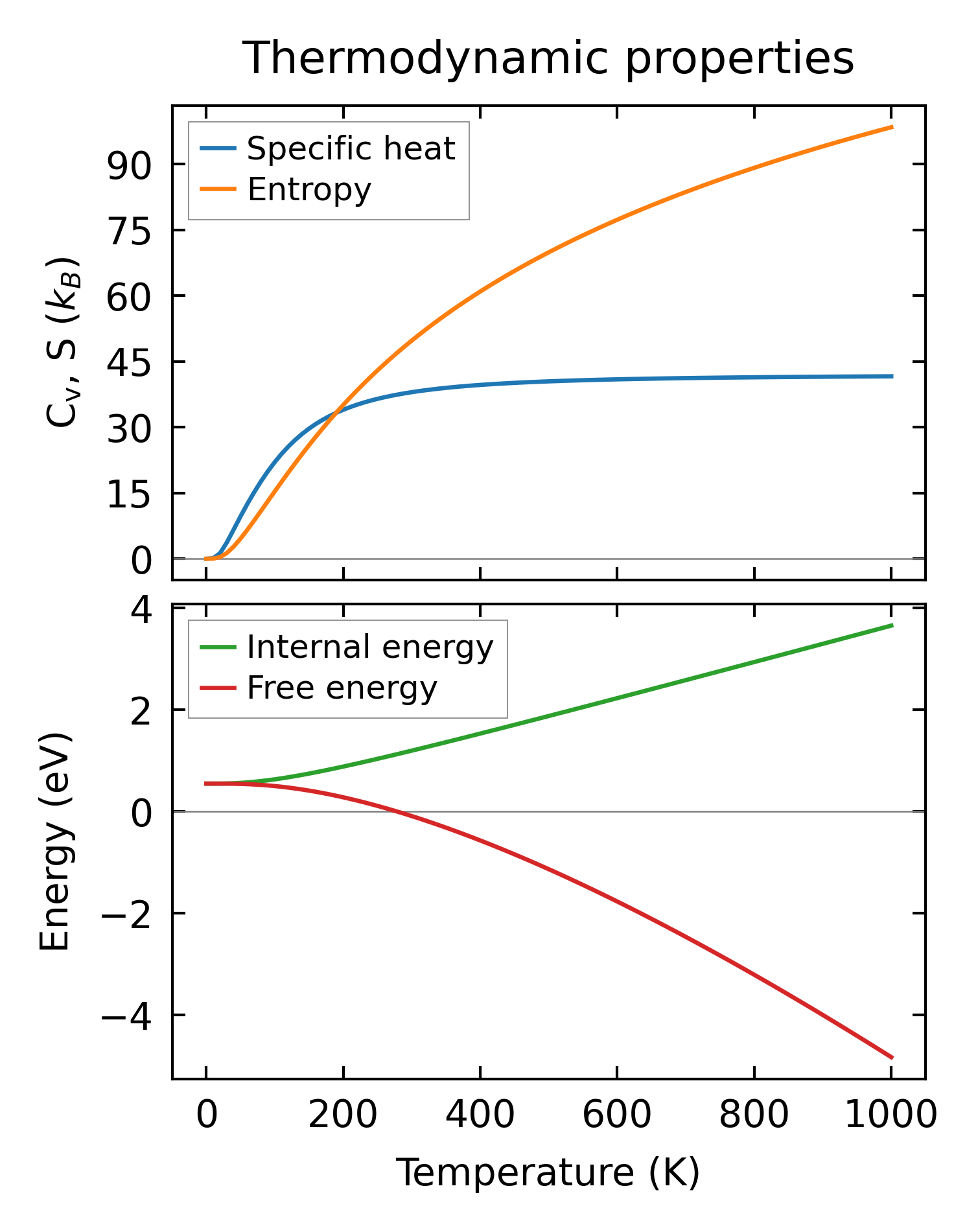

../../_images/fig_thermo16607.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all7215.png — (a) Grüneisen parameters

../../_images/fig_gruneisen7215.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x7, supercell: 2x2x1

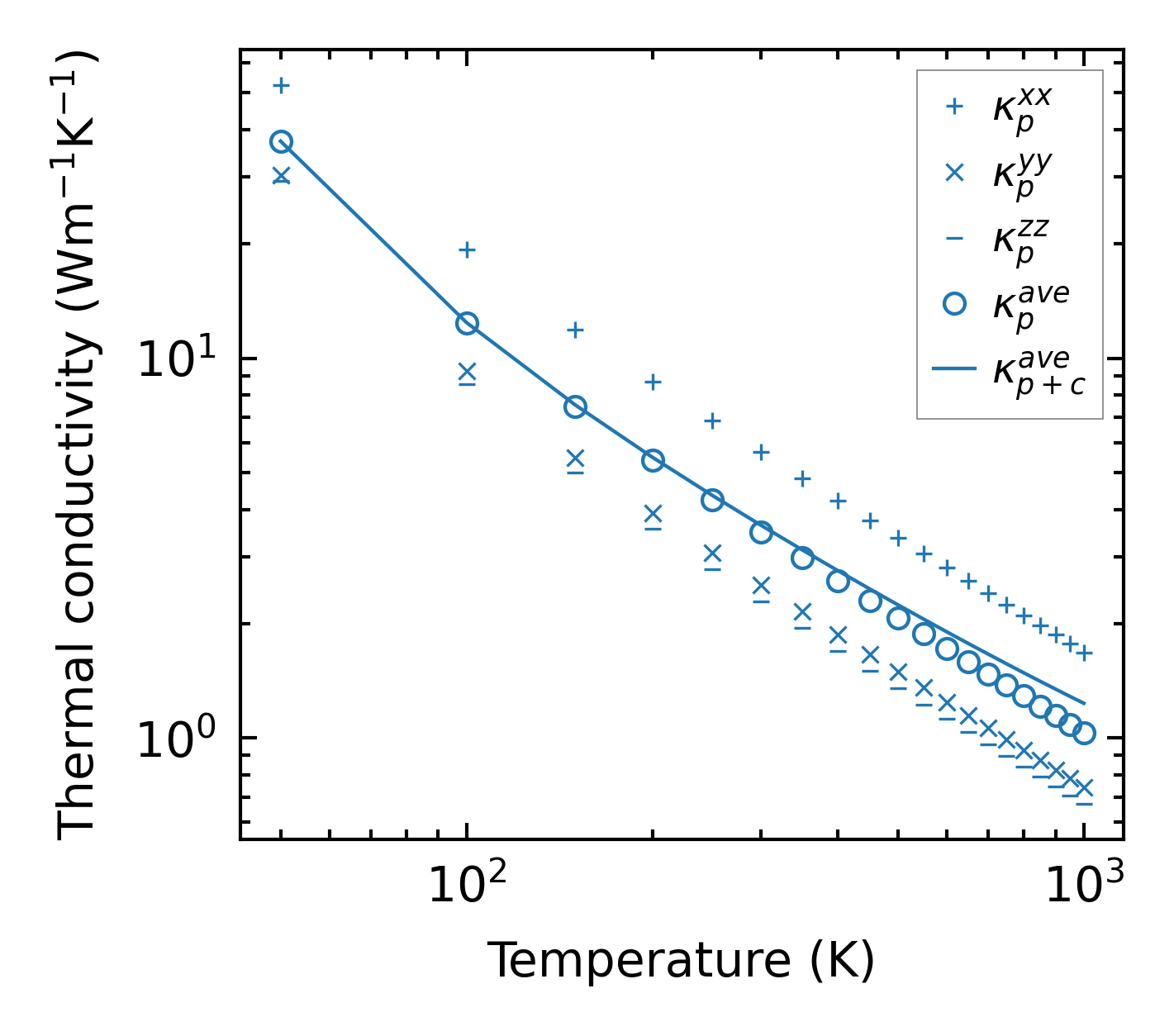

../../_images/fig_kappa13606.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size7301.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

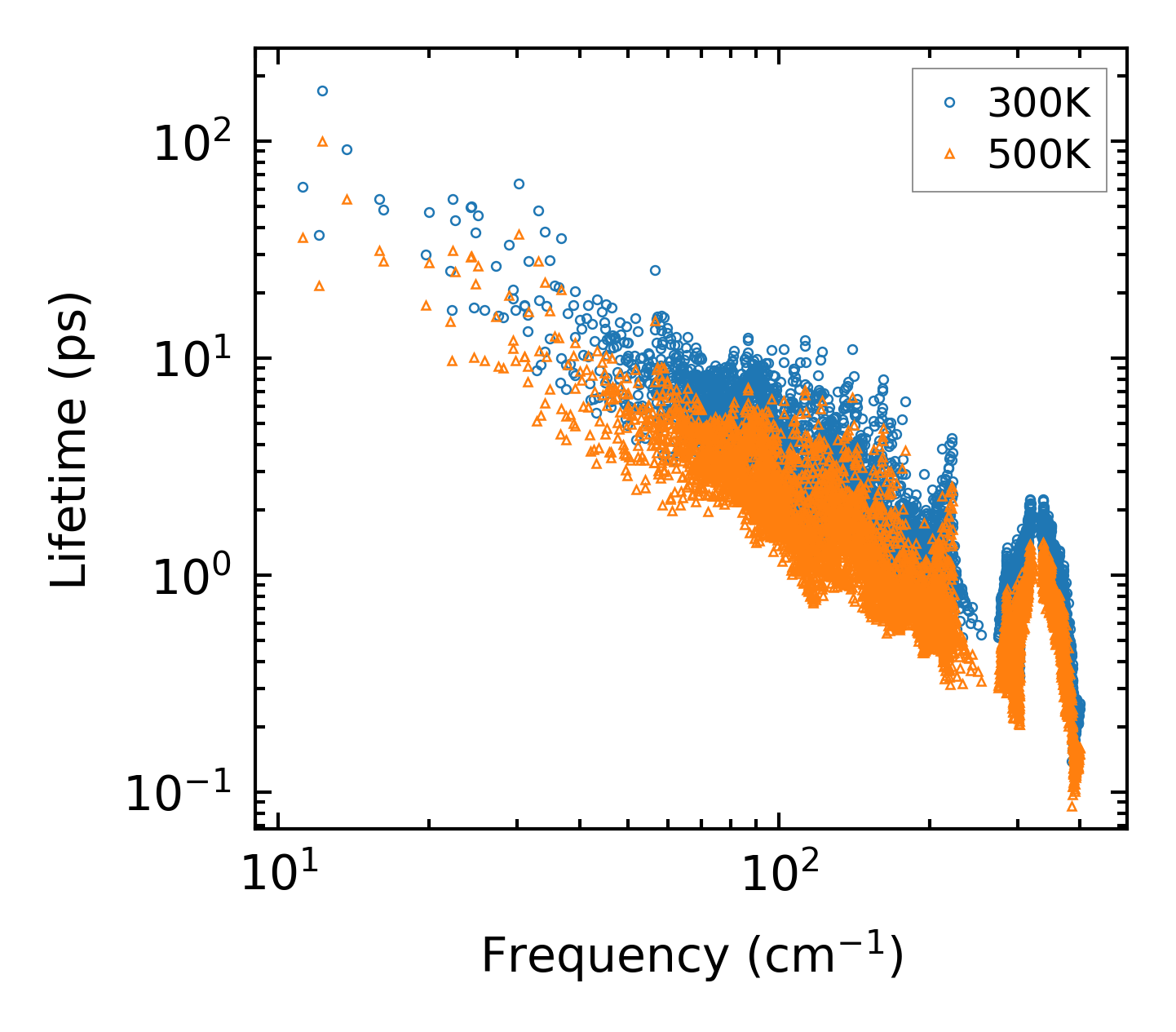

../../_images/fig_lifetime7149.png — (a) Phonon lifetime due to phonon-phonon scattering

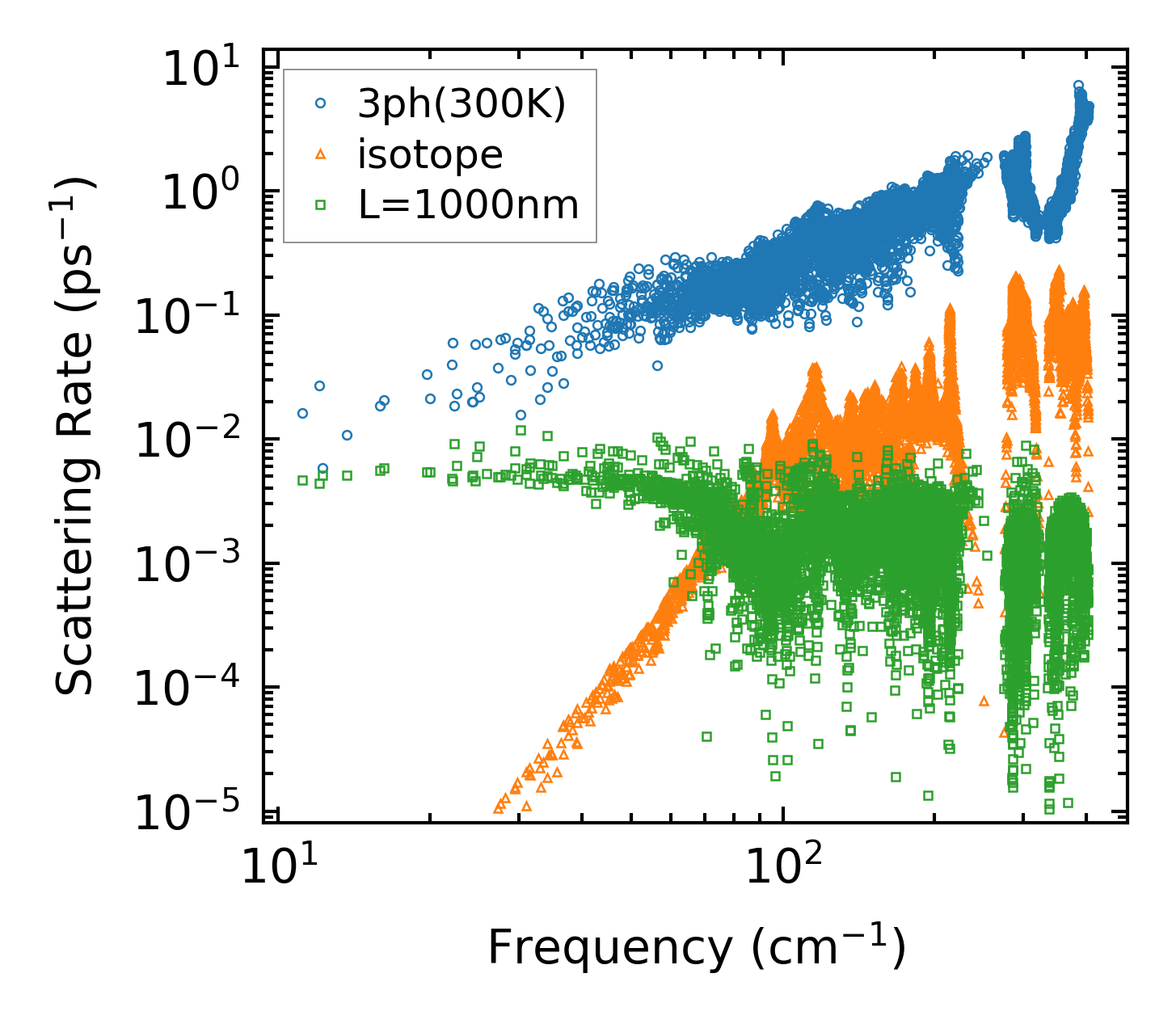

../../_images/fig_scat_rates7148.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency7149.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp7148.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

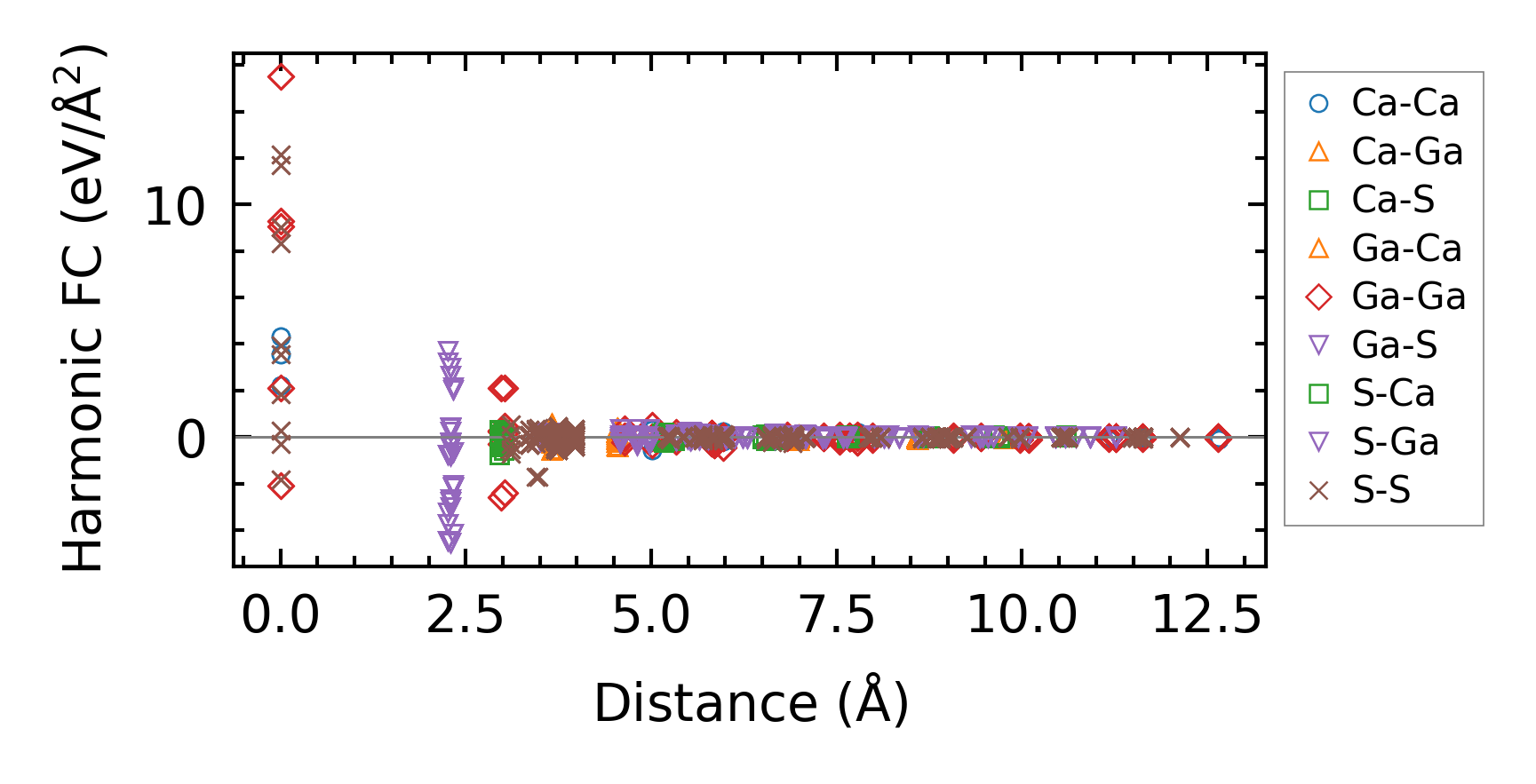

../../_images/fig_fc216180.png — (a) Force constants w.r.t atomic distance

Summary

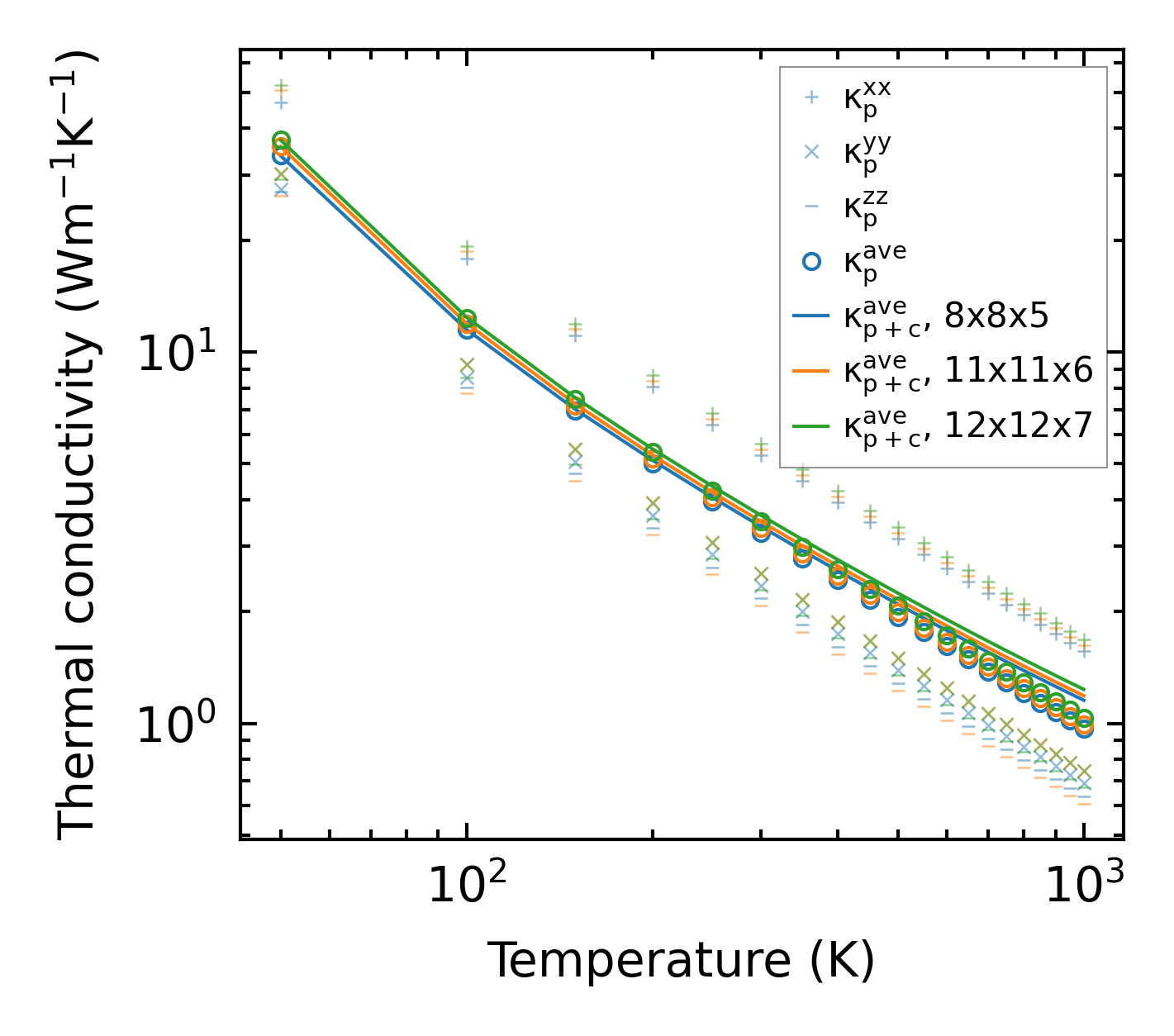

../../_images/fig_kappa13607.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times27161.png — (b) Computation time
