mp-961675/ScNiP/anharm

Space group: F-43m (216)
Link: Materials Project
Download: mp-961675.tar.gz

Harmonic properties

../../_images/fig_bandos_pr974.png — (a) Phonon dispersion with participation ratio and DOS

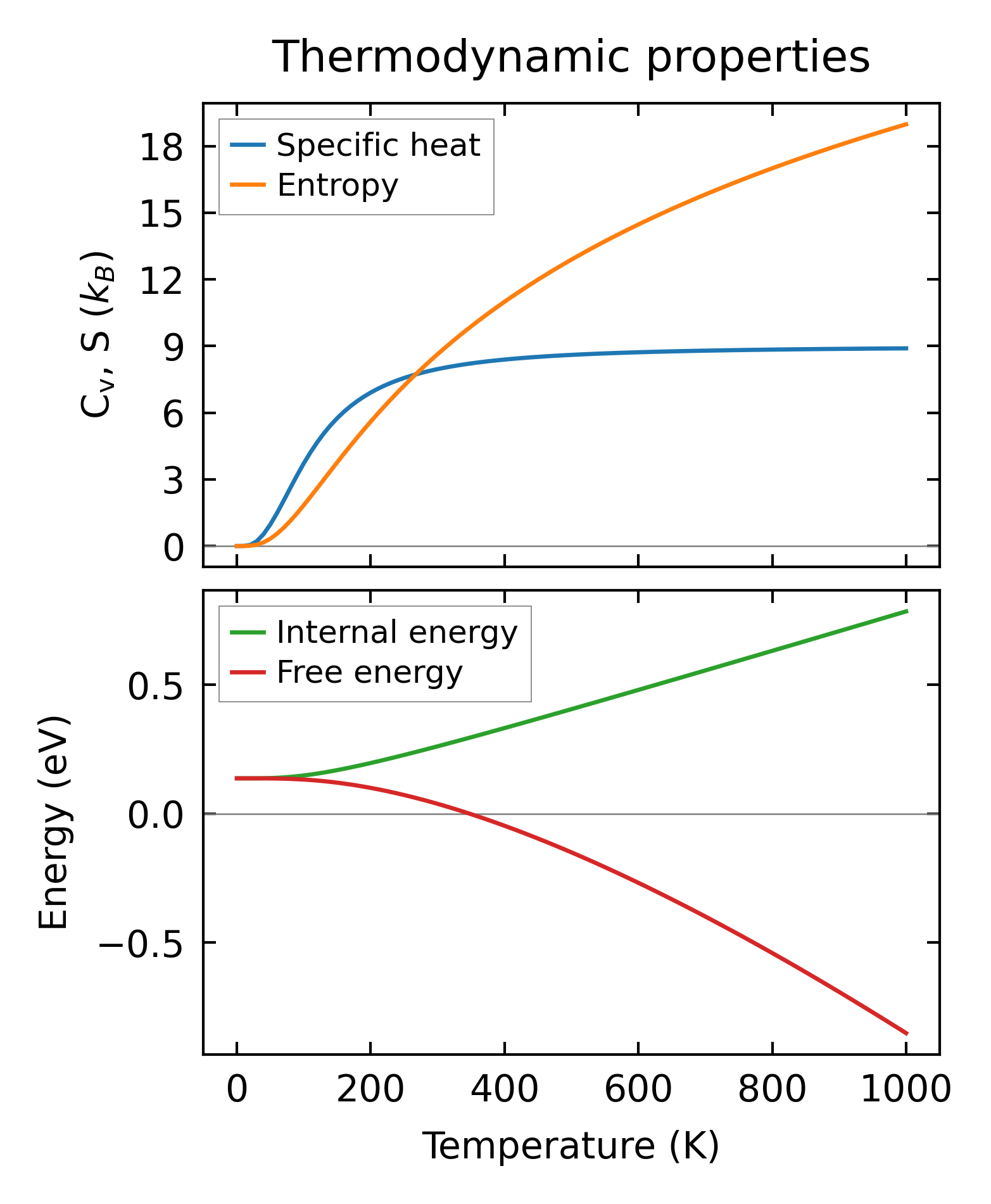

../../_images/fig_thermo974.png — (b) Thermodynamic properties

Grüneisen parameters

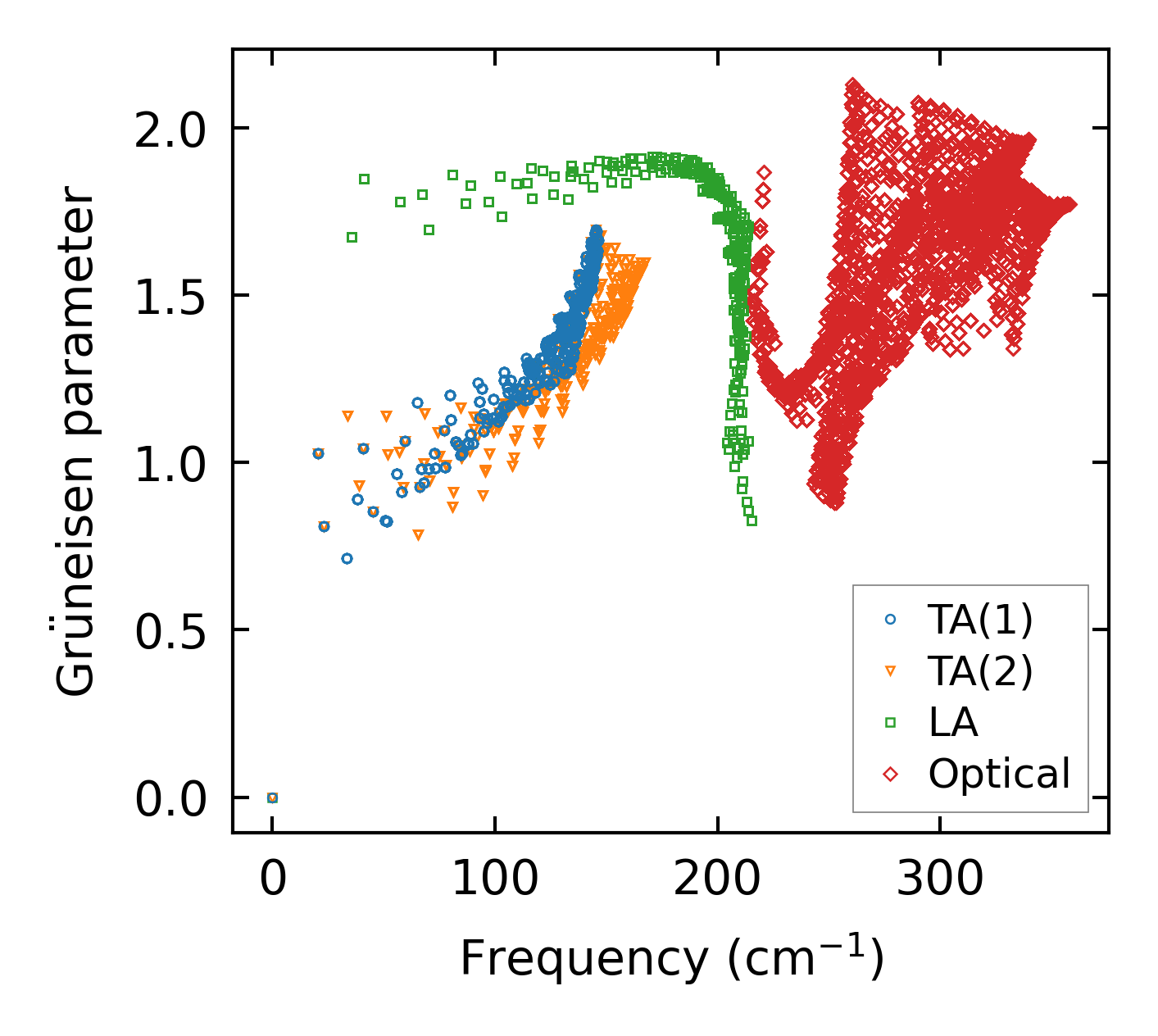

../../_images/fig_gru_all597.png — (a) Grüneisen parameters

../../_images/fig_gruneisen597.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 20x20x20, supercell: 2x2x2

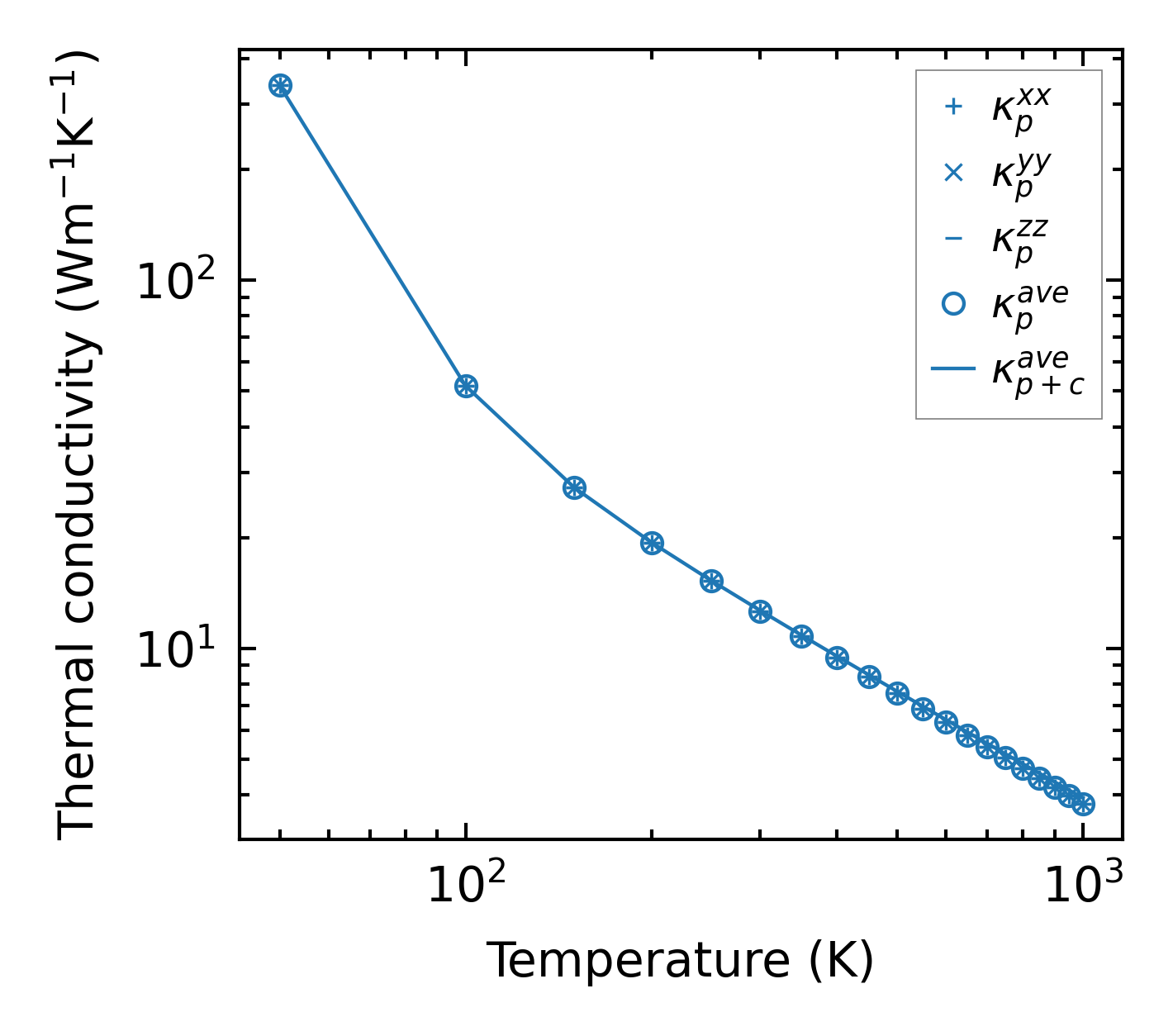

../../_images/fig_kappa1162.png — (a) Temperature-dependent lattice thermal conductivity

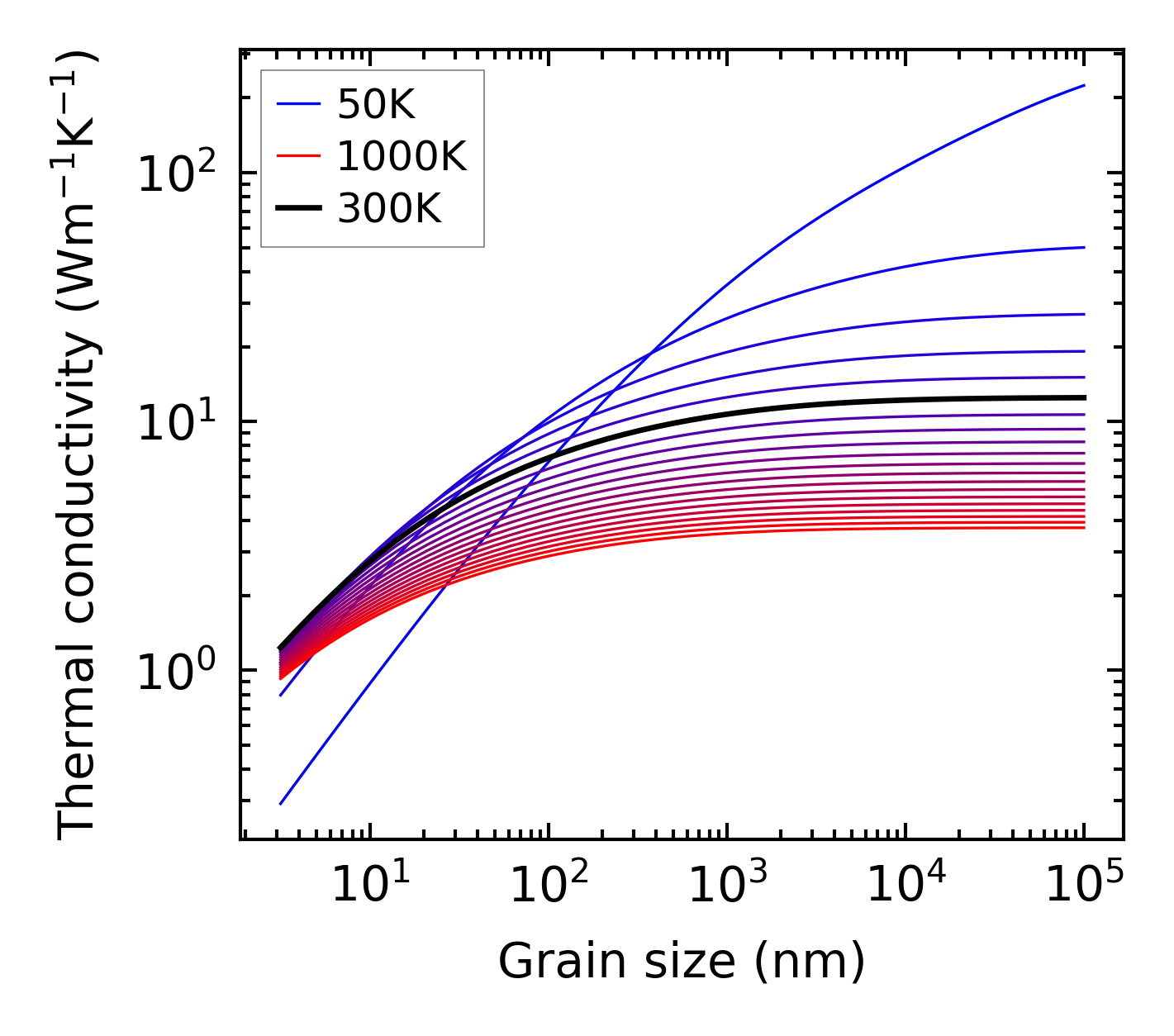

../../_images/fig_kappa_vs_grain_size605.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime595.png — (a) Phonon lifetime due to phonon-phonon scattering

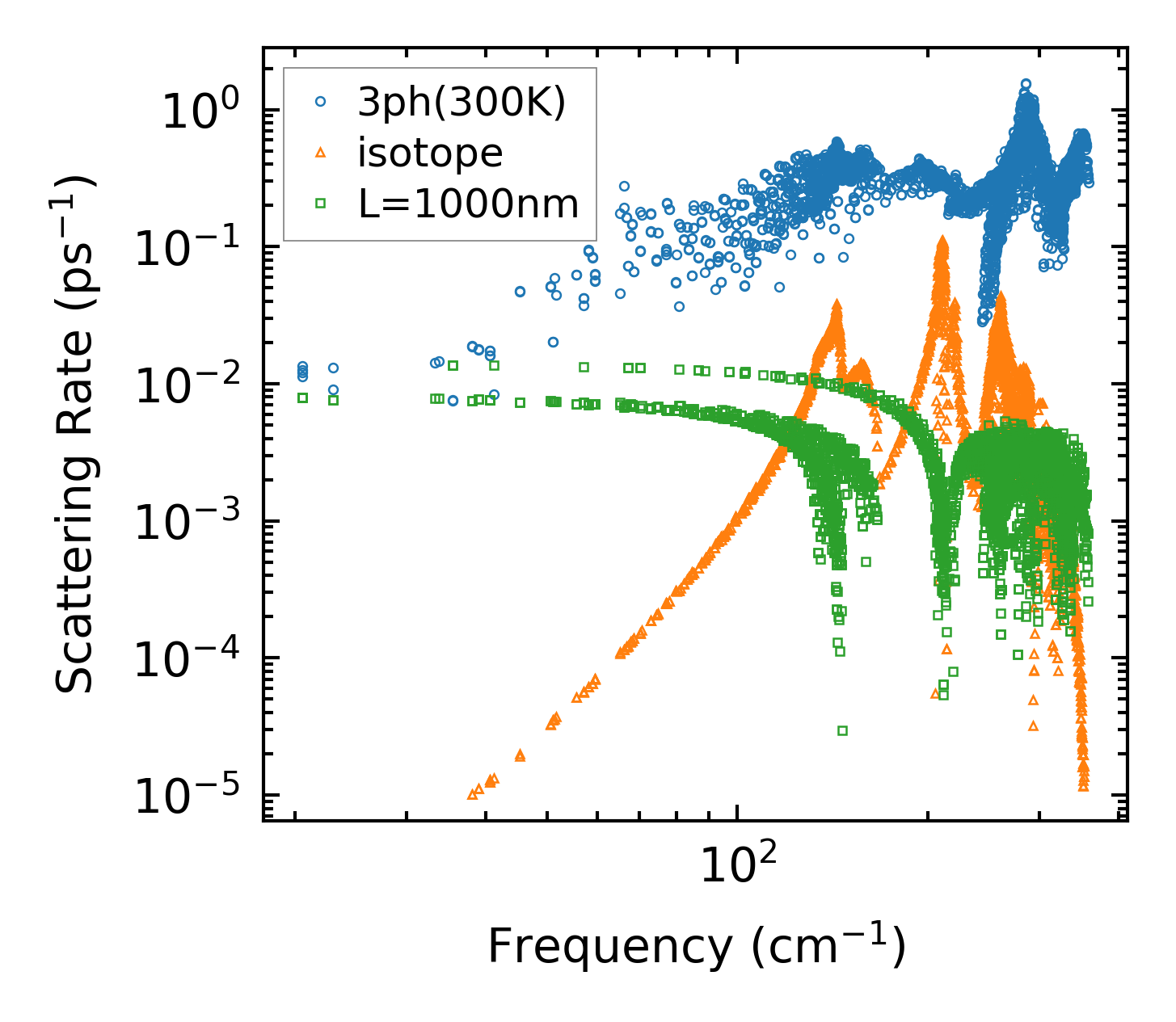

../../_images/fig_scat_rates594.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency595.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

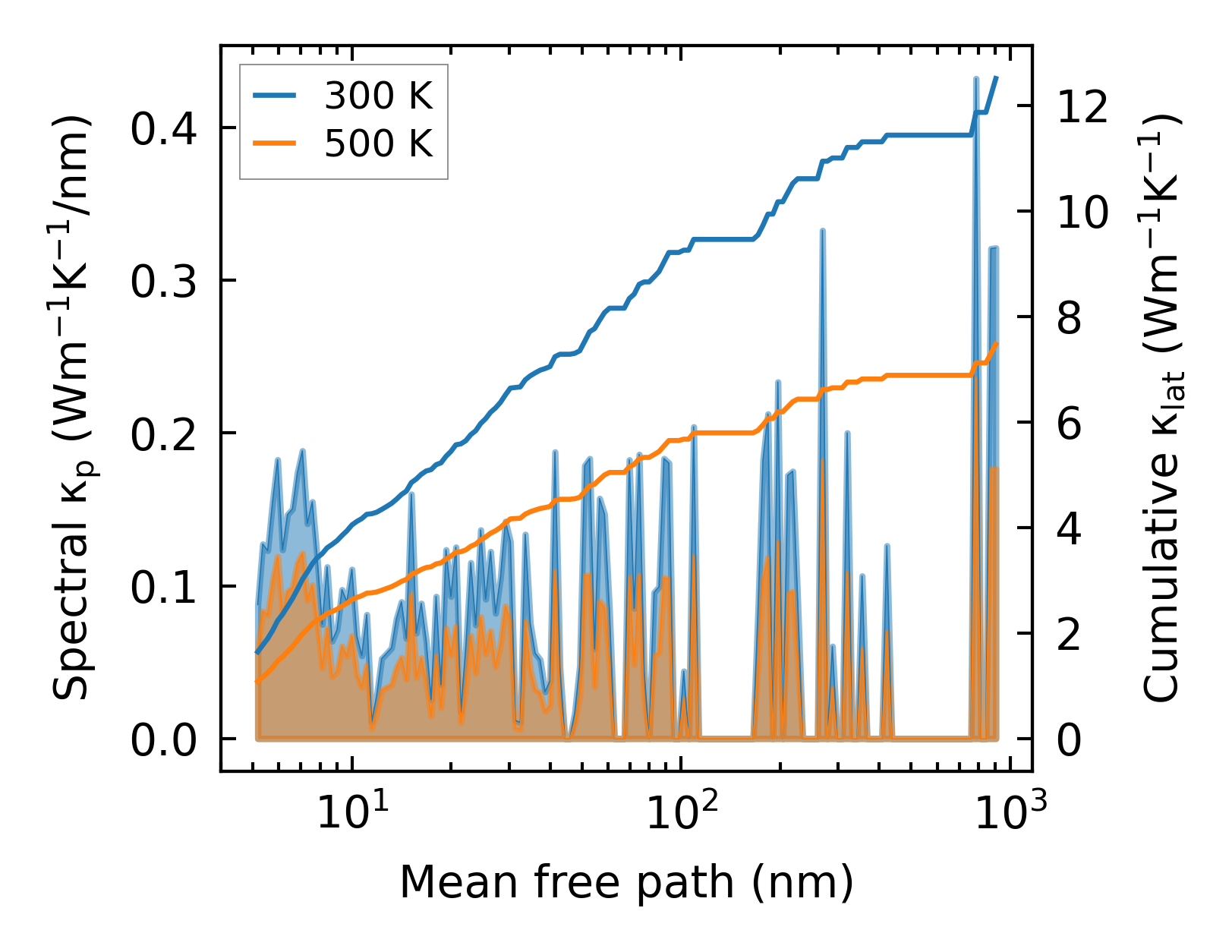

../../_images/fig_cumu_mfp595.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc3118.png — (a) Force constants w.r.t atomic distance

Summary

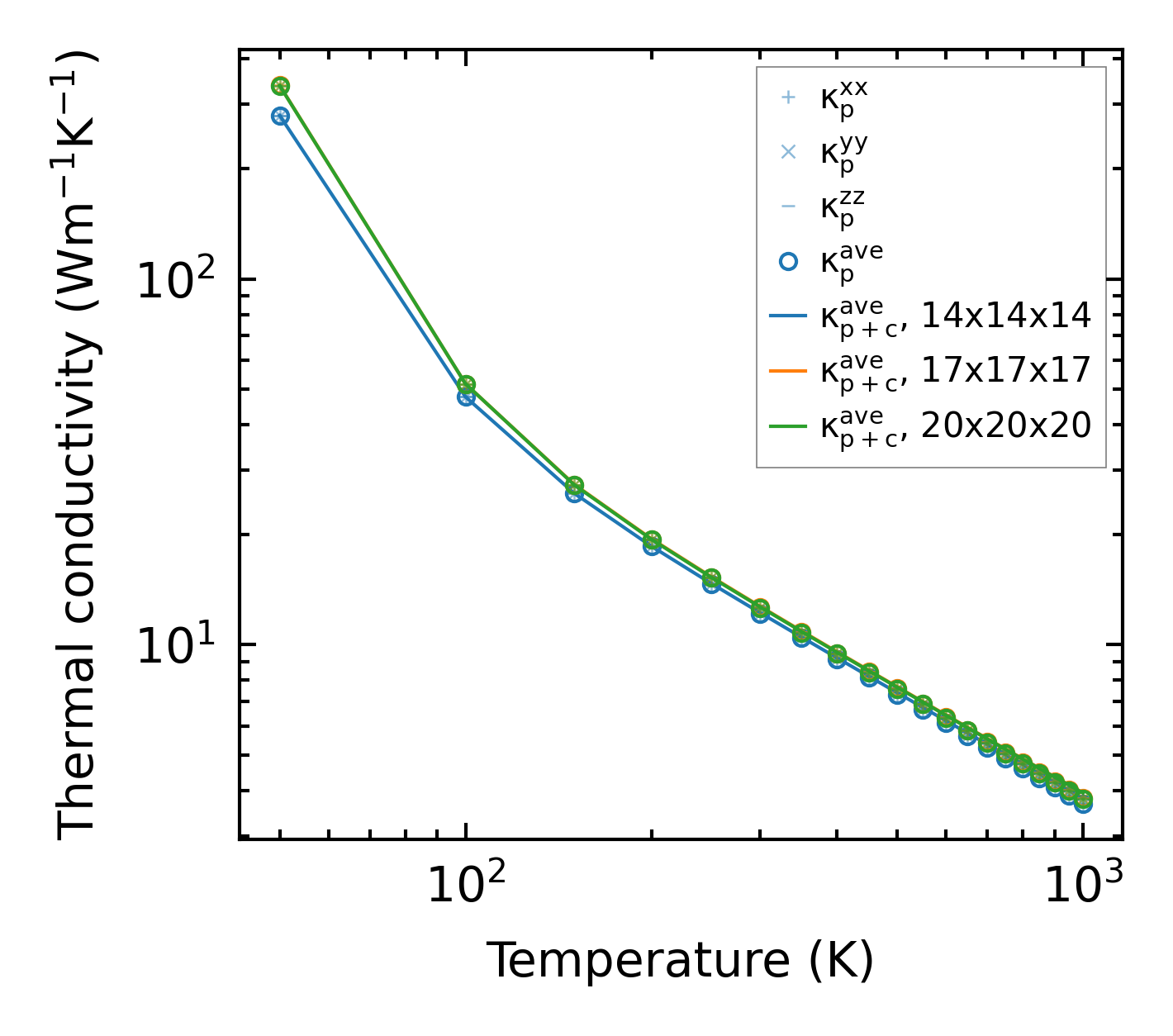

../../_images/fig_kappa1163.png — (a) Temperature-dependent lattice thermal conductivity

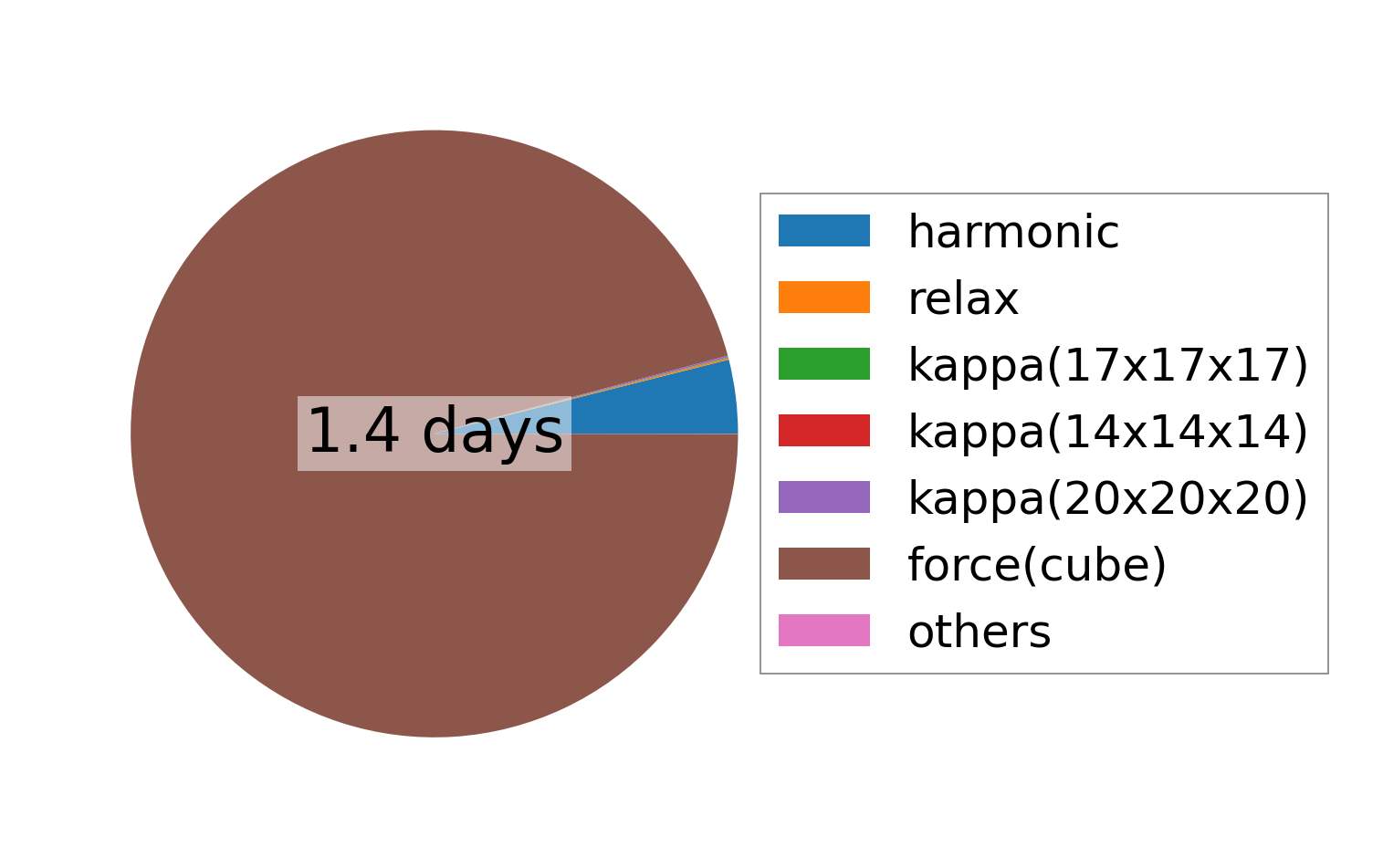

../../_images/fig_times1449.png — (b) Computation time
