mp-760403/CaCd3O4/anharm

Space group: Cmmm (65)
Link: Materials Project
Download: mp-760403.tar.gz

Harmonic properties

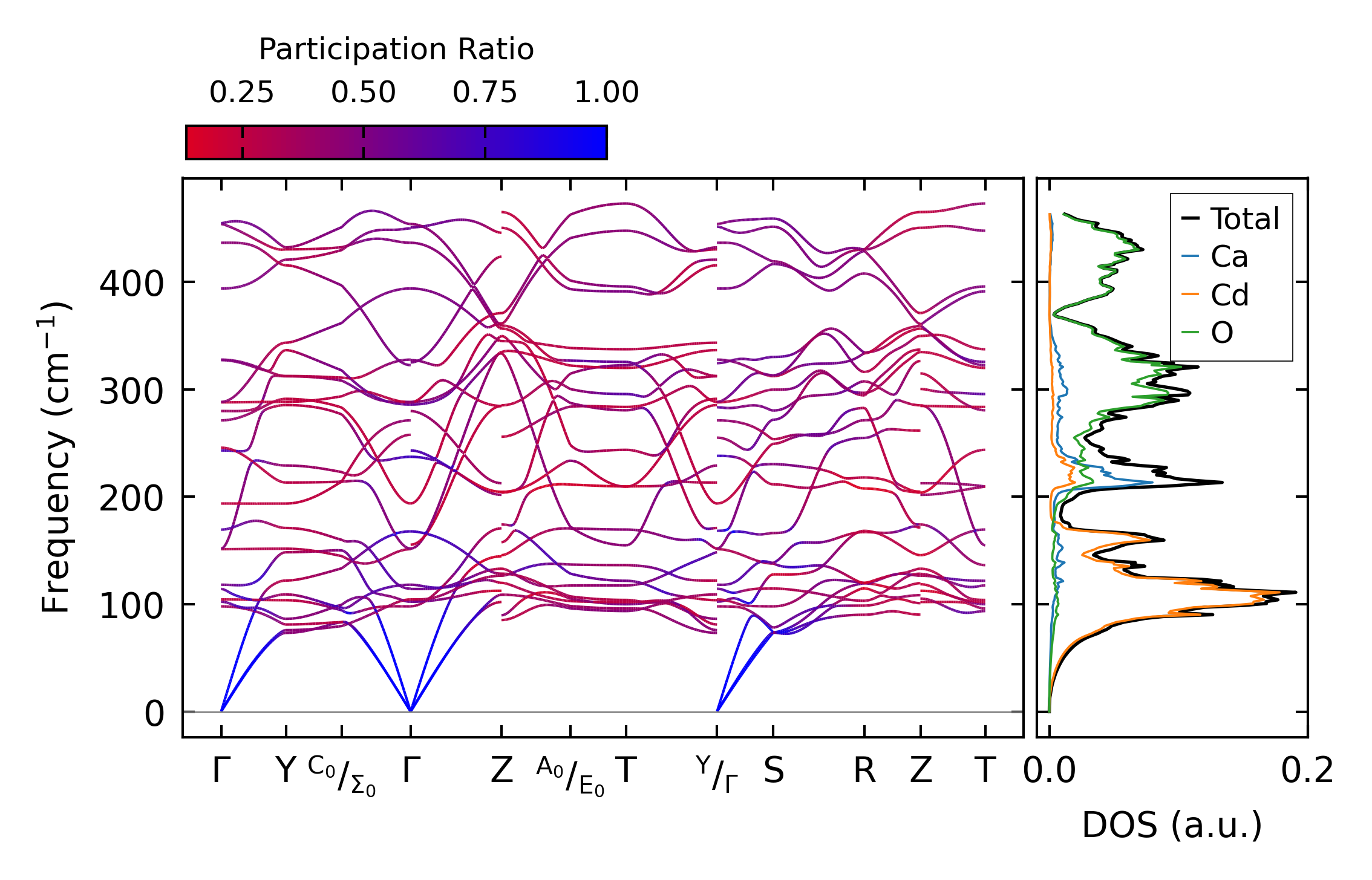

../../_images/fig_bandos_pr2891.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo2891.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all1420.png — (a) Grüneisen parameters

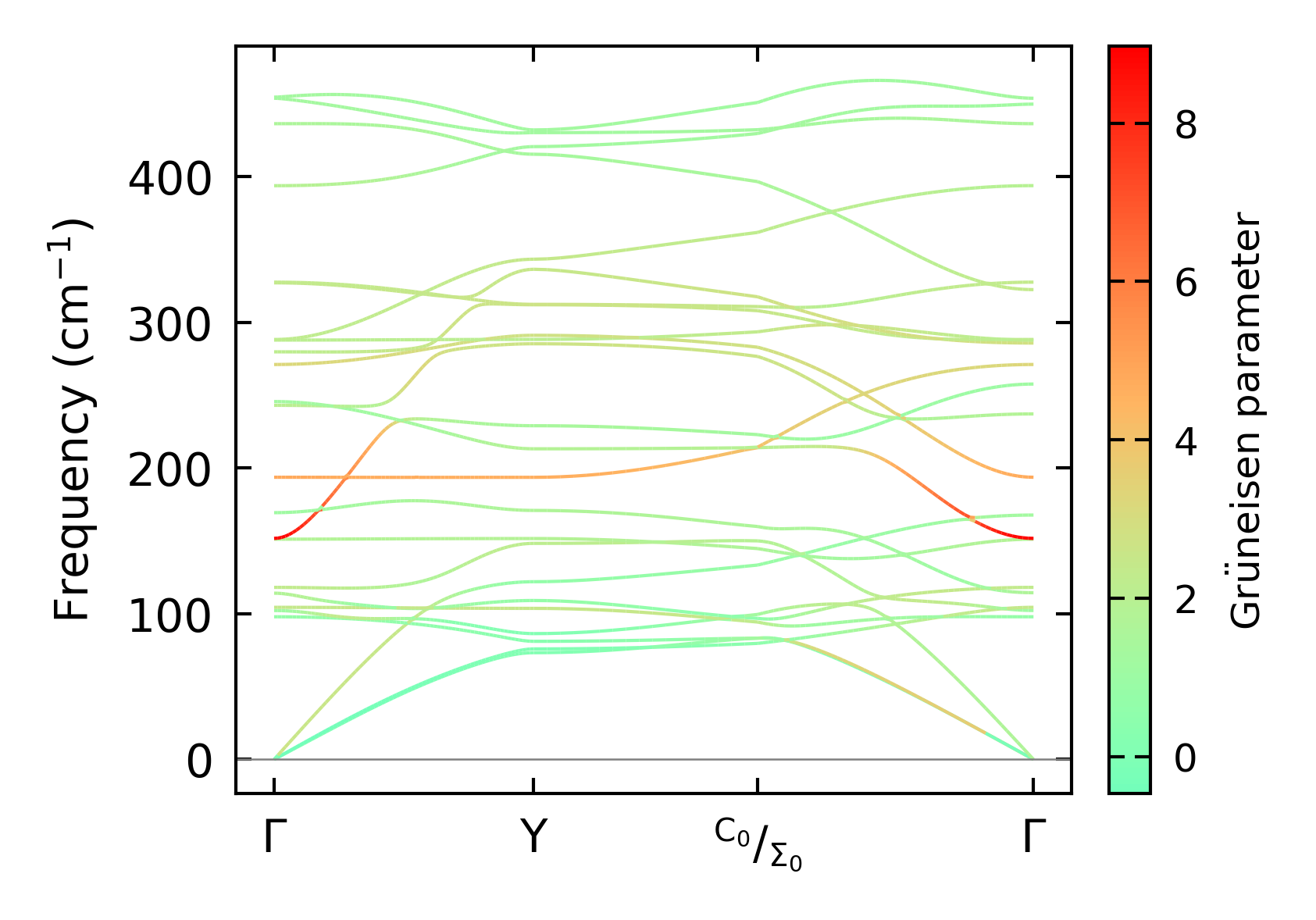

../../_images/fig_gruneisen1420.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x21, supercell: 2x1x3

../../_images/fig_kappa2742.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1436.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

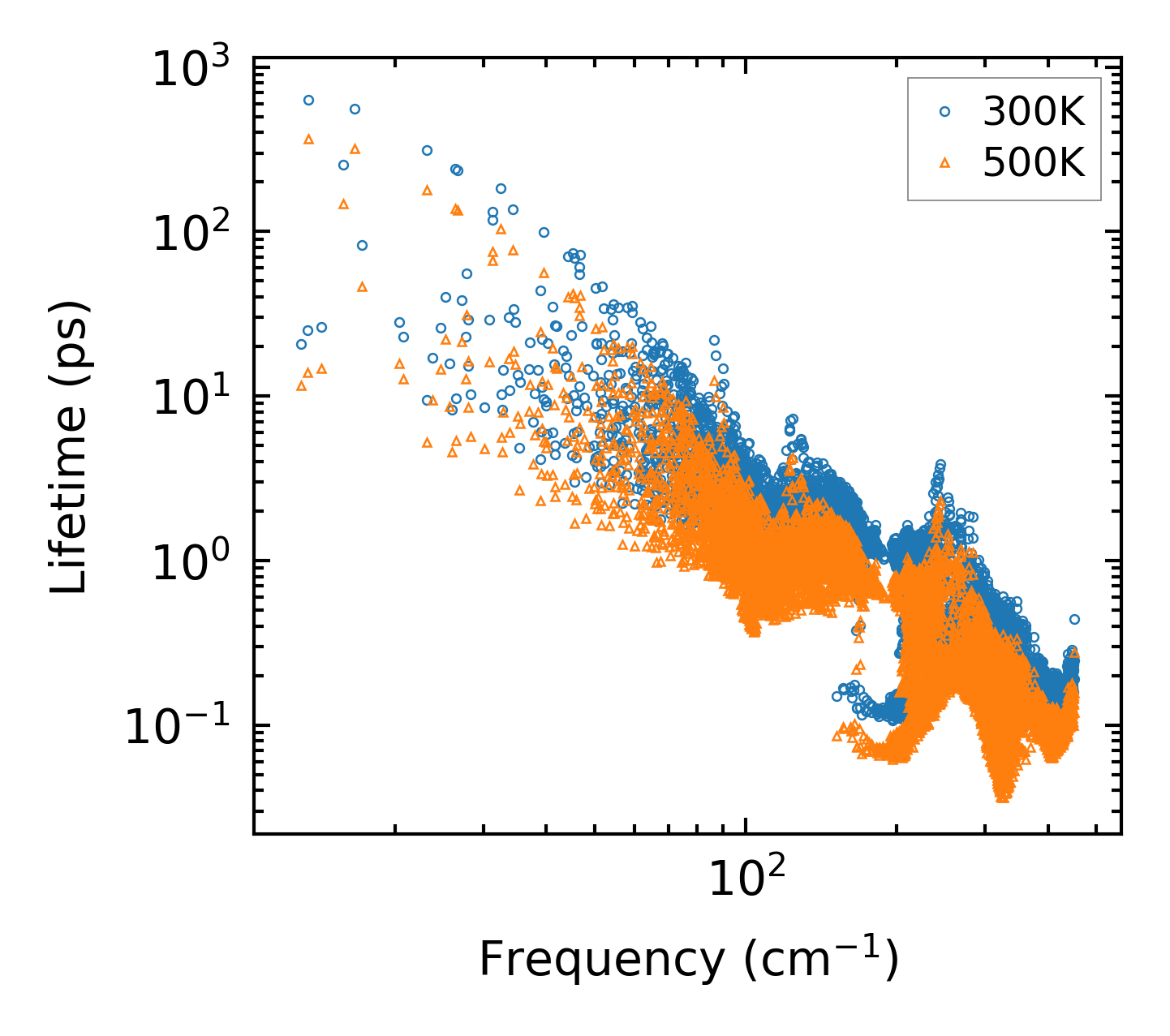

../../_images/fig_lifetime1410.png — (a) Phonon lifetime due to phonon-phonon scattering

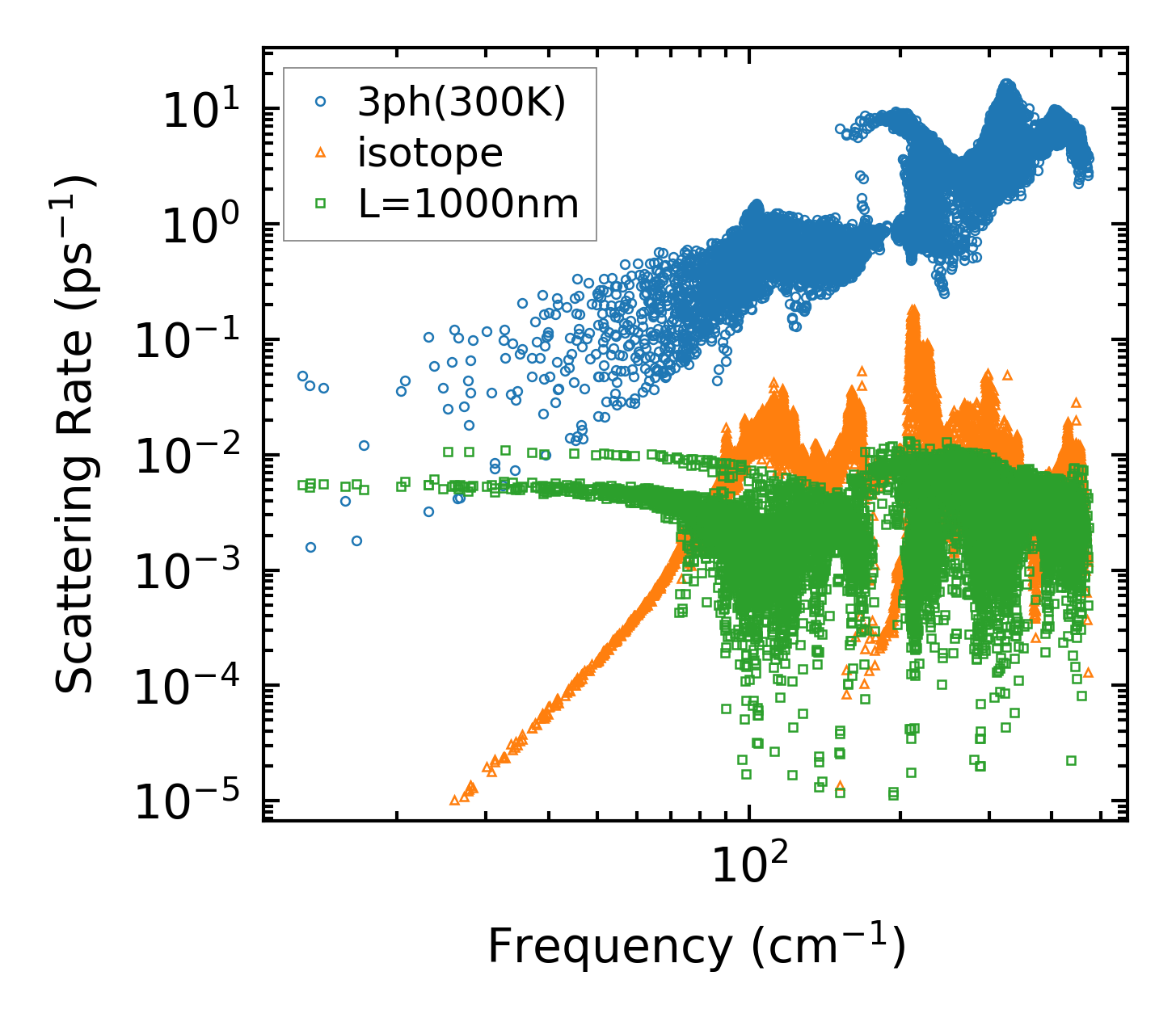

../../_images/fig_scat_rates1409.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency1410.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

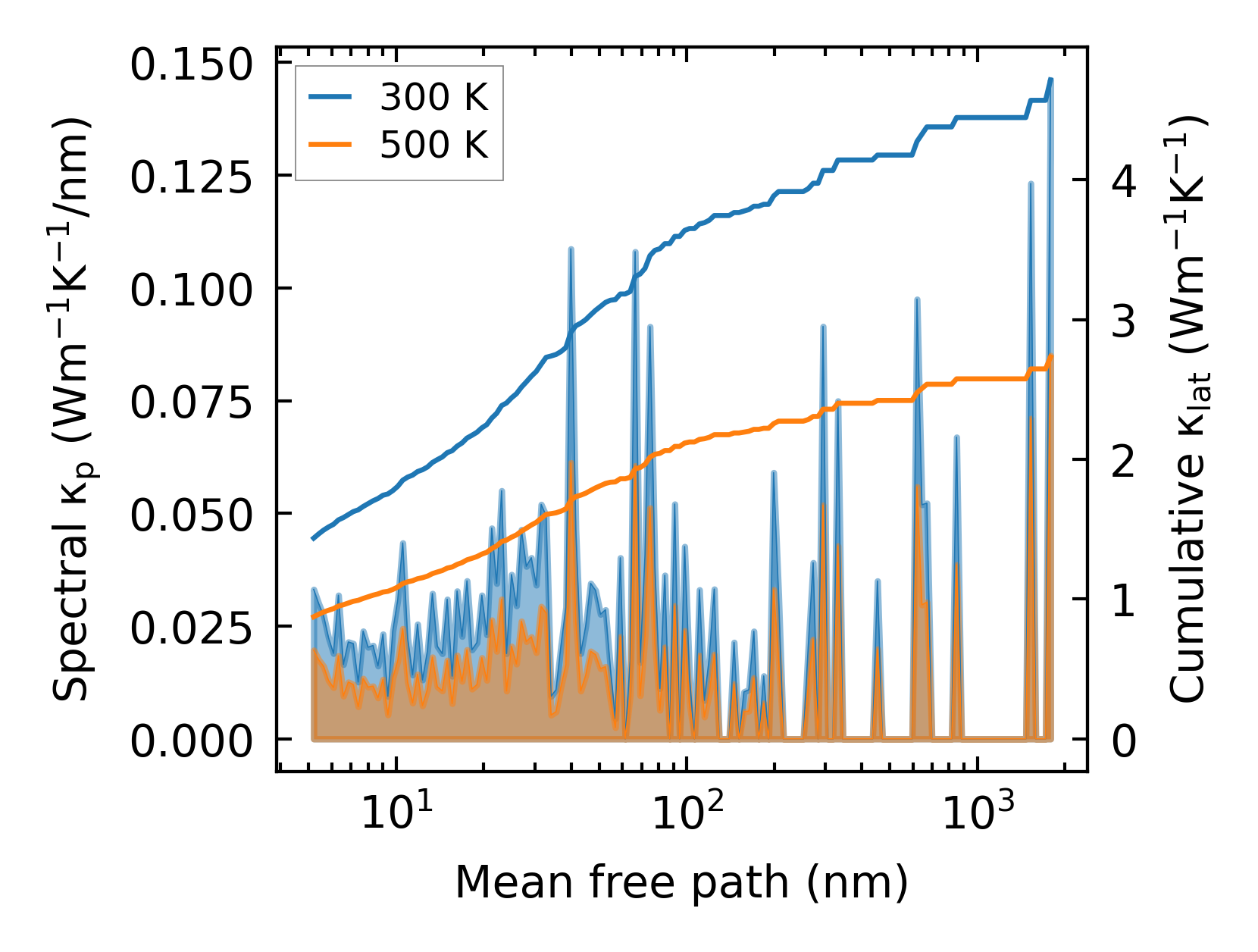

../../_images/fig_cumu_mfp1410.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

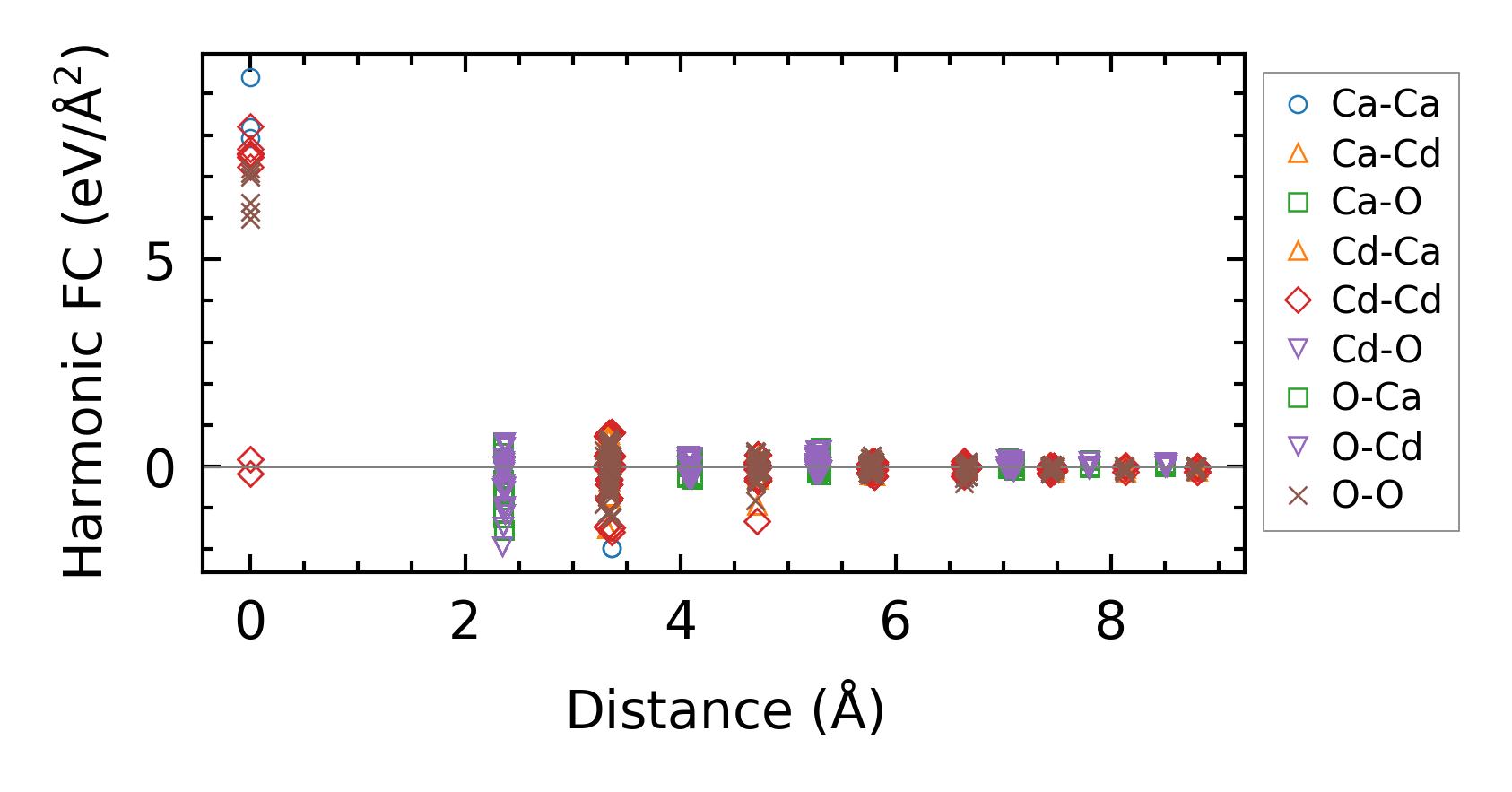

../../_images/fig_fc22711.png — (a) Force constants w.r.t atomic distance

Summary

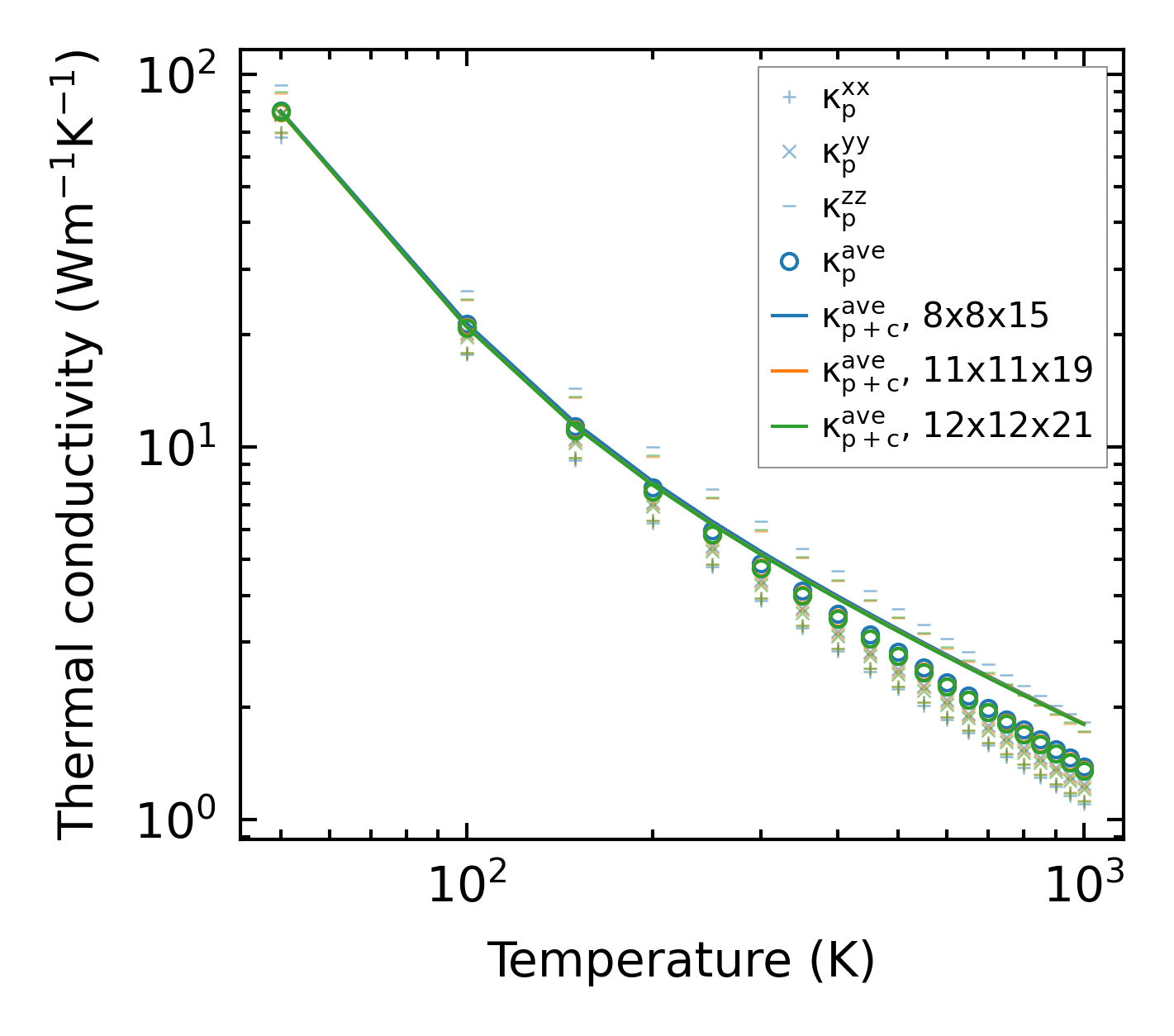

../../_images/fig_kappa2743.png — (a) Temperature-dependent lattice thermal conductivity

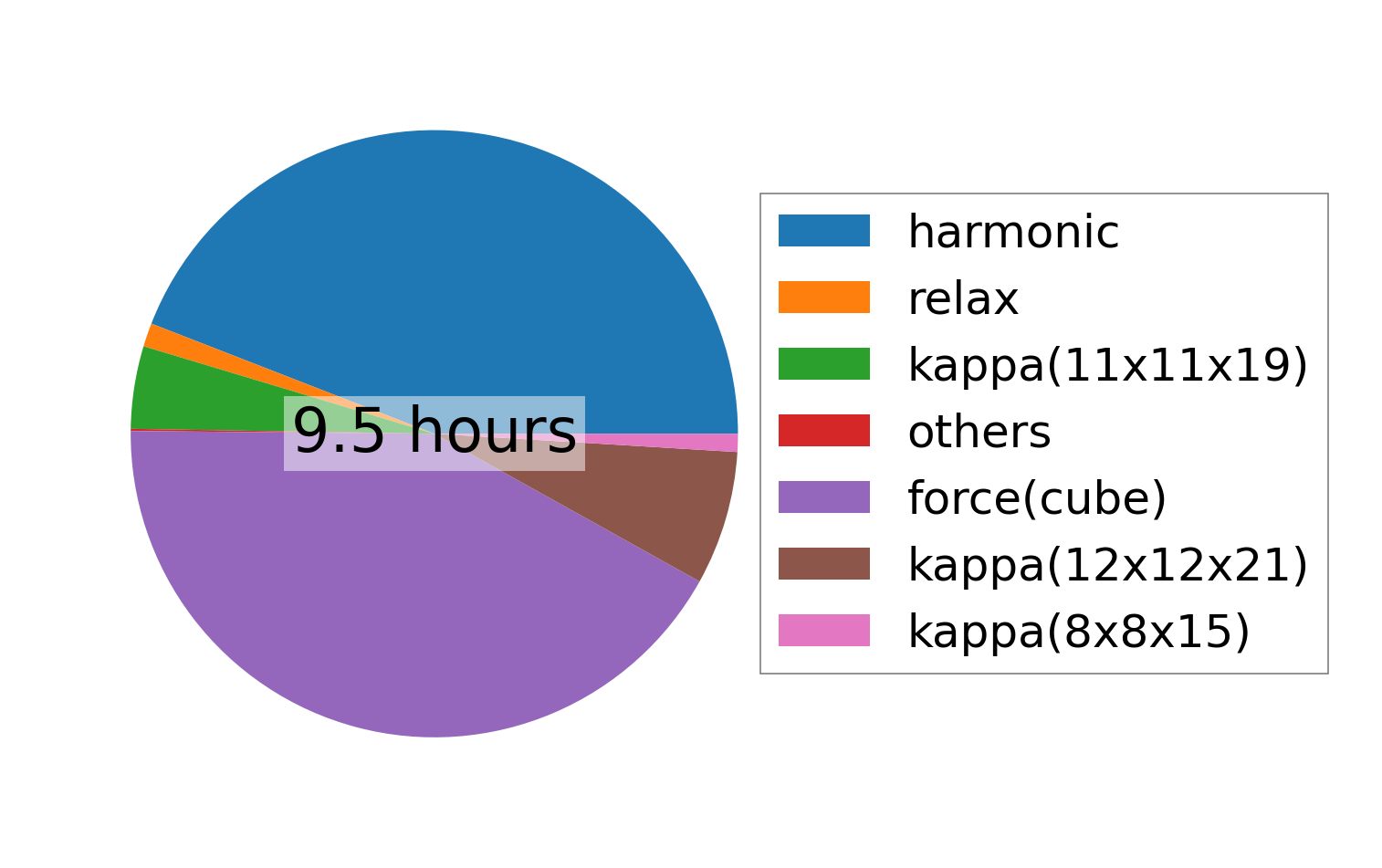

../../_images/fig_times4895.png — (b) Computation time
