mp-760402/TaRhO4/anharm

Space group: I4_1md (109)
Link: Materials Project
Download: mp-760402.tar.gz

Harmonic properties

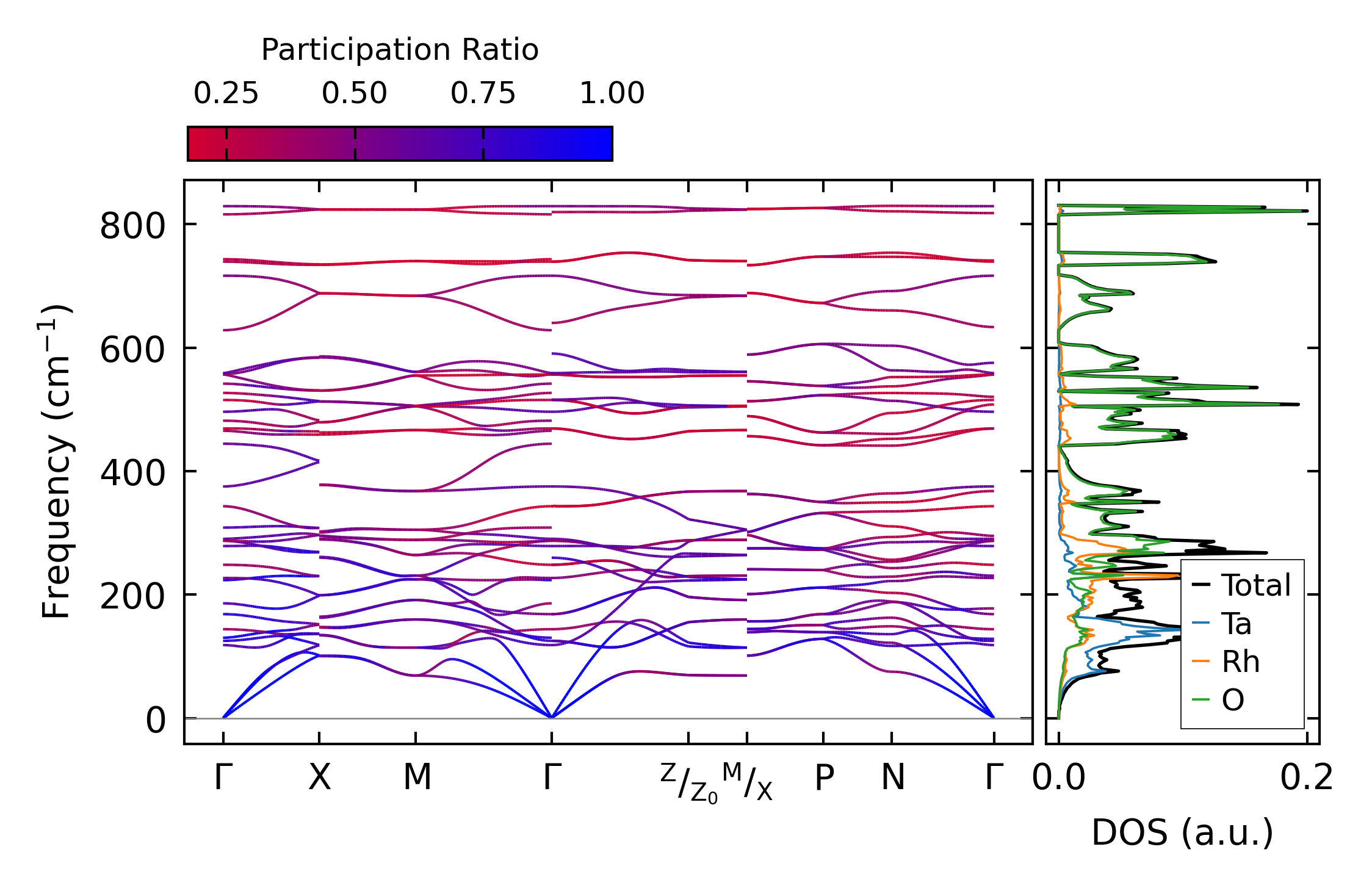

../../_images/fig_bandos_pr2890.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo2890.png — (b) Thermodynamic properties

Grüneisen parameters

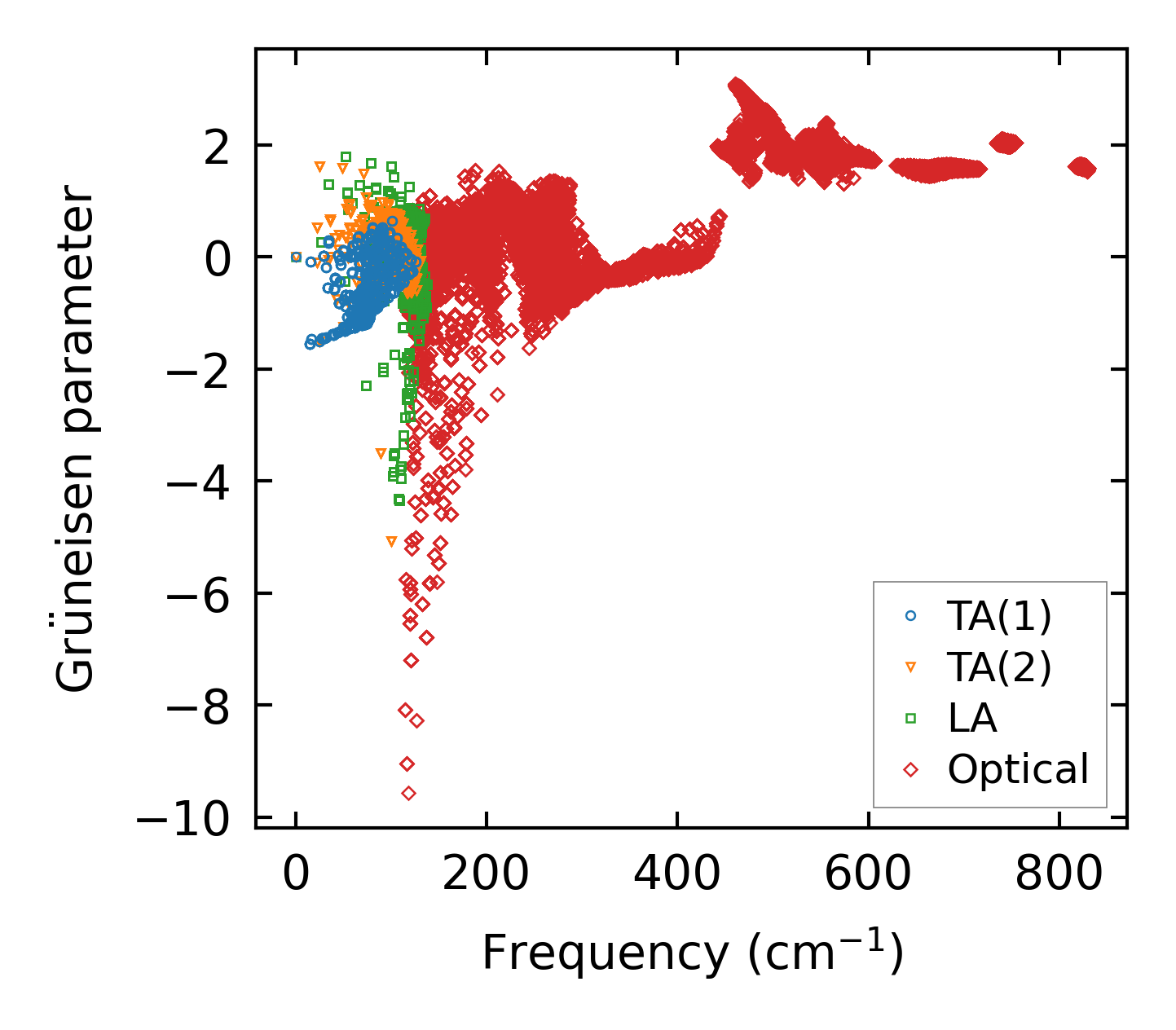

../../_images/fig_gru_all1419.png — (a) Grüneisen parameters

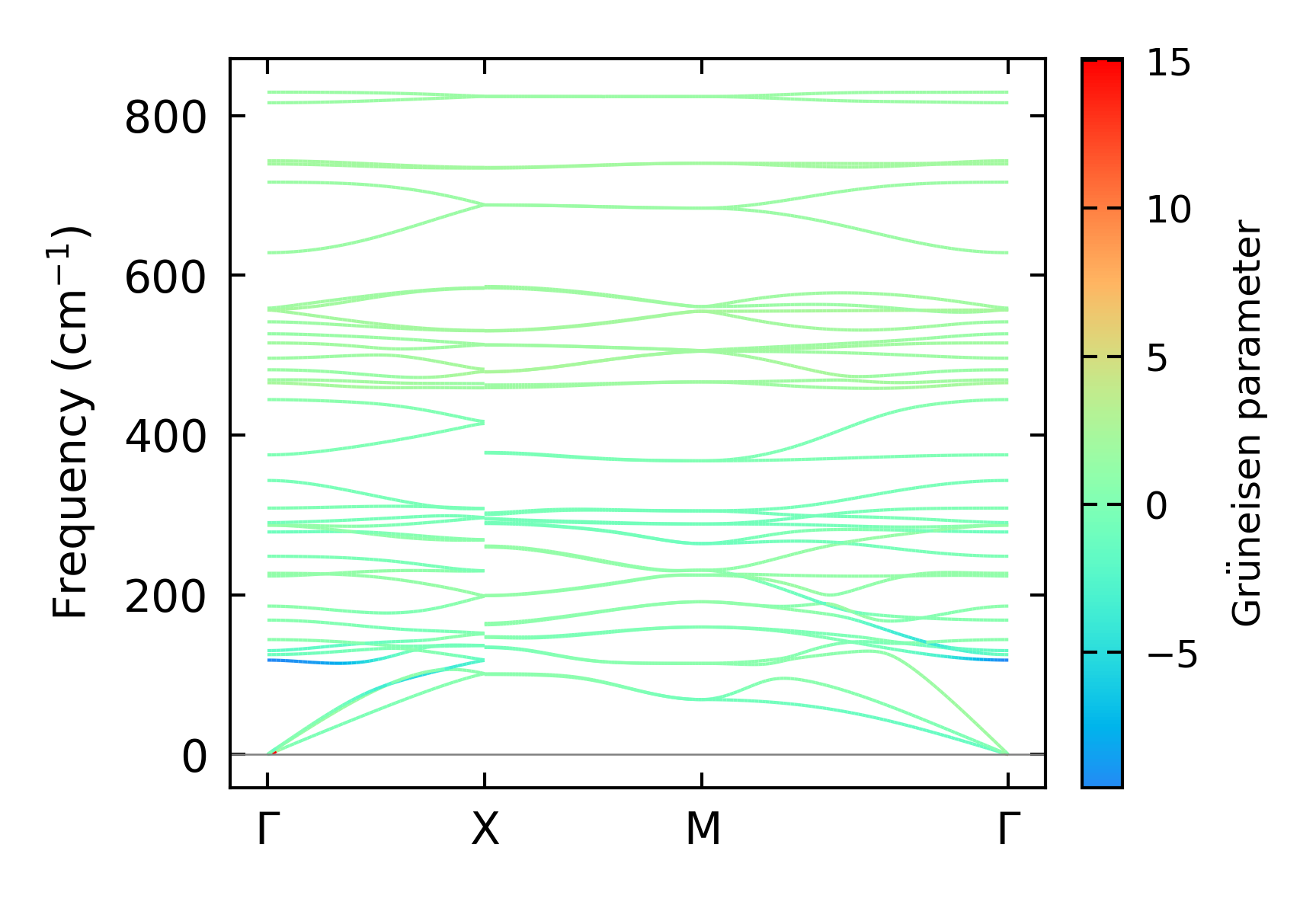

../../_images/fig_gruneisen1419.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x14x14, supercell: 1x1x2

../../_images/fig_kappa2740.png — (a) Temperature-dependent lattice thermal conductivity

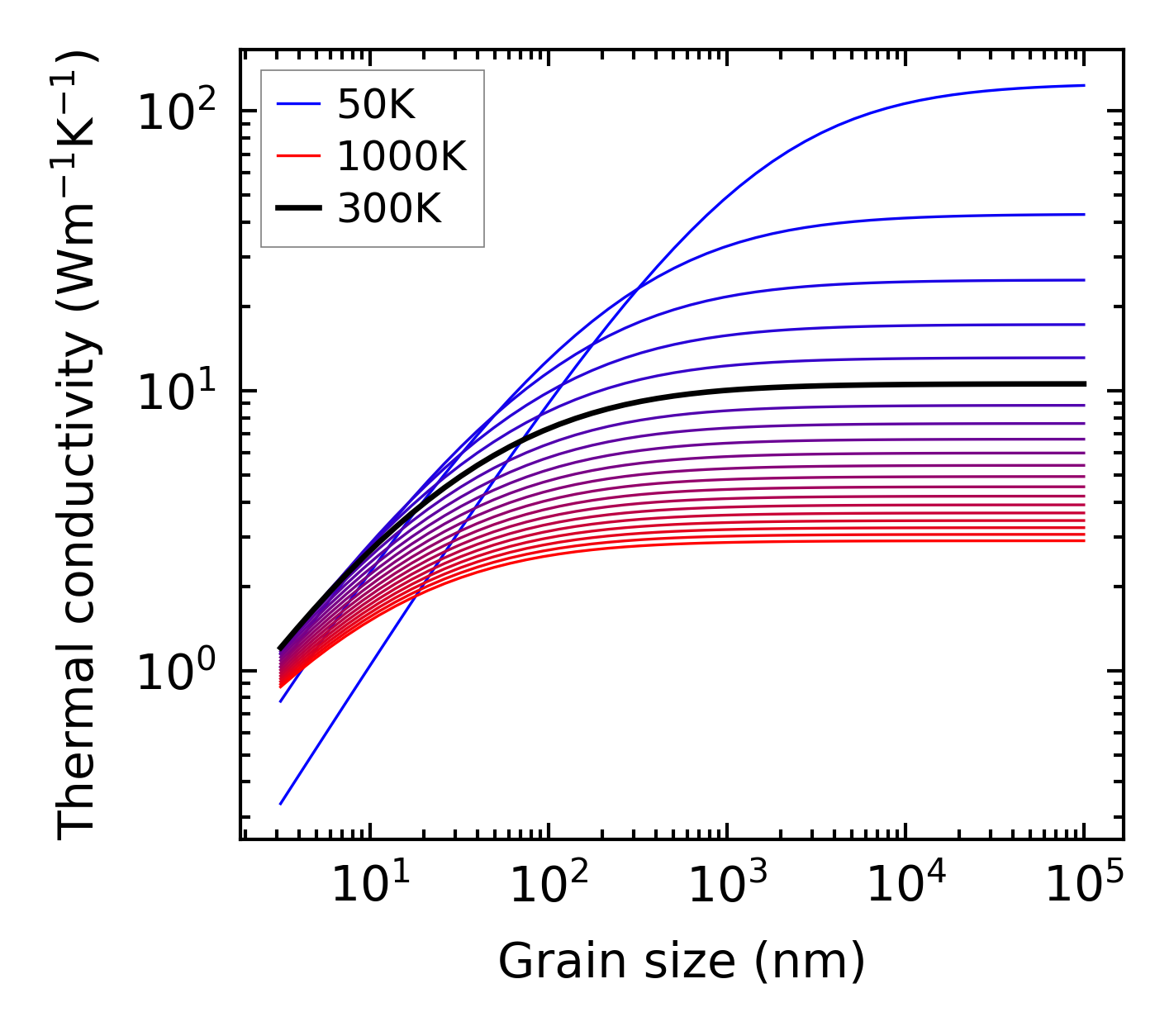

../../_images/fig_kappa_vs_grain_size1435.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

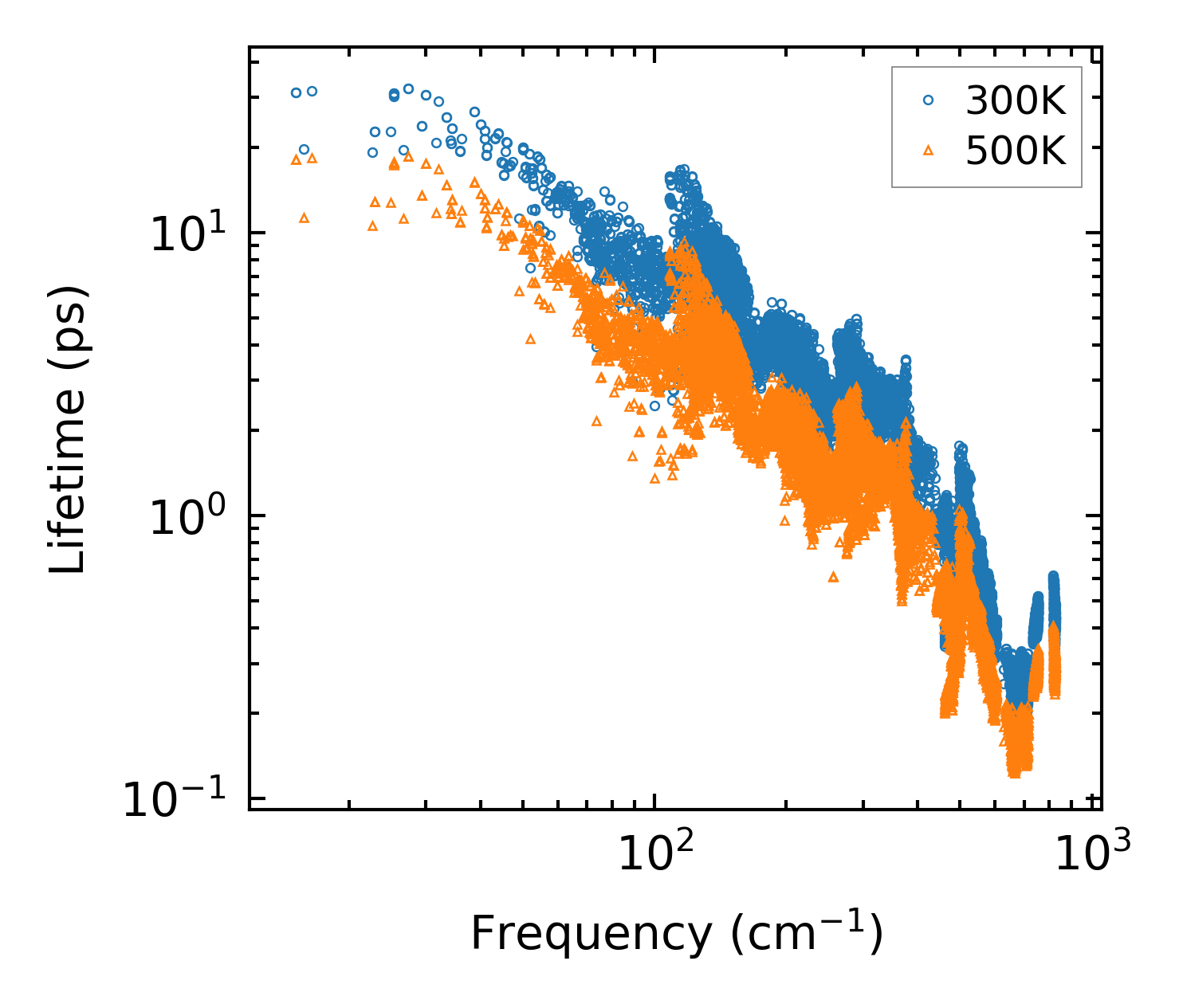

../../_images/fig_lifetime1409.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1408.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

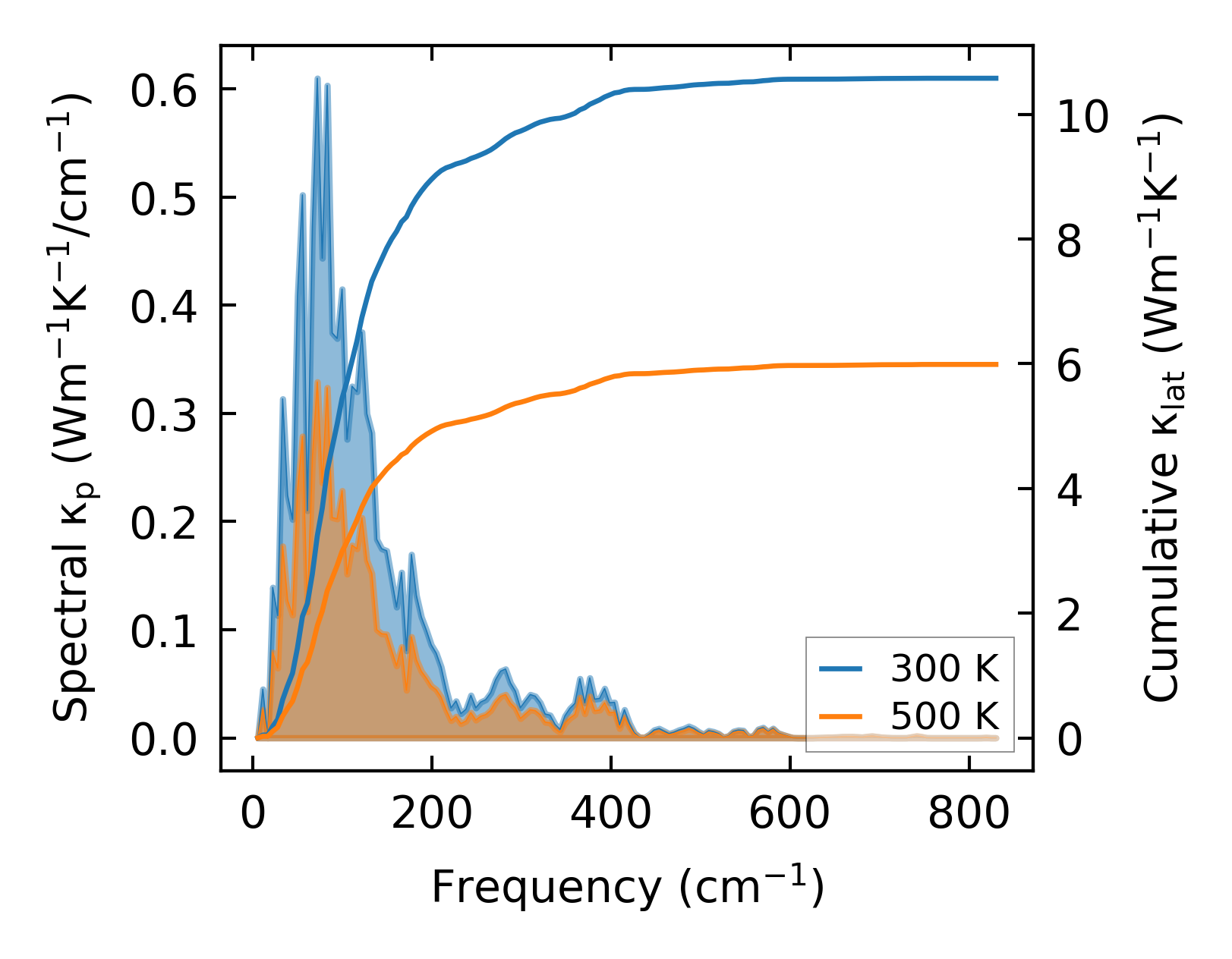

../../_images/fig_cumu_frequency1409.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

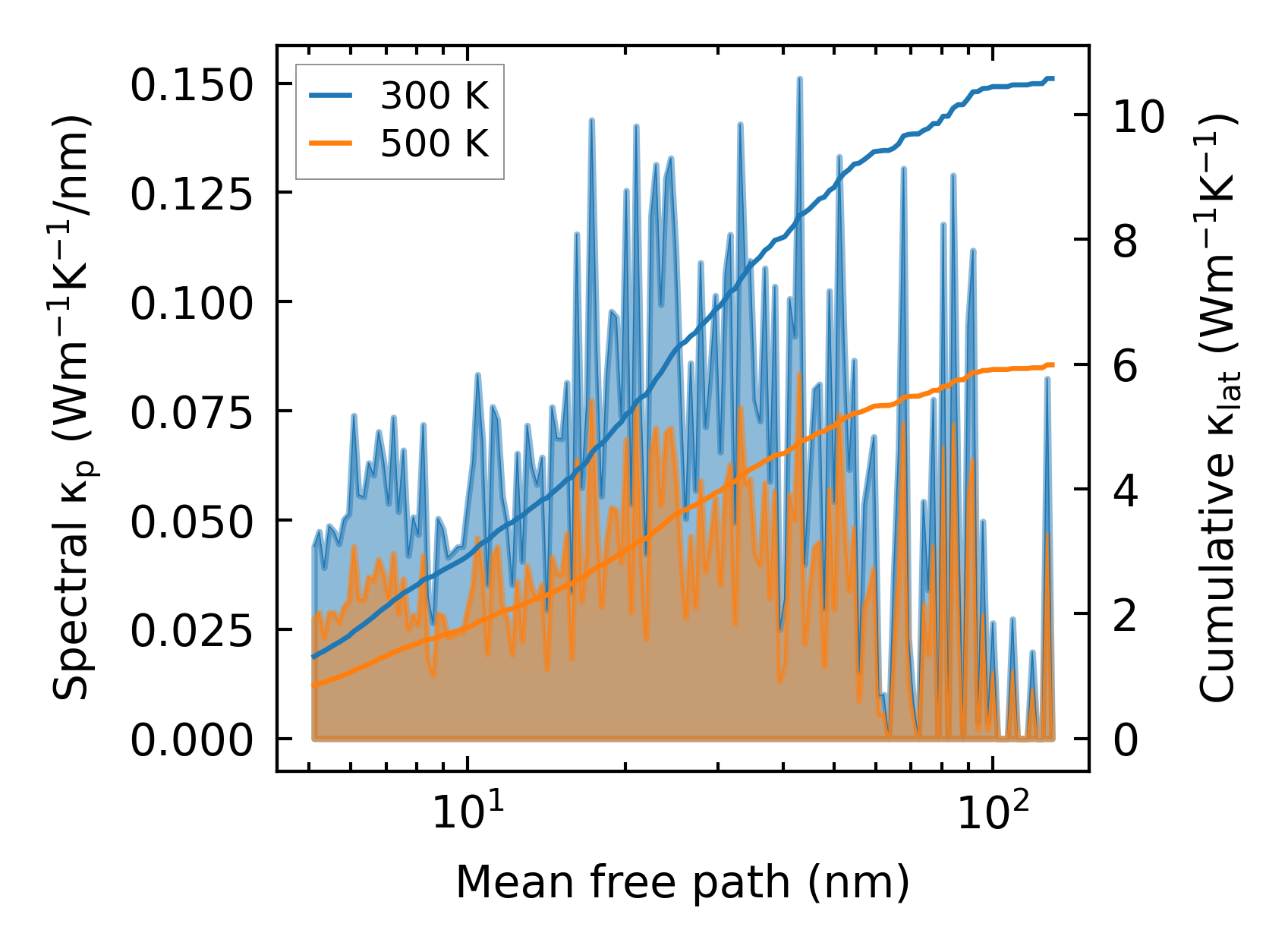

../../_images/fig_cumu_mfp1409.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc22710.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa2741.png — (a) Temperature-dependent lattice thermal conductivity

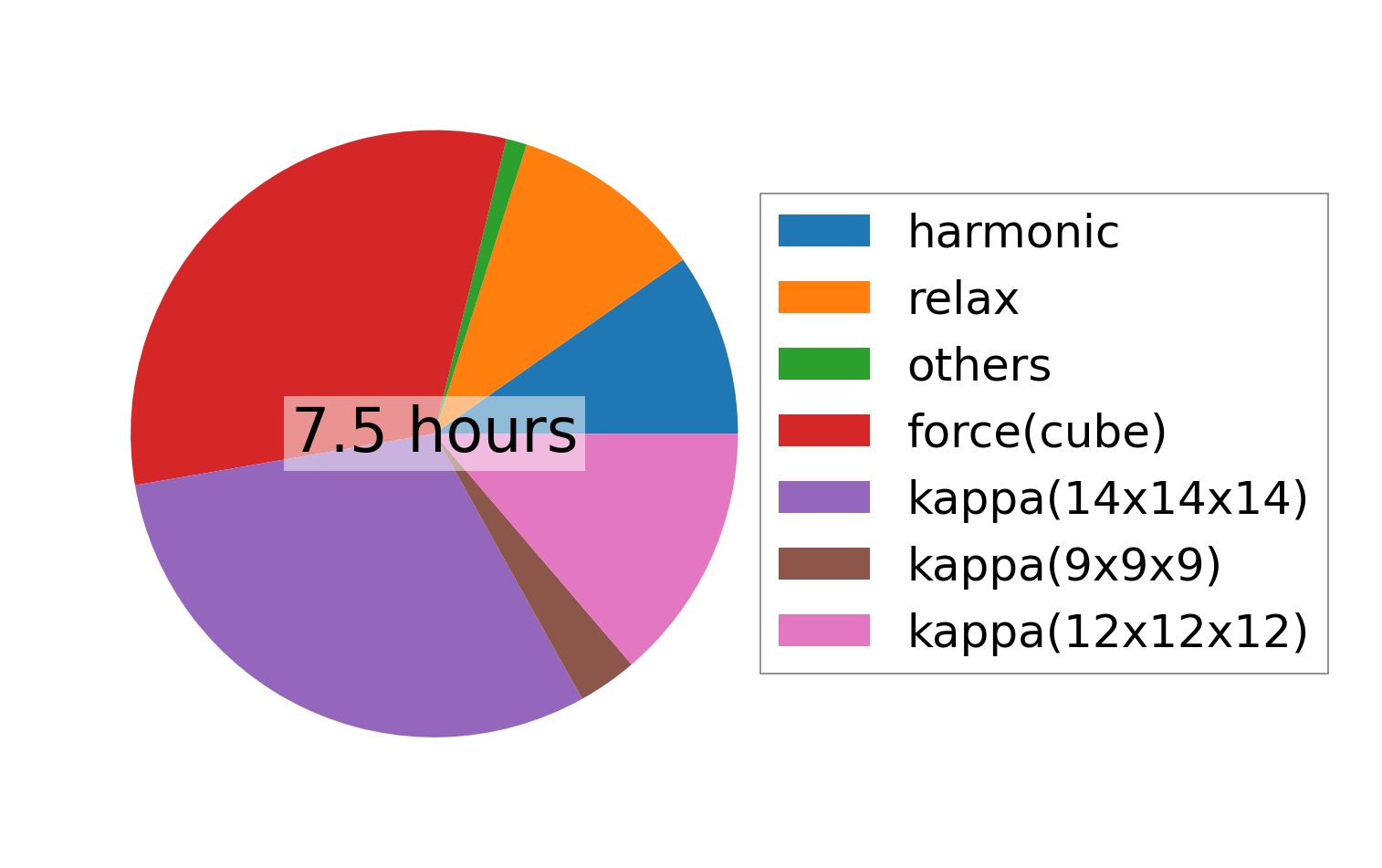

../../_images/fig_times4894.png — (b) Computation time
