mp-760375/Li3VS4/anharm

Space group: P-43m (215)
Link: Materials Project
Download: mp-760375.tar.gz

Harmonic properties

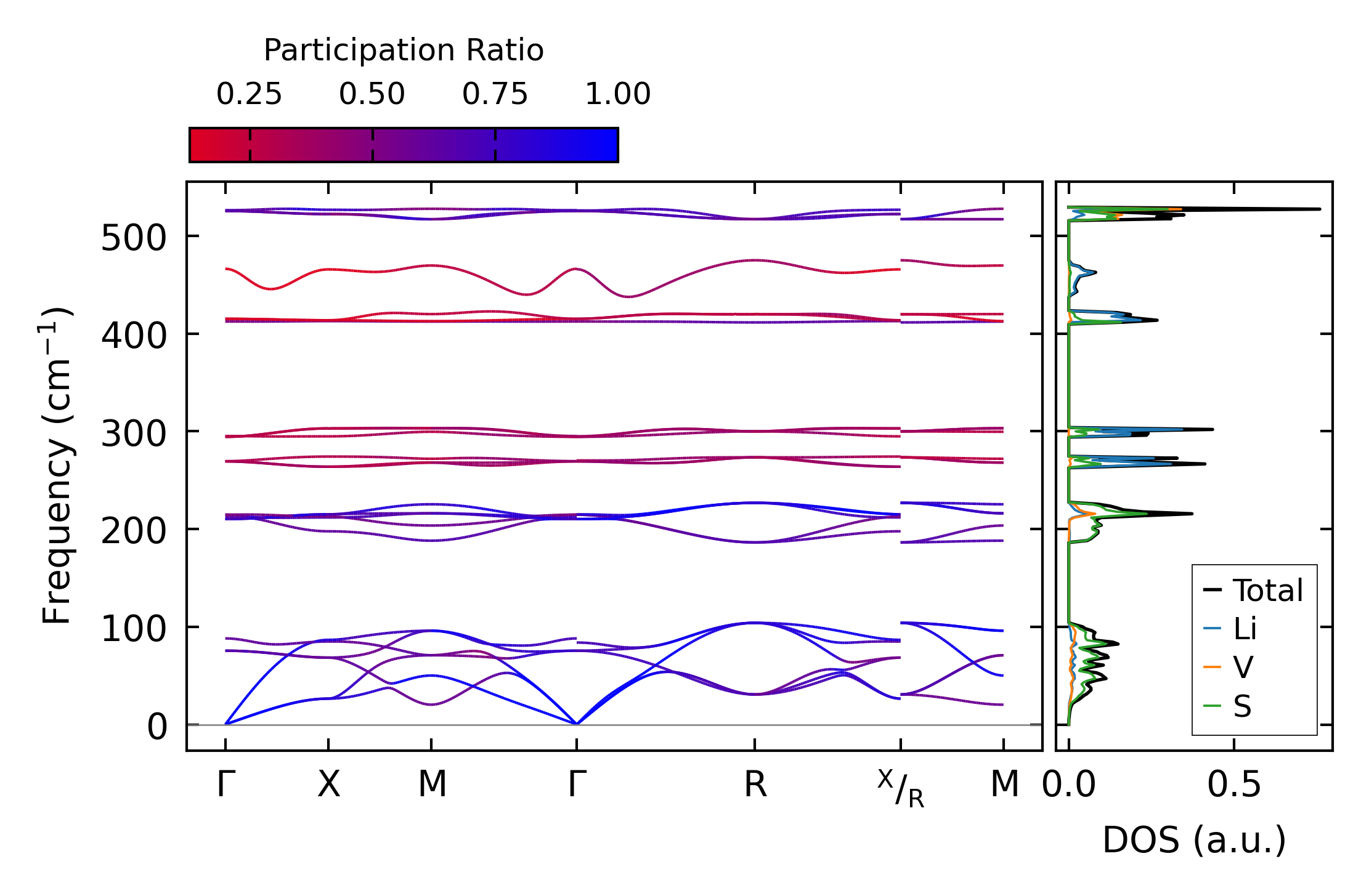

../../_images/fig_bandos_pr2886.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo2886.png — (b) Thermodynamic properties

Grüneisen parameters

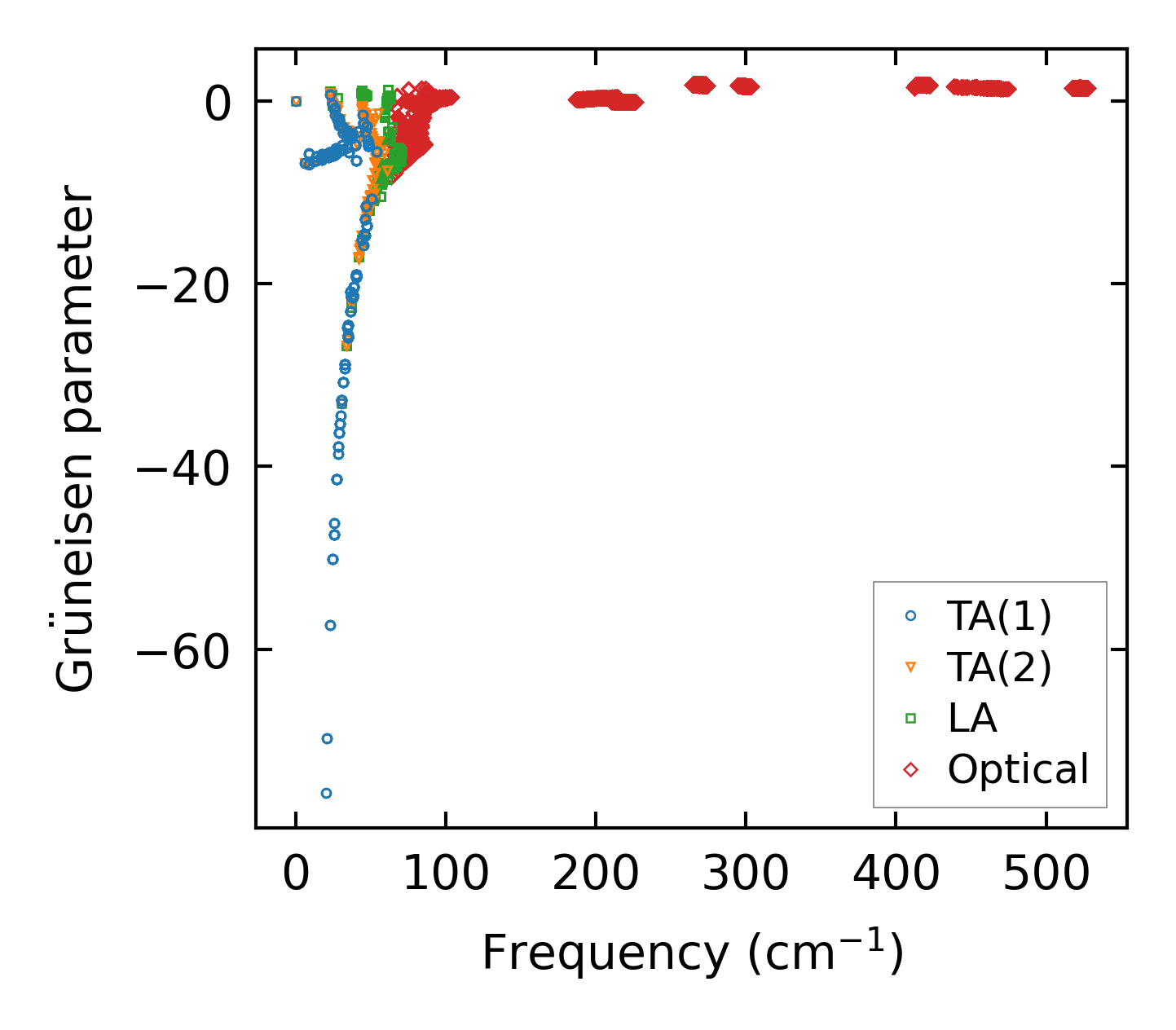

../../_images/fig_gru_all1417.png — (a) Grüneisen parameters

../../_images/fig_gruneisen1417.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 12x12x12, supercell: 2x2x2

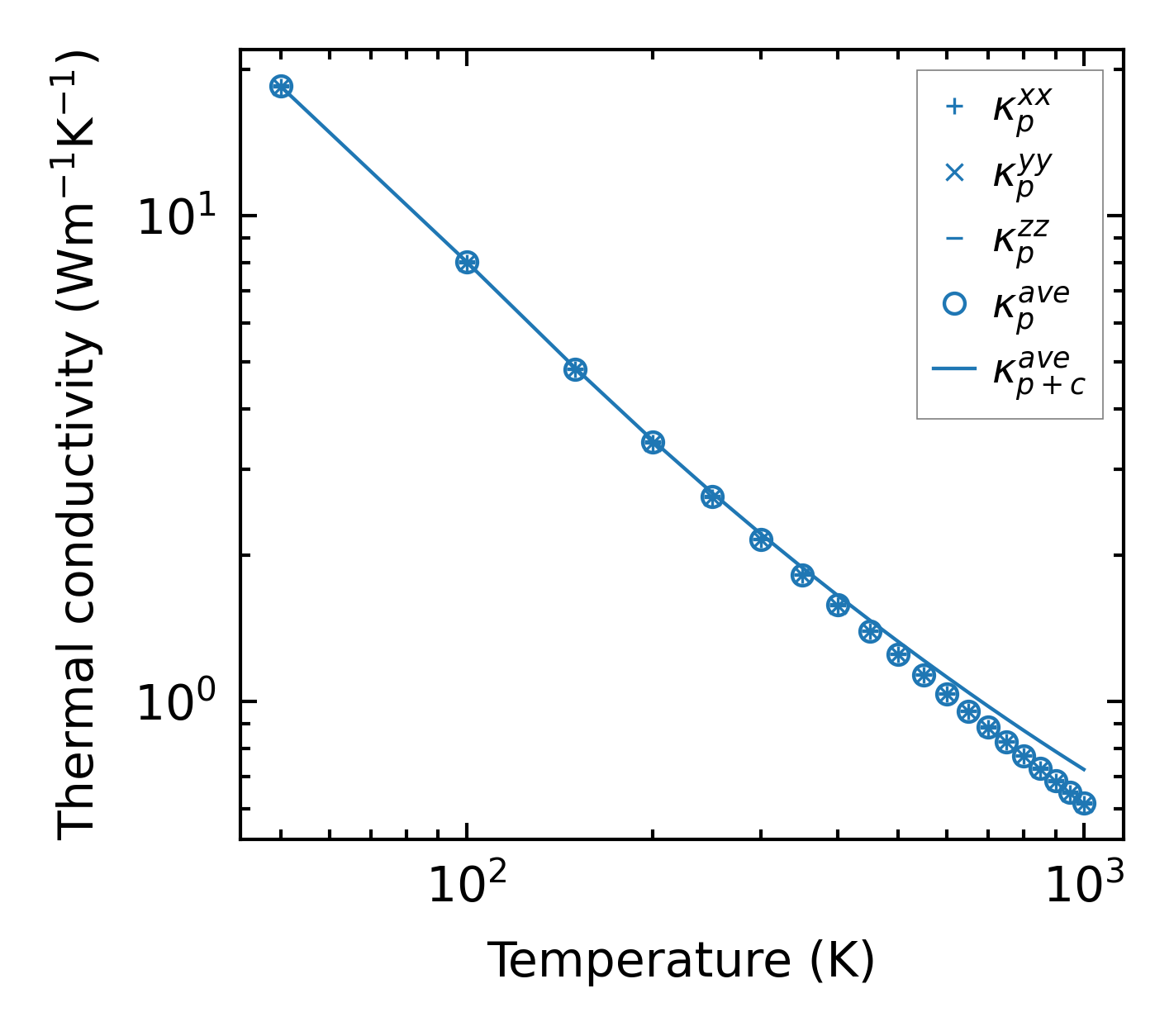

../../_images/fig_kappa2736.png — (a) Temperature-dependent lattice thermal conductivity

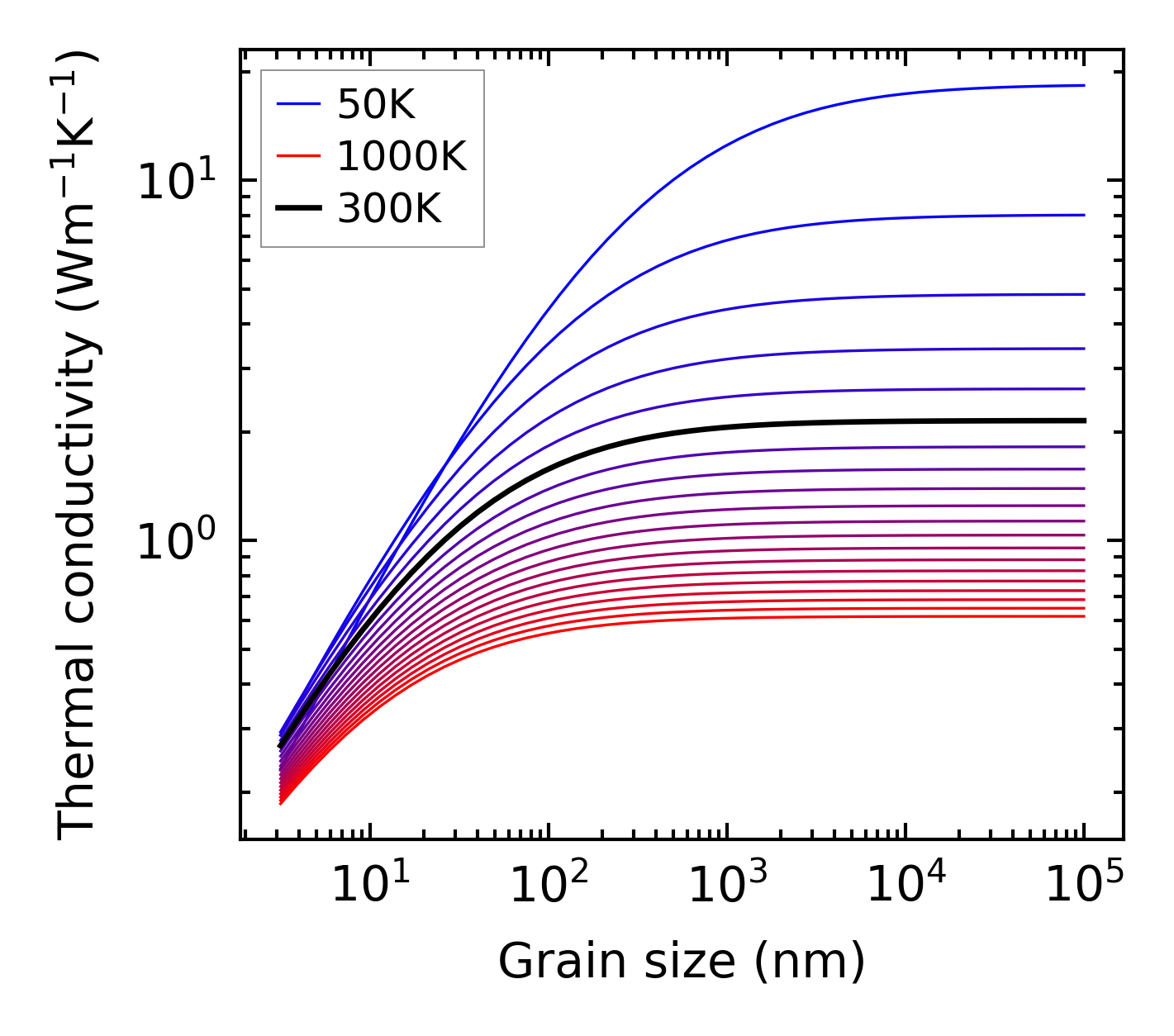

../../_images/fig_kappa_vs_grain_size1433.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime1407.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1406.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

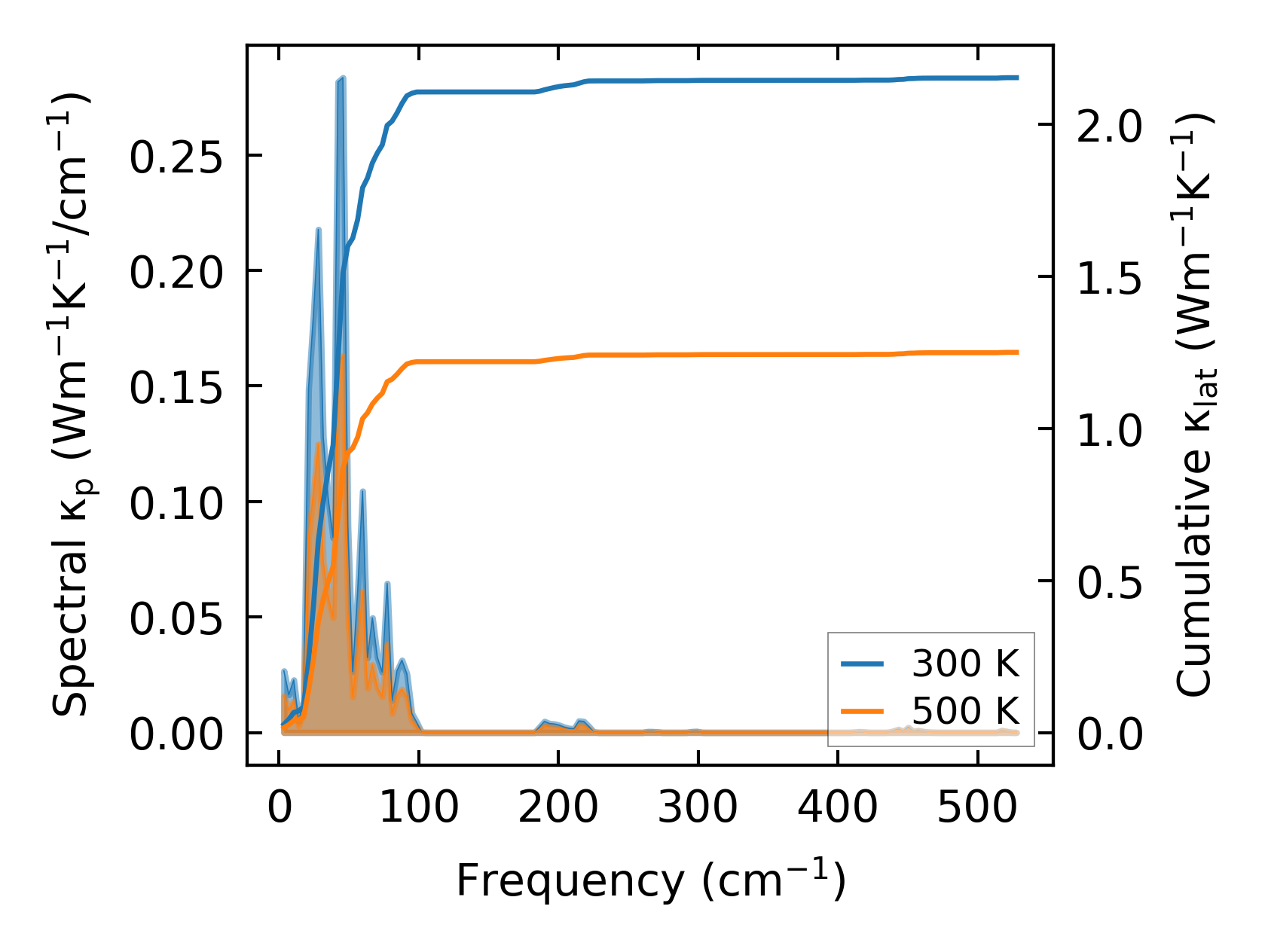

../../_images/fig_cumu_frequency1407.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

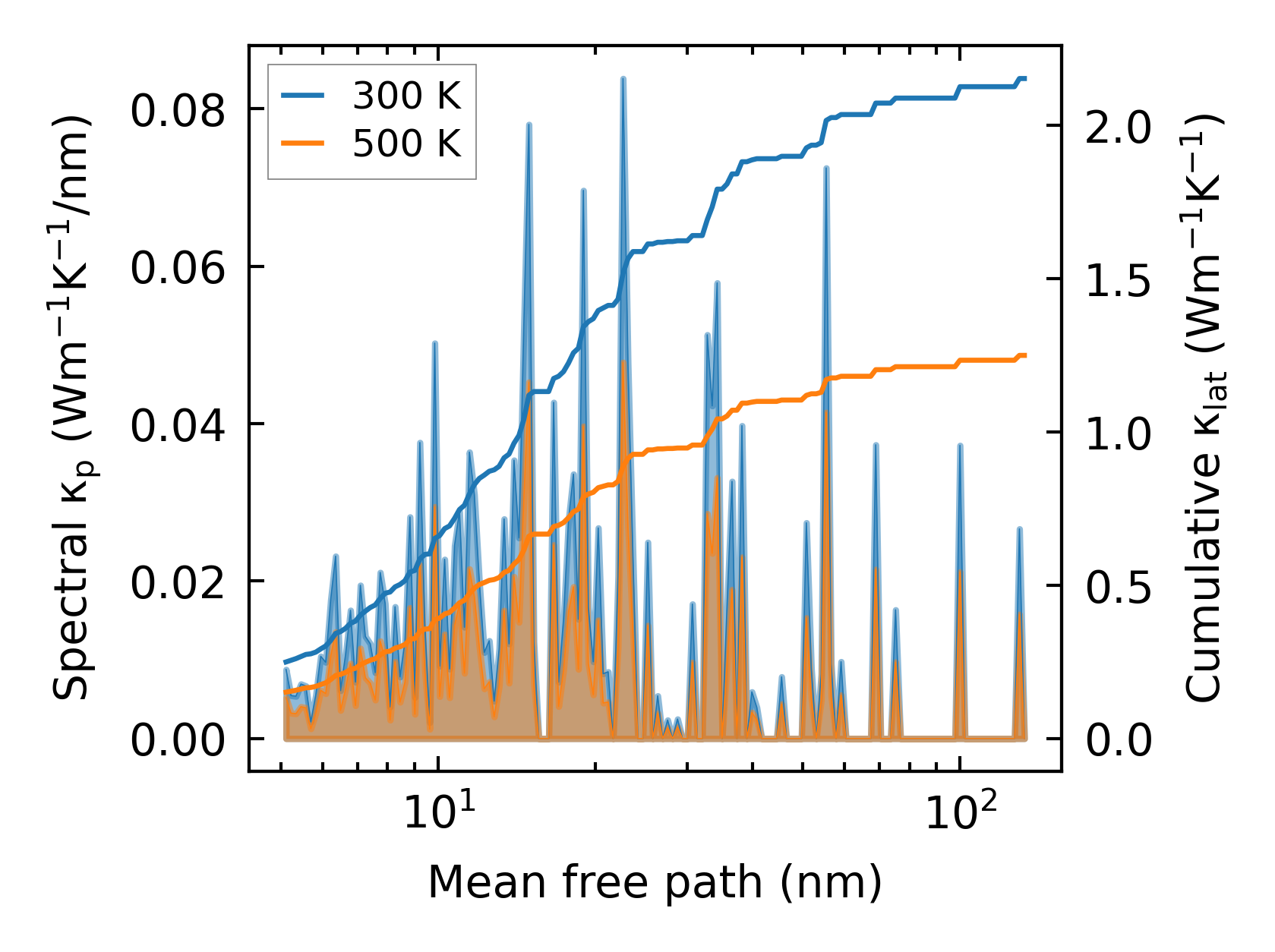

../../_images/fig_cumu_mfp1407.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc3179.png — (a) Force constants w.r.t atomic distance

Summary

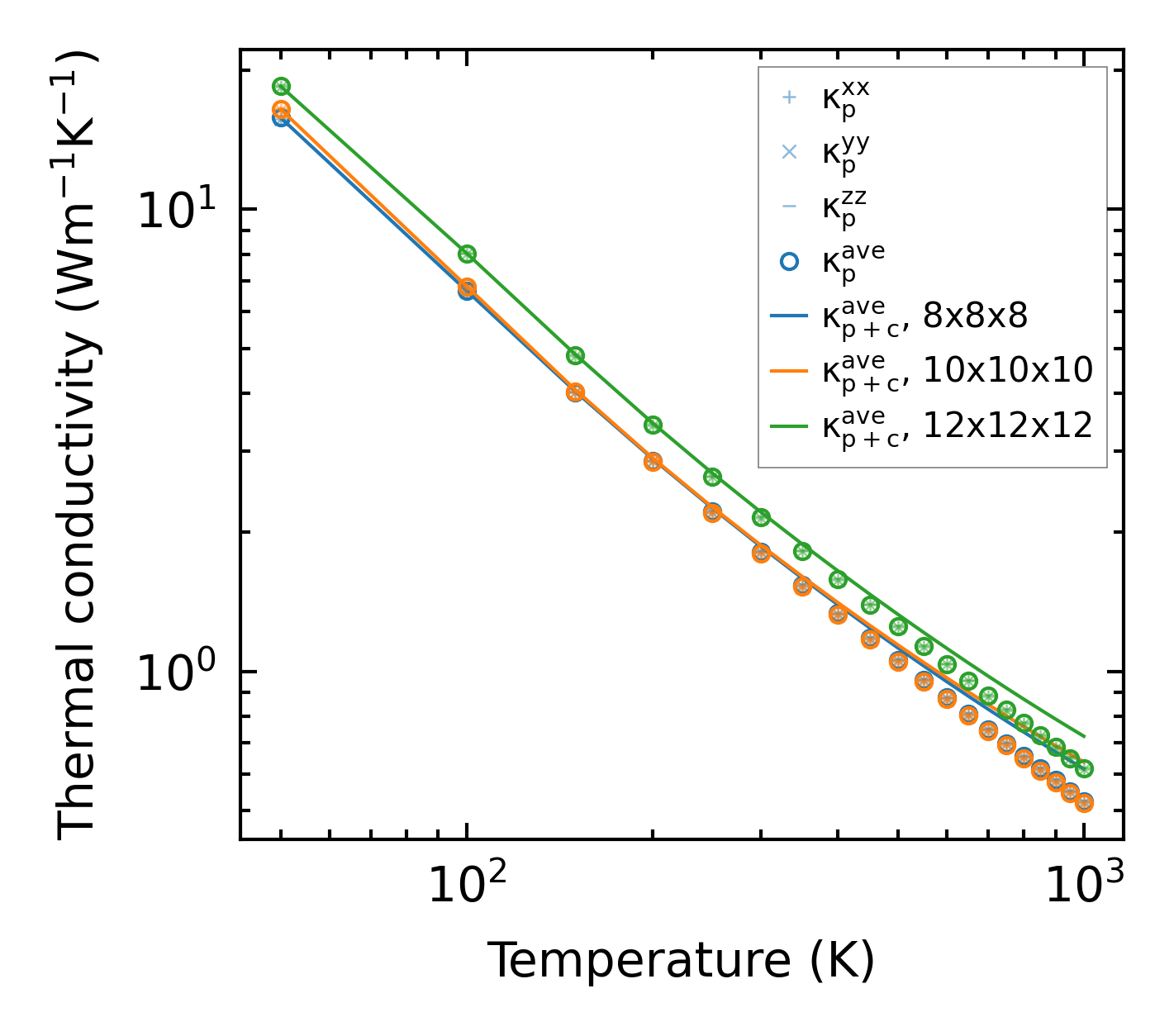

../../_images/fig_kappa2737.png — (a) Temperature-dependent lattice thermal conductivity

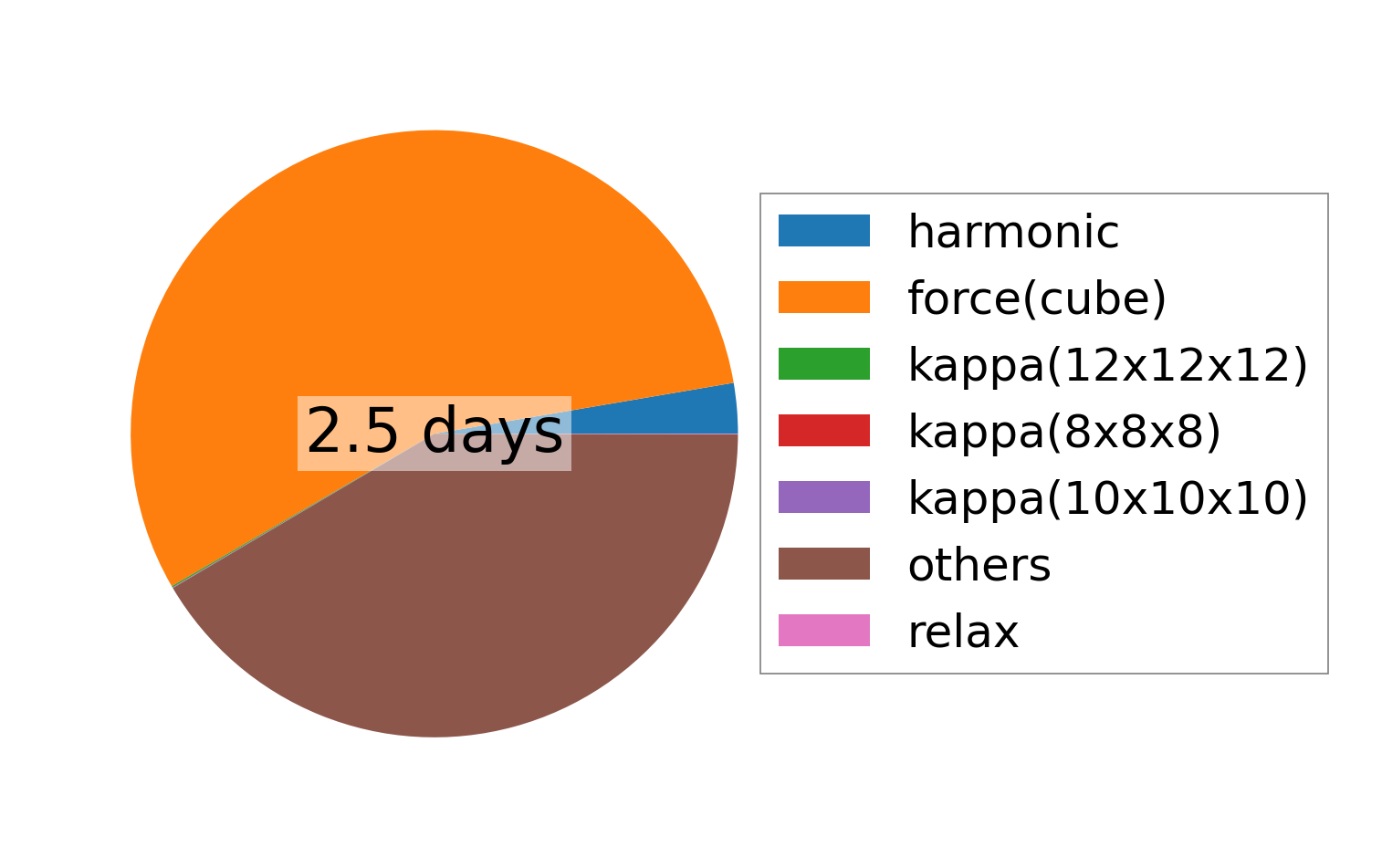

../../_images/fig_times4888.png — (b) Computation time
