mp-696528/KPH3NO3/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-696528.tar.gz

Harmonic properties

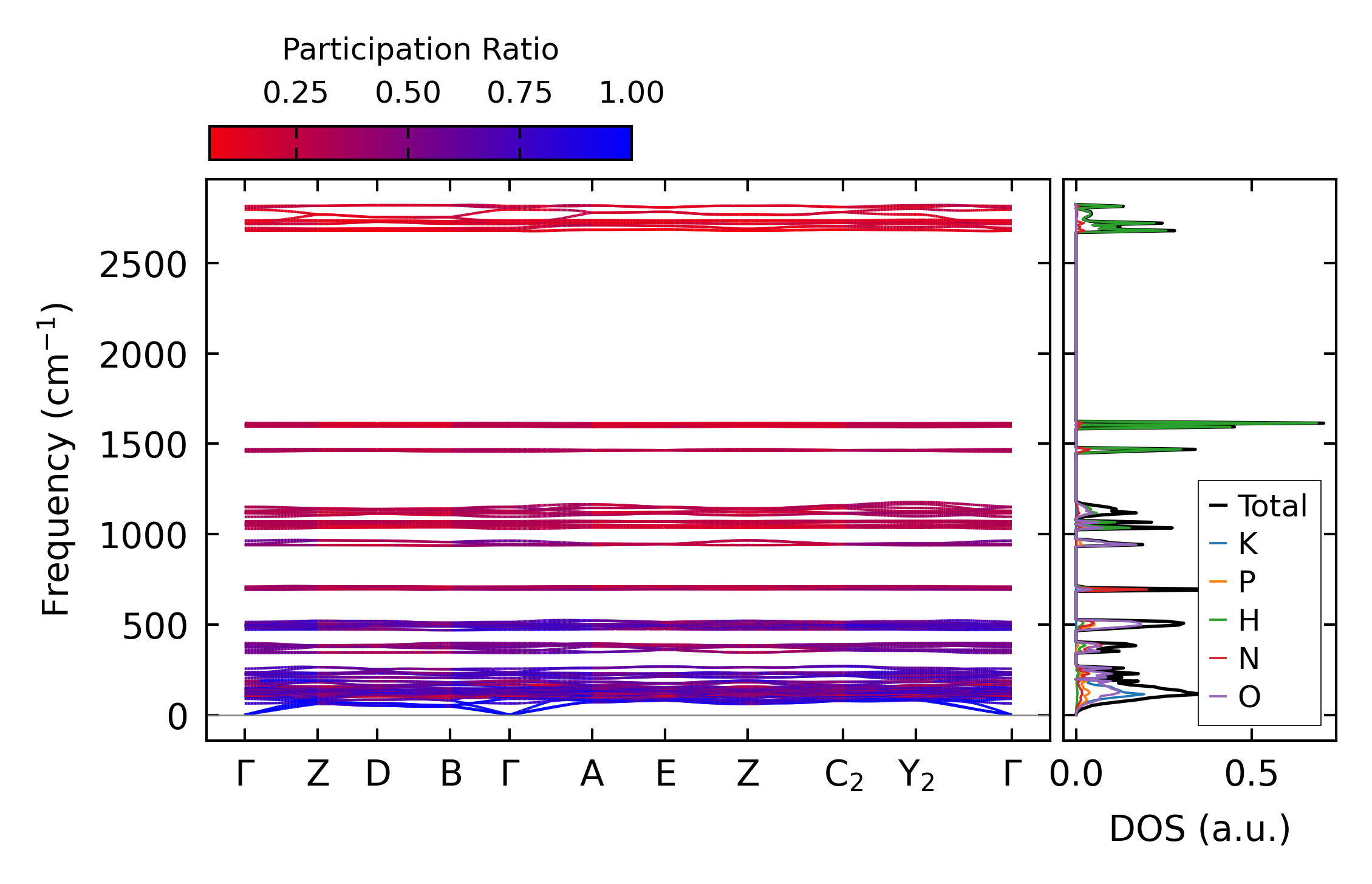

../../_images/fig_bandos_pr4896.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo4896.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all2092.png — (a) Grüneisen parameters

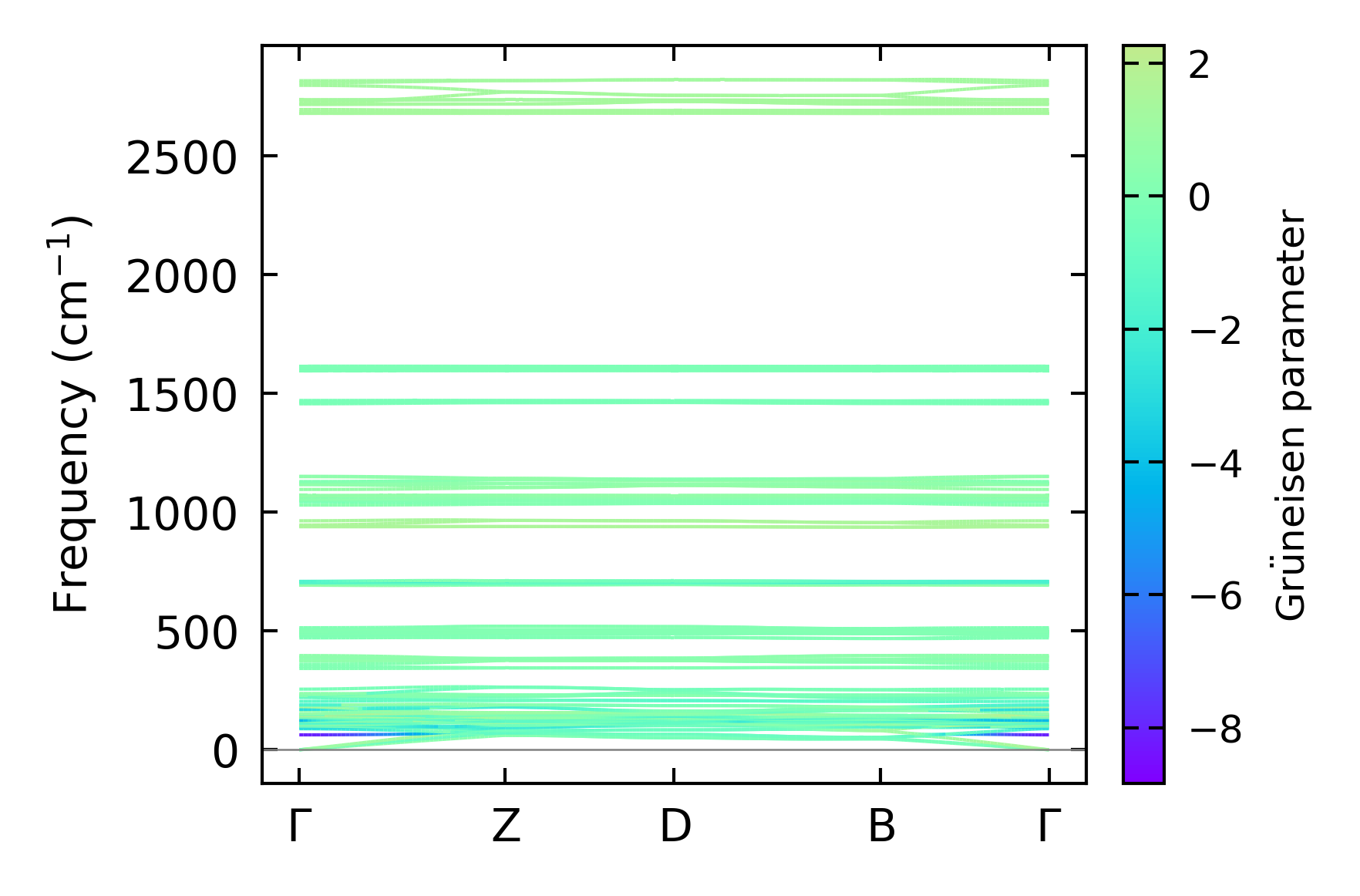

../../_images/fig_gruneisen2092.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x10x6, supercell: 2x2x1

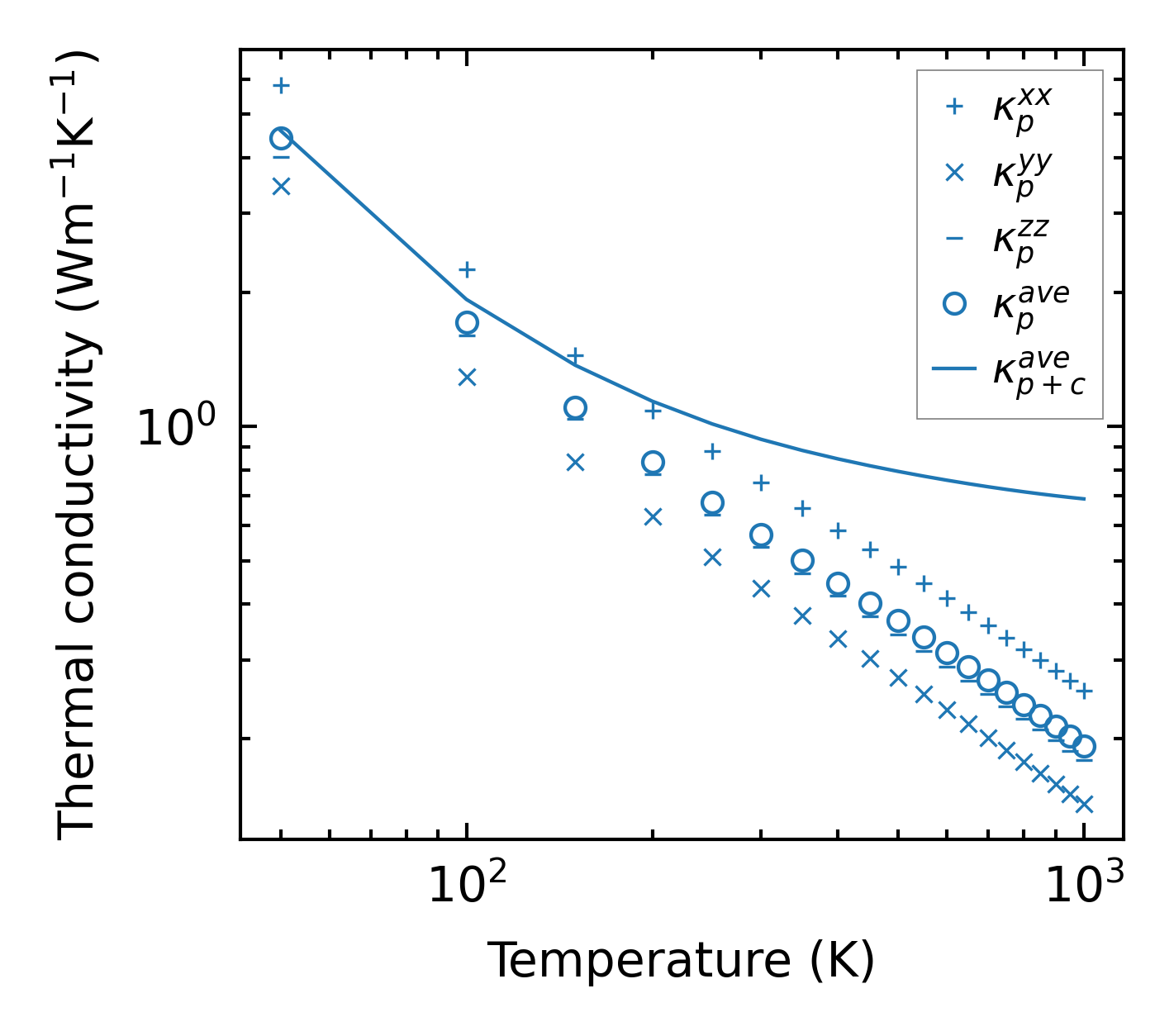

../../_images/fig_kappa4012.png — (a) Temperature-dependent lattice thermal conductivity

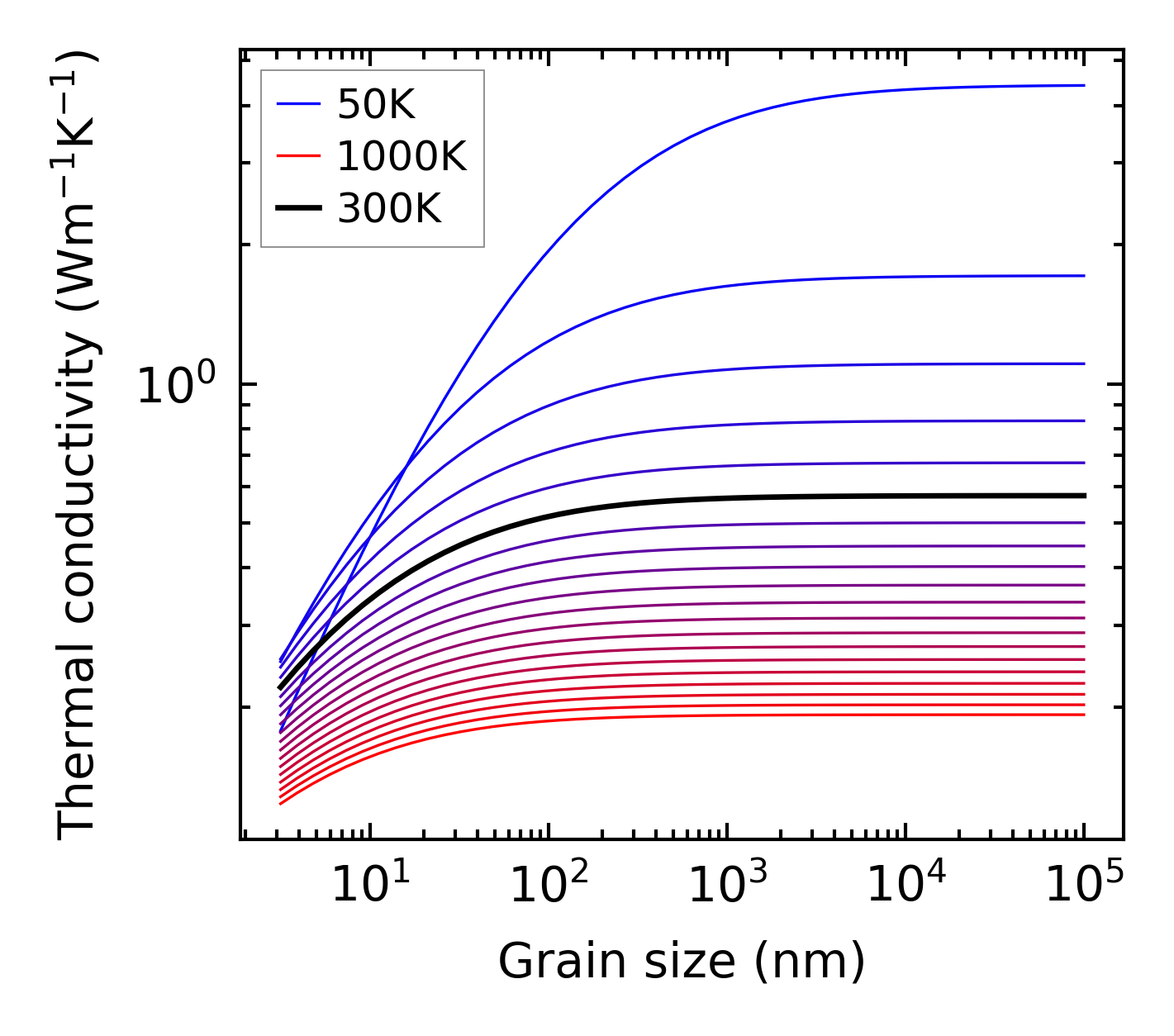

../../_images/fig_kappa_vs_grain_size2123.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime2079.png — (a) Phonon lifetime due to phonon-phonon scattering

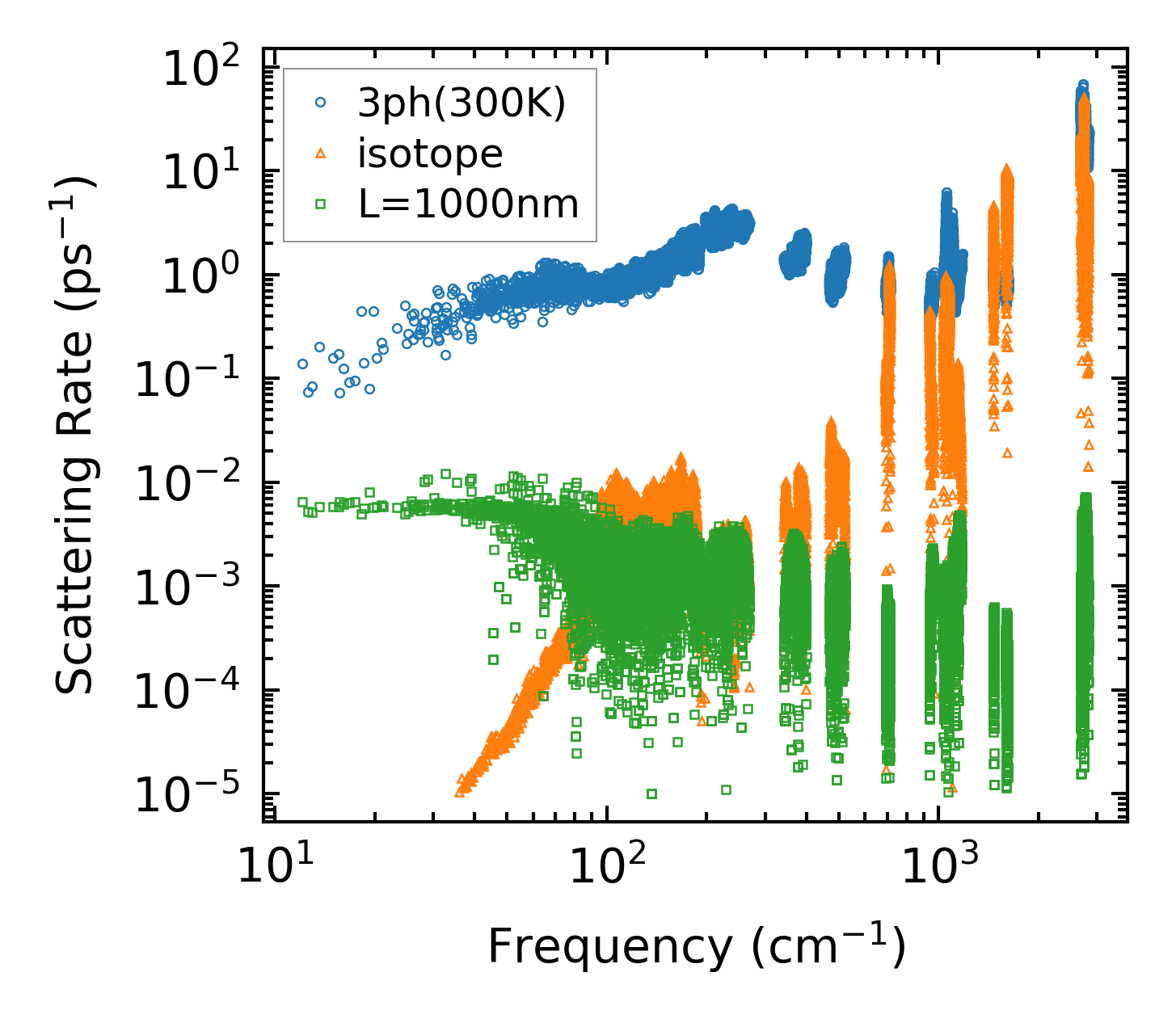

../../_images/fig_scat_rates2078.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency2079.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

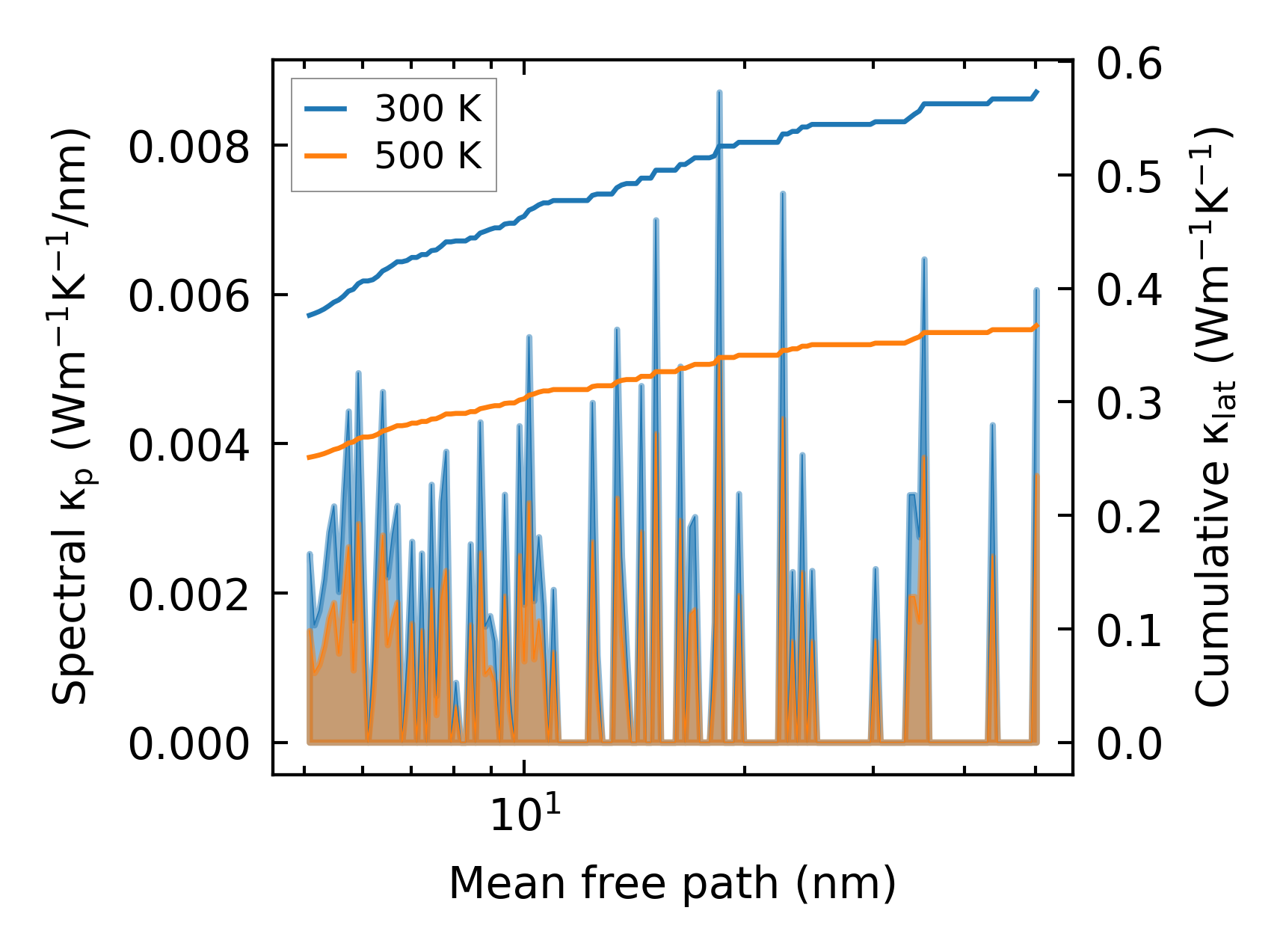

../../_images/fig_cumu_mfp2079.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

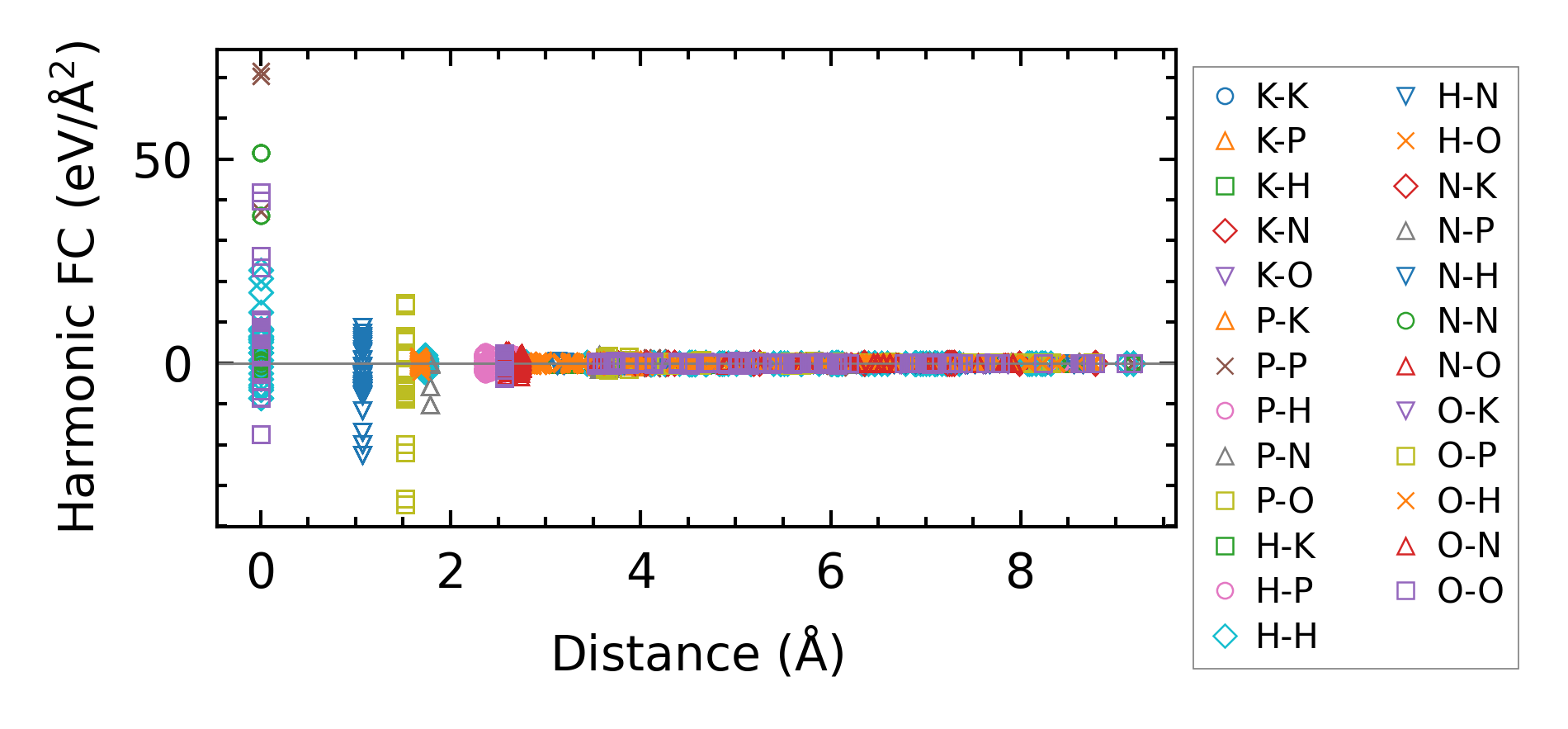

../../_images/fig_fc24705.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa4013.png — (a) Temperature-dependent lattice thermal conductivity

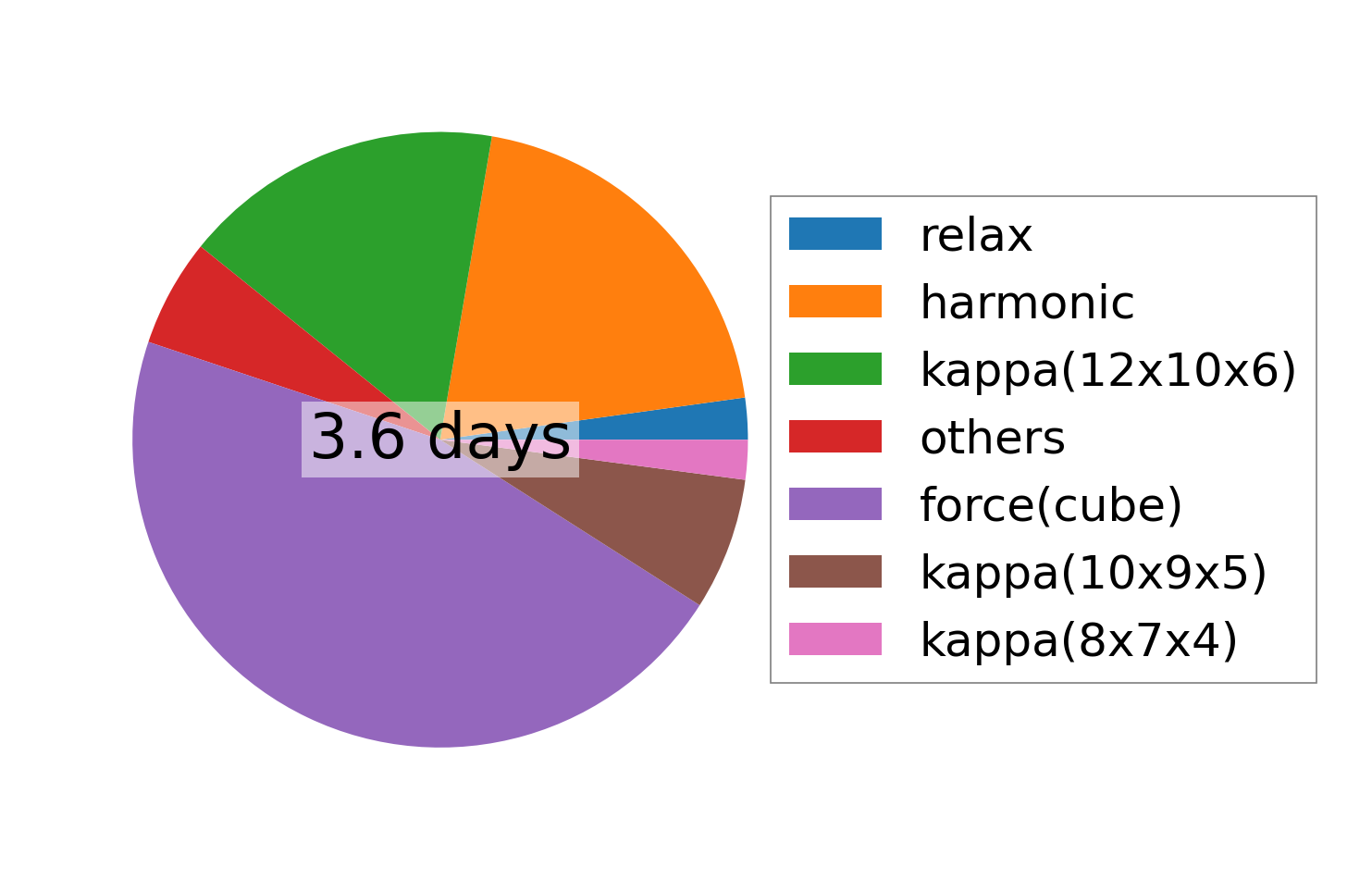

../../_images/fig_times8700.png — (b) Computation time
