mp-31287/Tl3PdBr5/anharm

Space group: Pbca (61)
Link: Materials Project
Download: mp-31287.tar.gz

Harmonic properties

../../_images/fig_bandos_pr10739.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10739.png — (b) Thermodynamic properties

Grüneisen parameters

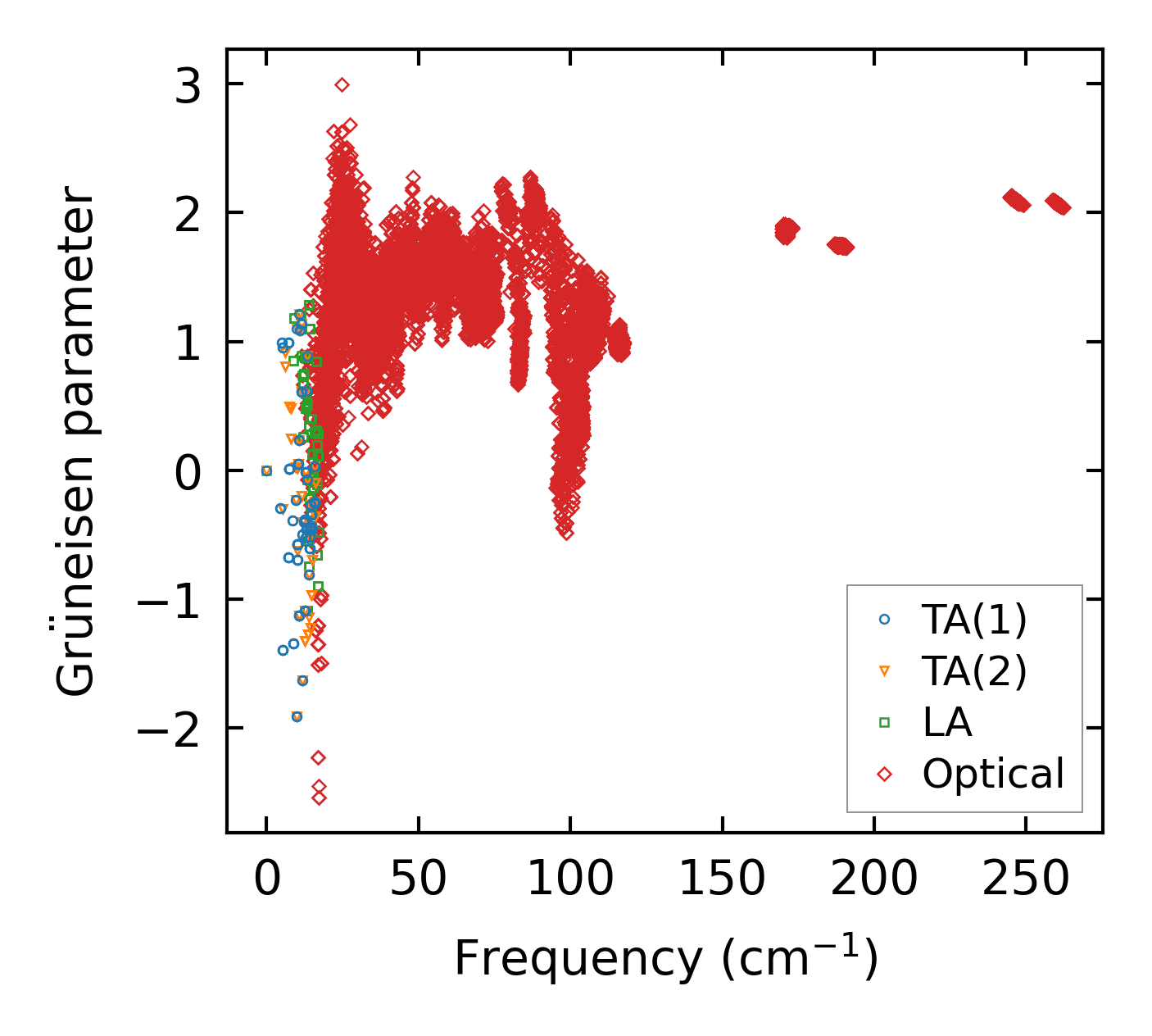

../../_images/fig_gru_all4370.png — (a) Grüneisen parameters

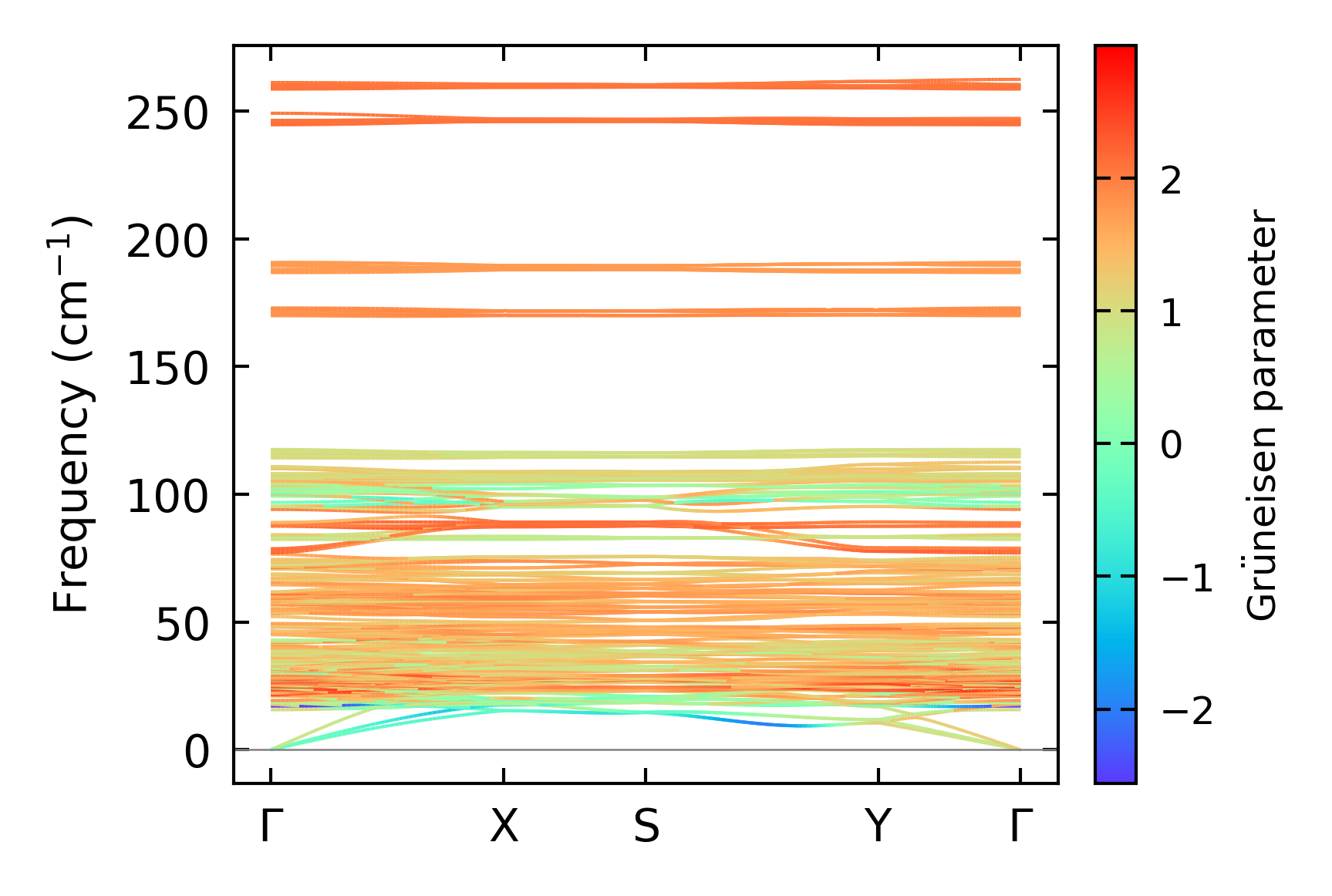

../../_images/fig_gruneisen4370.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x4x4, supercell: 2x1x1

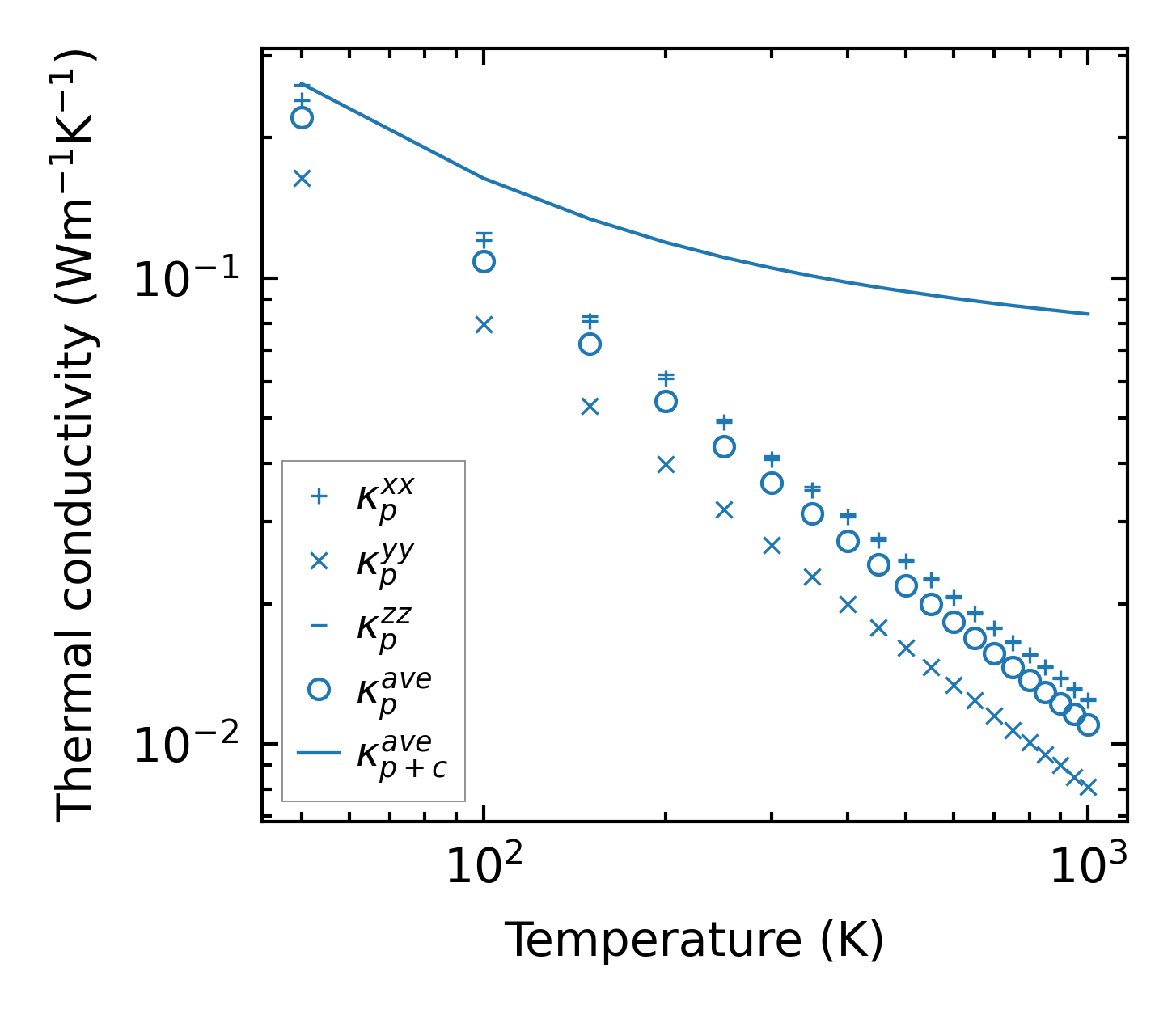

../../_images/fig_kappa8249.png — (a) Temperature-dependent lattice thermal conductivity

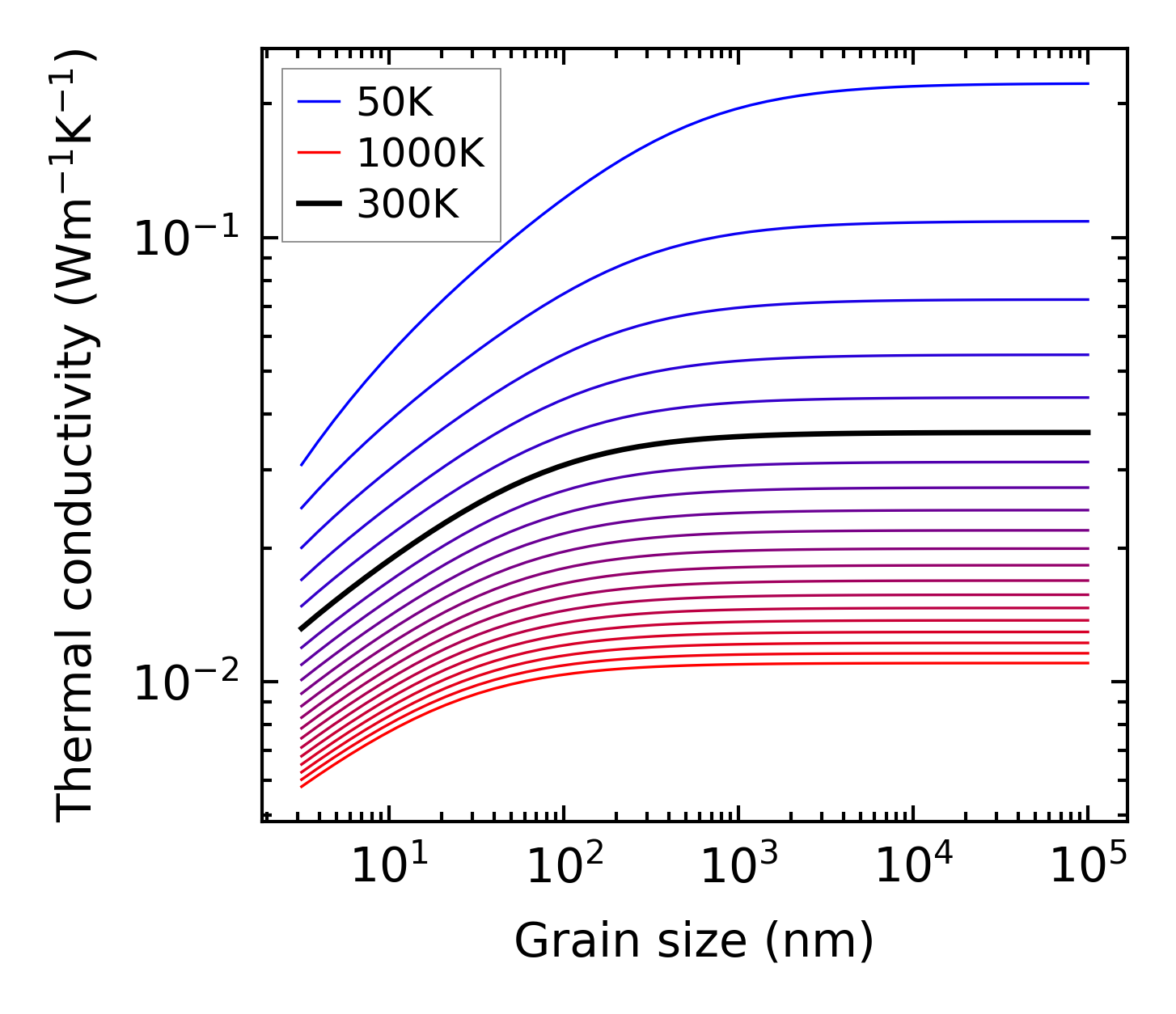

../../_images/fig_kappa_vs_grain_size4422.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime4327.png — (a) Phonon lifetime due to phonon-phonon scattering

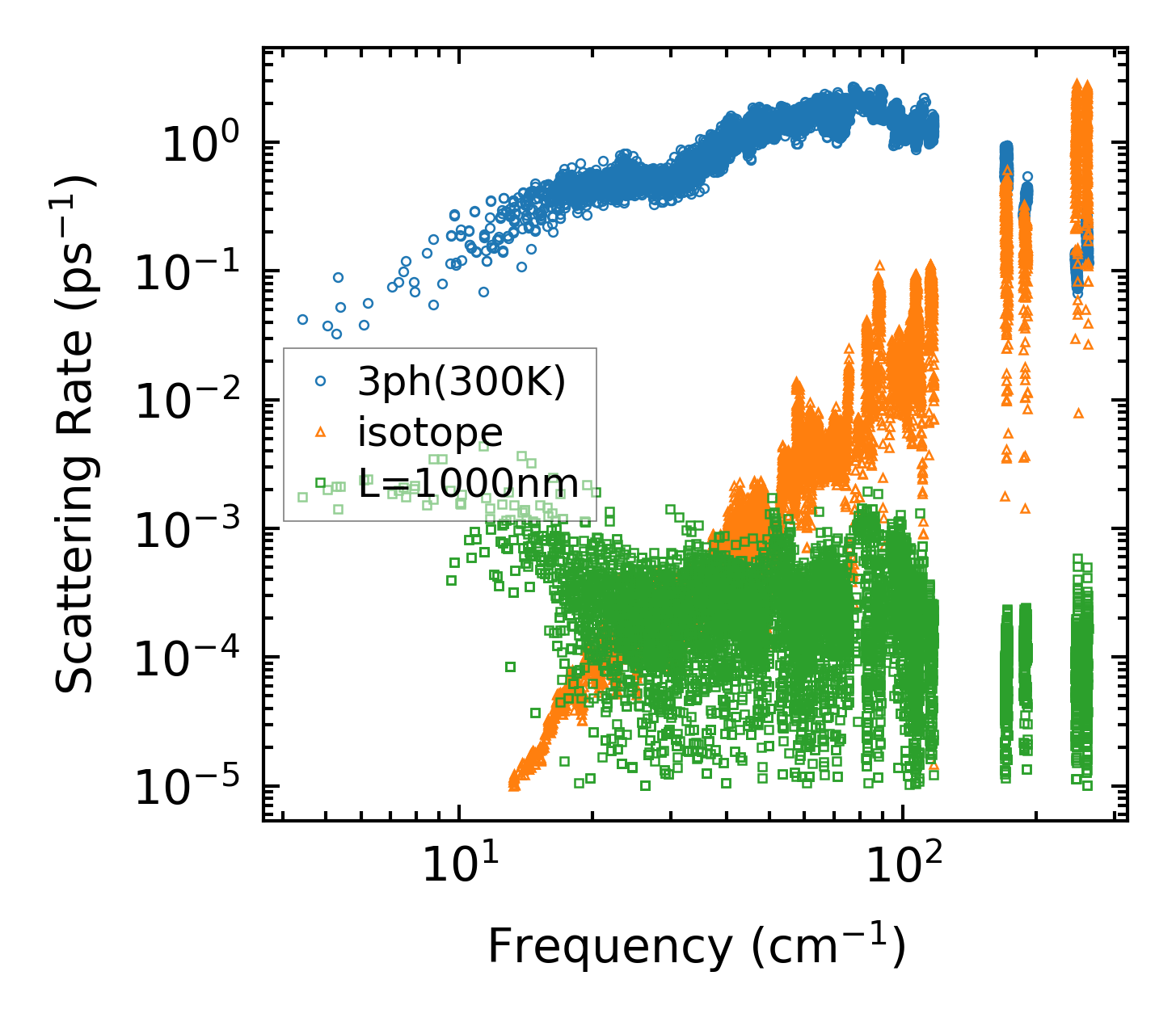

../../_images/fig_scat_rates4326.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

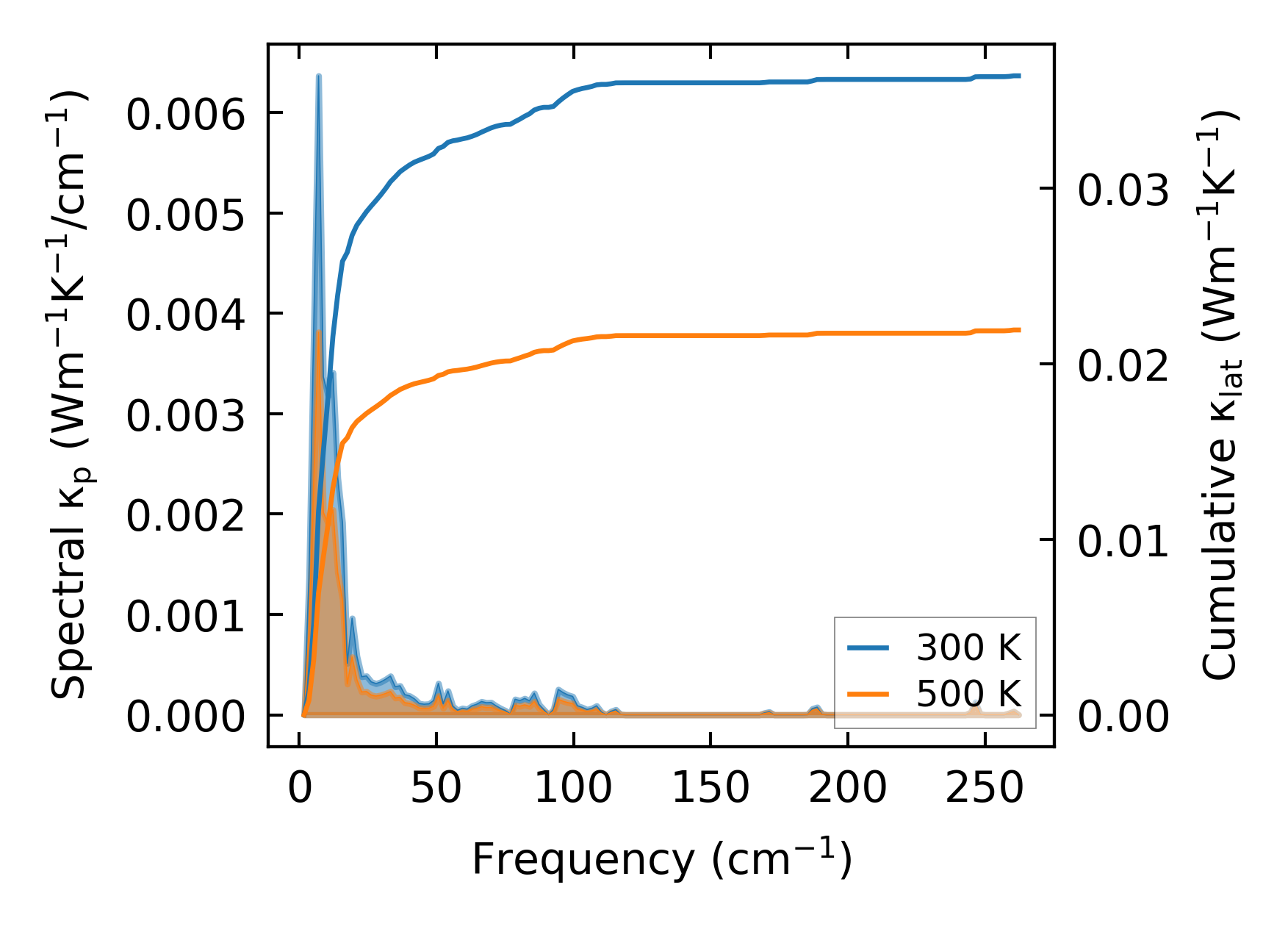

../../_images/fig_cumu_frequency4327.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp4326.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

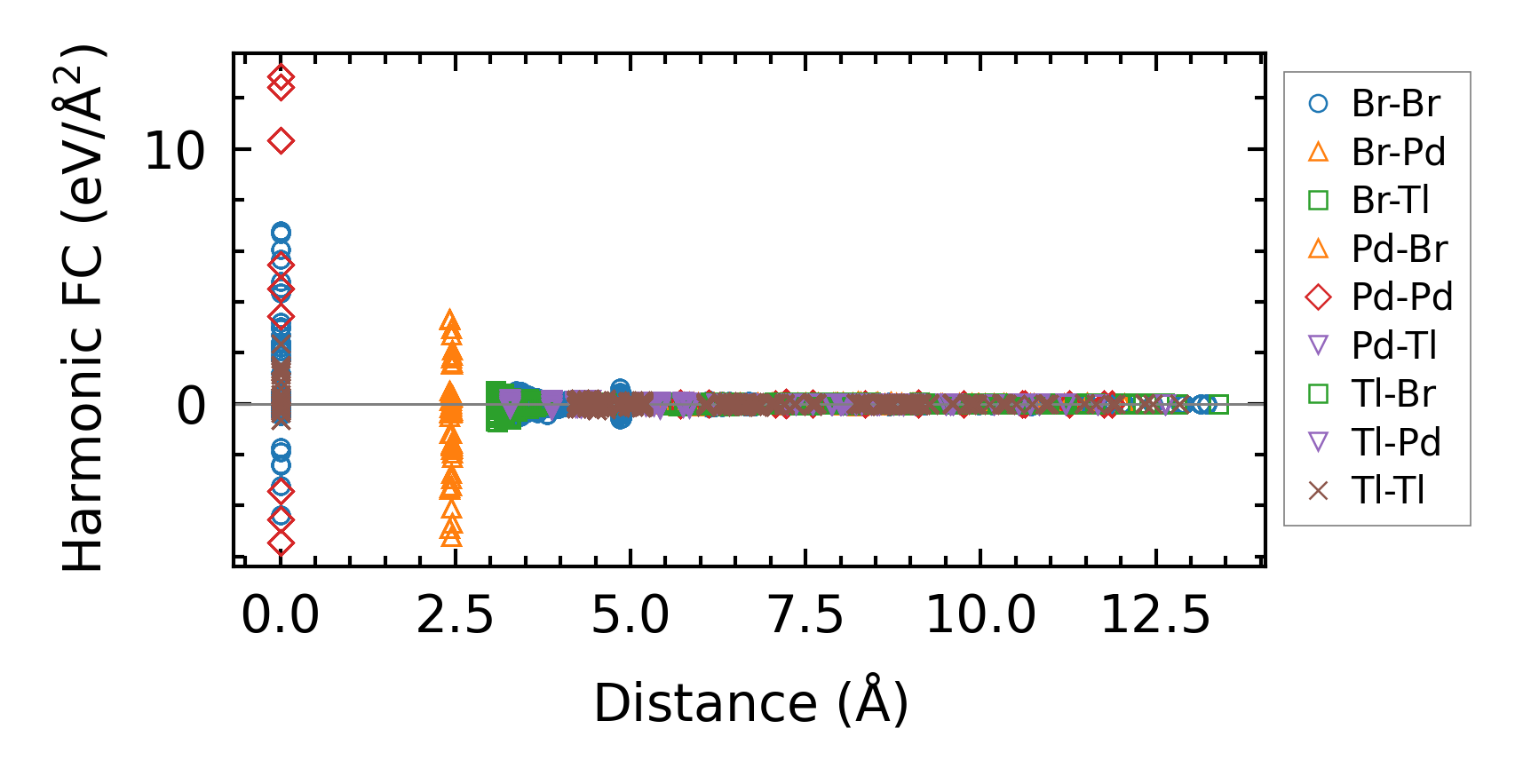

../../_images/fig_fc210471.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa8250.png — (a) Temperature-dependent lattice thermal conductivity

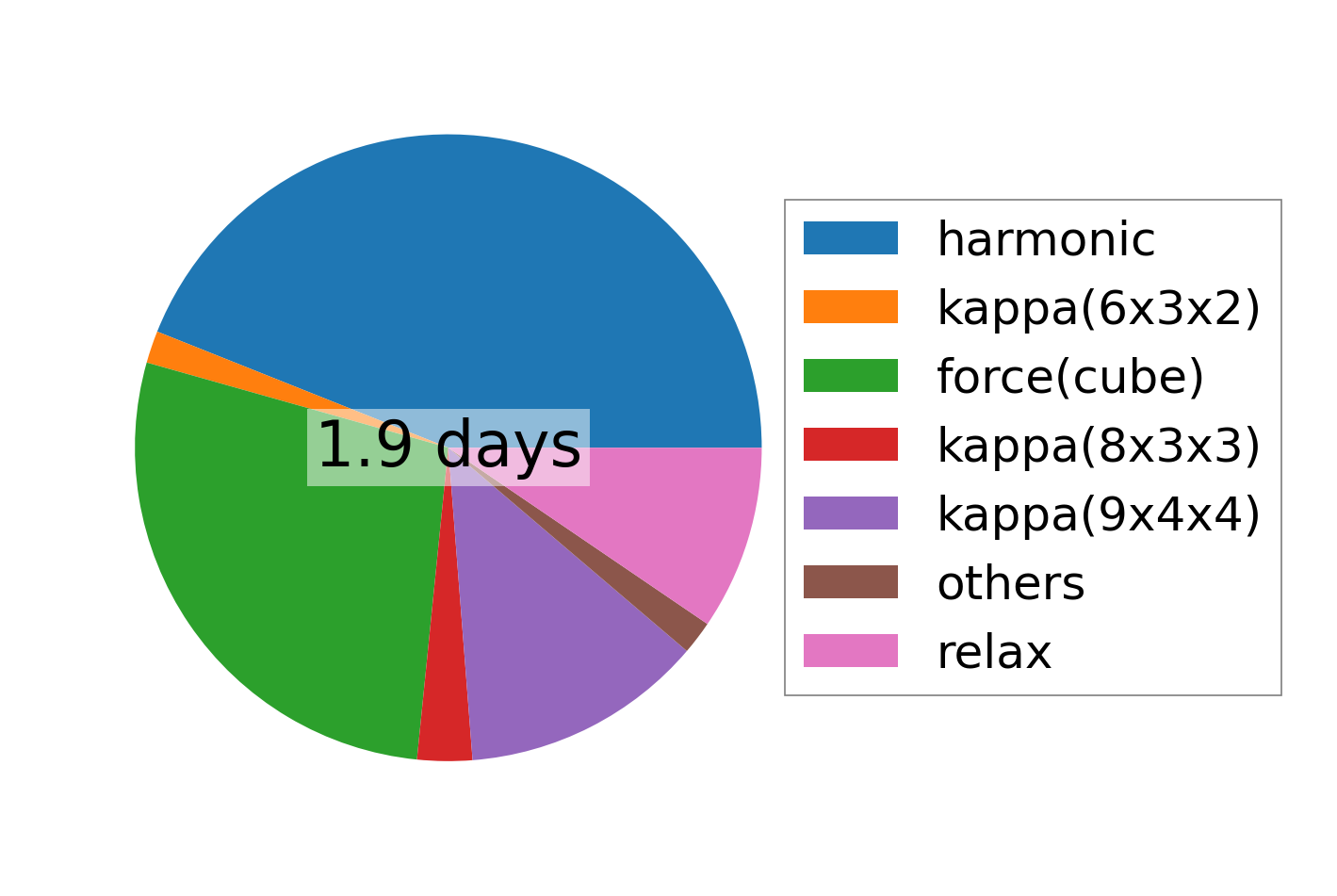

../../_images/fig_times18426.png — (b) Computation time
