mp-31134/PtCl3/anharm

Space group: R-3 (148)
Link: Materials Project
Download: mp-31134.tar.gz

Harmonic properties

../../_images/fig_bandos_pr10730.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10730.png — (b) Thermodynamic properties

Grüneisen parameters

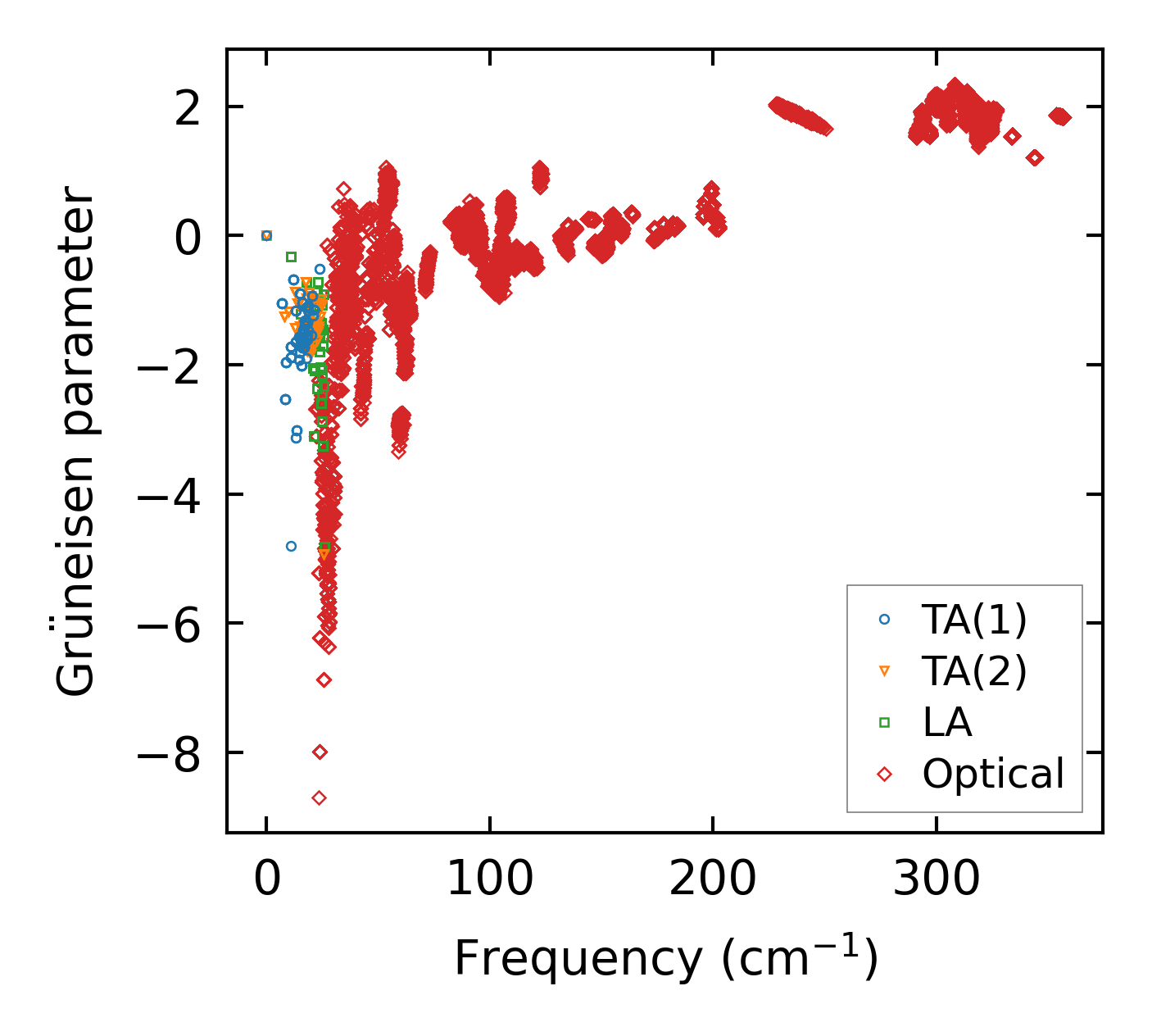

../../_images/fig_gru_all4365.png — (a) Grüneisen parameters

../../_images/fig_gruneisen4365.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x6x6, supercell: 1x1x1

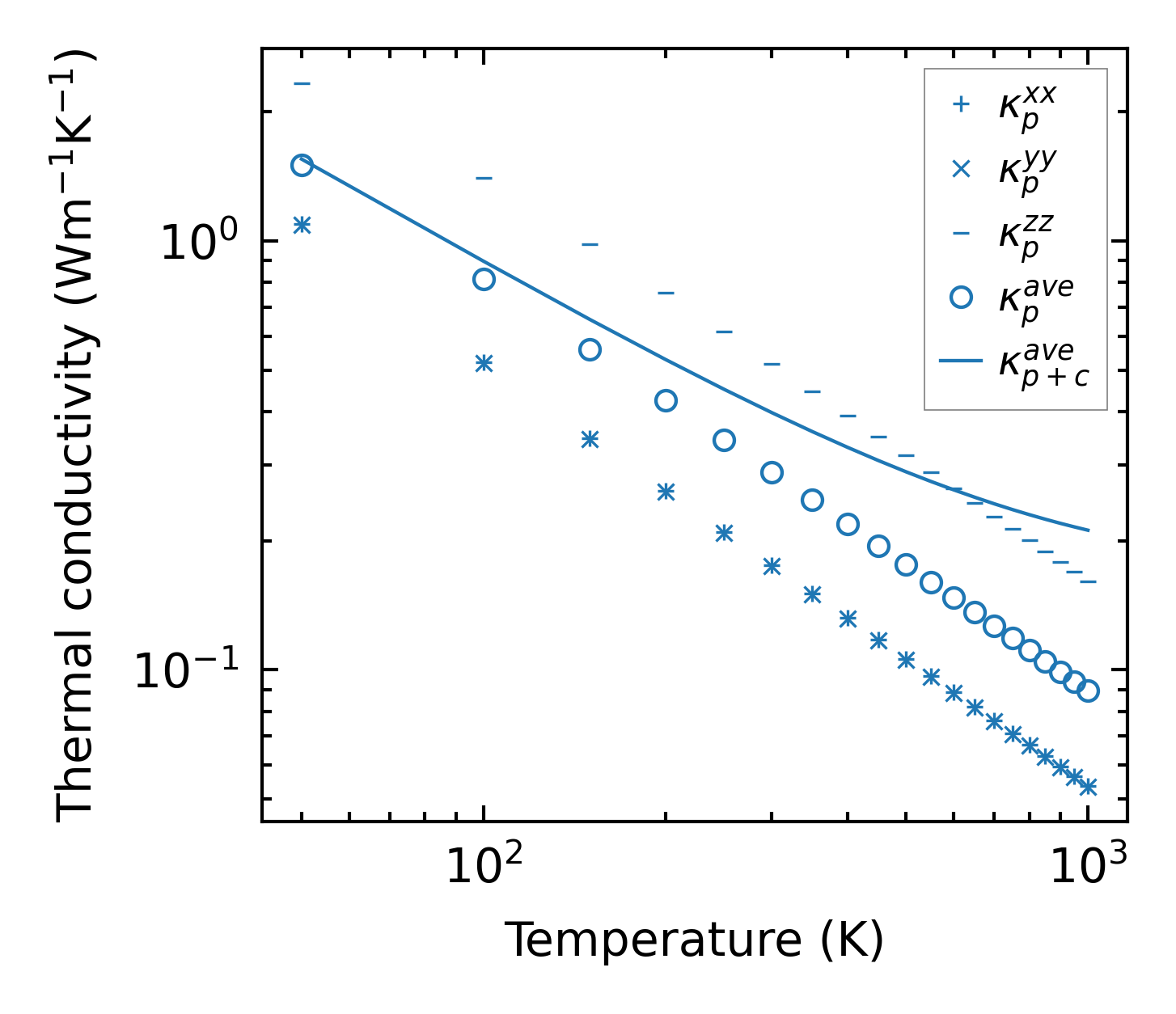

../../_images/fig_kappa8239.png — (a) Temperature-dependent lattice thermal conductivity

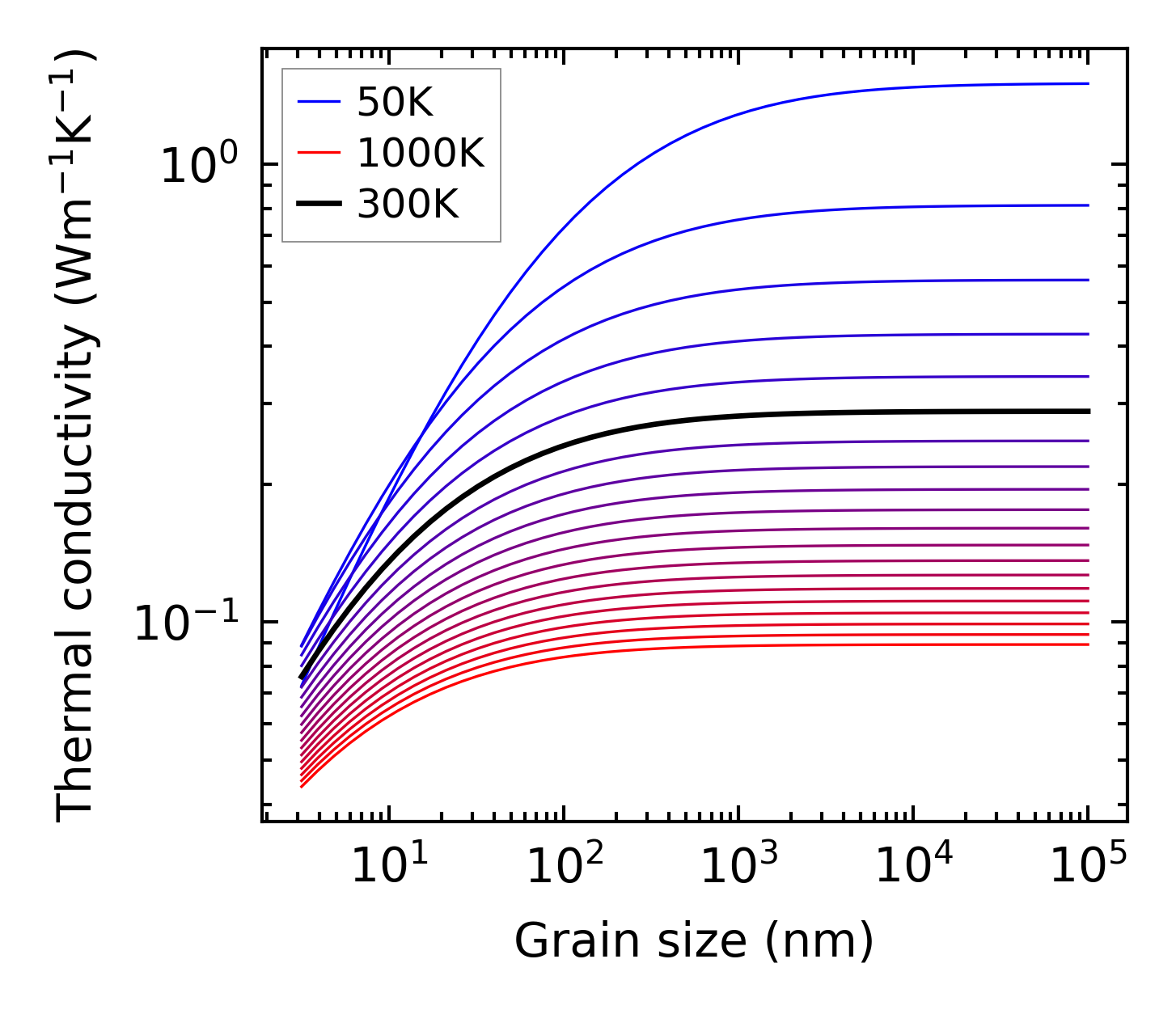

../../_images/fig_kappa_vs_grain_size4417.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

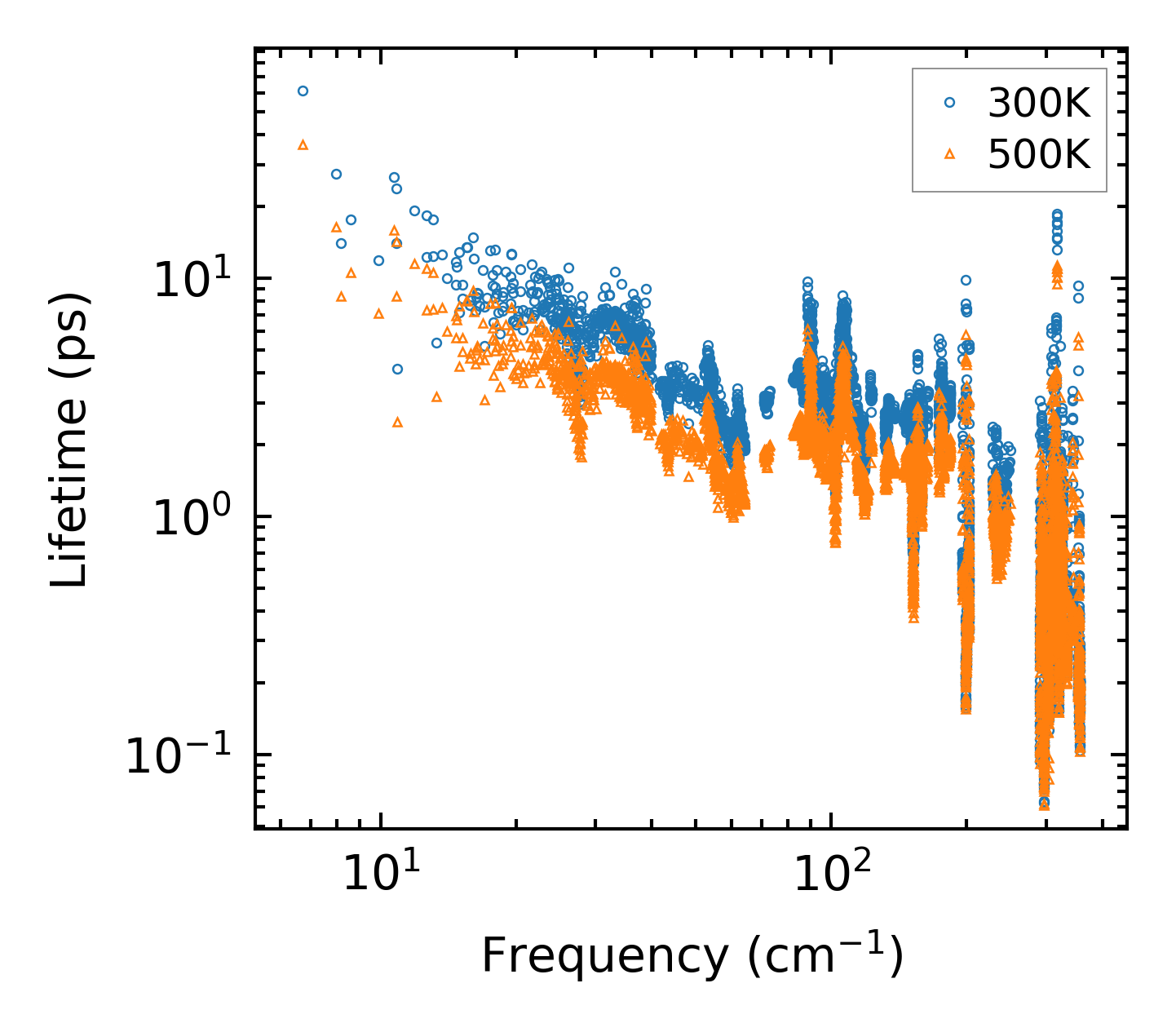

../../_images/fig_lifetime4322.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates4321.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

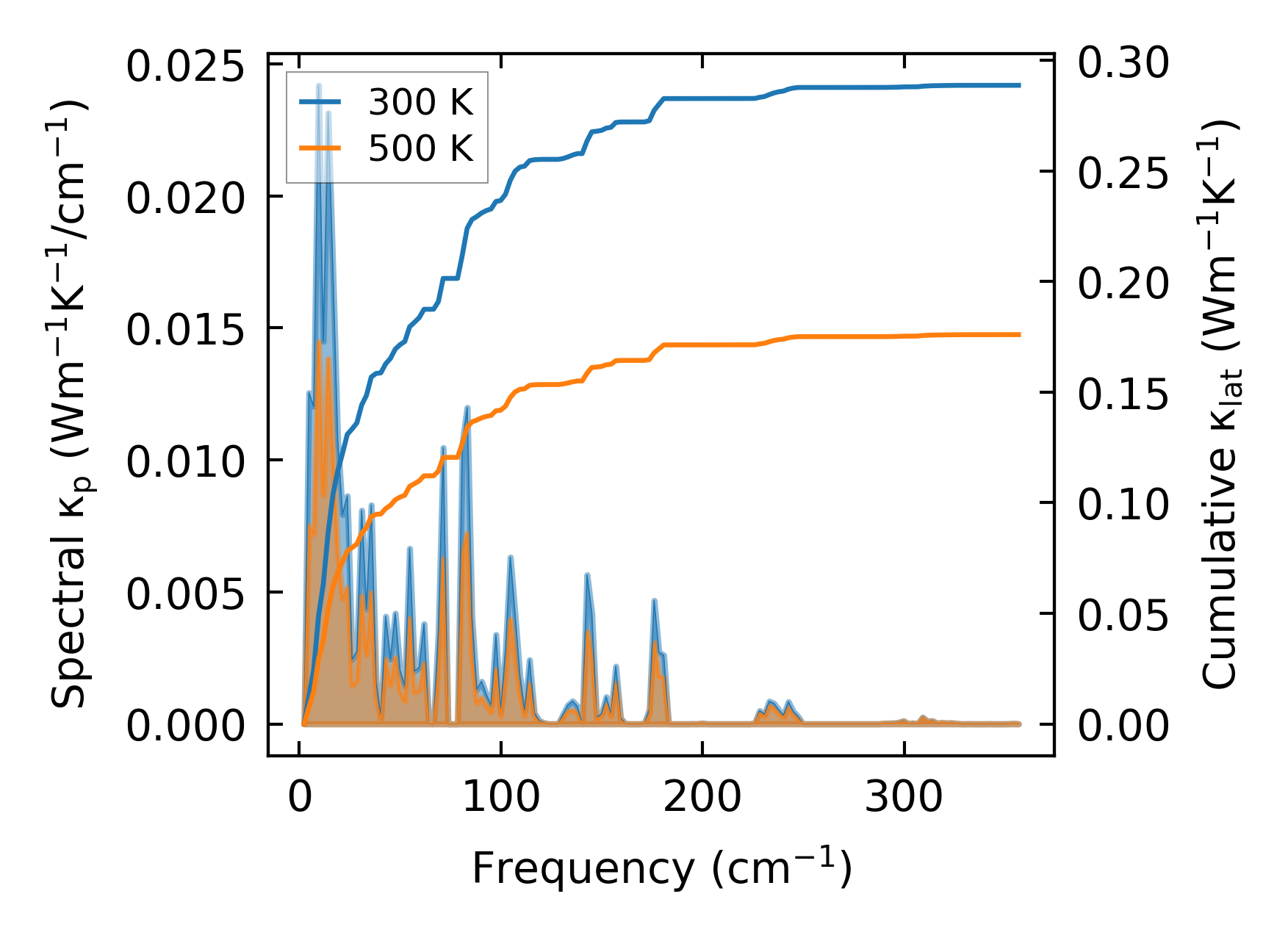

../../_images/fig_cumu_frequency4322.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

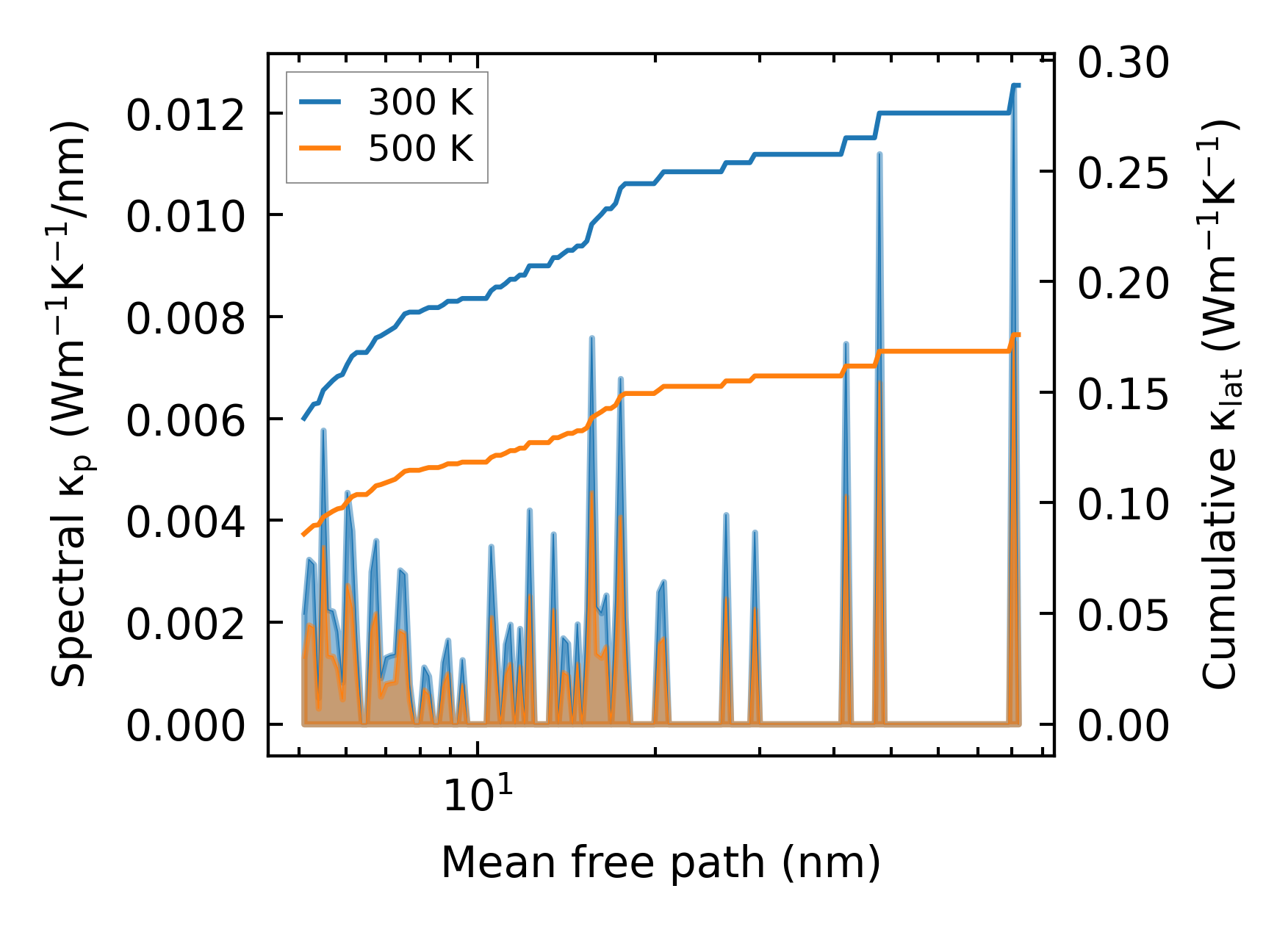

../../_images/fig_cumu_mfp4321.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

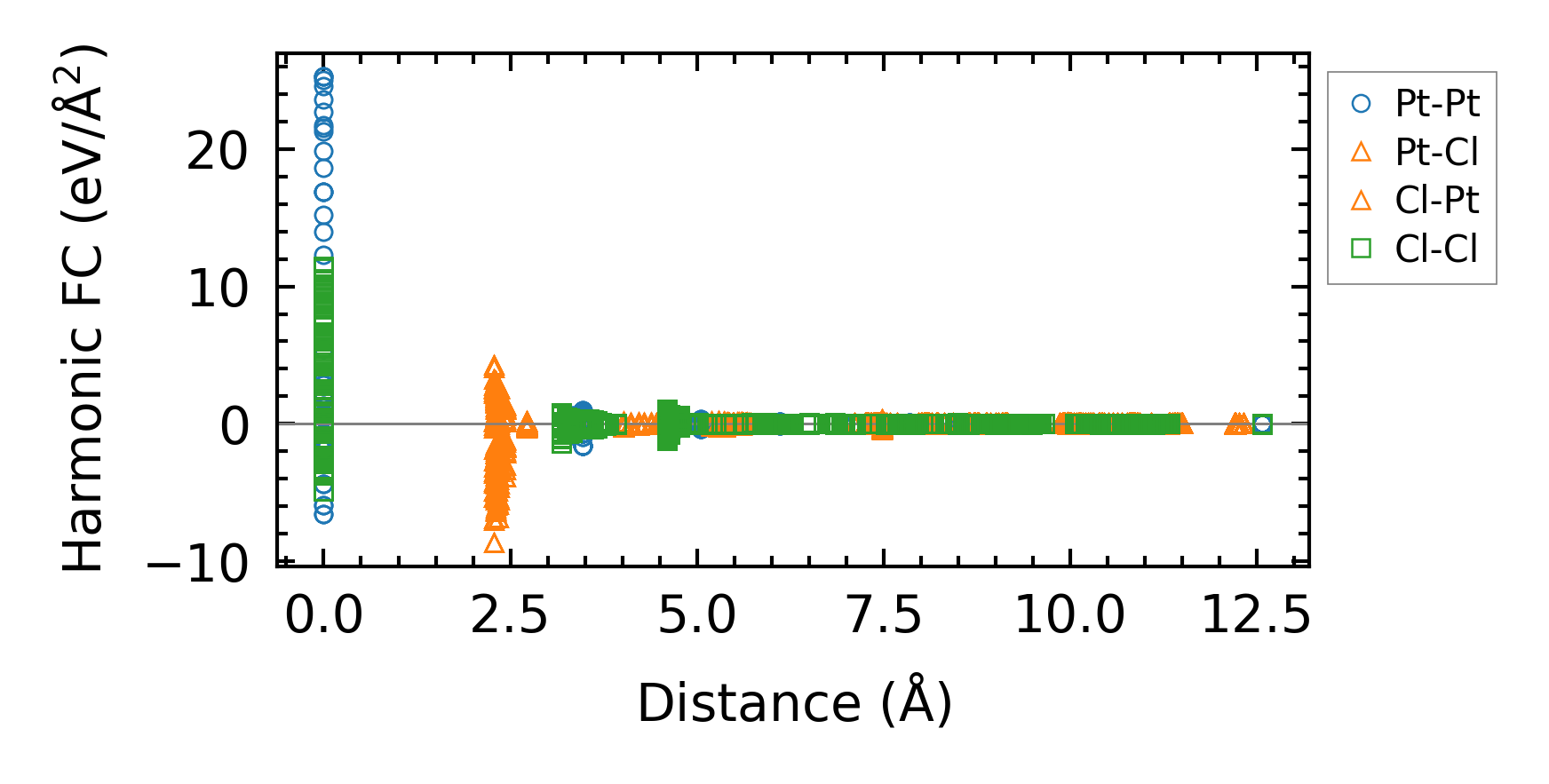

../../_images/fig_fc210463.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa8240.png — (a) Temperature-dependent lattice thermal conductivity

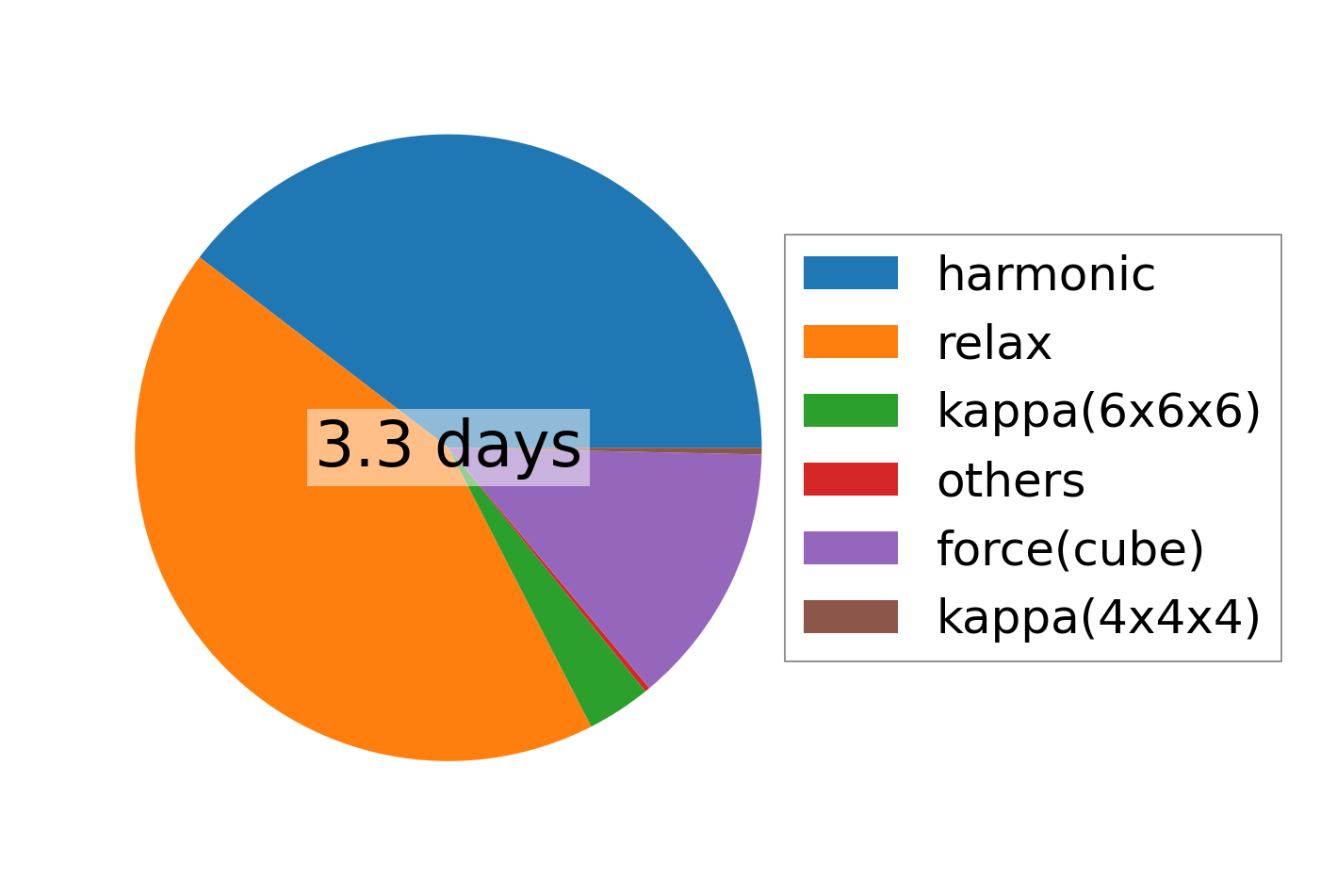

../../_images/fig_times18404.png — (b) Computation time
