mp-31235/BaNaBi/anharm

Space group: P-62m (189)
Link: Materials Project
Download: mp-31235.tar.gz

Harmonic properties

../../_images/fig_bandos_pr10735.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10735.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all4368.png — (a) Grüneisen parameters

../../_images/fig_gruneisen4368.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x8x14, supercell: 2x2x4

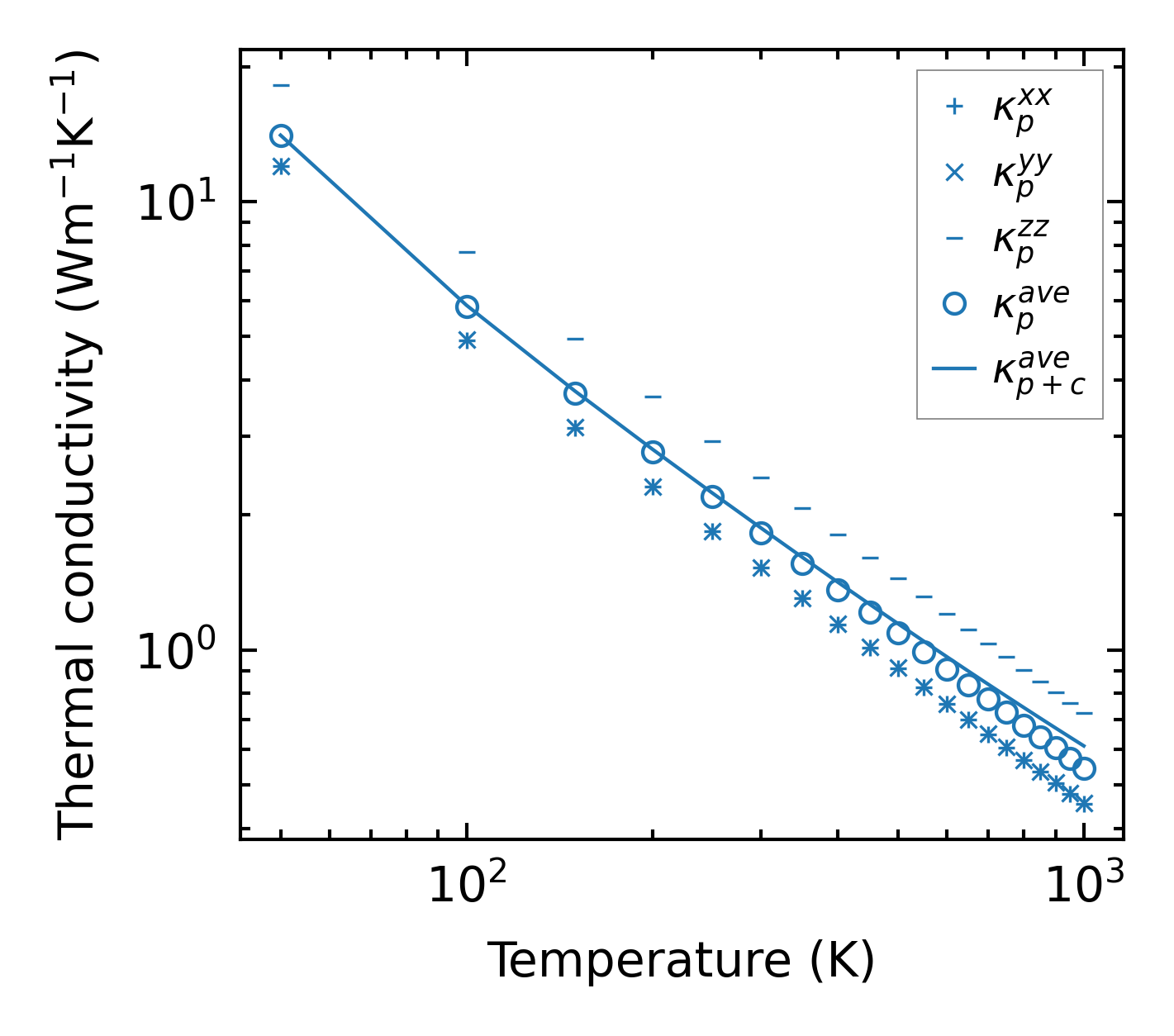

../../_images/fig_kappa8245.png — (a) Temperature-dependent lattice thermal conductivity

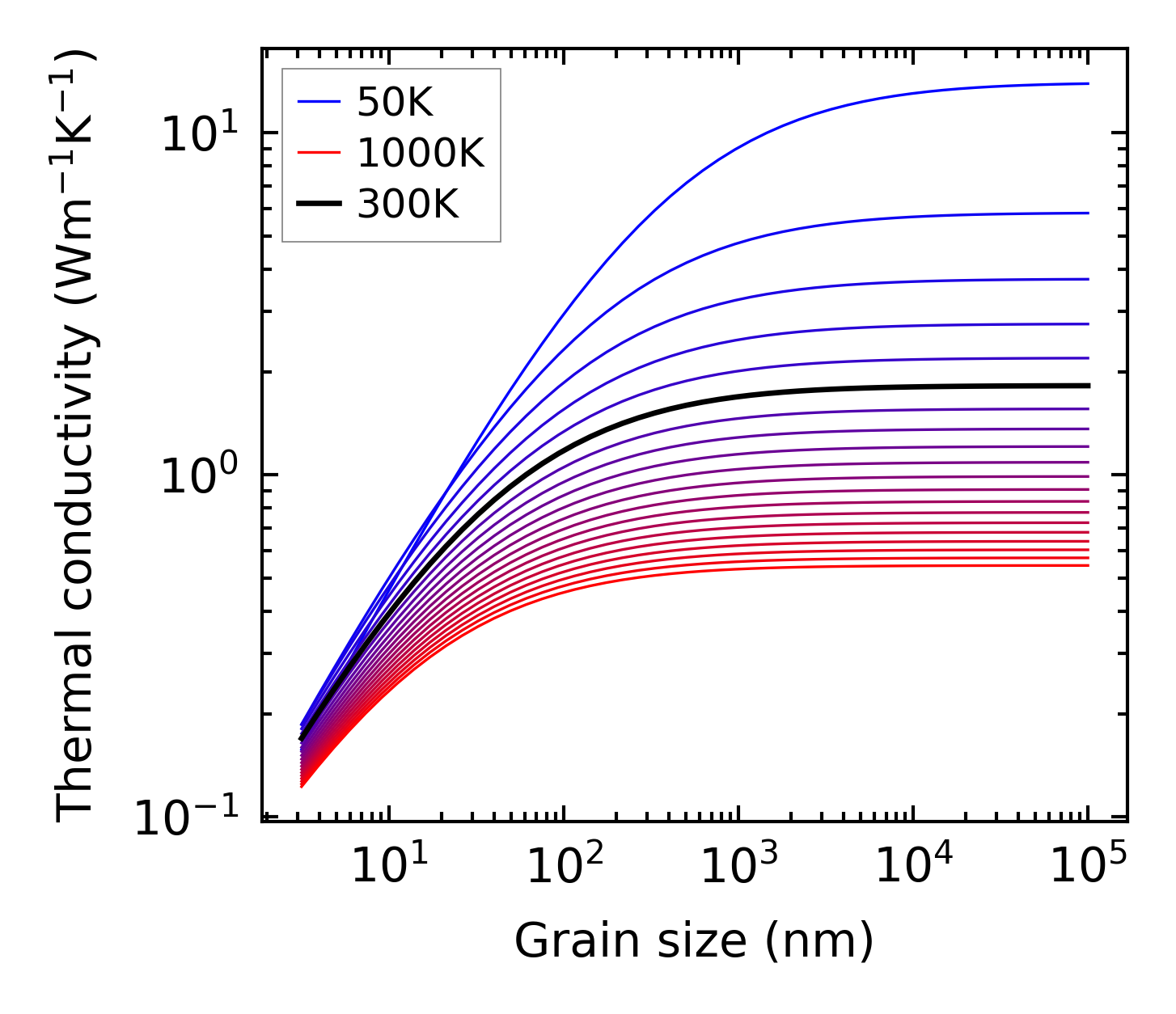

../../_images/fig_kappa_vs_grain_size4420.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

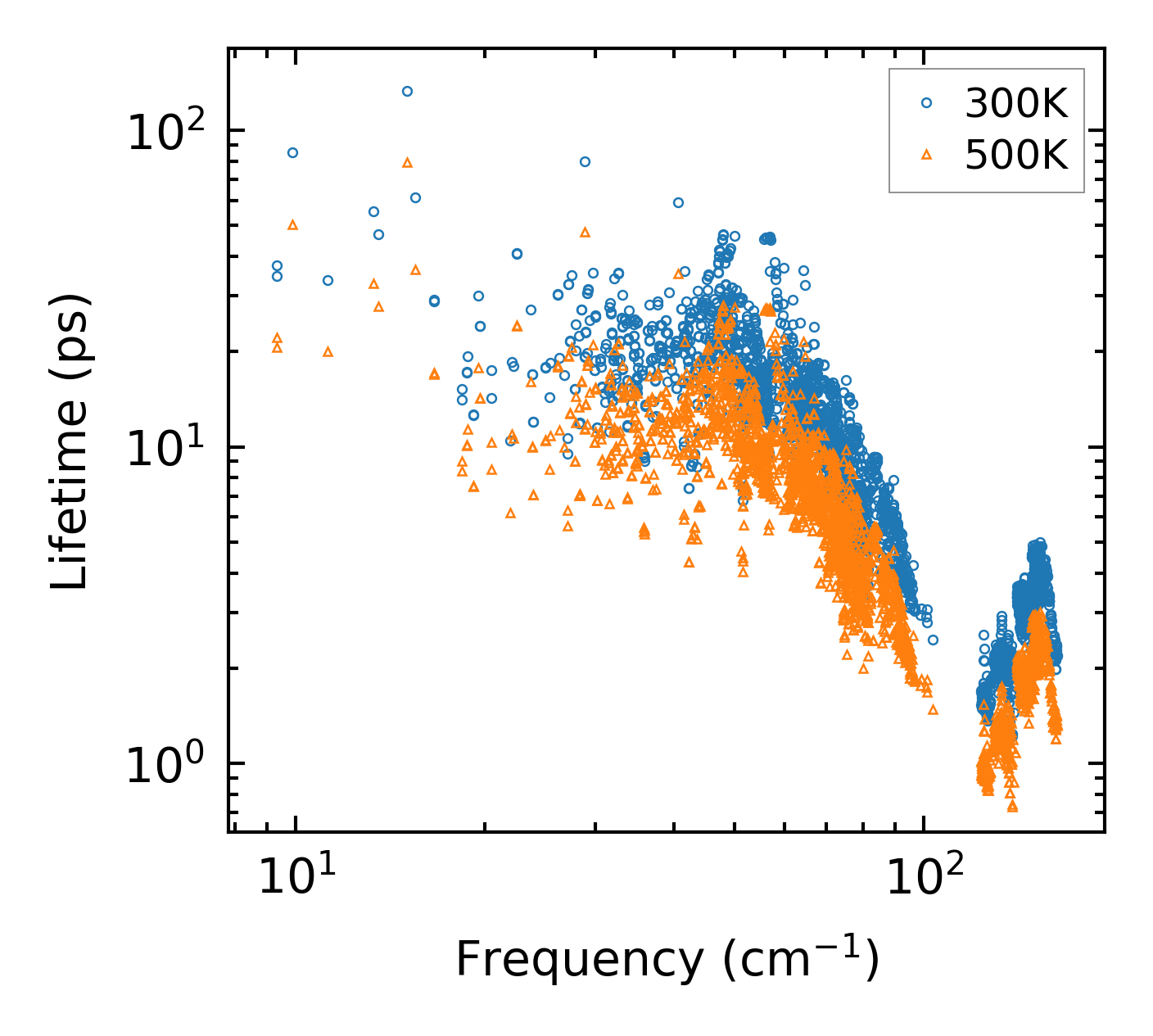

../../_images/fig_lifetime4325.png — (a) Phonon lifetime due to phonon-phonon scattering

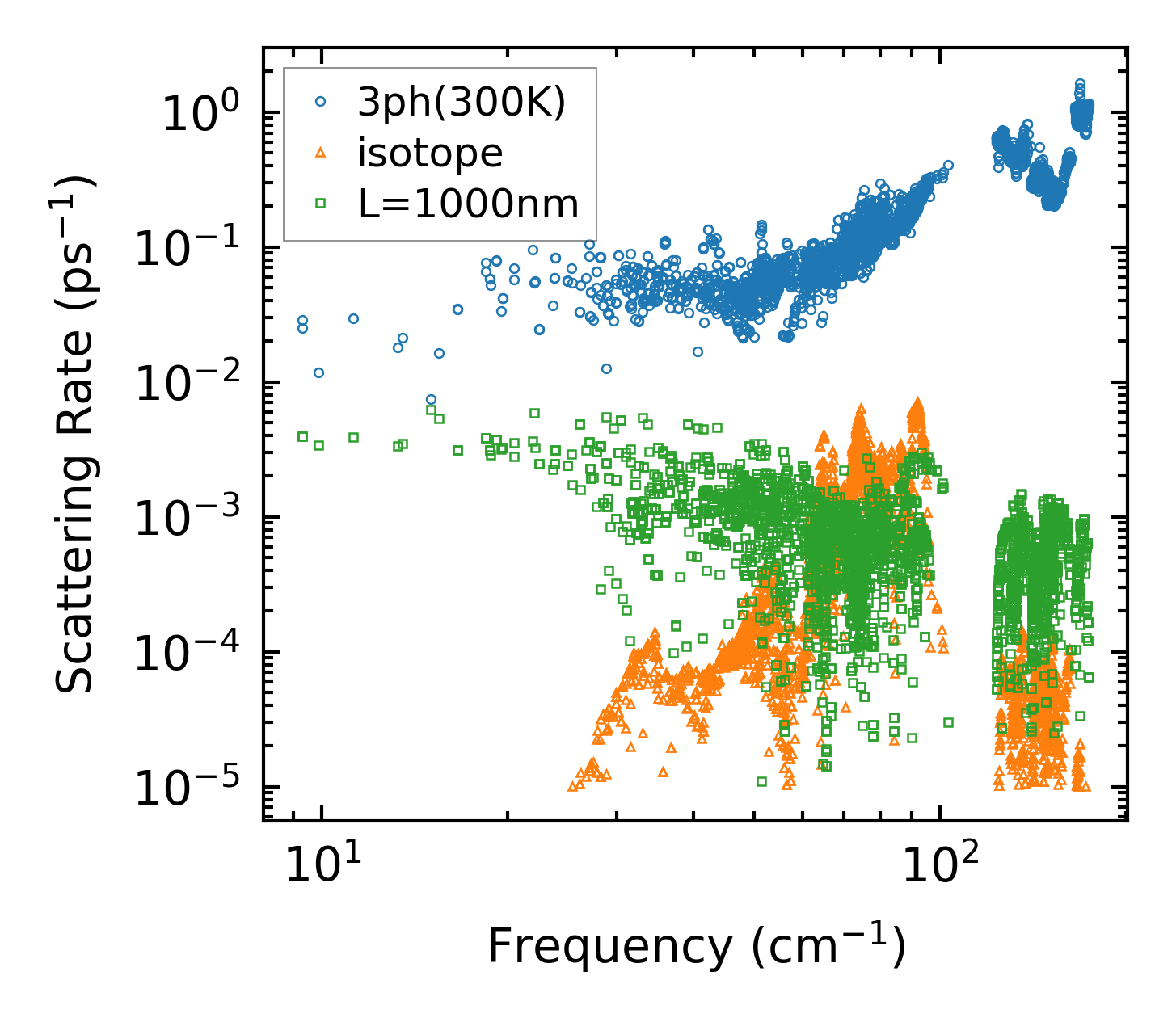

../../_images/fig_scat_rates4324.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

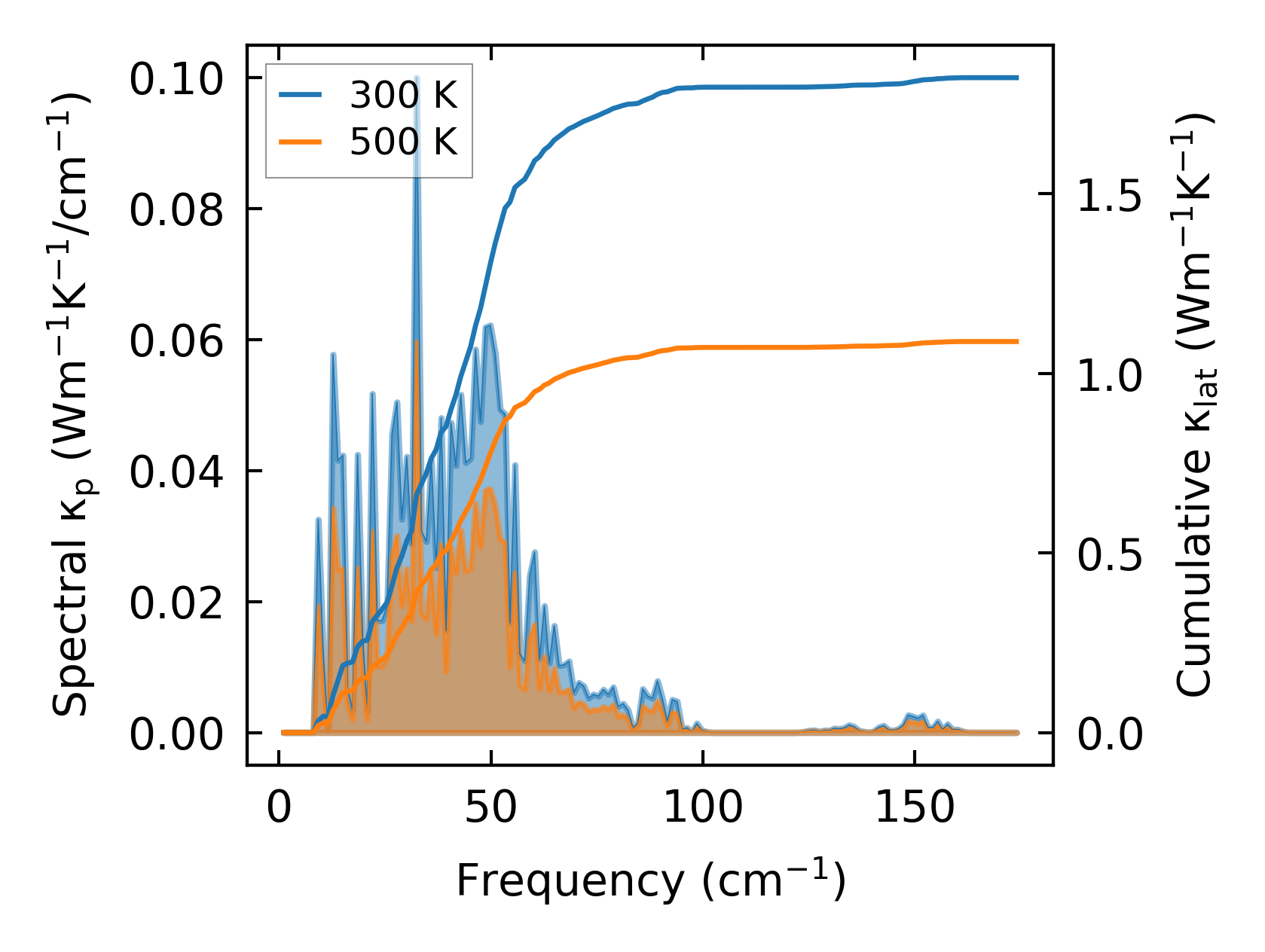

../../_images/fig_cumu_frequency4325.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

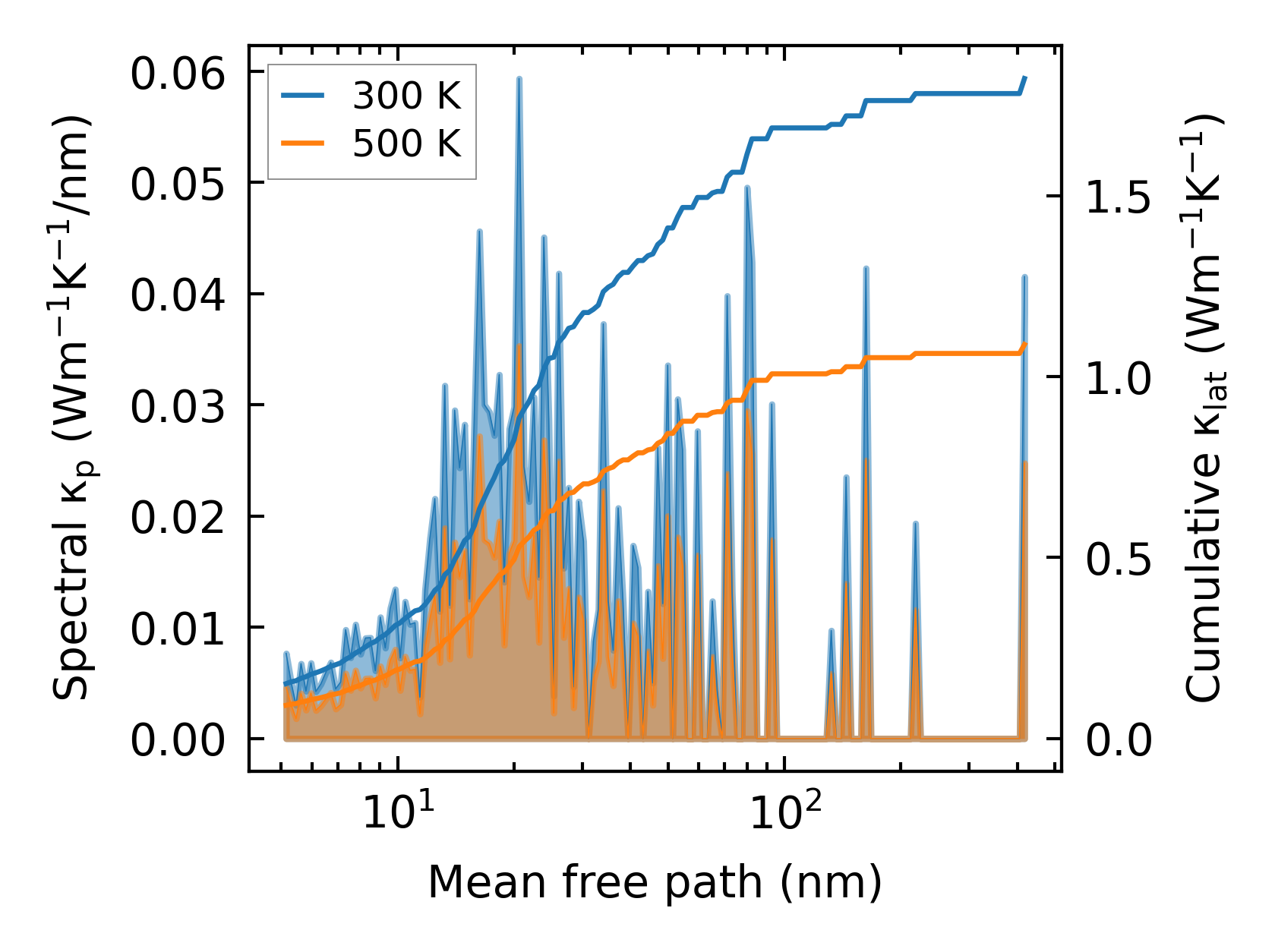

../../_images/fig_cumu_mfp4324.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc210467.png — (a) Force constants w.r.t atomic distance

Summary

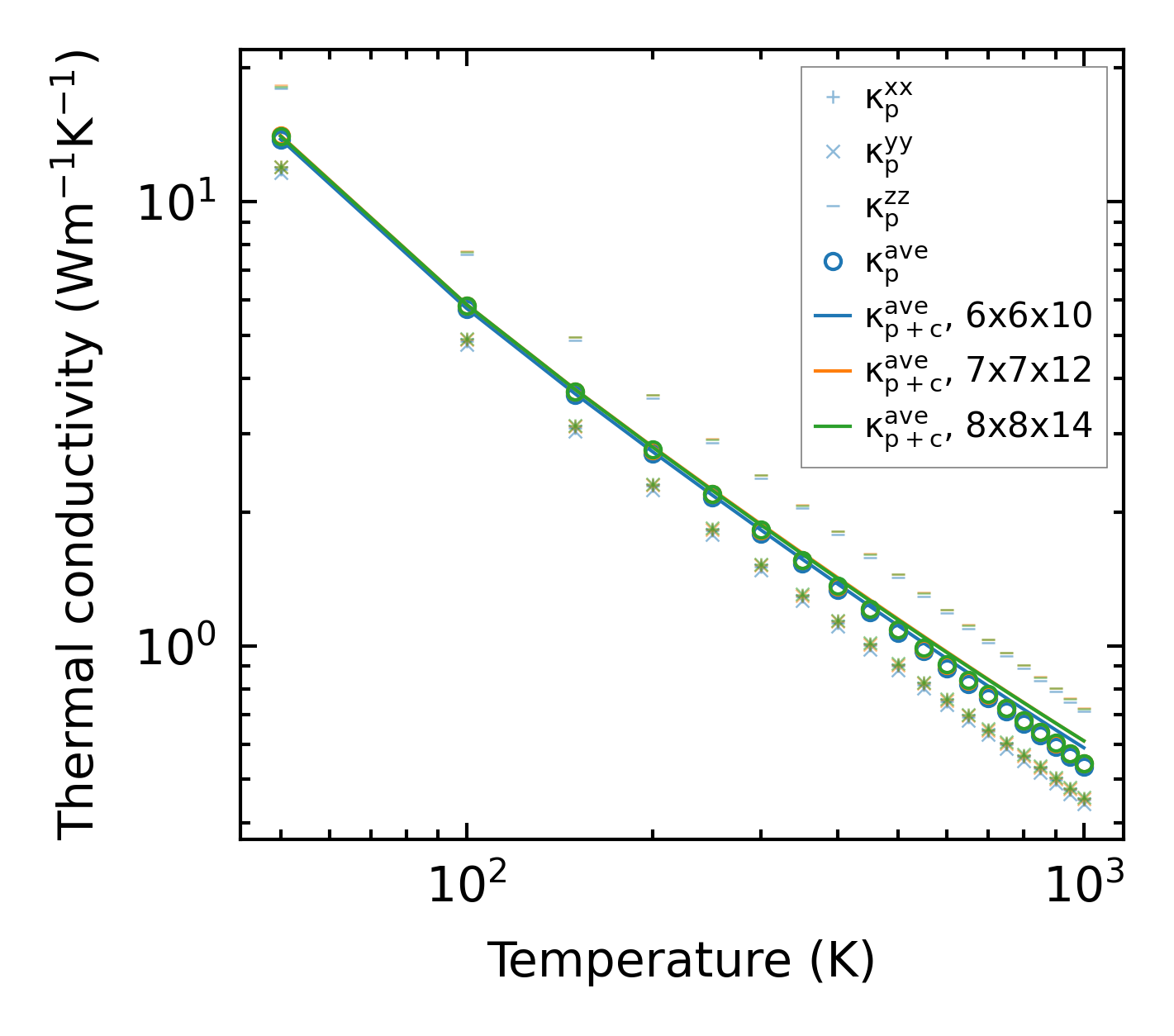

../../_images/fig_kappa8246.png — (a) Temperature-dependent lattice thermal conductivity

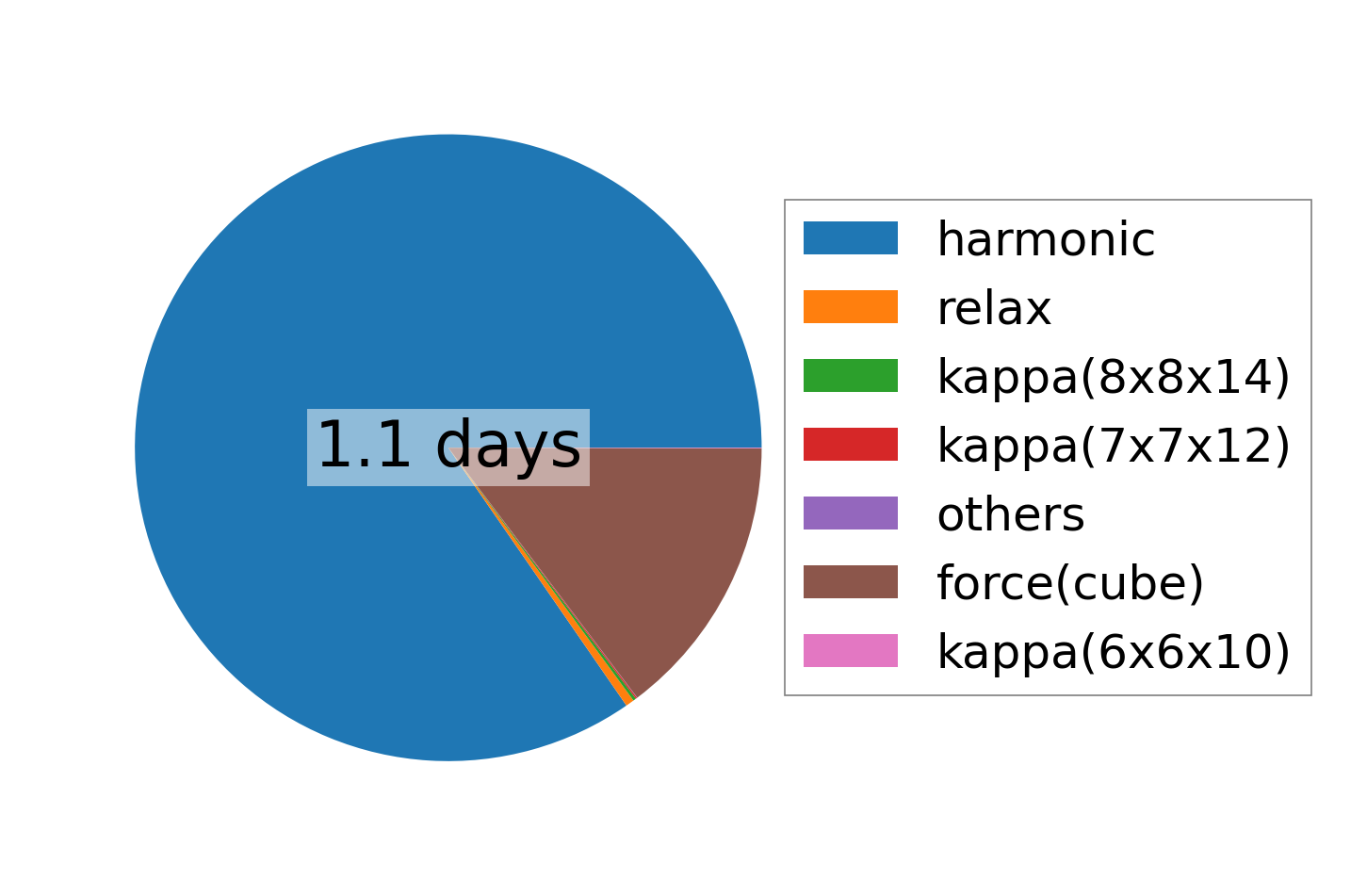

../../_images/fig_times18413.png — (b) Computation time
