mp-31086/NaP5/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-31086.tar.gz

Harmonic properties

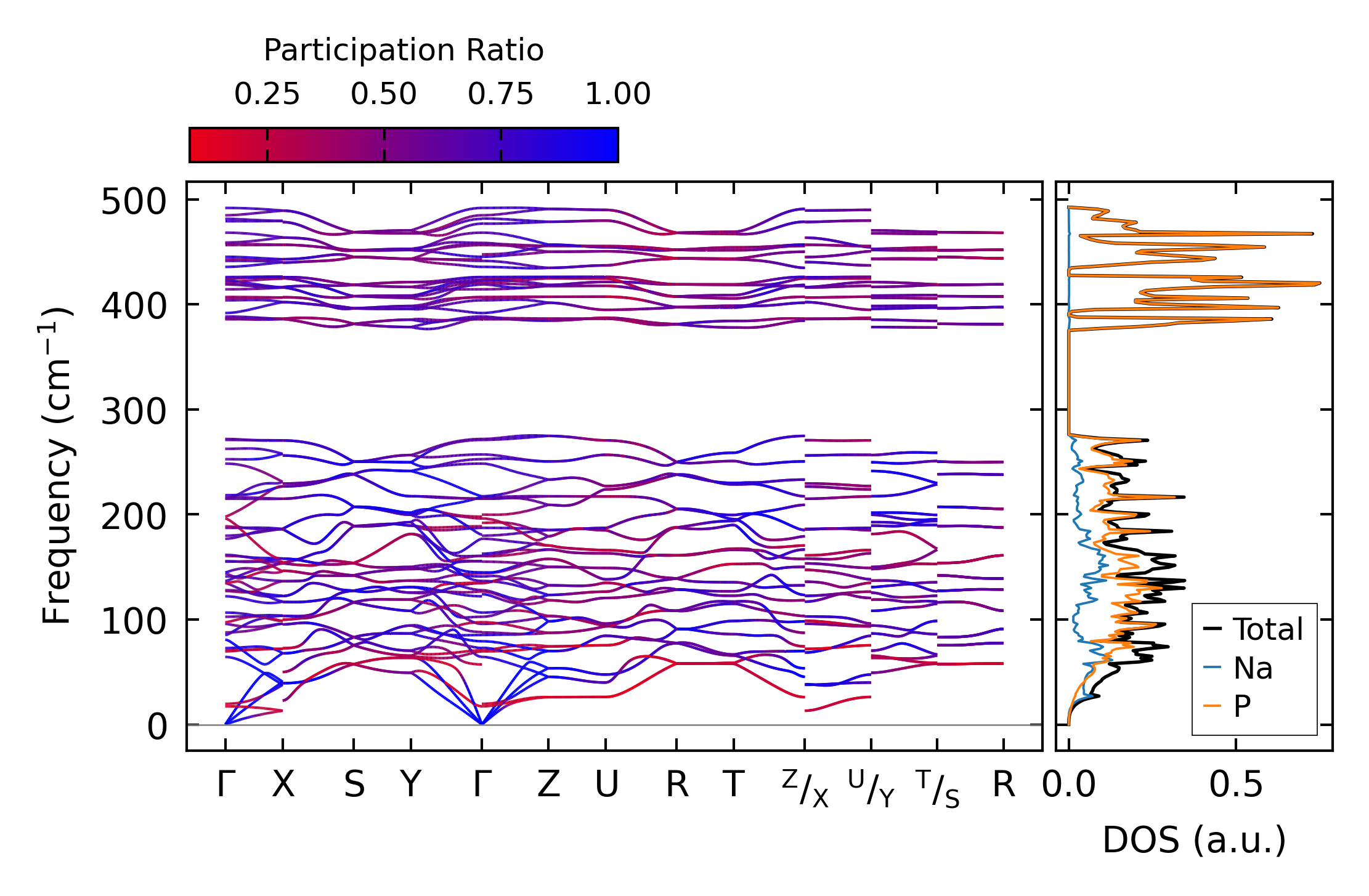

../../_images/fig_bandos_pr10716.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10716.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all4362.png — (a) Grüneisen parameters

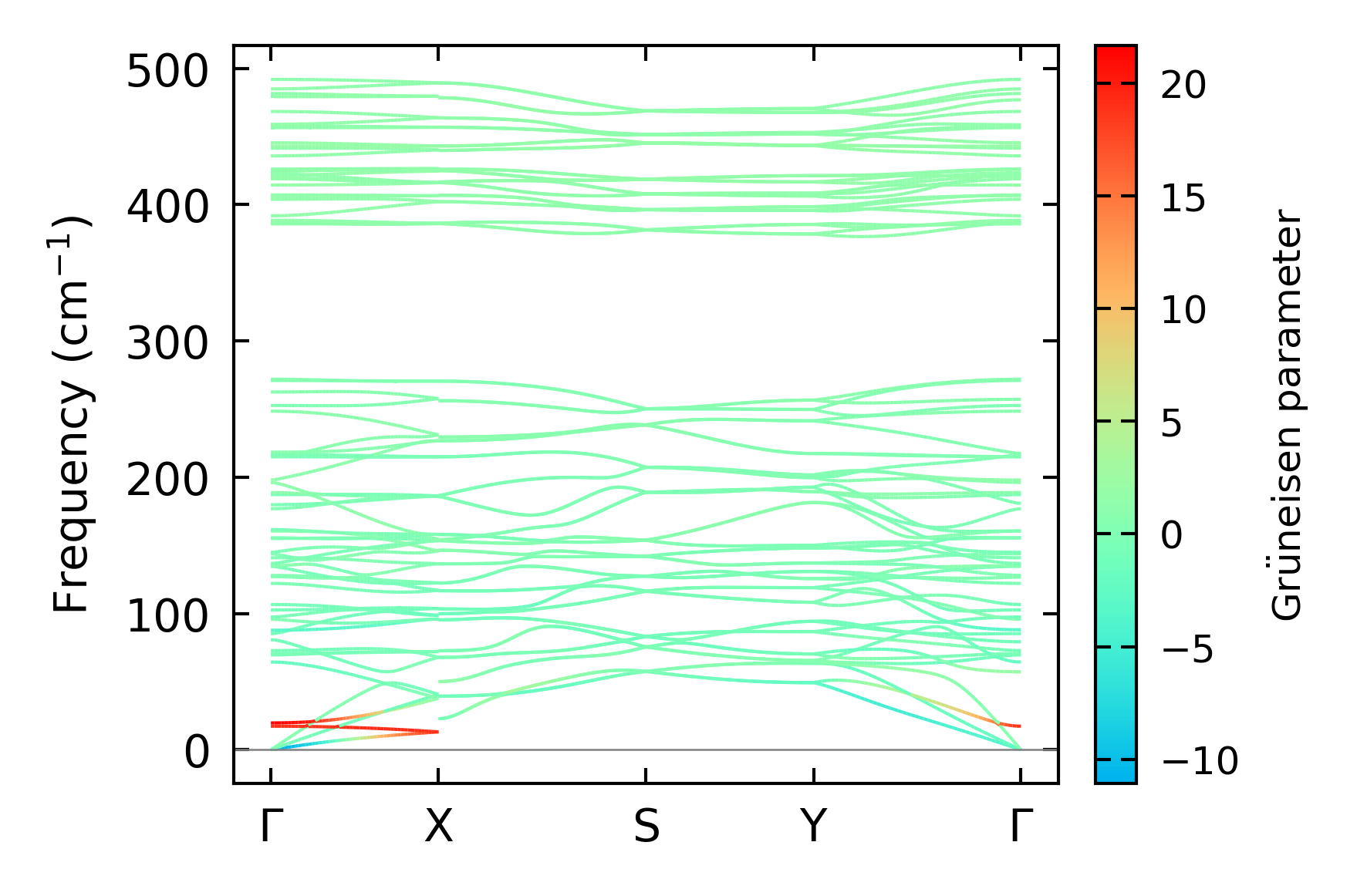

../../_images/fig_gruneisen4362.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x11x10, supercell: 1x2x2

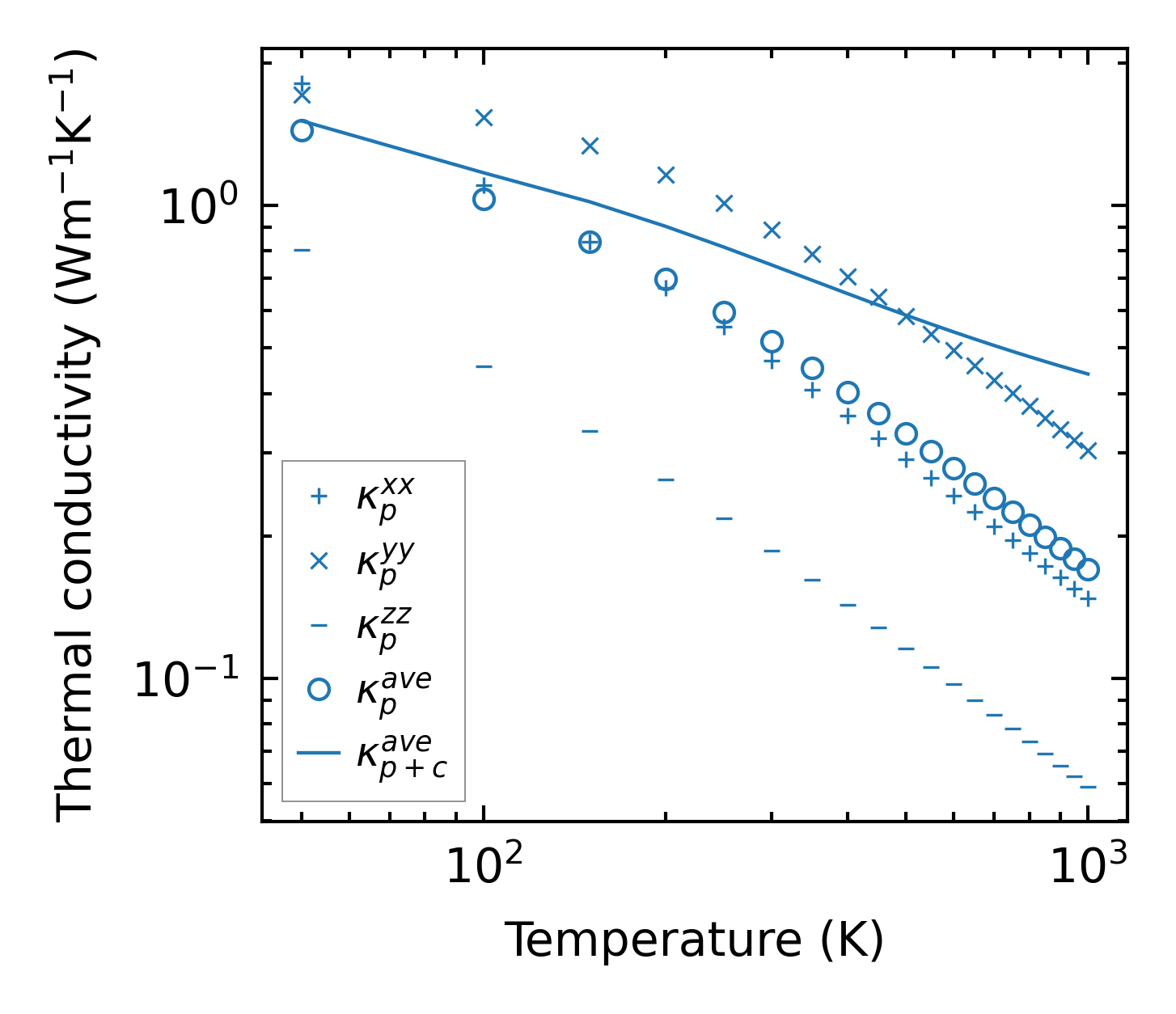

../../_images/fig_kappa8233.png — (a) Temperature-dependent lattice thermal conductivity

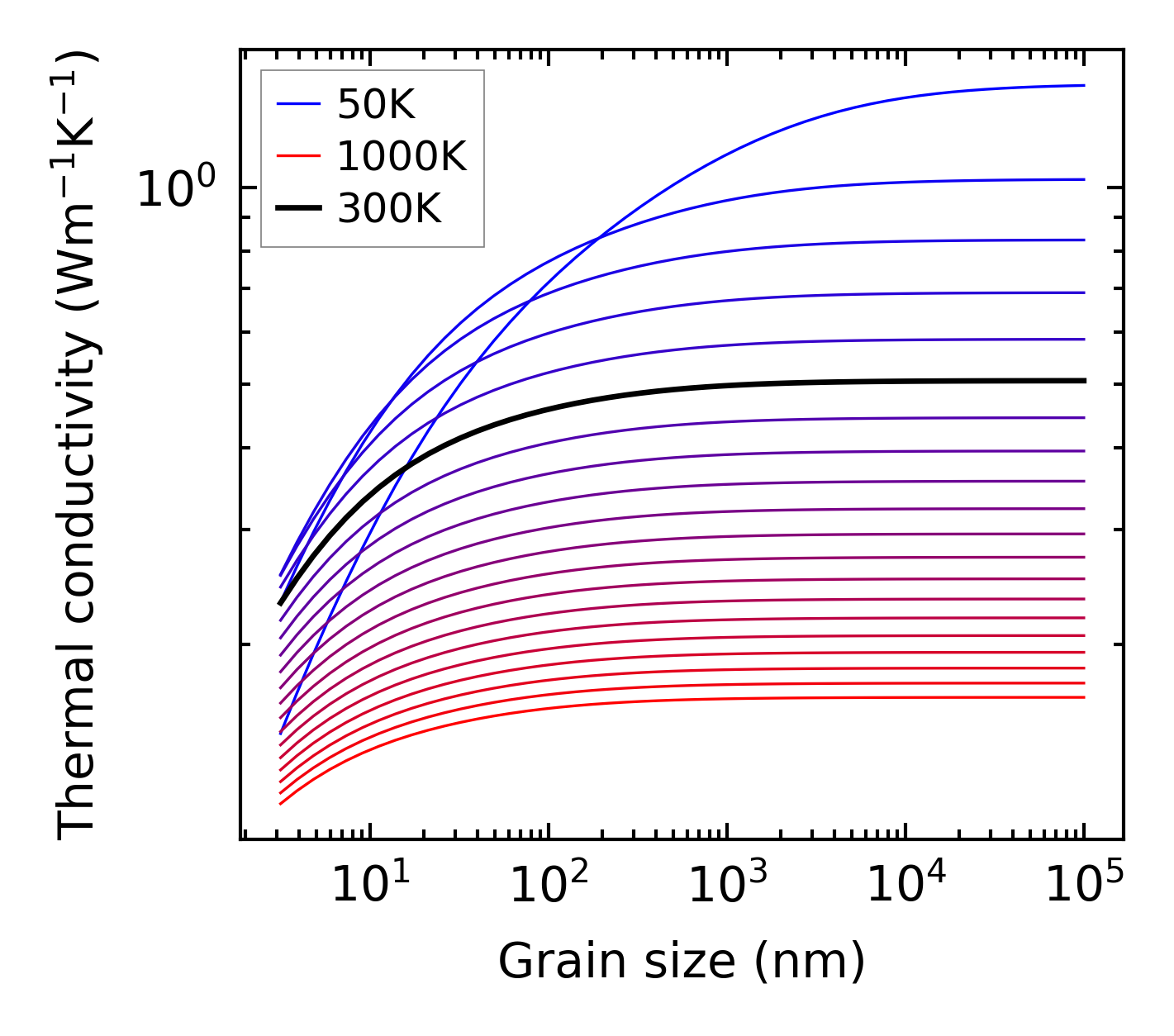

../../_images/fig_kappa_vs_grain_size4414.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

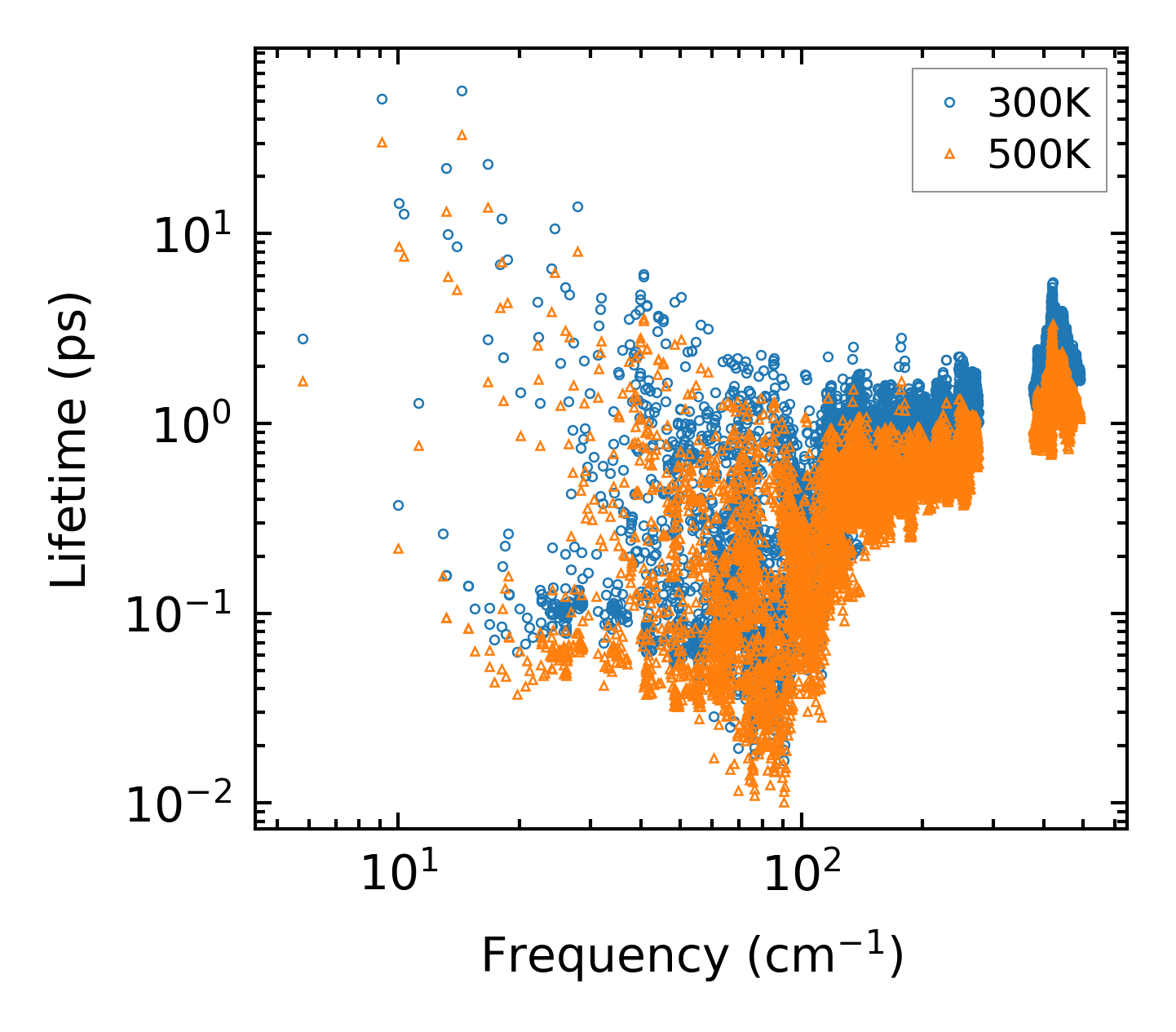

../../_images/fig_lifetime4319.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates4318.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

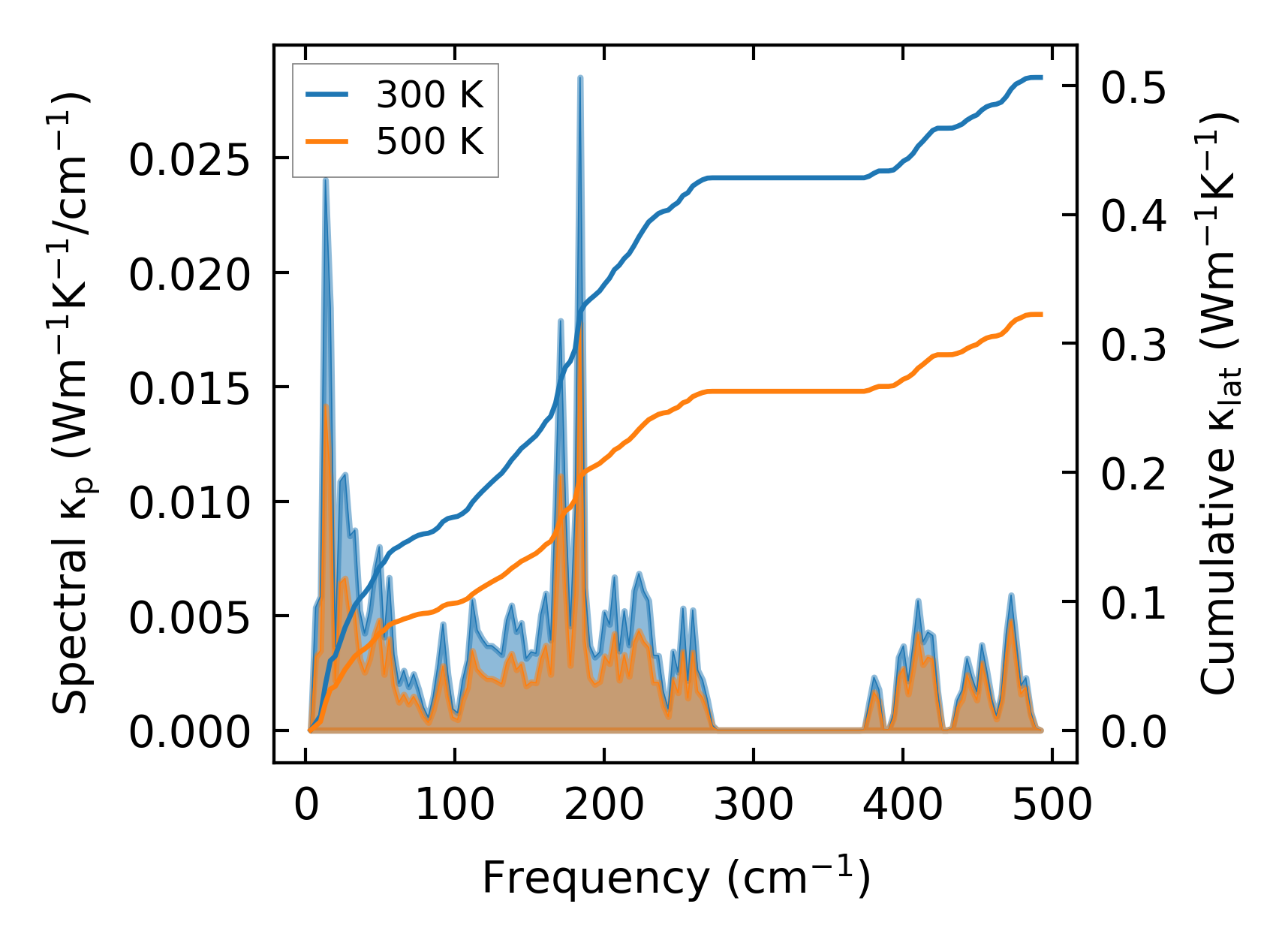

../../_images/fig_cumu_frequency4319.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp4318.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

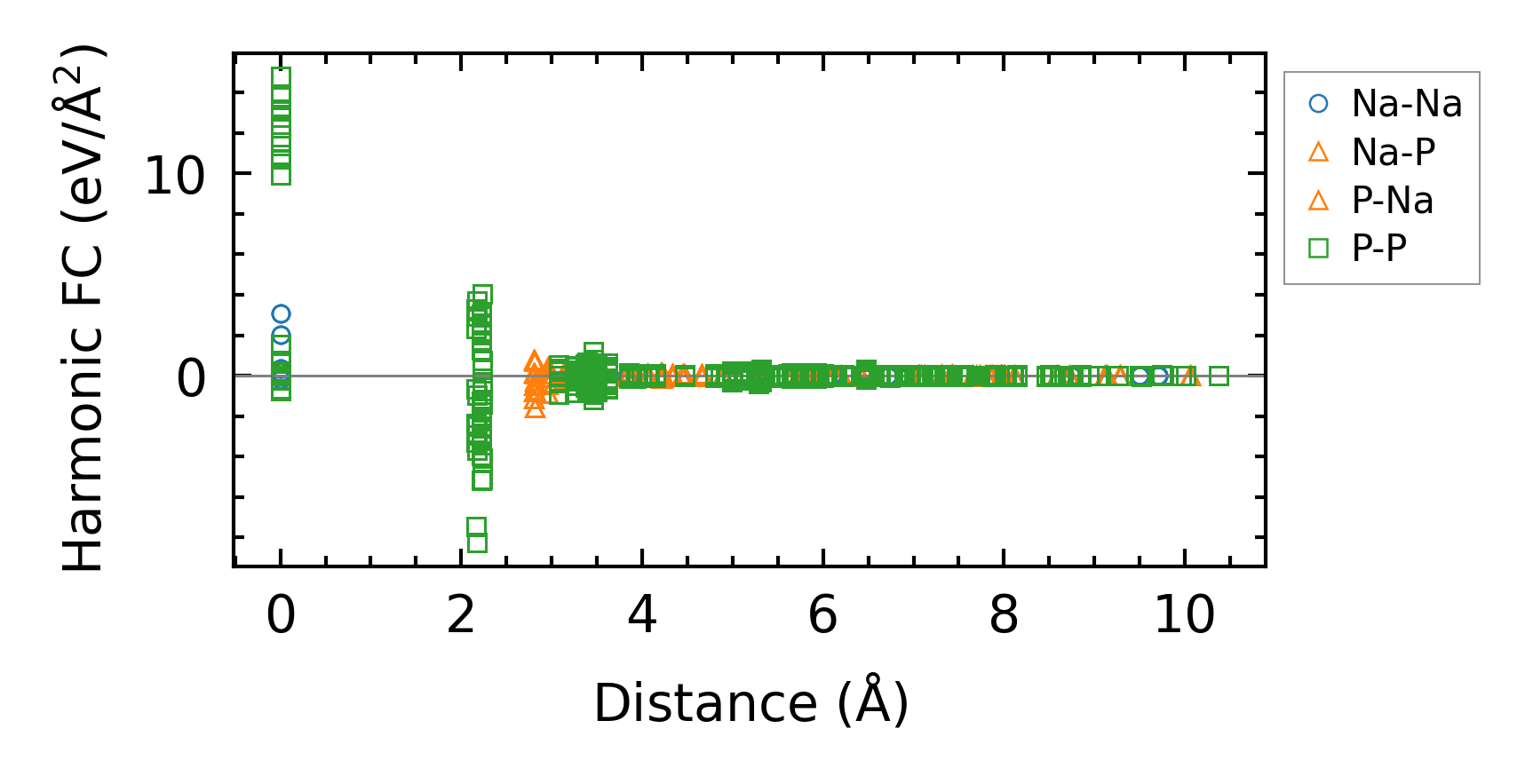

../../_images/fig_fc210449.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa8234.png — (a) Temperature-dependent lattice thermal conductivity

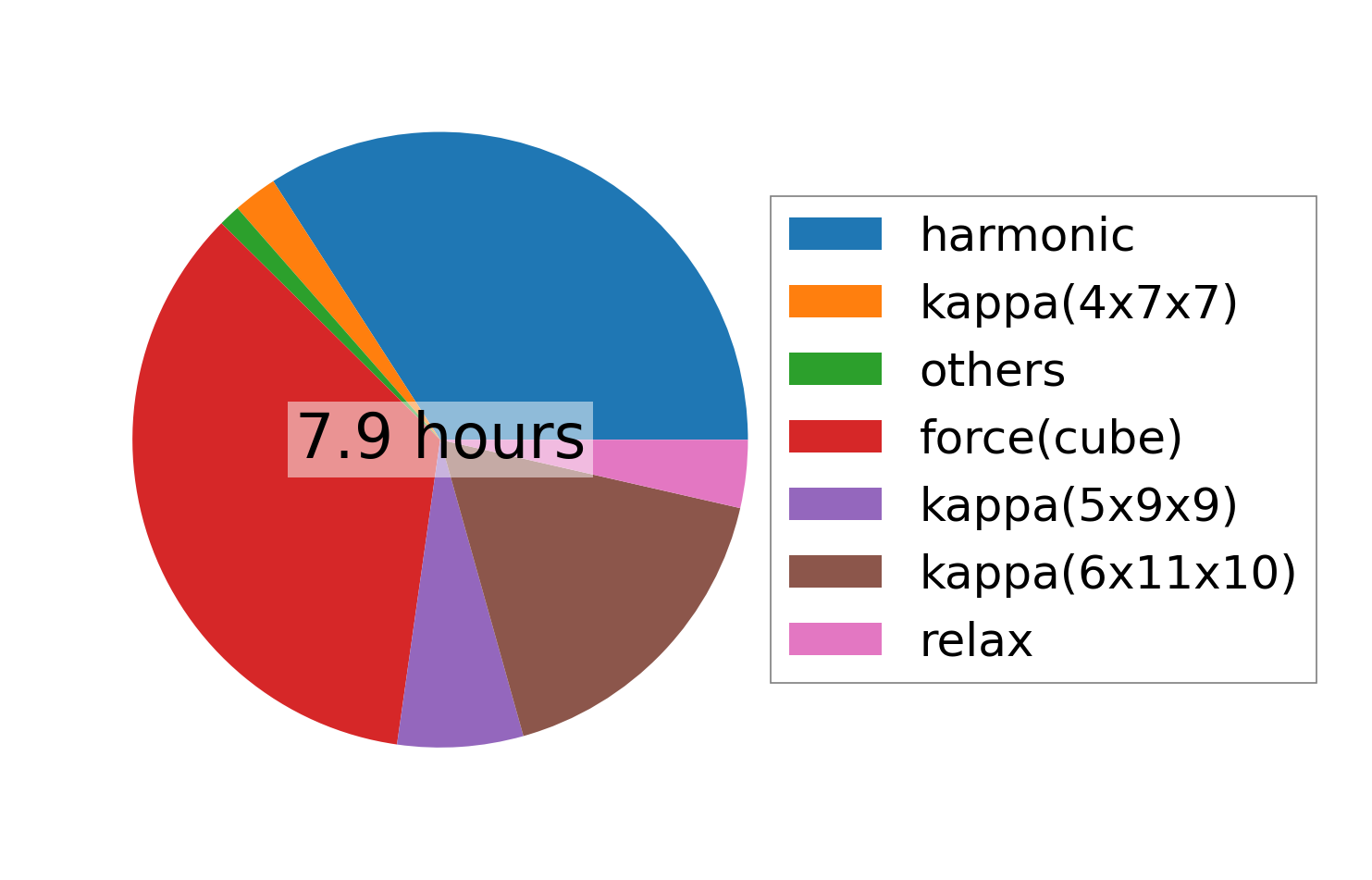

../../_images/fig_times18389.png — (b) Computation time
