mp-1205337/Ca3Al2P4/anharm

Space group: C2/c (15)
Link: Materials Project
Download: mp-1205337.tar.gz

Harmonic properties

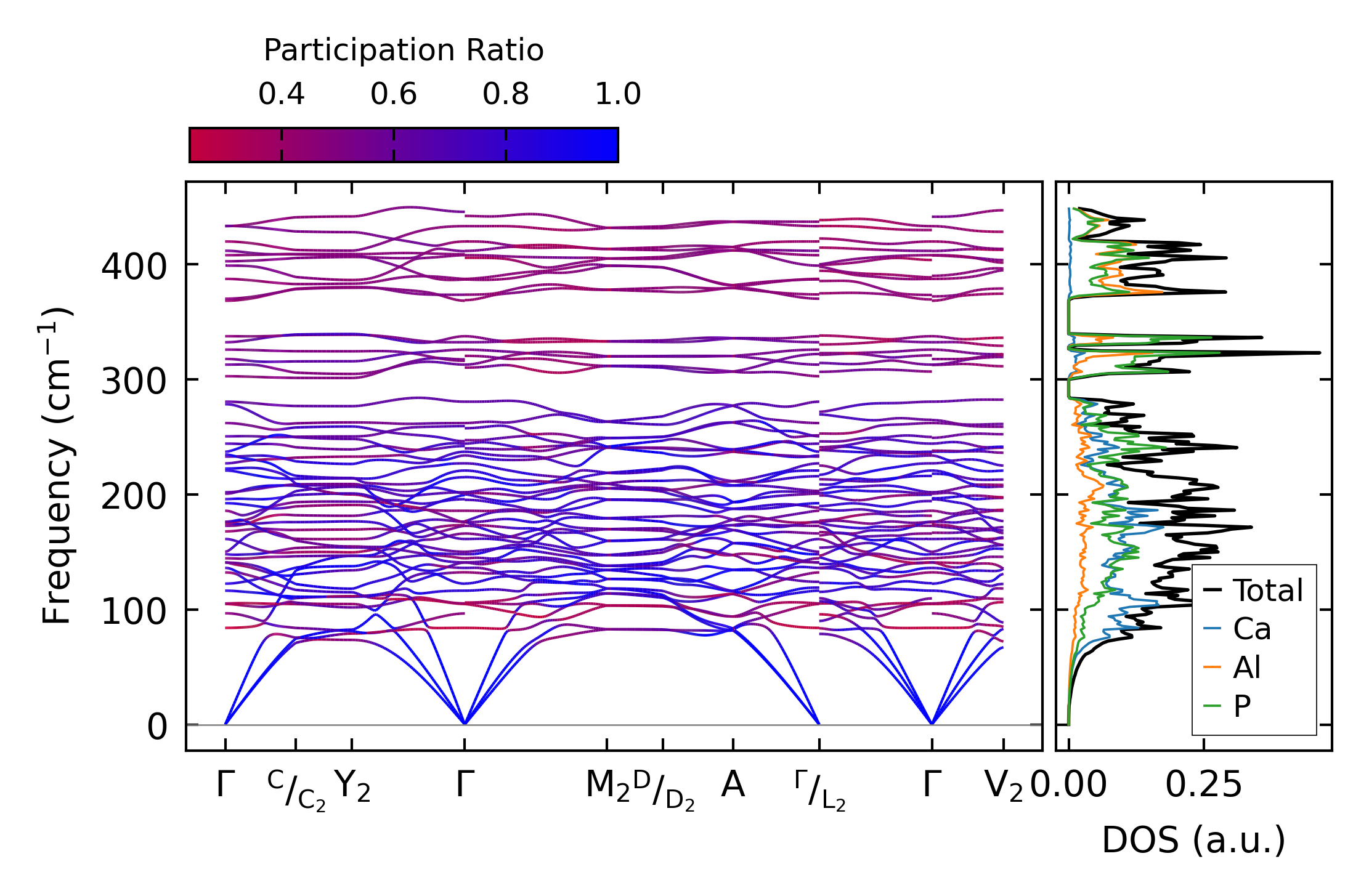

../../_images/fig_bandos_pr15396.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15395.png — (b) Thermodynamic properties

Grüneisen parameters

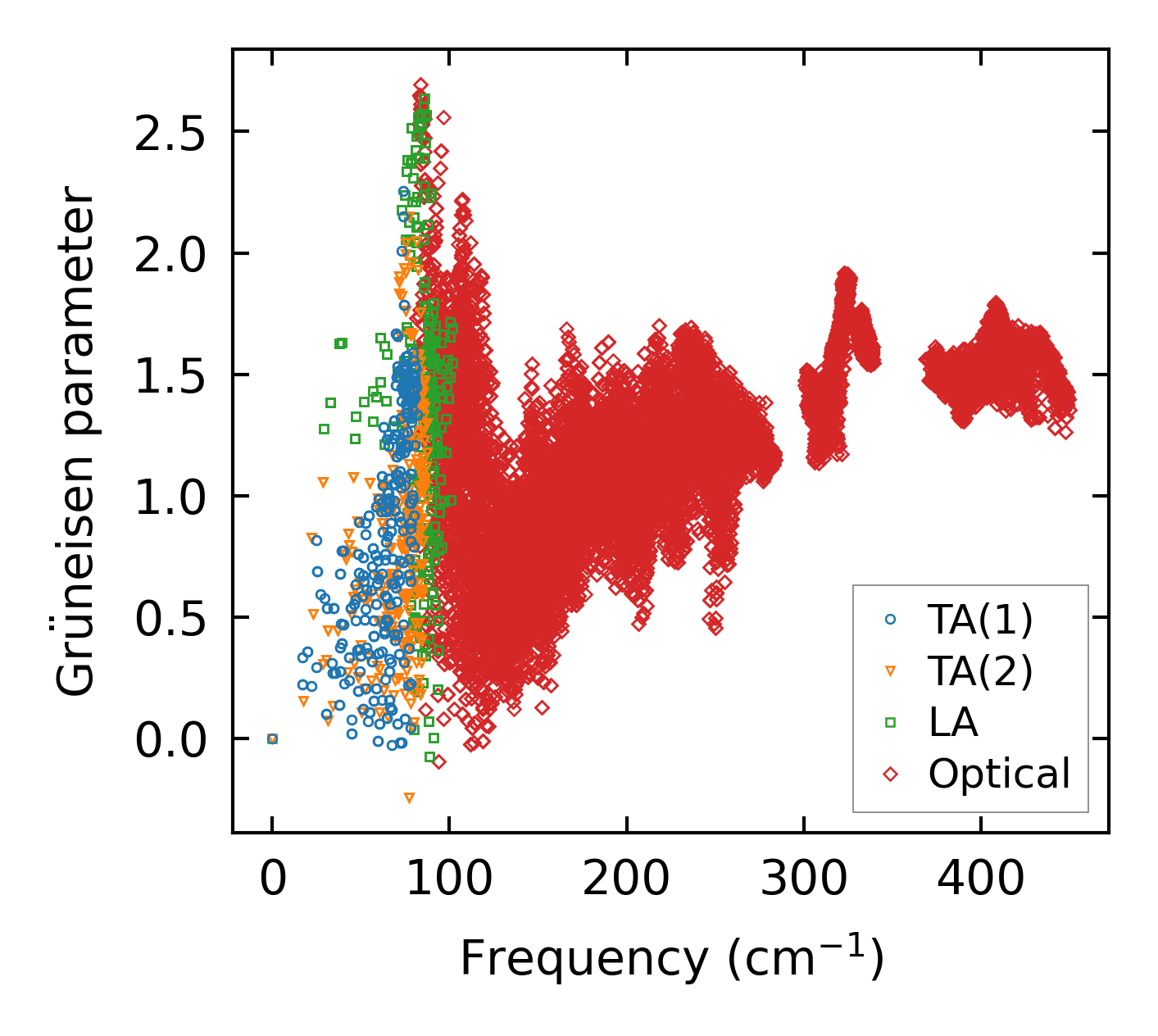

../../_images/fig_gru_all6663.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6663.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x9x11, supercell: 1x2x2

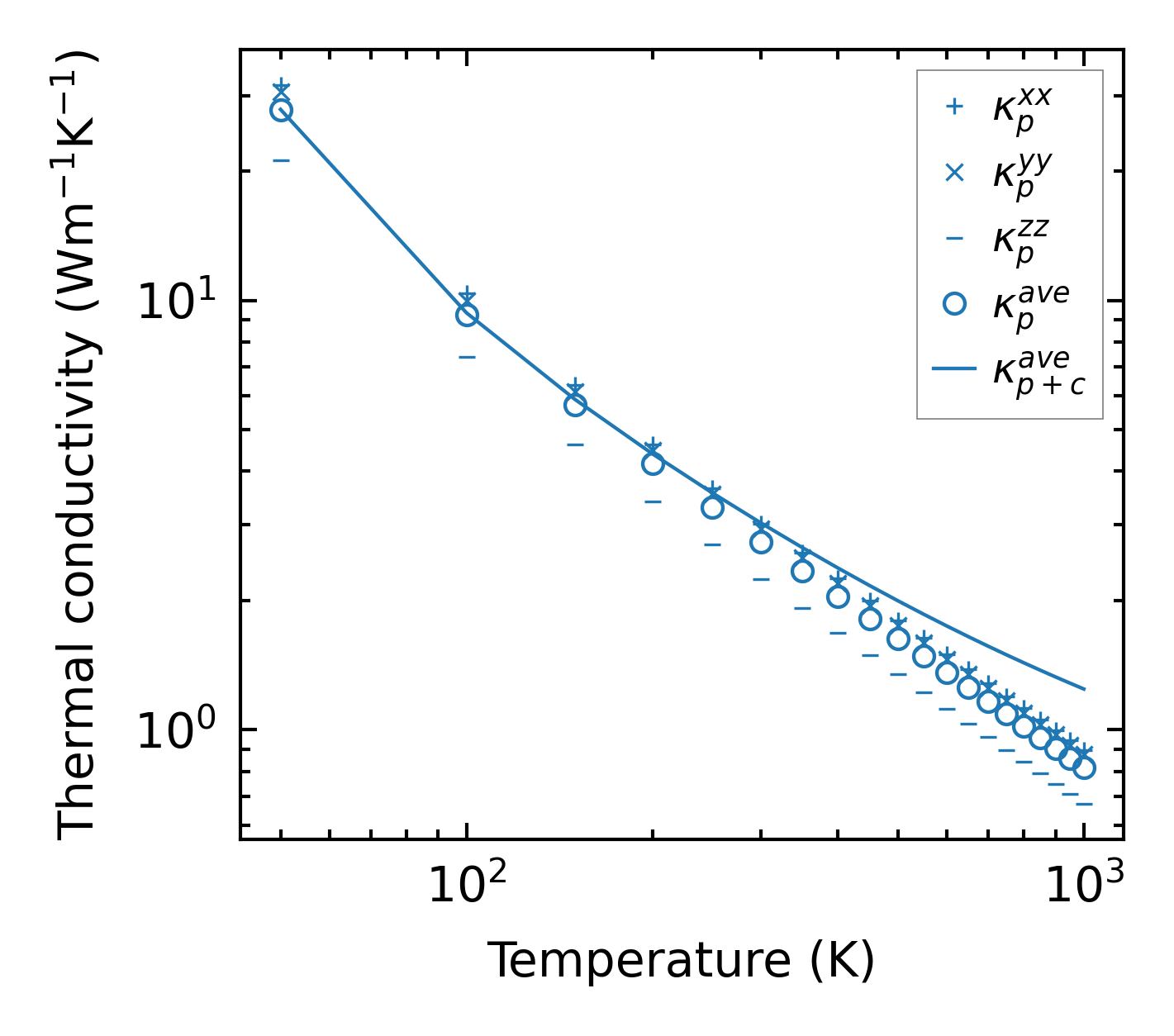

../../_images/fig_kappa12548.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size6741.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

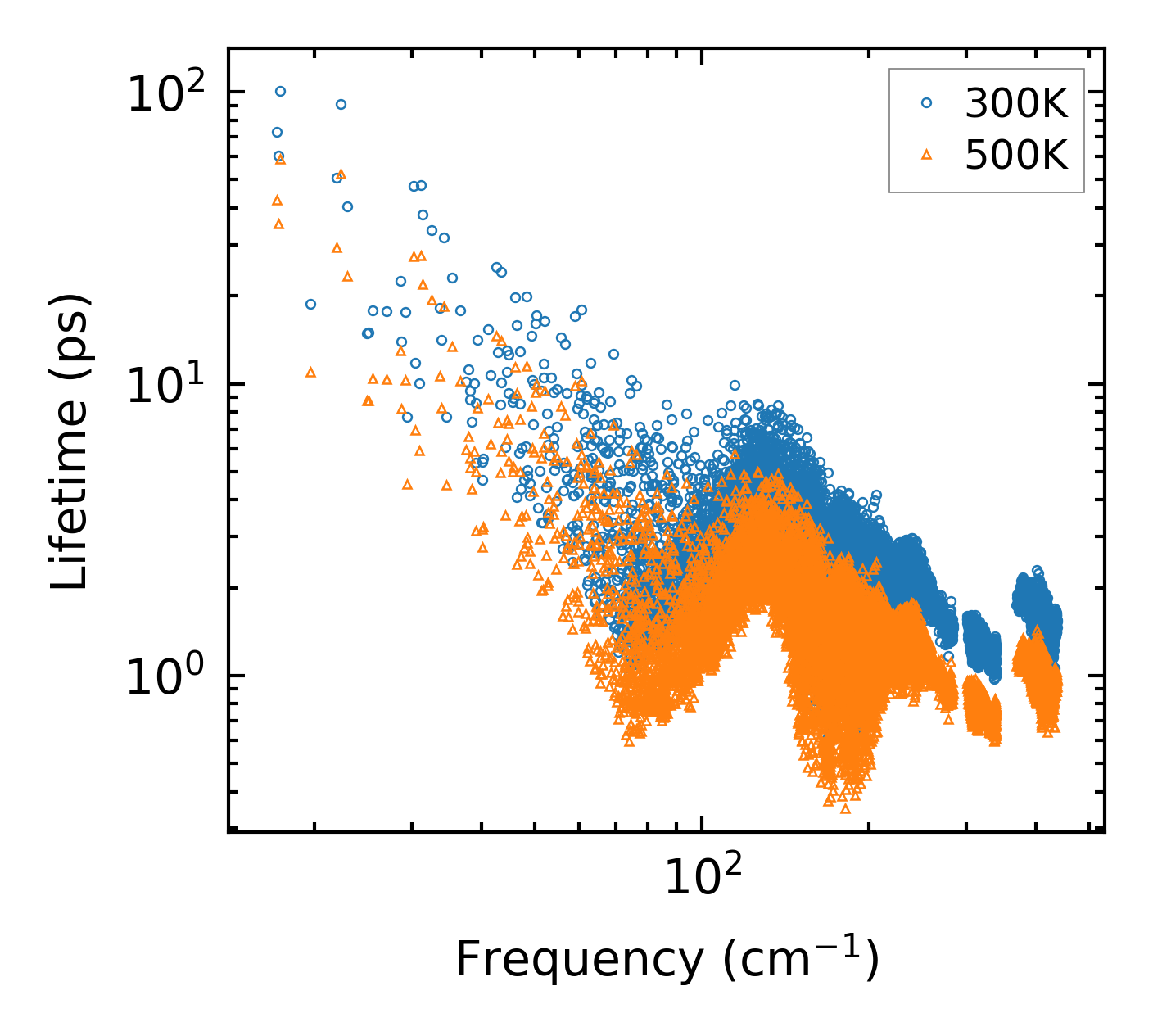

../../_images/fig_lifetime6597.png — (a) Phonon lifetime due to phonon-phonon scattering

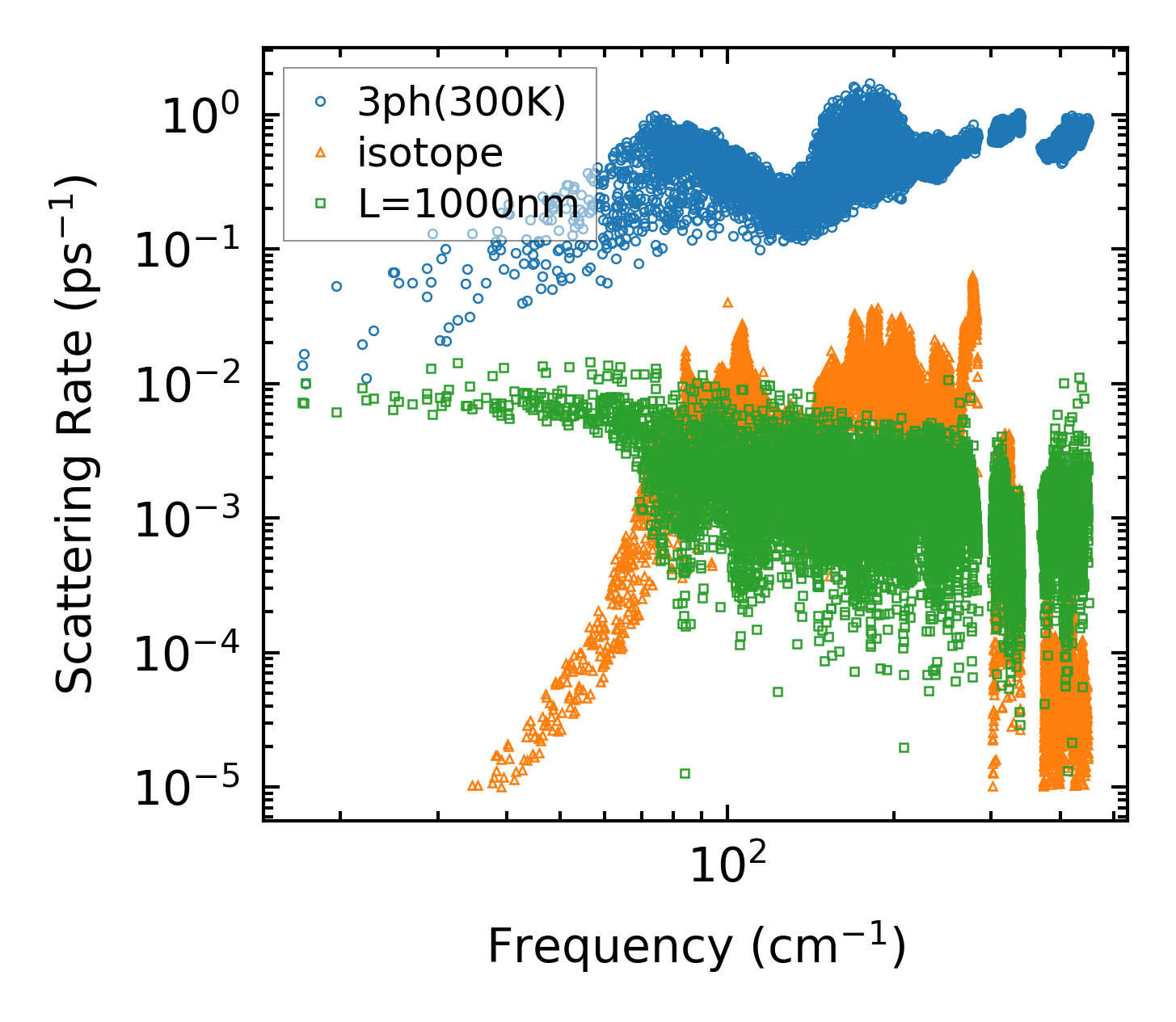

../../_images/fig_scat_rates6596.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

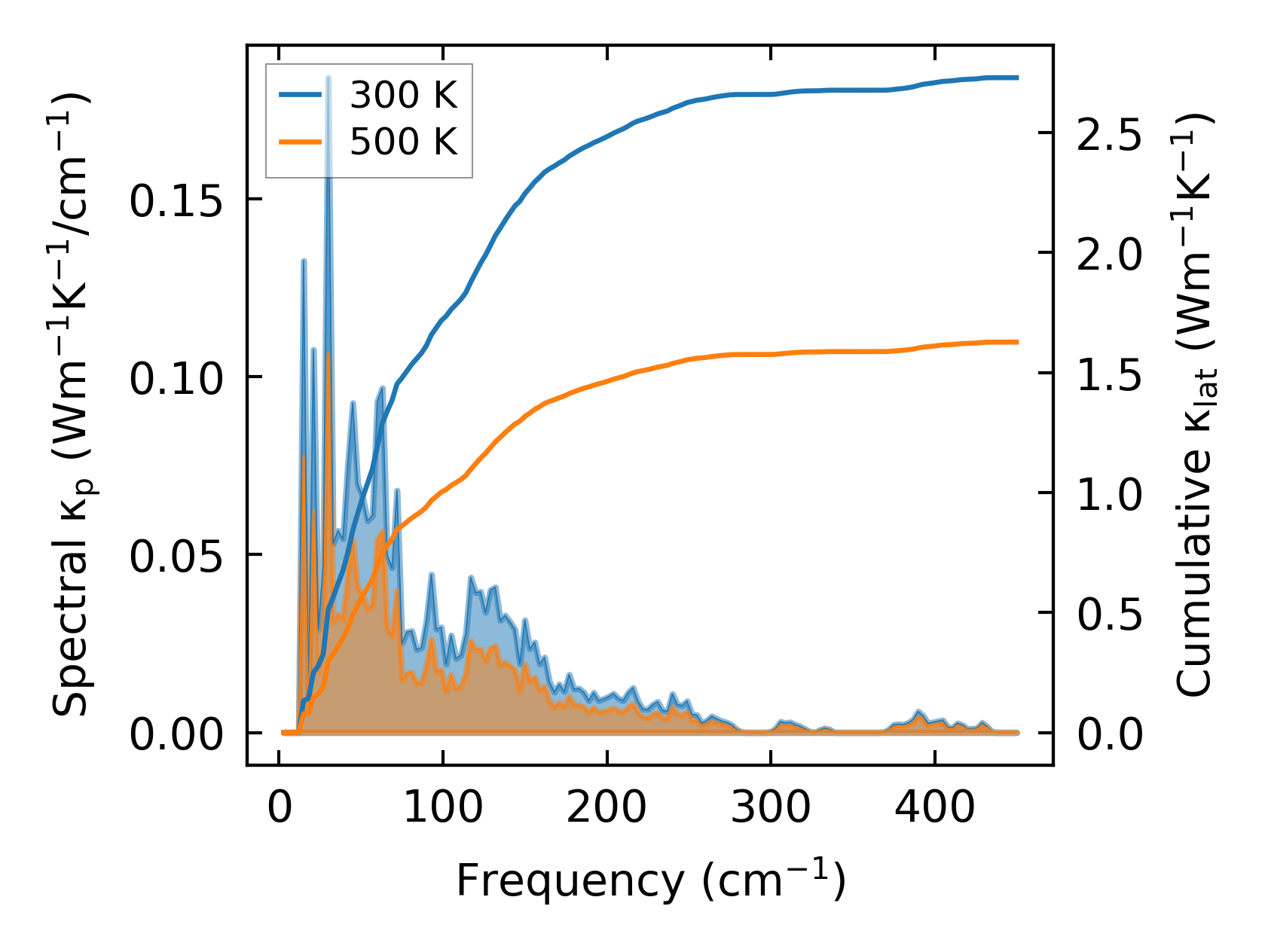

../../_images/fig_cumu_frequency6597.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp6596.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

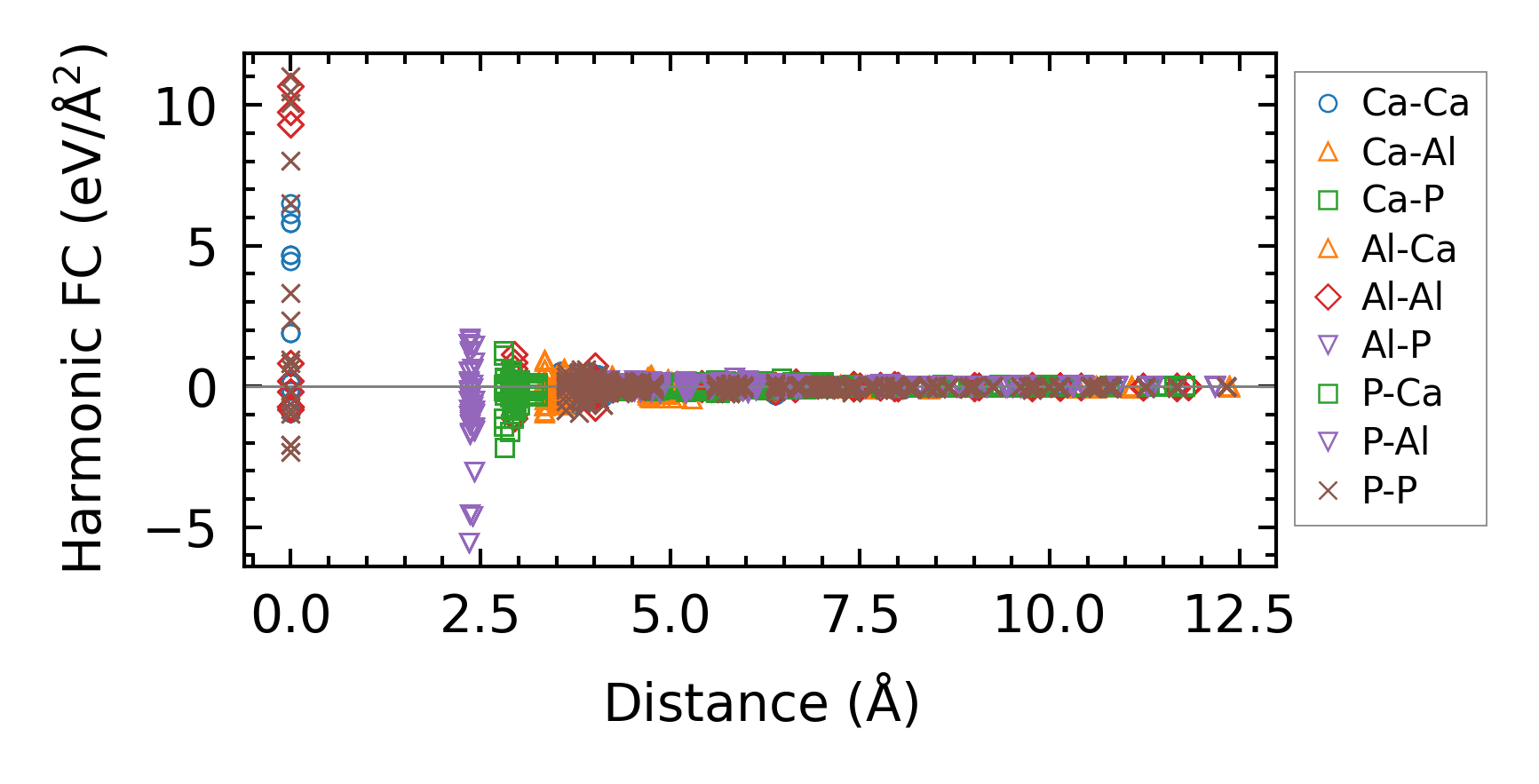

../../_images/fig_fc214999.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa12549.png — (a) Temperature-dependent lattice thermal conductivity

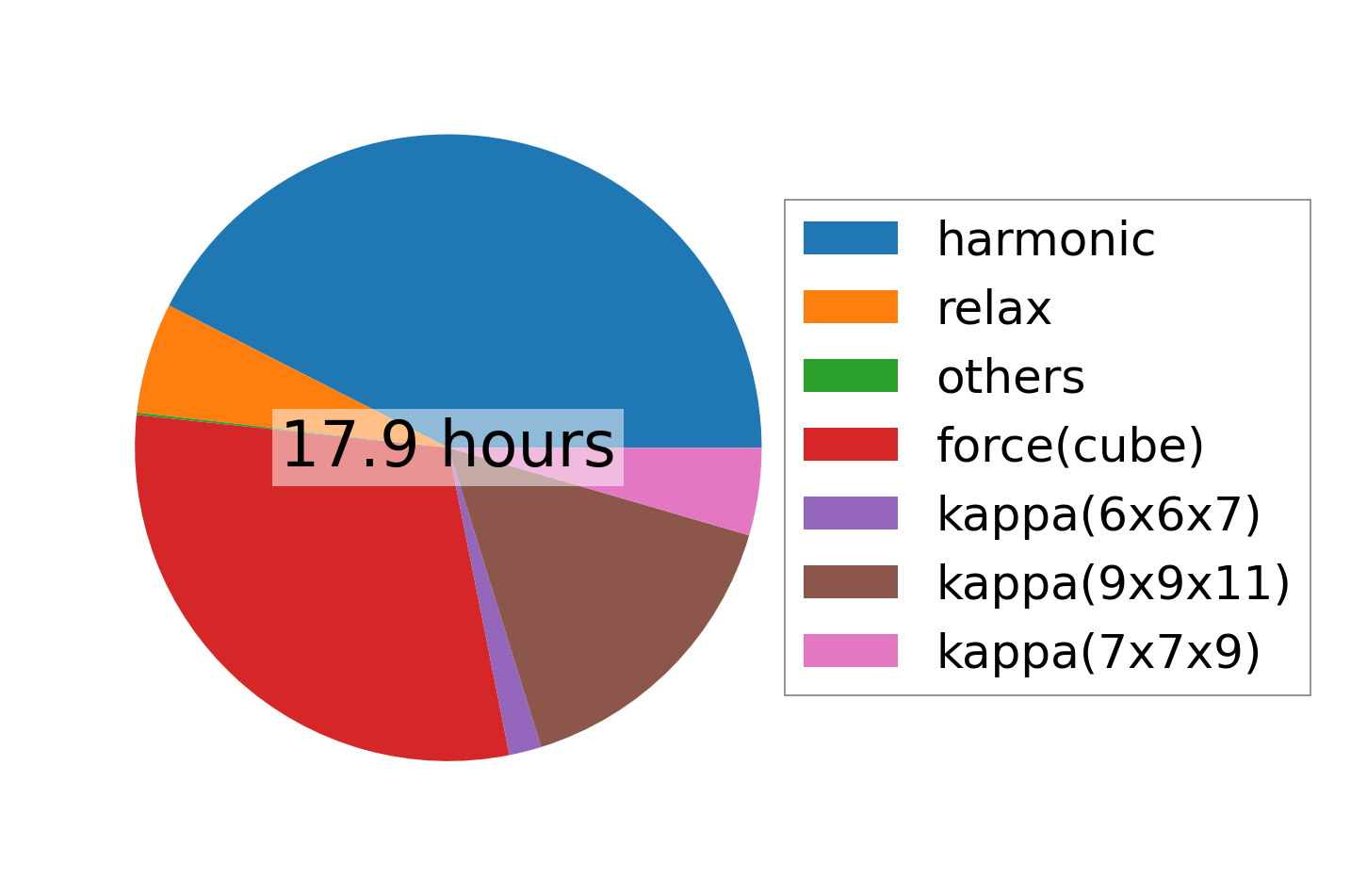

../../_images/fig_times25464.png — (b) Computation time
