mp-1205321/PtS/anharm

Space group: P4_2/m (84)
Link: Materials Project
Download: mp-1205321.tar.gz

Harmonic properties

../../_images/fig_bandos_pr15390.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15389.png — (b) Thermodynamic properties

Grüneisen parameters

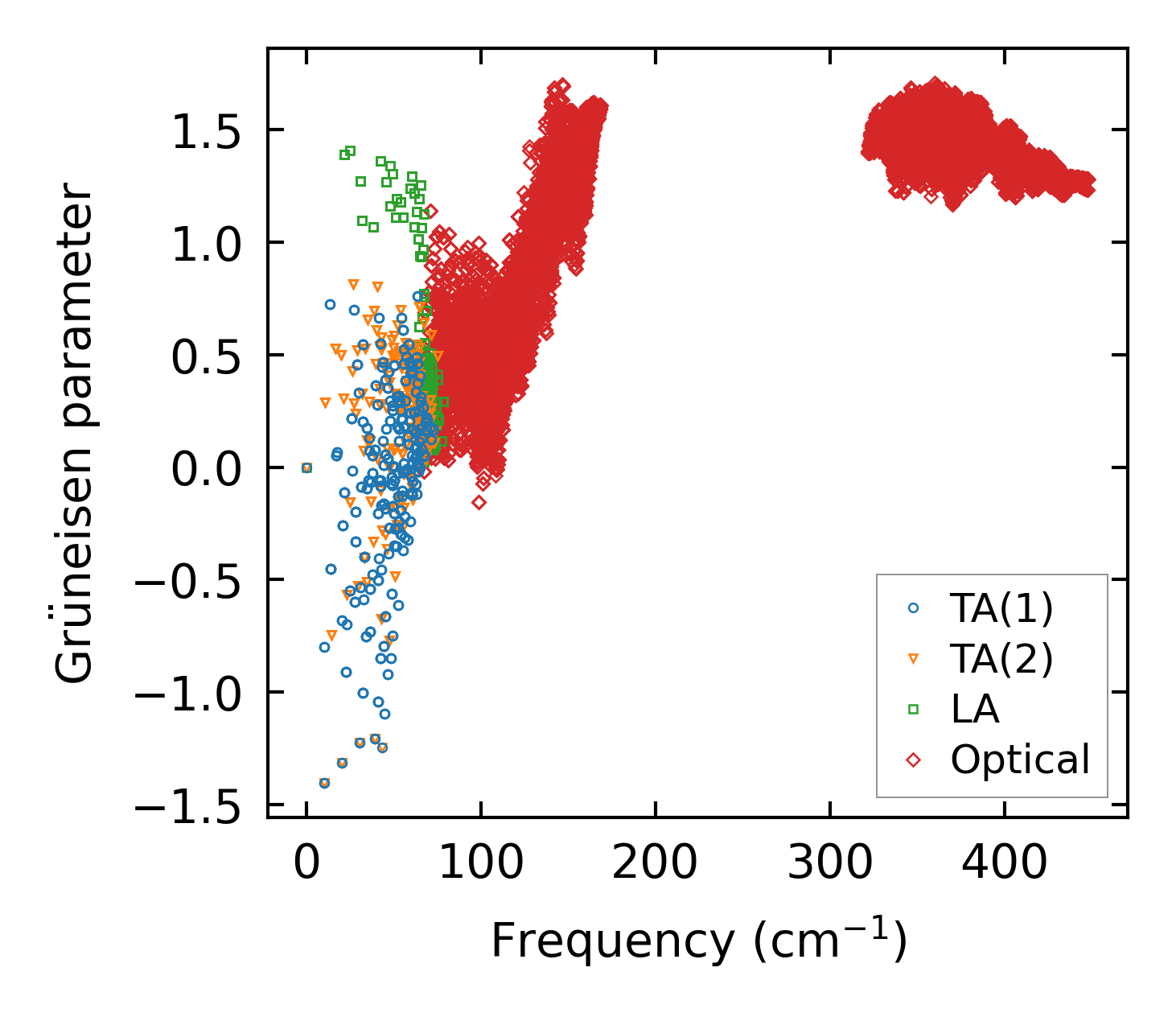

../../_images/fig_gru_all6660.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6660.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x10, supercell: 2x2x2

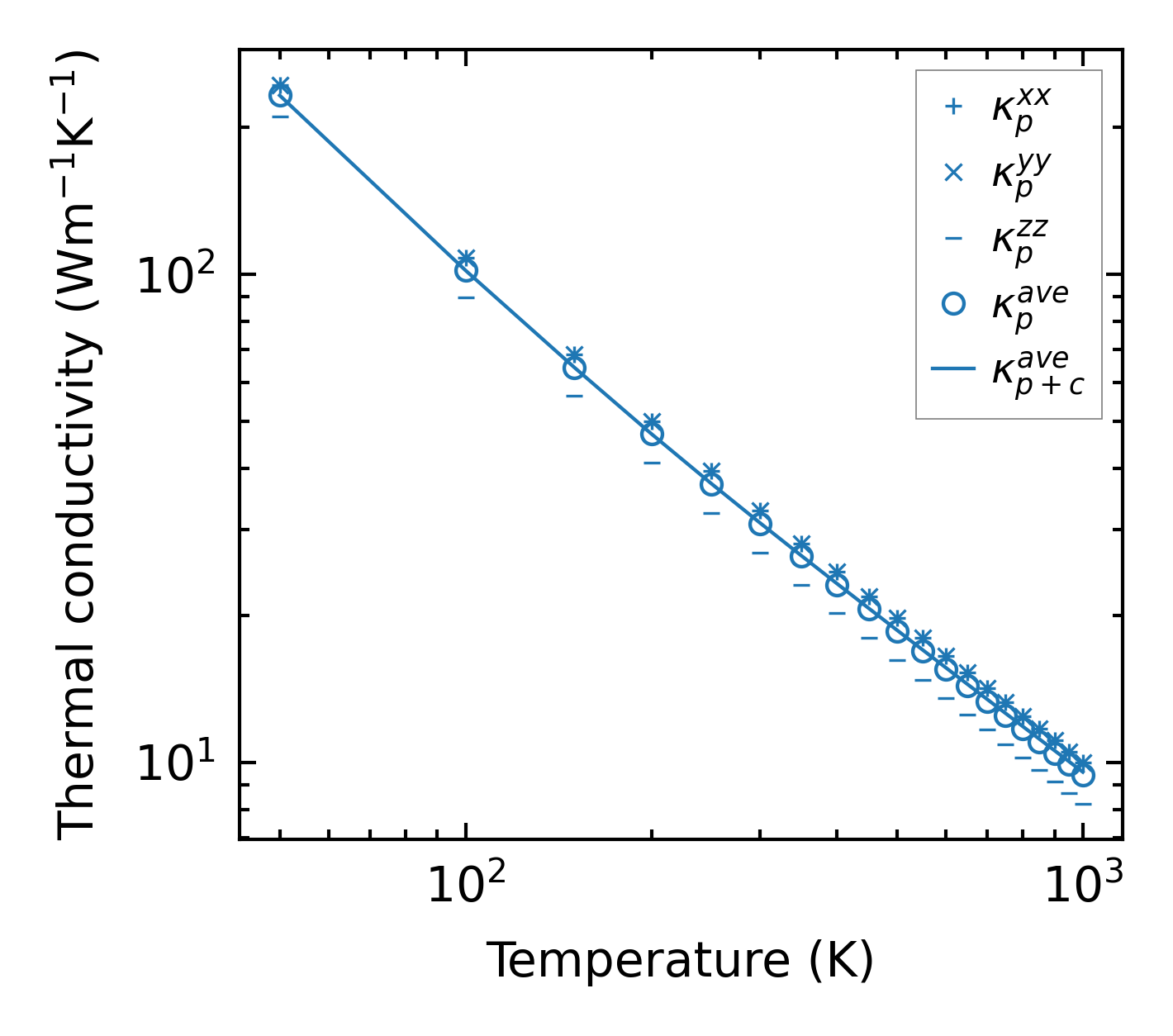

../../_images/fig_kappa12542.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size6738.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

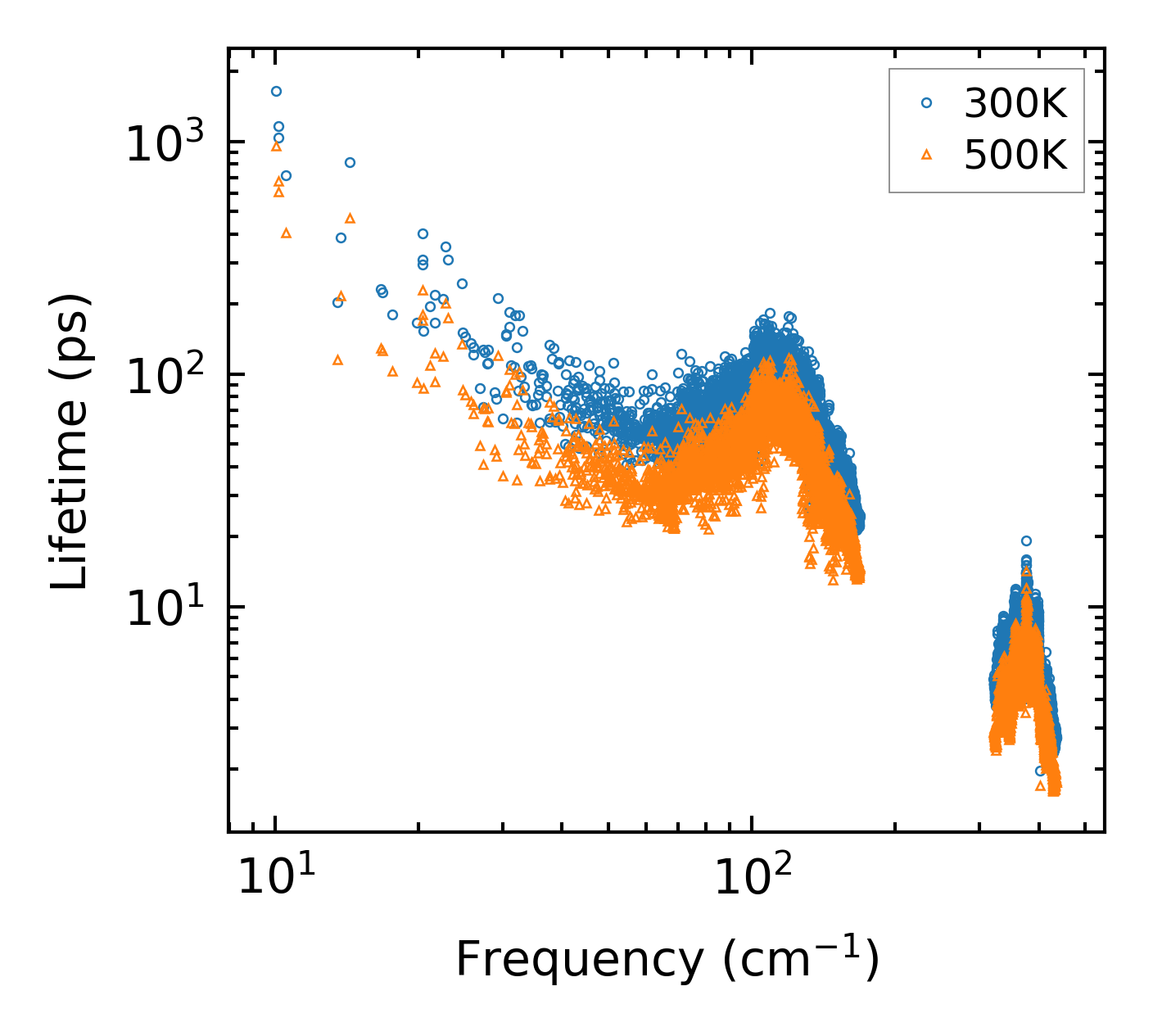

../../_images/fig_lifetime6594.png — (a) Phonon lifetime due to phonon-phonon scattering

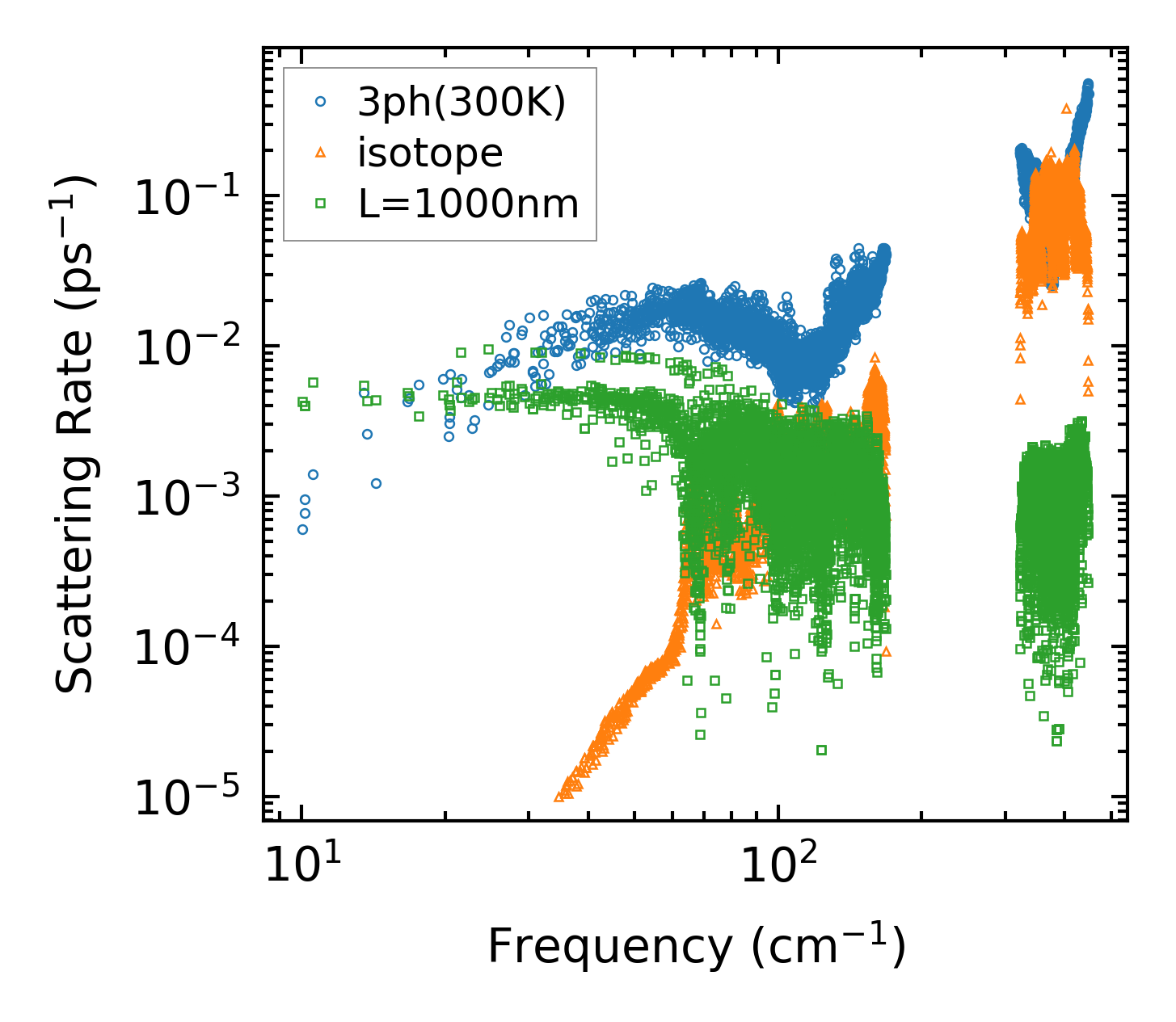

../../_images/fig_scat_rates6593.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

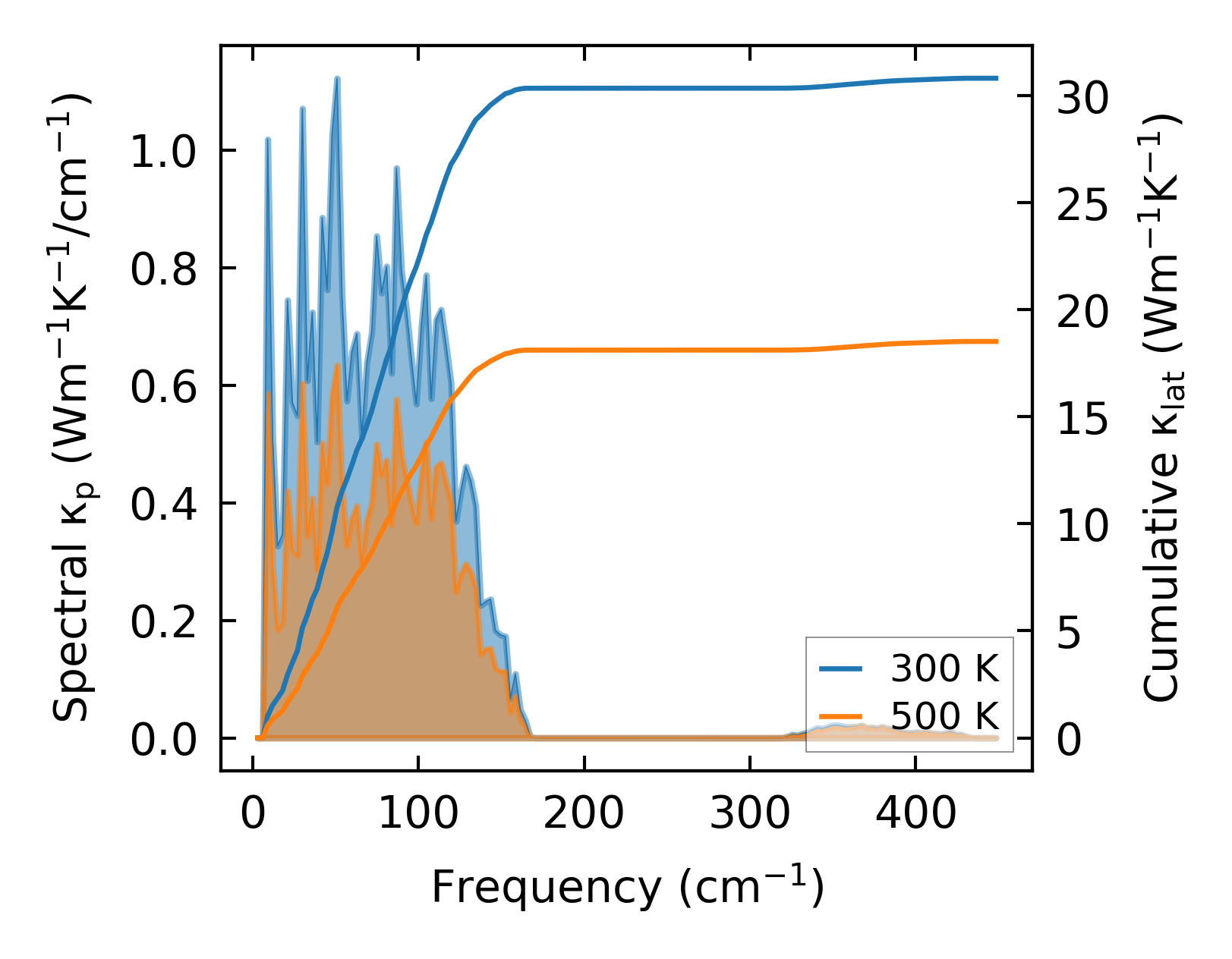

../../_images/fig_cumu_frequency6594.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

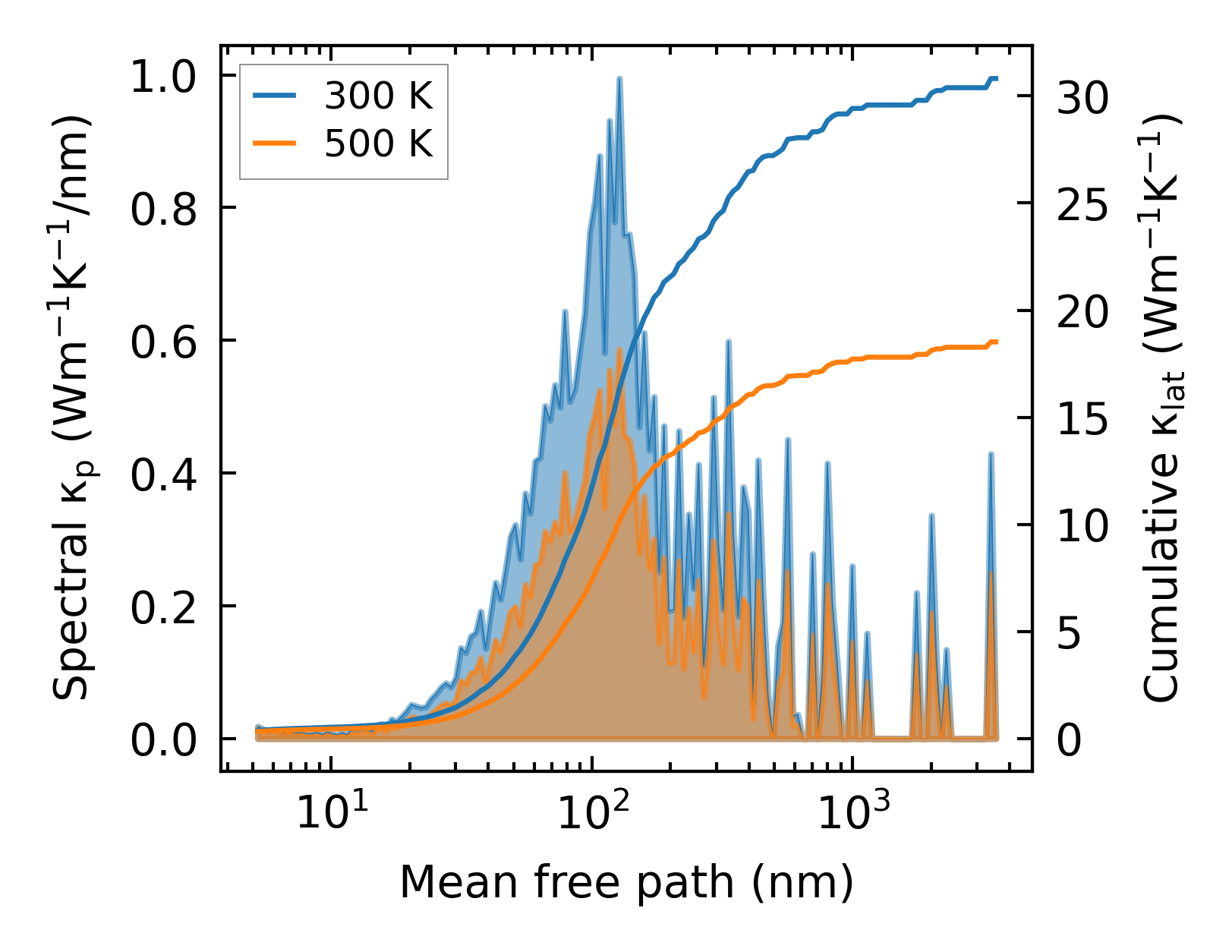

../../_images/fig_cumu_mfp6593.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

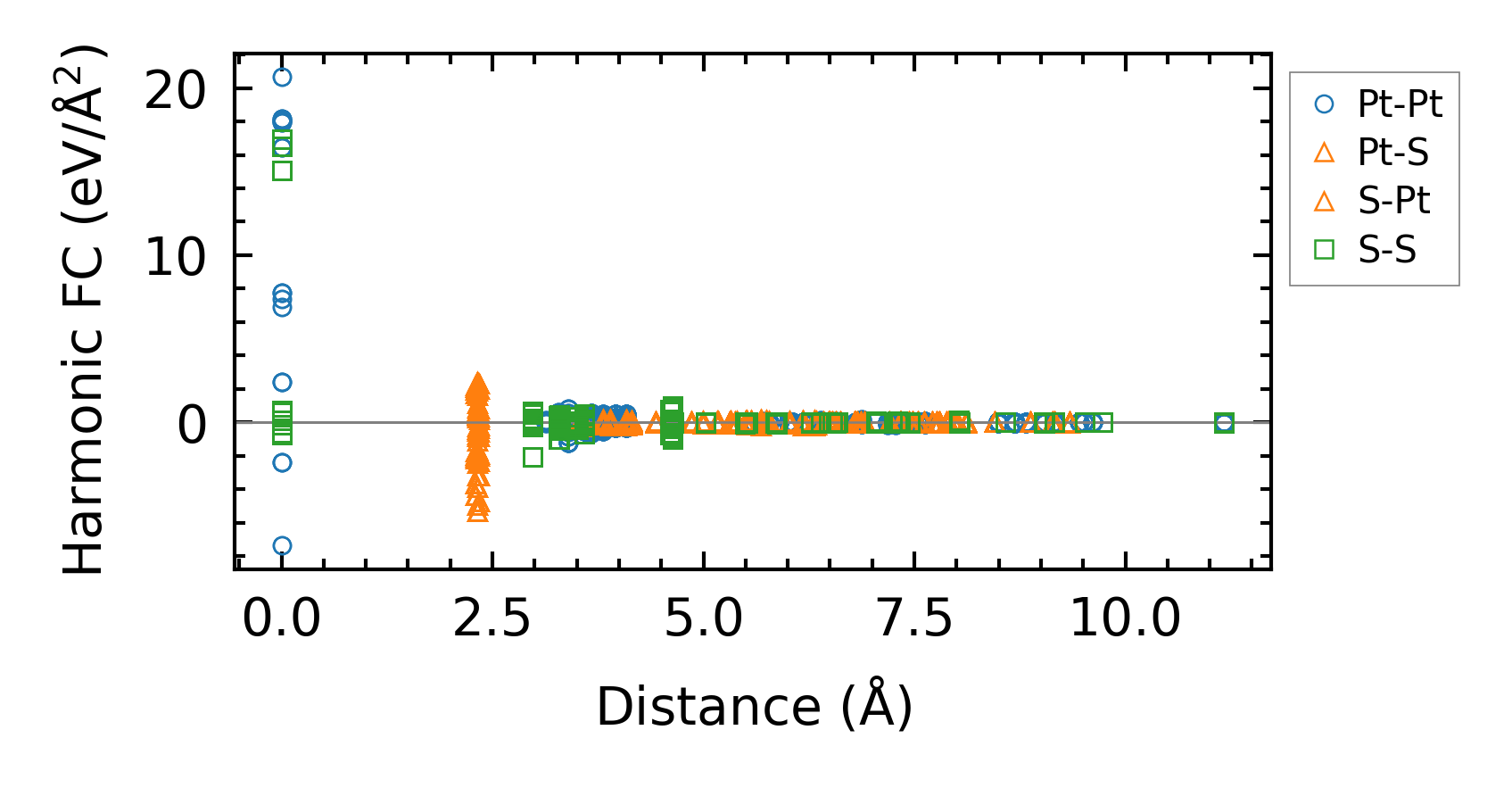

../../_images/fig_fc214993.png — (a) Force constants w.r.t atomic distance

Summary

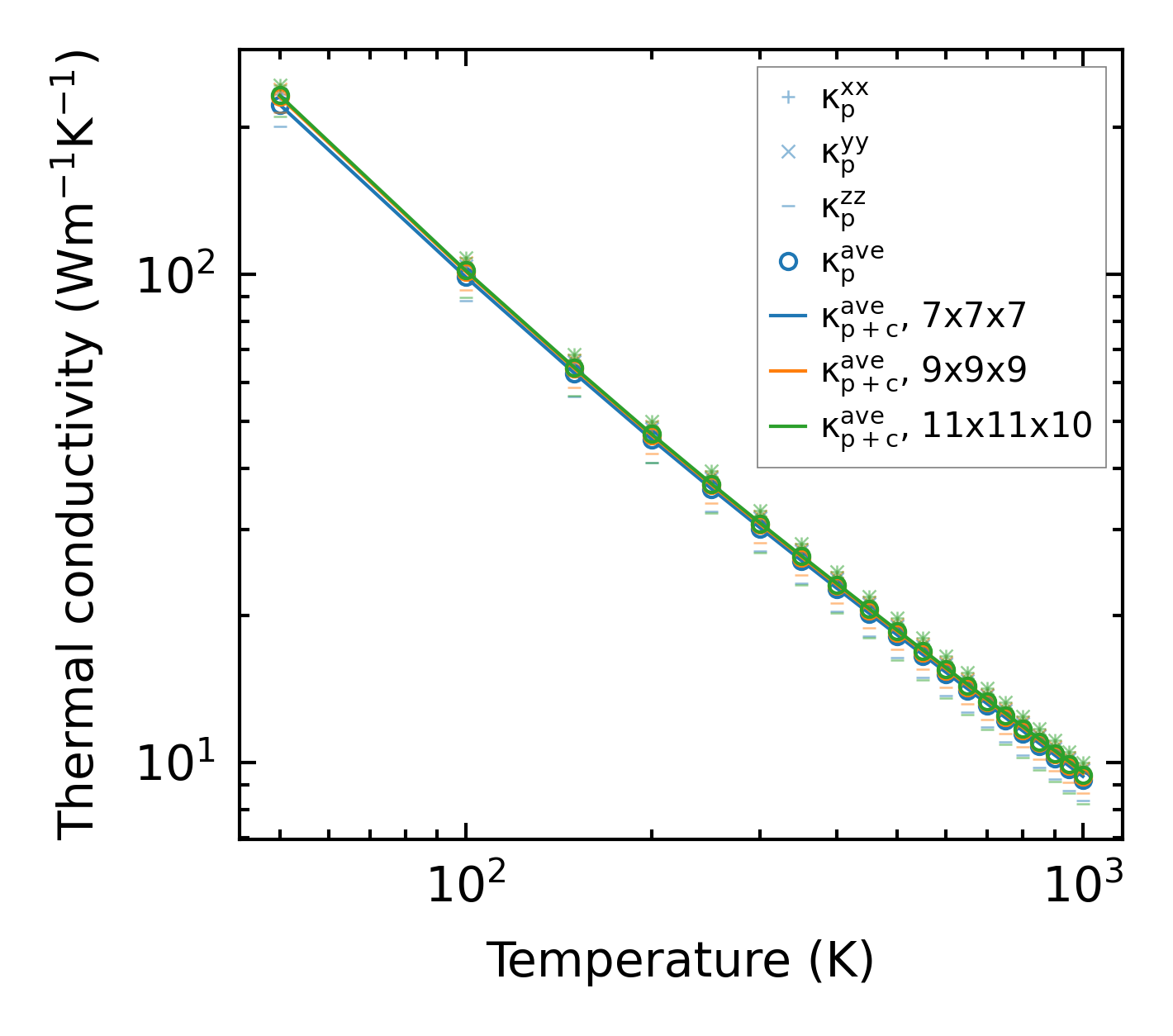

../../_images/fig_kappa12543.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times25458.png — (b) Computation time
