mp-680676/K2Dy4Cu4S9/anharm

Space group: C2/m (12)
Link: Materials Project
Download: mp-680676.tar.gz

Harmonic properties

../../_images/fig_bandos_pr5172.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo5172.png — (b) Thermodynamic properties

Grüneisen parameters

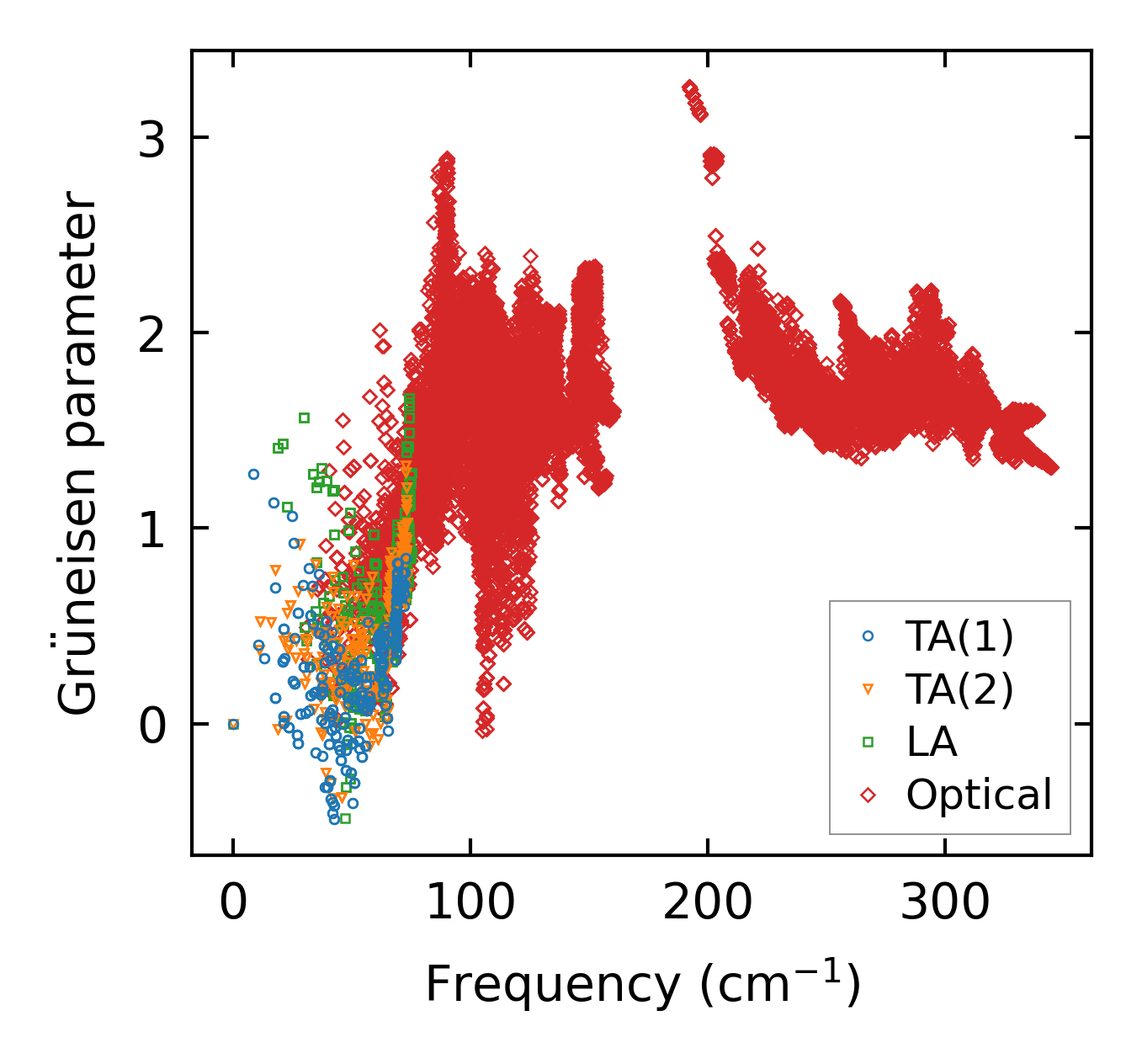

../../_images/fig_gru_all2164.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2164.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x5, supercell: 1x3x1

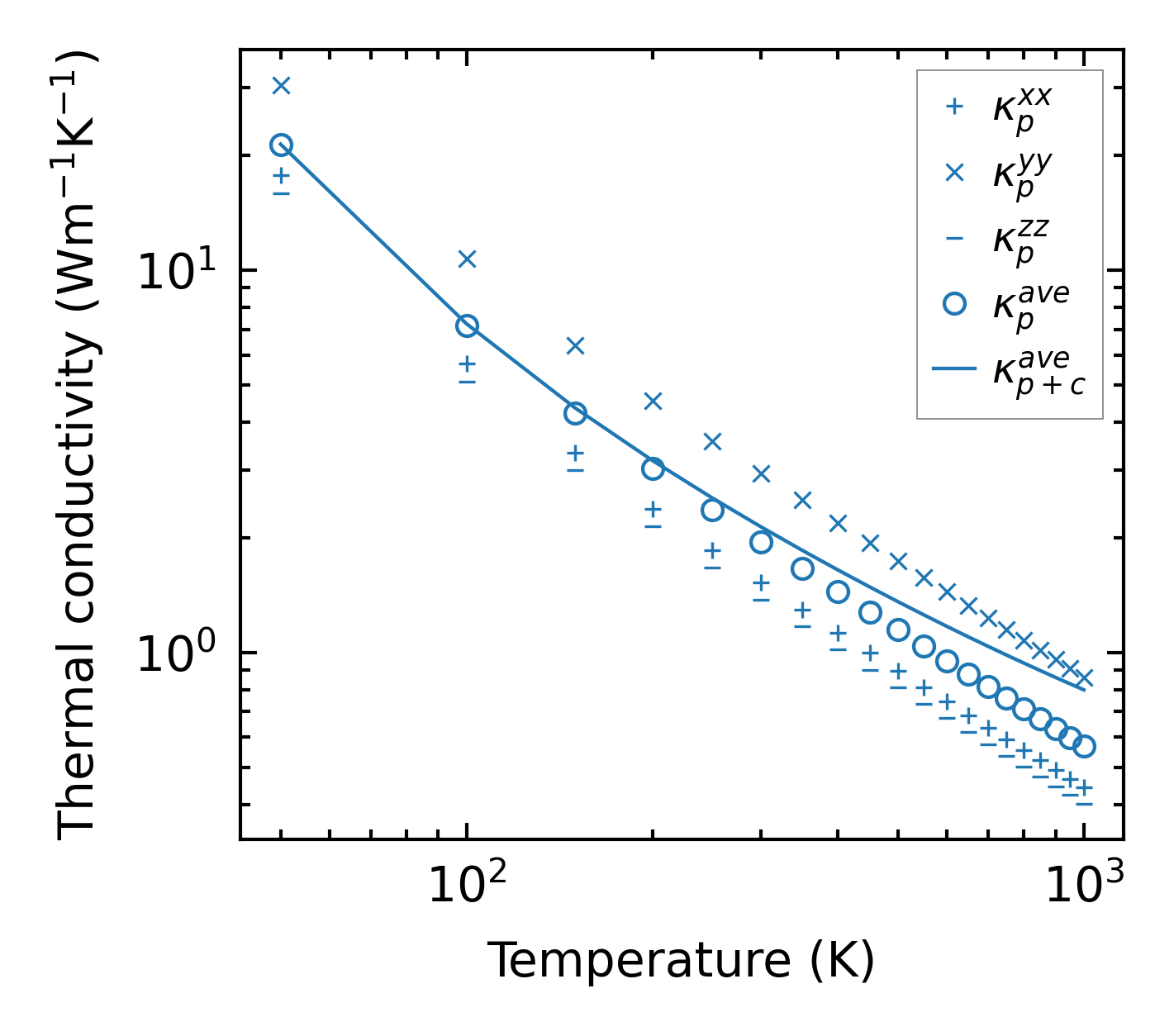

../../_images/fig_kappa4145.png — (a) Temperature-dependent lattice thermal conductivity

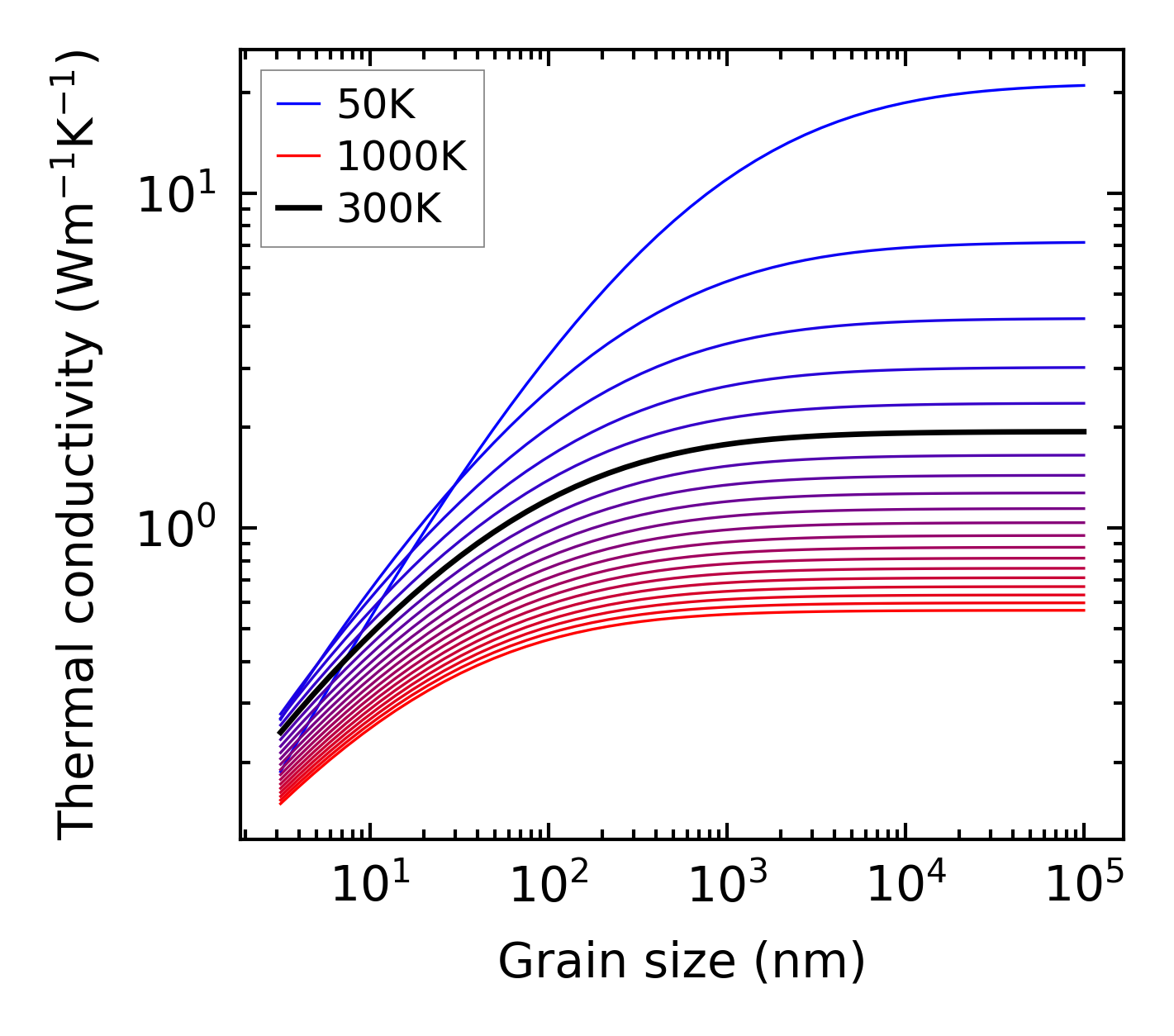

../../_images/fig_kappa_vs_grain_size2196.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime2151.png — (a) Phonon lifetime due to phonon-phonon scattering

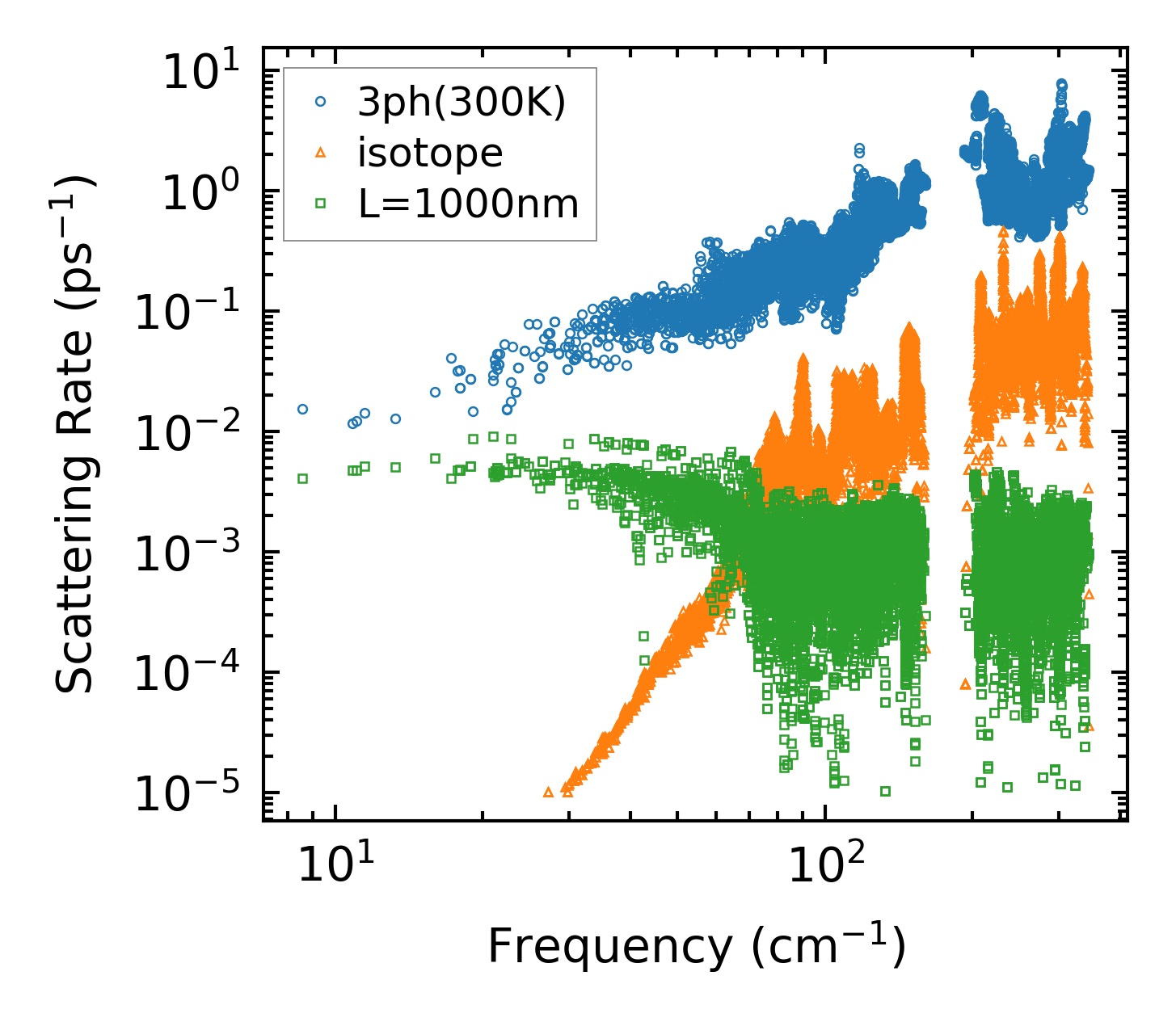

../../_images/fig_scat_rates2150.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency2151.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

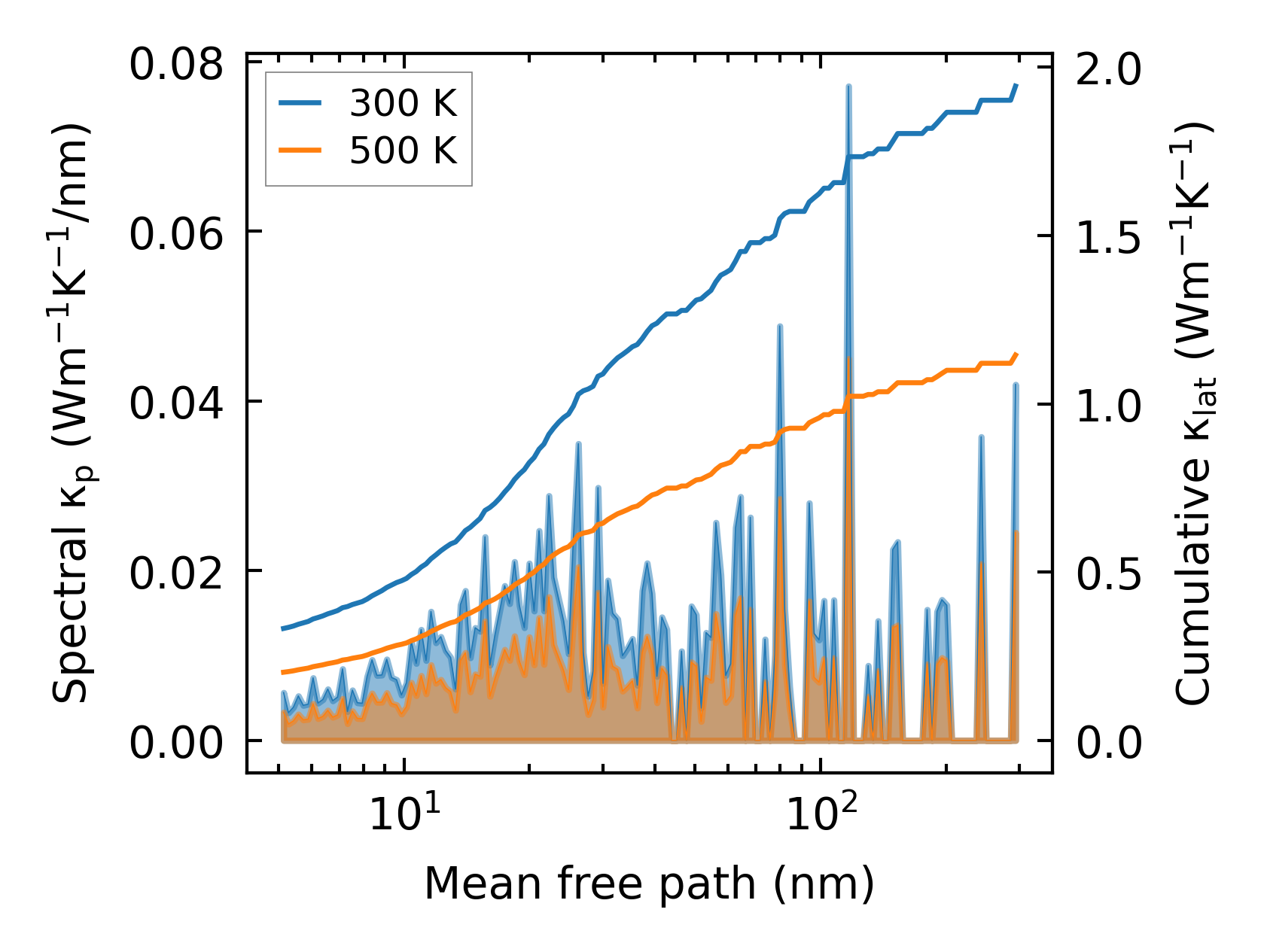

../../_images/fig_cumu_mfp2151.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

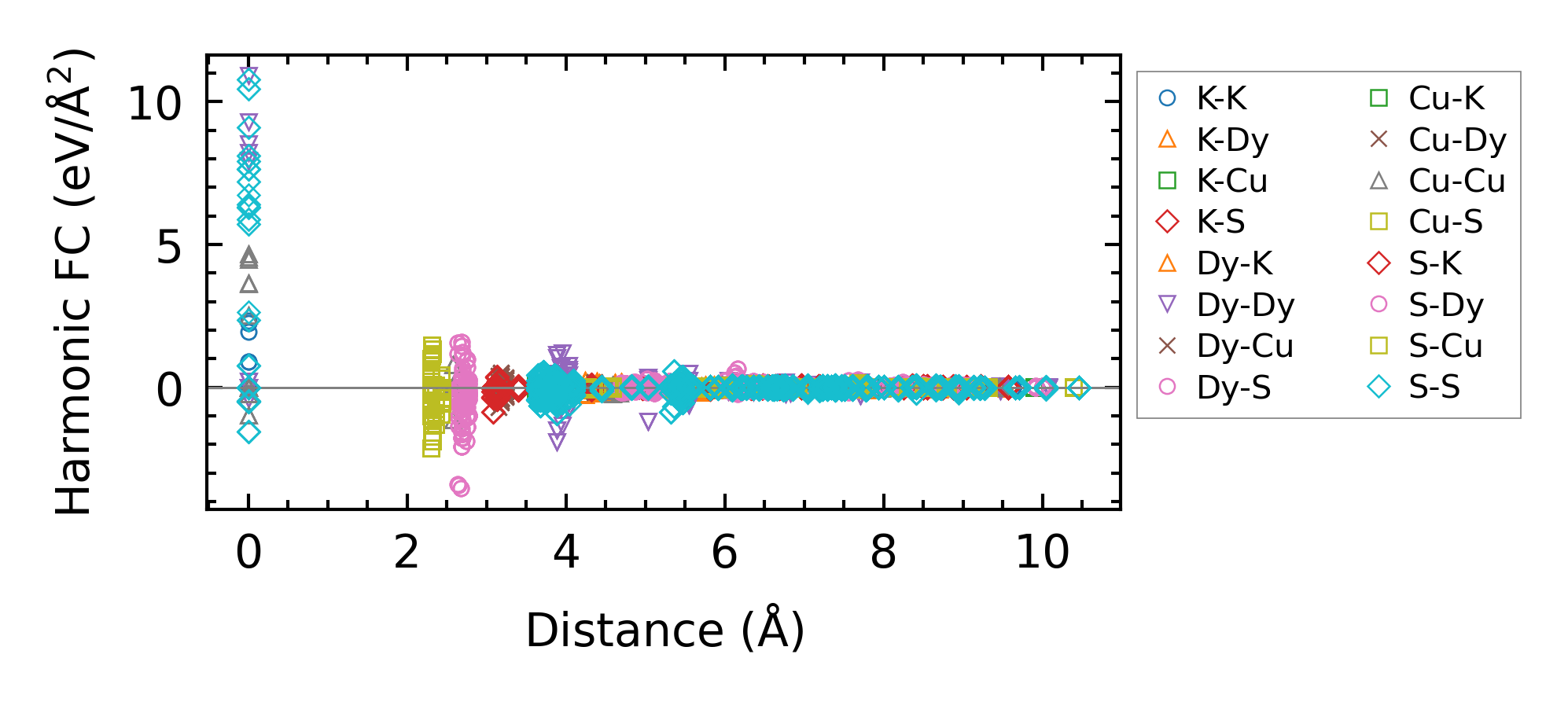

../../_images/fig_fc24977.png — (a) Force constants w.r.t atomic distance

Summary

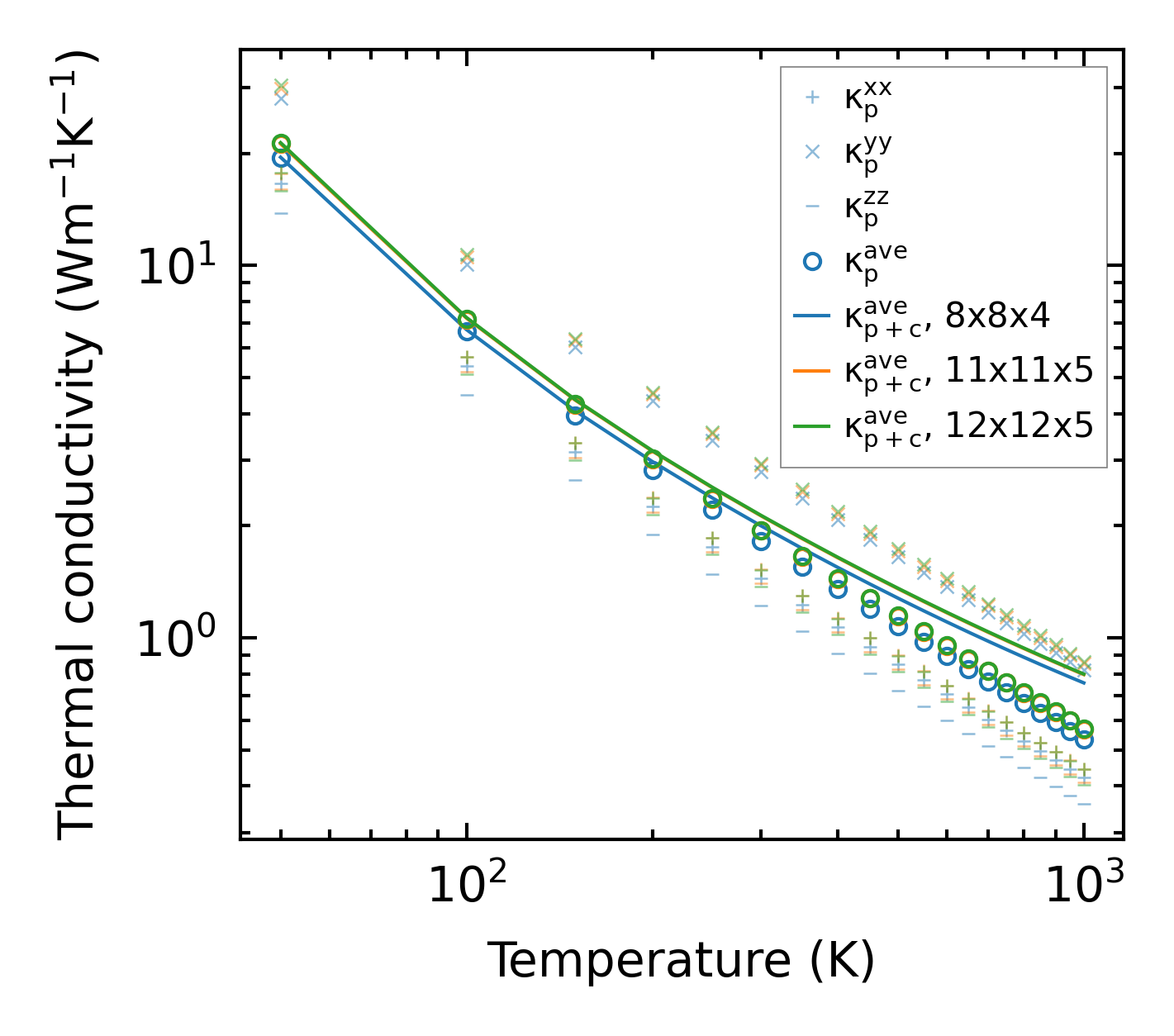

../../_images/fig_kappa4146.png — (a) Temperature-dependent lattice thermal conductivity

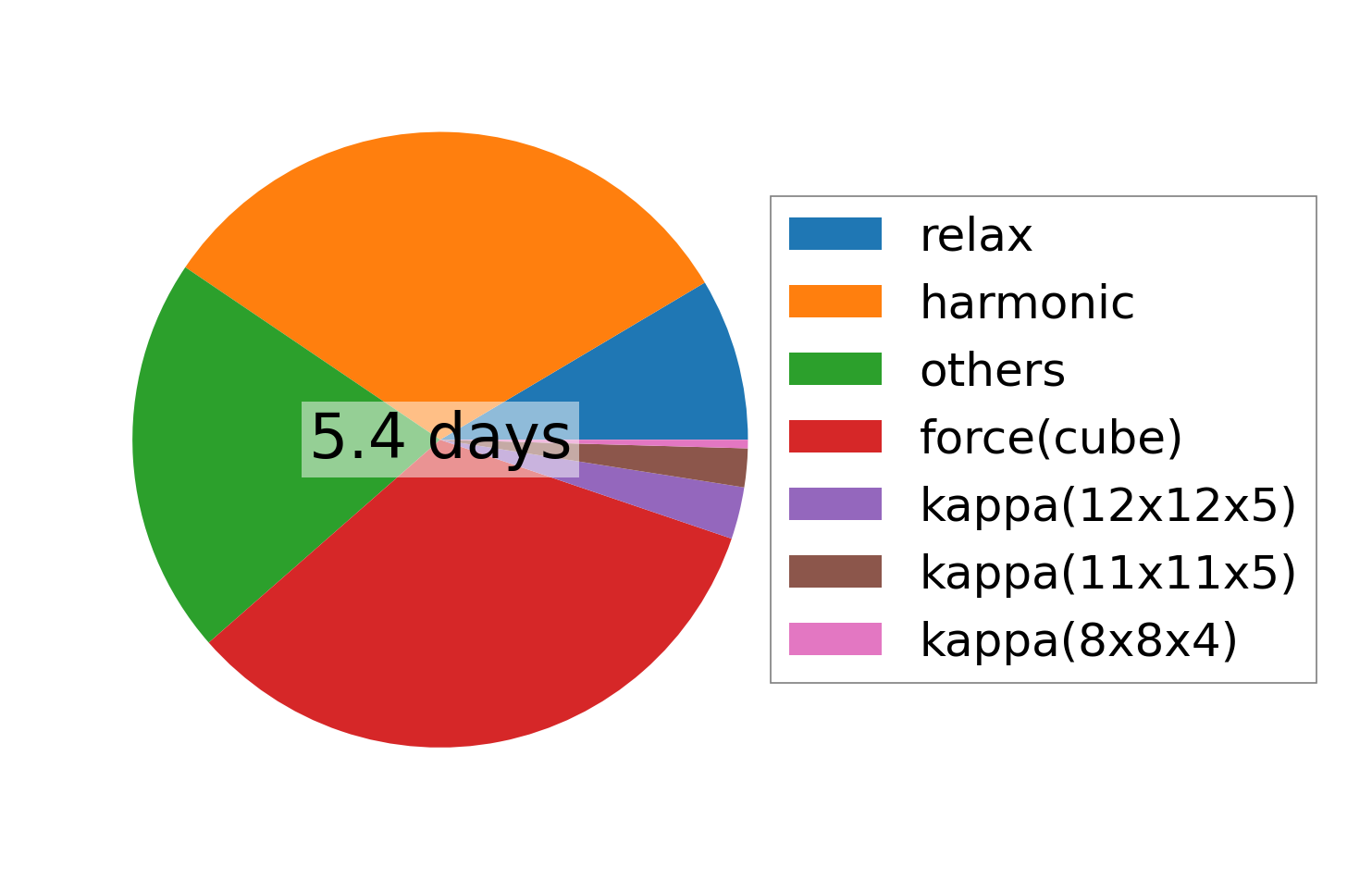

../../_images/fig_times9296.png — (b) Computation time
