mp-680185/CsRe6Se8I3/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-680185.tar.gz

Harmonic properties

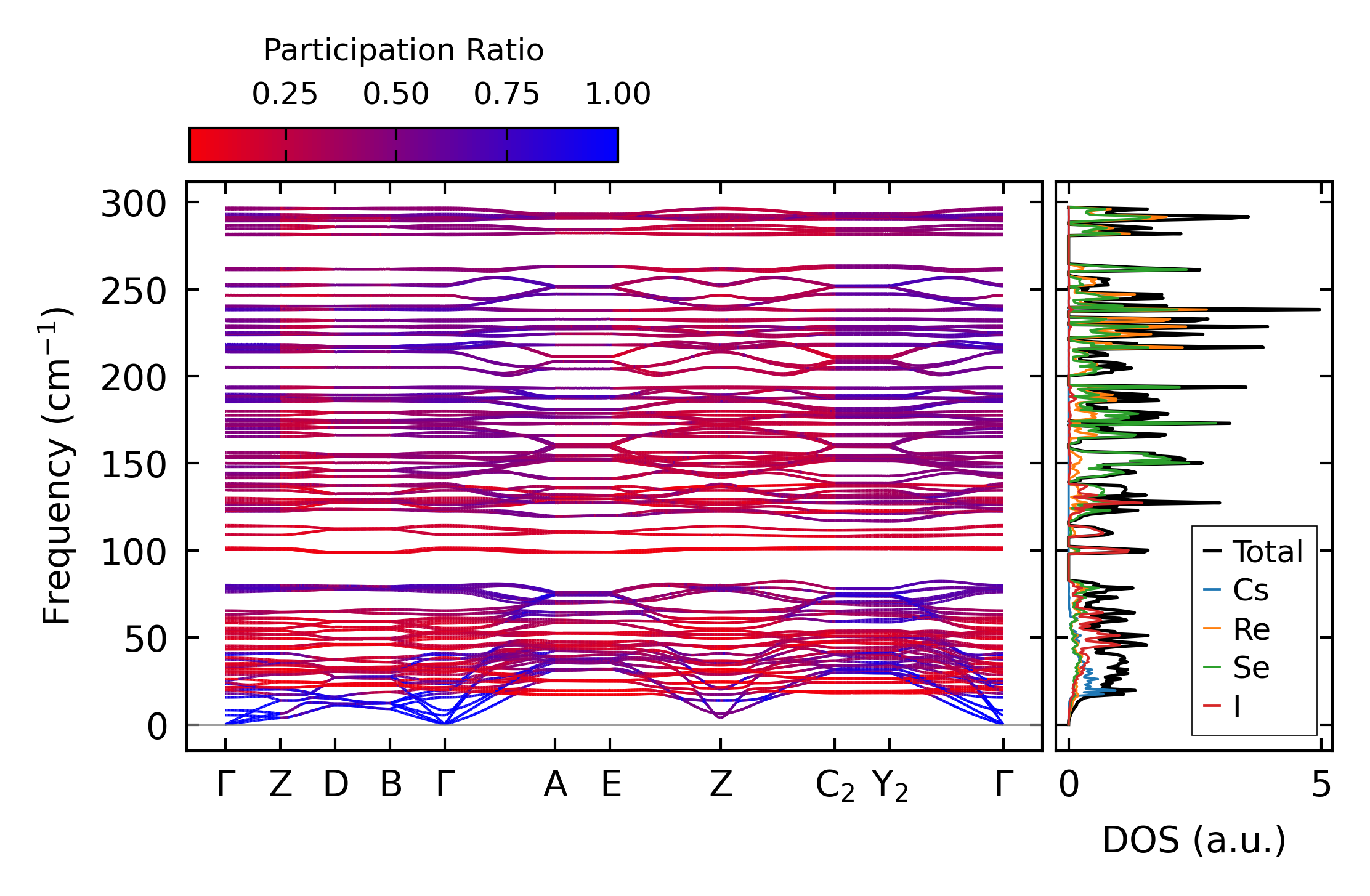

../../_images/fig_bandos_pr5148.png — (a) Phonon dispersion with participation ratio and DOS

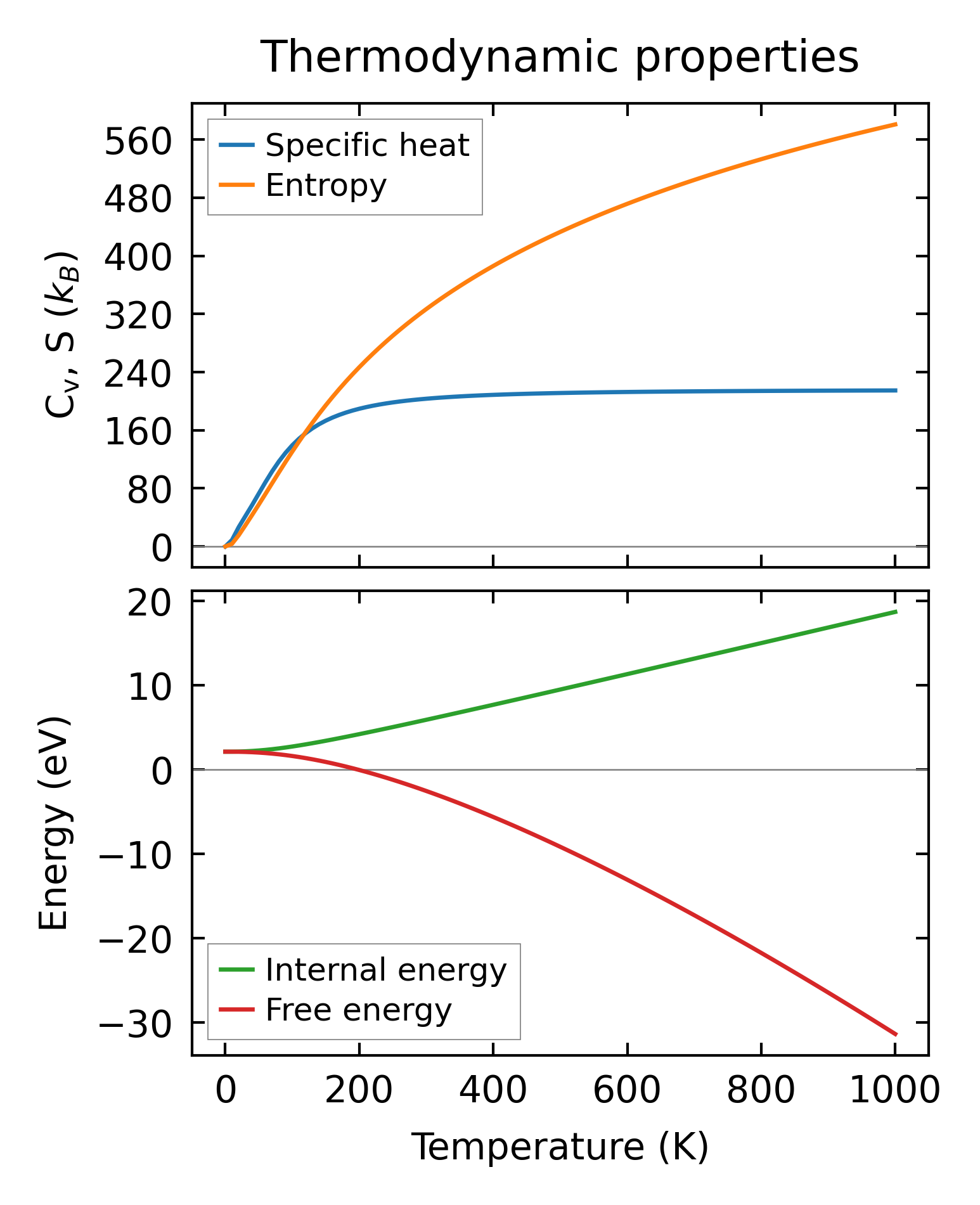

../../_images/fig_thermo5148.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all2153.png — (a) Grüneisen parameters

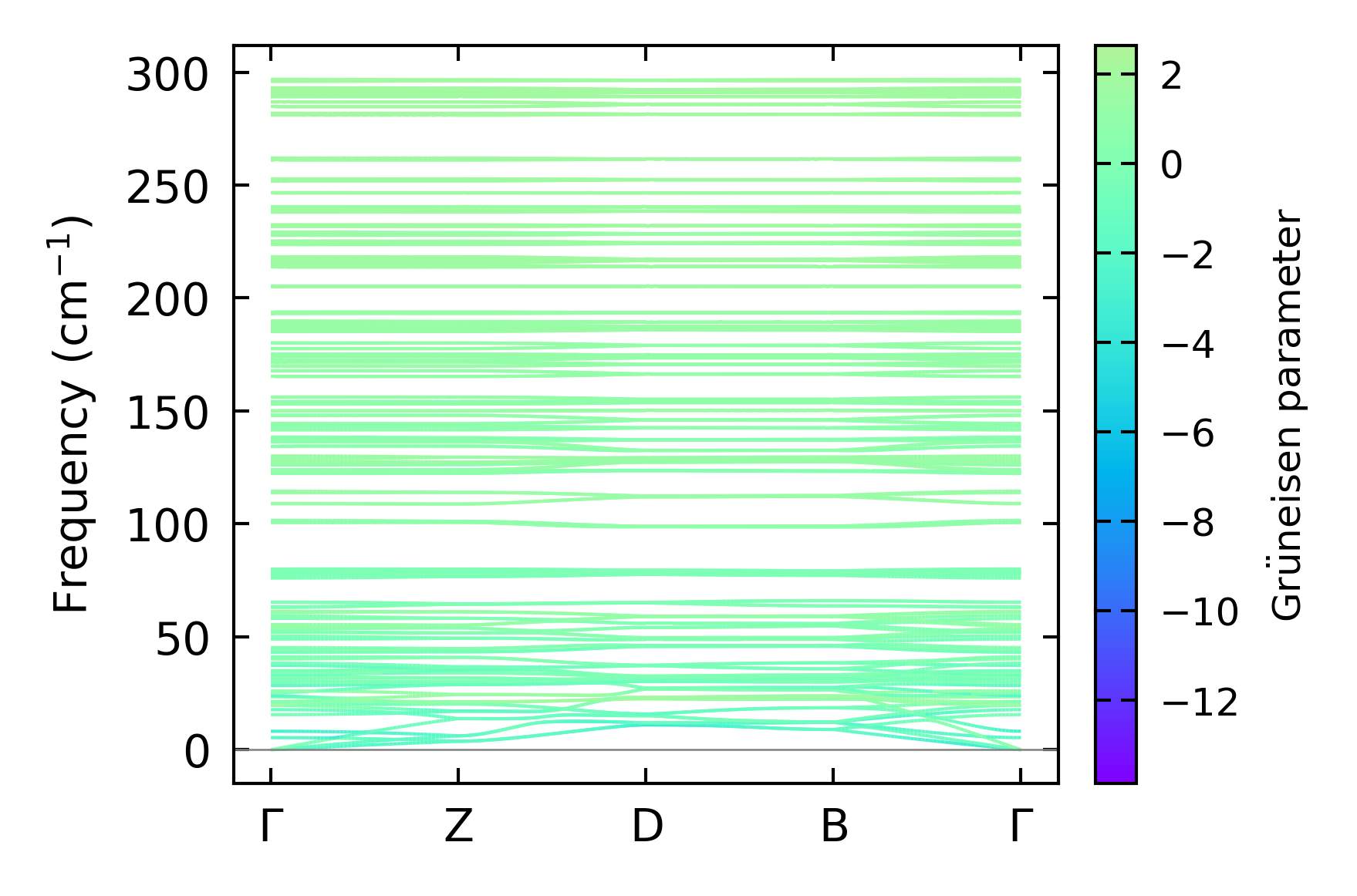

../../_images/fig_gruneisen2153.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x3x4, supercell: 2x1x1

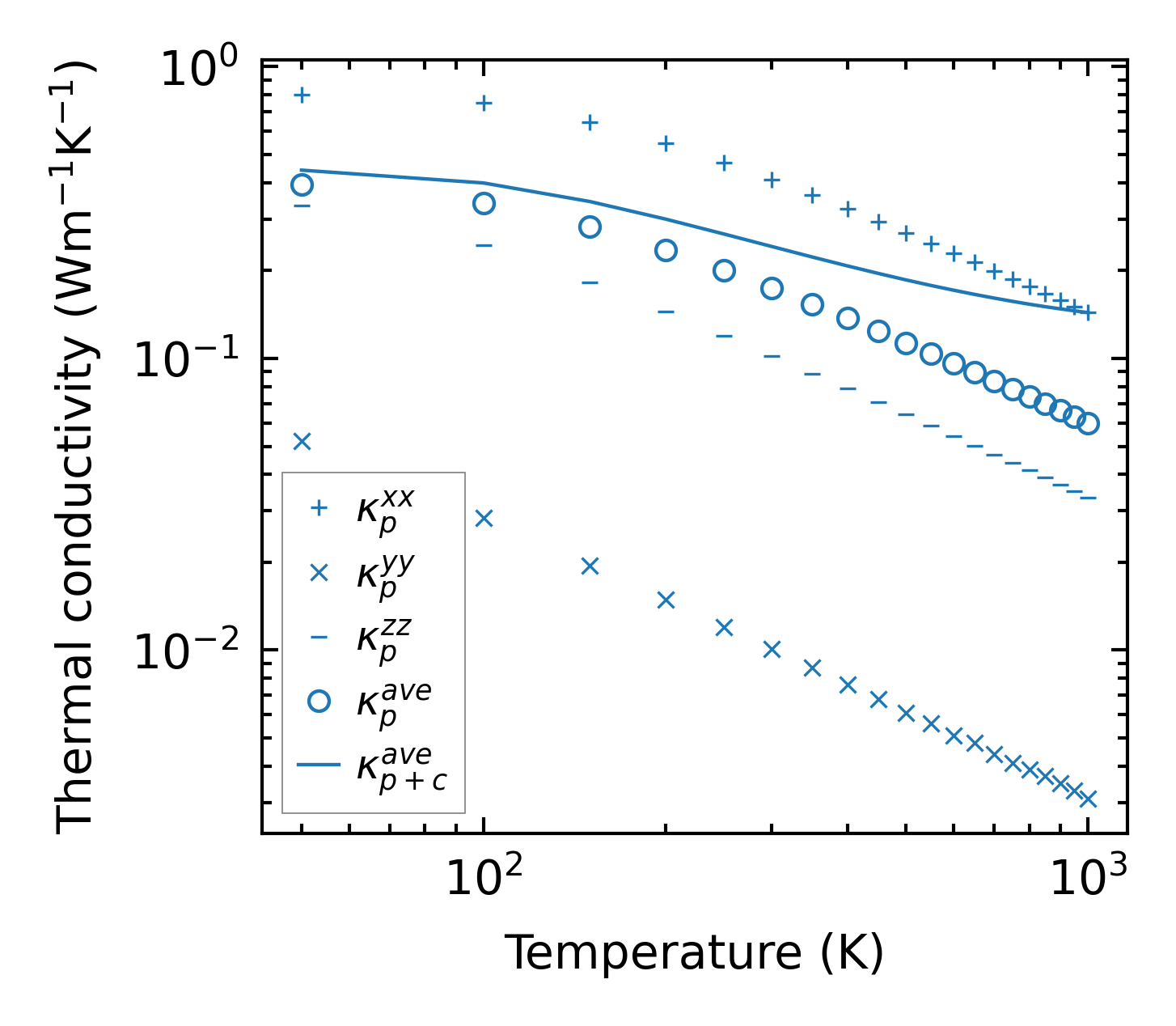

../../_images/fig_kappa4126.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size2185.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime2140.png — (a) Phonon lifetime due to phonon-phonon scattering

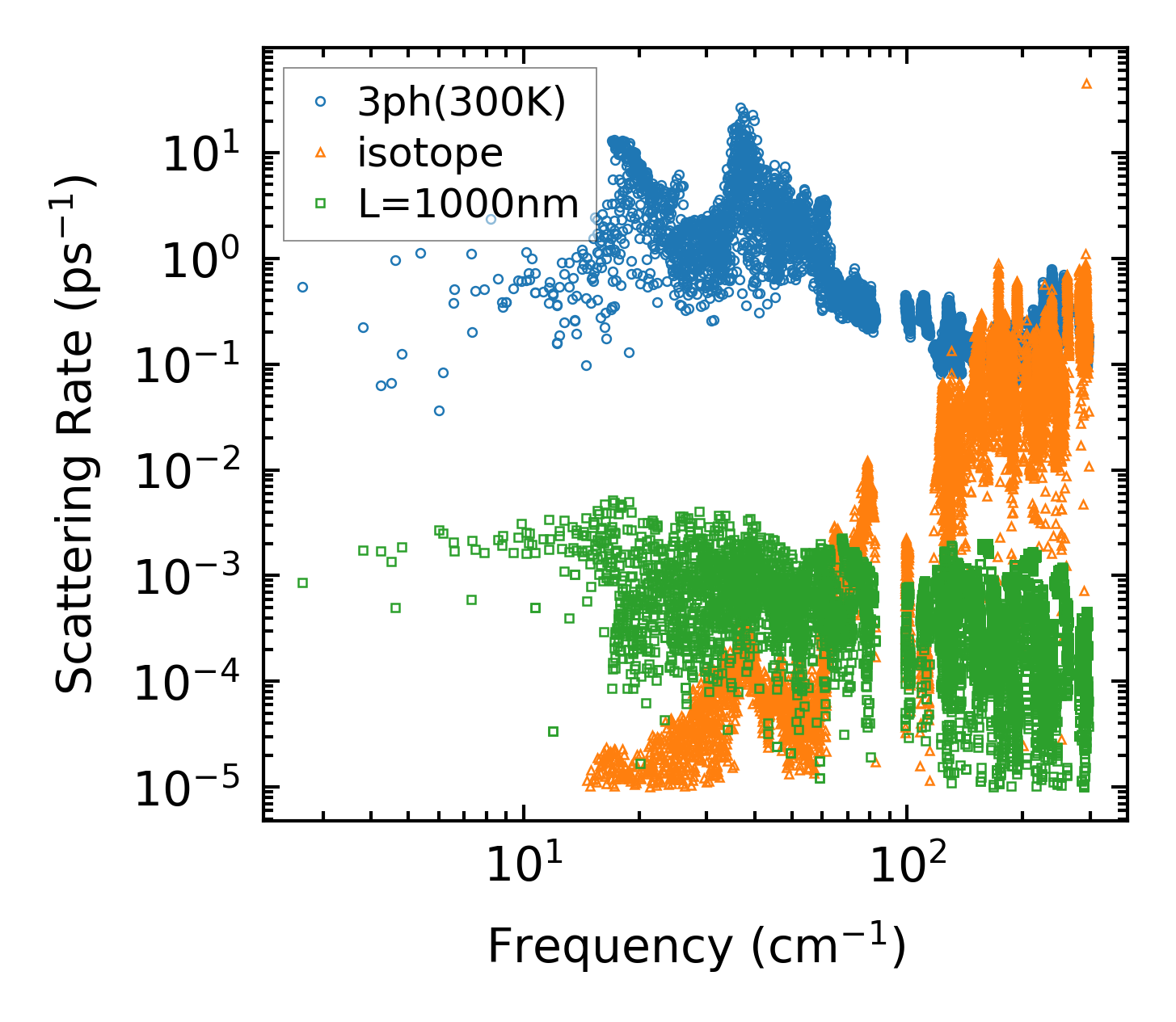

../../_images/fig_scat_rates2139.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

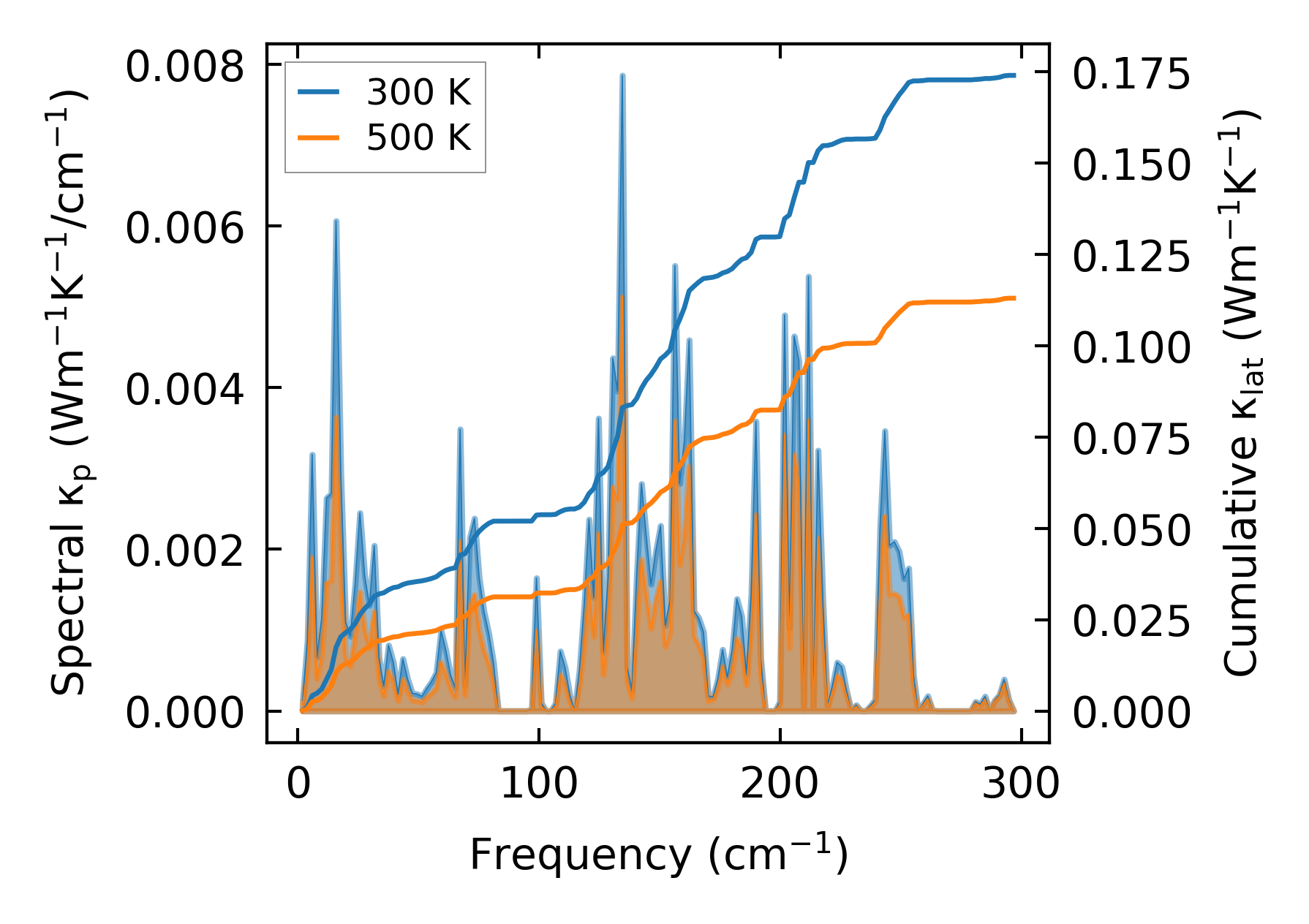

../../_images/fig_cumu_frequency2140.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp2140.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

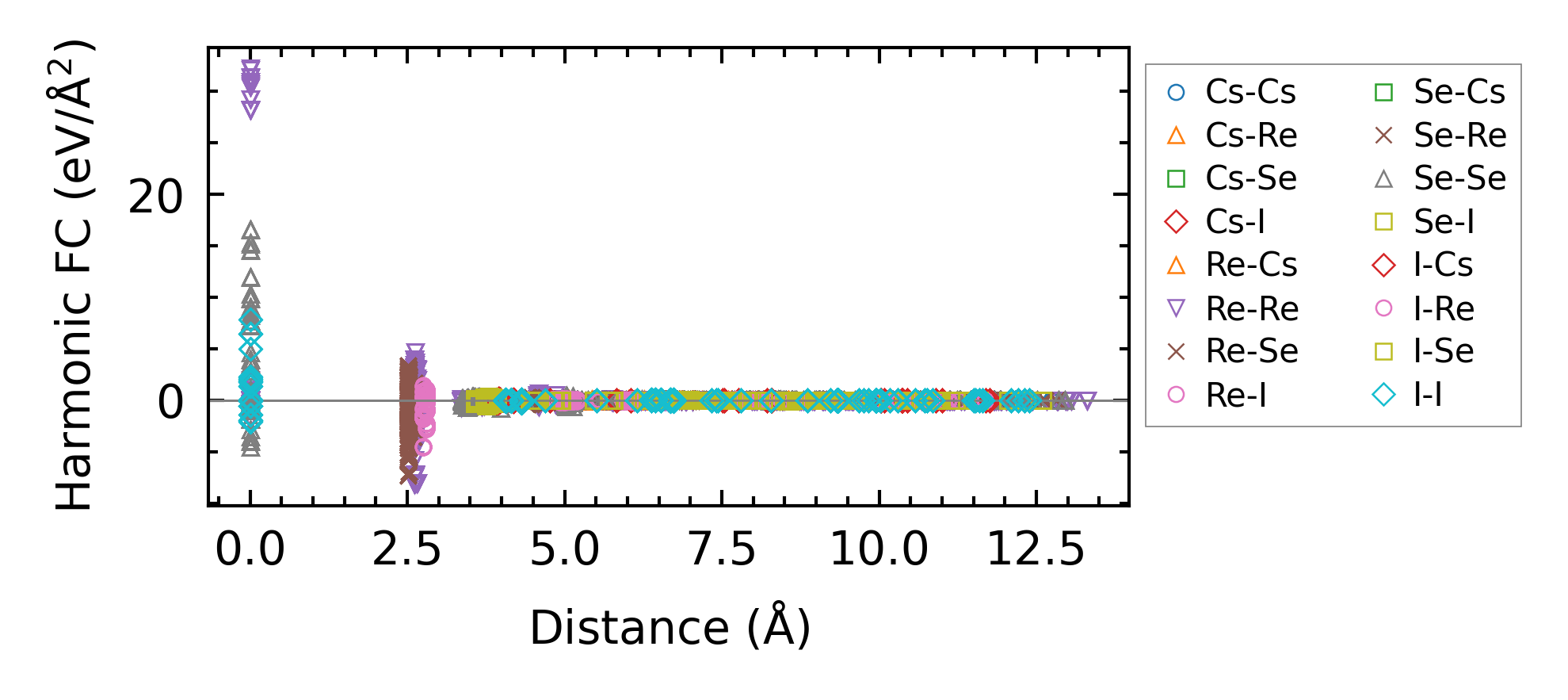

../../_images/fig_fc24953.png — (a) Force constants w.r.t atomic distance

Summary

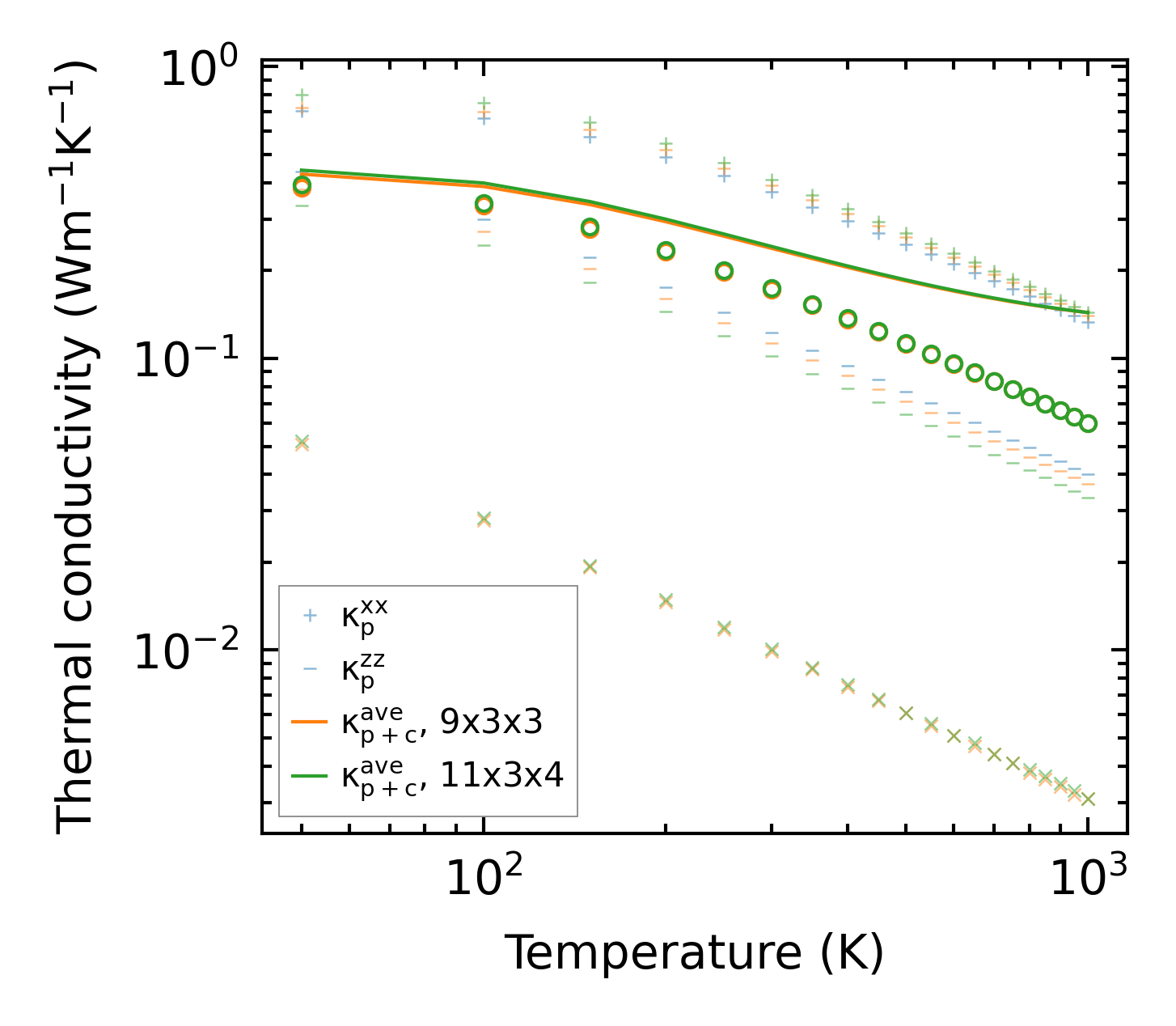

../../_images/fig_kappa4127.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times9257.png — (b) Computation time
