mp-680436/Rb2LiSn4/anharm

Space group: P-1 (2)
Link: Materials Project
Download: mp-680436.tar.gz

Harmonic properties

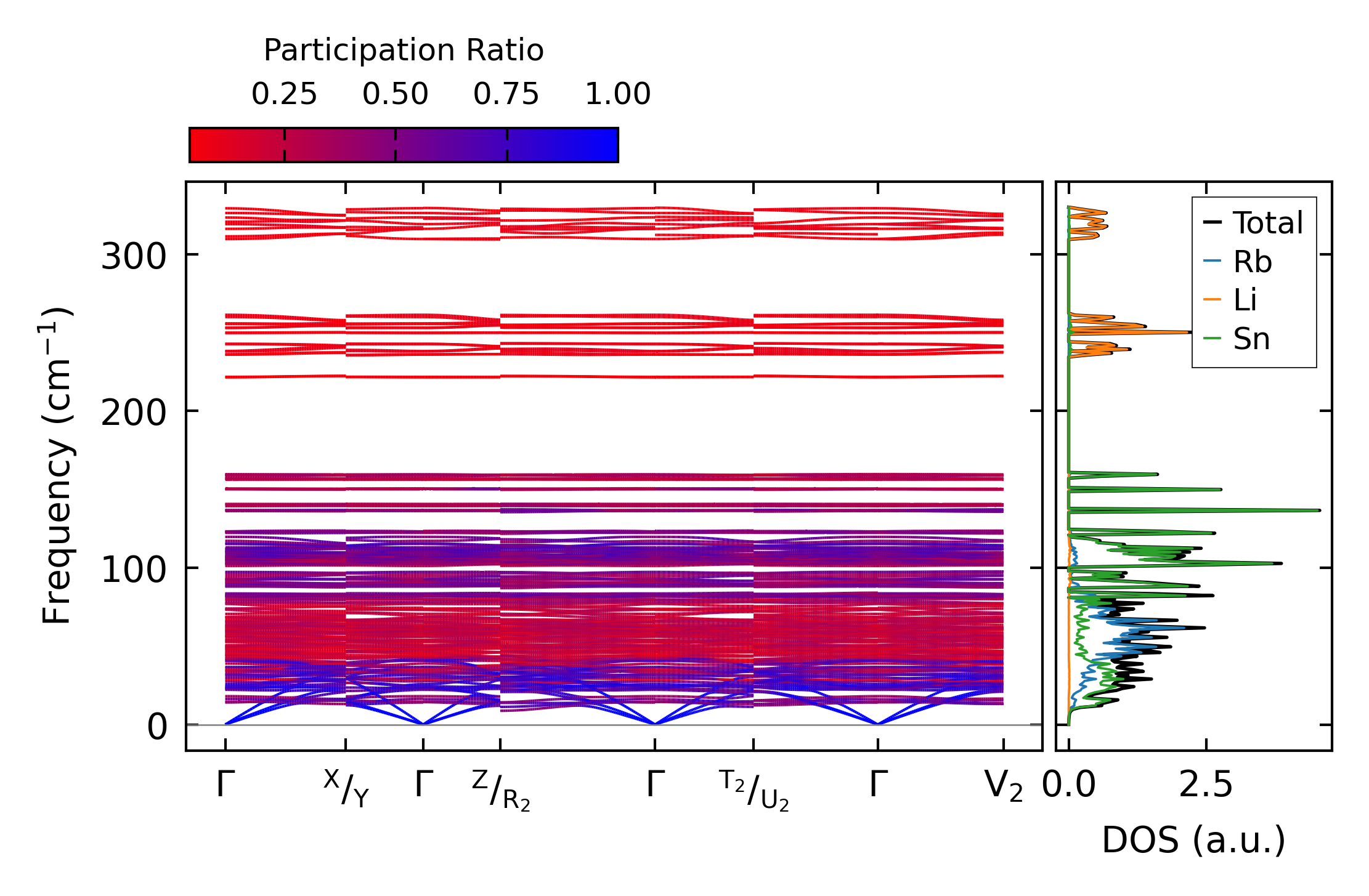

../../_images/fig_bandos_pr5166.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo5166.png — (b) Thermodynamic properties

Grüneisen parameters

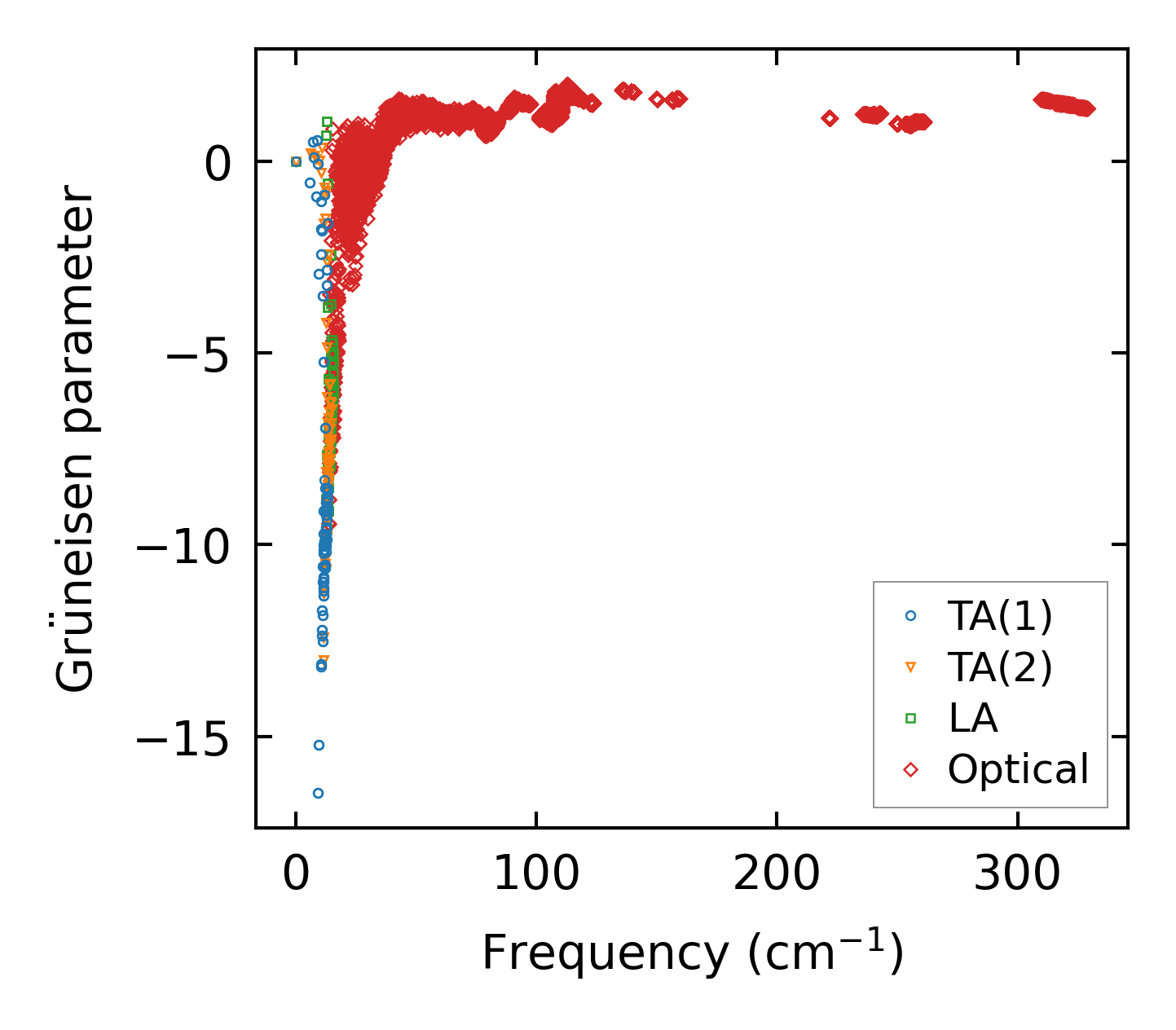

../../_images/fig_gru_all2162.png — (a) Grüneisen parameters

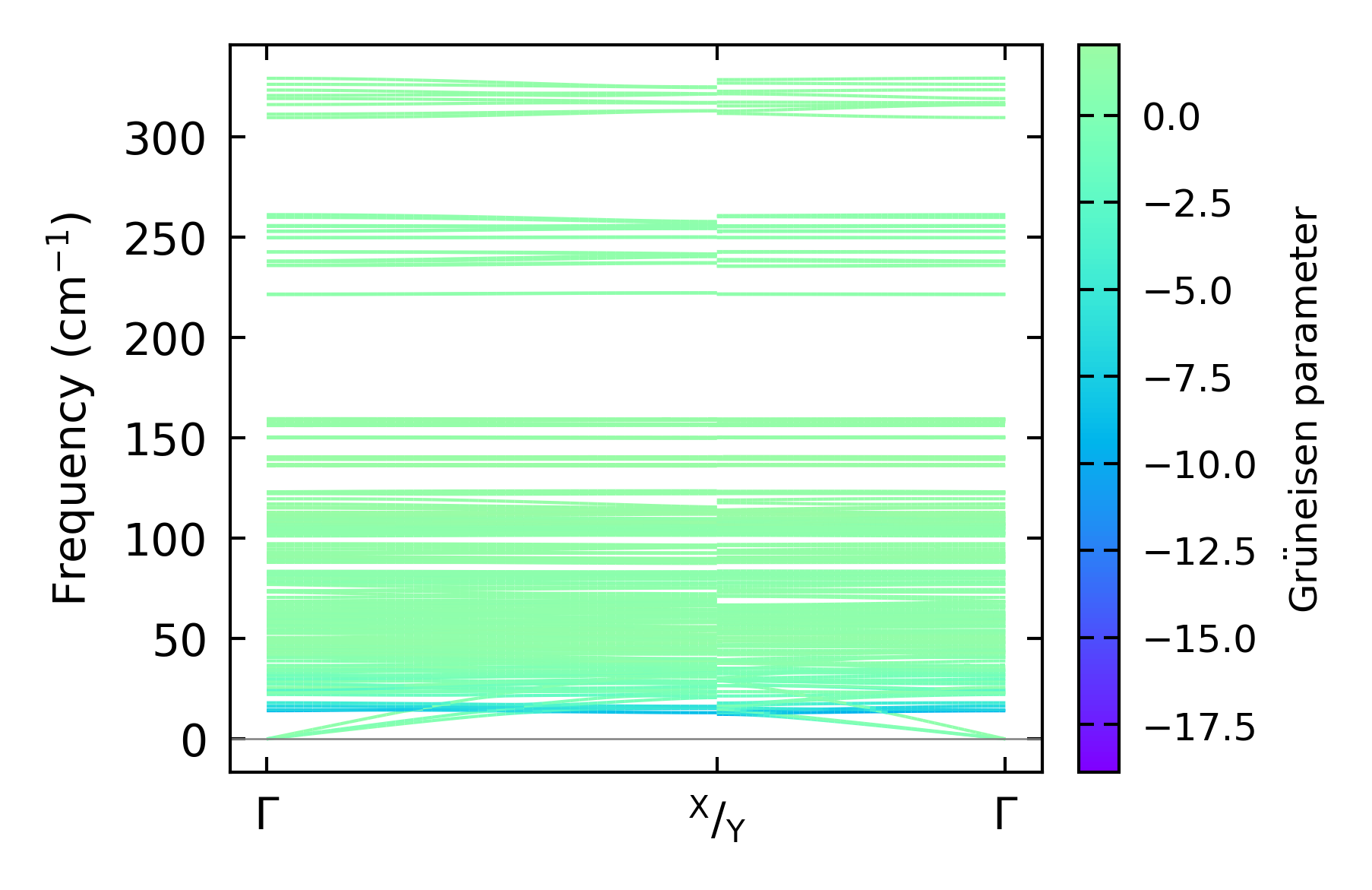

../../_images/fig_gruneisen2162.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x5x4, supercell: 2x1x1

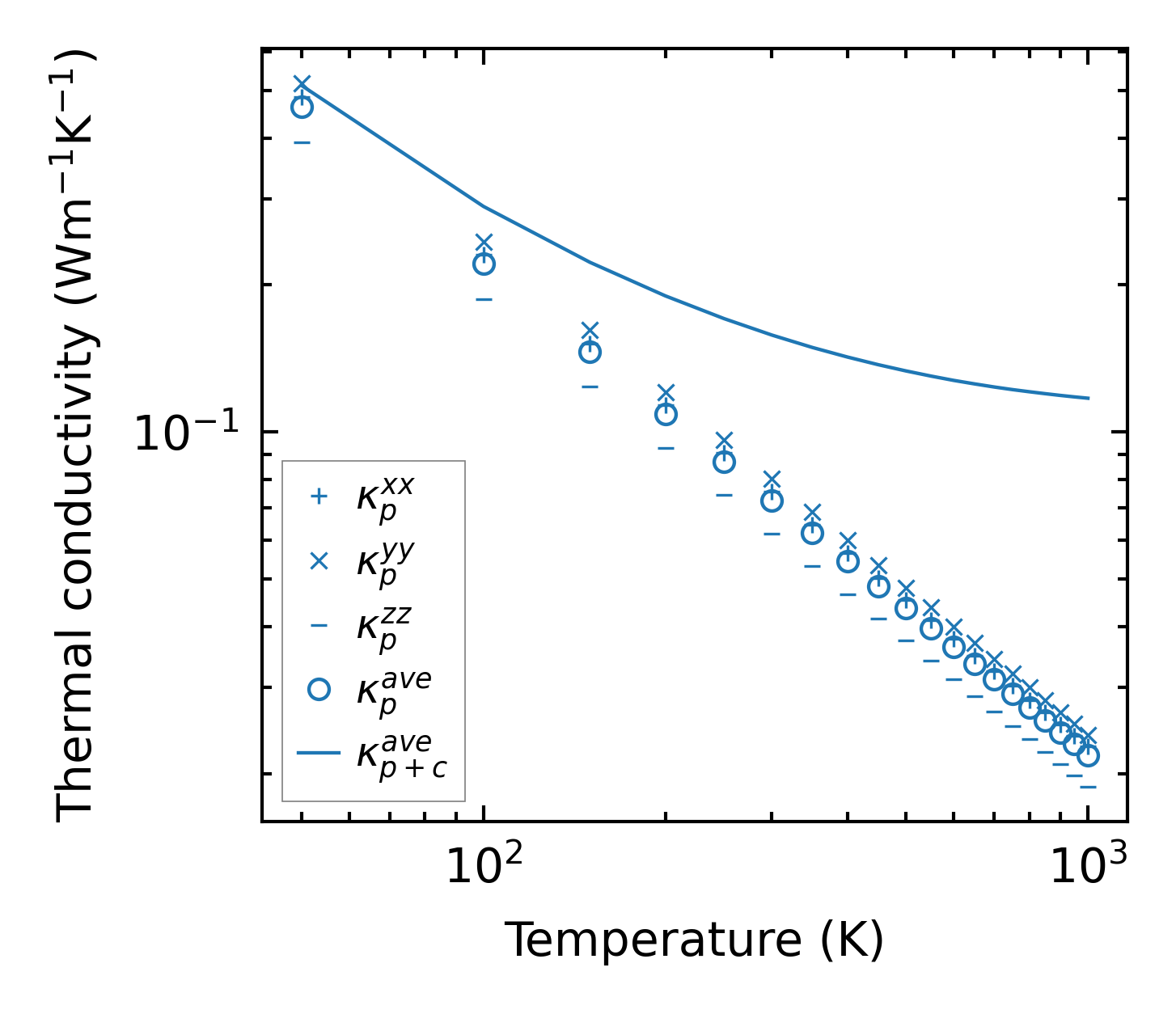

../../_images/fig_kappa4141.png — (a) Temperature-dependent lattice thermal conductivity

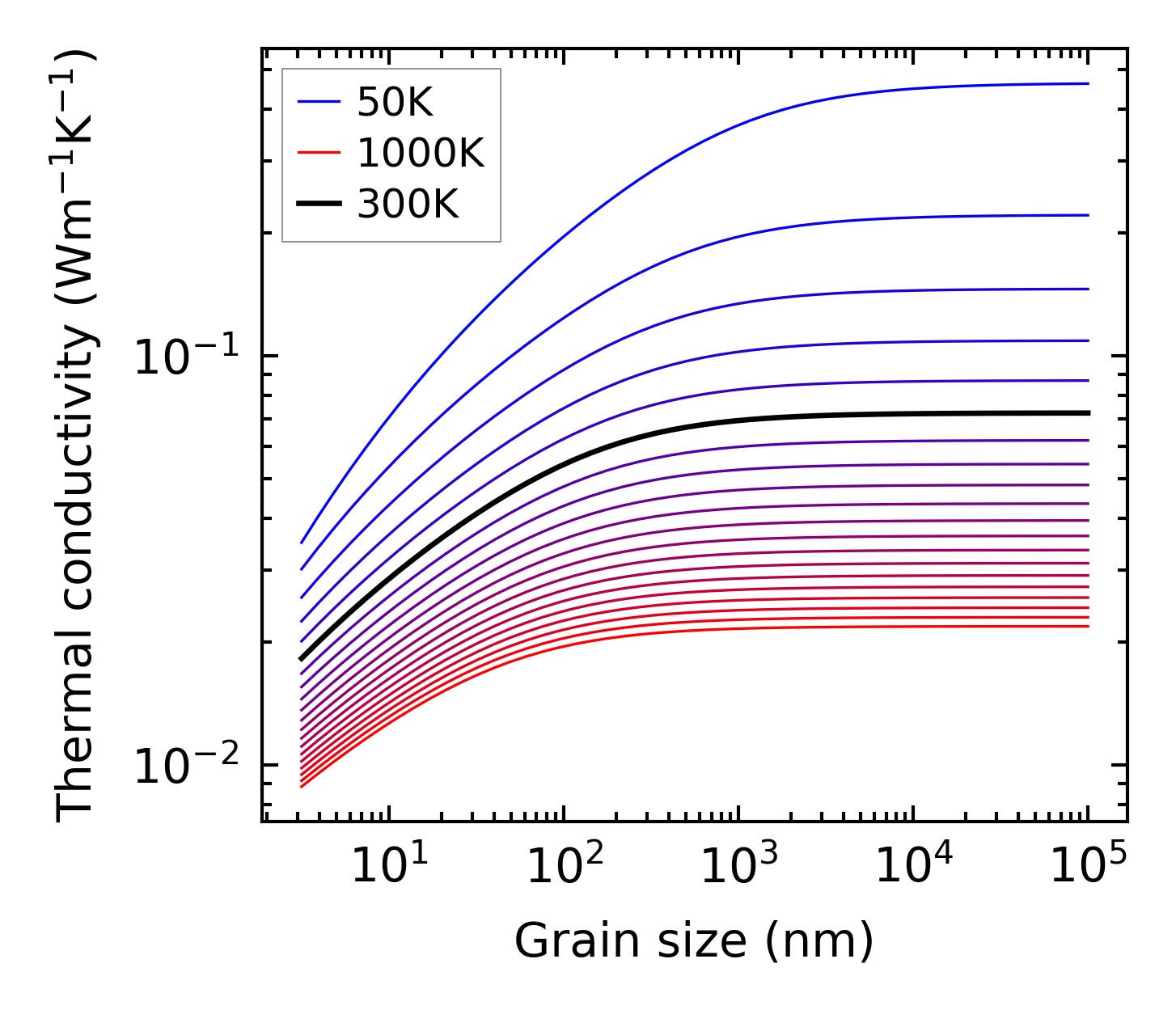

../../_images/fig_kappa_vs_grain_size2194.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

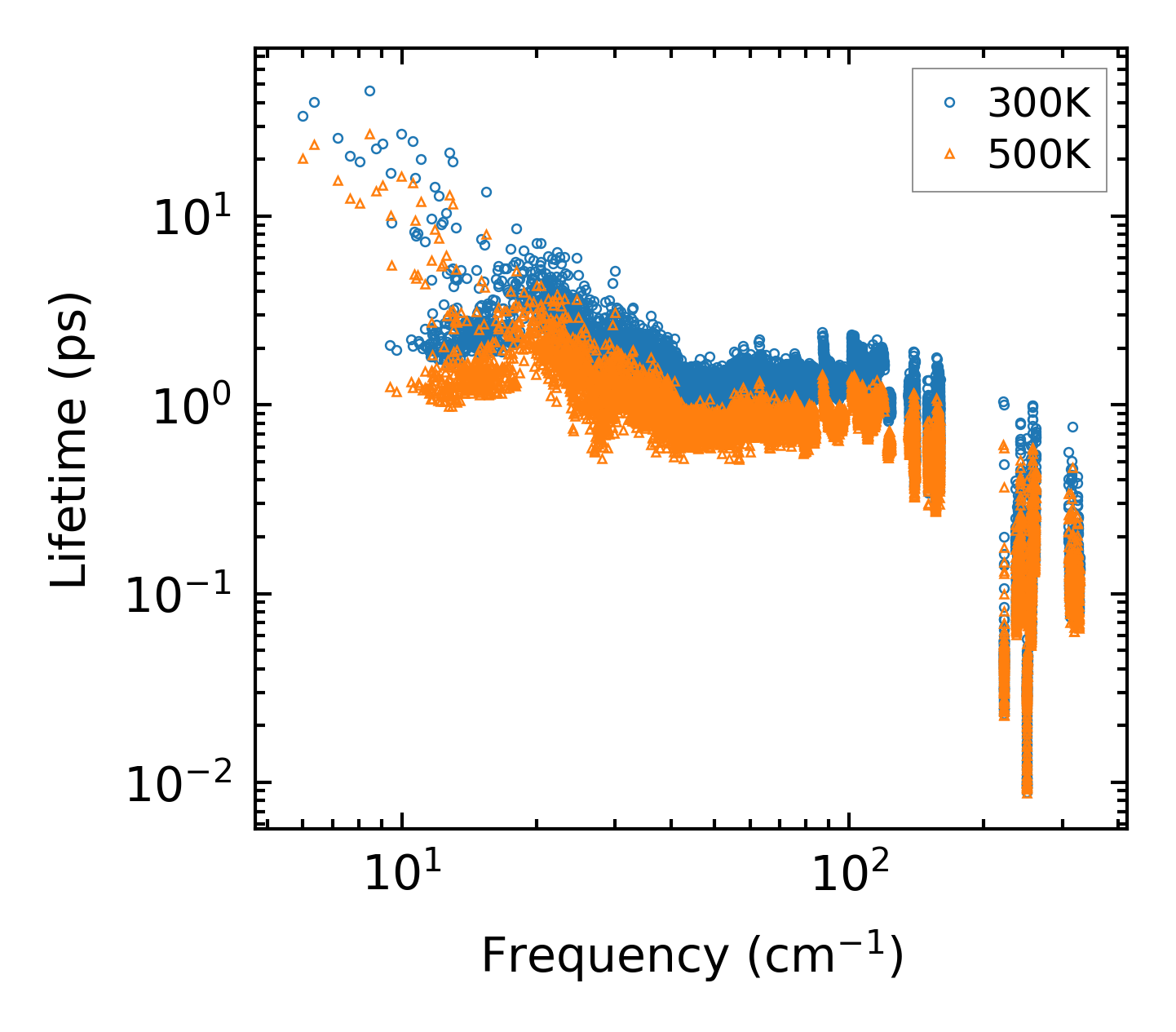

../../_images/fig_lifetime2149.png — (a) Phonon lifetime due to phonon-phonon scattering

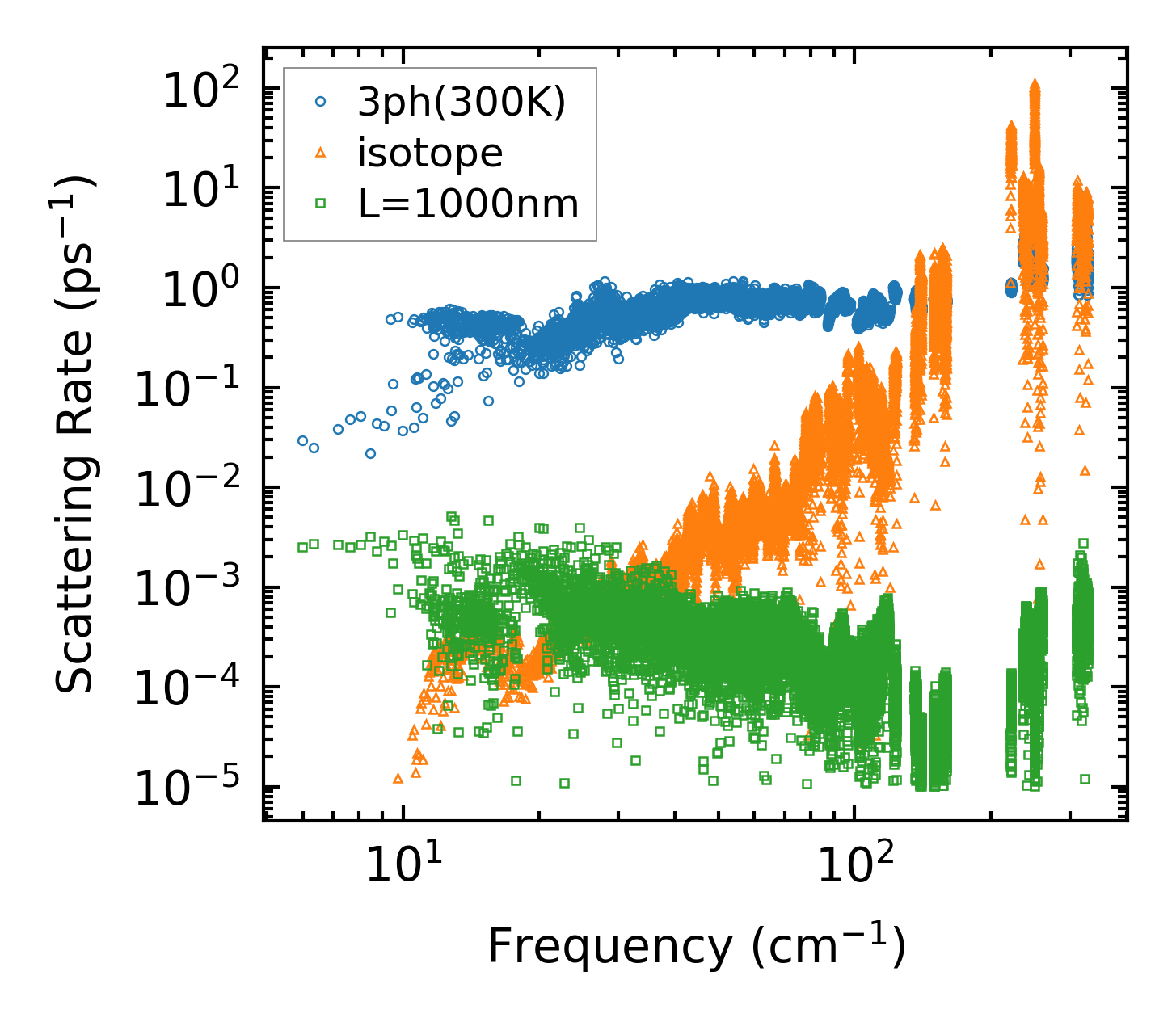

../../_images/fig_scat_rates2148.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency2149.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp2149.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

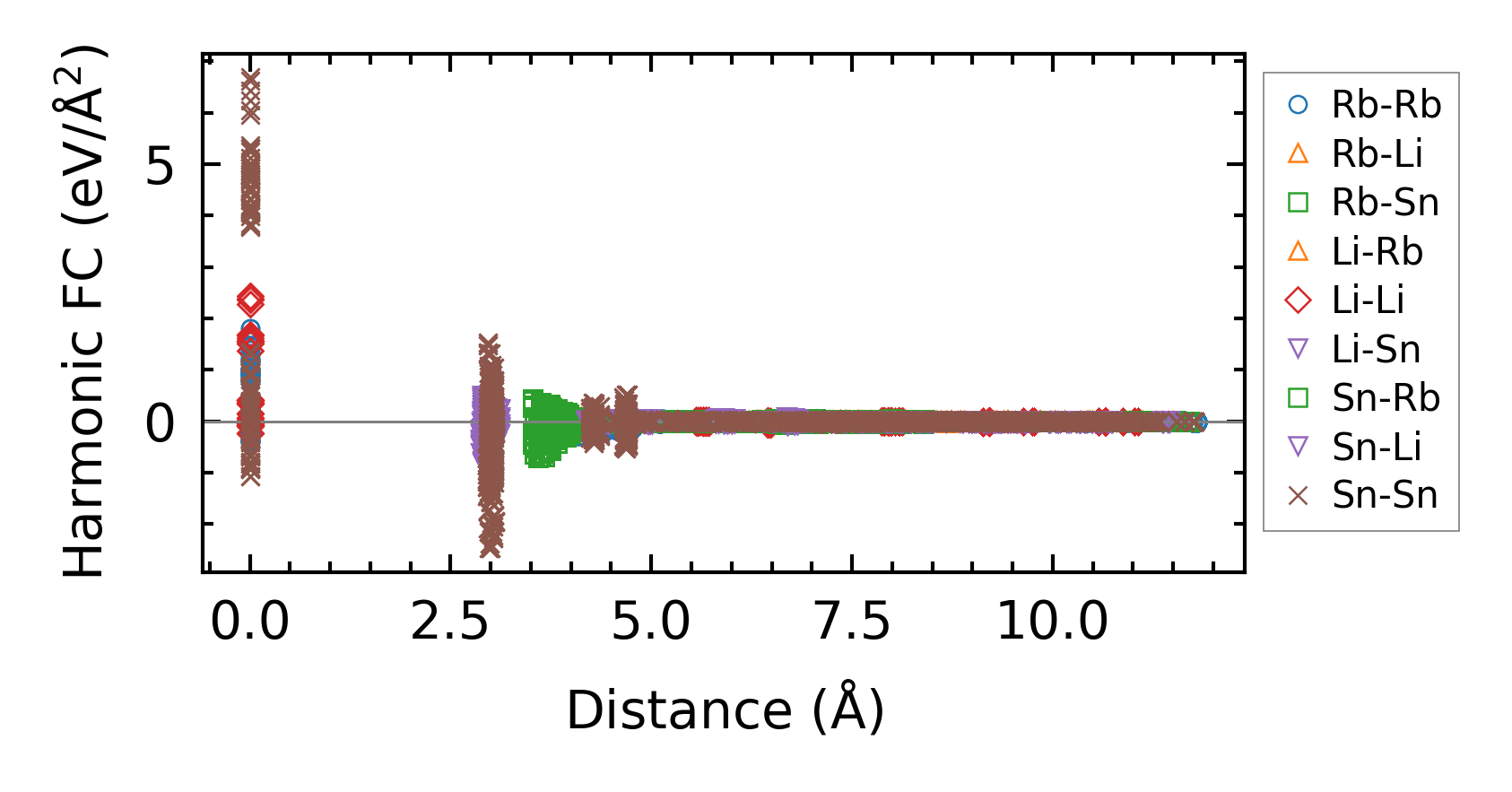

../../_images/fig_fc24971.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa4142.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times9284.png — (b) Computation time
