mp-680146/CdI2/anharm

Space group: P3m1 (156)
Link: Materials Project
Download: mp-680146.tar.gz

Equation of state

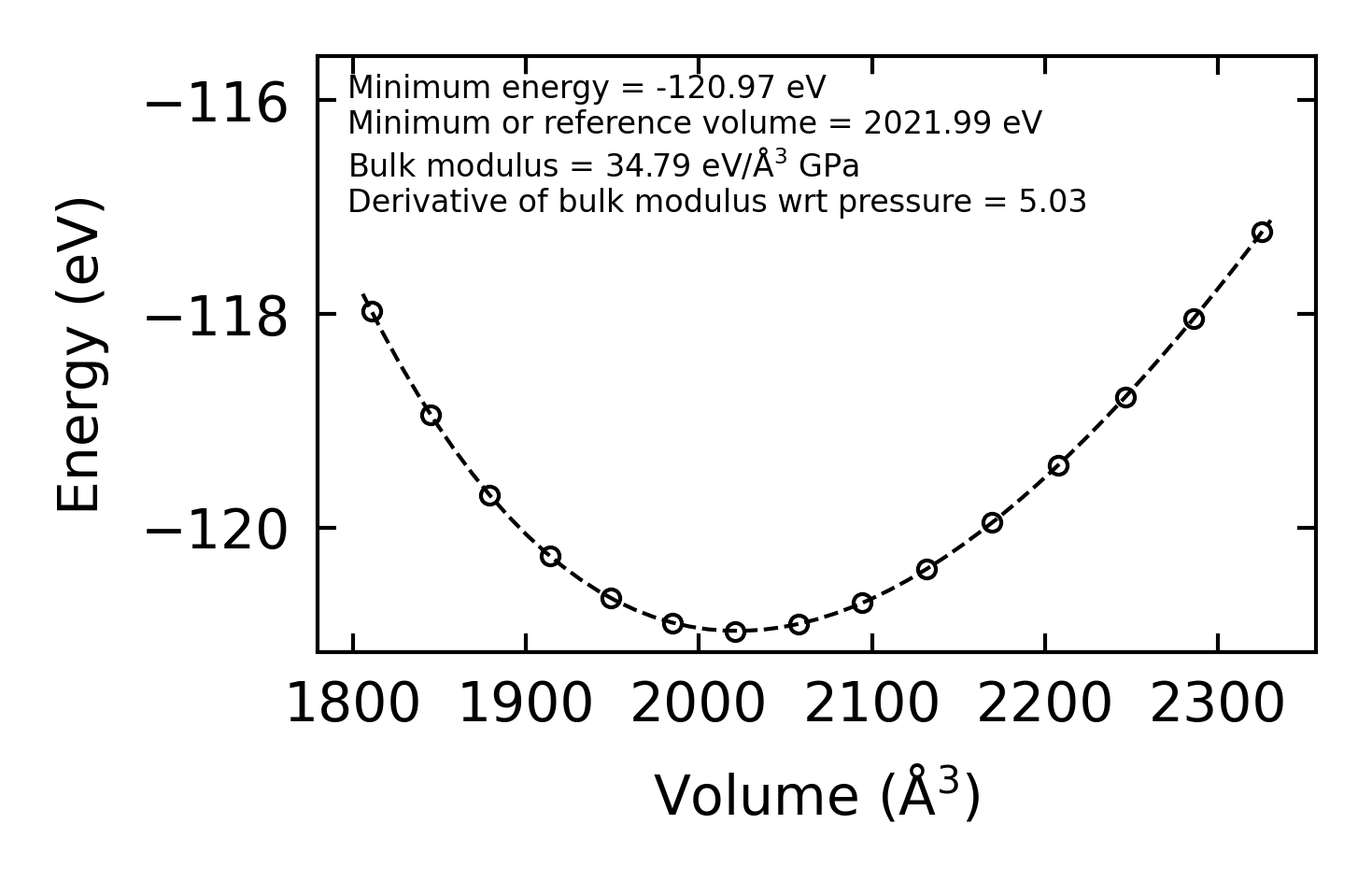

../../_images/fig_bm2529.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr5145.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo5145.png — (b) Thermodynamic properties

Grüneisen parameters

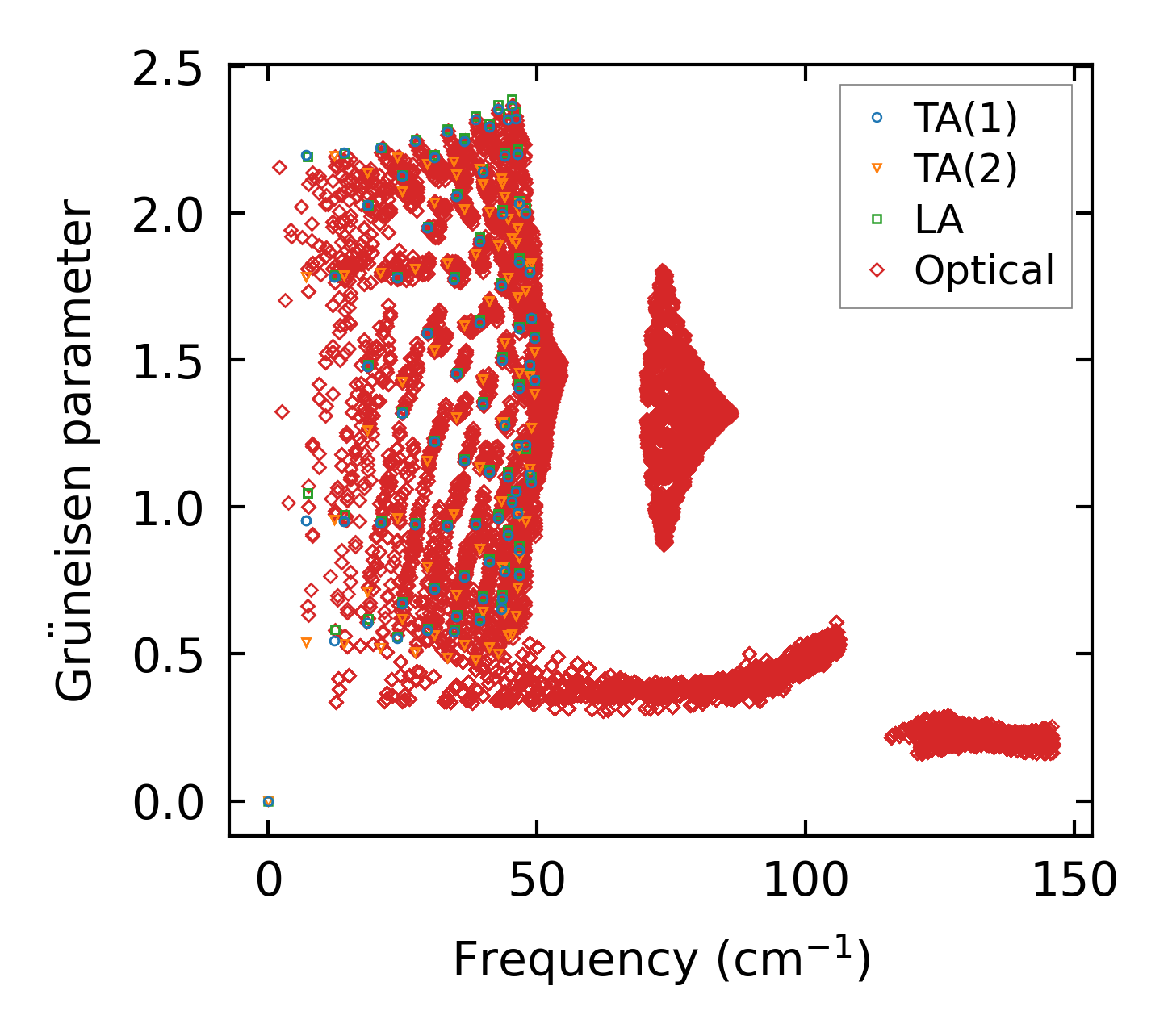

../../_images/fig_gru_all2152.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2152.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 17x17x1, supercell: 1x1x1

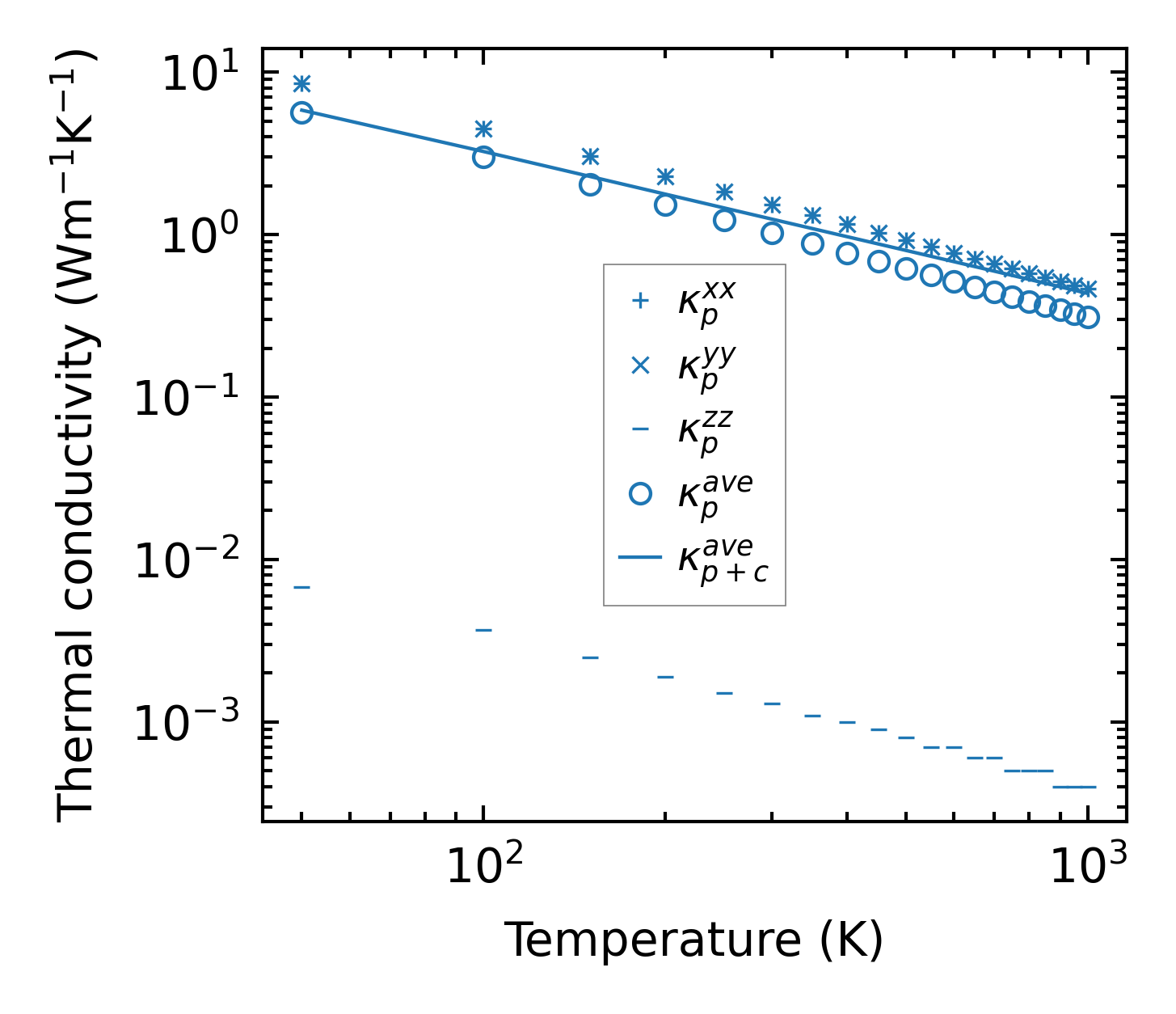

../../_images/fig_kappa4124.png — (a) Temperature-dependent lattice thermal conductivity

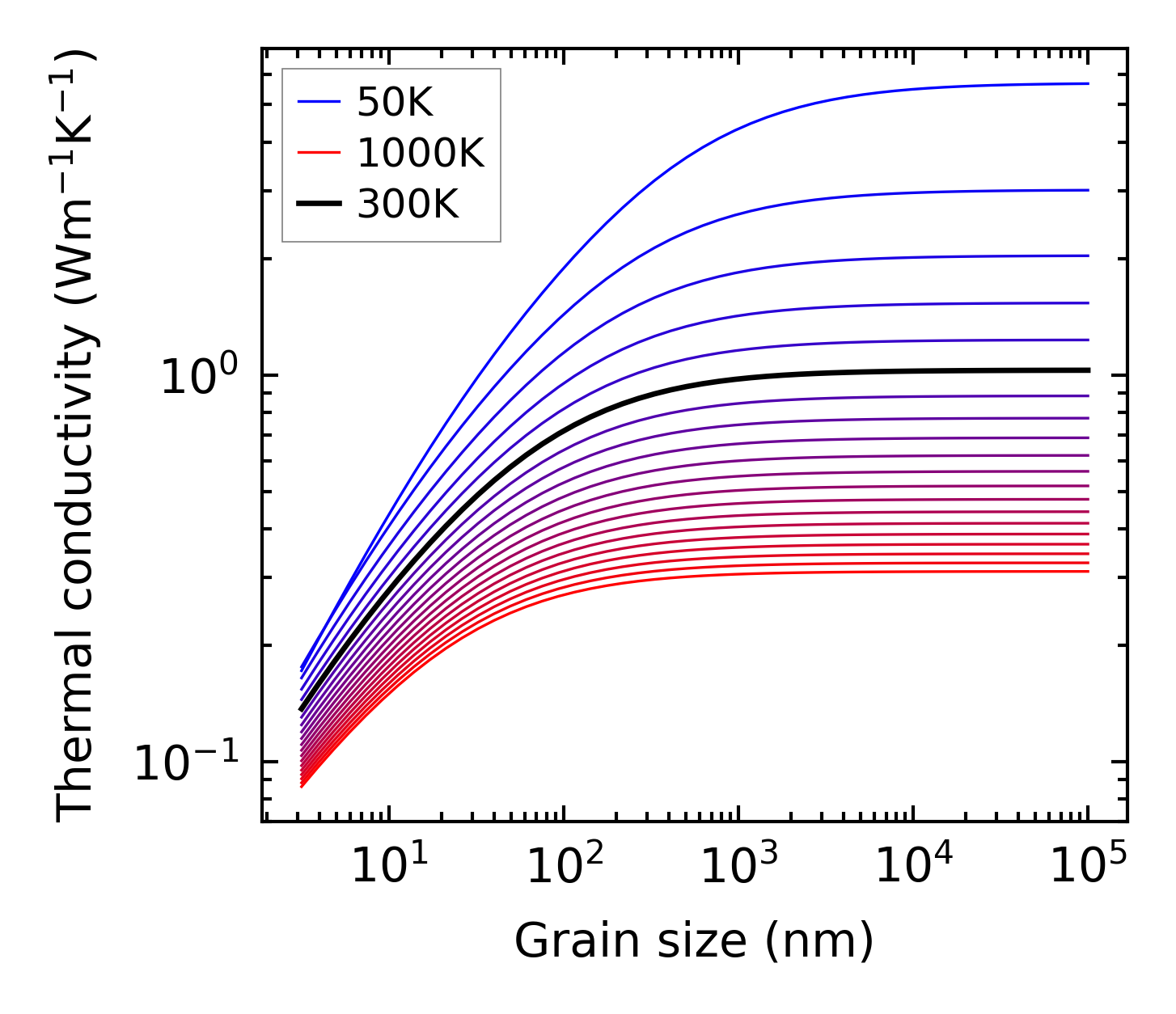

../../_images/fig_kappa_vs_grain_size2184.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime2139.png — (a) Phonon lifetime due to phonon-phonon scattering

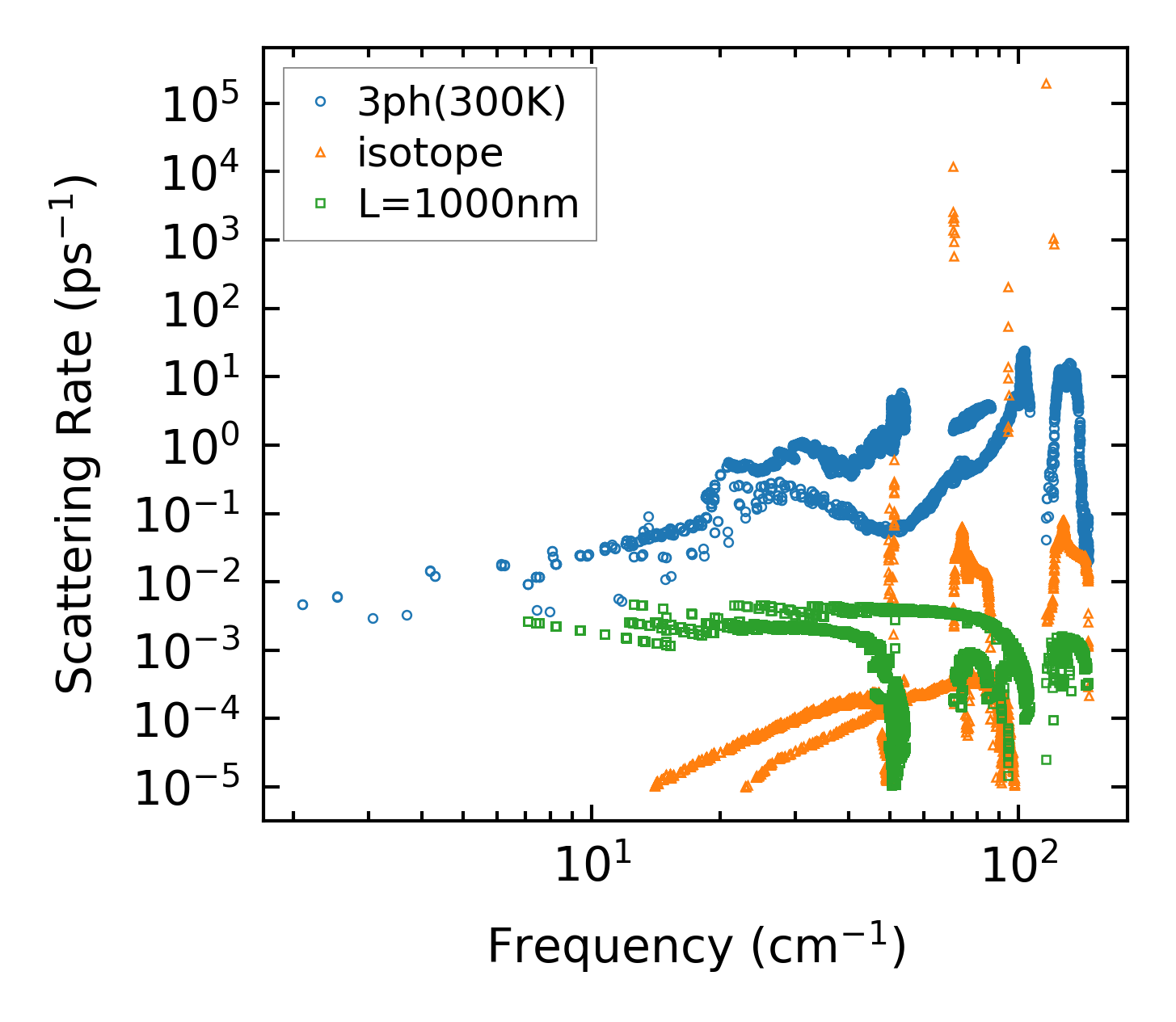

../../_images/fig_scat_rates2138.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

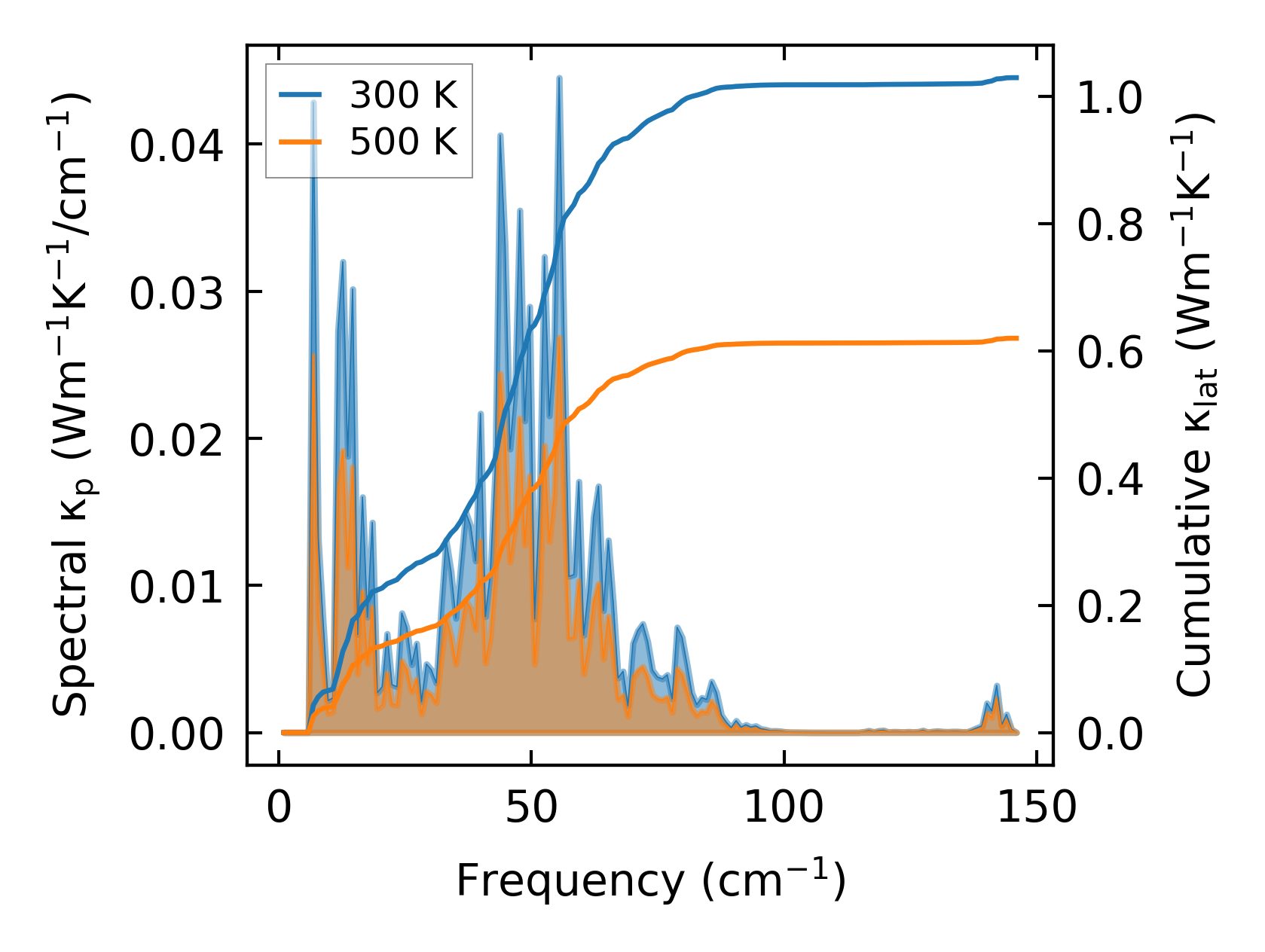

../../_images/fig_cumu_frequency2139.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

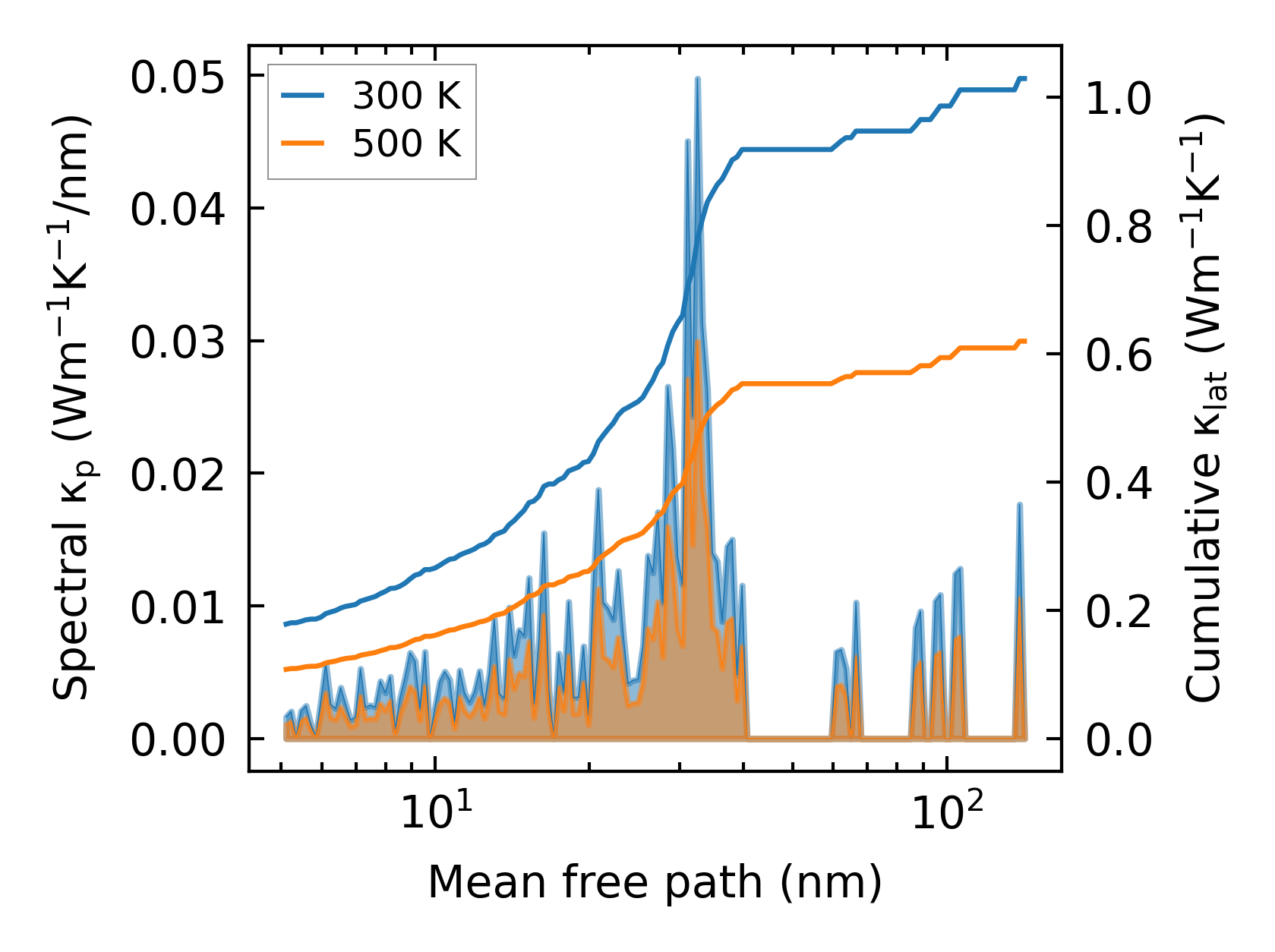

../../_images/fig_cumu_mfp2139.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

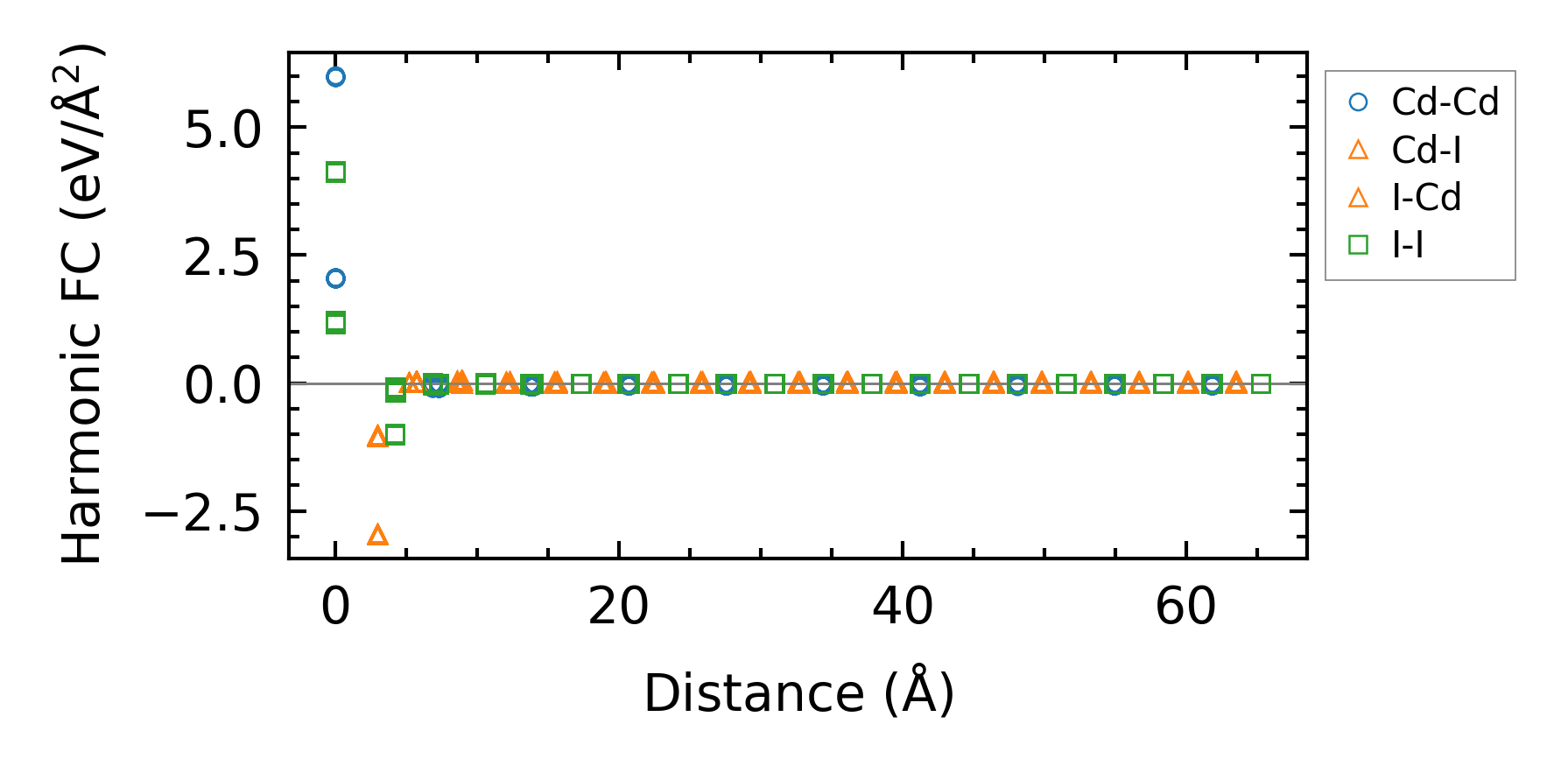

../../_images/fig_fc24950.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa4125.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times9249.png — (b) Computation time
