mp-680246/Cs4Zr3S14/anharm

Space group: C2/c (15)
Link: Materials Project
Download: mp-680246.tar.gz

Equation of state

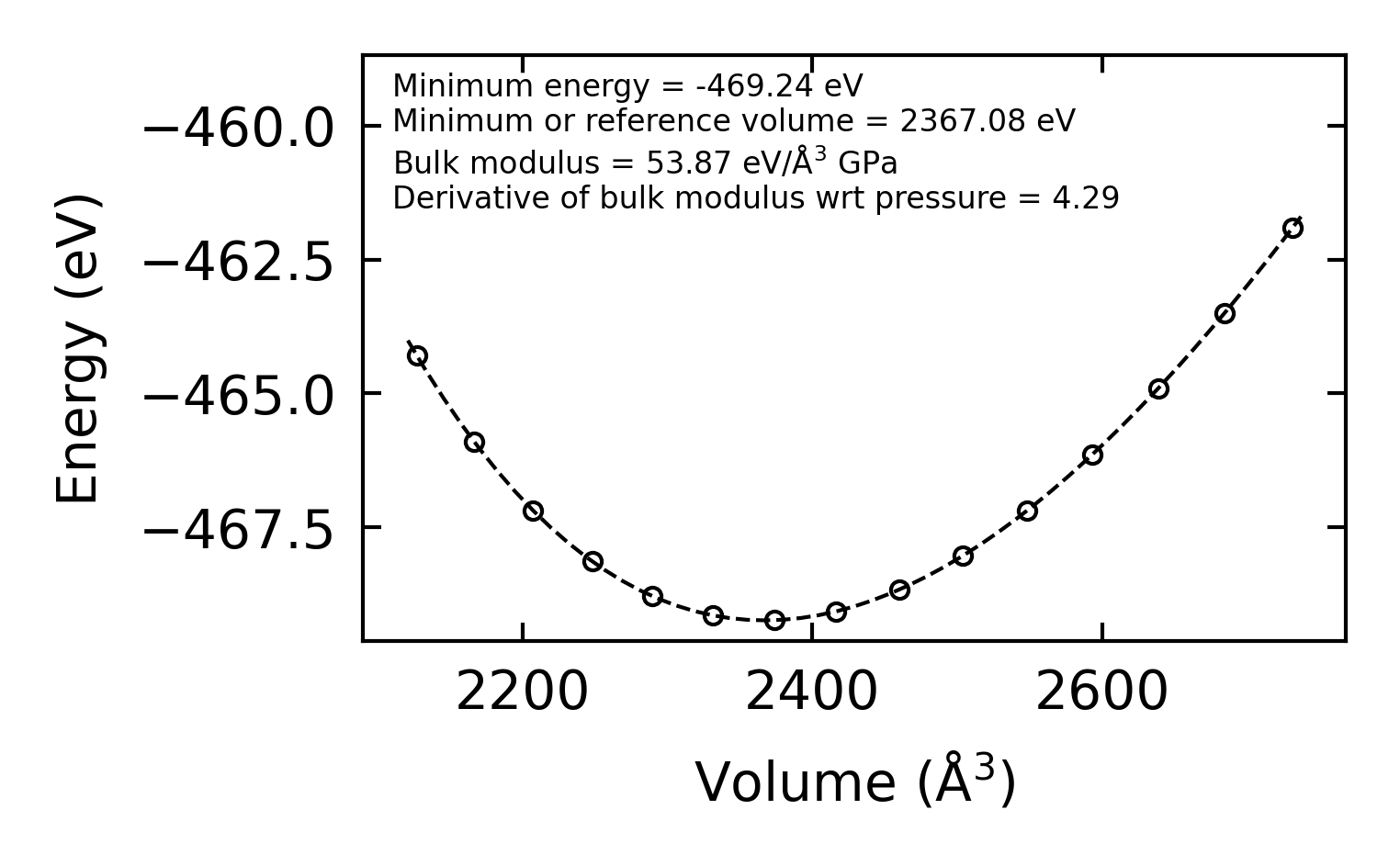

../../_images/fig_bm2530.png — (a) Equation of state

Harmonic properties

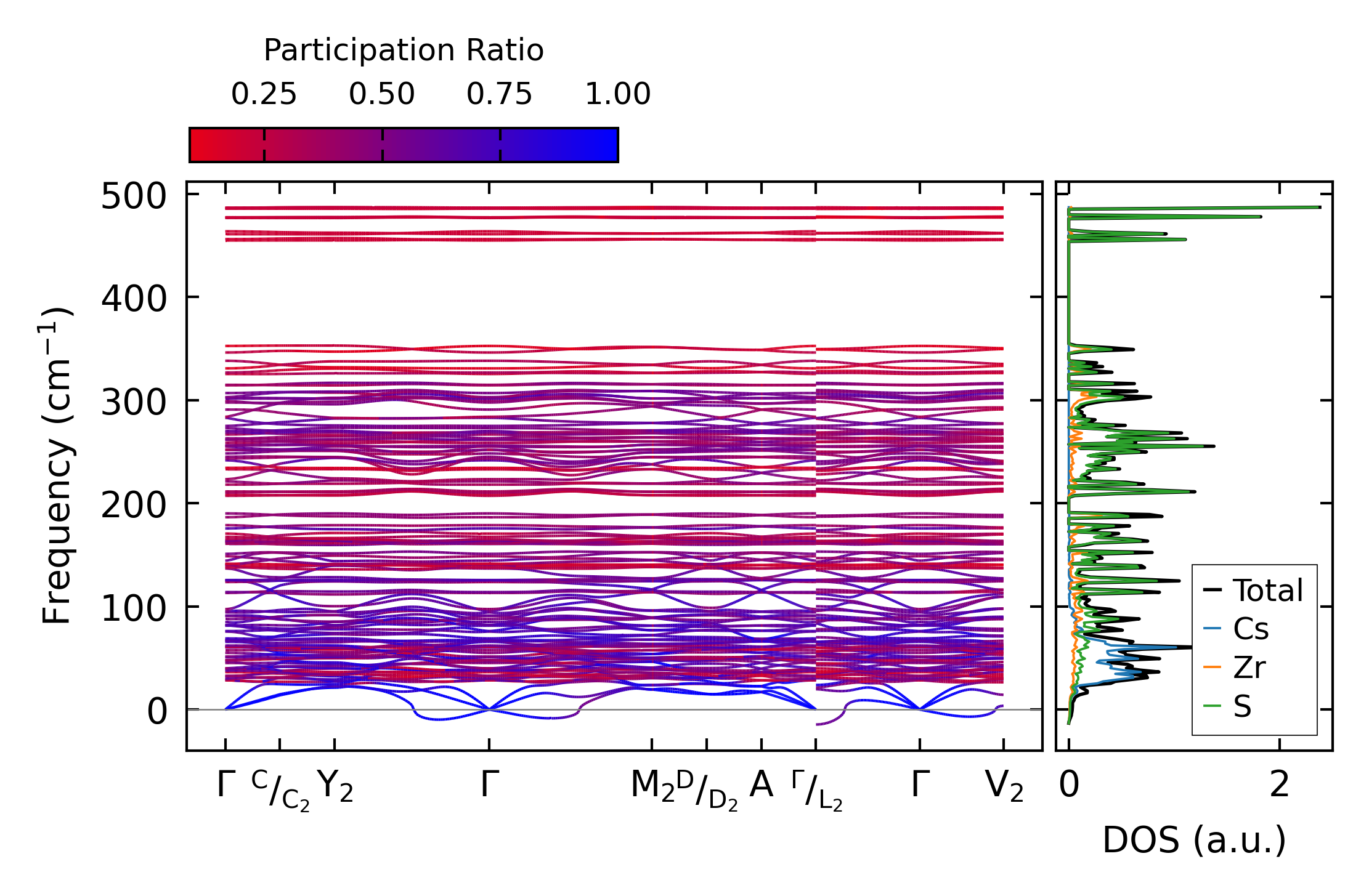

../../_images/fig_bandos_pr5152.png — (a) Phonon dispersion with participation ratio and DOS

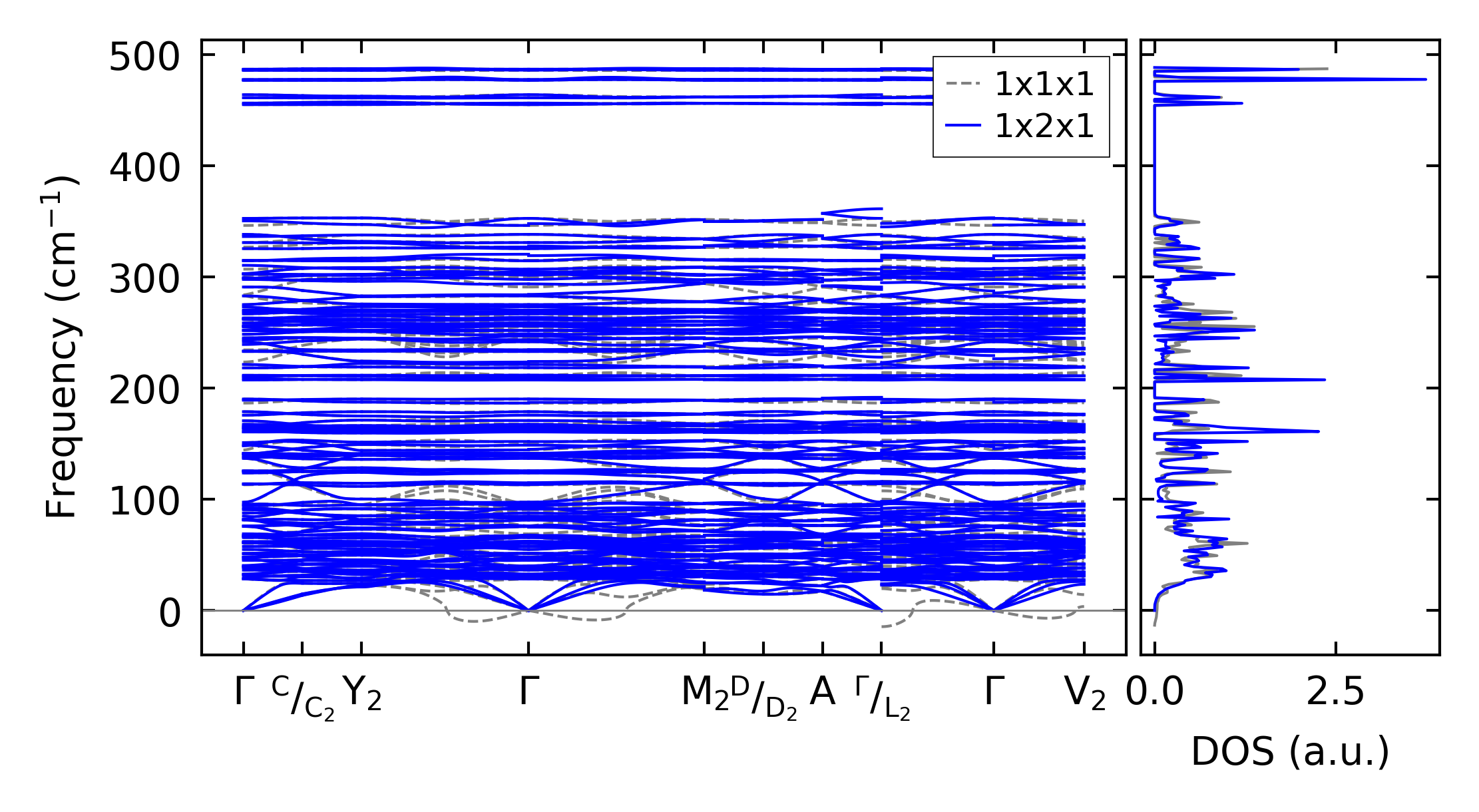

../../_images/fig_bandos7348.png — (b) Phonon dispersion and DOS

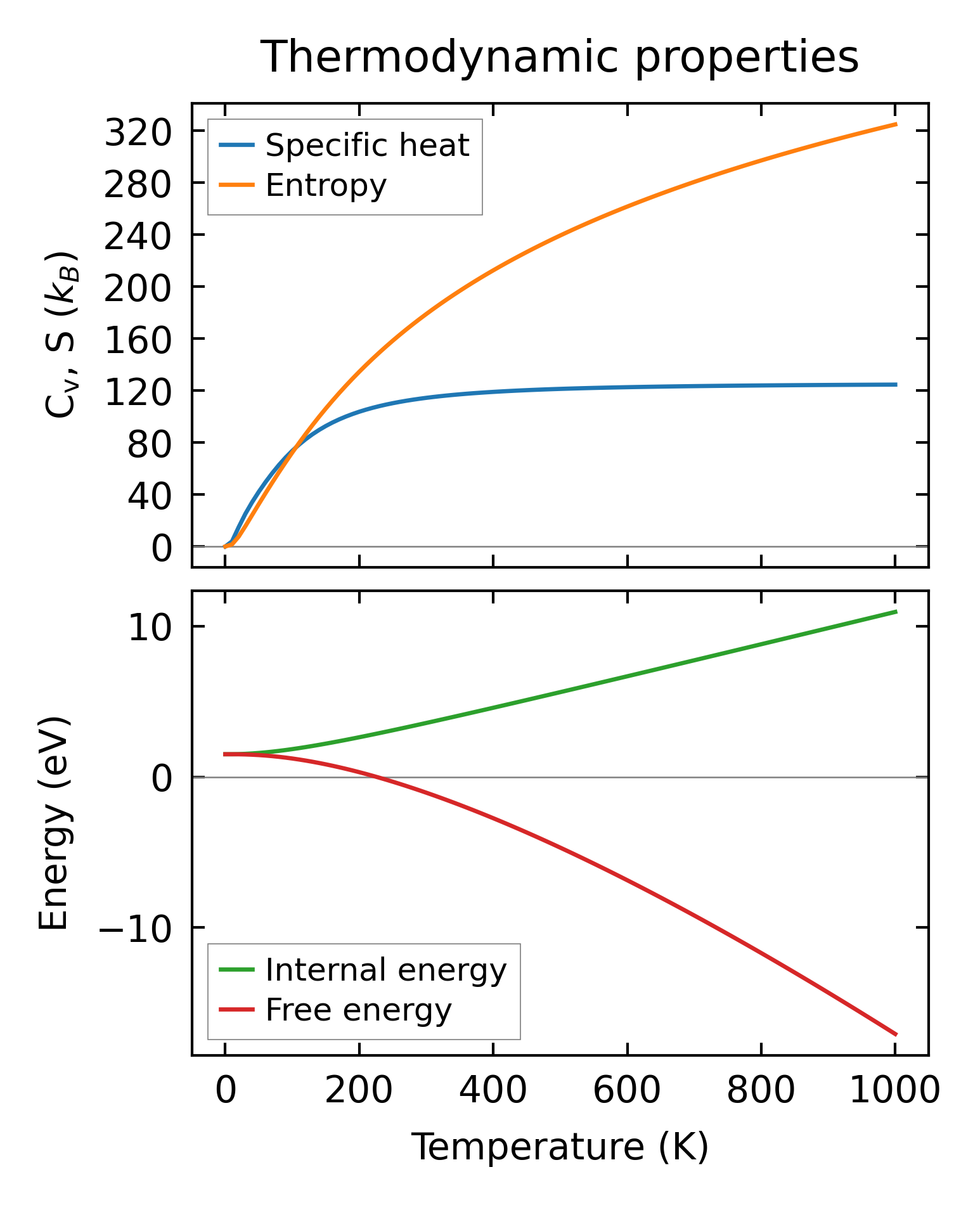

../../_images/fig_thermo5152.png — (c) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all2155.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2155.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 1x2x1 — q-mesh: 7x7x6, supercell: 1x2x1

../../_images/fig_kappa4130.png — (a) Temperature-dependent lattice thermal conductivity

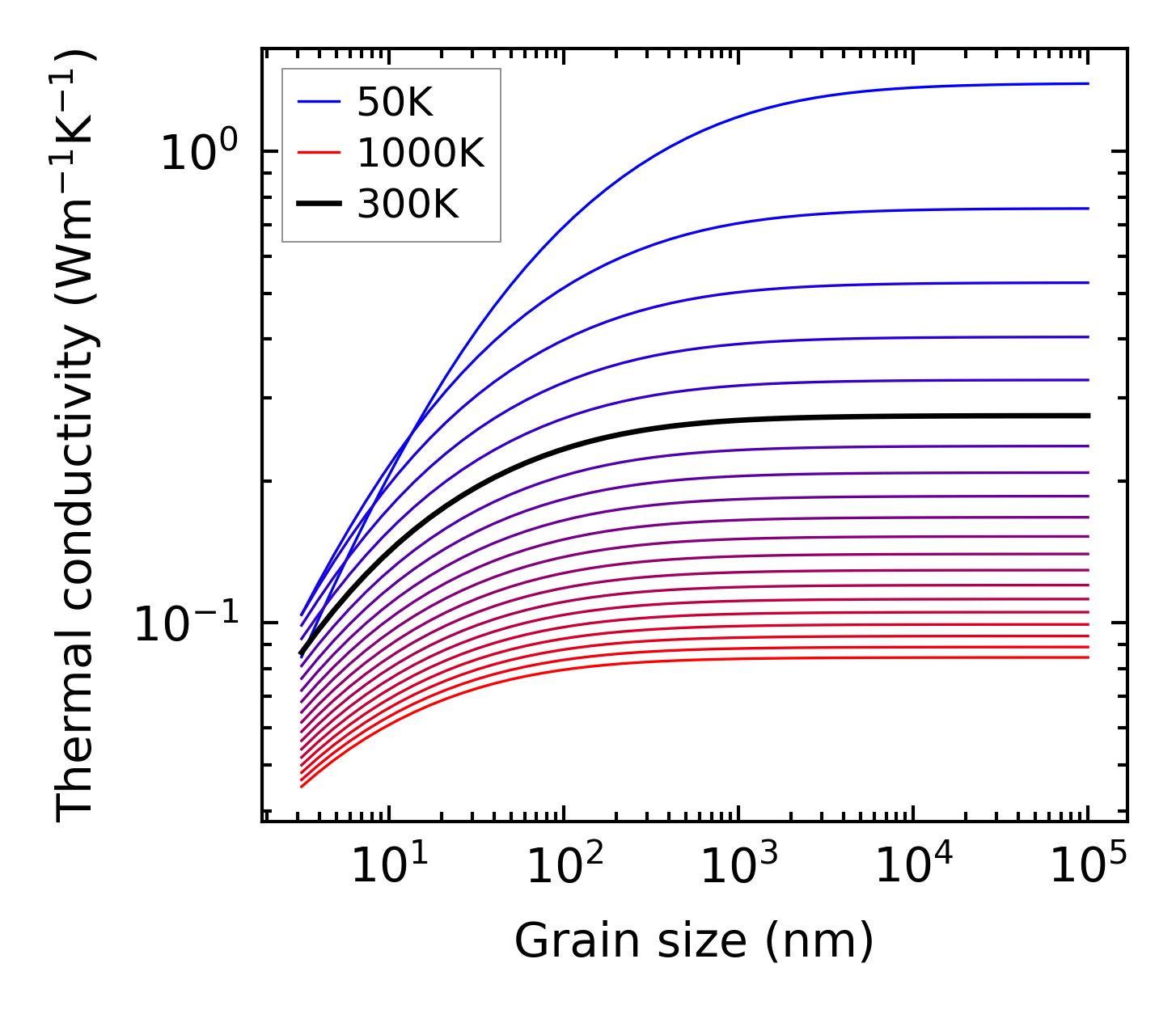

../../_images/fig_kappa_vs_grain_size2187.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime2142.png — (a) Phonon lifetime due to phonon-phonon scattering

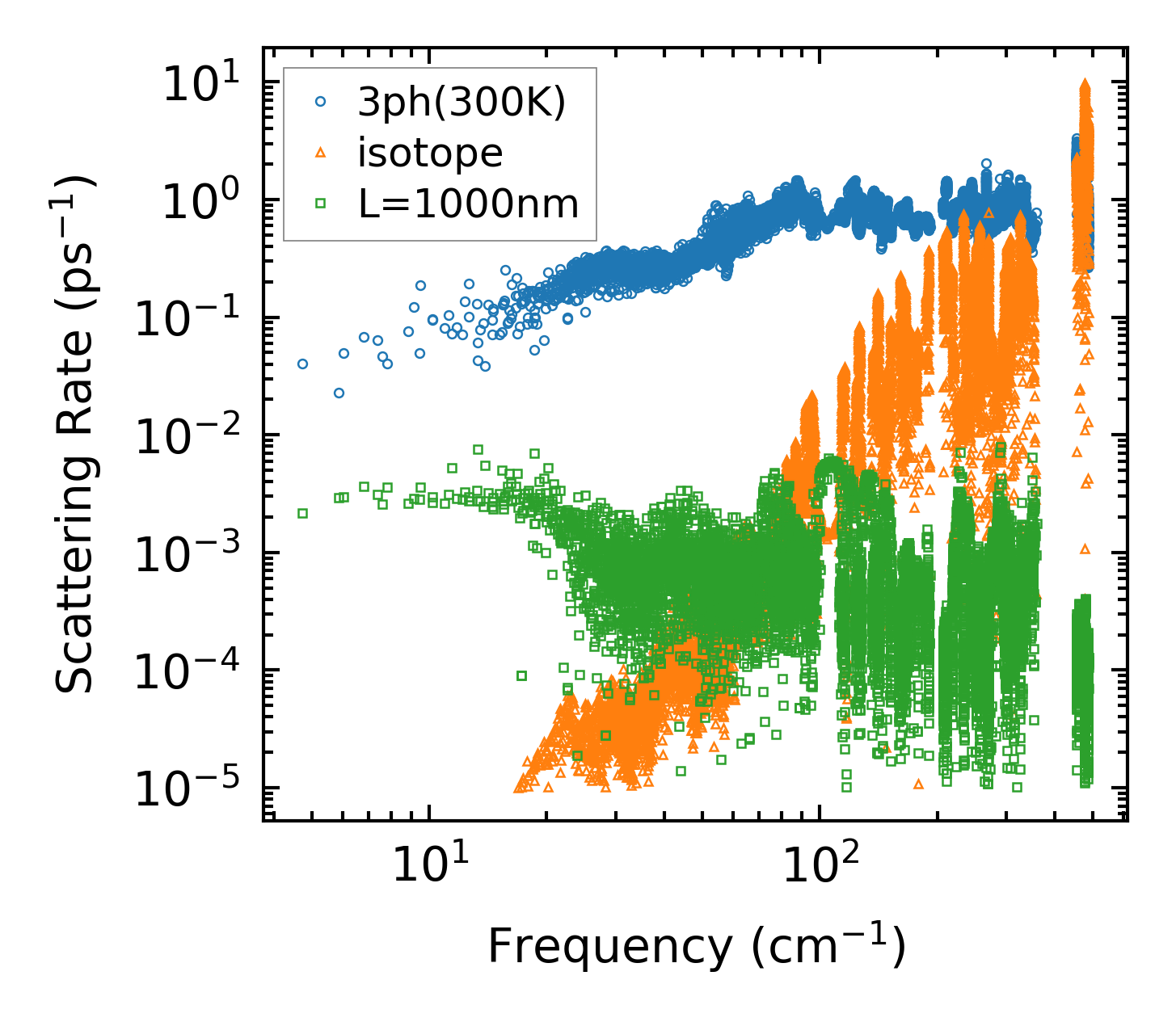

../../_images/fig_scat_rates2141.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency2142.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

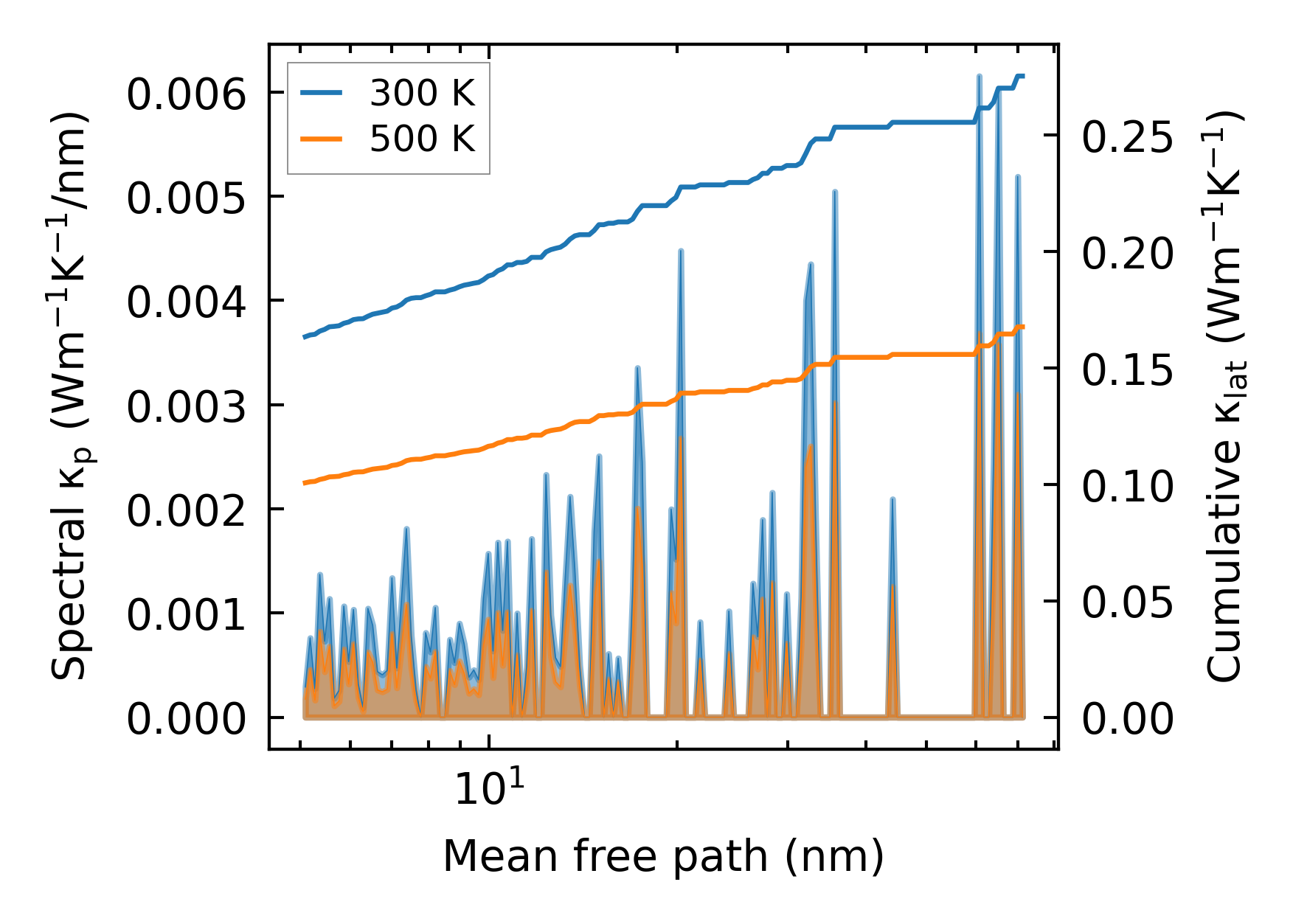

../../_images/fig_cumu_mfp2142.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc24957.png — (a) Force constants w.r.t atomic distance

Summary

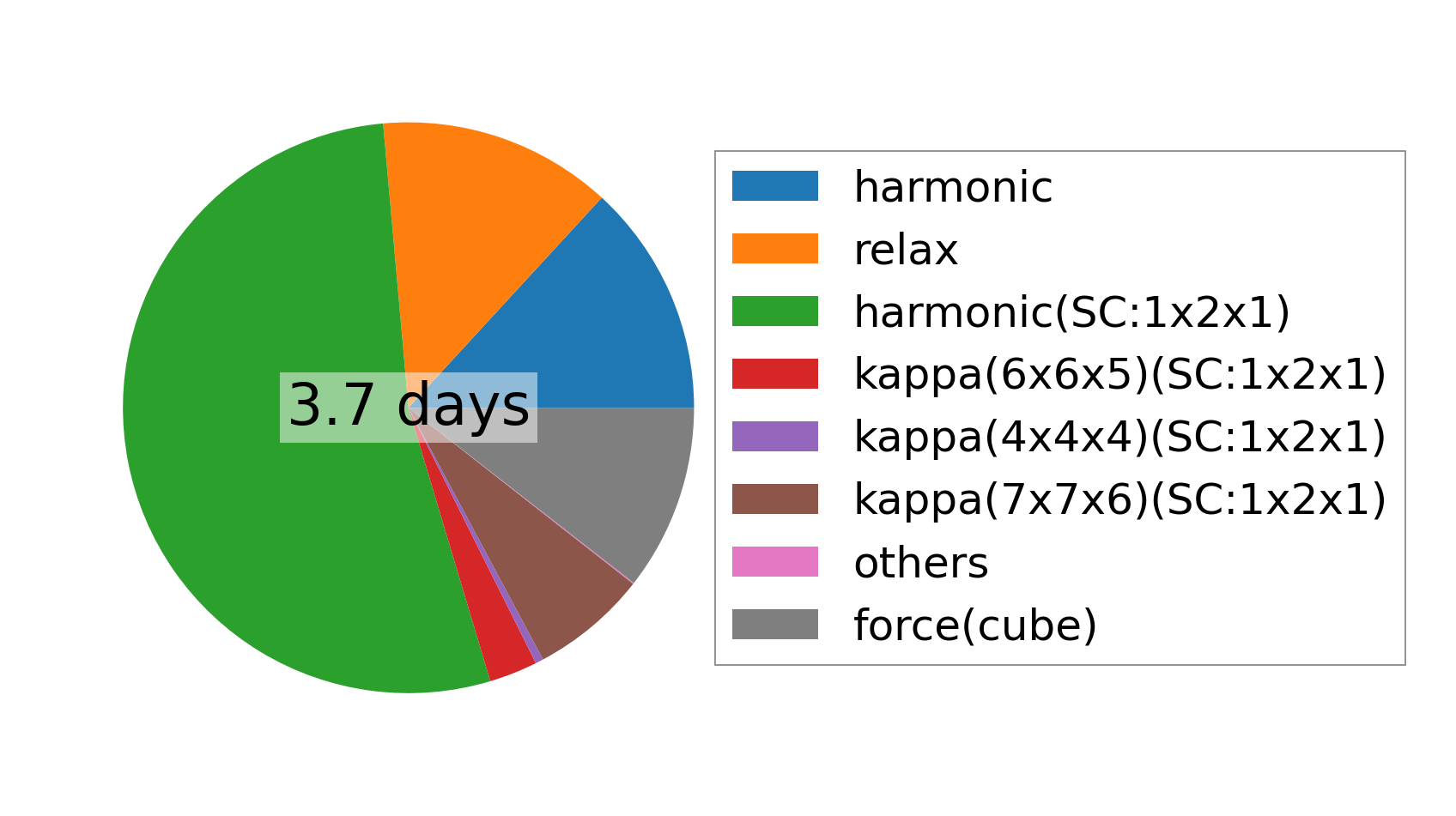

../../_images/fig_times9264.png — (a) Computation time
