mp-21760/Rb2In2Sb3/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-21760.tar.gz

Harmonic properties

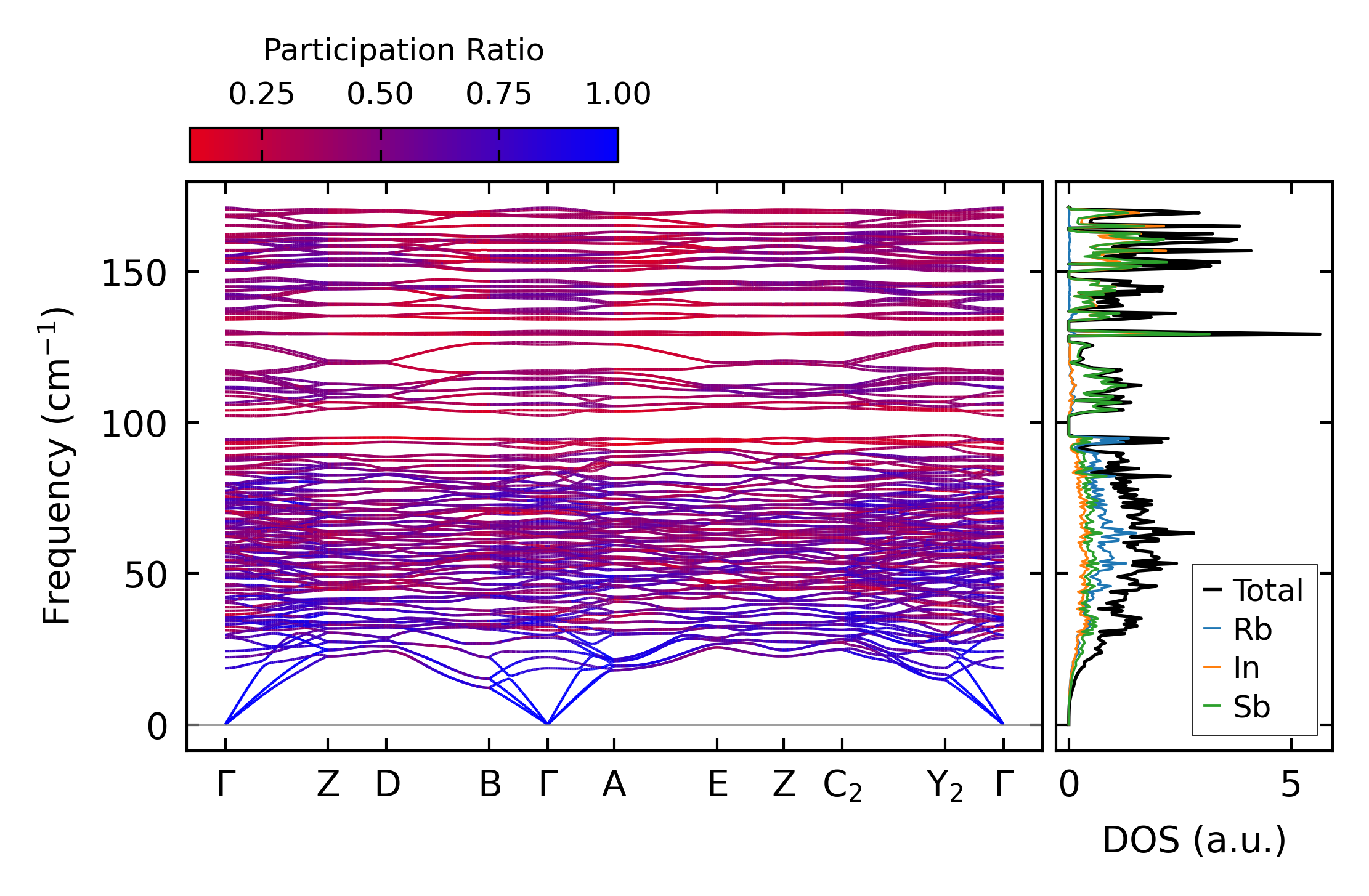

../../_images/fig_bandos_pr13356.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo13356.png — (b) Thermodynamic properties

Grüneisen parameters

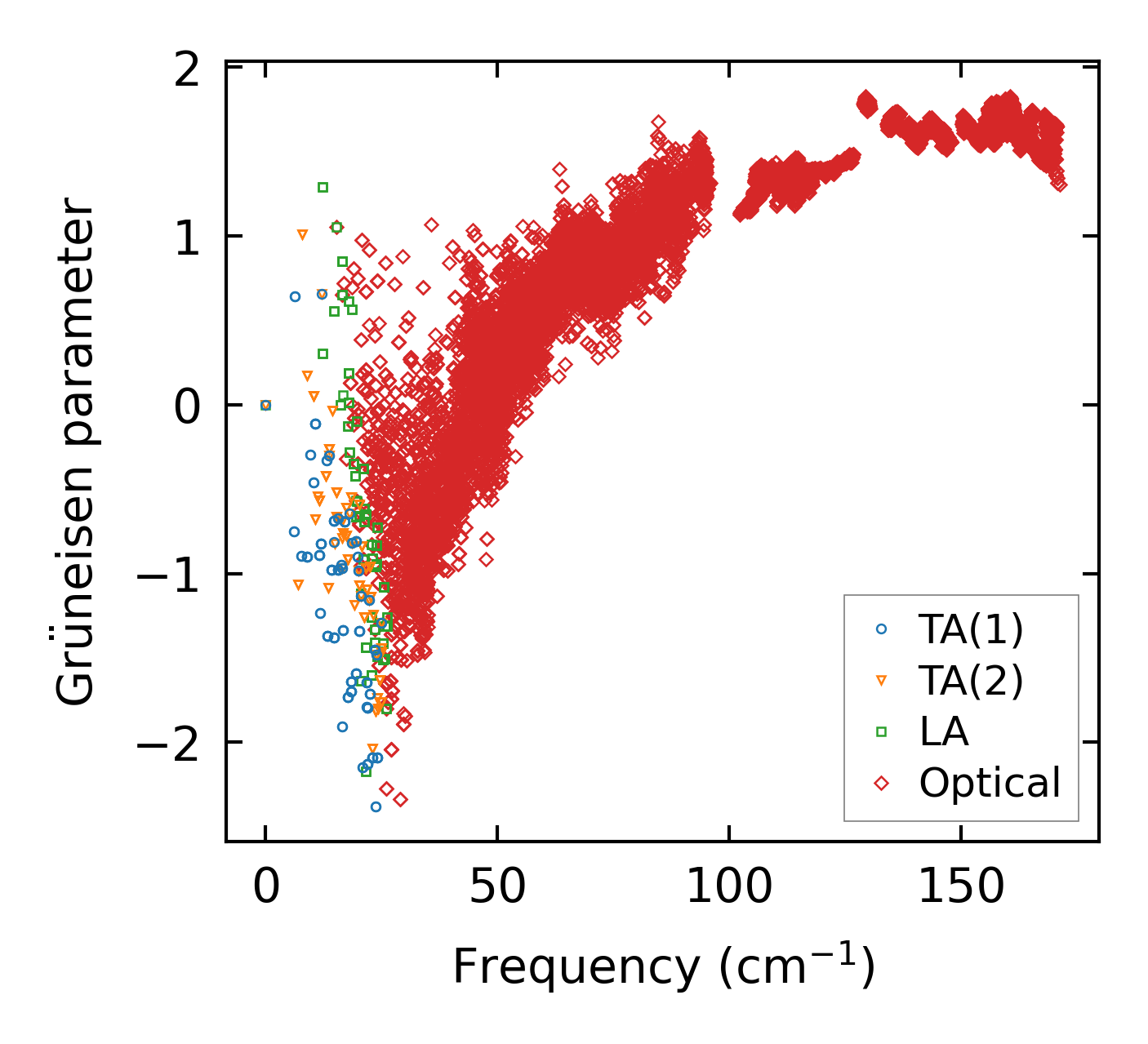

../../_images/fig_gru_all5627.png — (a) Grüneisen parameters

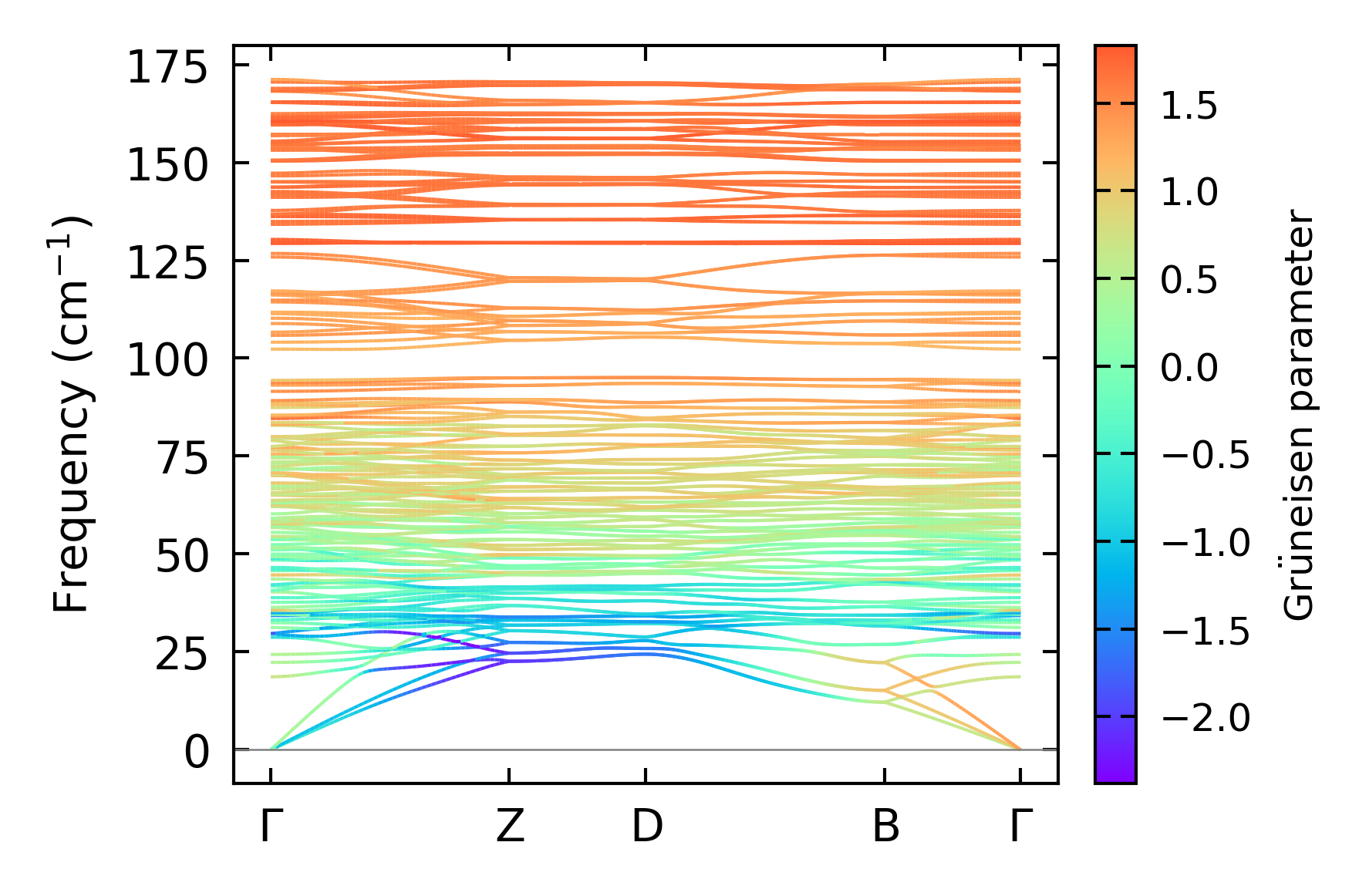

../../_images/fig_gruneisen5627.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 4x9x4, supercell: 1x2x1

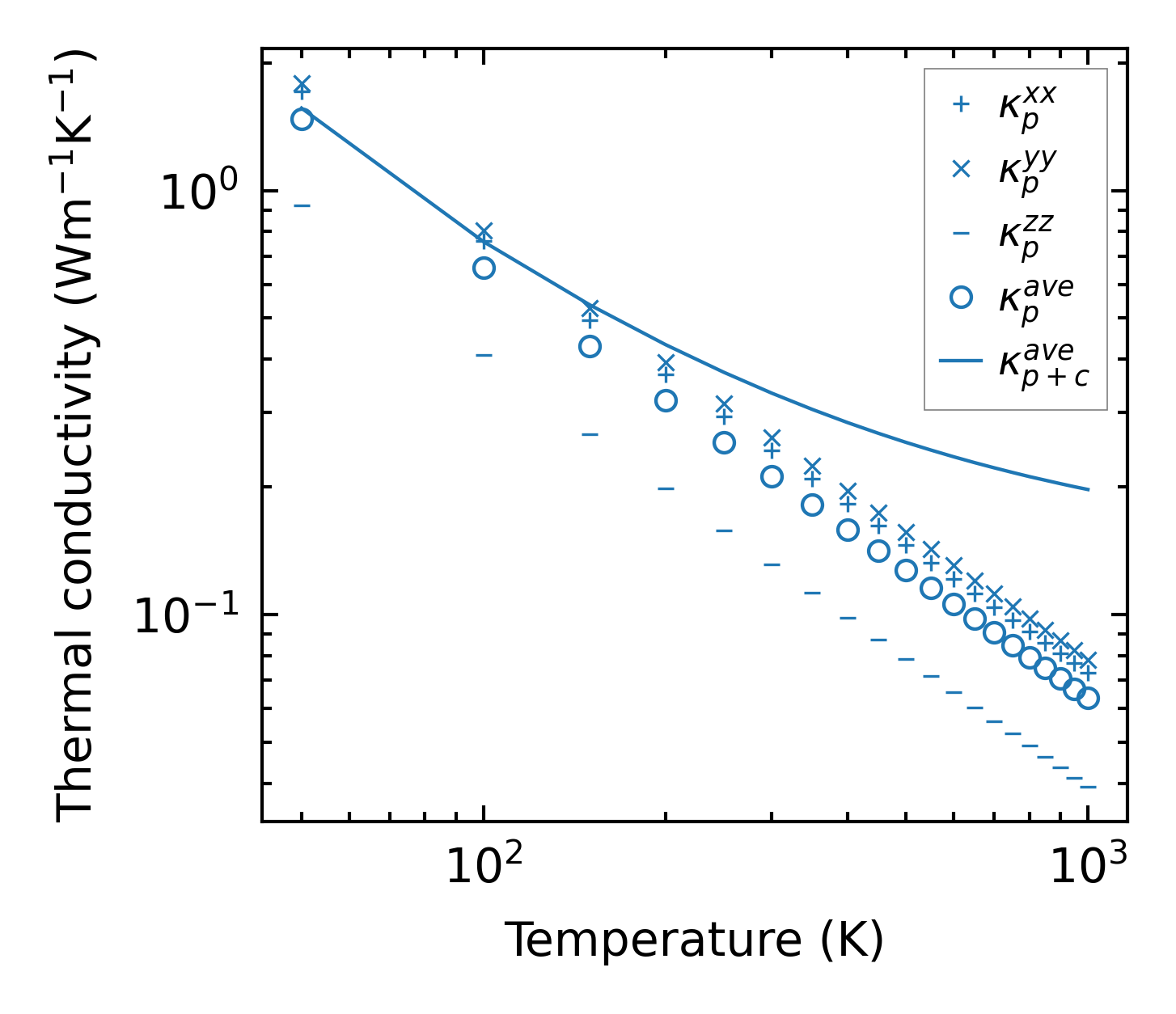

../../_images/fig_kappa10571.png — (a) Temperature-dependent lattice thermal conductivity

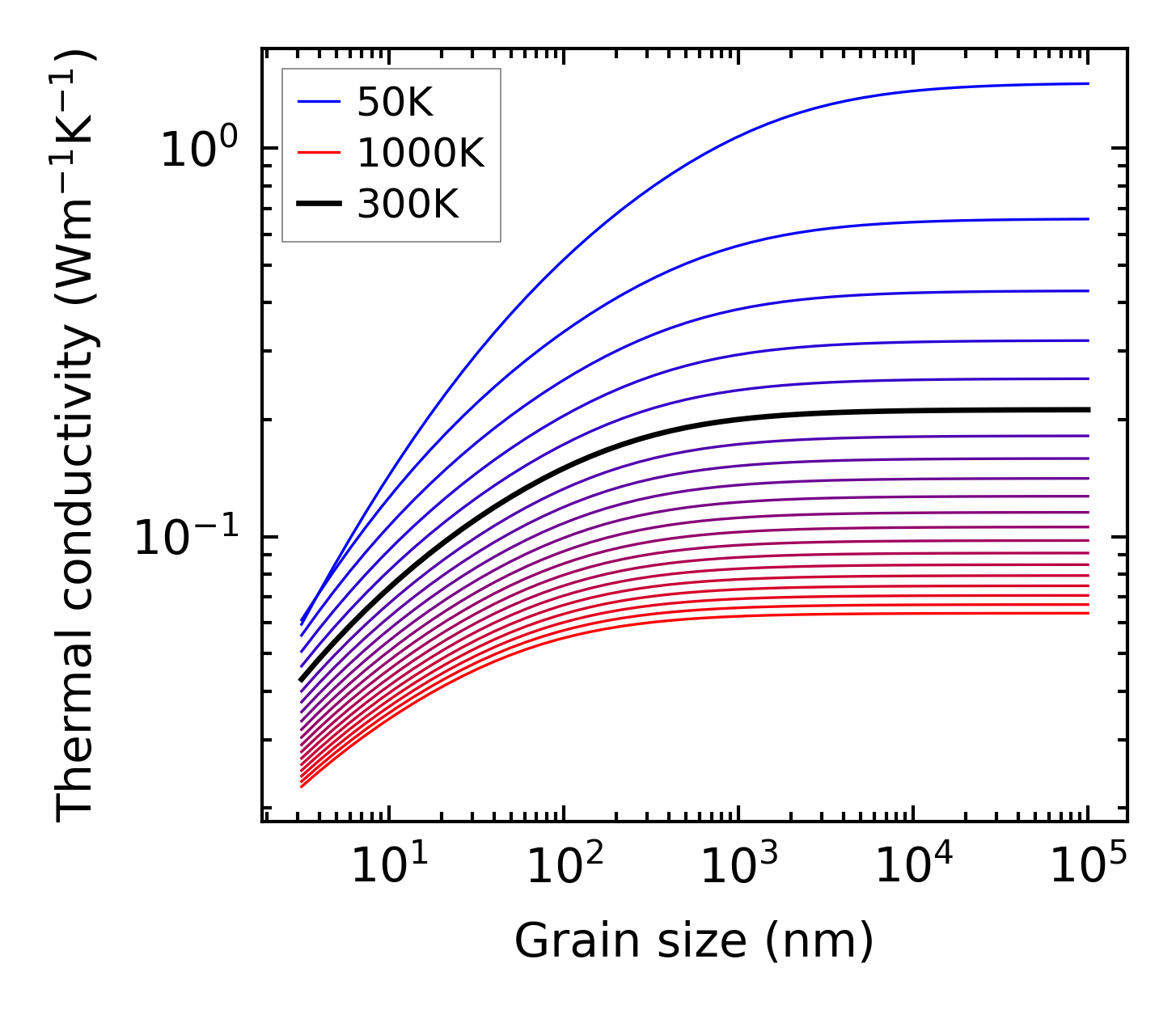

../../_images/fig_kappa_vs_grain_size5691.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

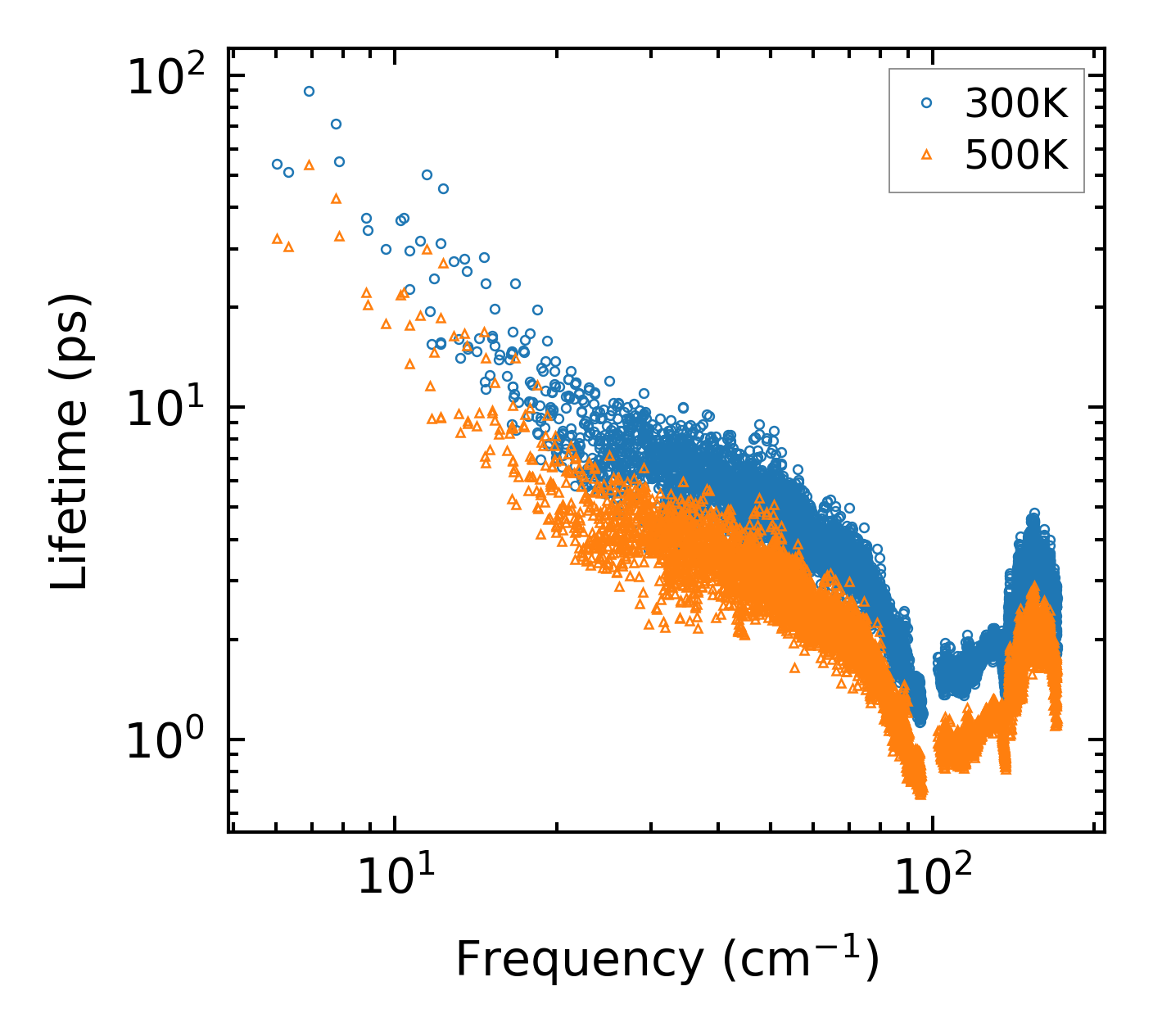

../../_images/fig_lifetime5572.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5571.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency5572.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

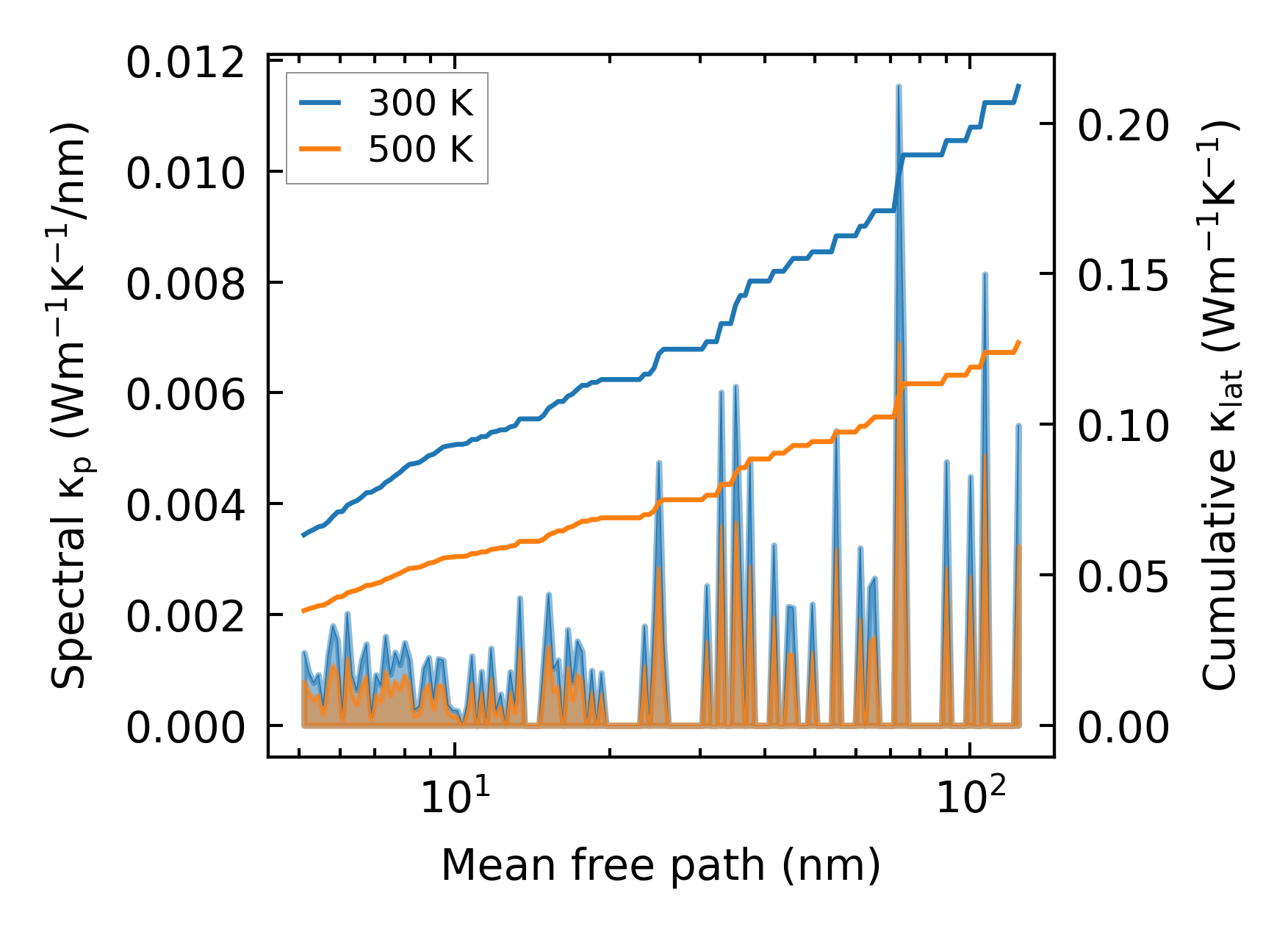

../../_images/fig_cumu_mfp5571.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc212996.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa10572.png — (a) Temperature-dependent lattice thermal conductivity

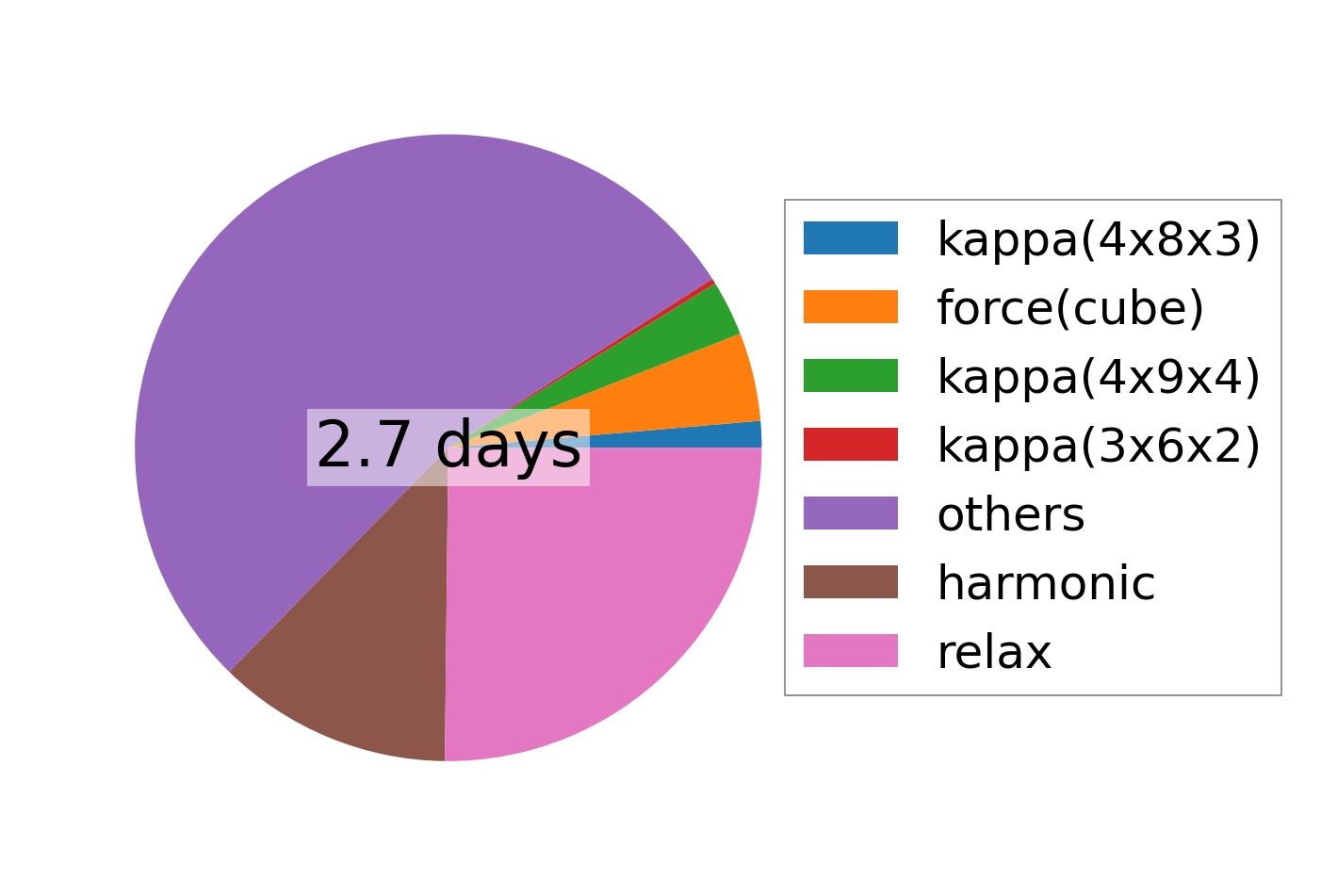

../../_images/fig_times22503.png — (b) Computation time
