mp-1227998/AlSiCN/anharm

Space group: P3m1 (156)
Link: Materials Project
Download: mp-1227998.tar.gz

Harmonic properties

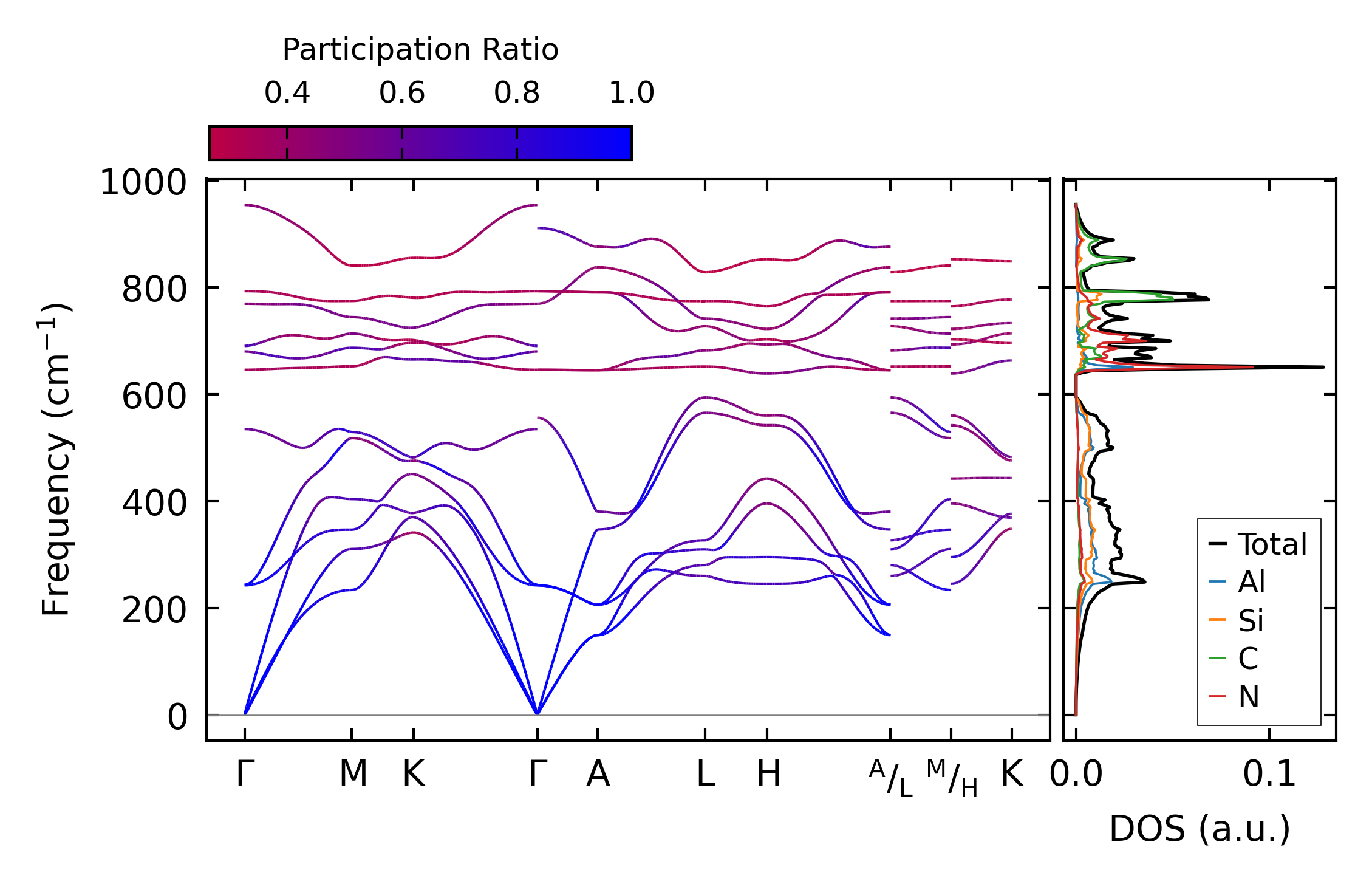

../../_images/fig_bandos_pr15136.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15135.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6495.png — (a) Grüneisen parameters

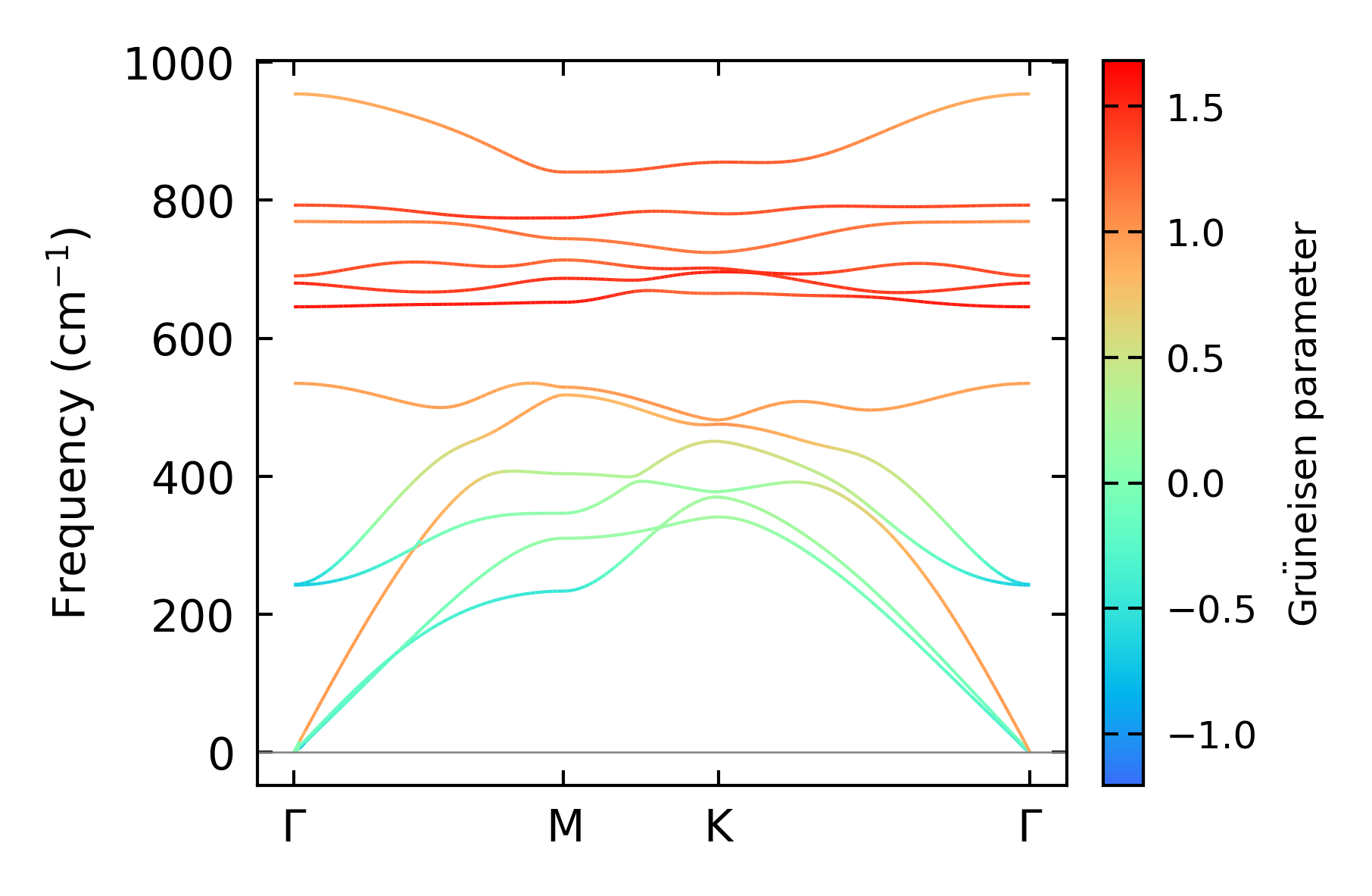

../../_images/fig_gruneisen6495.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 24x24x15, supercell: 4x4x2

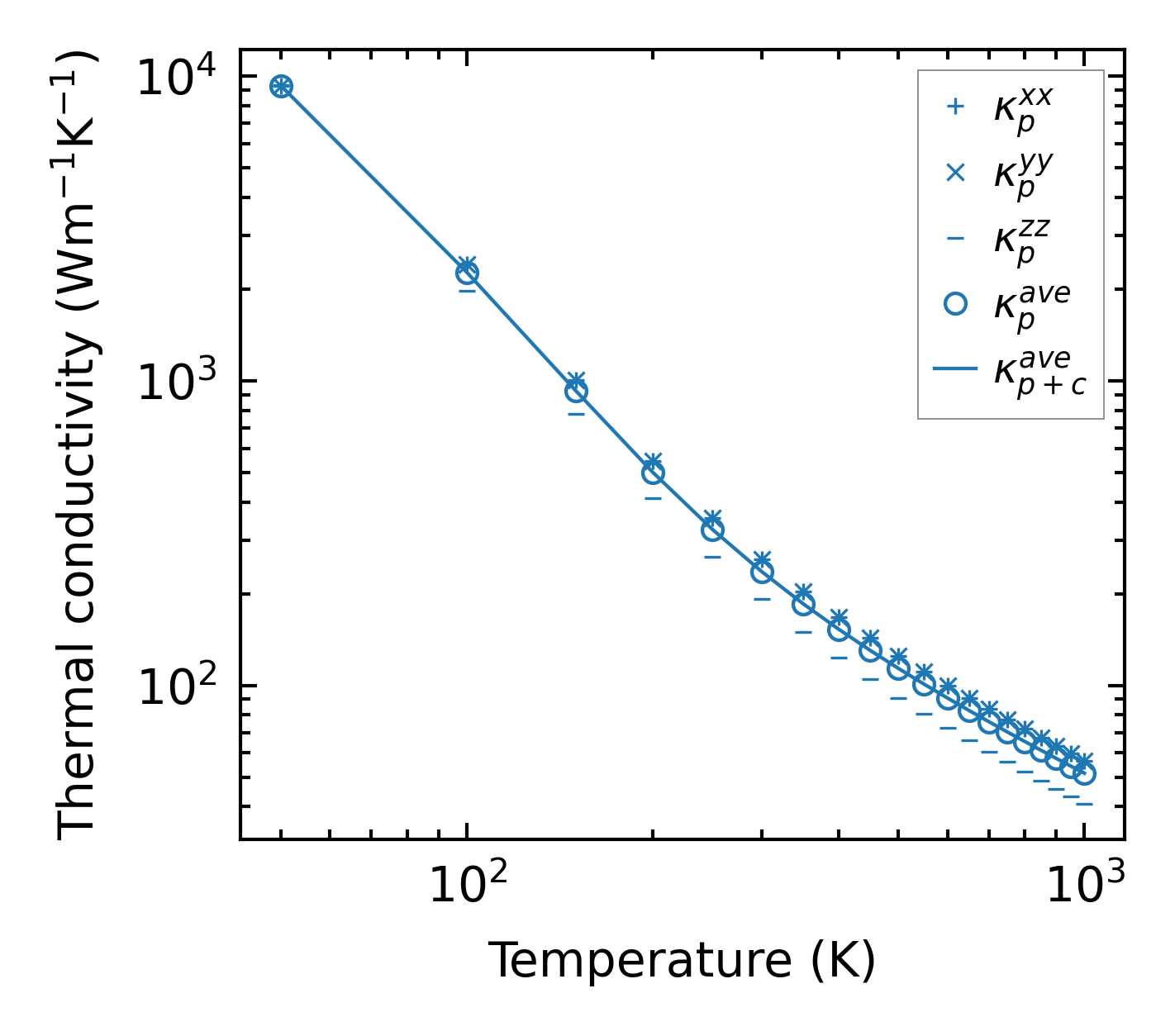

../../_images/fig_kappa12220.png — (a) Temperature-dependent lattice thermal conductivity

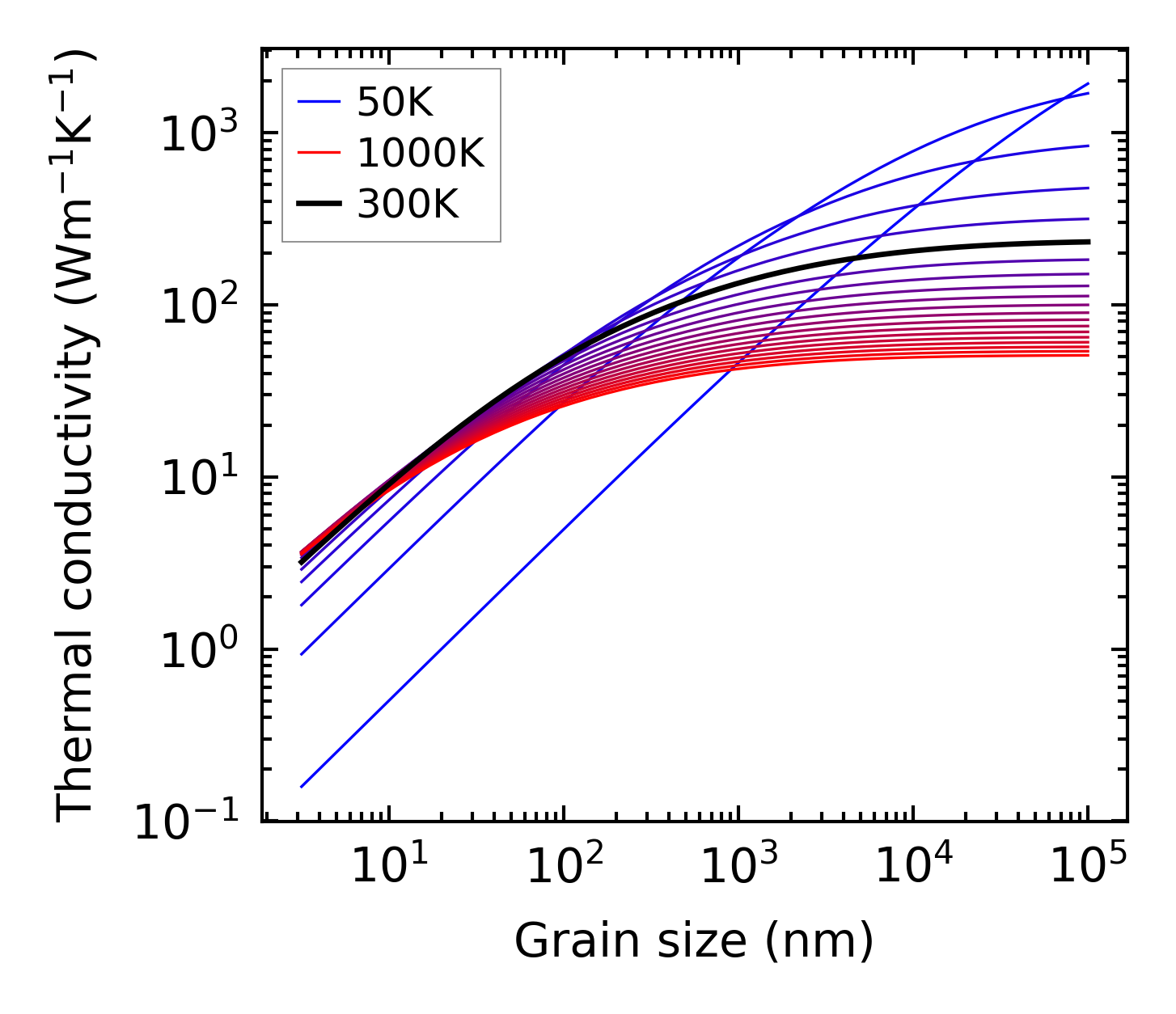

../../_images/fig_kappa_vs_grain_size6572.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime6429.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates6428.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency6429.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

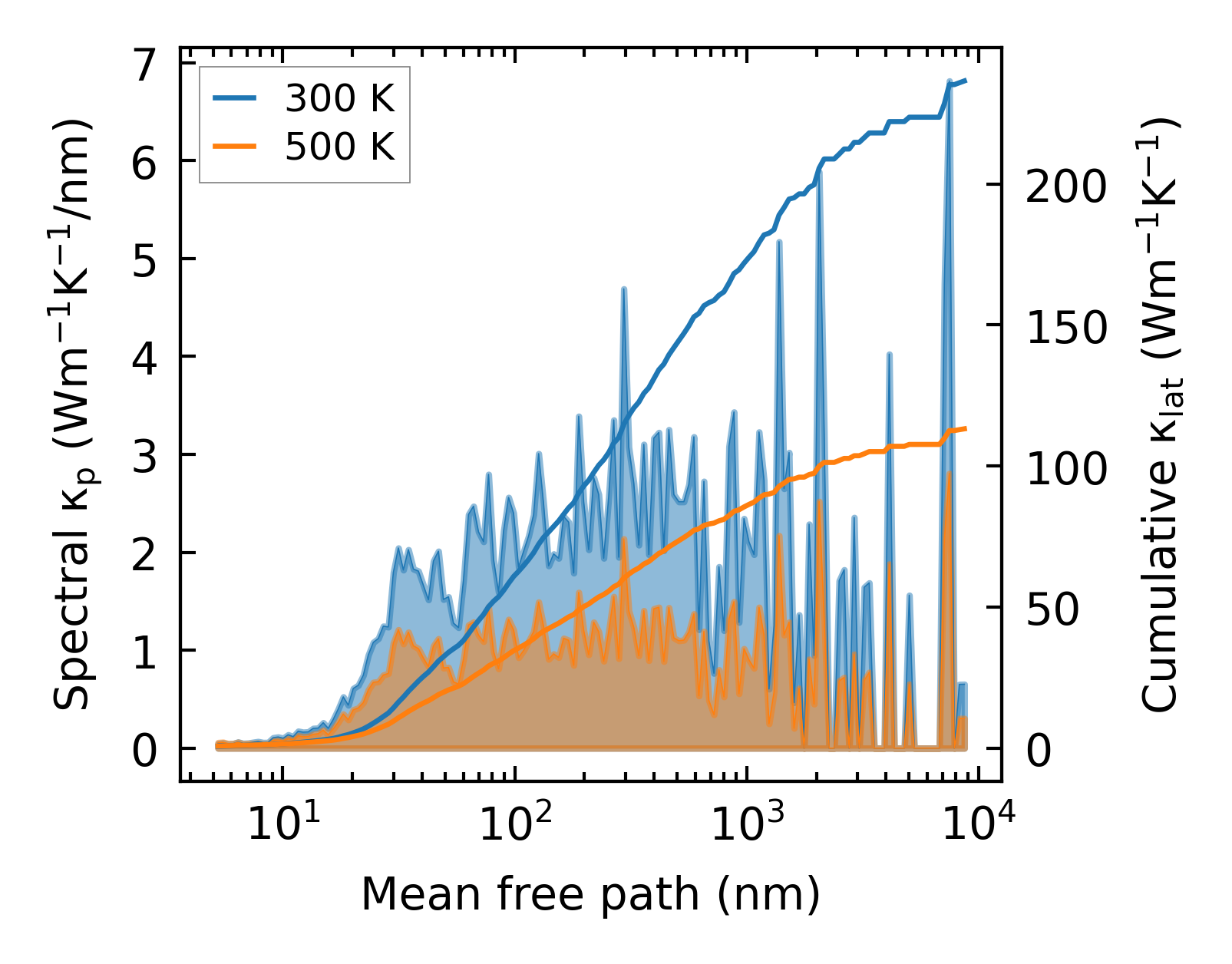

../../_images/fig_cumu_mfp6428.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

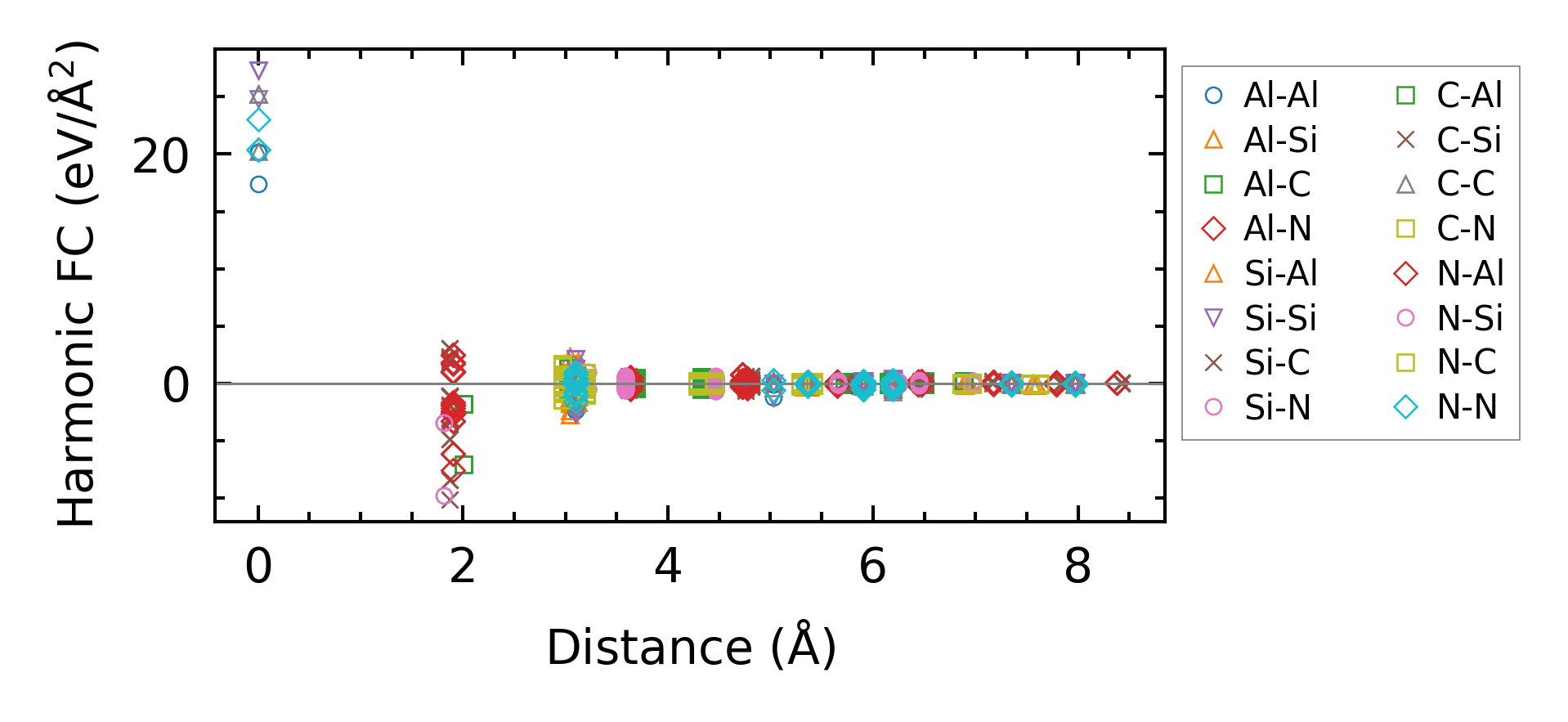

../../_images/fig_fc214751.png — (a) Force constants w.r.t atomic distance

Summary

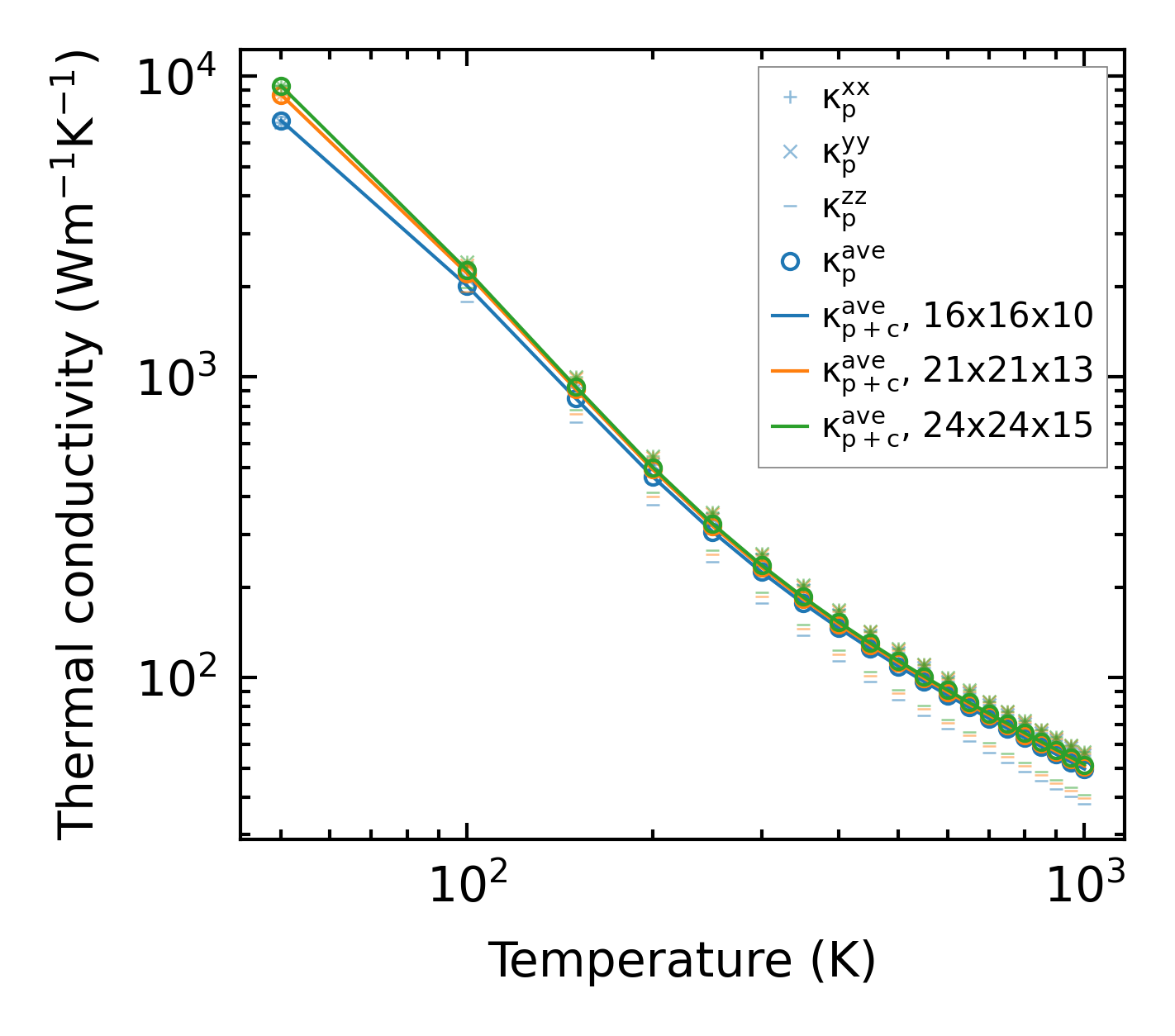

../../_images/fig_kappa12221.png — (a) Temperature-dependent lattice thermal conductivity

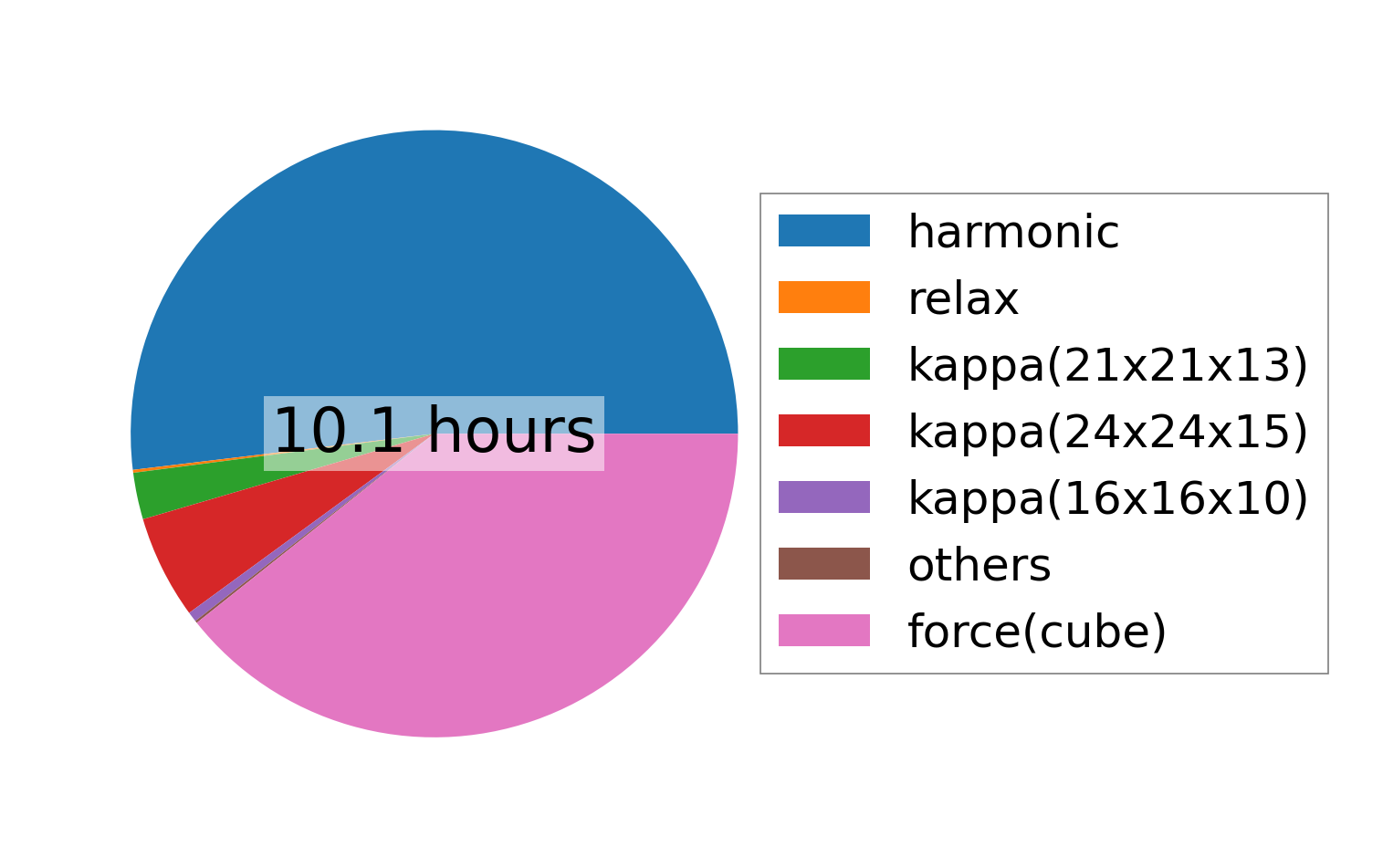

../../_images/fig_times25050.png — (b) Computation time
