mp-1227236/CaCd3O4/anharm

Space group: P4/mmm (123)
Link: Materials Project
Download: mp-1227236.tar.gz

Harmonic properties

../../_images/fig_bandos_pr15109.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15108.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6485.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6485.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 21x21x7, supercell: 3x3x2

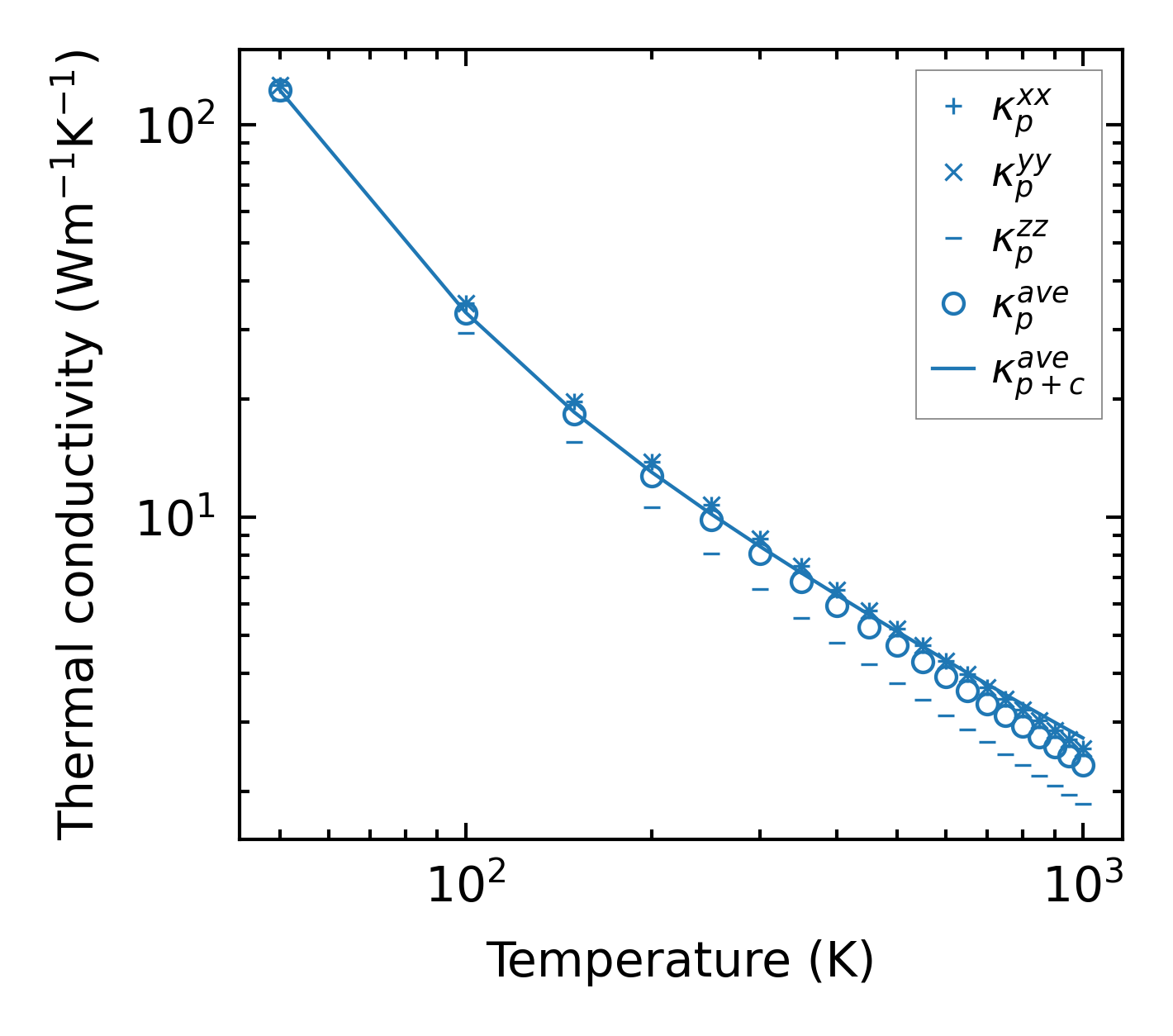

../../_images/fig_kappa12200.png — (a) Temperature-dependent lattice thermal conductivity

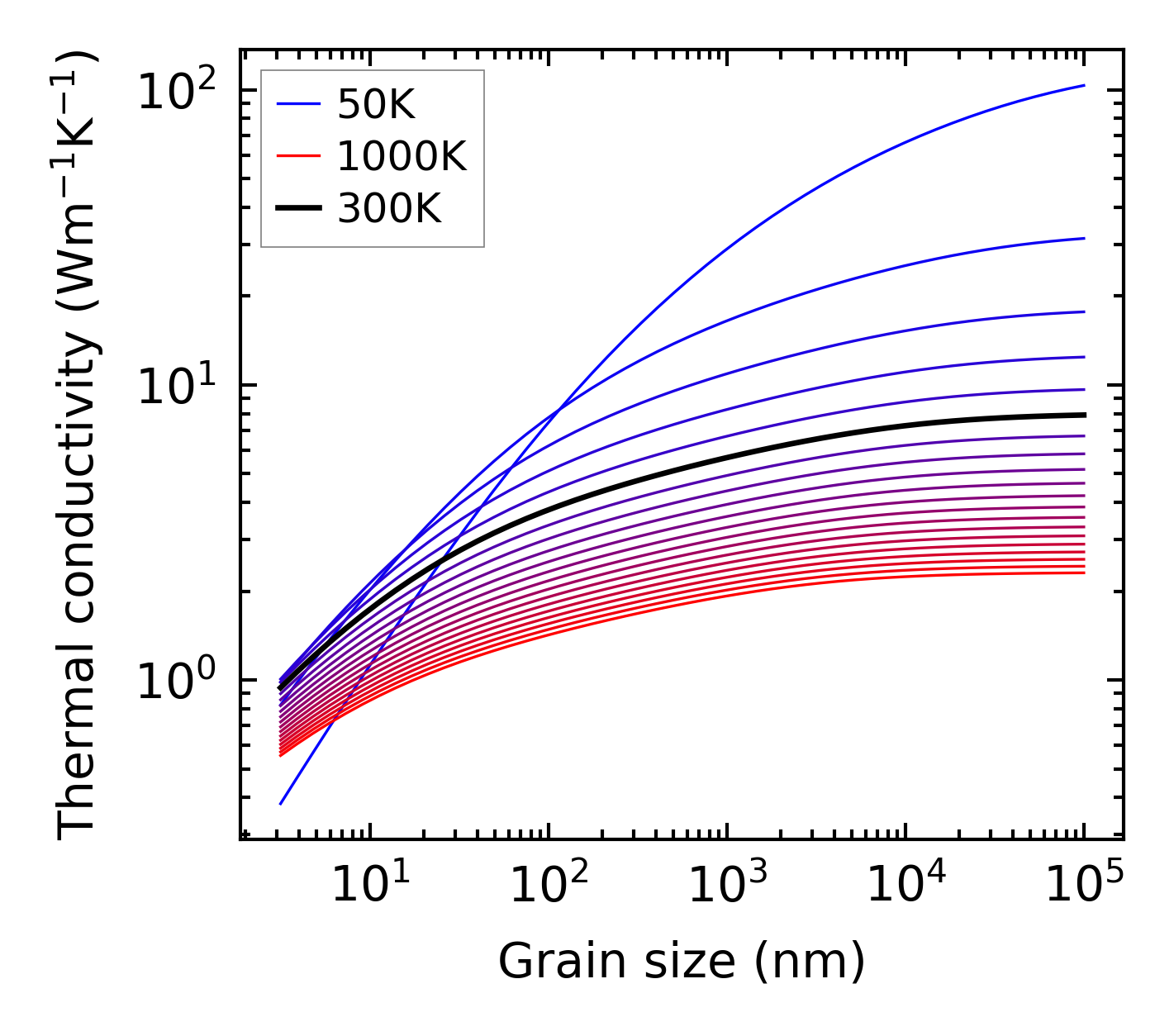

../../_images/fig_kappa_vs_grain_size6562.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

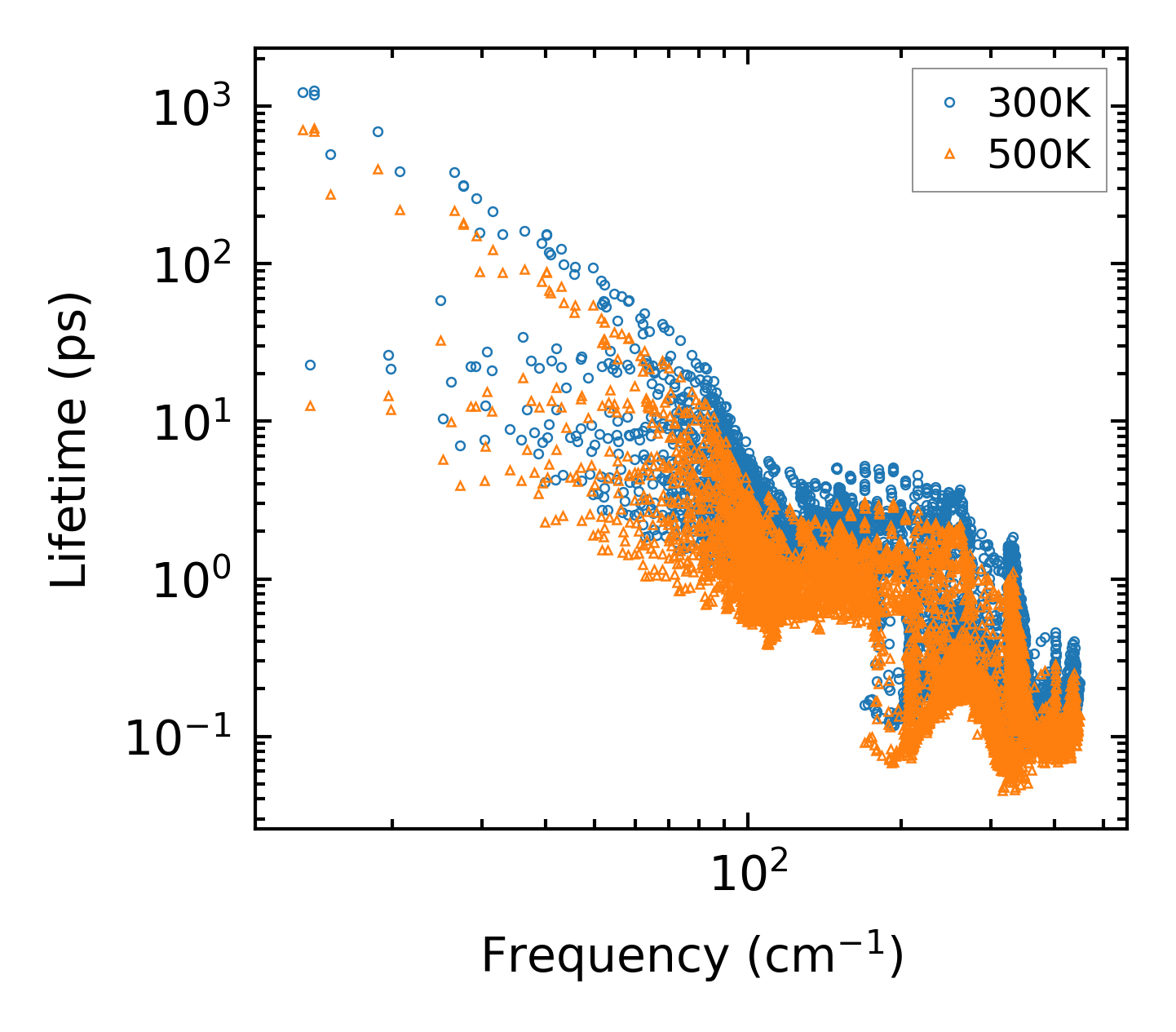

../../_images/fig_lifetime6419.png — (a) Phonon lifetime due to phonon-phonon scattering

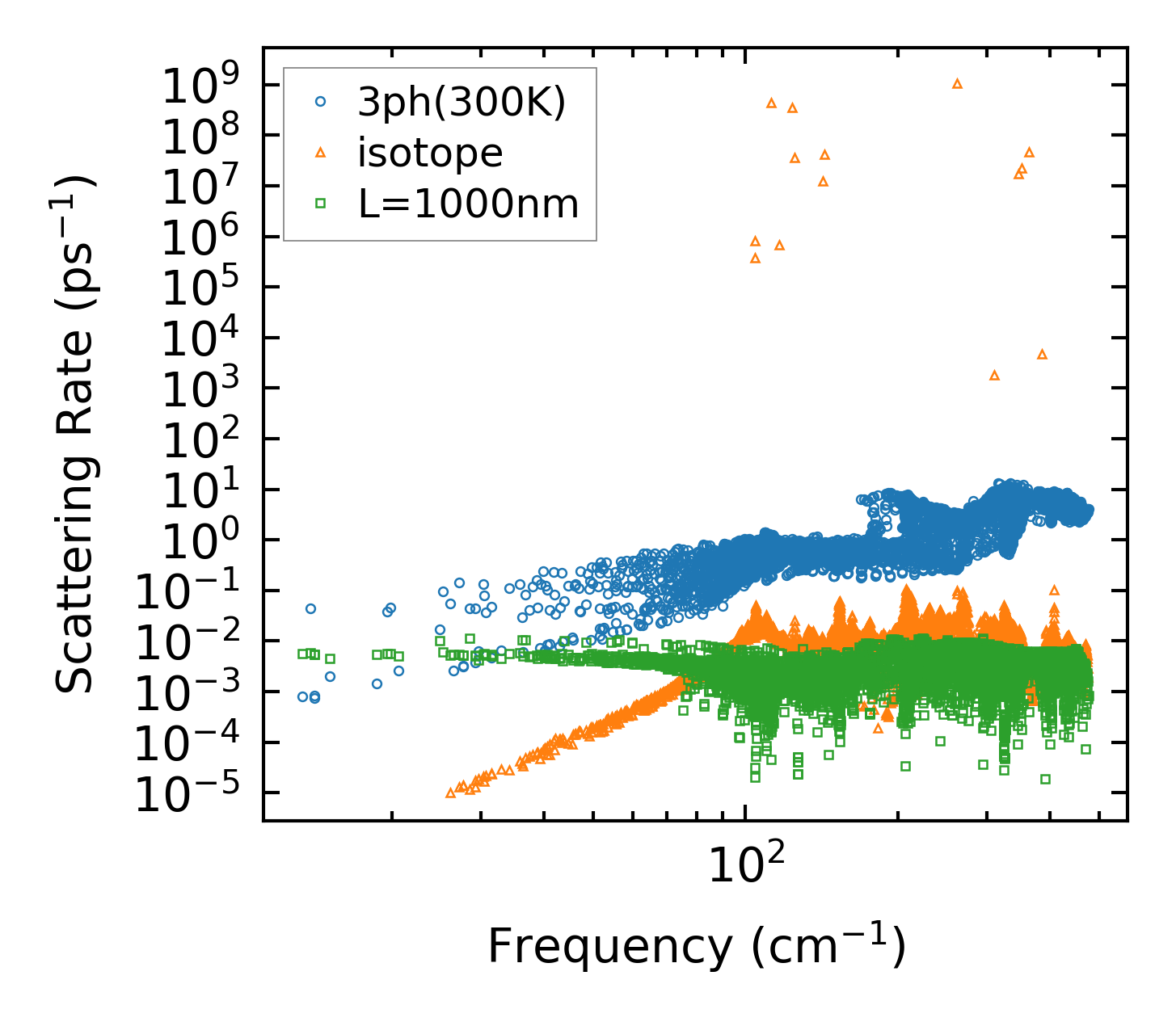

../../_images/fig_scat_rates6418.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

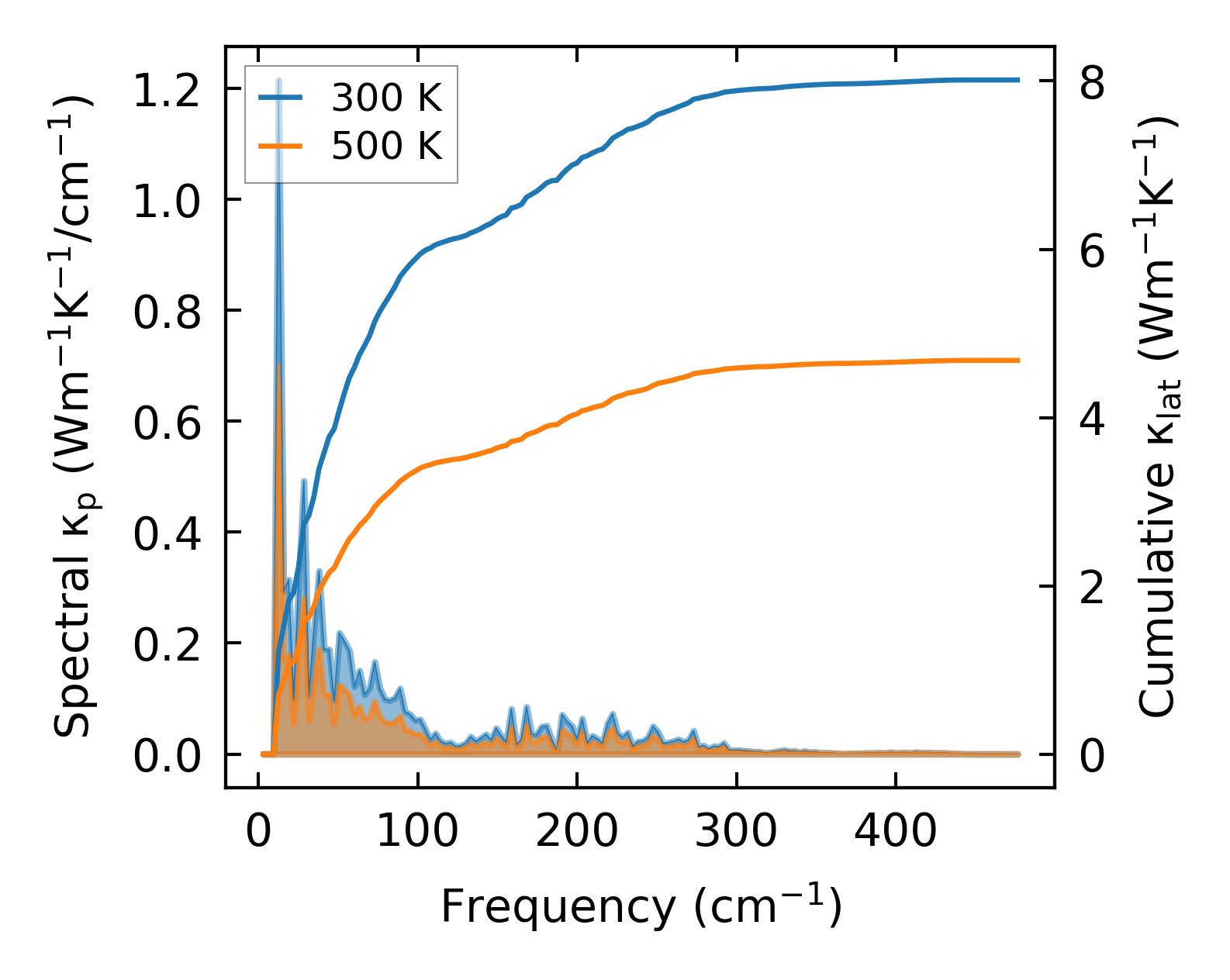

../../_images/fig_cumu_frequency6419.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

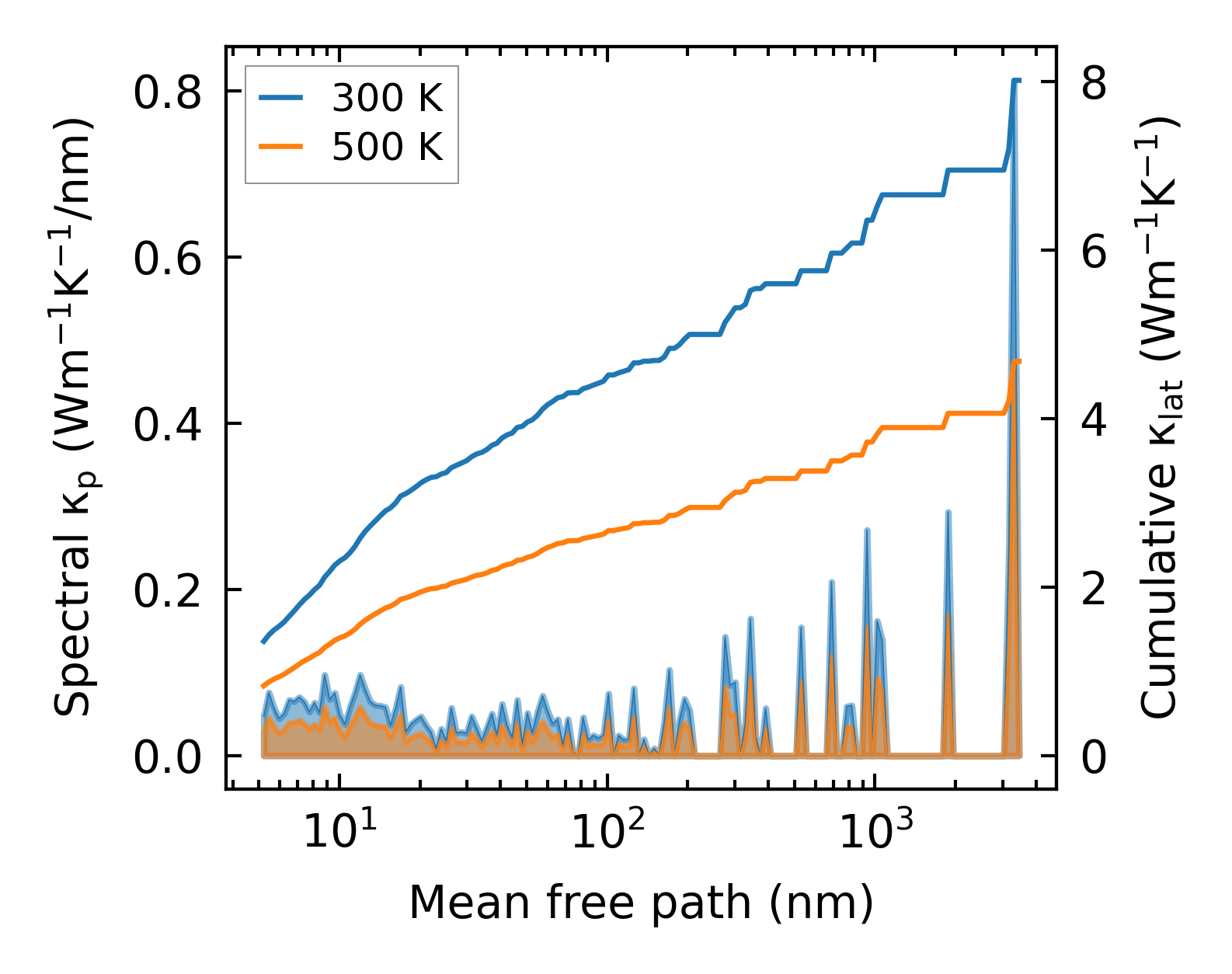

../../_images/fig_cumu_mfp6418.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

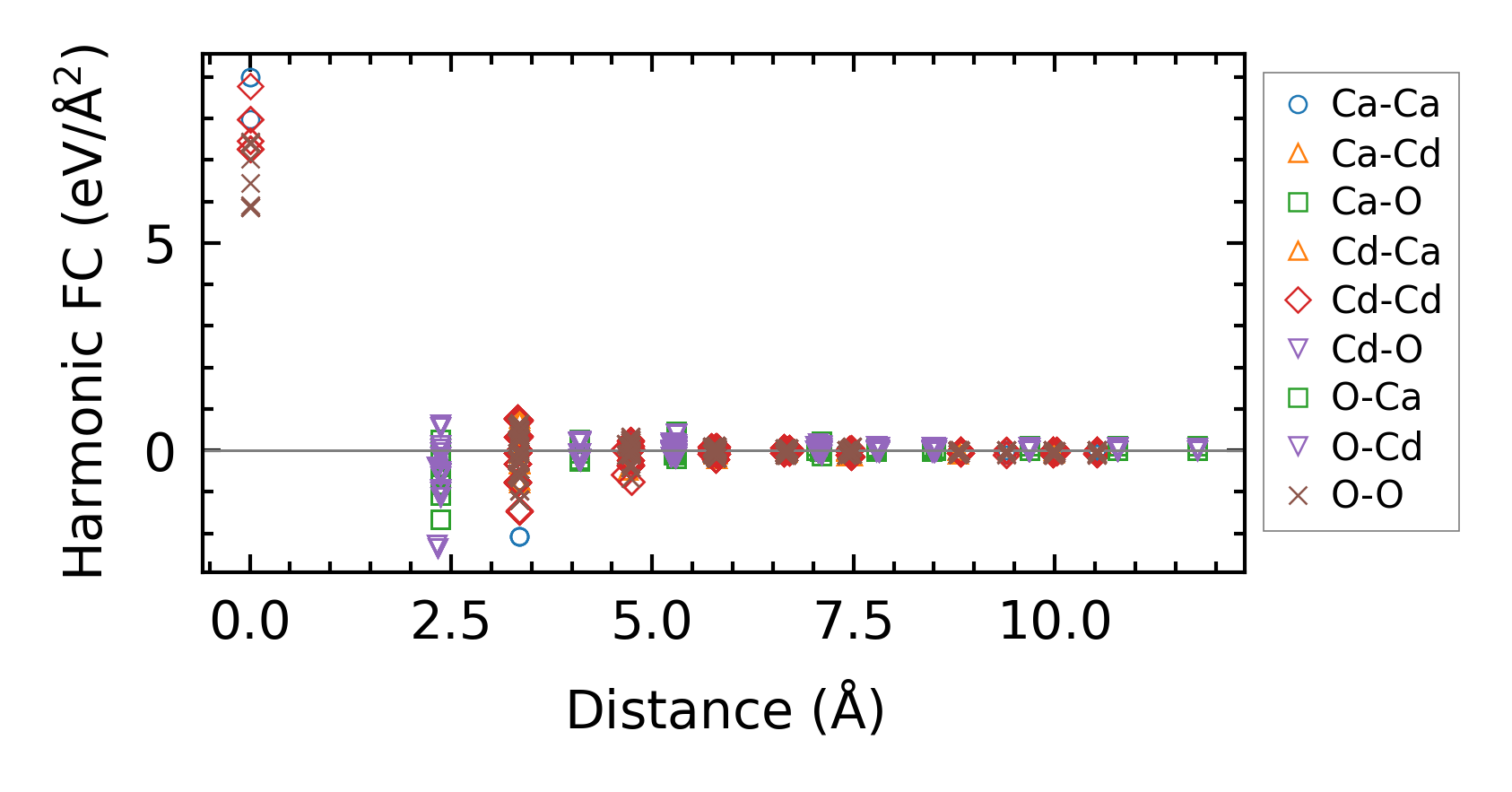

../../_images/fig_fc214724.png — (a) Force constants w.r.t atomic distance

Summary

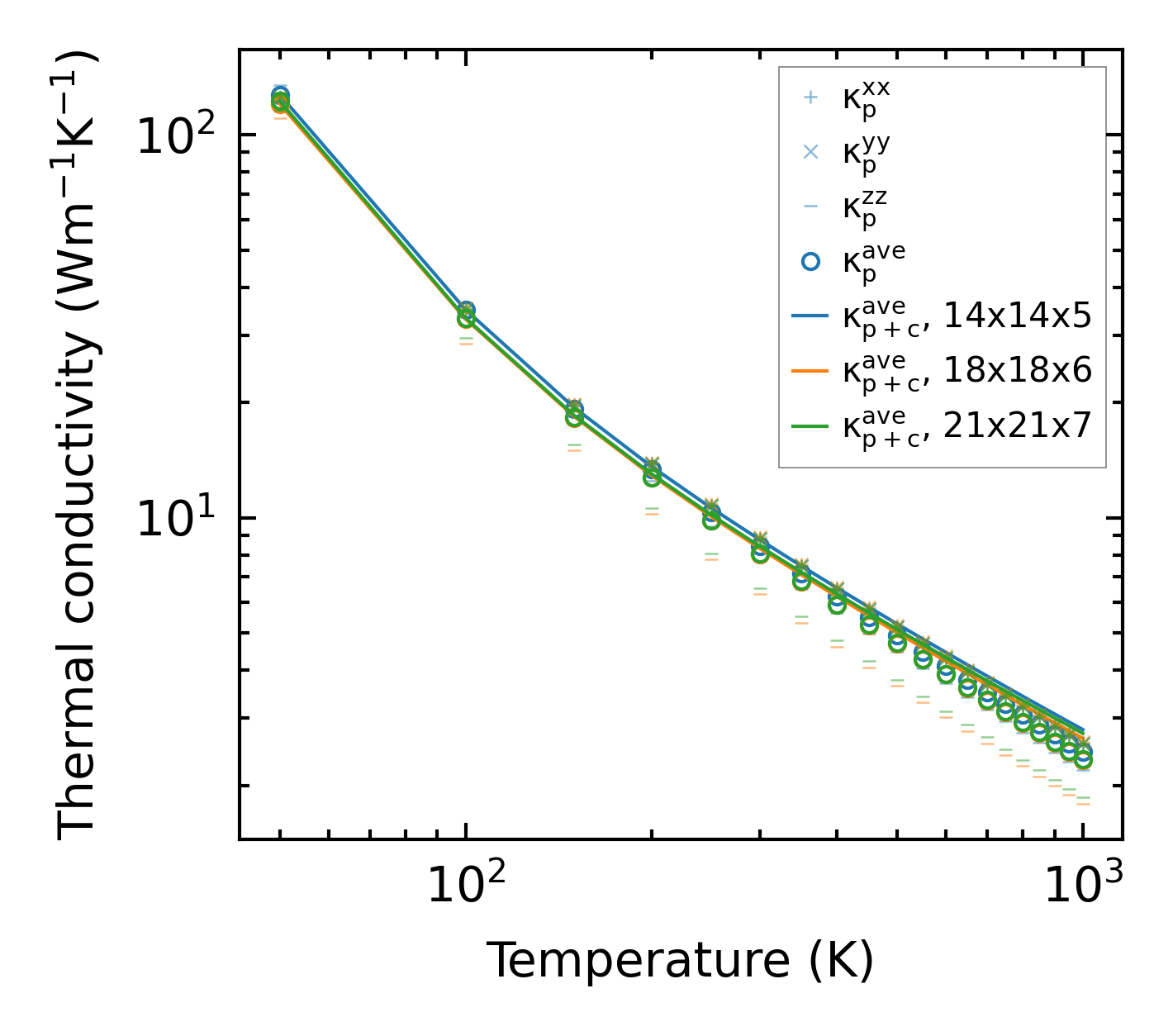

../../_images/fig_kappa12201.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times25006.png — (b) Computation time
