mp-1223867/K3I2Br/anharm

Space group: P-3m1 (164)
Link: Materials Project
Download: mp-1223867.tar.gz

Harmonic properties

../../_images/fig_bandos_pr15040.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15039.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6464.png — (a) Grüneisen parameters

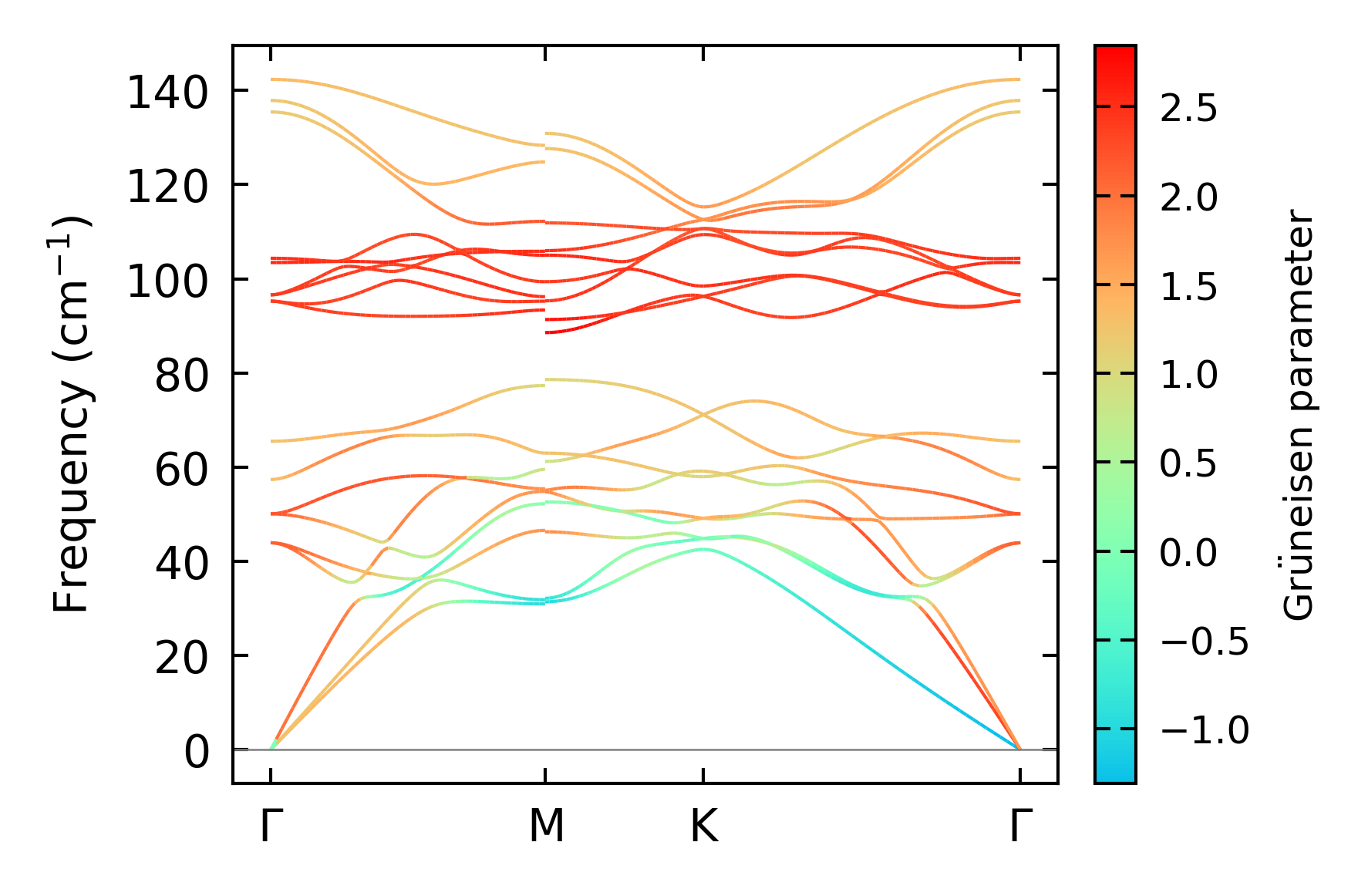

../../_images/fig_gruneisen6464.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 15x15x6, supercell: 3x3x2

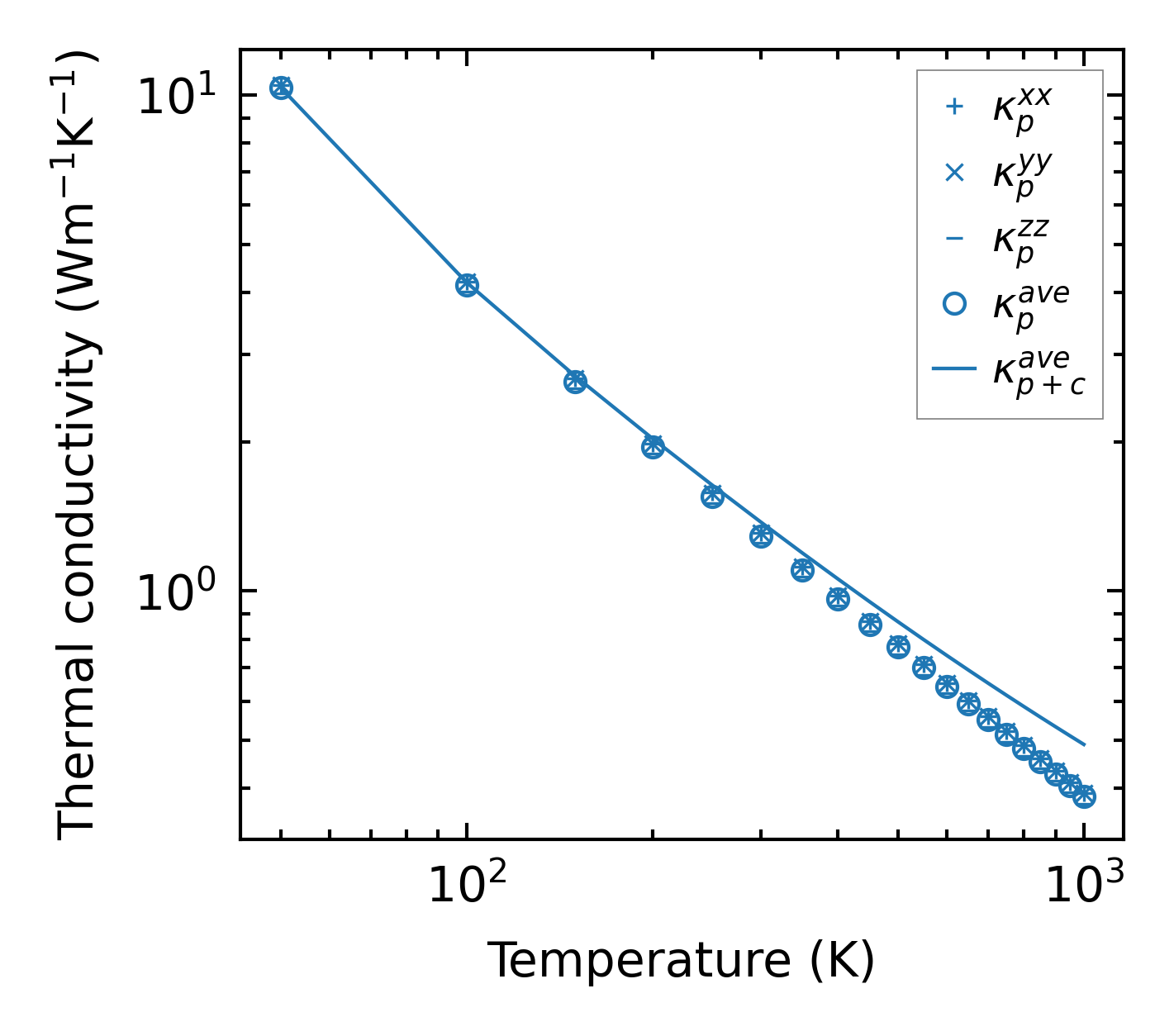

../../_images/fig_kappa12158.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size6541.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

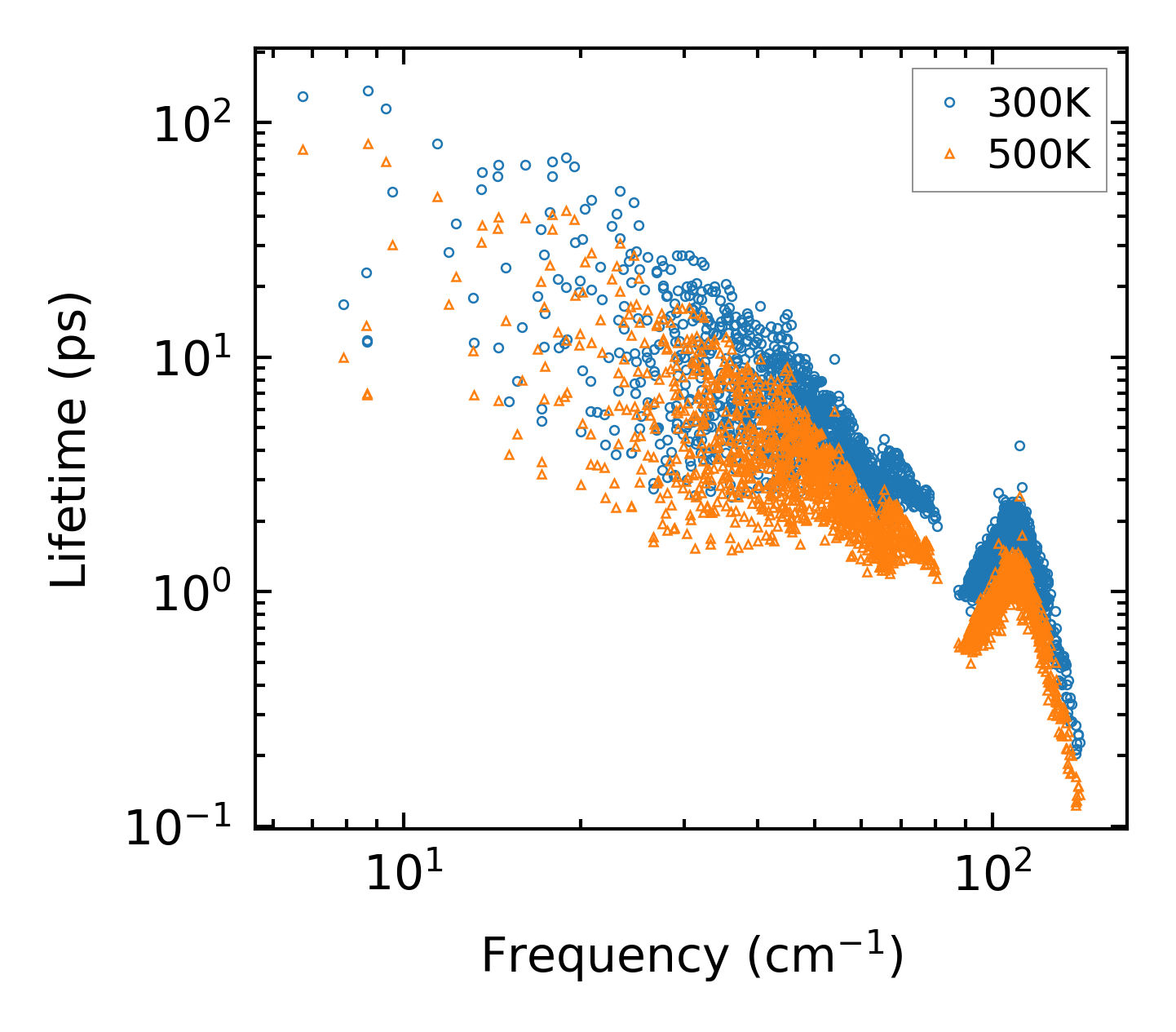

../../_images/fig_lifetime6398.png — (a) Phonon lifetime due to phonon-phonon scattering

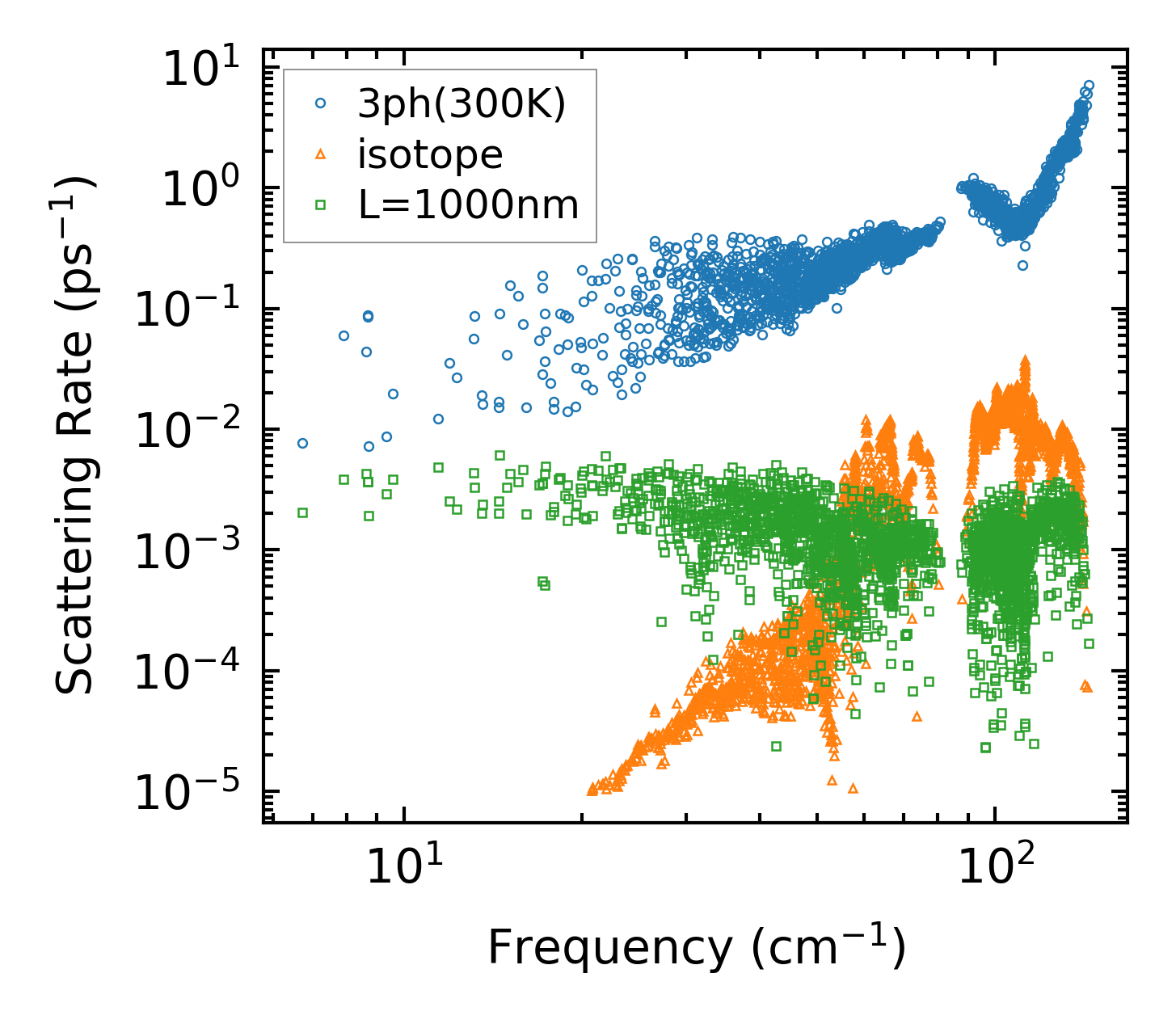

../../_images/fig_scat_rates6397.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency6398.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

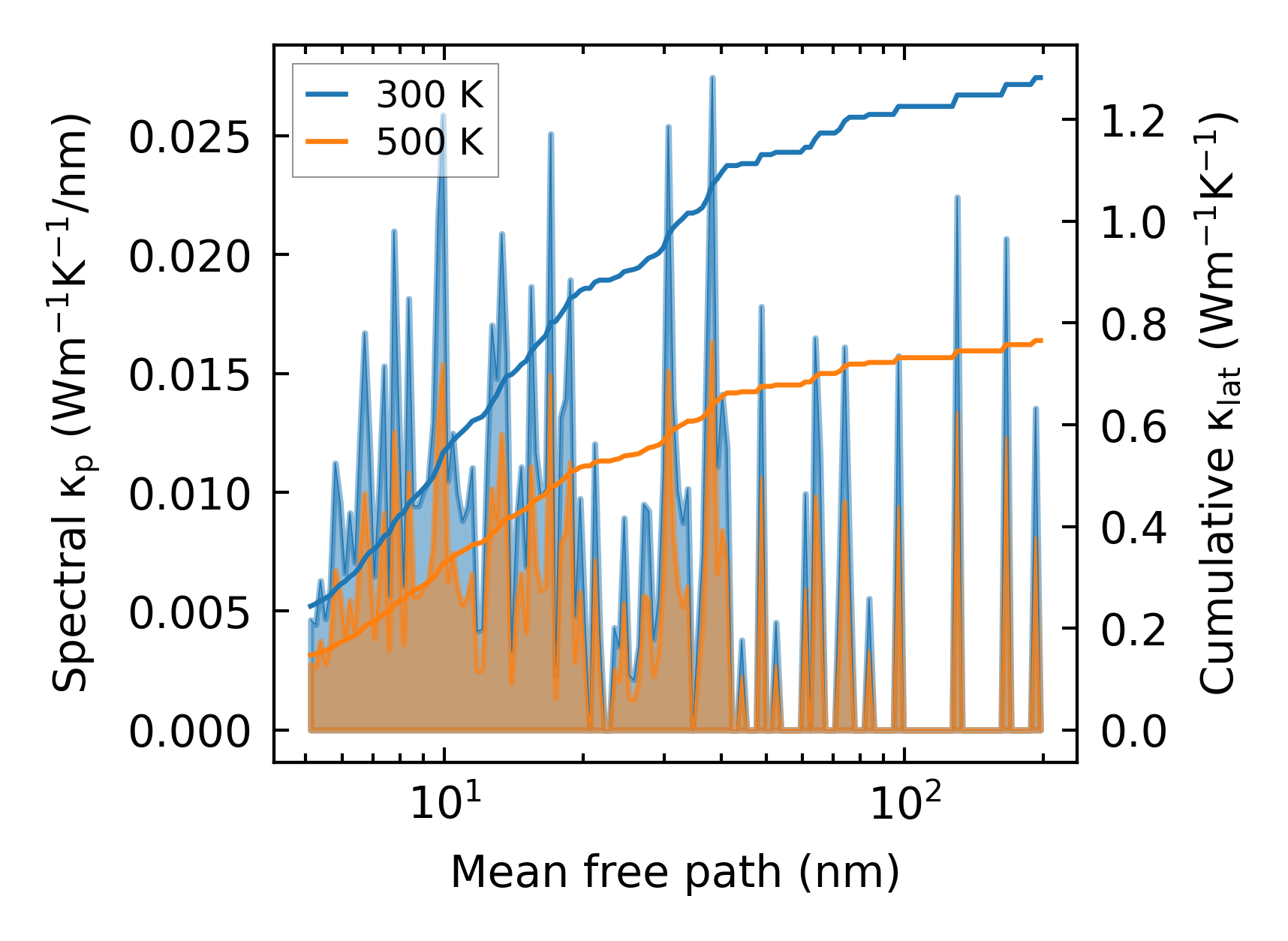

../../_images/fig_cumu_mfp6397.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

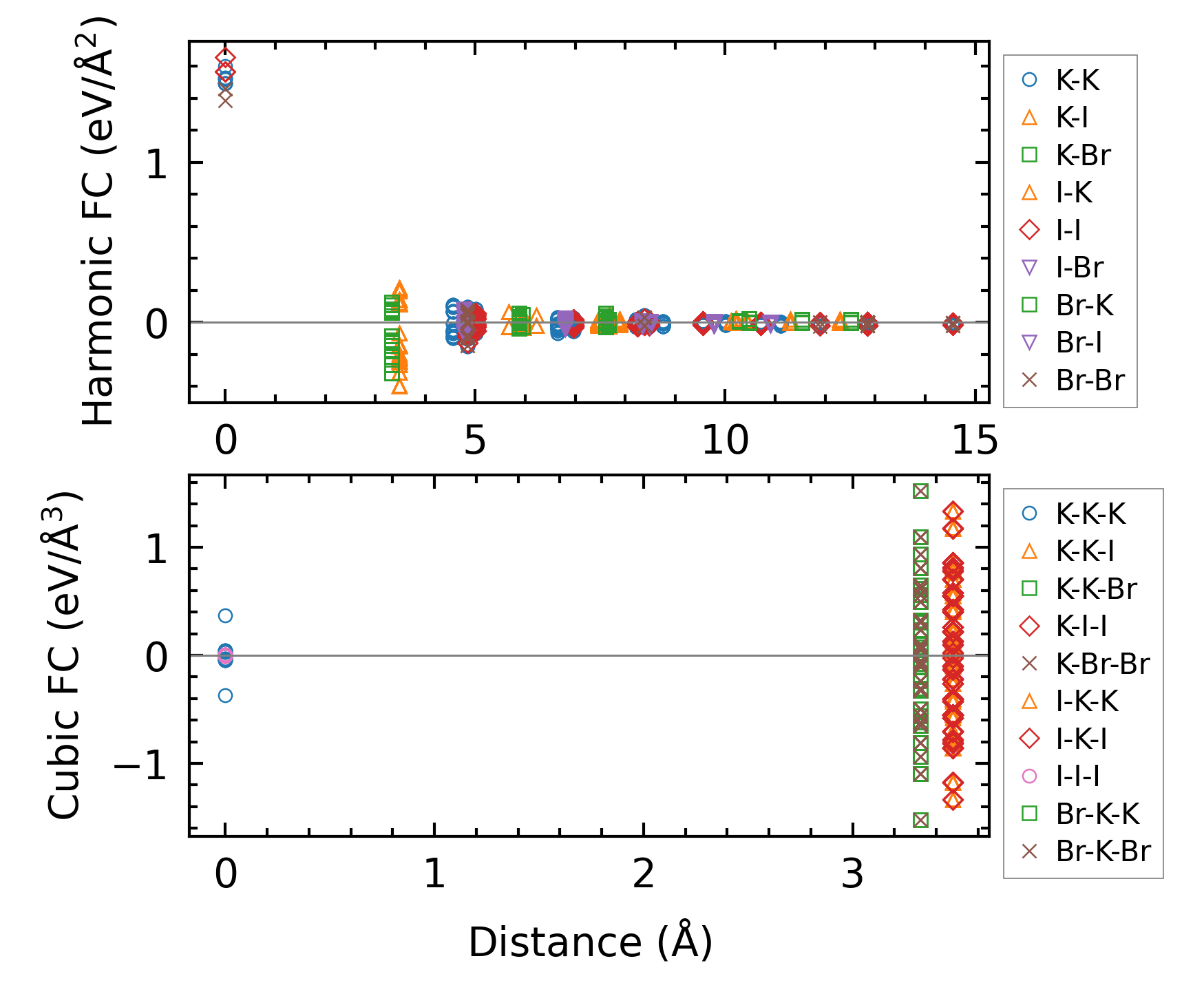

../../_images/fig_fc3384.png — (a) Force constants w.r.t atomic distance

Summary

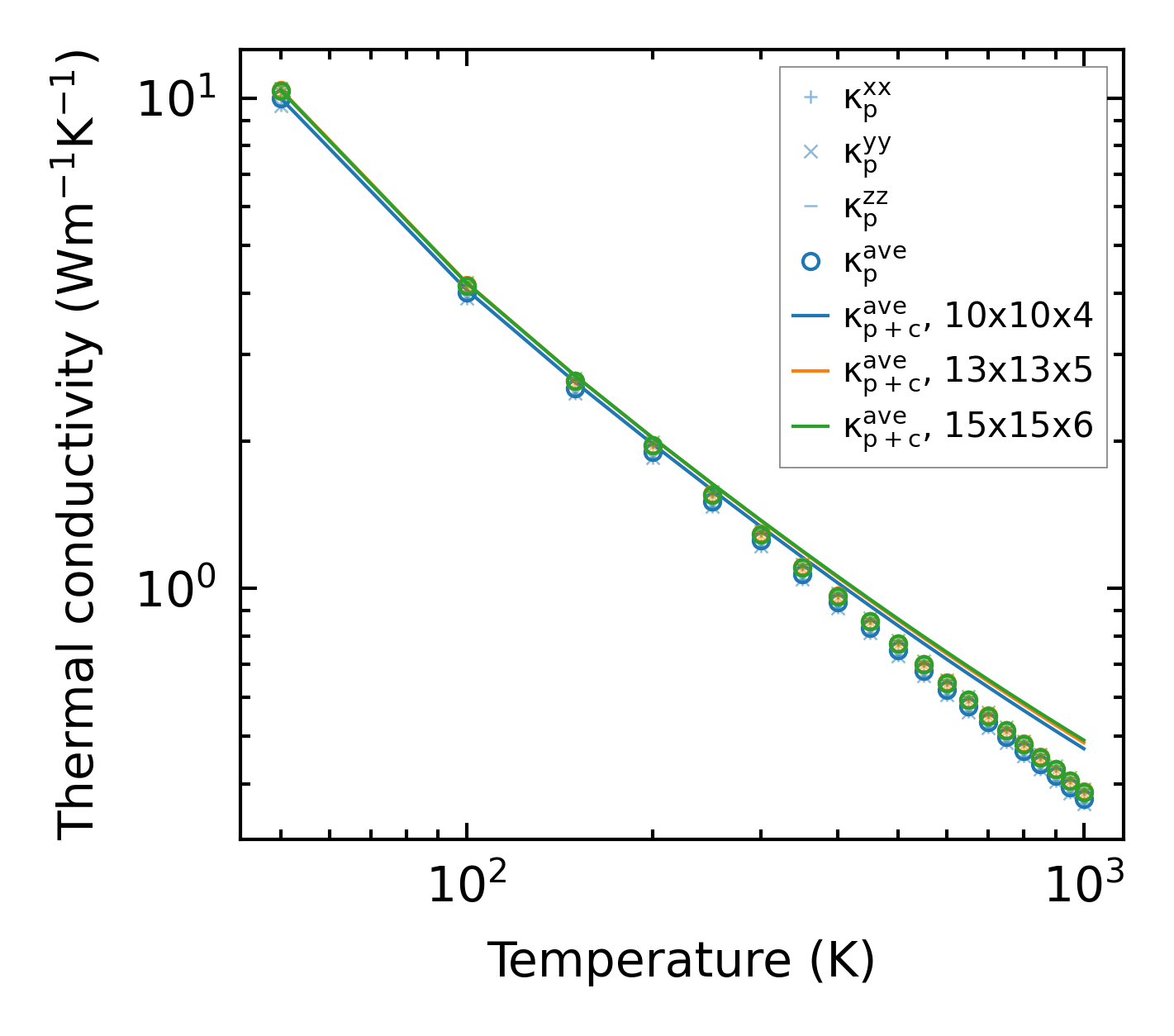

../../_images/fig_kappa12159.png — (a) Temperature-dependent lattice thermal conductivity

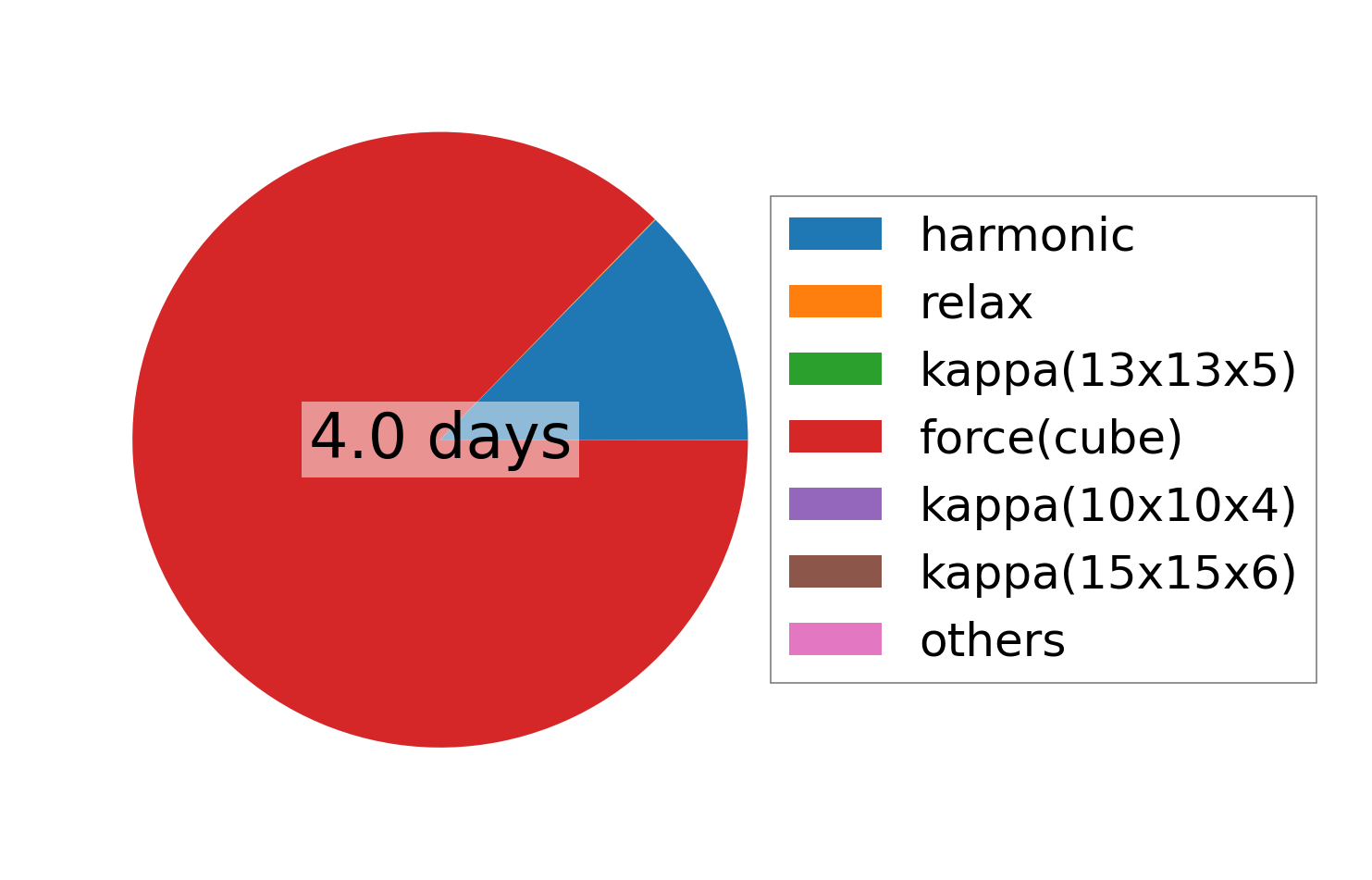

../../_images/fig_times24889.png — (b) Computation time
