mp-1223648/K2BrCl/anharm

Space group: R-3m (166)
Link: Materials Project
Download: mp-1223648.tar.gz

Harmonic properties

../../_images/fig_bandos_pr15347.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15346.png — (b) Thermodynamic properties

Grüneisen parameters

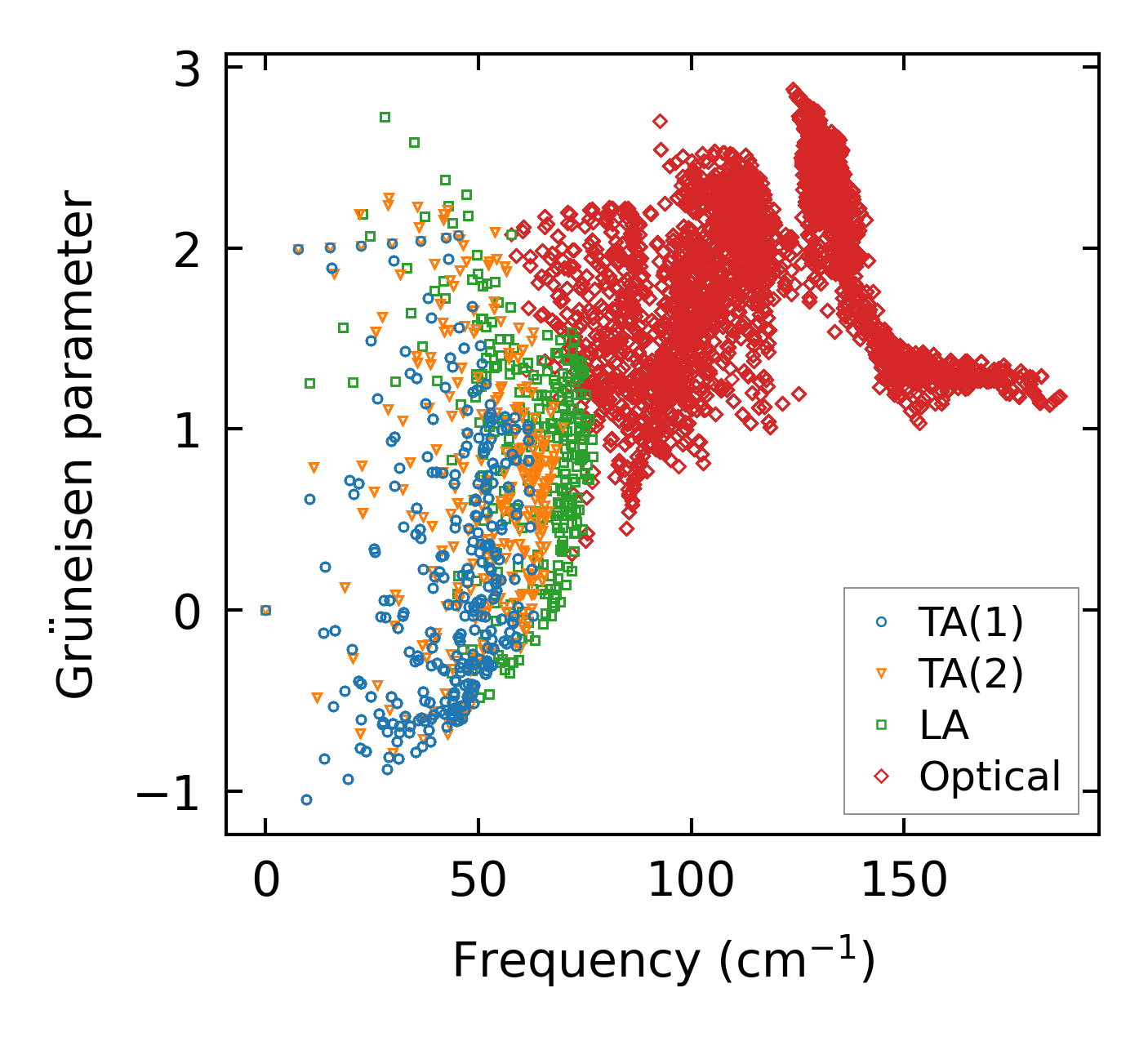

../../_images/fig_gru_all6630.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6630.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 14x14x14, supercell: 3x3x1

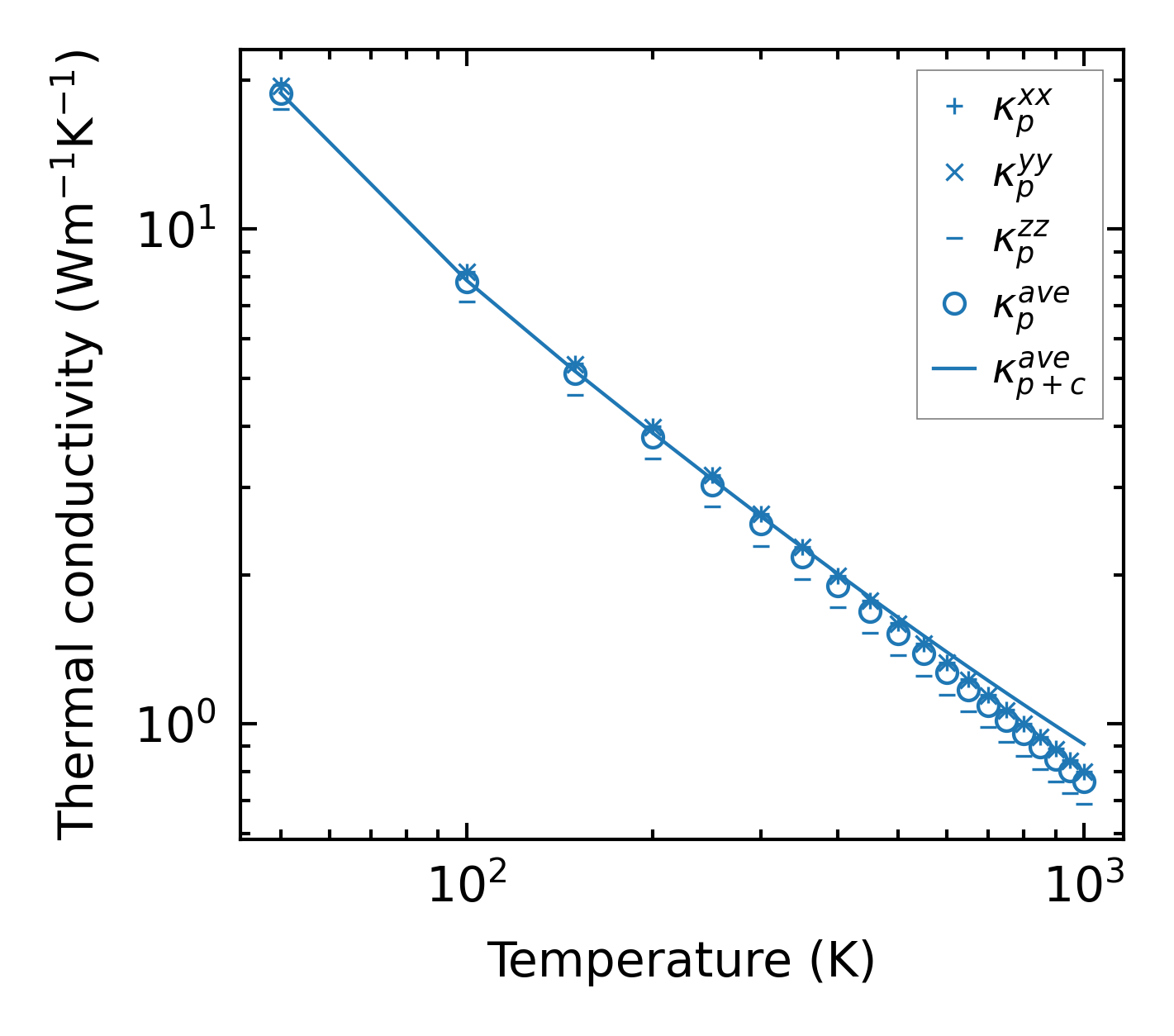

../../_images/fig_kappa12484.png — (a) Temperature-dependent lattice thermal conductivity

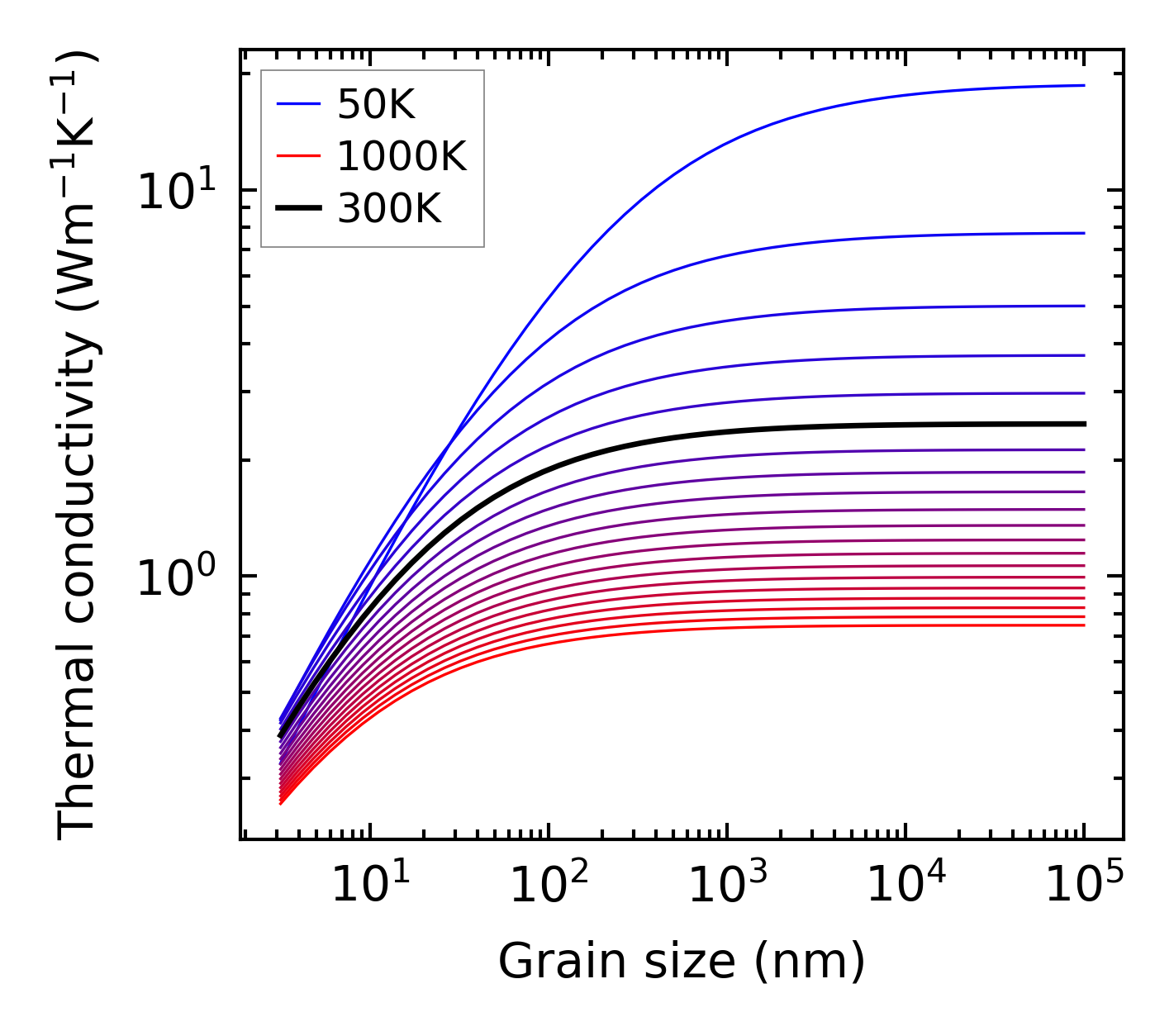

../../_images/fig_kappa_vs_grain_size6708.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

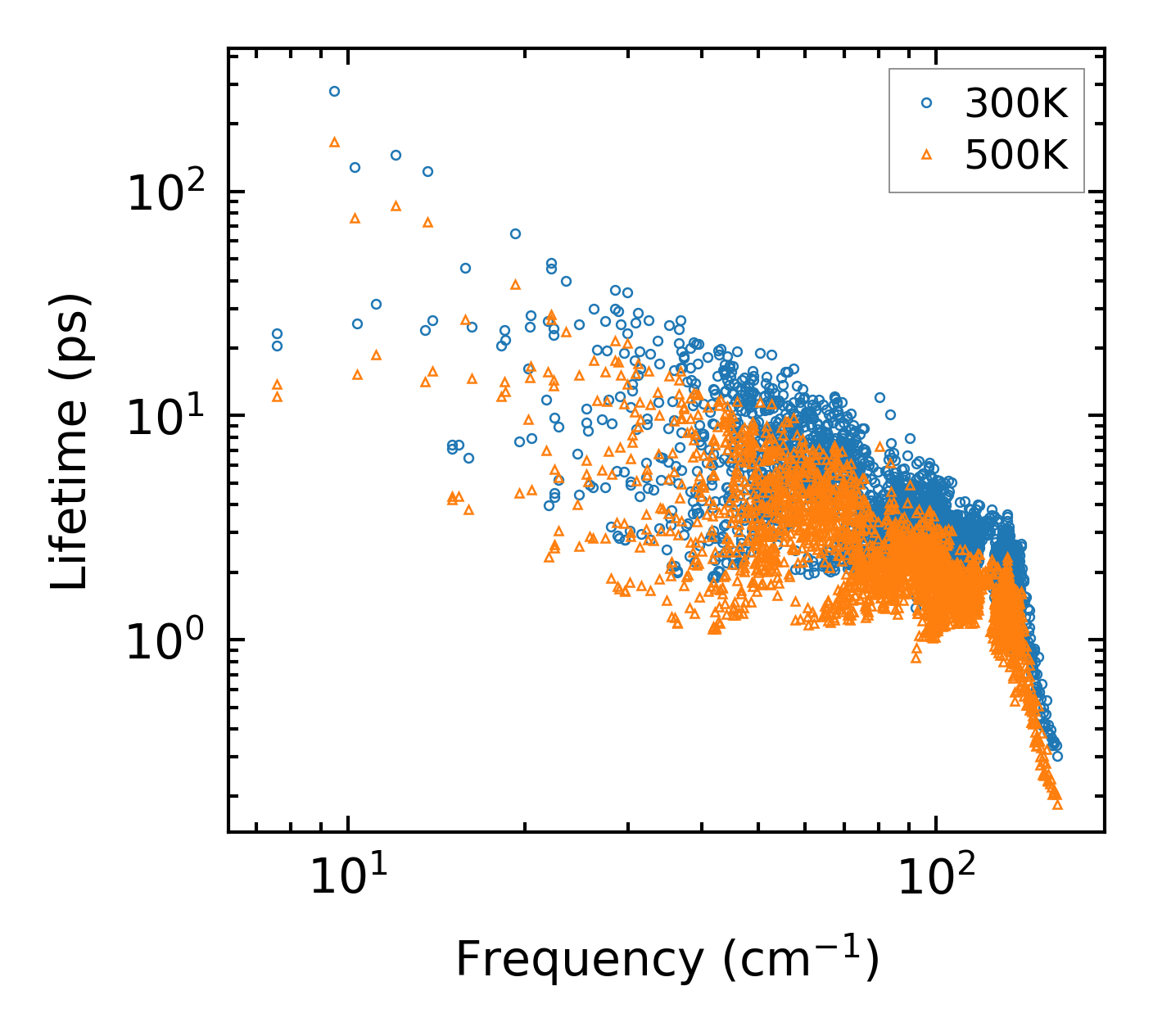

../../_images/fig_lifetime6564.png — (a) Phonon lifetime due to phonon-phonon scattering

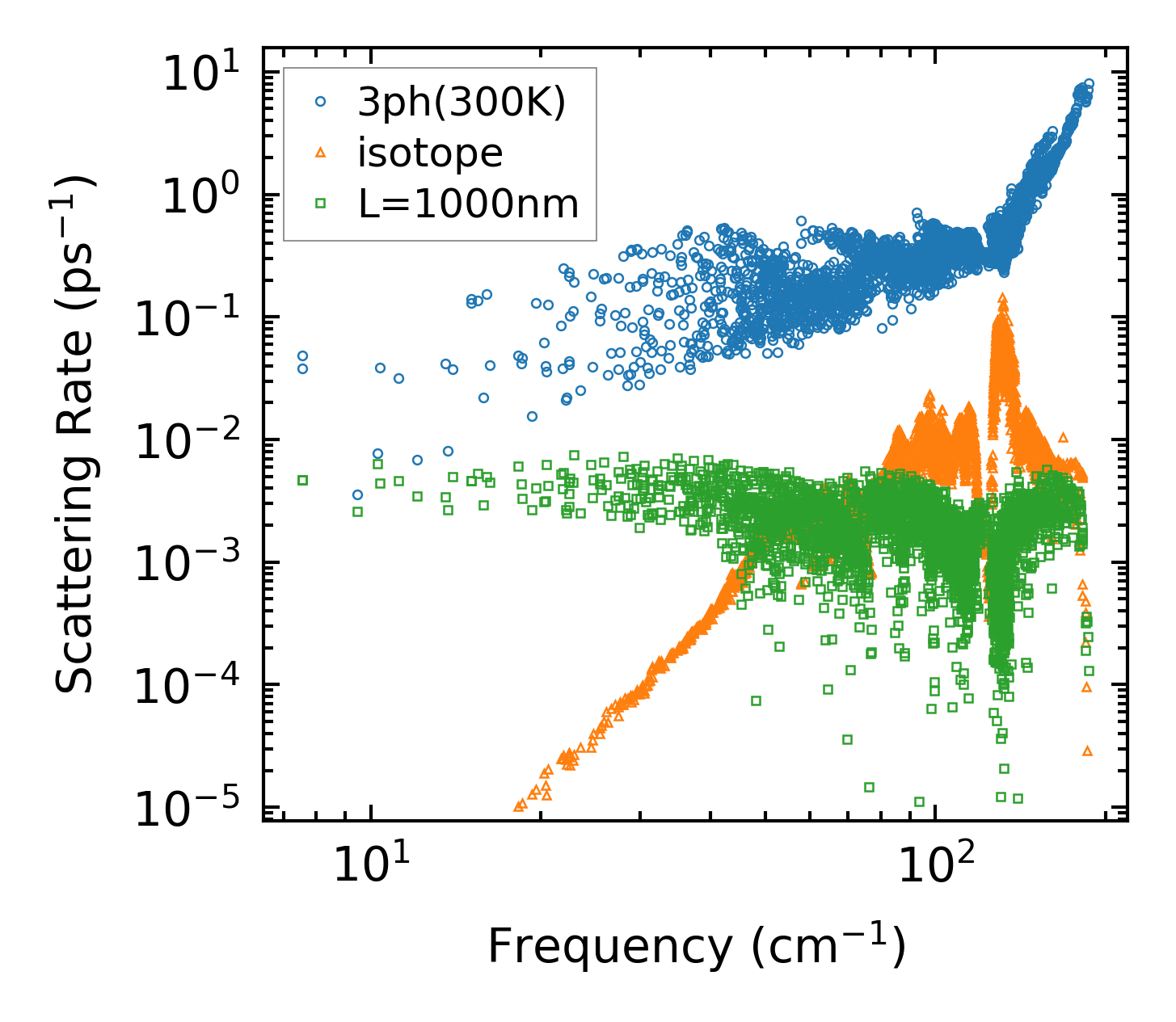

../../_images/fig_scat_rates6563.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency6564.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

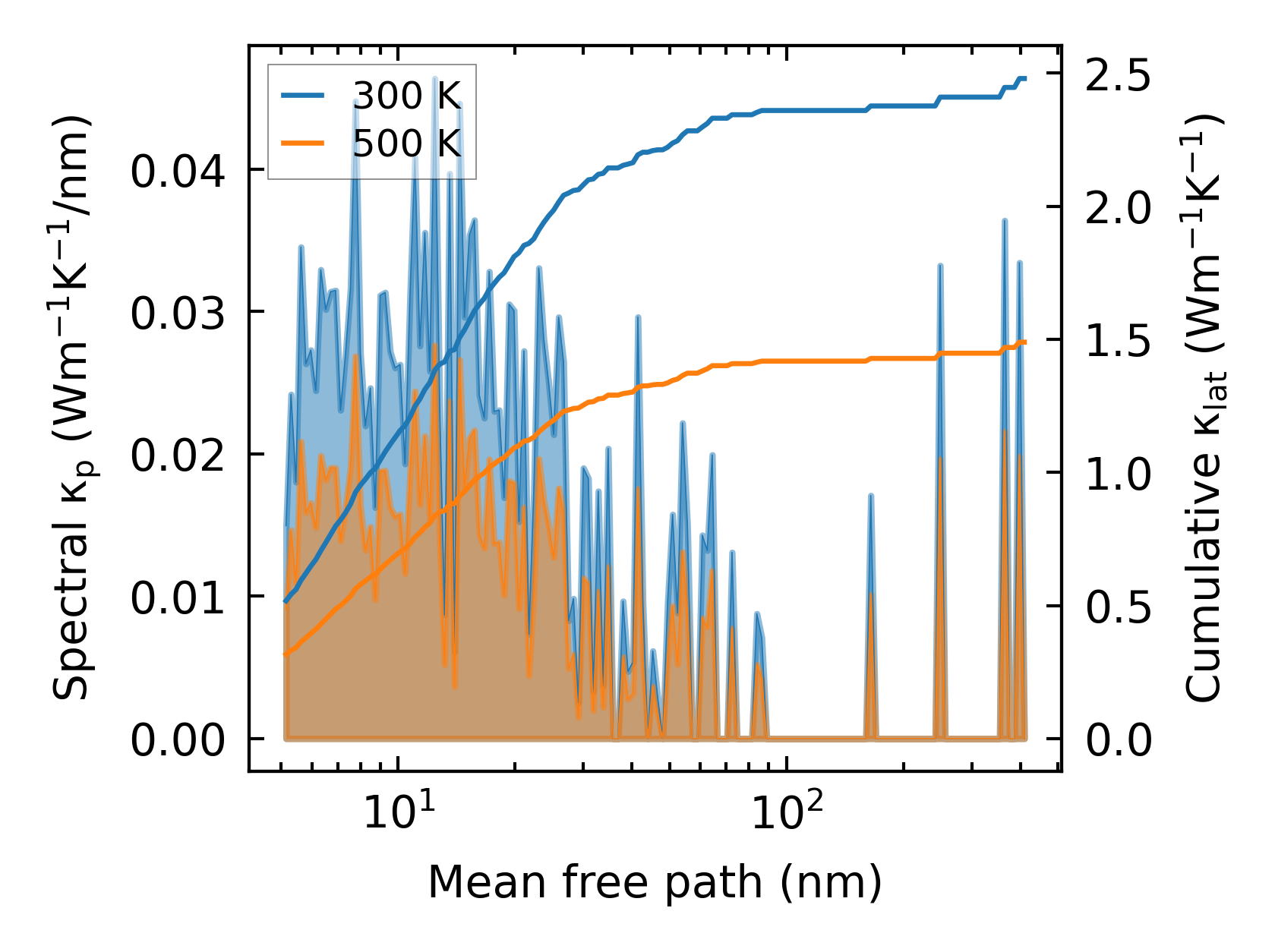

../../_images/fig_cumu_mfp6563.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc3396.png — (a) Force constants w.r.t atomic distance

Summary

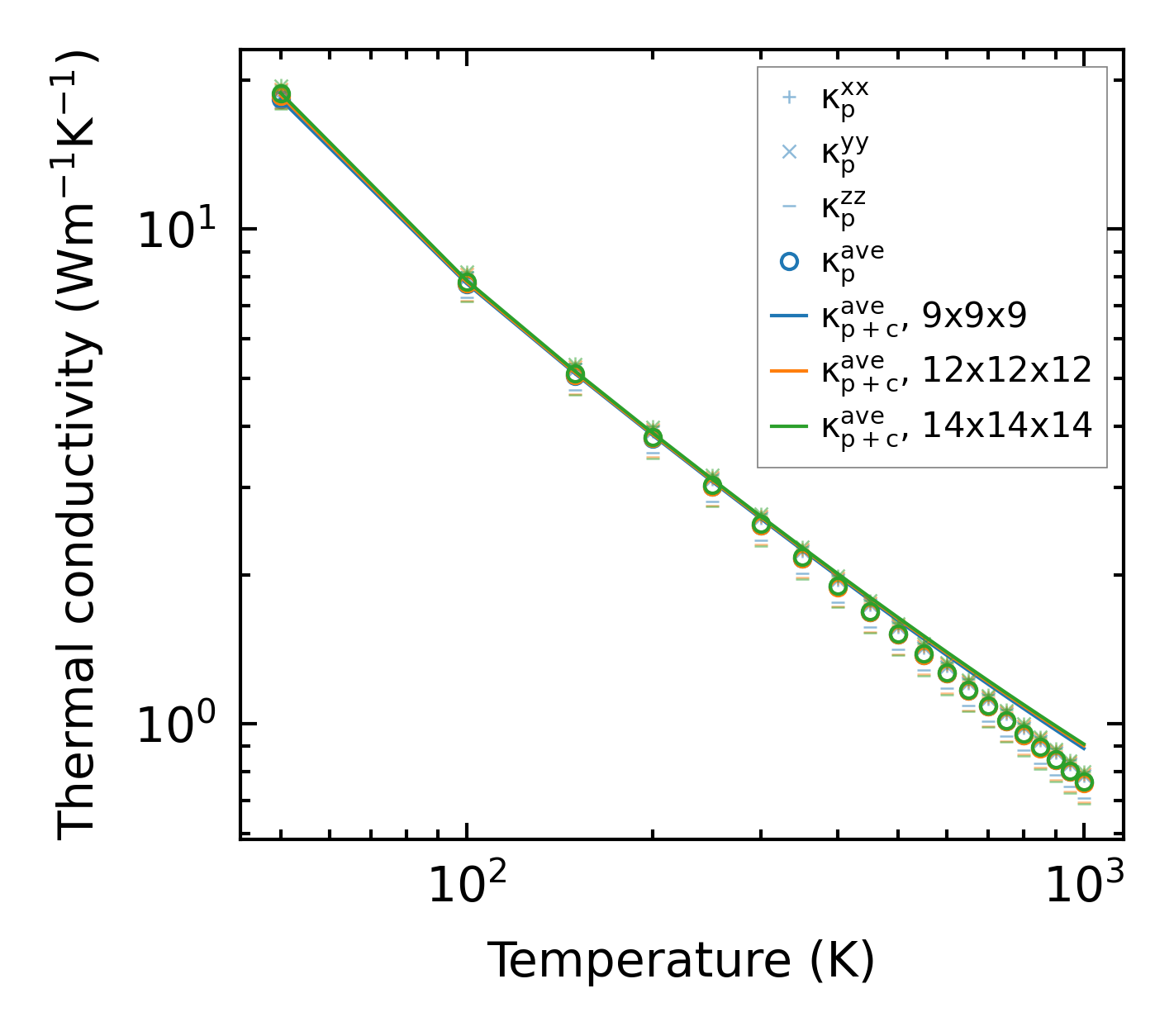

../../_images/fig_kappa12485.png — (a) Temperature-dependent lattice thermal conductivity

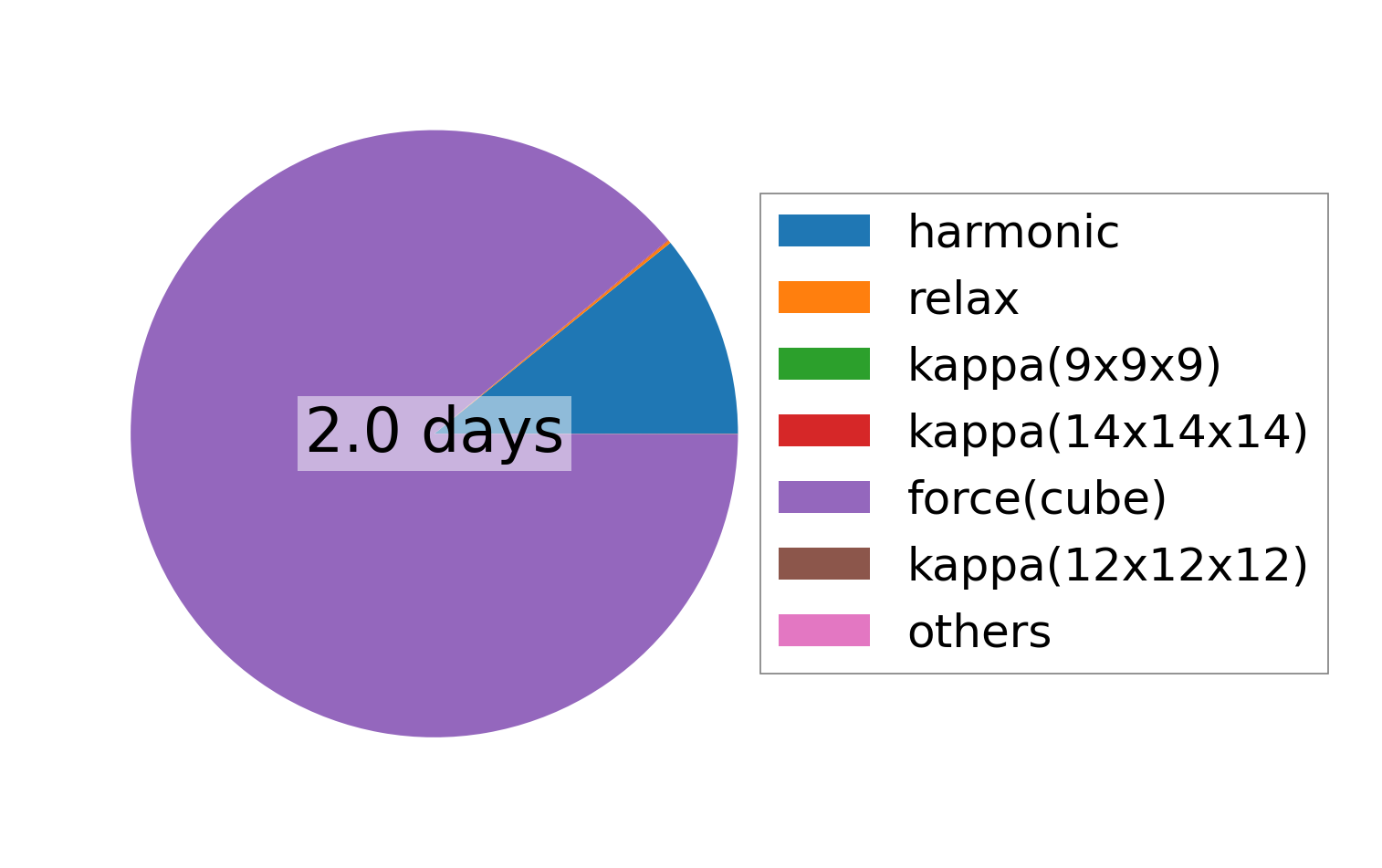

../../_images/fig_times25383.png — (b) Computation time
