mp-1223810/K2NaCl3/anharm

Space group: I4/mmm (139)
Link: Materials Project
Download: mp-1223810.tar.gz

Harmonic properties

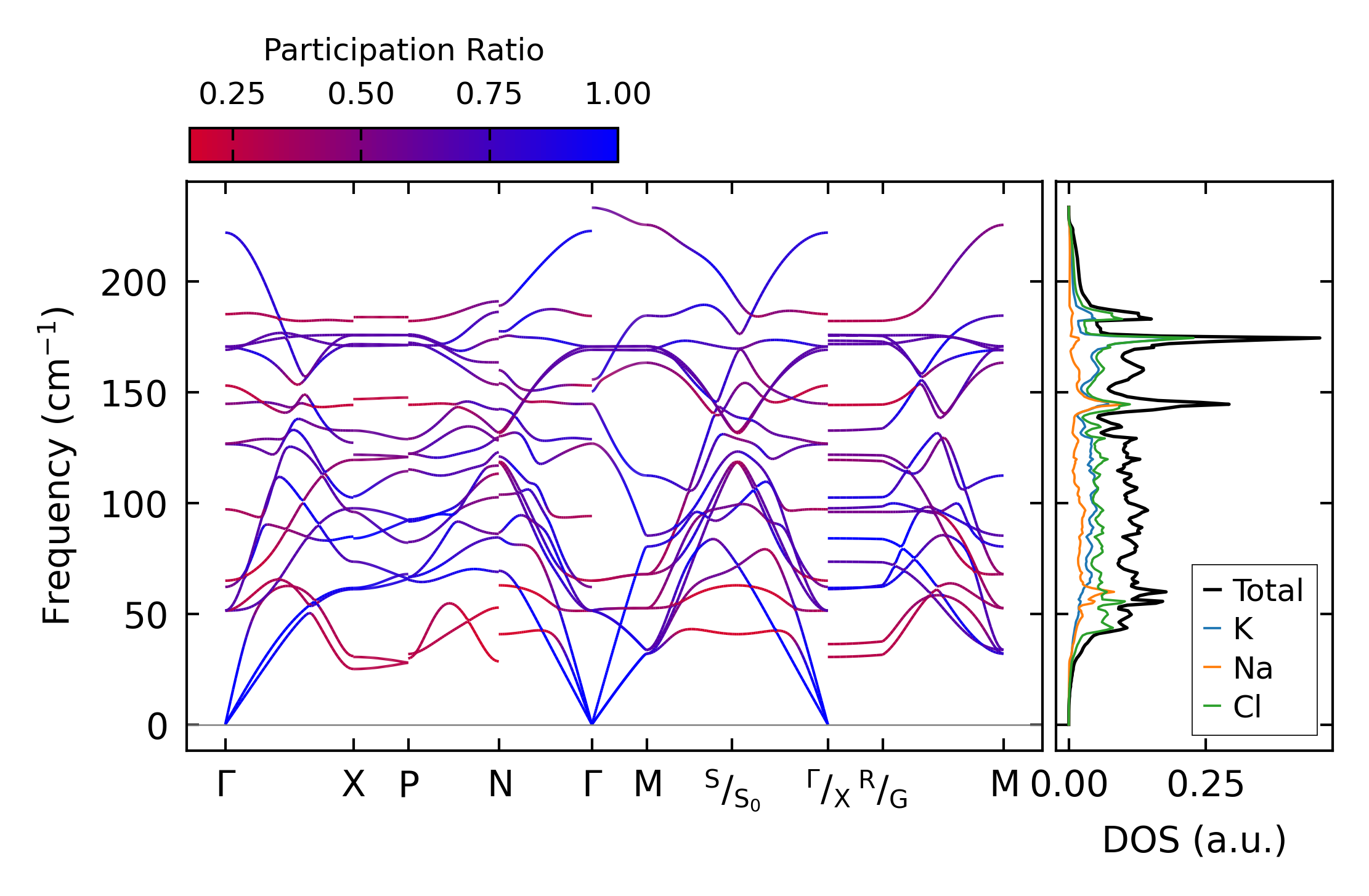

../../_images/fig_bandos_pr15353.png — (a) Phonon dispersion with participation ratio and DOS

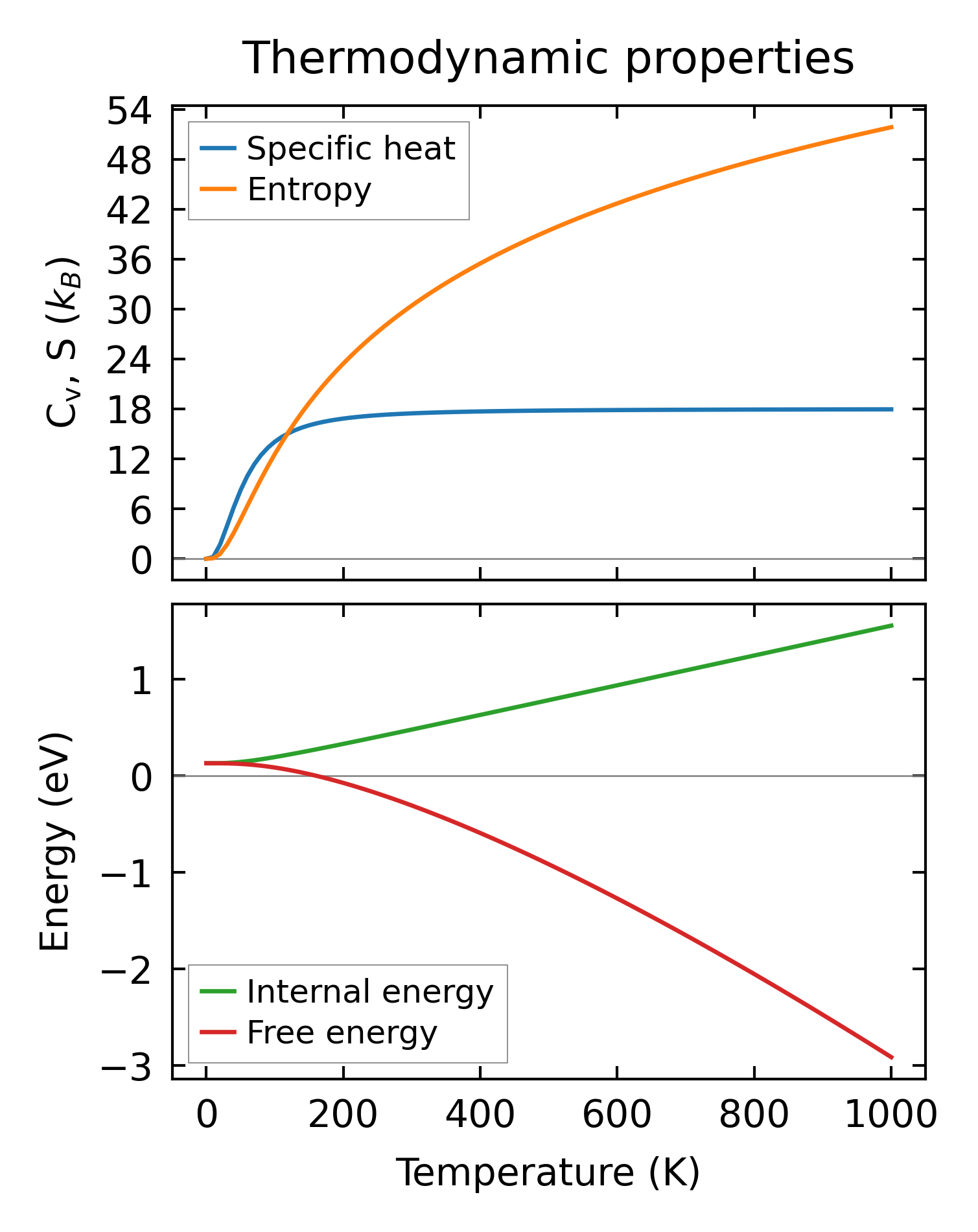

../../_images/fig_thermo15352.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6636.png — (a) Grüneisen parameters

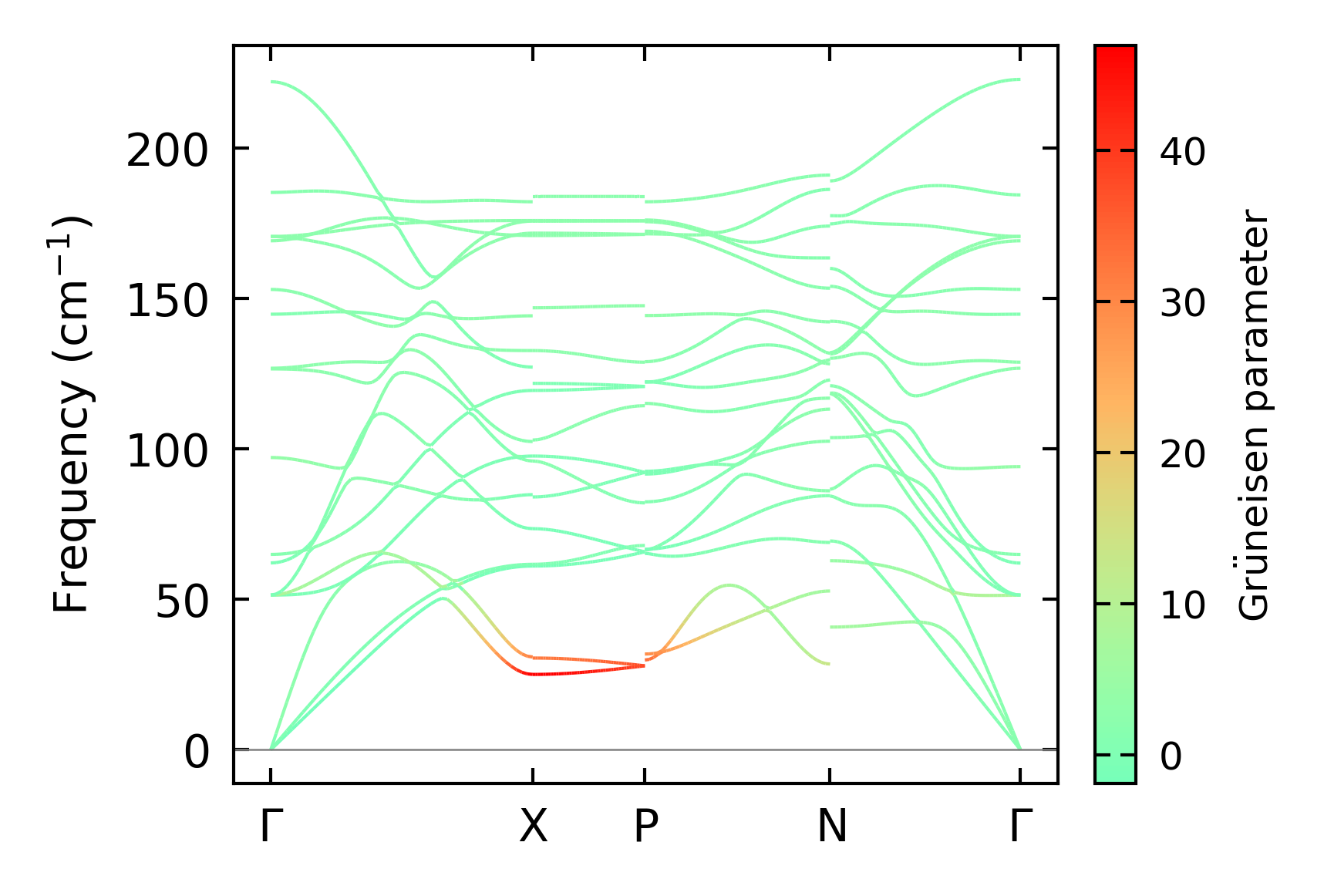

../../_images/fig_gruneisen6636.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x13, supercell: 3x3x1

../../_images/fig_kappa12496.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size6714.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

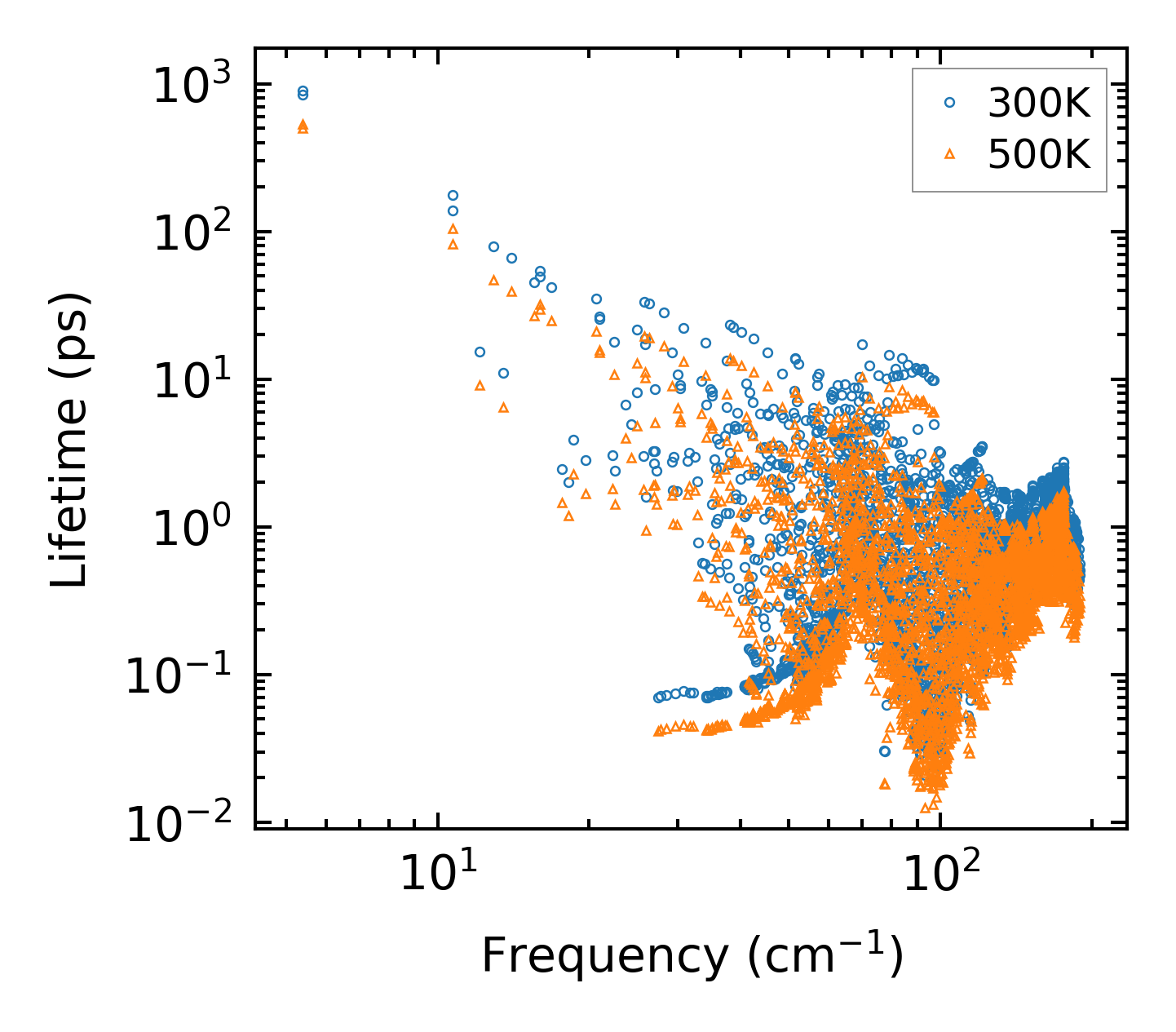

../../_images/fig_lifetime6570.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates6569.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

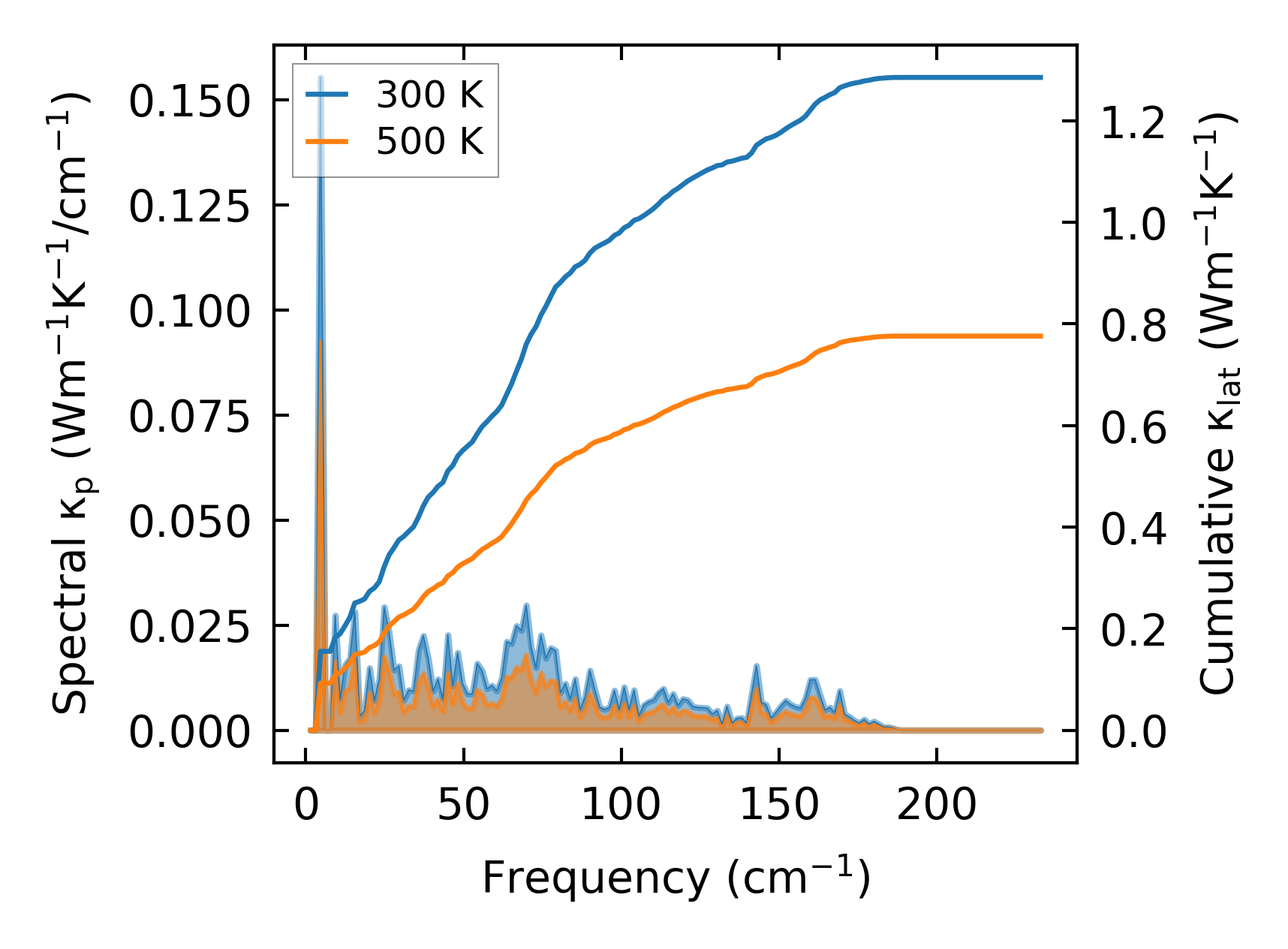

../../_images/fig_cumu_frequency6570.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

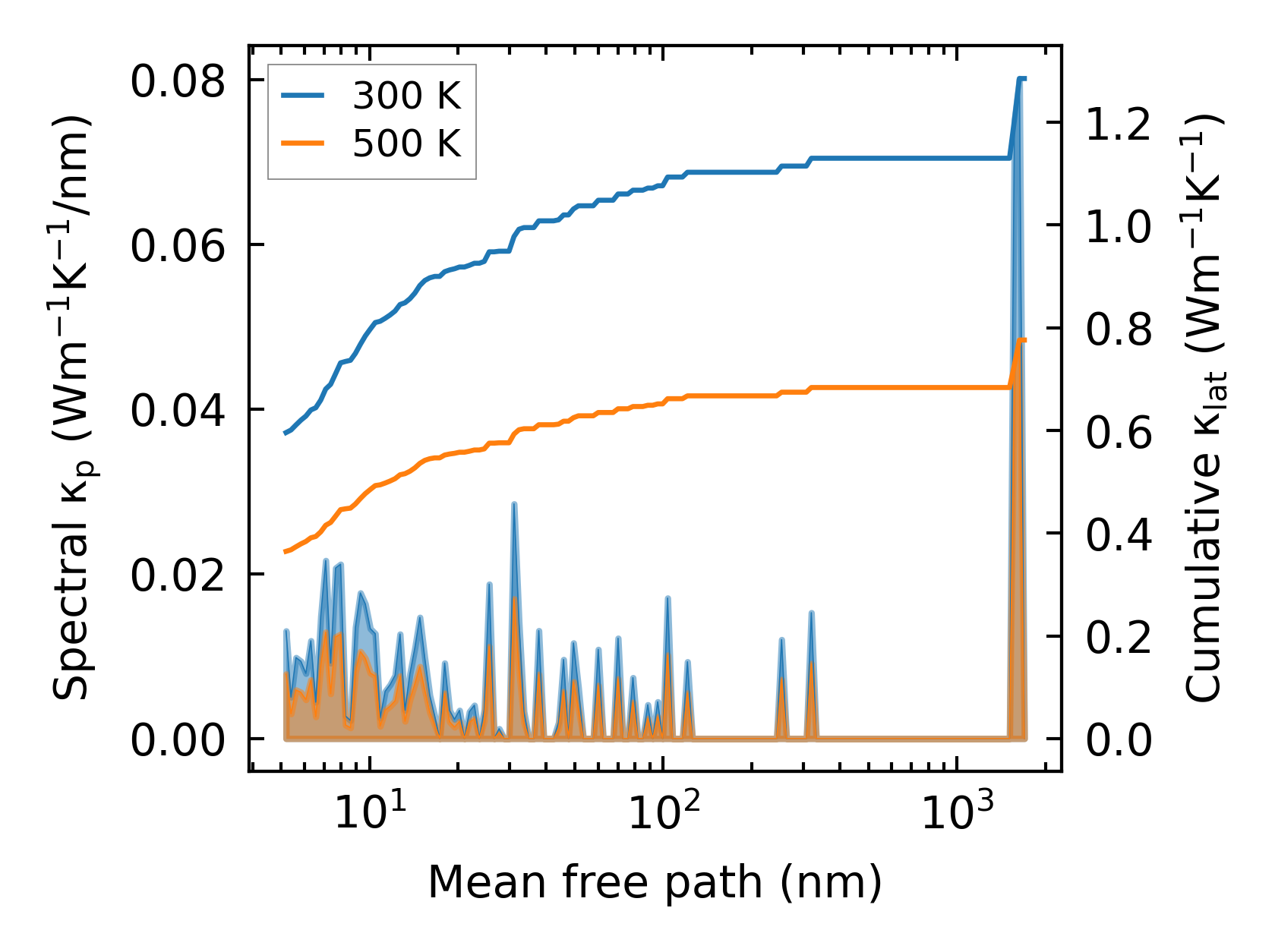

../../_images/fig_cumu_mfp6569.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

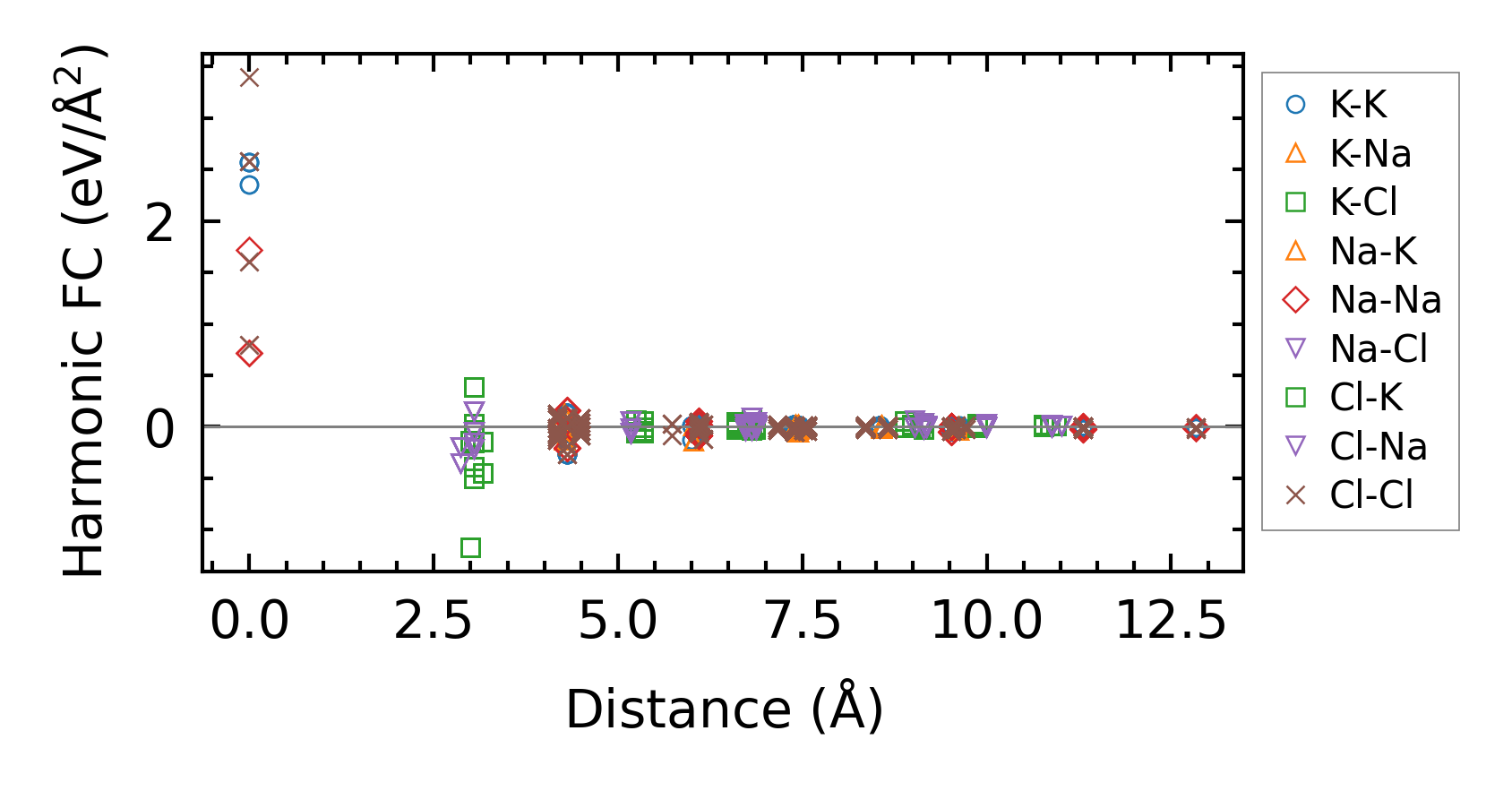

../../_images/fig_fc214956.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa12497.png — (a) Temperature-dependent lattice thermal conductivity

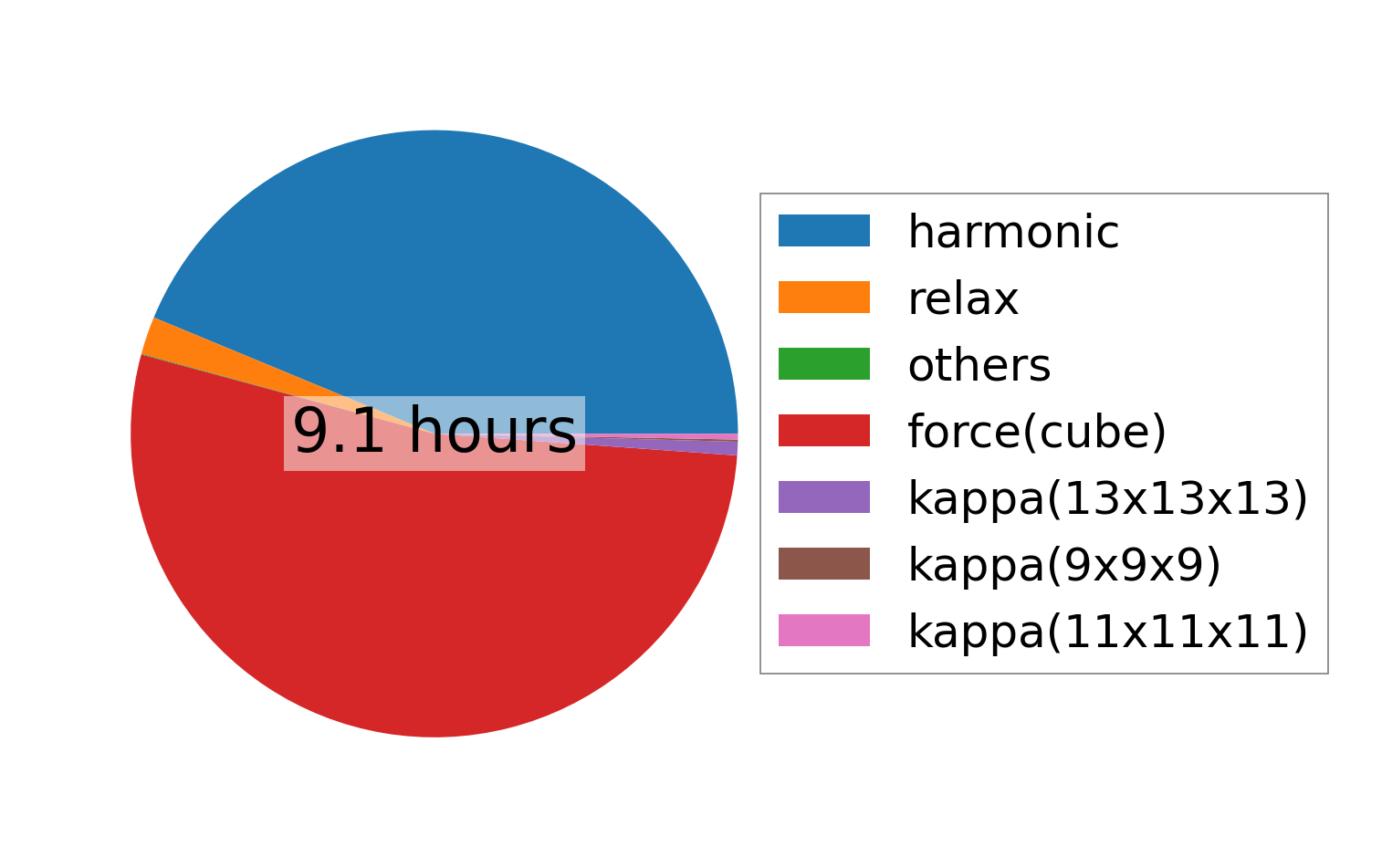

../../_images/fig_times25389.png — (b) Computation time
