mp-1223307/KRbCl2/anharm

Space group: P4/mmm (123)
Link: Materials Project
Download: mp-1223307.tar.gz

Harmonic properties

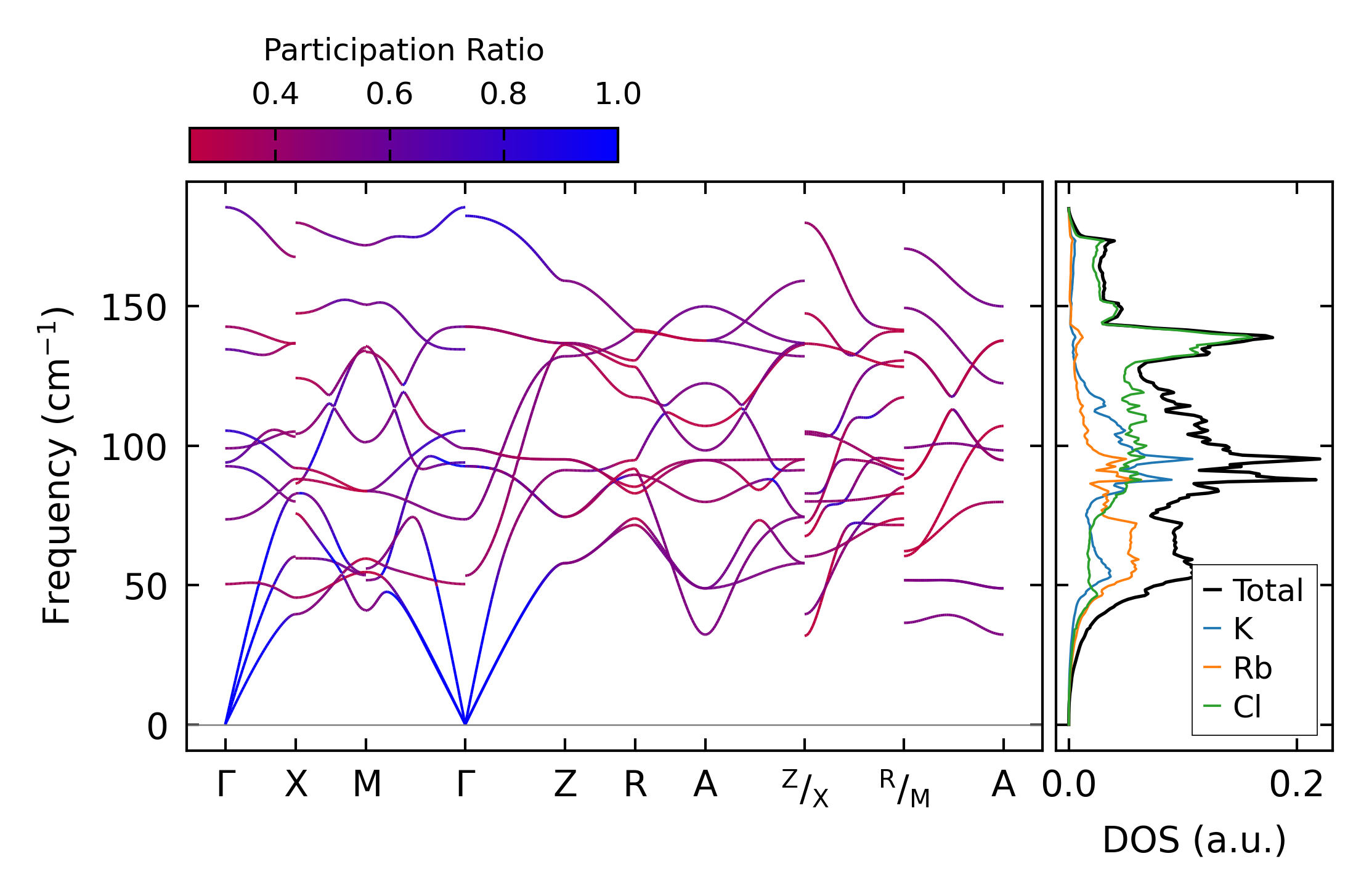

../../_images/fig_bandos_pr15334.png — (a) Phonon dispersion with participation ratio and DOS

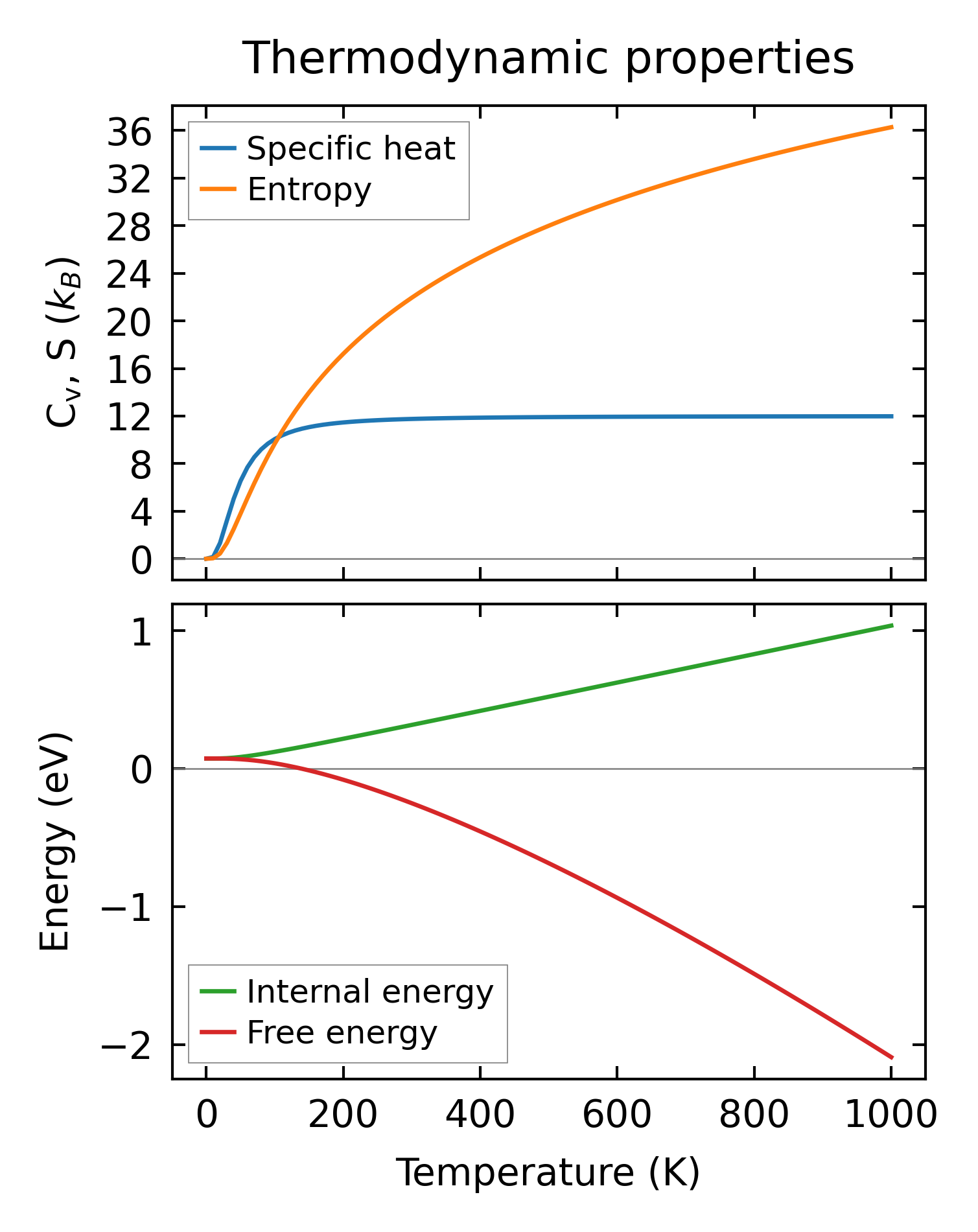

../../_images/fig_thermo15333.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6624.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6624.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 13x13x18, supercell: 3x3x4

../../_images/fig_kappa12472.png — (a) Temperature-dependent lattice thermal conductivity

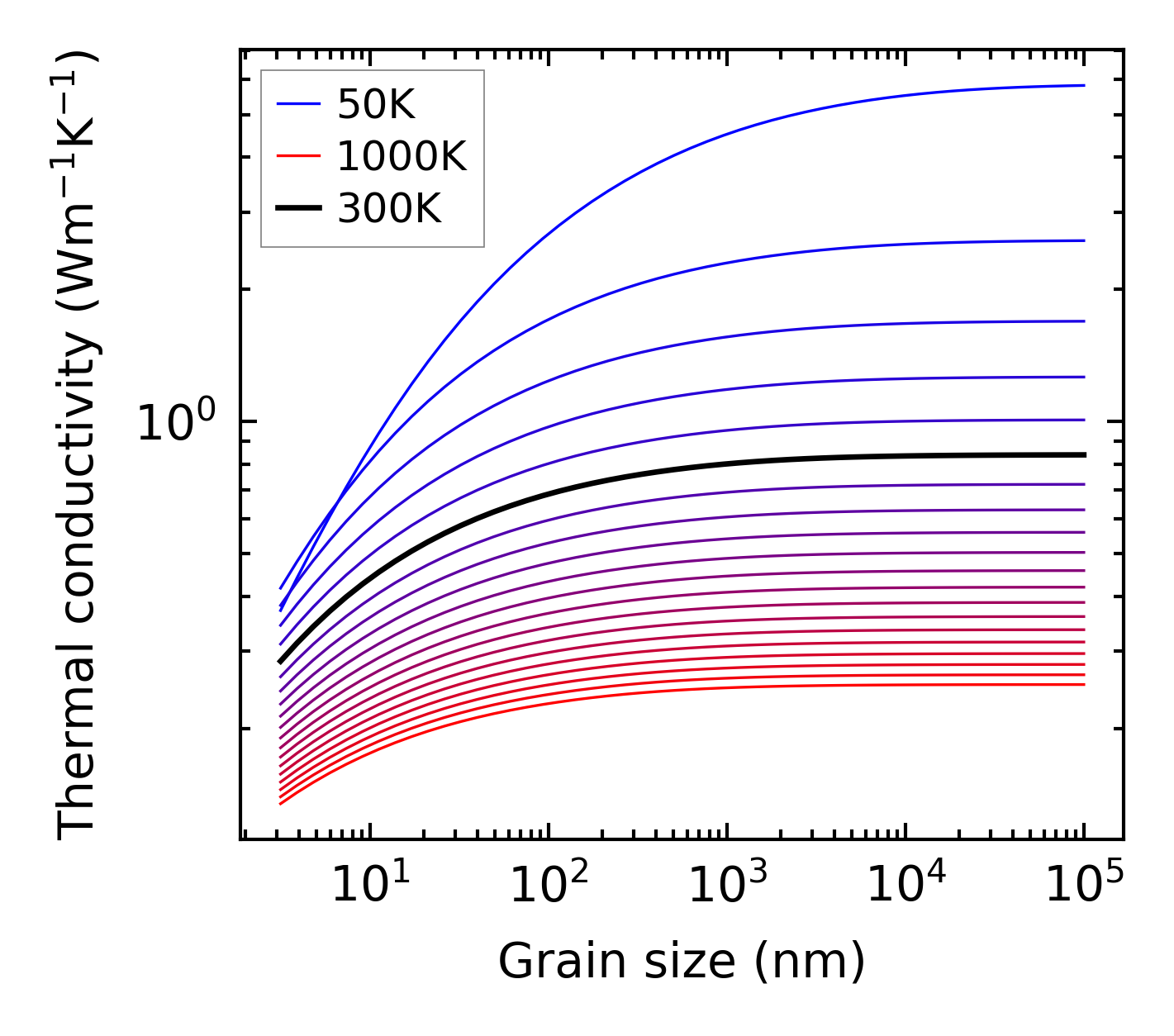

../../_images/fig_kappa_vs_grain_size6702.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

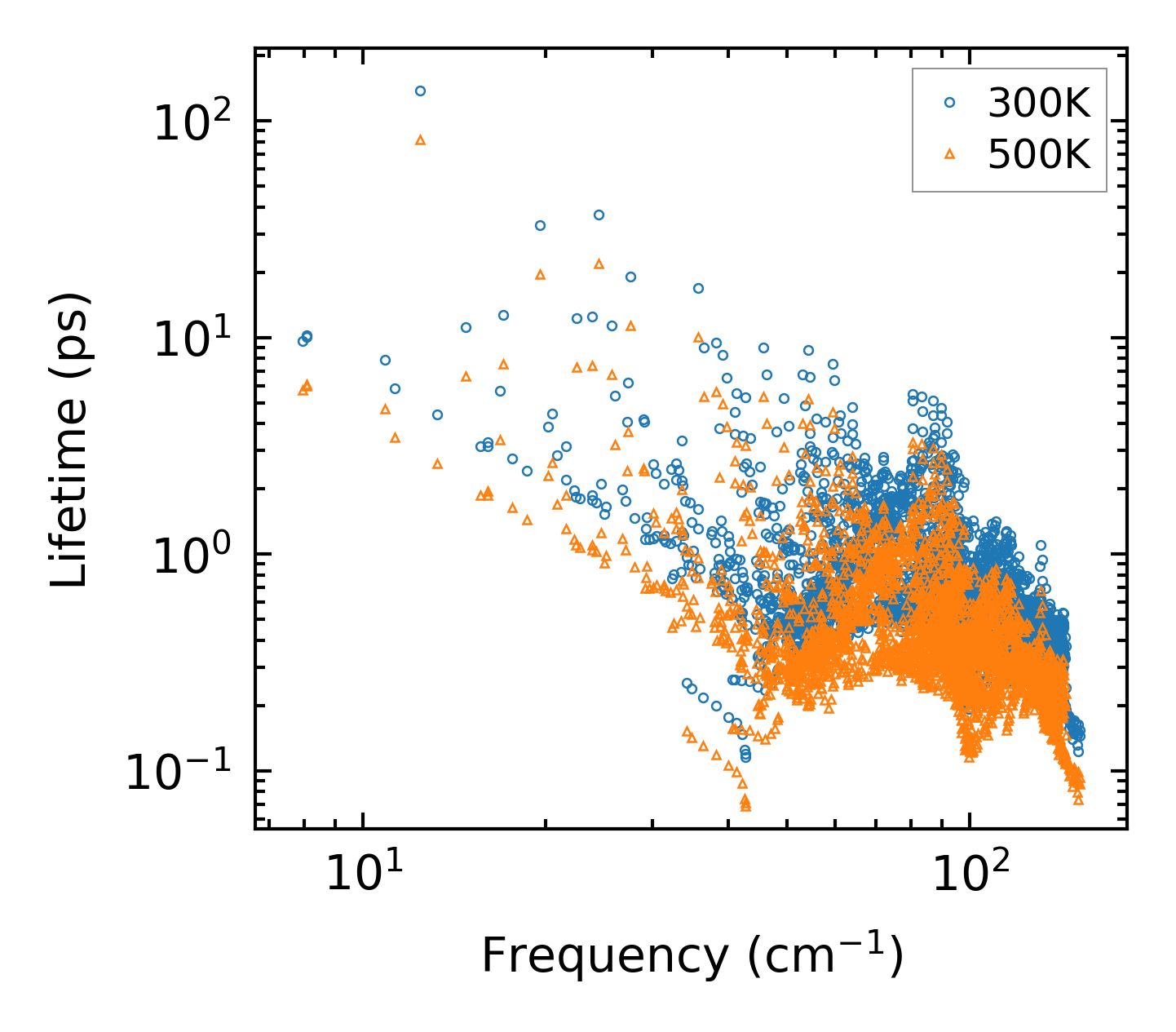

../../_images/fig_lifetime6558.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates6557.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

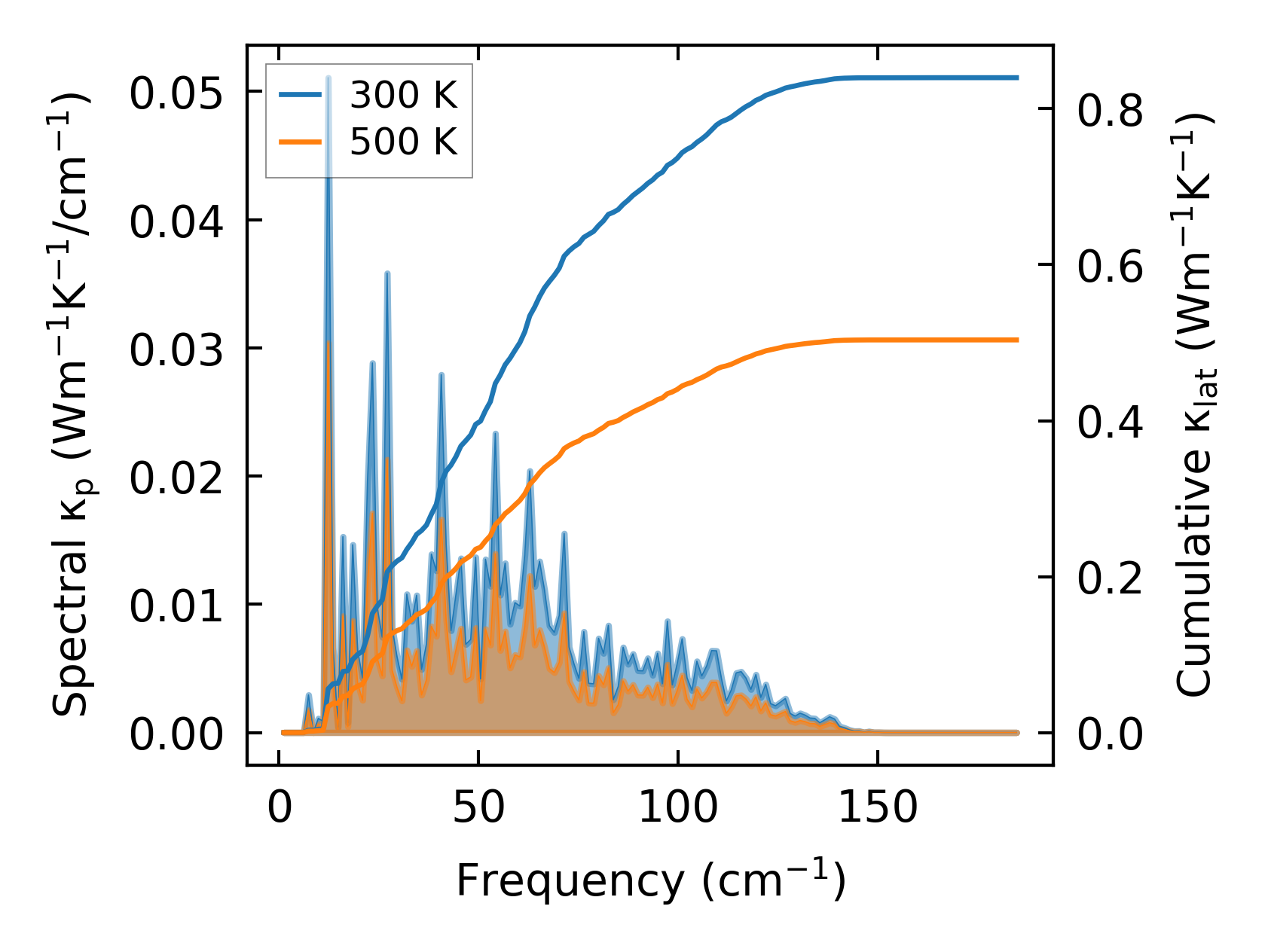

../../_images/fig_cumu_frequency6558.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp6557.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

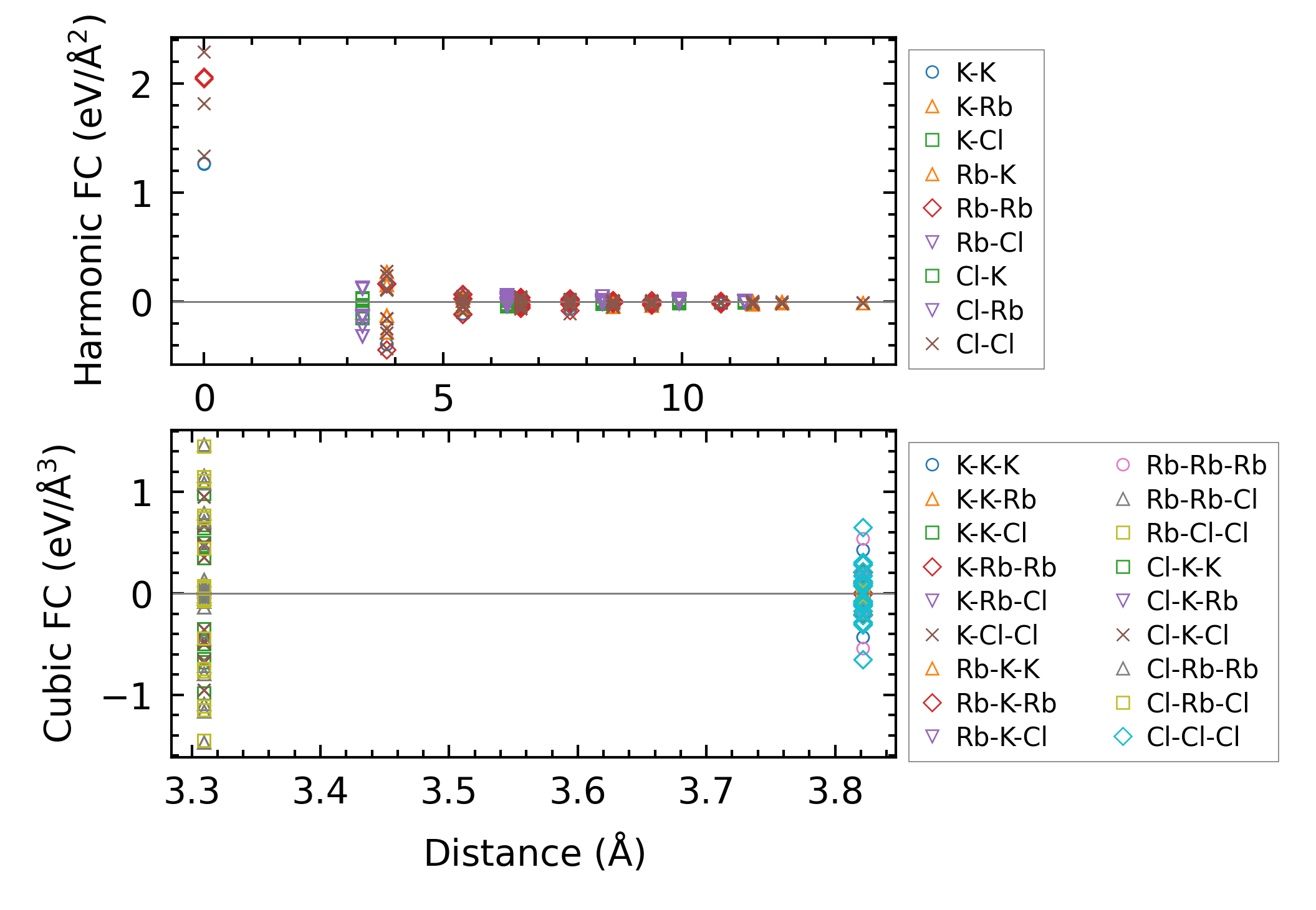

../../_images/fig_fc3395.png — (a) Force constants w.r.t atomic distance

Summary

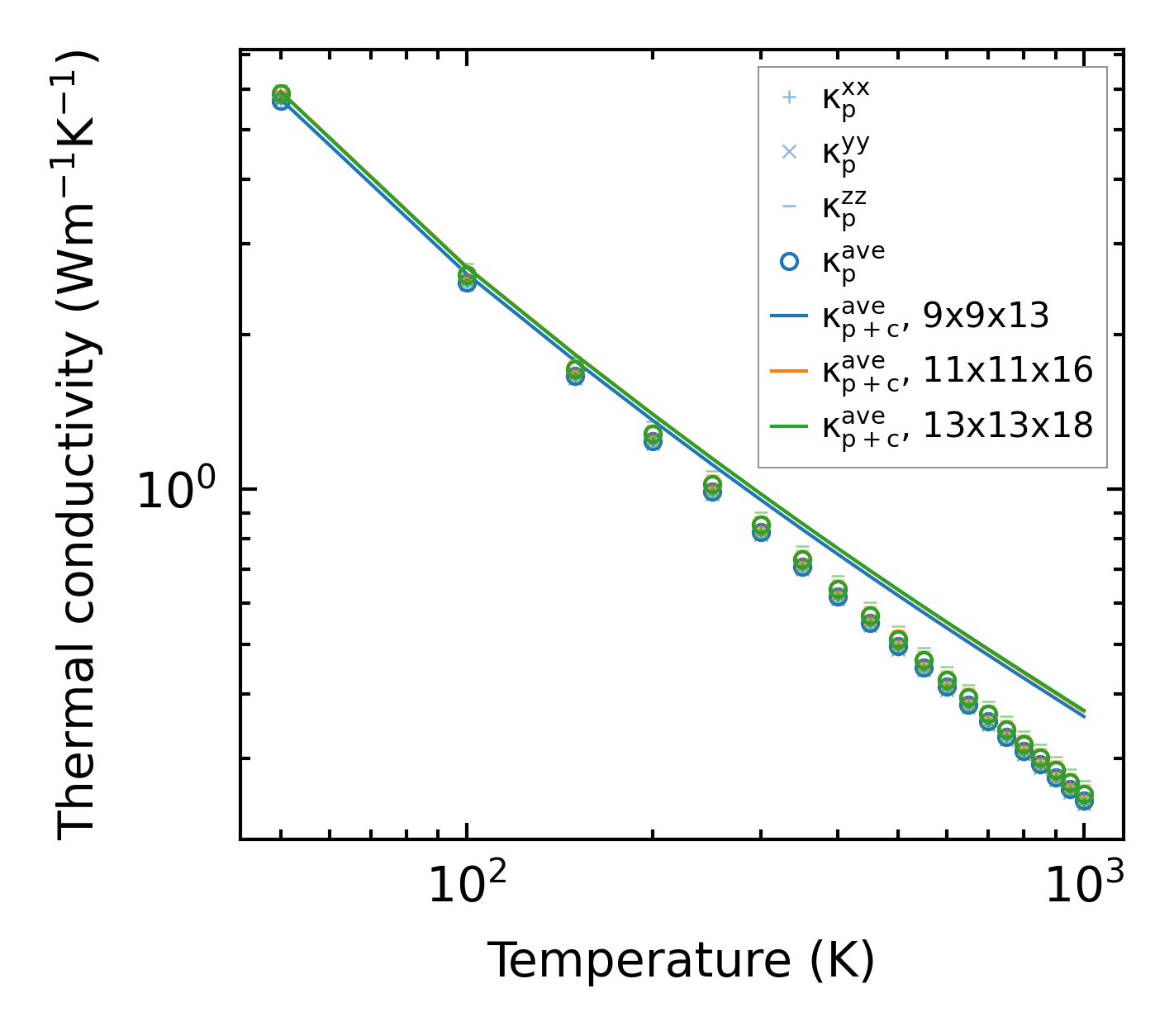

../../_images/fig_kappa12473.png — (a) Temperature-dependent lattice thermal conductivity

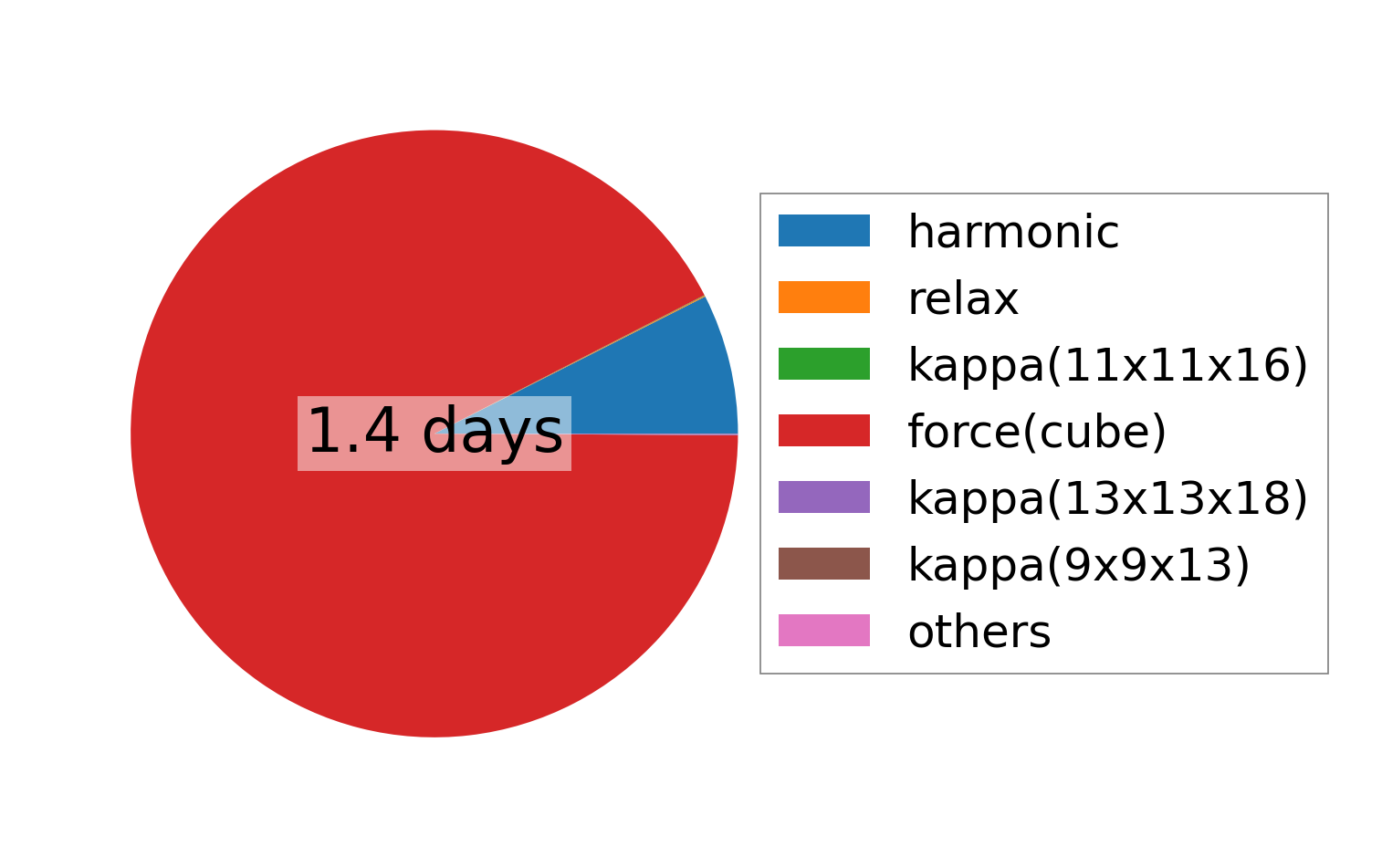

../../_images/fig_times25366.png — (b) Computation time
