mp-1223311/KRbCl2/anharm

Space group: R-3m (166)
Link: Materials Project
Download: mp-1223311.tar.gz

Harmonic properties

../../_images/fig_bandos_pr15335.png — (a) Phonon dispersion with participation ratio and DOS

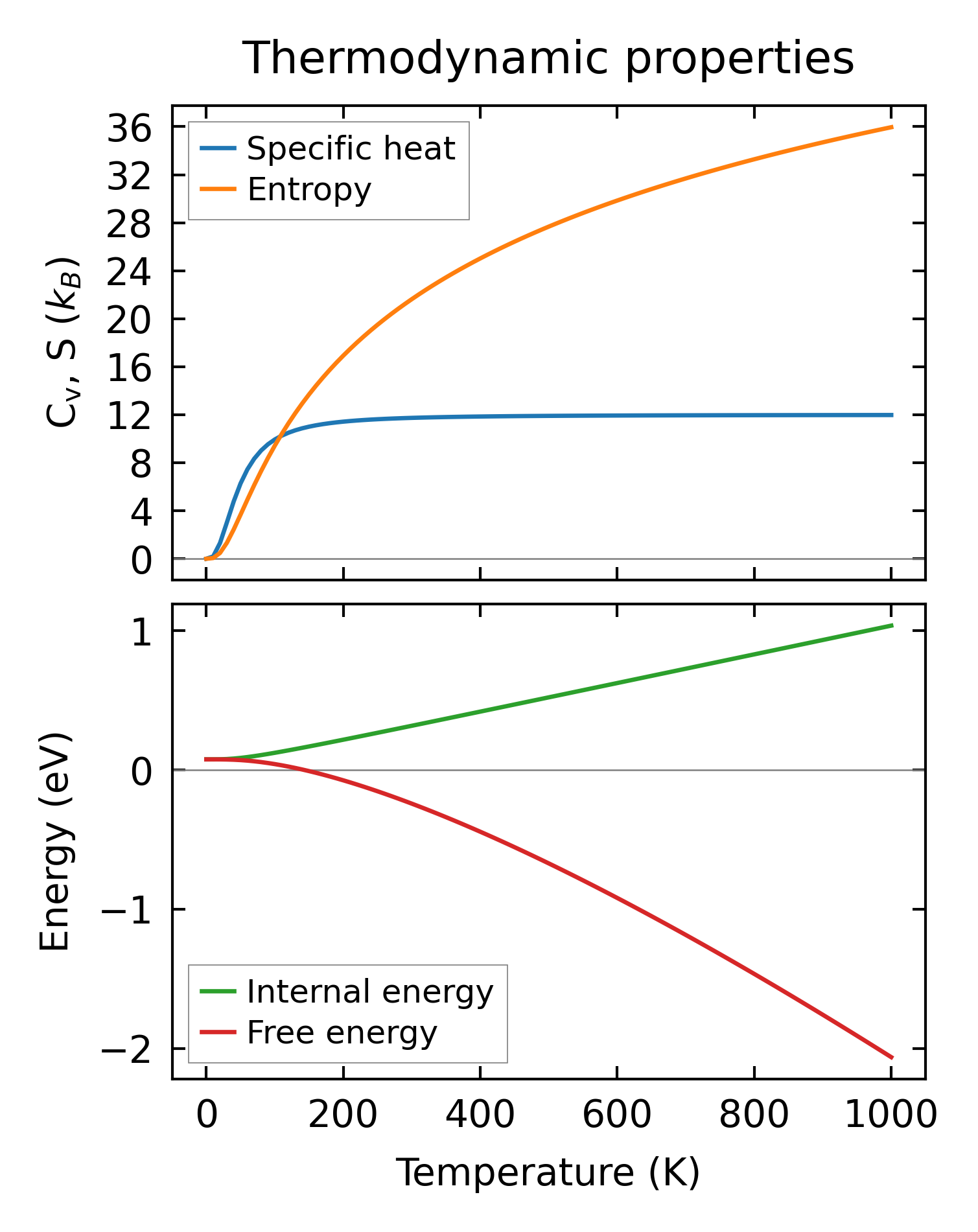

../../_images/fig_thermo15334.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6625.png — (a) Grüneisen parameters

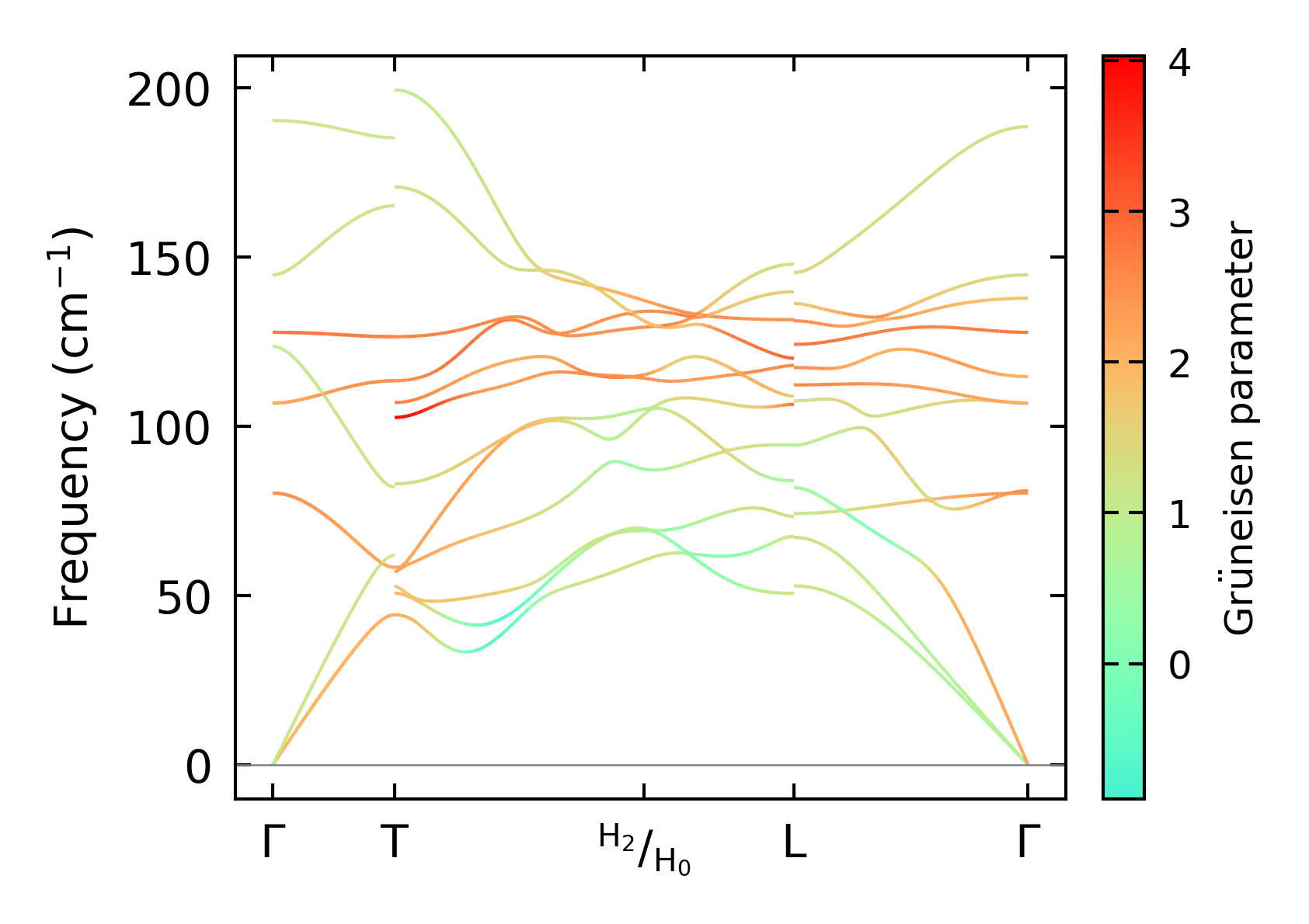

../../_images/fig_gruneisen6625.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x14x14, supercell: 3x3x1

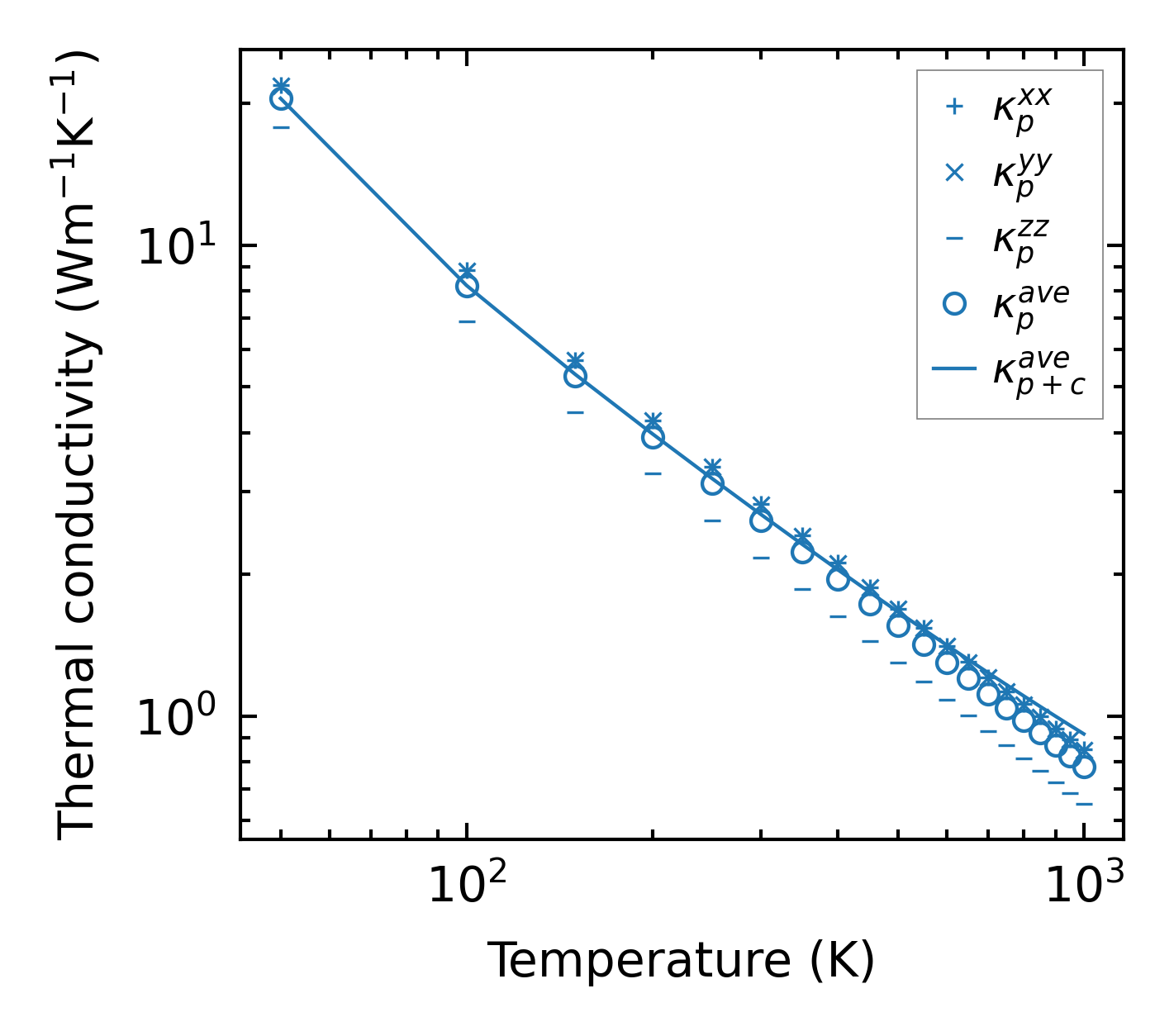

../../_images/fig_kappa12474.png — (a) Temperature-dependent lattice thermal conductivity

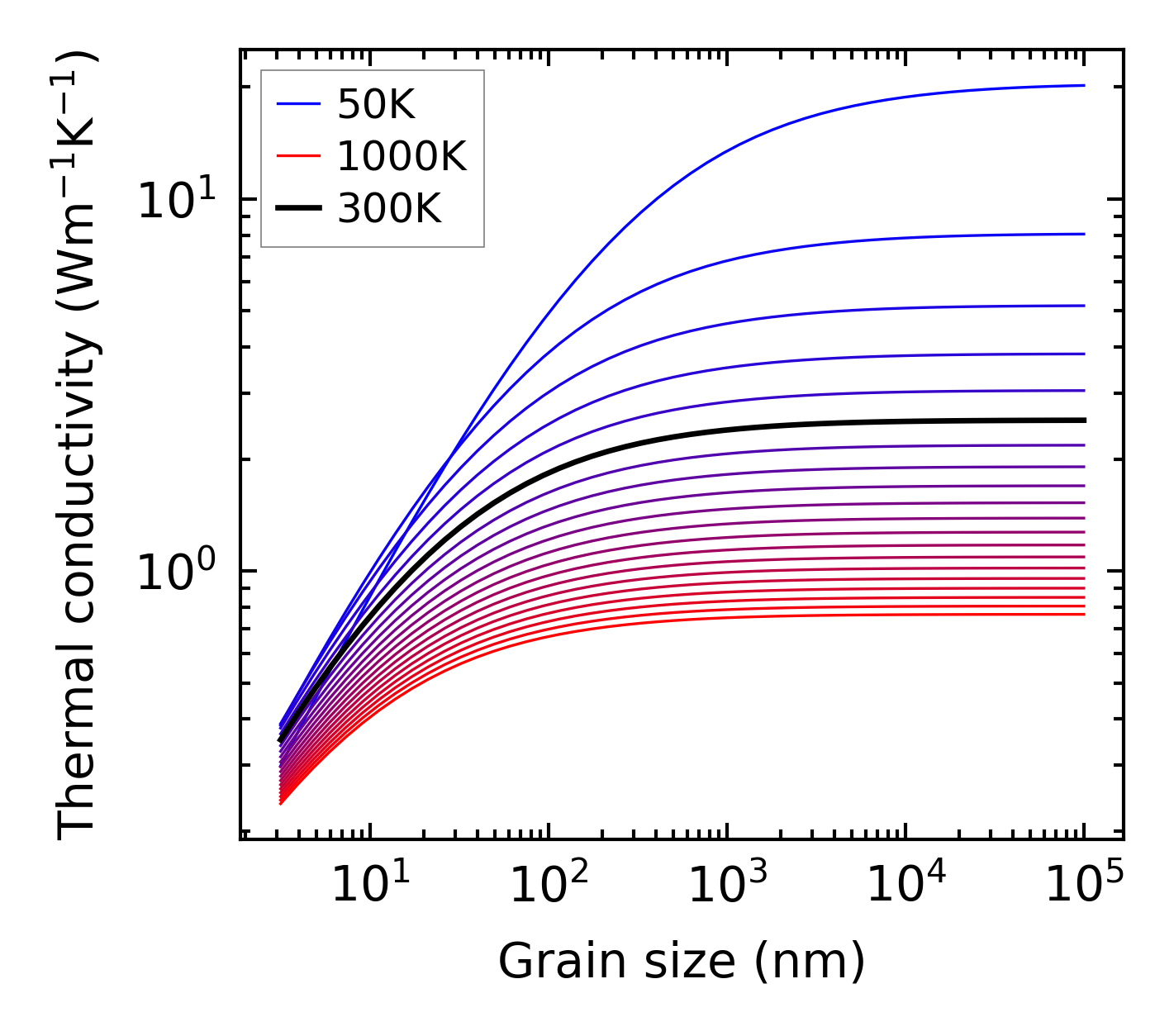

../../_images/fig_kappa_vs_grain_size6703.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime6559.png — (a) Phonon lifetime due to phonon-phonon scattering

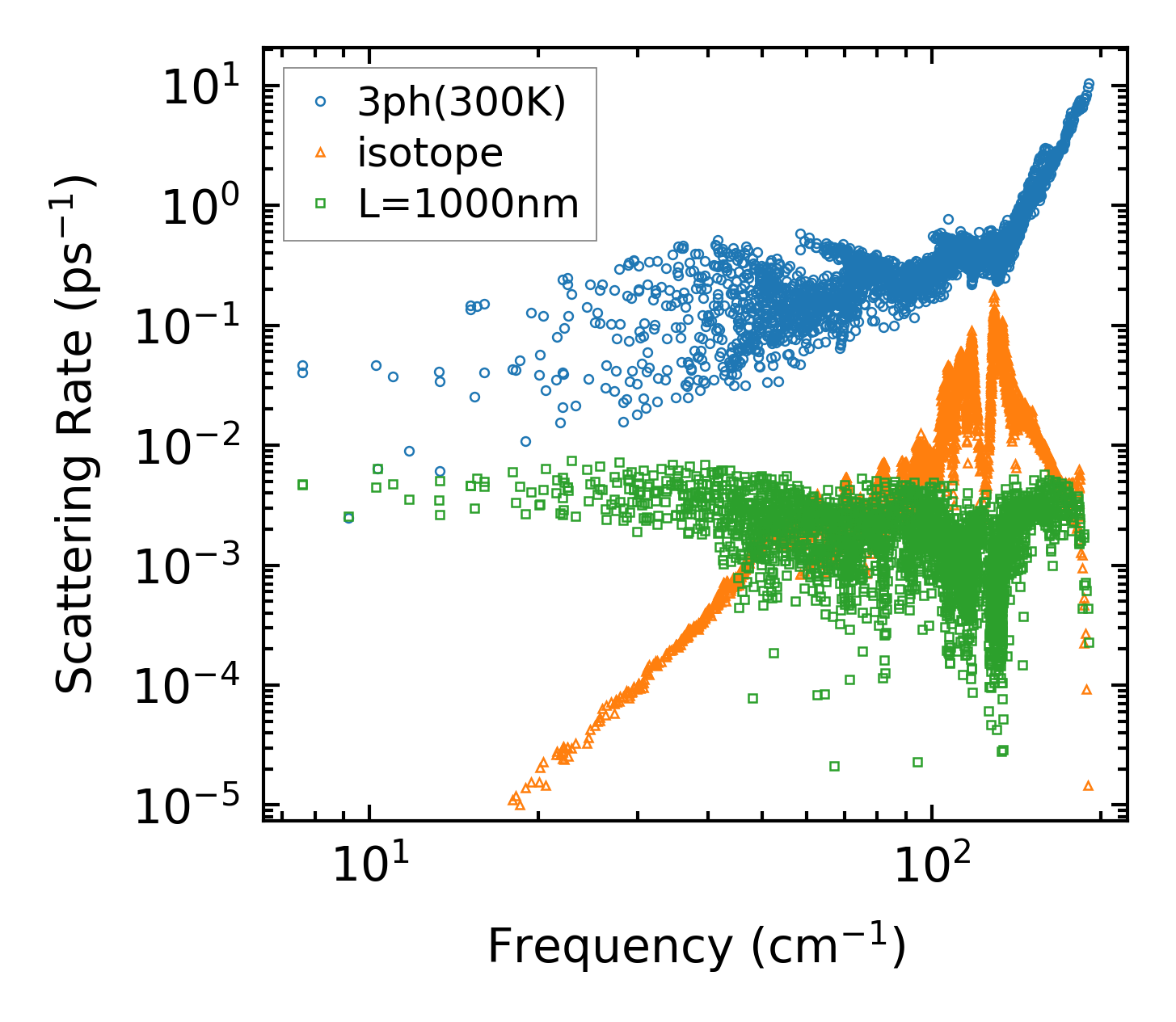

../../_images/fig_scat_rates6558.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

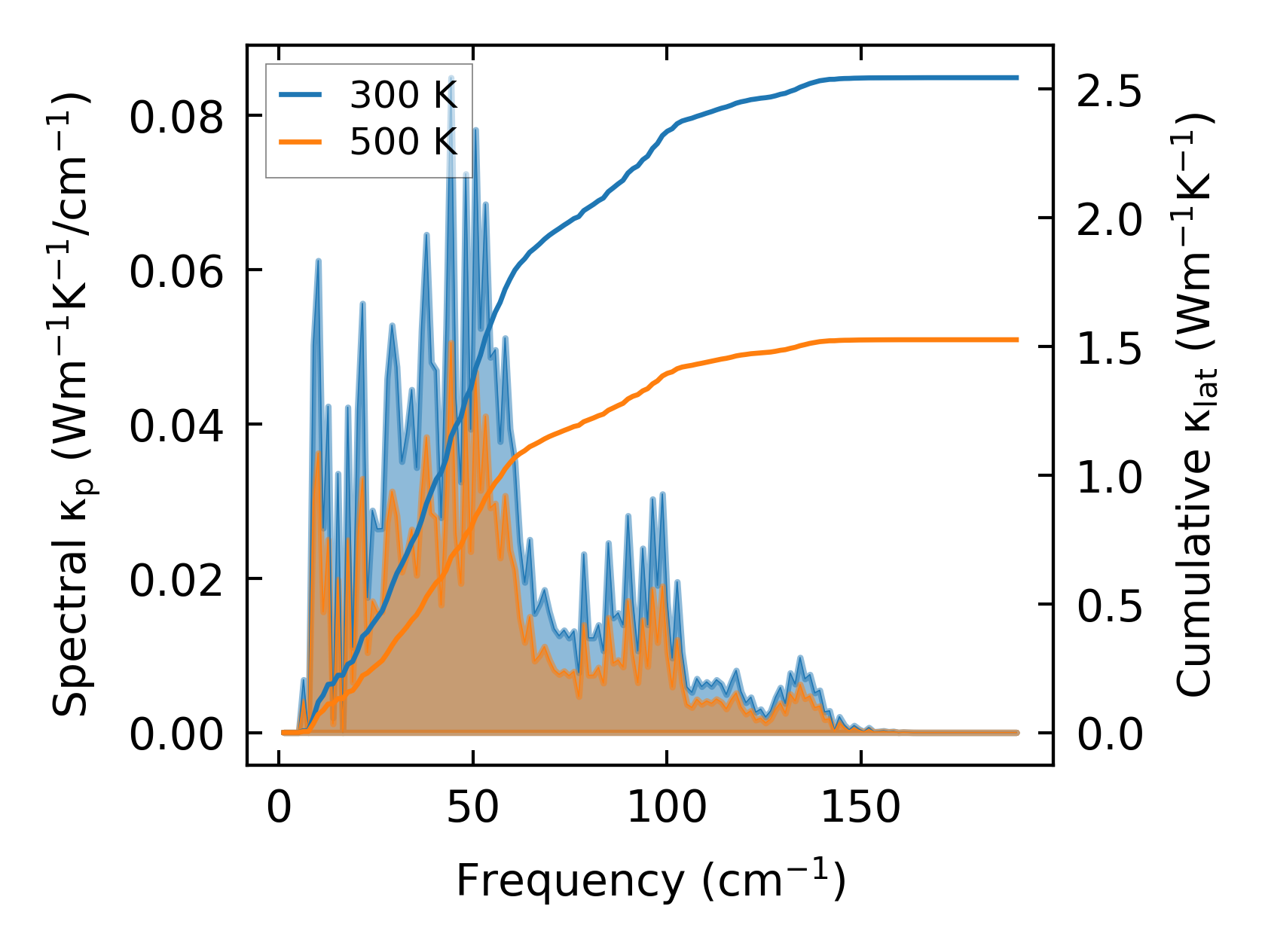

../../_images/fig_cumu_frequency6559.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

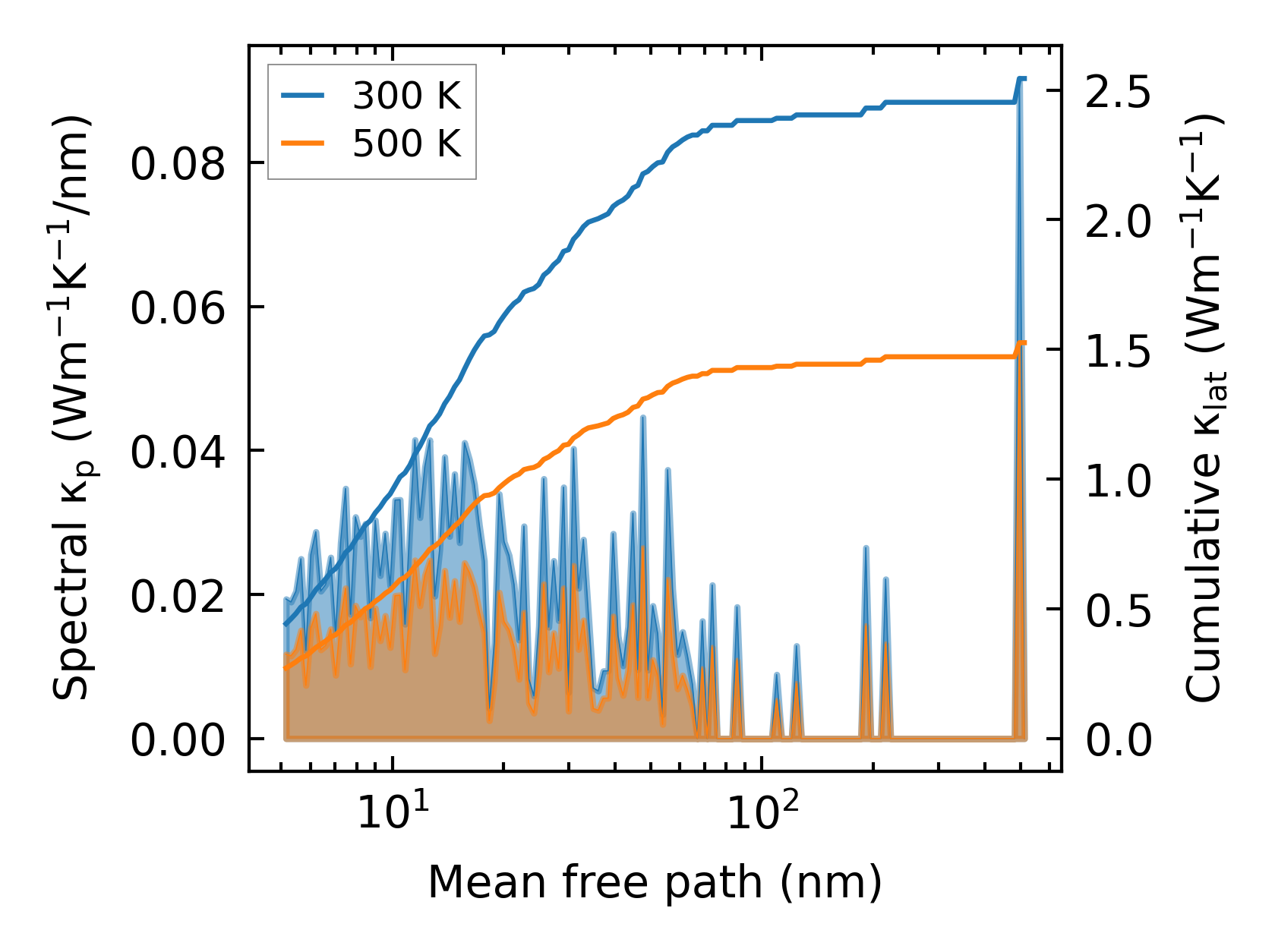

../../_images/fig_cumu_mfp6558.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

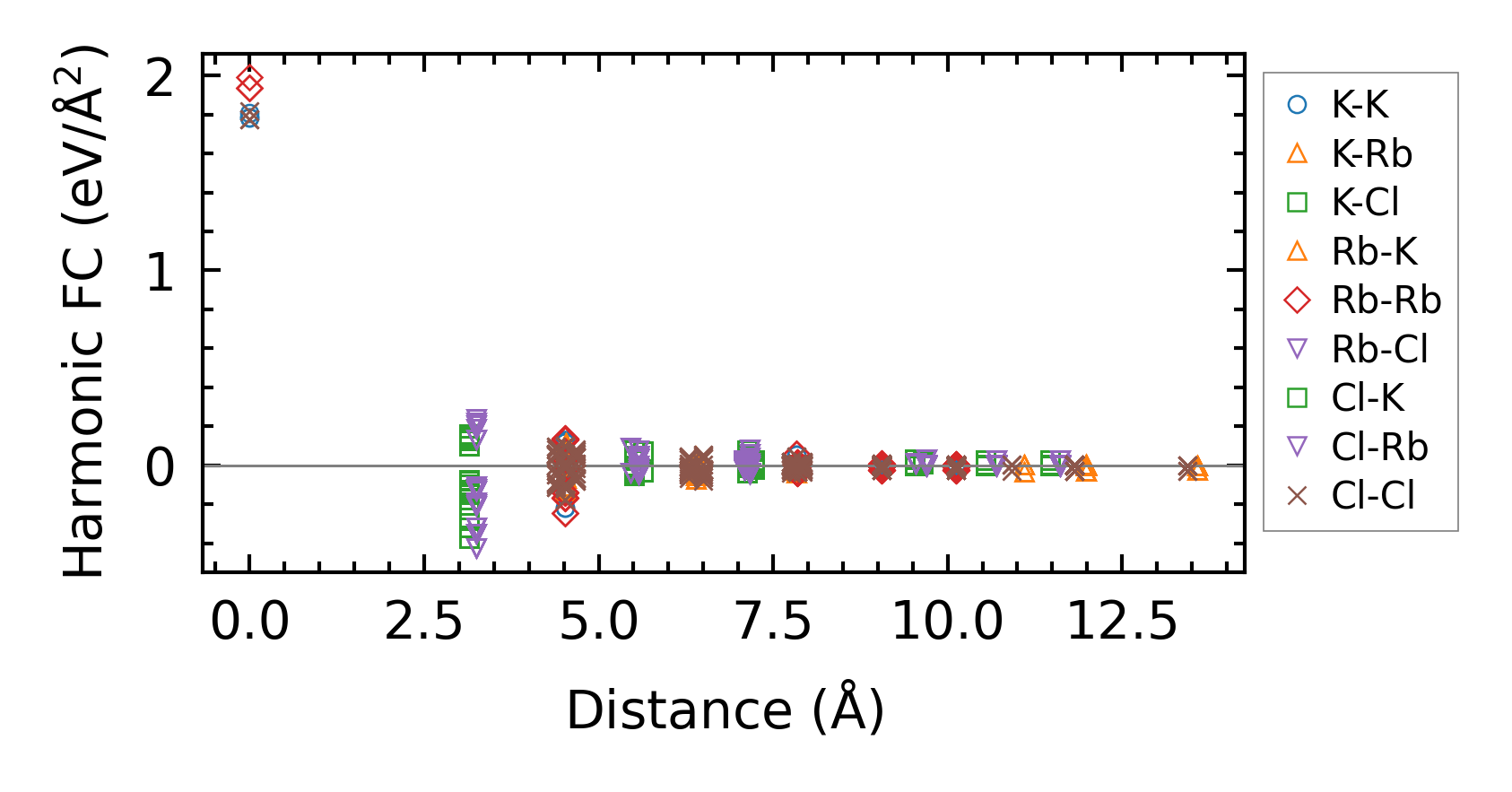

../../_images/fig_fc214940.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa12475.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times25367.png — (b) Computation time
