mp-1218991/SmZnCuP2/anharm

Space group: P3m1 (156)
Link: Materials Project
Download: mp-1218991.tar.gz

Harmonic properties

../../_images/fig_bandos_pr15264.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15263.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6579.png — (a) Grüneisen parameters

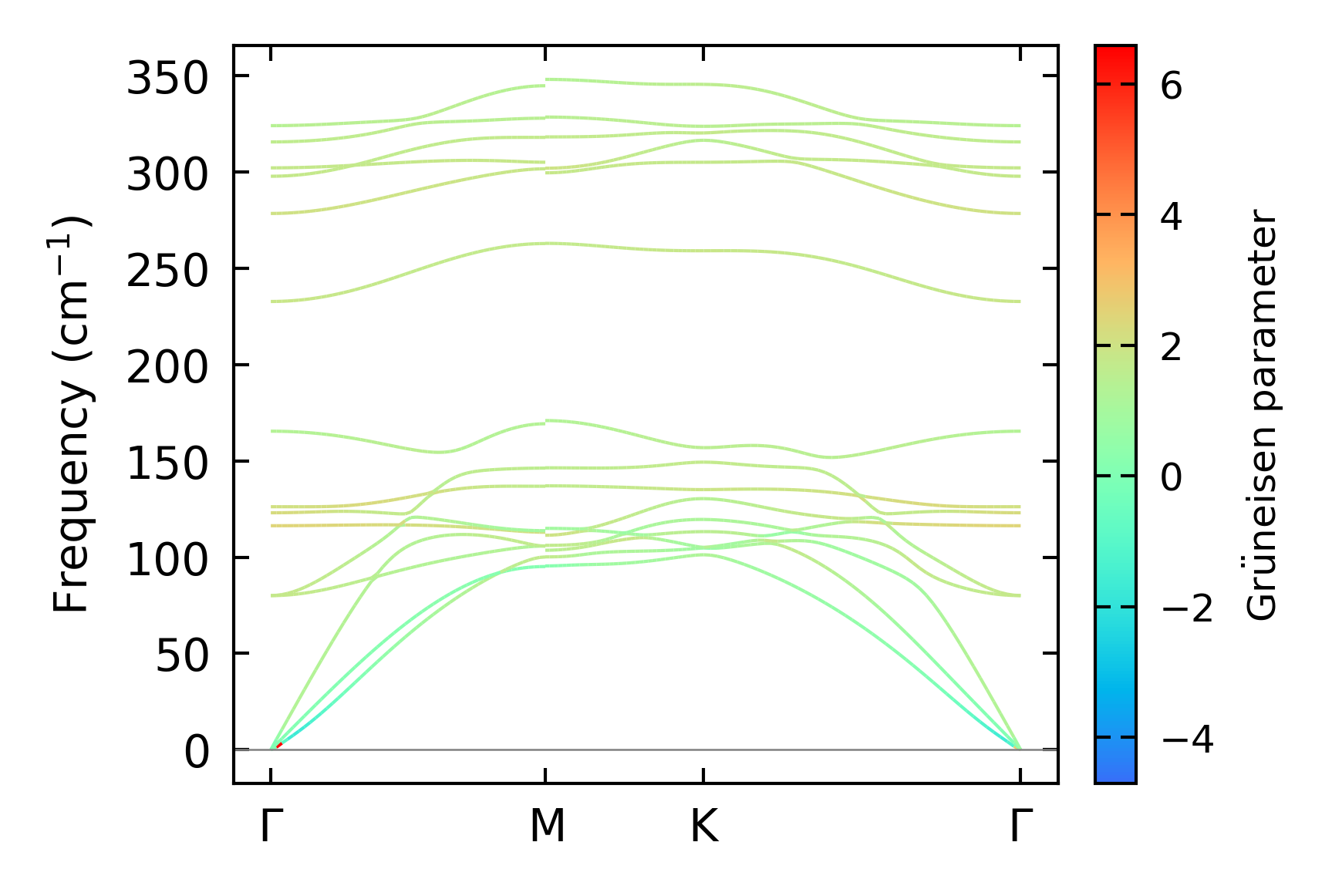

../../_images/fig_gruneisen6579.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 19x19x11, supercell: 3x3x2

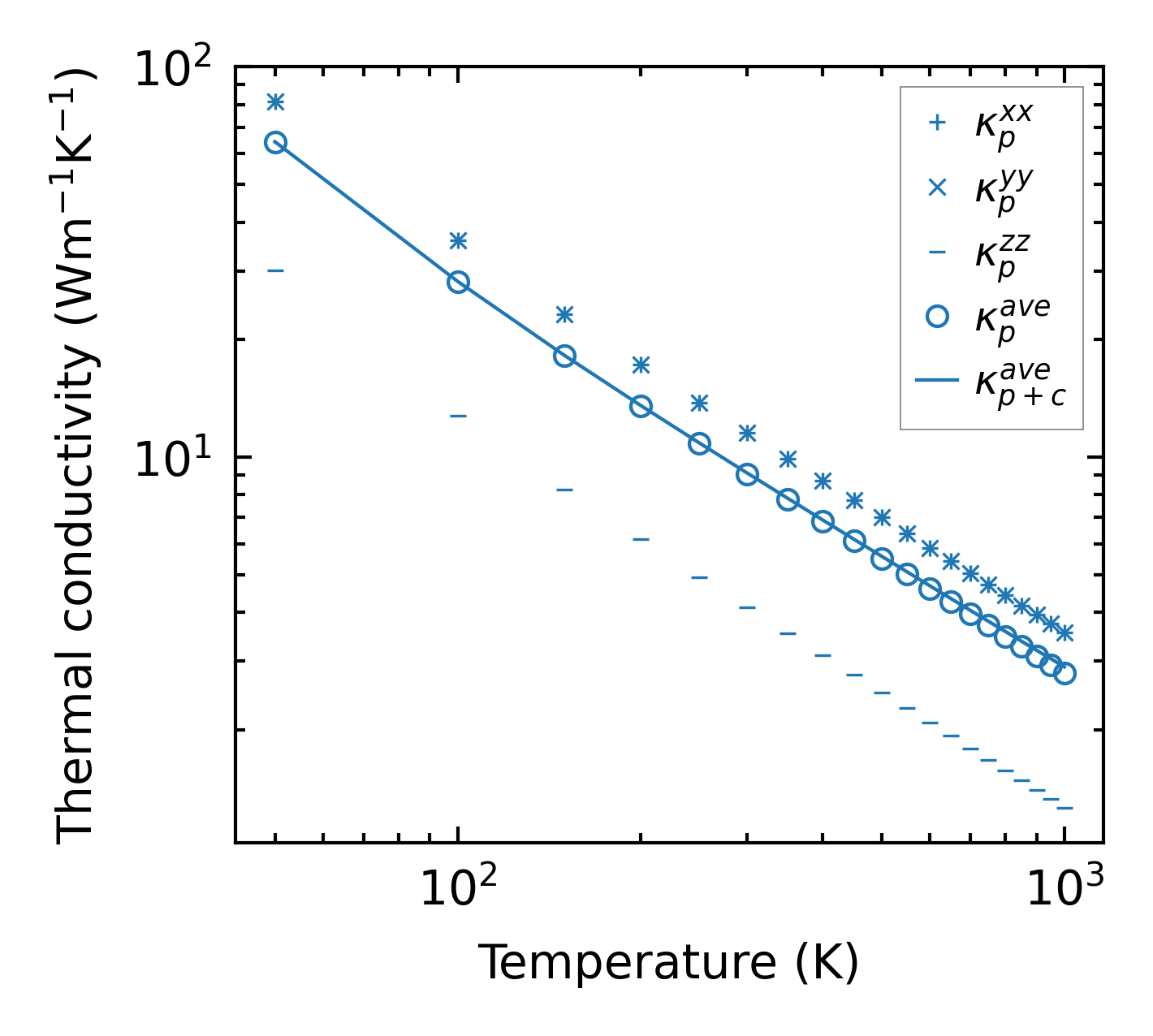

../../_images/fig_kappa12383.png — (a) Temperature-dependent lattice thermal conductivity

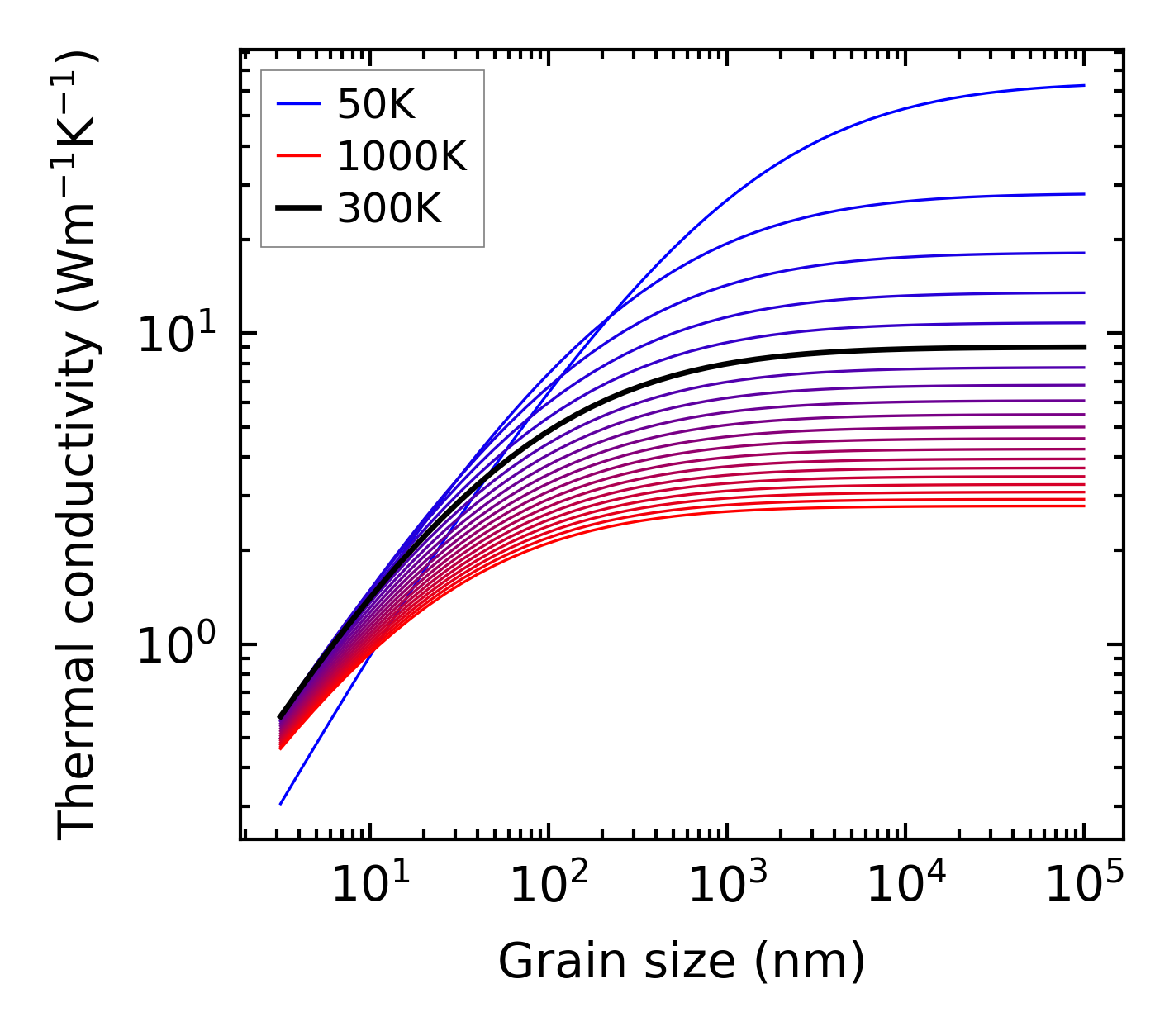

../../_images/fig_kappa_vs_grain_size6656.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

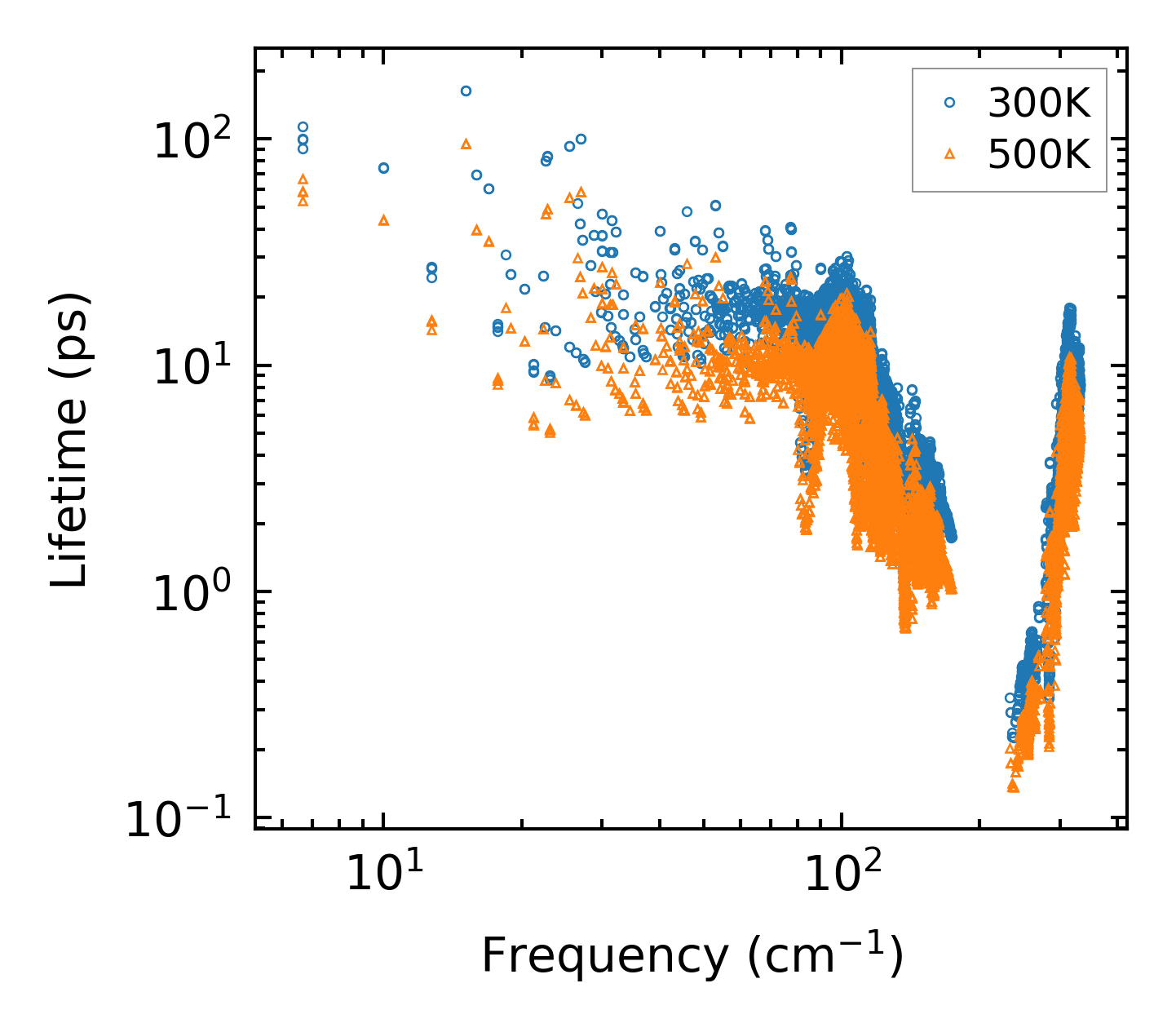

../../_images/fig_lifetime6513.png — (a) Phonon lifetime due to phonon-phonon scattering

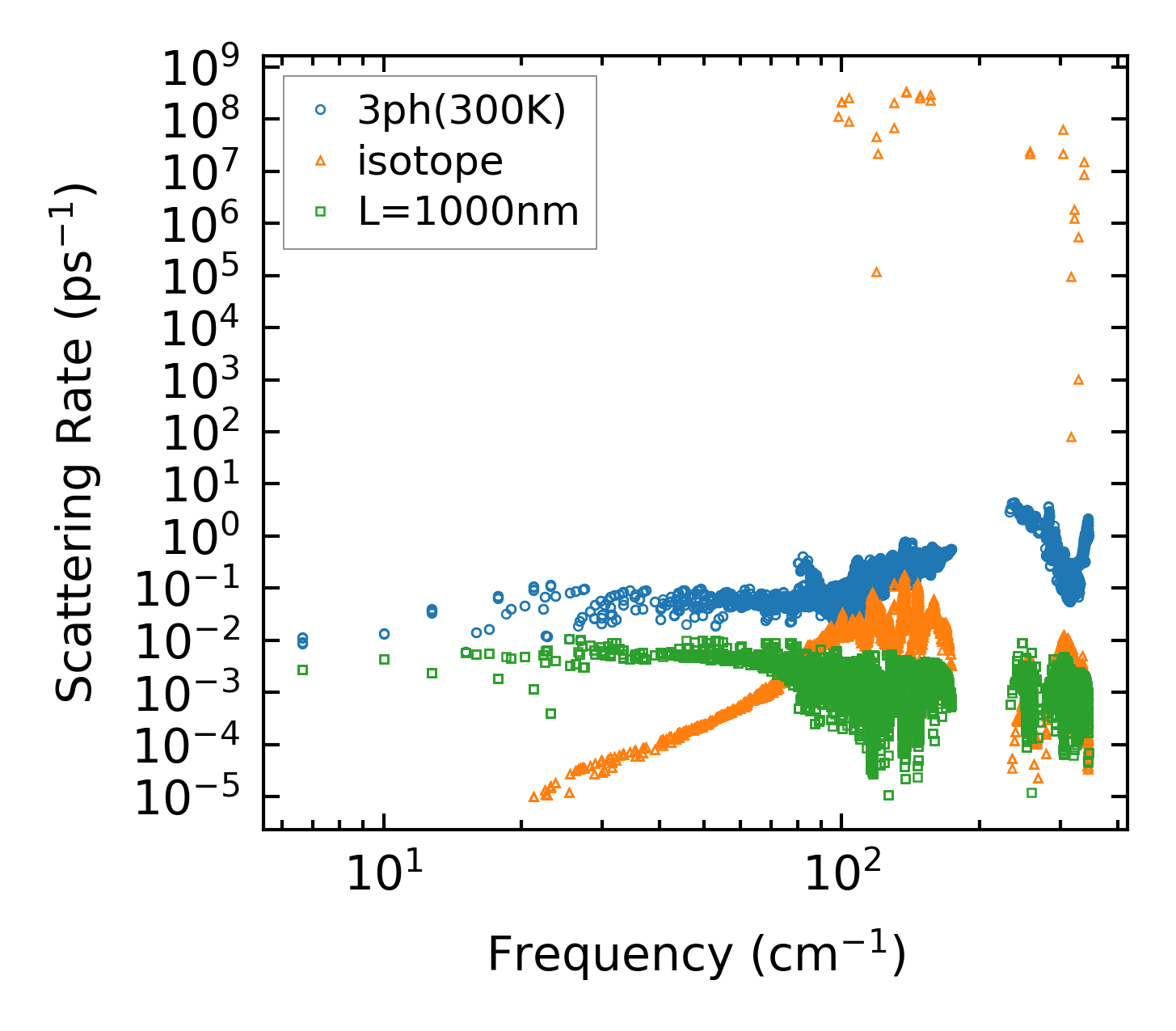

../../_images/fig_scat_rates6512.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

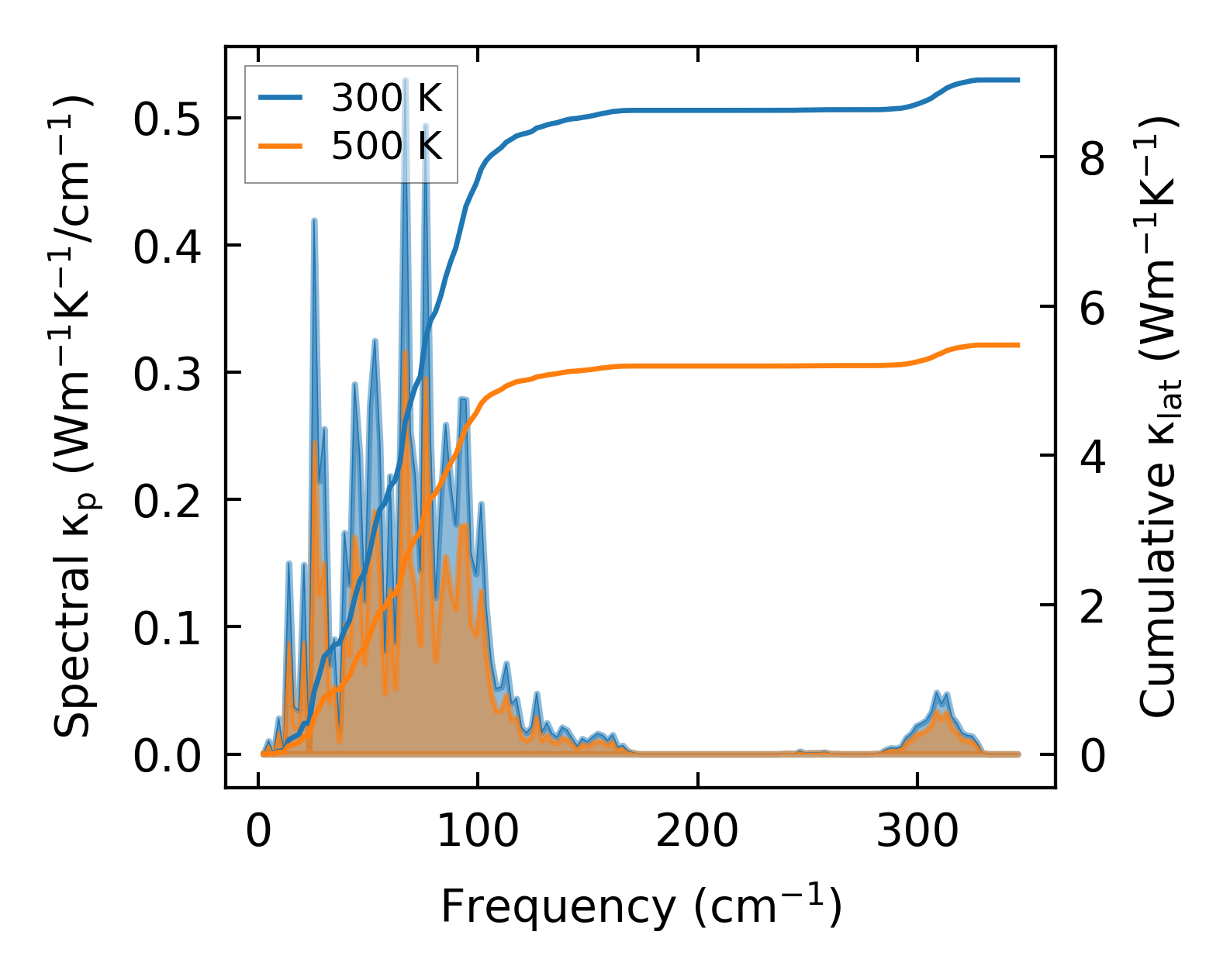

../../_images/fig_cumu_frequency6513.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp6512.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc214875.png — (a) Force constants w.r.t atomic distance

Summary

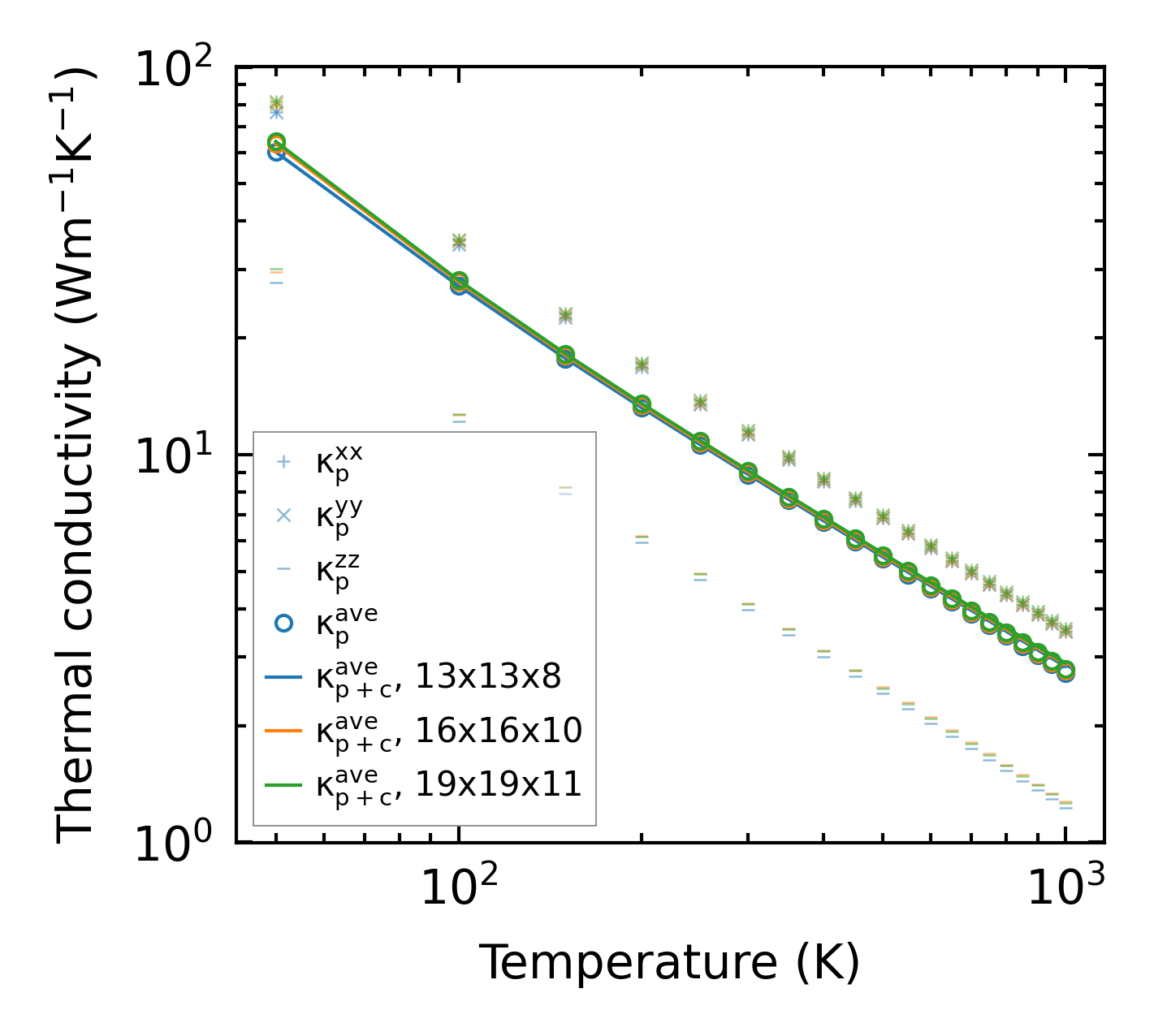

../../_images/fig_kappa12384.png — (a) Temperature-dependent lattice thermal conductivity

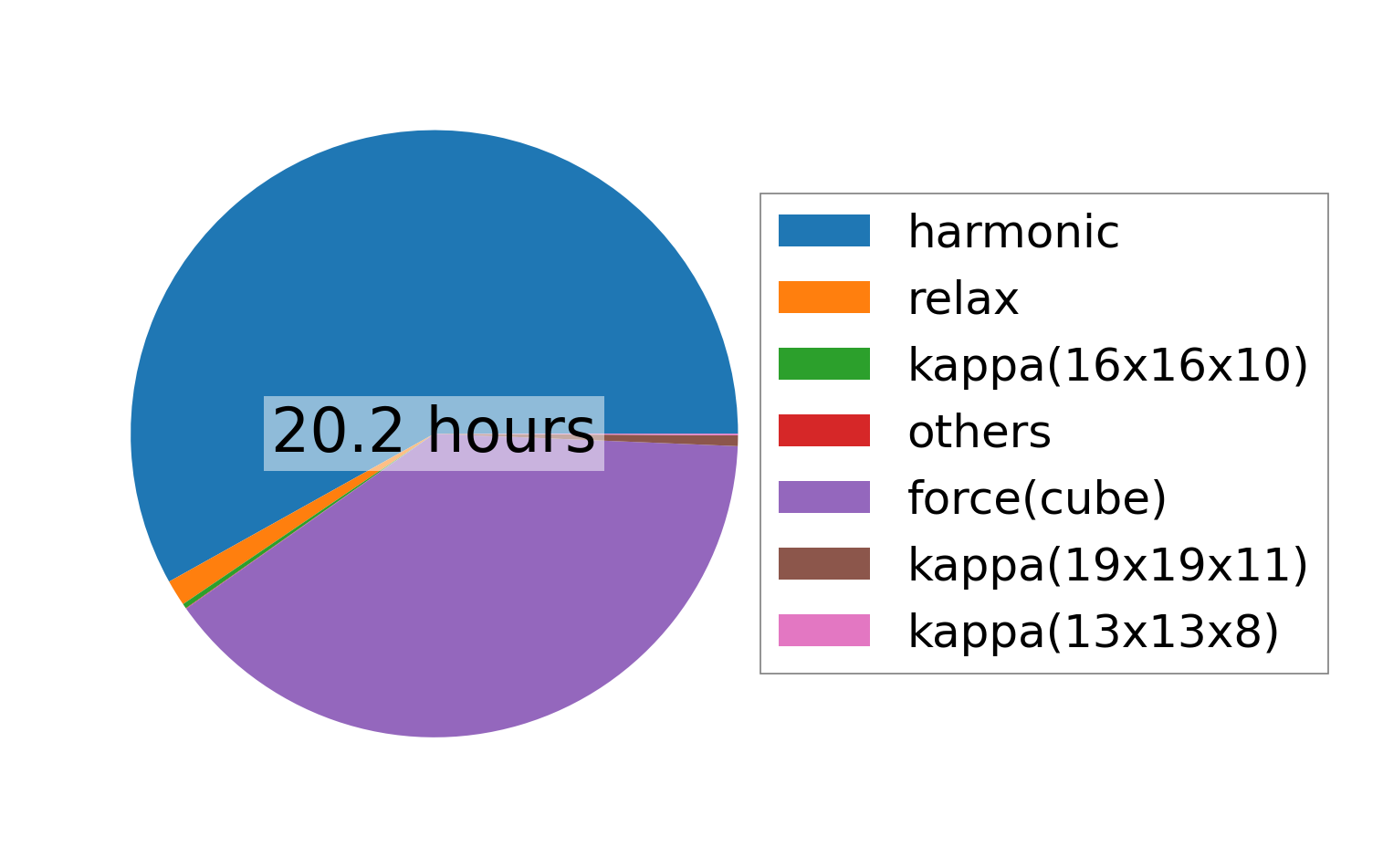

../../_images/fig_times25251.png — (b) Computation time
