mp-1218377/SrCa3Br2N2/anharm

Space group: Pm (6)
Link: Materials Project
Download: mp-1218377.tar.gz

Harmonic properties

../../_images/fig_bandos_pr15251.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15250.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6570.png — (a) Grüneisen parameters

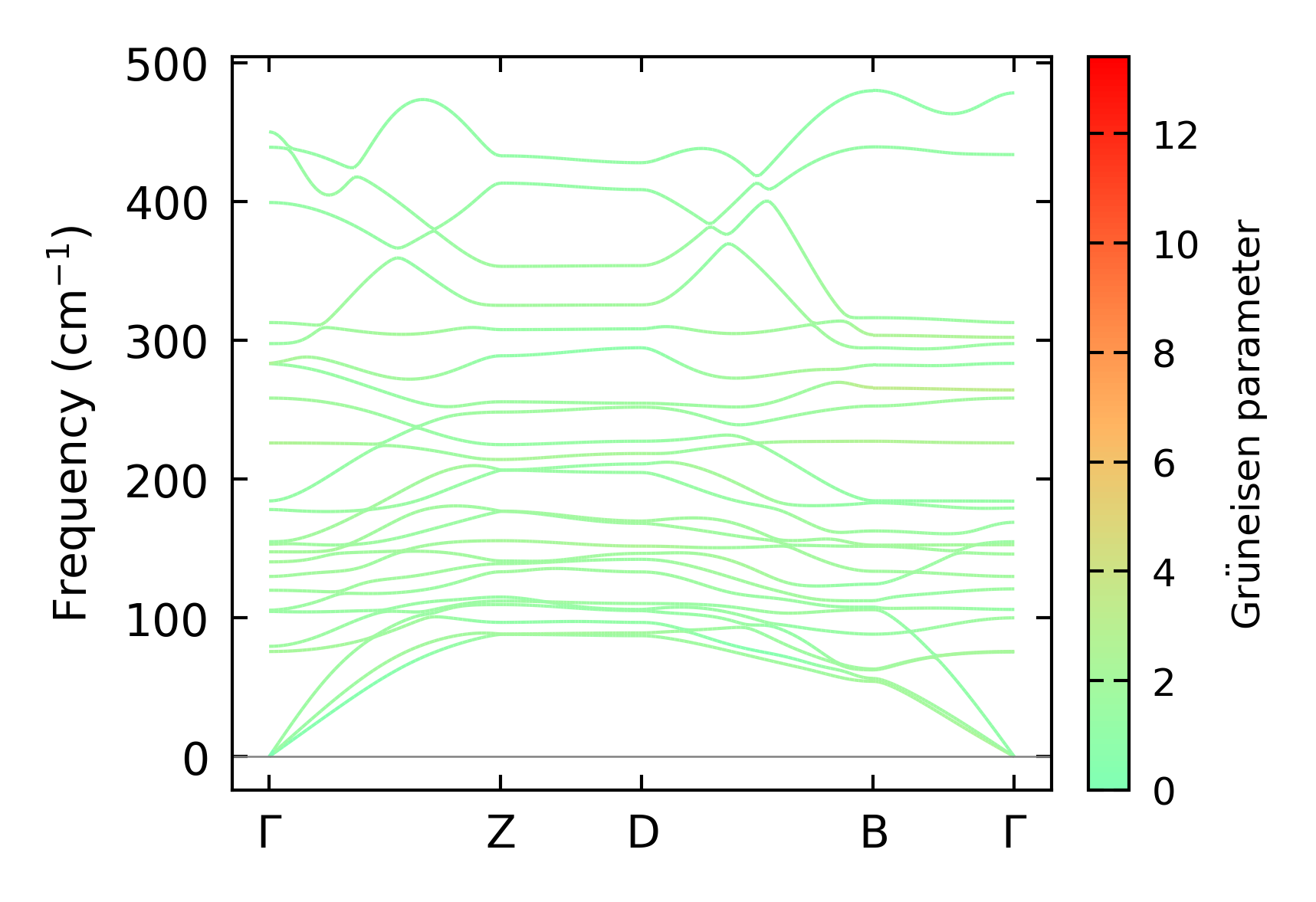

../../_images/fig_gruneisen6570.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x19x10, supercell: 2x4x2

../../_images/fig_kappa12366.png — (a) Temperature-dependent lattice thermal conductivity

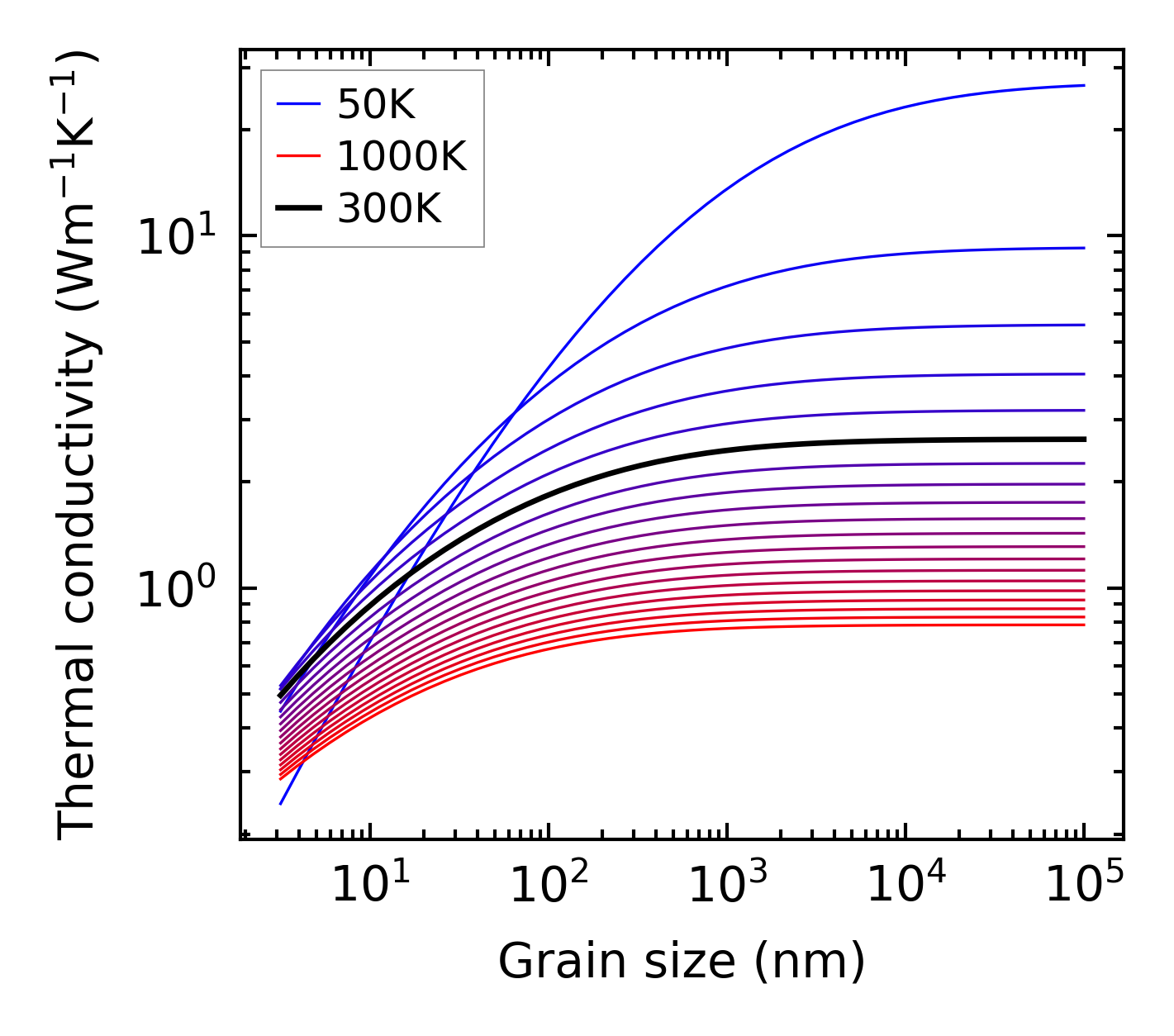

../../_images/fig_kappa_vs_grain_size6647.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

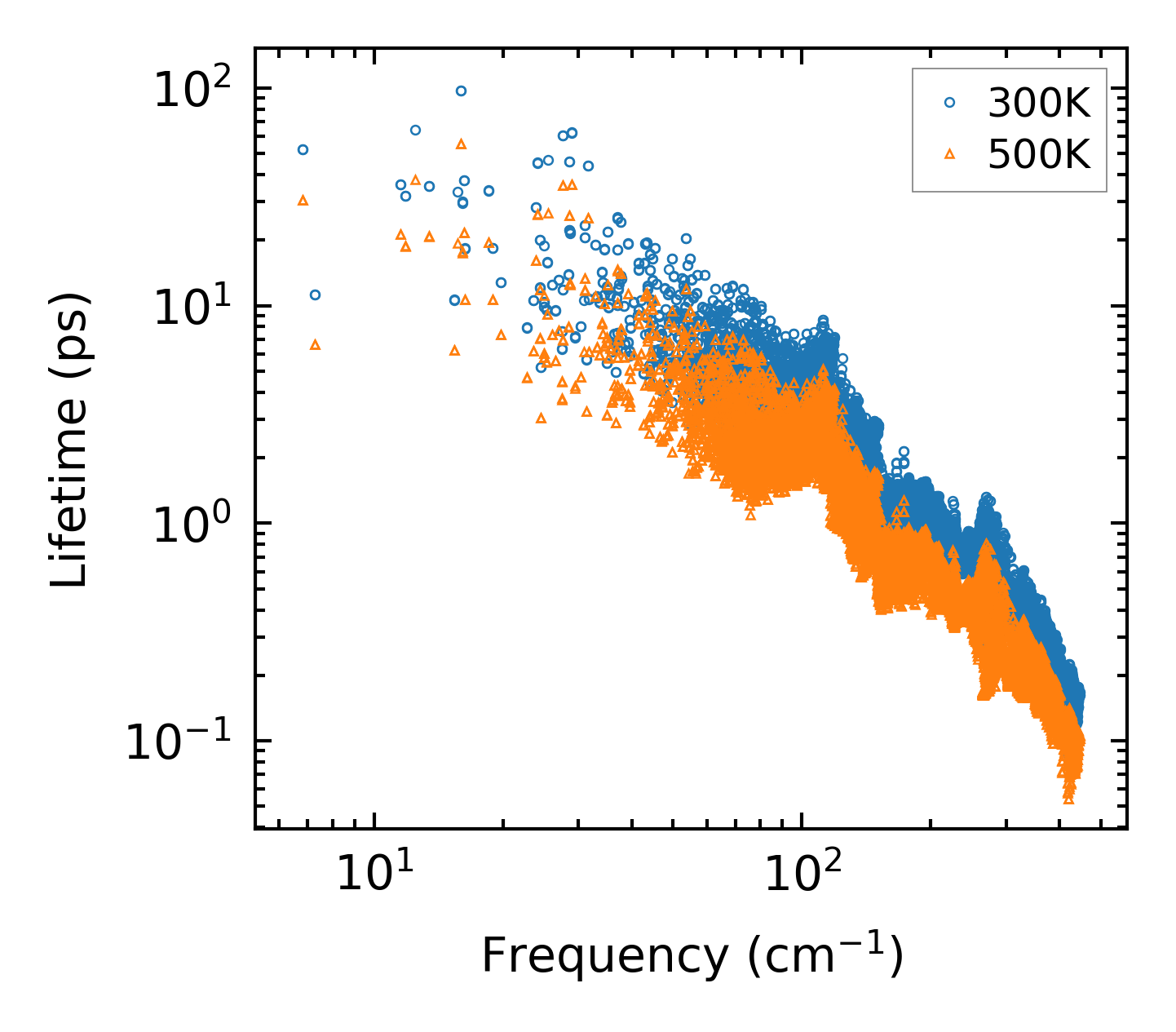

../../_images/fig_lifetime6504.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates6503.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

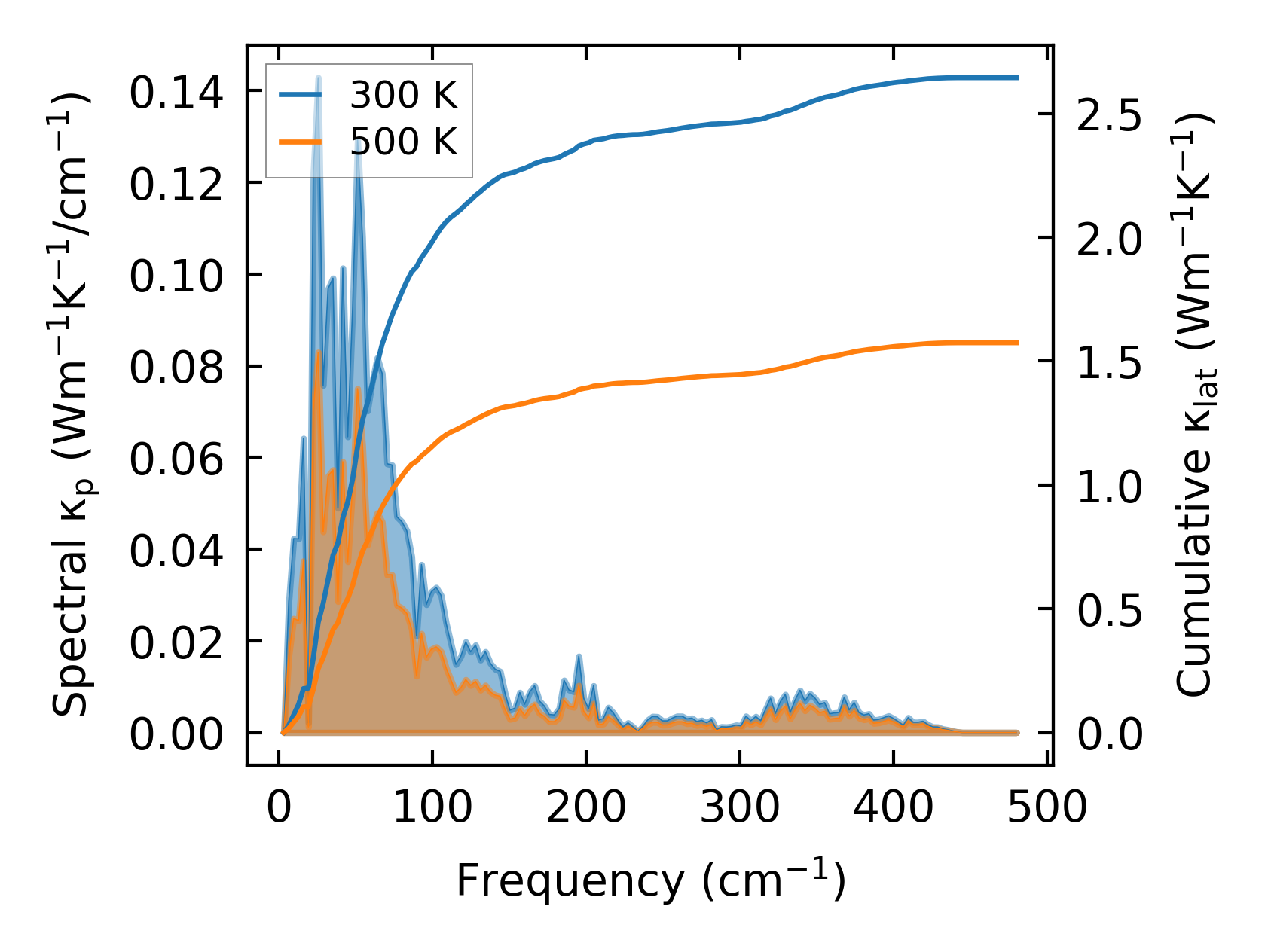

../../_images/fig_cumu_frequency6504.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

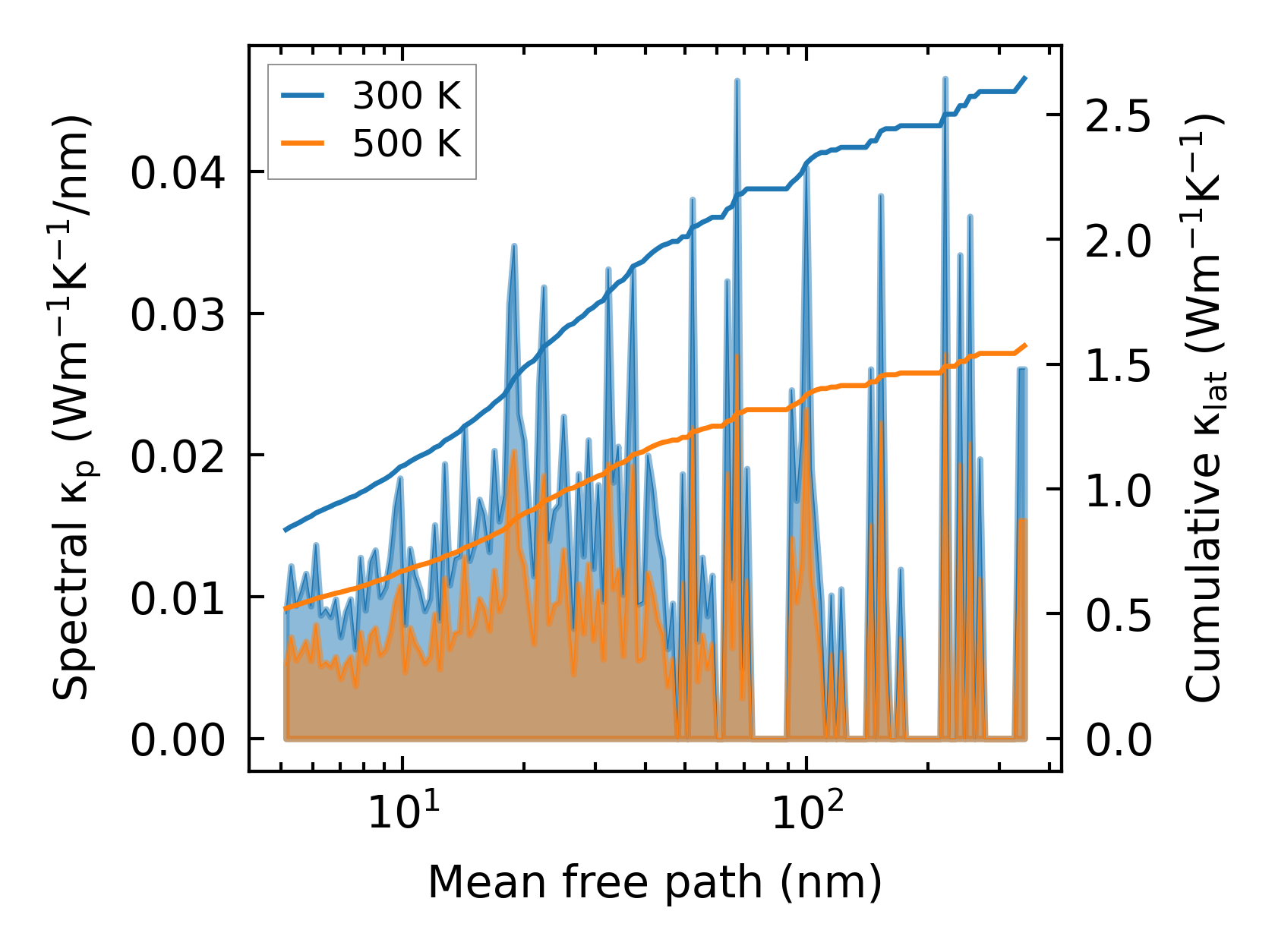

../../_images/fig_cumu_mfp6503.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

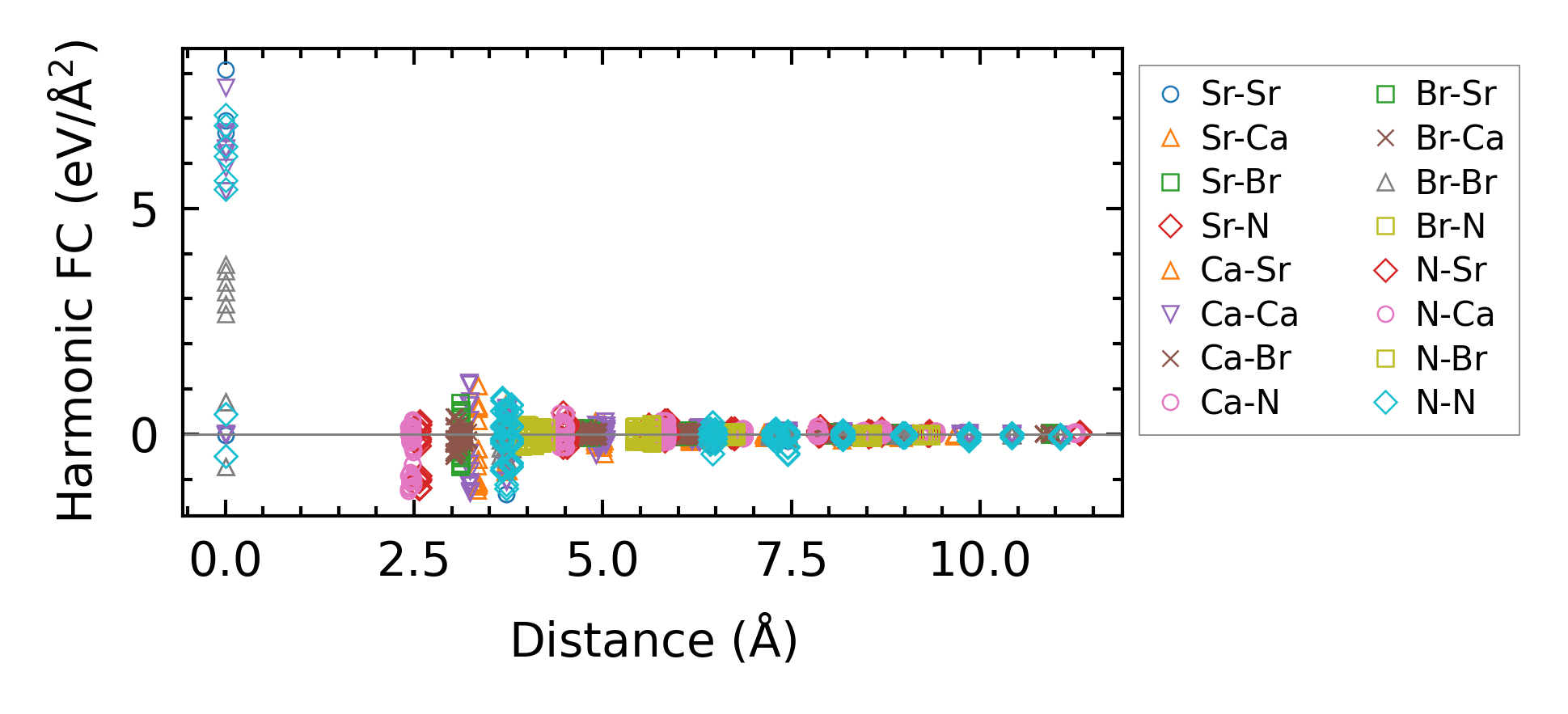

../../_images/fig_fc214863.png — (a) Force constants w.r.t atomic distance

Summary

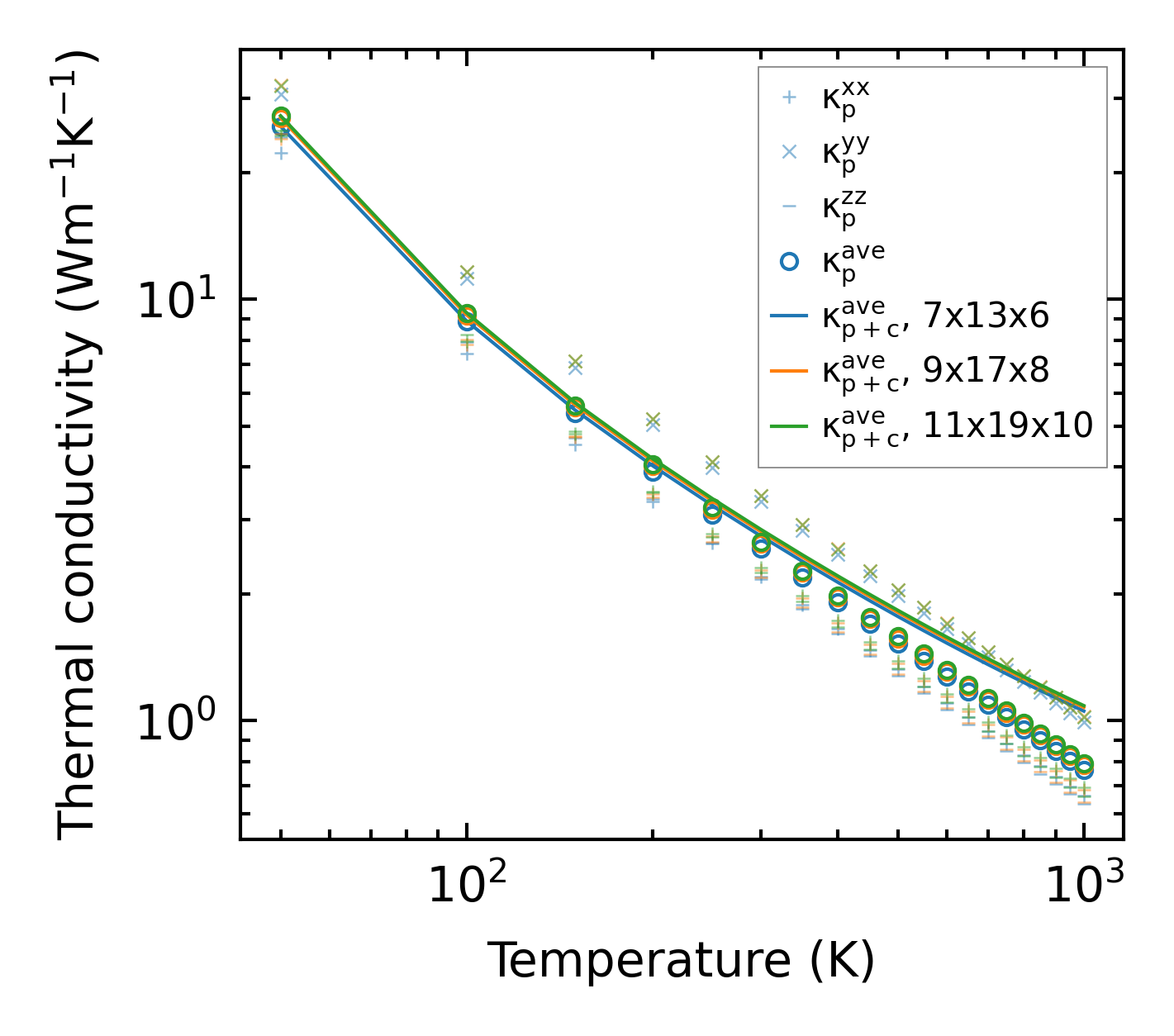

../../_images/fig_kappa12367.png — (a) Temperature-dependent lattice thermal conductivity

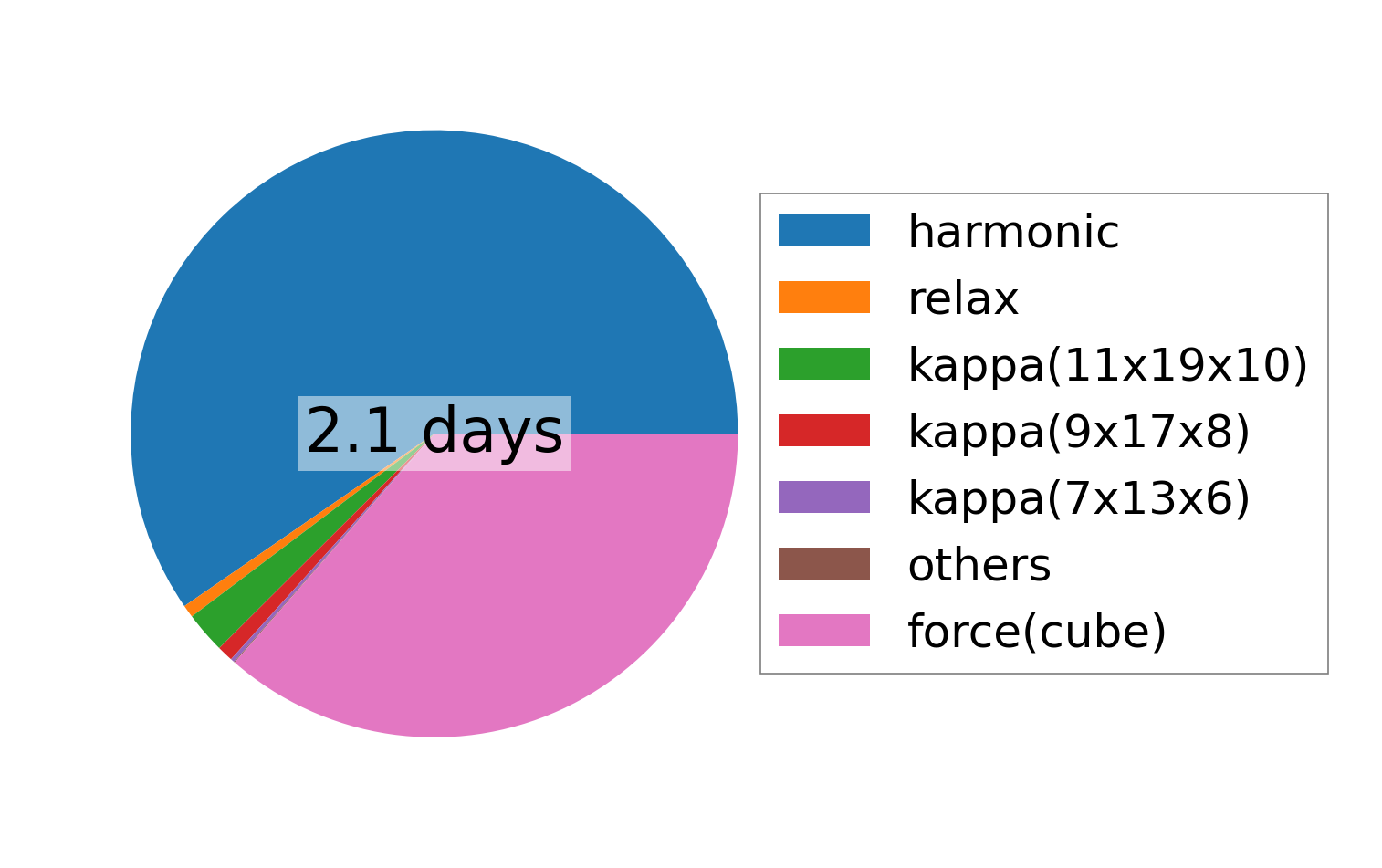

../../_images/fig_times25229.png — (b) Computation time
