mp-1218330/SrCaS2/anharm

Space group: P4/mmm (123)
Link: Materials Project
Download: mp-1218330.tar.gz

Harmonic properties

../../_images/fig_bandos_pr15247.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15246.png — (b) Thermodynamic properties

Grüneisen parameters

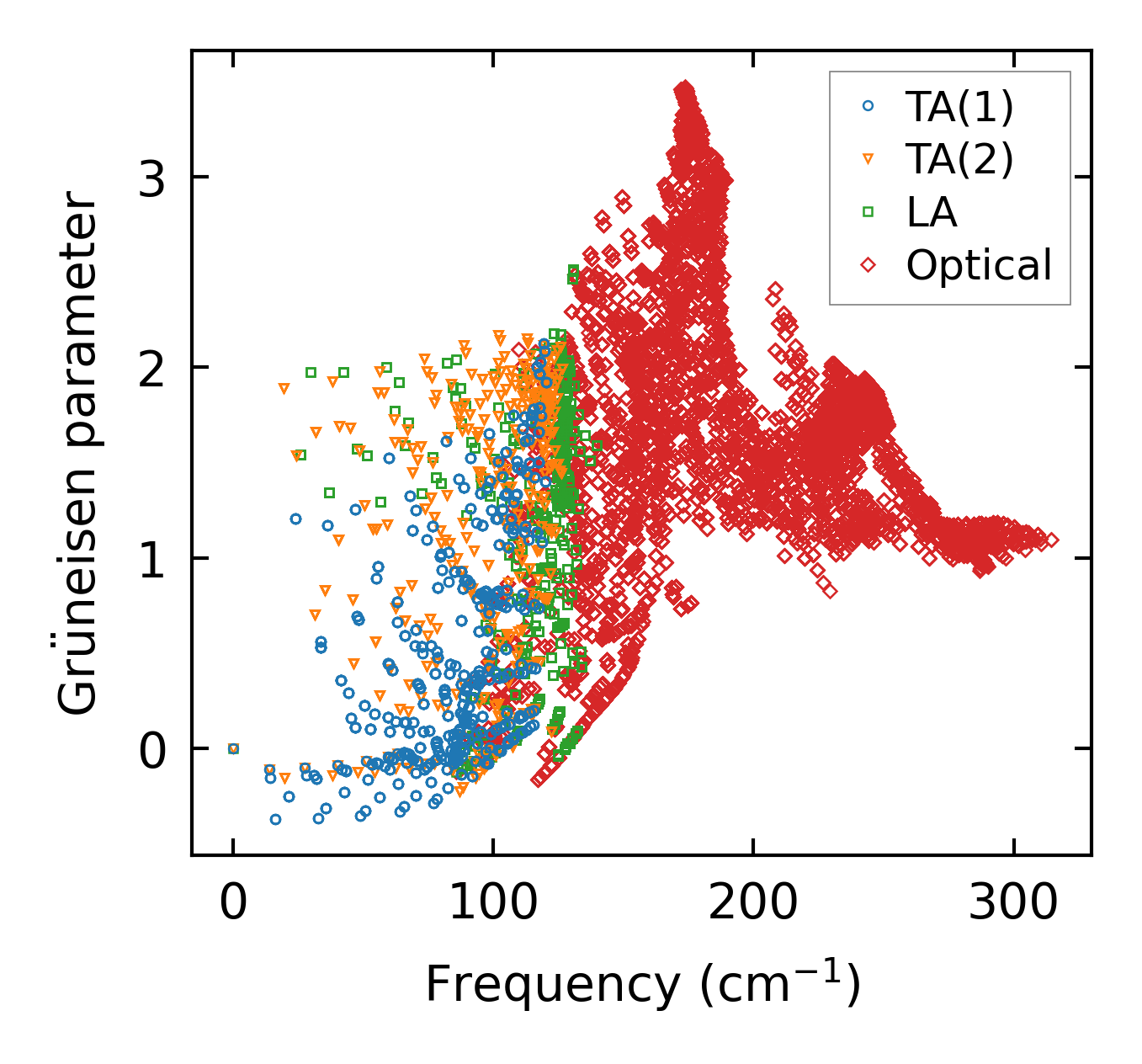

../../_images/fig_gru_all6567.png — (a) Grüneisen parameters

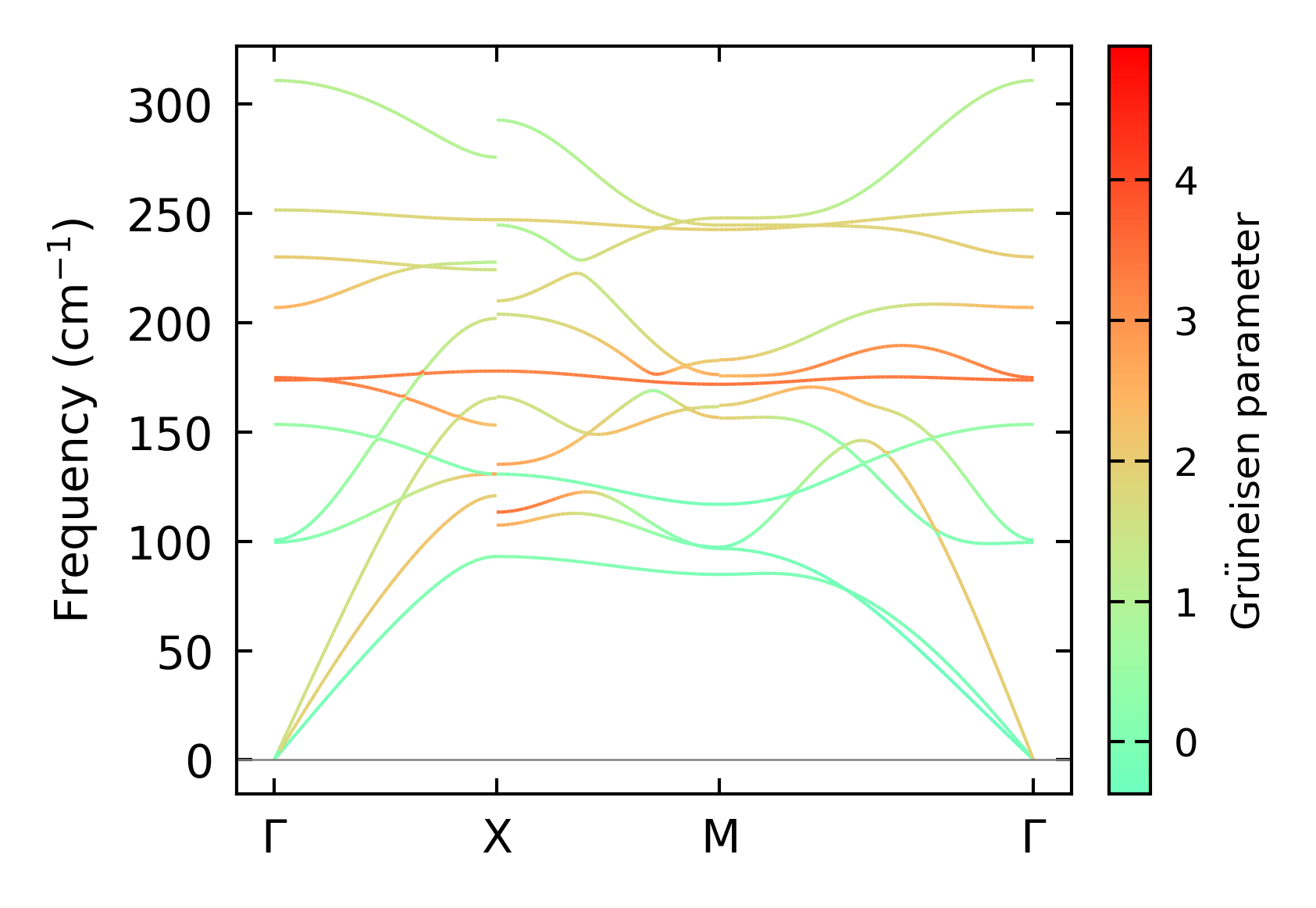

../../_images/fig_gruneisen6567.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 17x17x12, supercell: 3x3x3

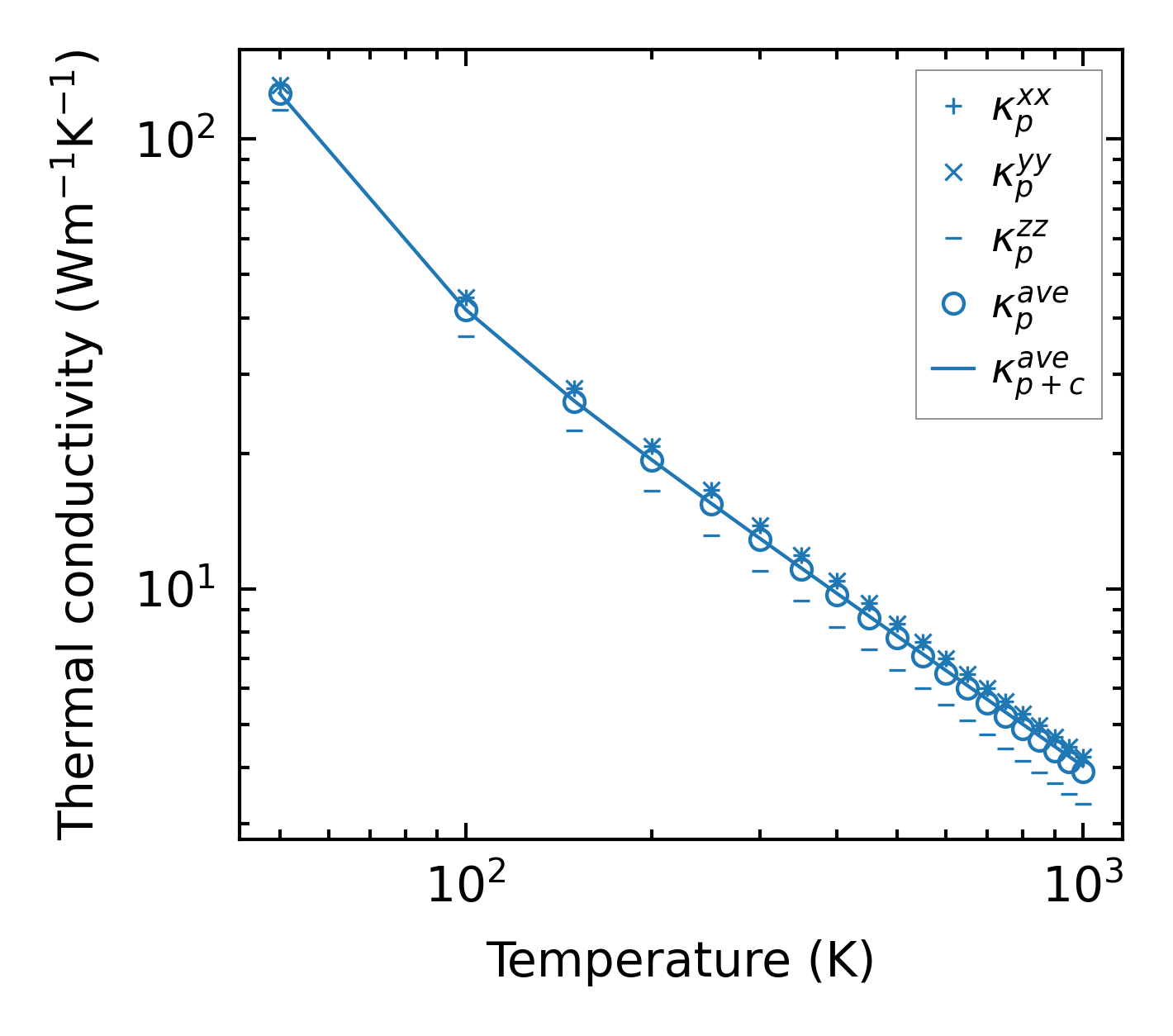

../../_images/fig_kappa12360.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size6644.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

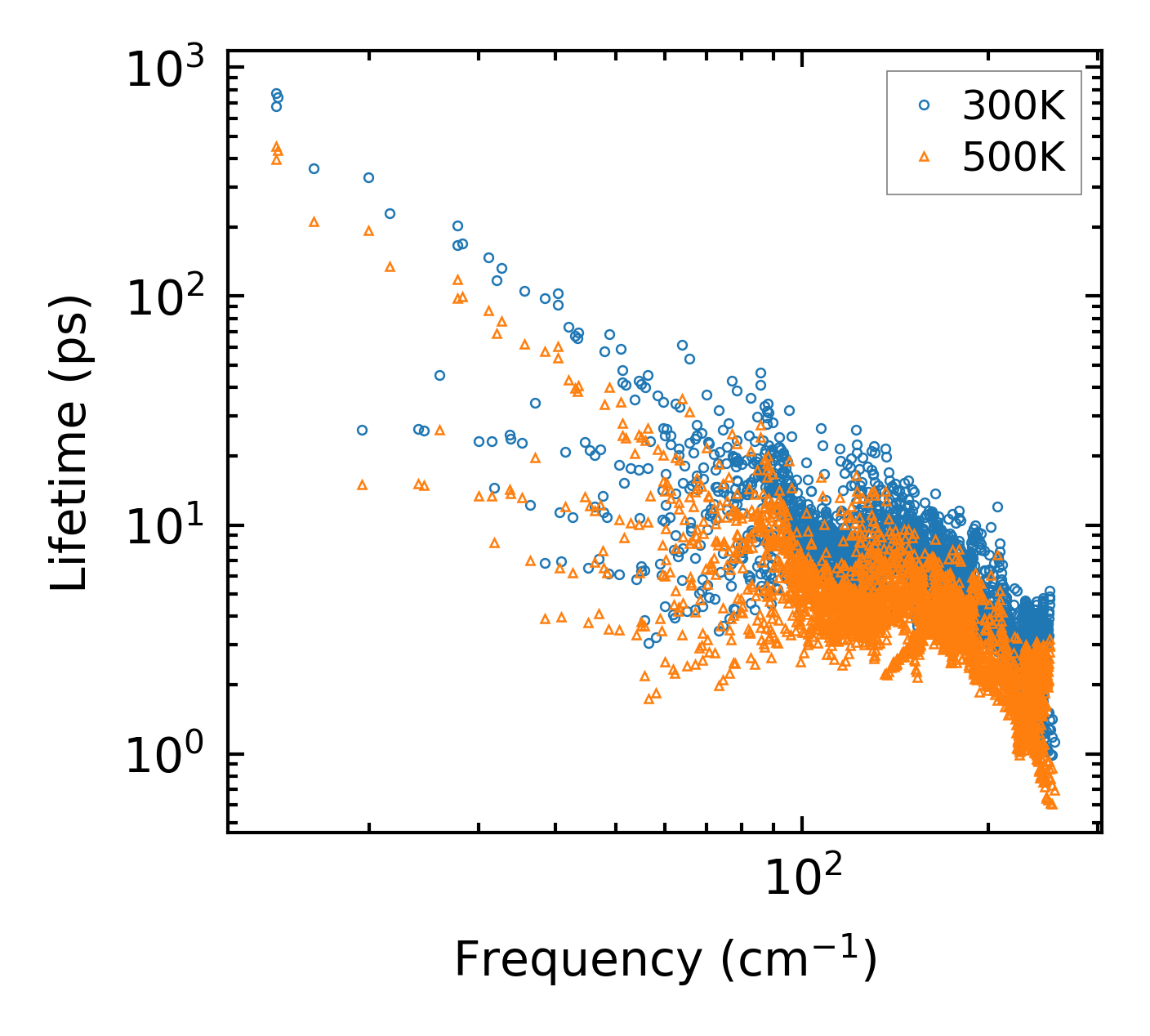

../../_images/fig_lifetime6501.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates6500.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

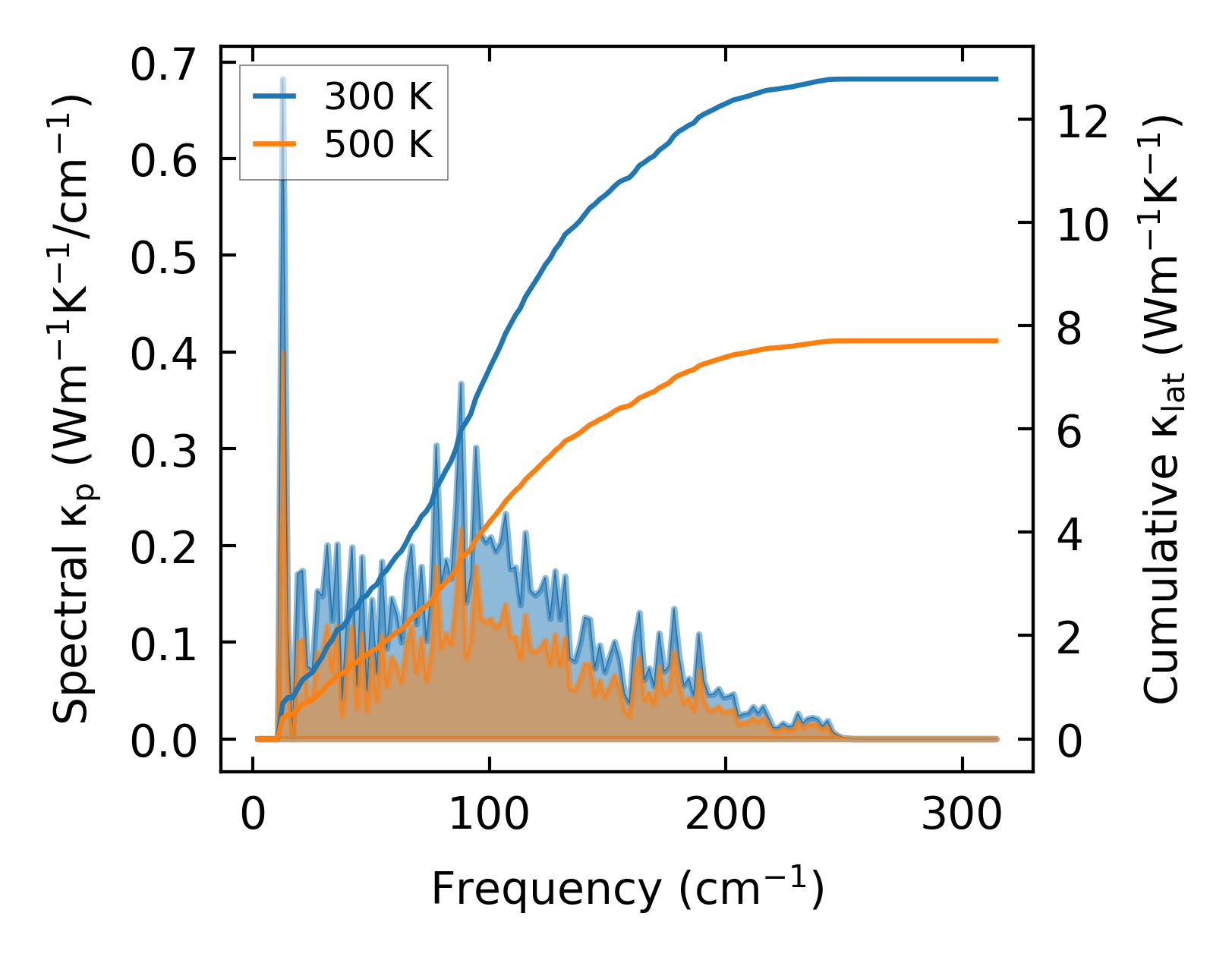

../../_images/fig_cumu_frequency6501.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

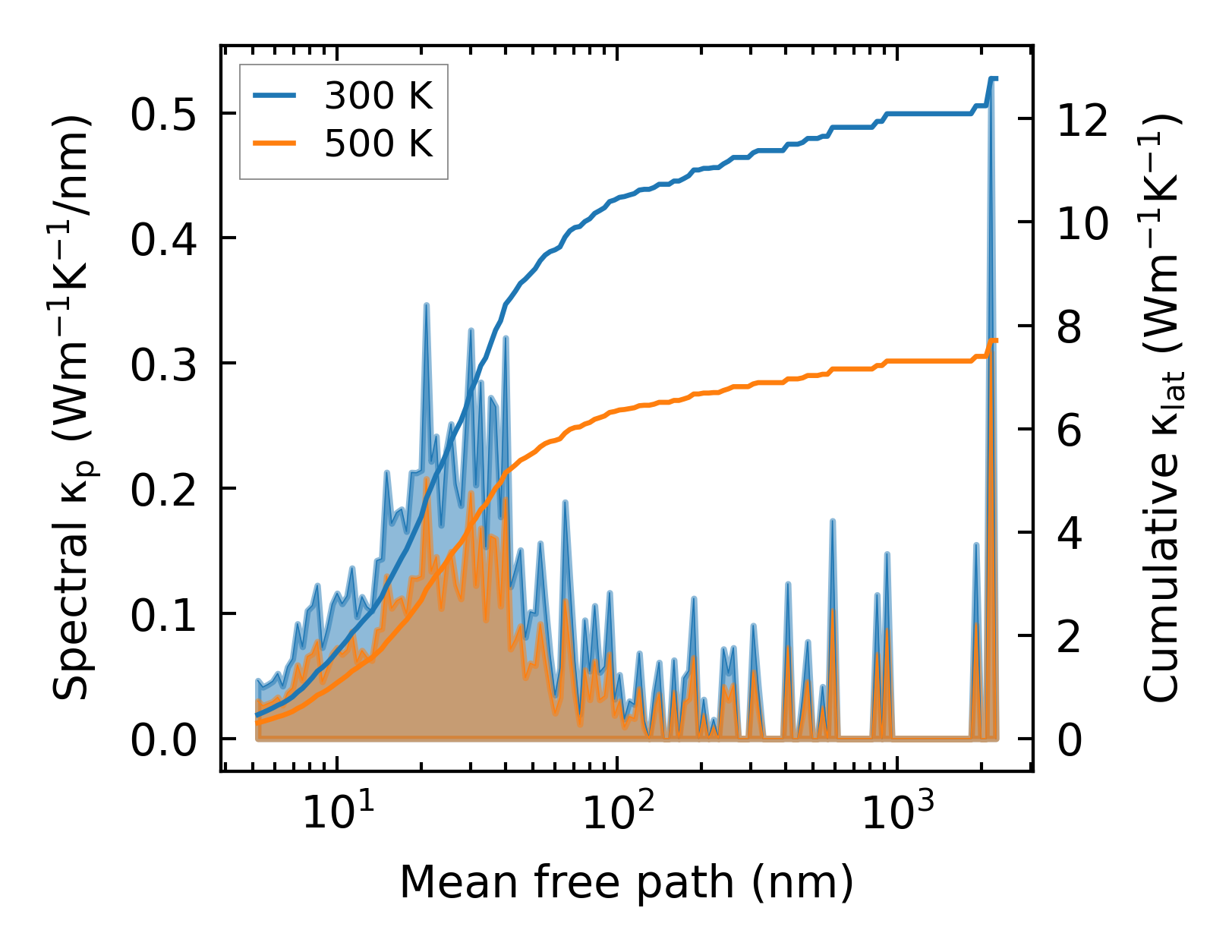

../../_images/fig_cumu_mfp6500.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

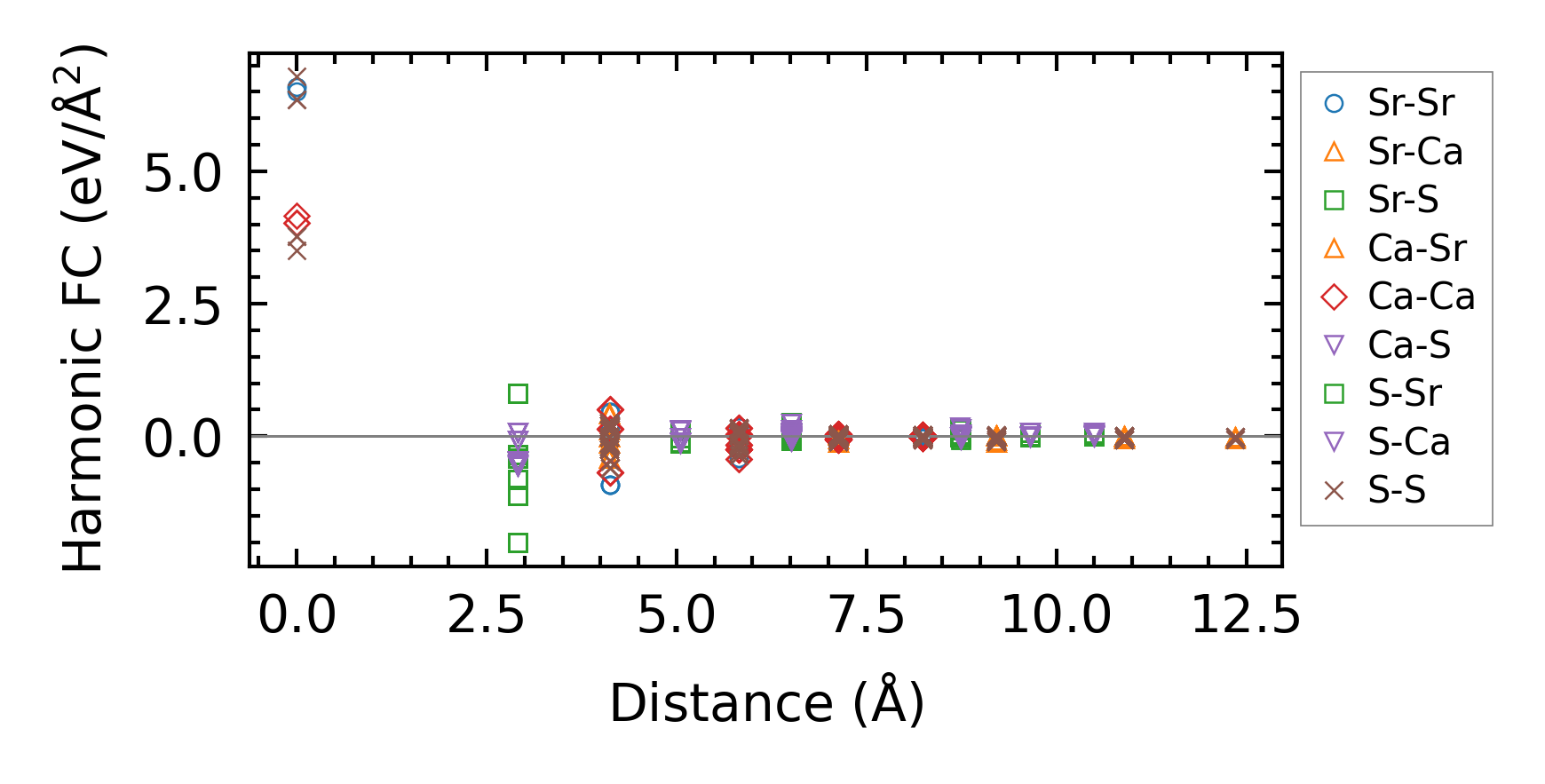

../../_images/fig_fc214859.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa12361.png — (a) Temperature-dependent lattice thermal conductivity

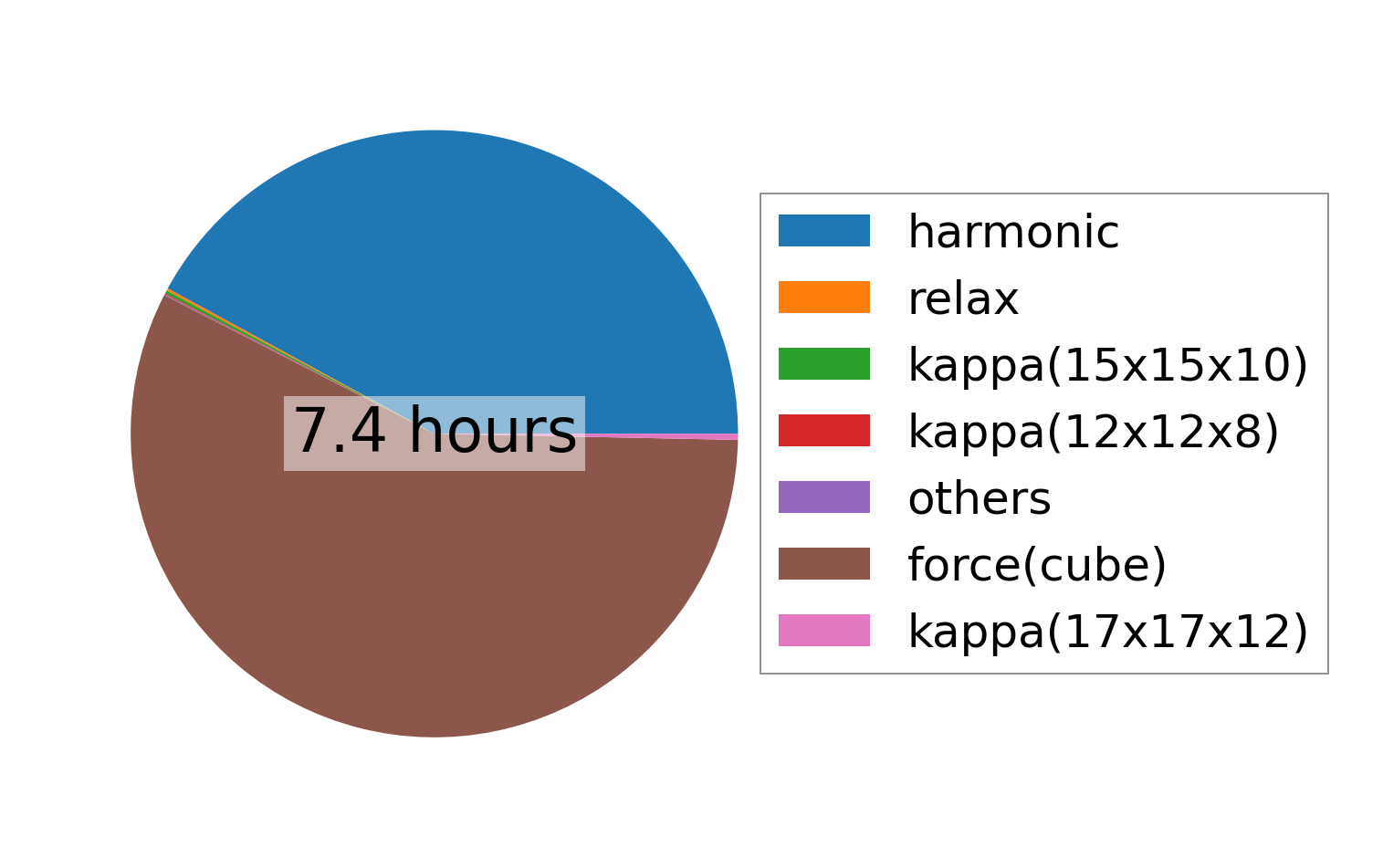

../../_images/fig_times25225.png — (b) Computation time
