mp-1101972/CdF2/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-1101972.tar.gz

Harmonic properties

../../_images/fig_bandos_pr16519.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16518.png — (b) Thermodynamic properties

Grüneisen parameters

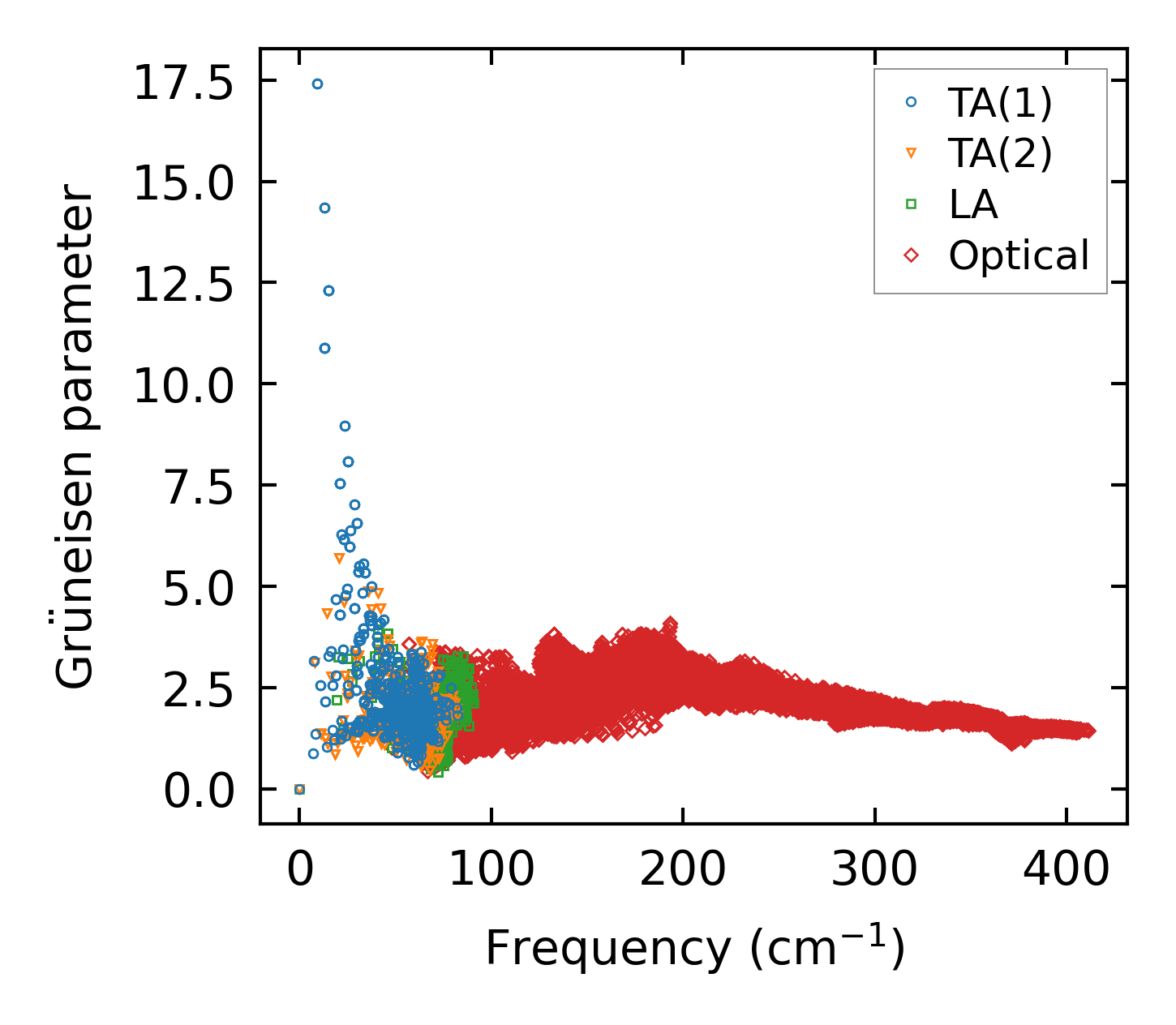

../../_images/fig_gru_all7159.png — (a) Grüneisen parameters

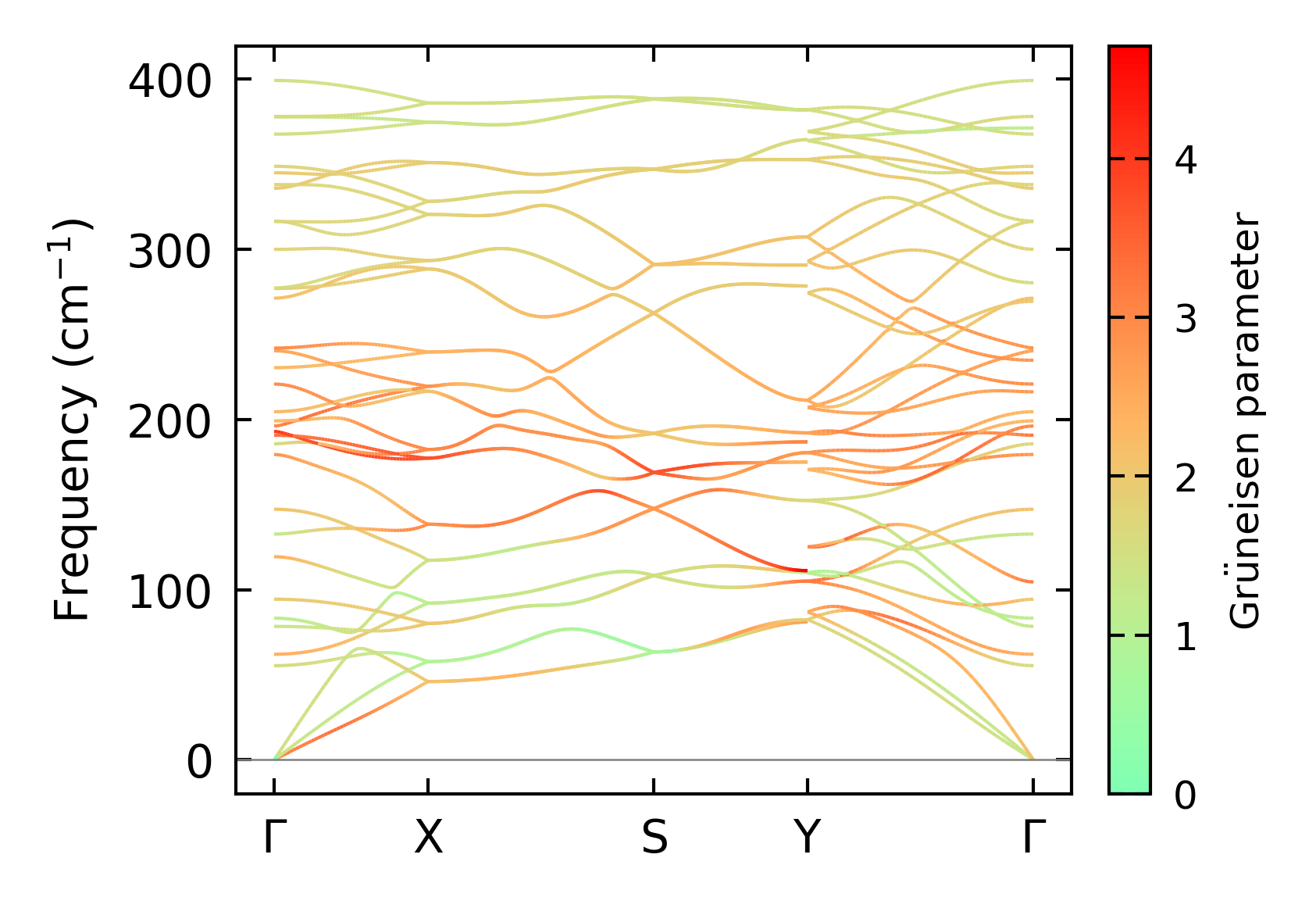

../../_images/fig_gruneisen7159.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x20x10, supercell: 2x3x2

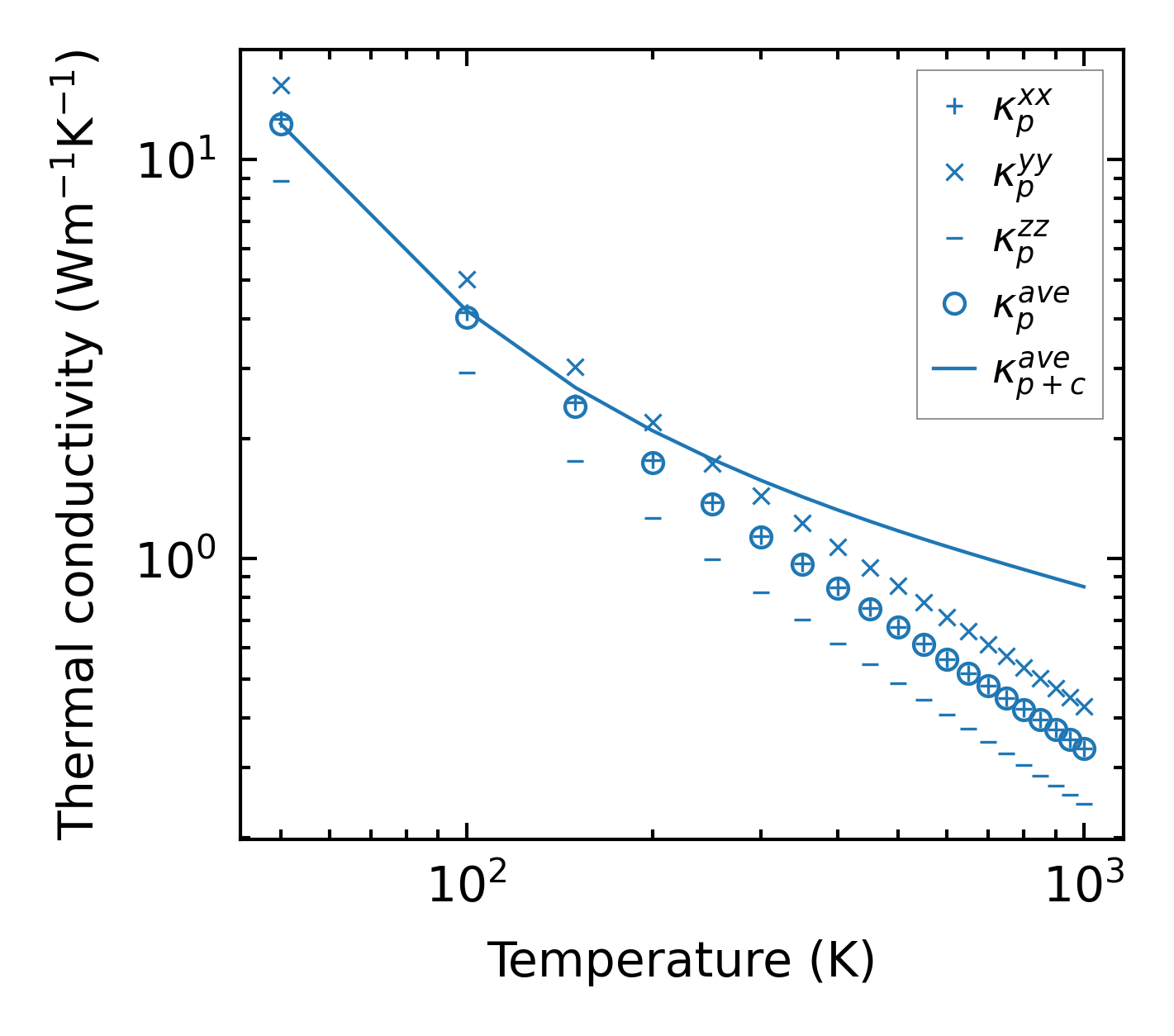

../../_images/fig_kappa13499.png — (a) Temperature-dependent lattice thermal conductivity

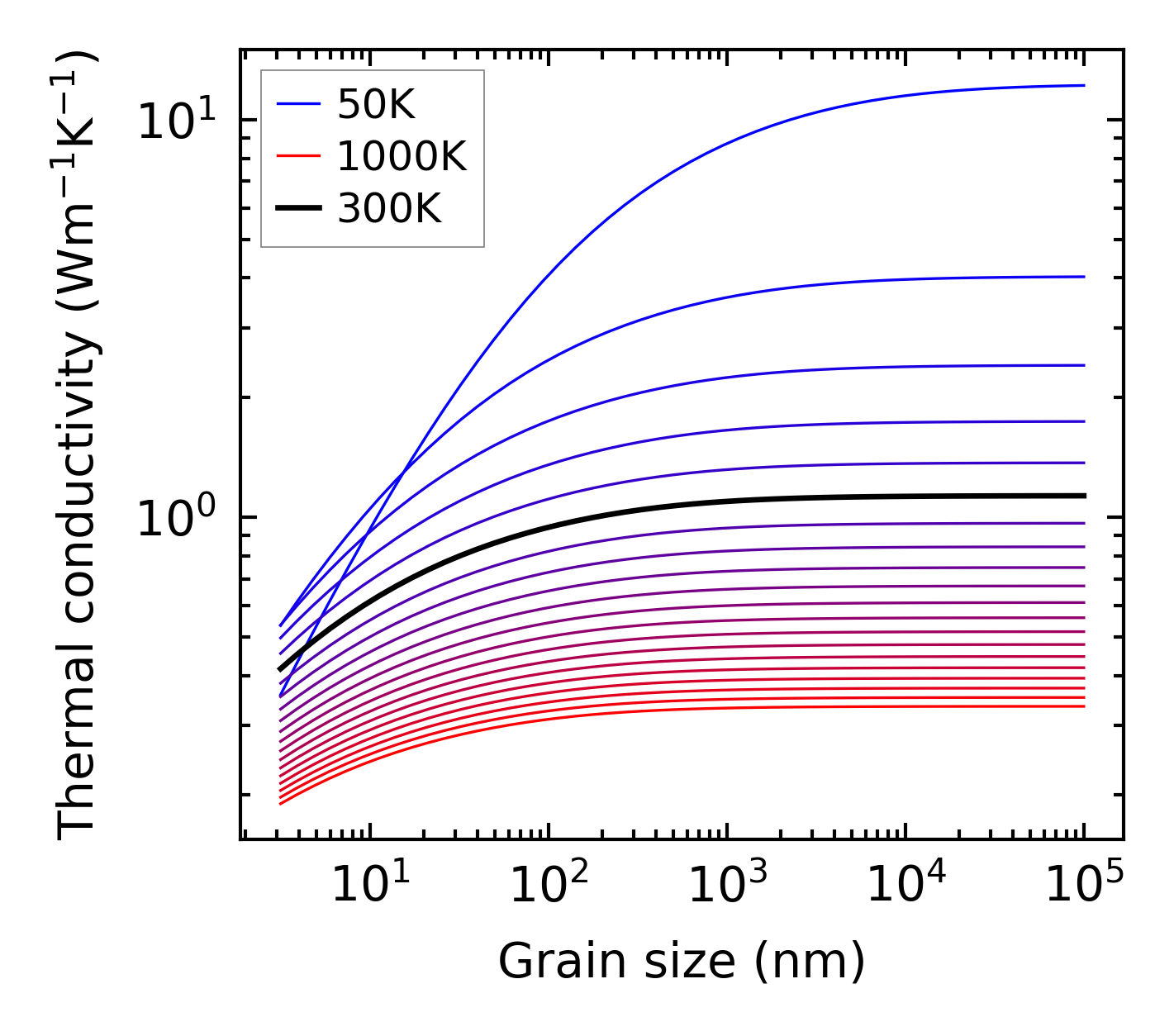

../../_images/fig_kappa_vs_grain_size7245.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

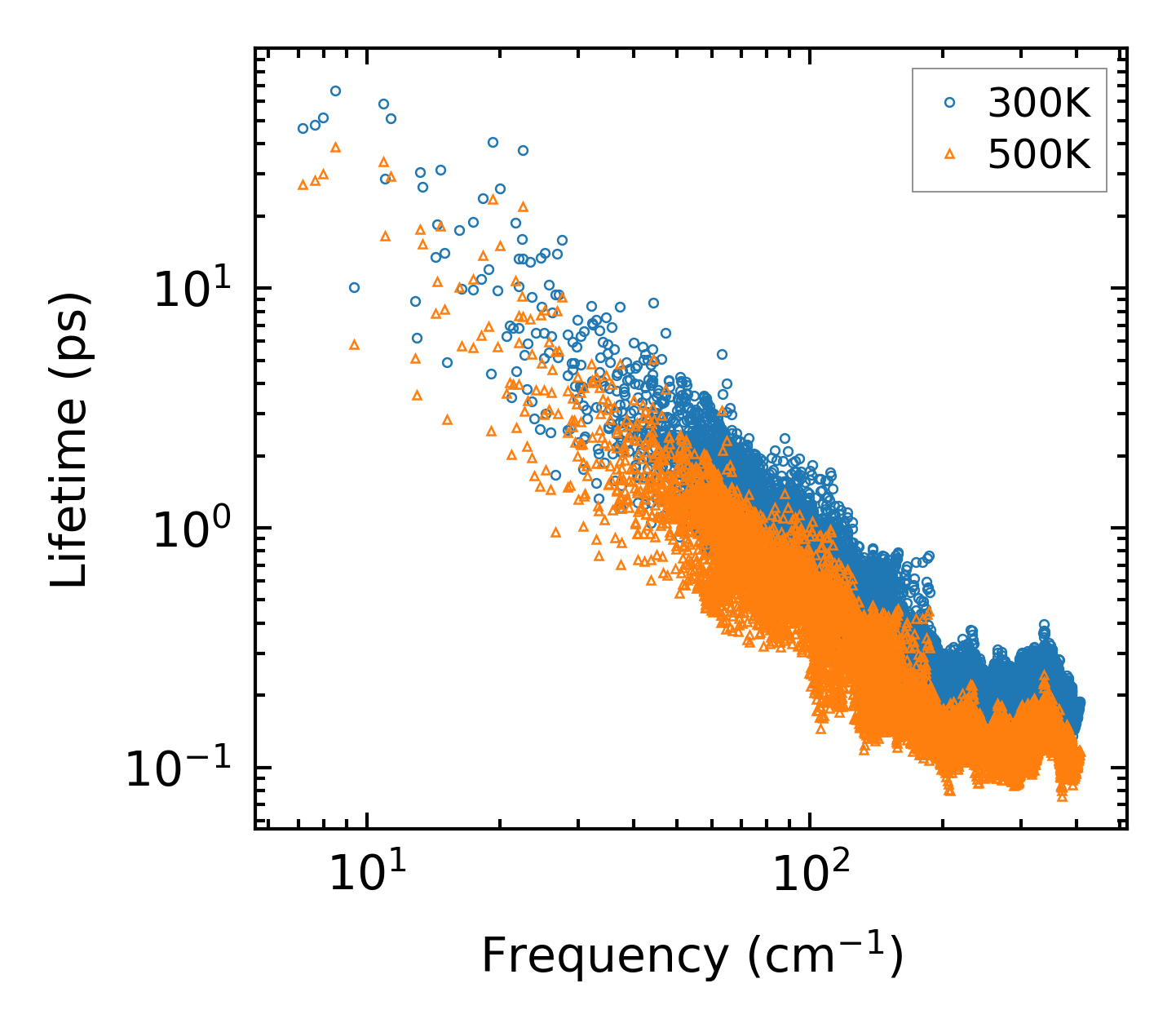

../../_images/fig_lifetime7093.png — (a) Phonon lifetime due to phonon-phonon scattering

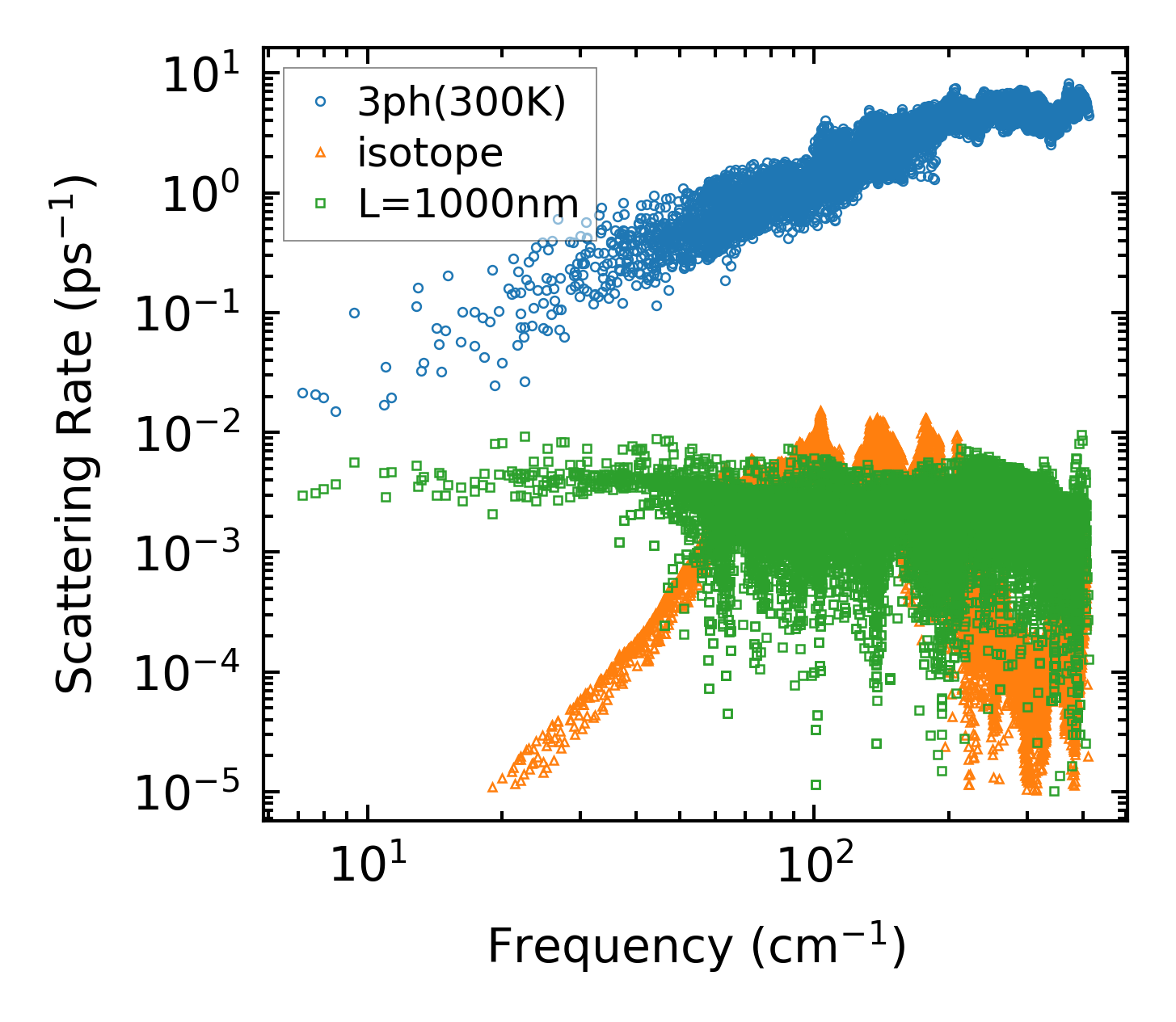

../../_images/fig_scat_rates7092.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

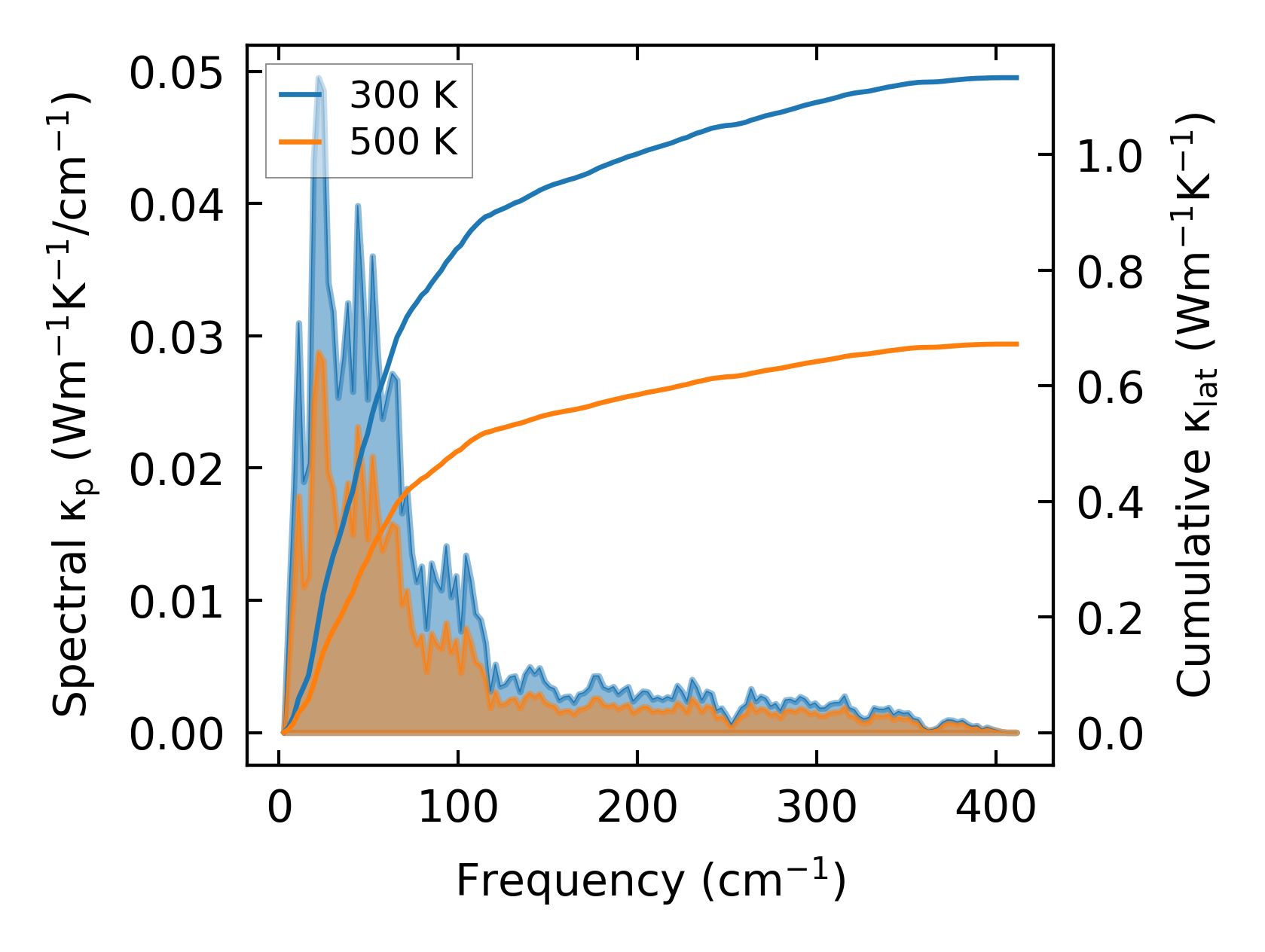

../../_images/fig_cumu_frequency7093.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

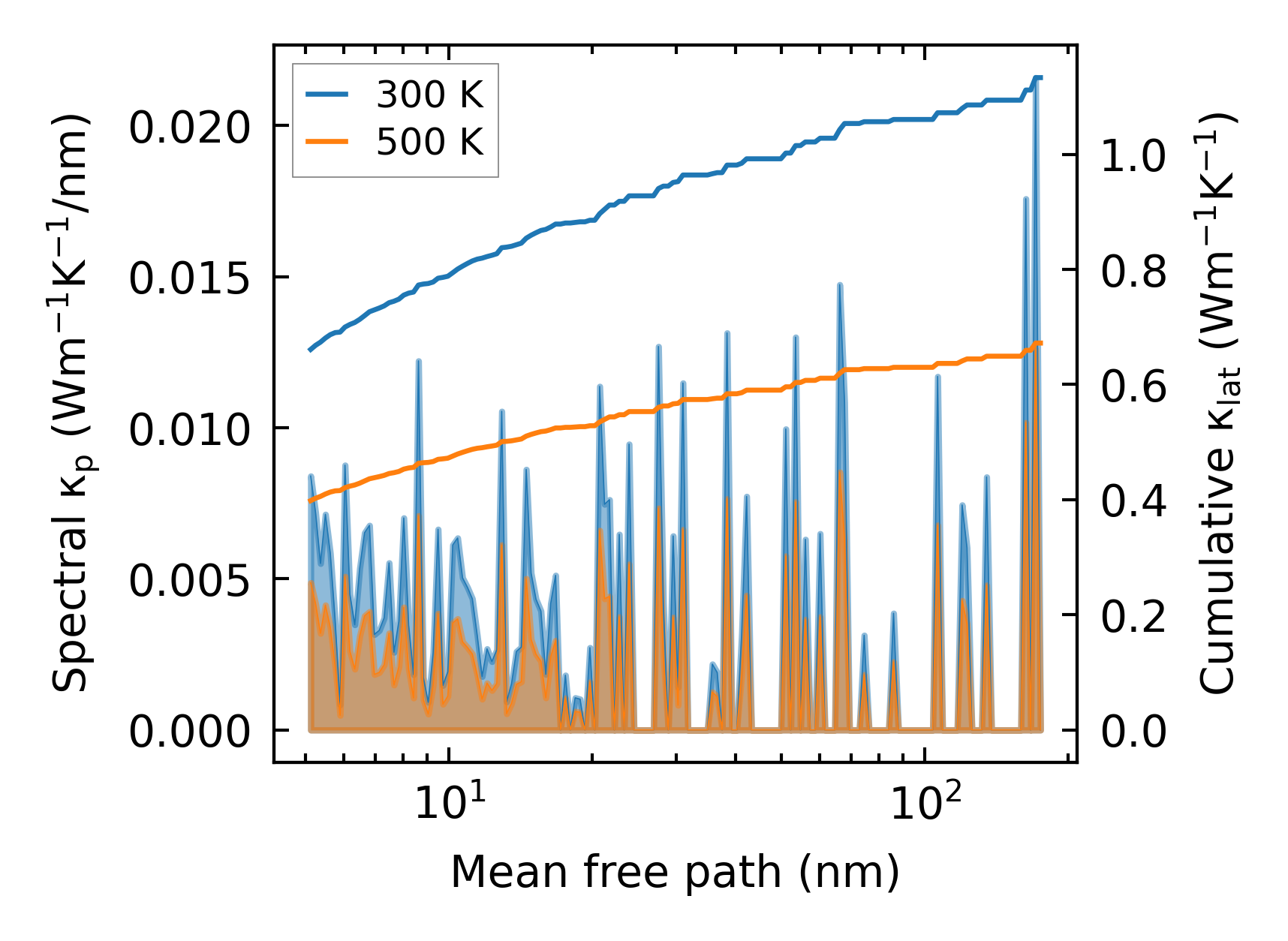

../../_images/fig_cumu_mfp7092.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

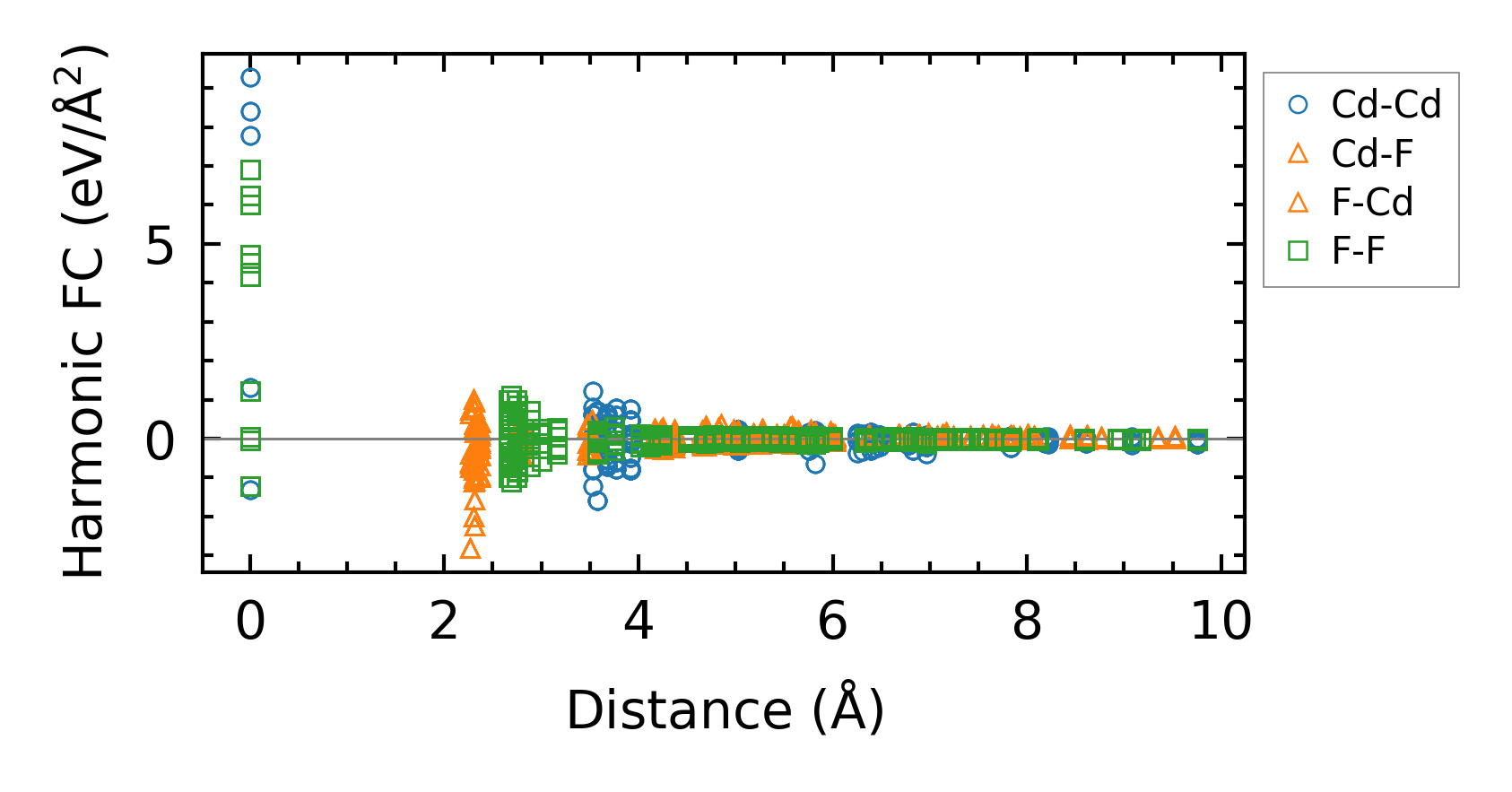

../../_images/fig_fc216094.png — (a) Force constants w.r.t atomic distance

Summary

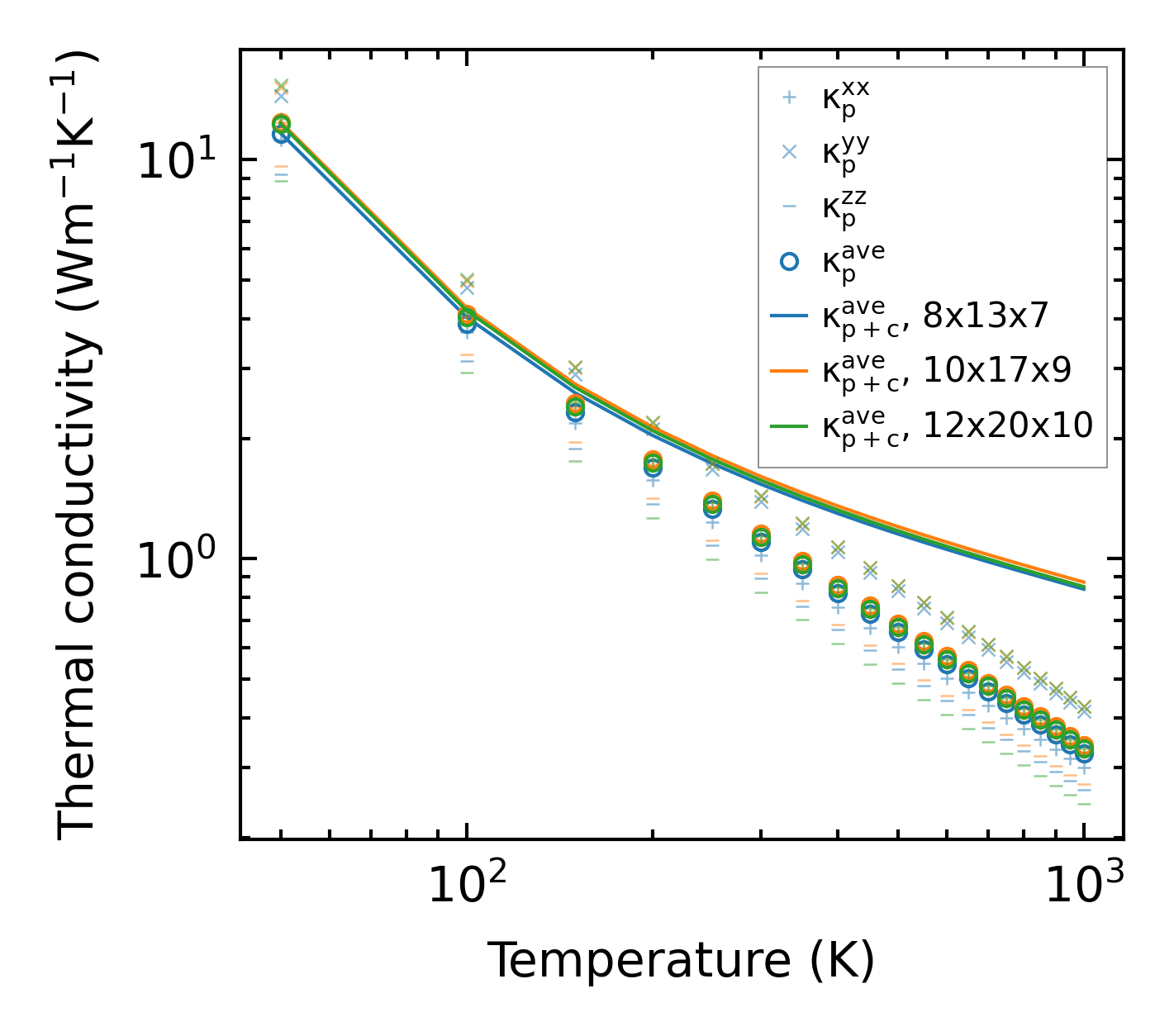

../../_images/fig_kappa13500.png — (a) Temperature-dependent lattice thermal conductivity

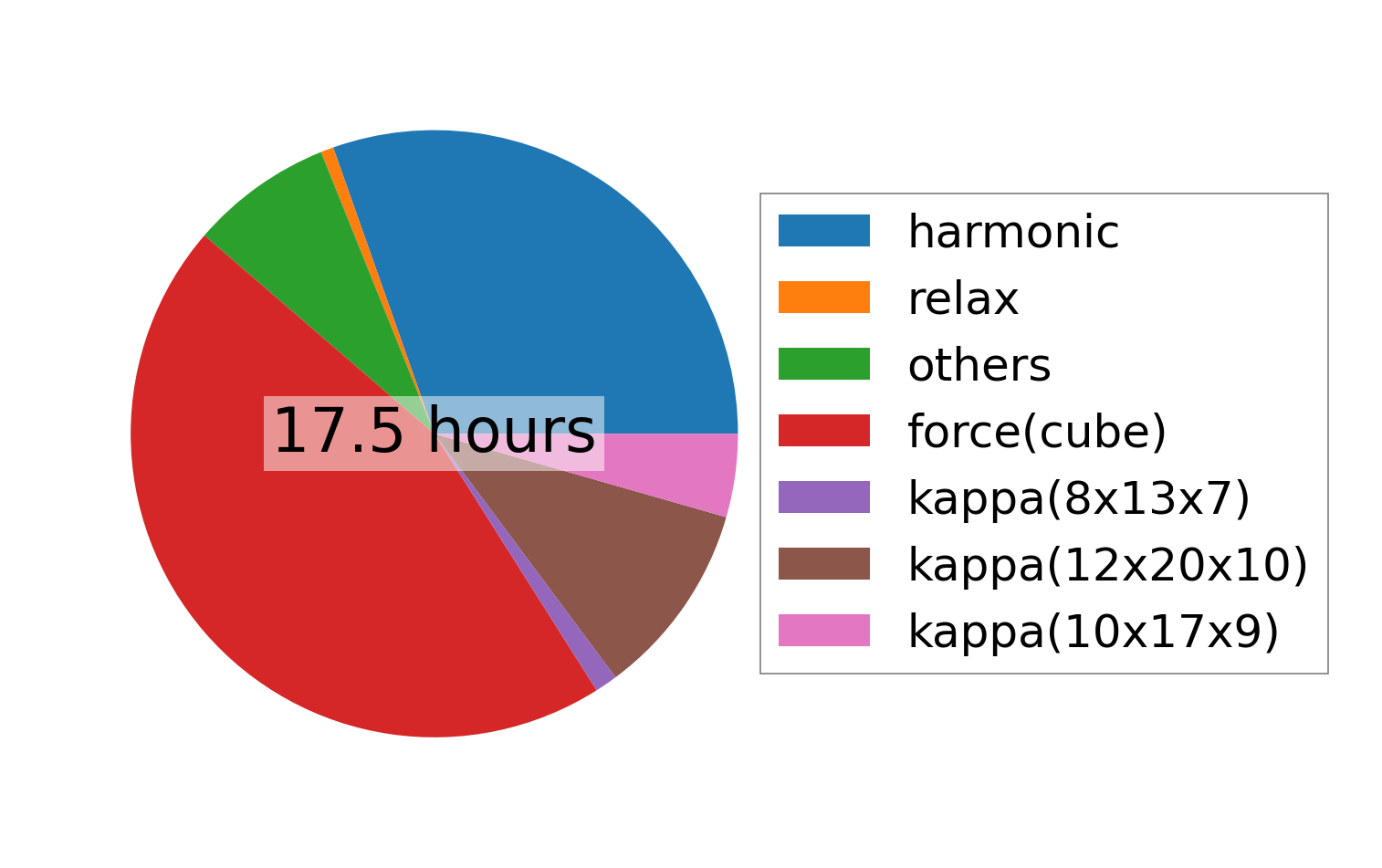

../../_images/fig_times27046.png — (b) Computation time
