mp-1029522/Li7SbN4/anharm

Space group: P-43n (218)
Link: Materials Project
Download: mp-1029522.tar.gz

Harmonic properties

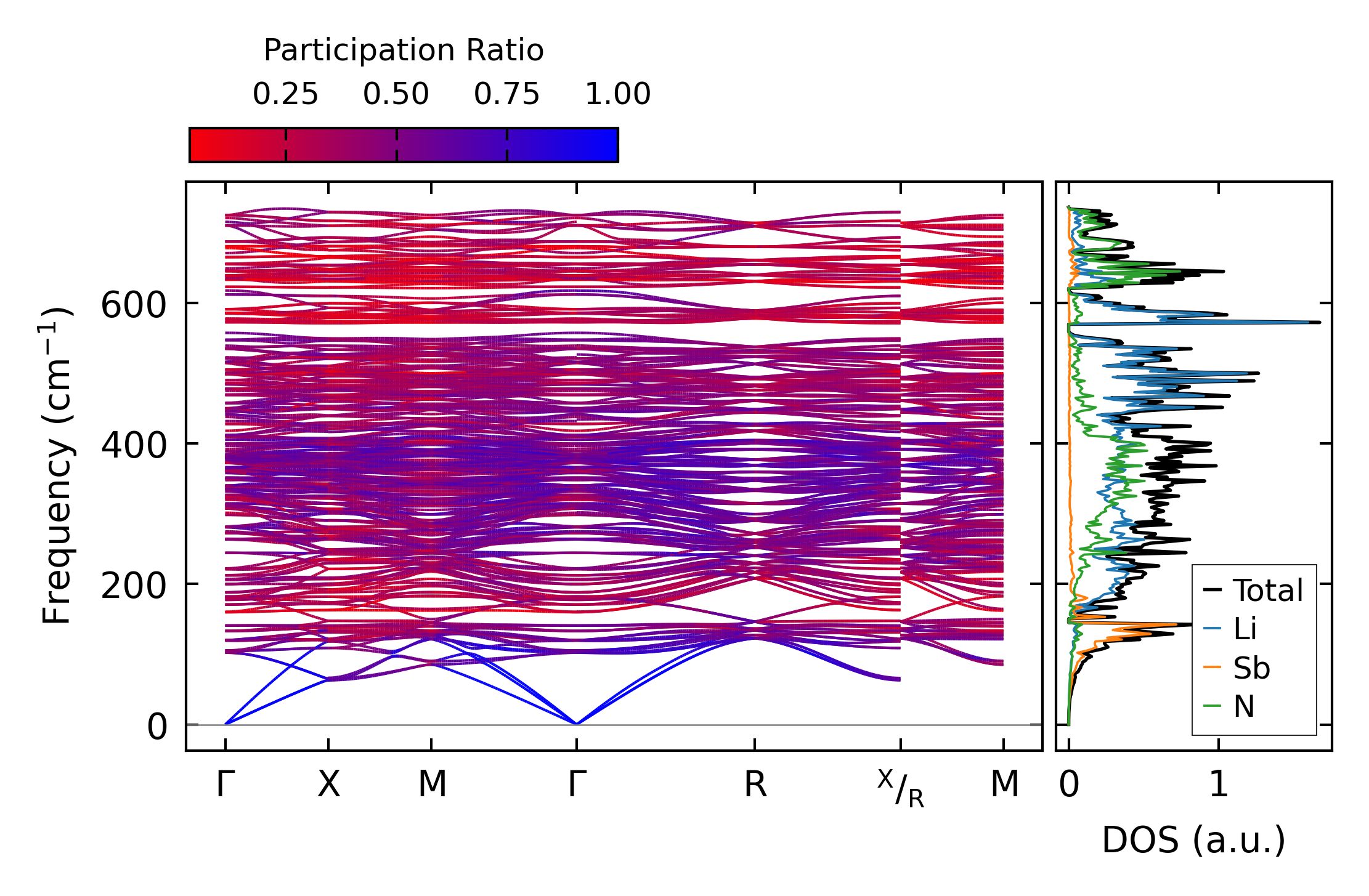

../../_images/fig_bandos_pr17190.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo17189.png — (b) Thermodynamic properties

Grüneisen parameters

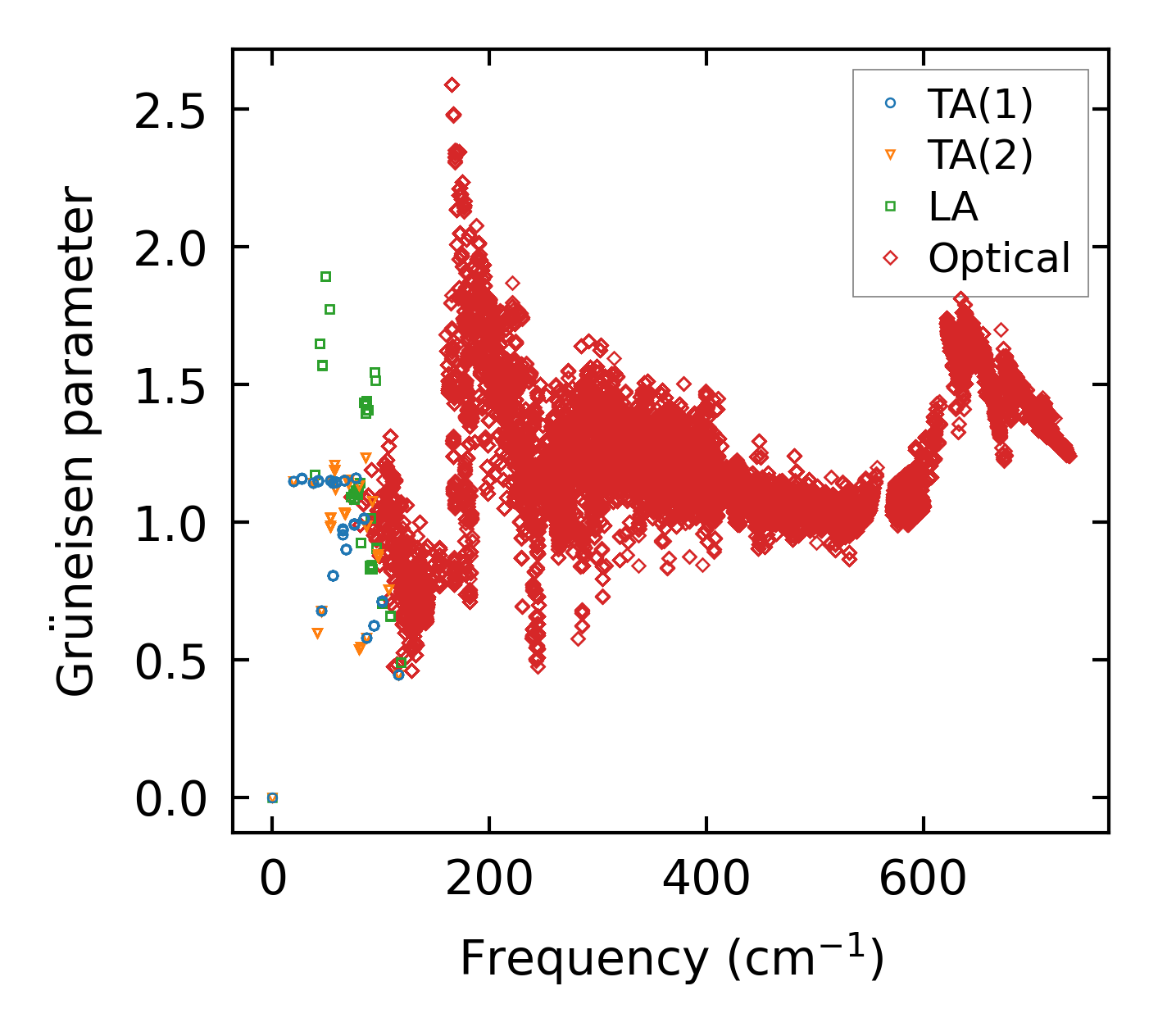

../../_images/fig_gru_all7532.png — (a) Grüneisen parameters

../../_images/fig_gruneisen7532.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x7x7, supercell: 1x1x1

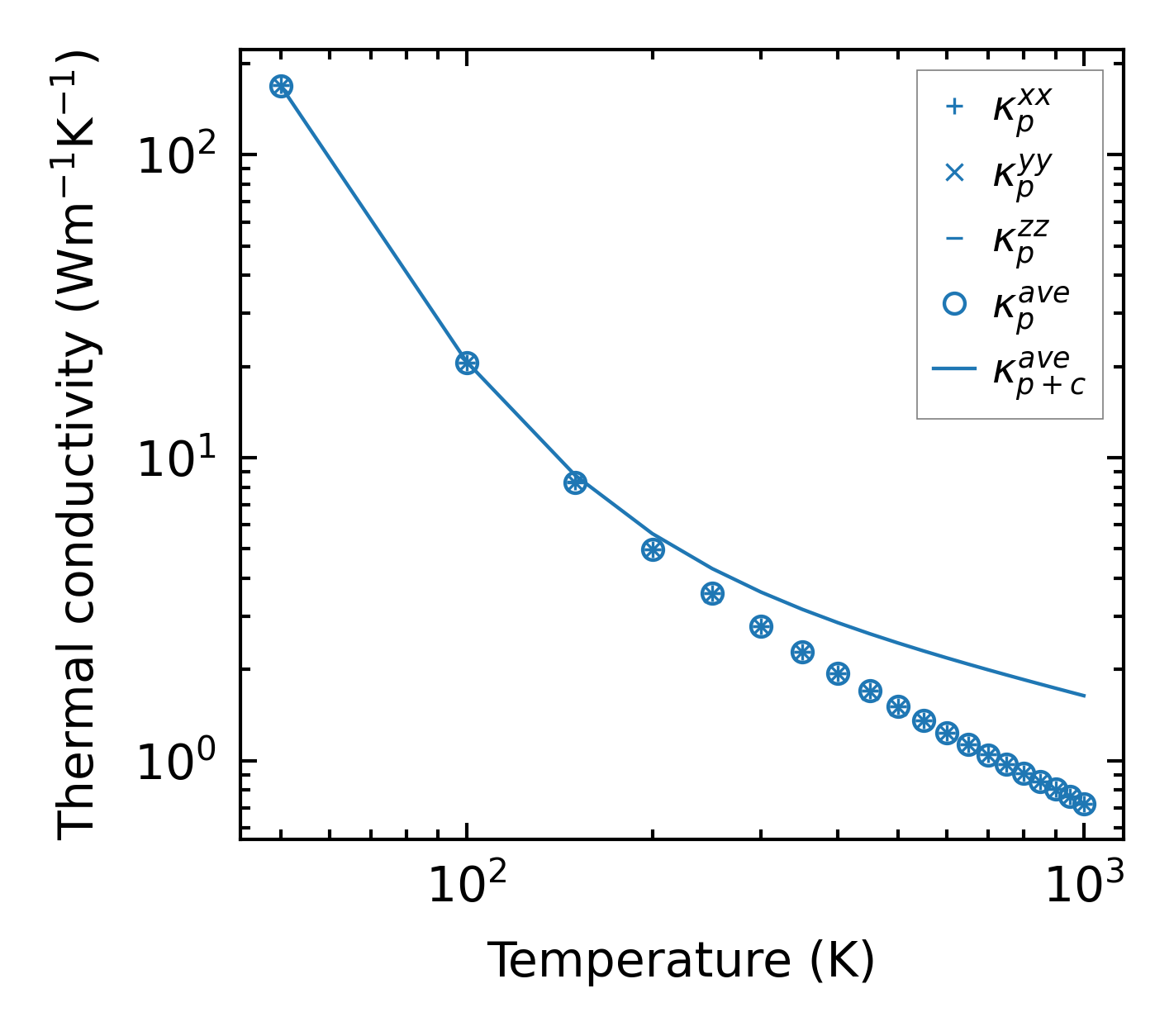

../../_images/fig_kappa14208.png — (a) Temperature-dependent lattice thermal conductivity

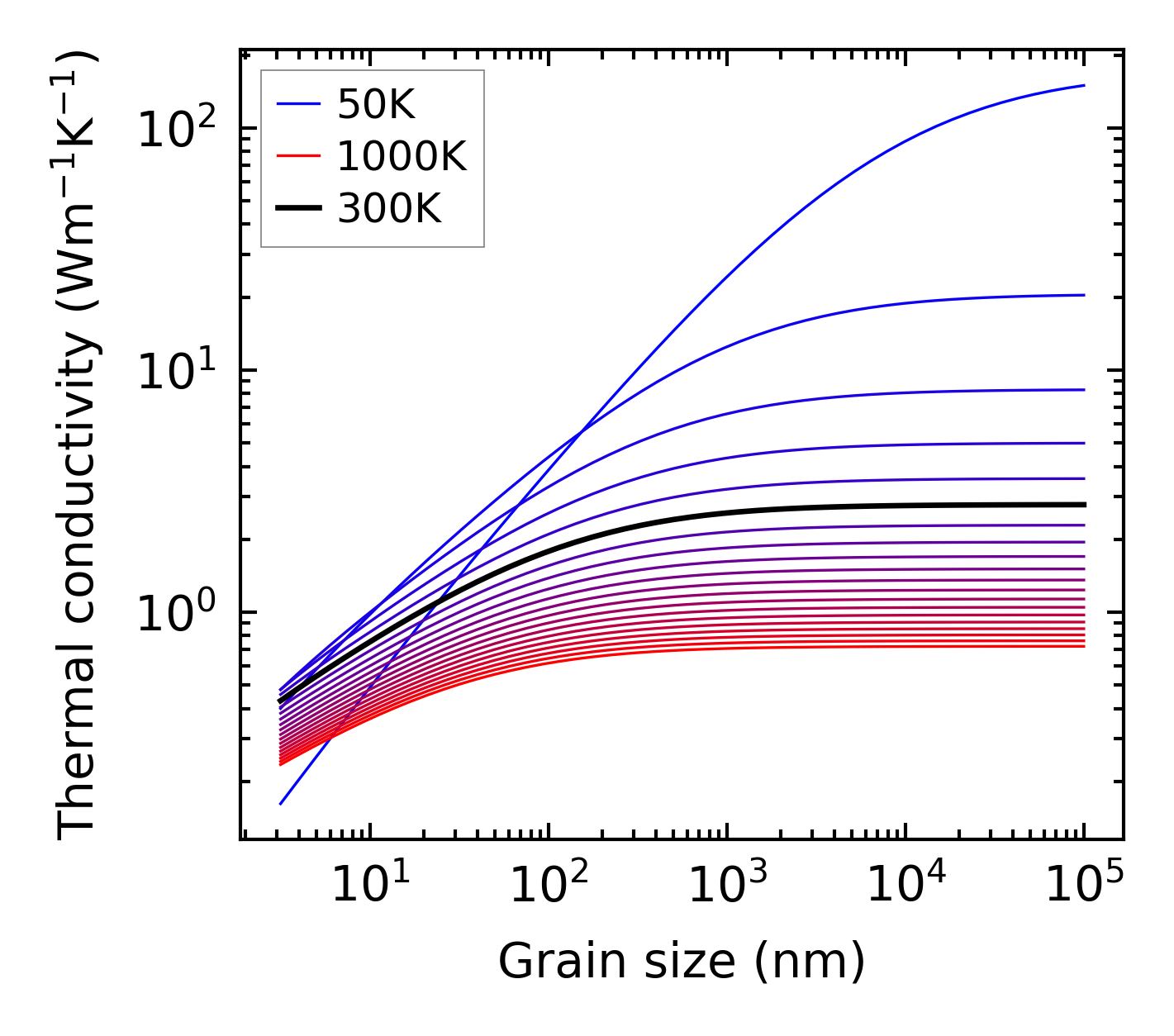

../../_images/fig_kappa_vs_grain_size7621.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

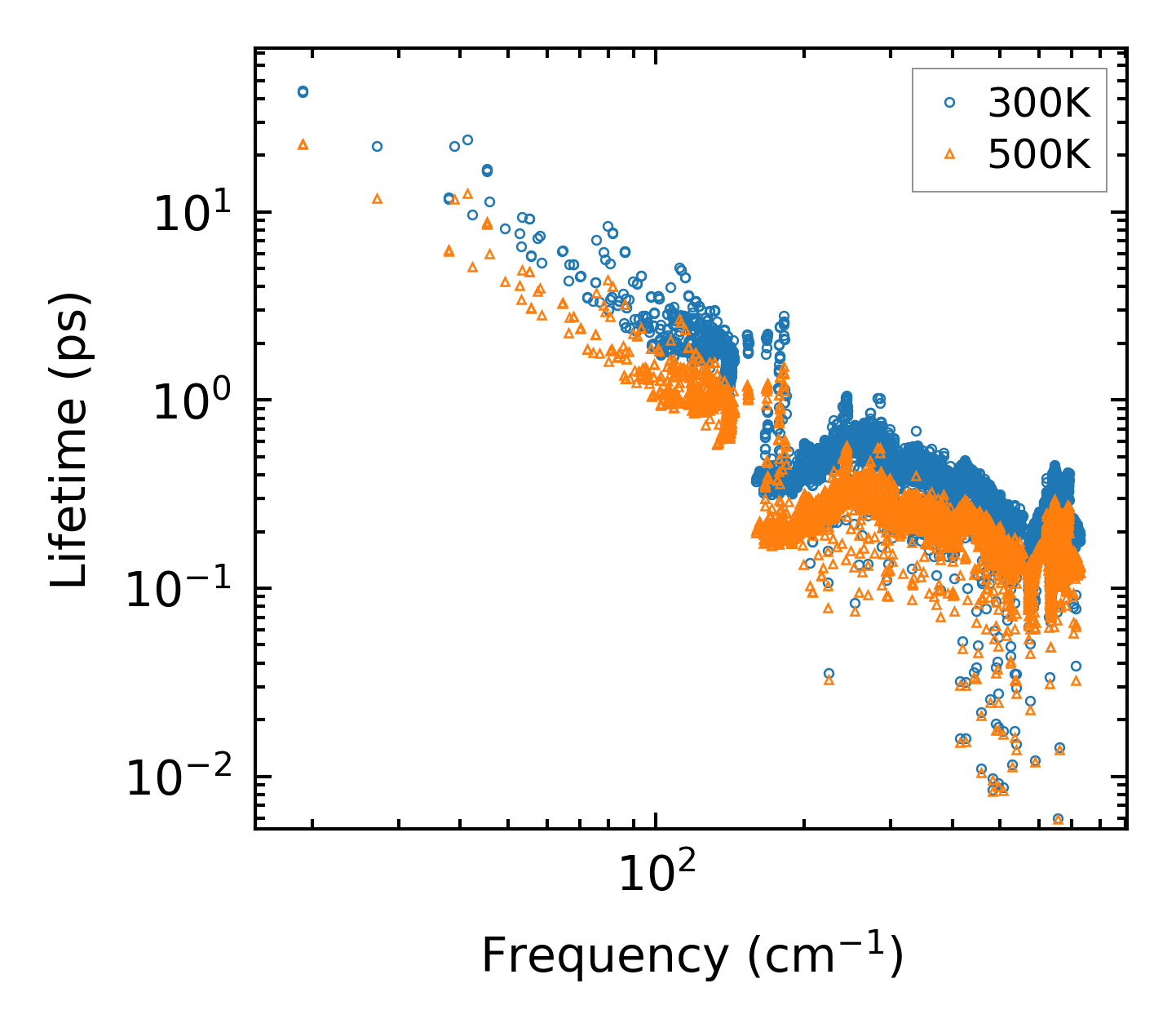

../../_images/fig_lifetime7464.png — (a) Phonon lifetime due to phonon-phonon scattering

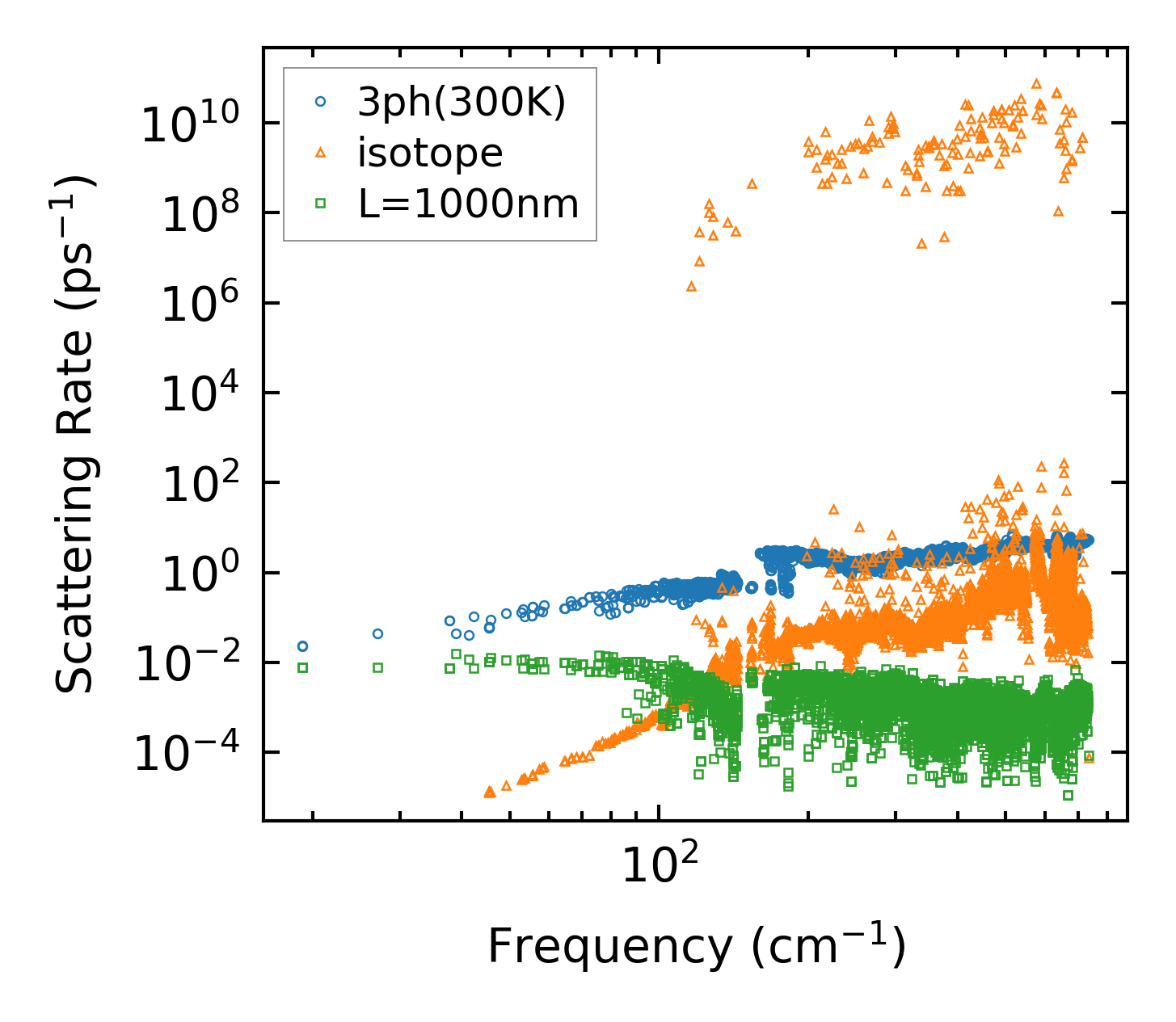

../../_images/fig_scat_rates7463.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

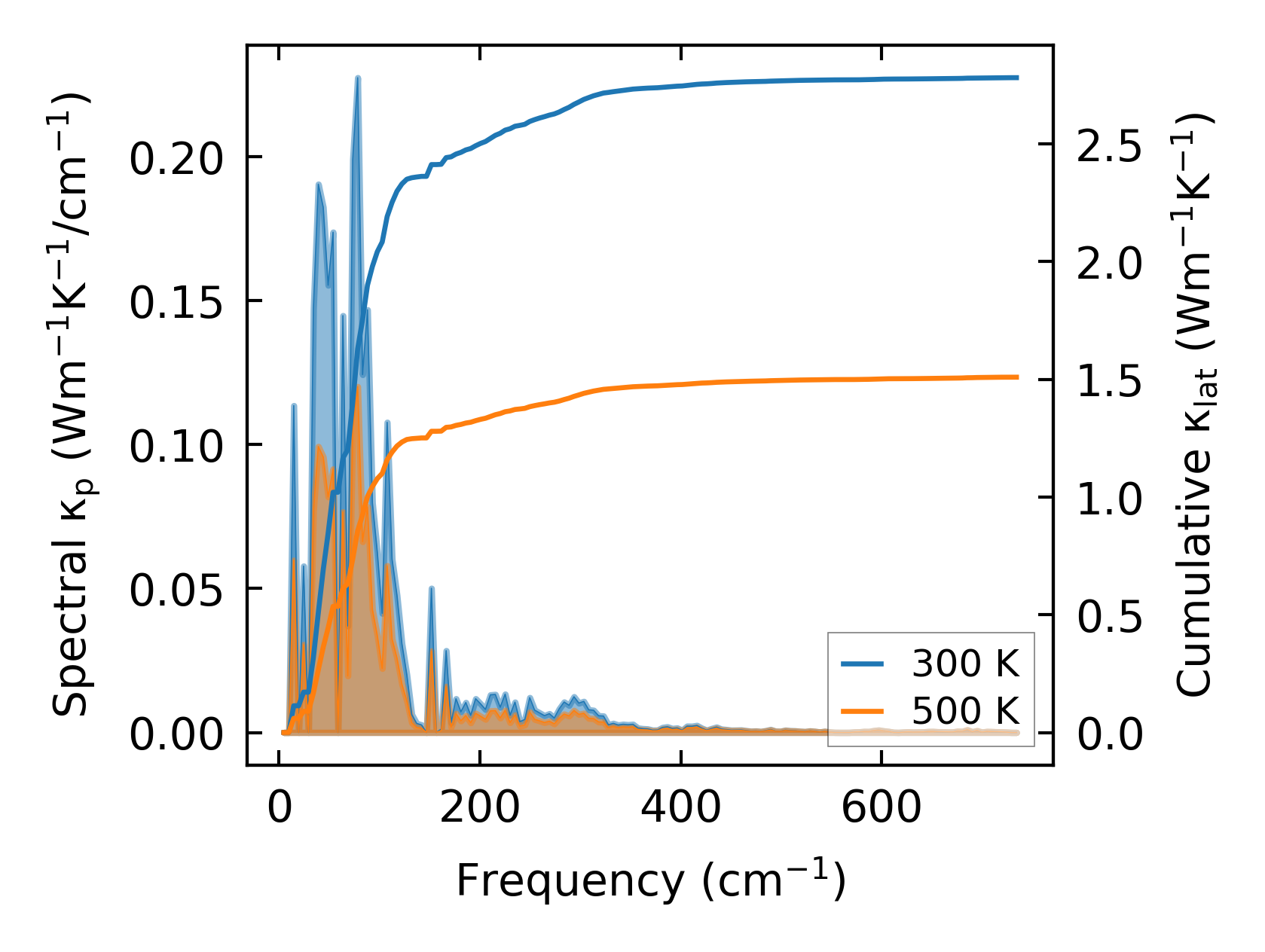

../../_images/fig_cumu_frequency7464.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

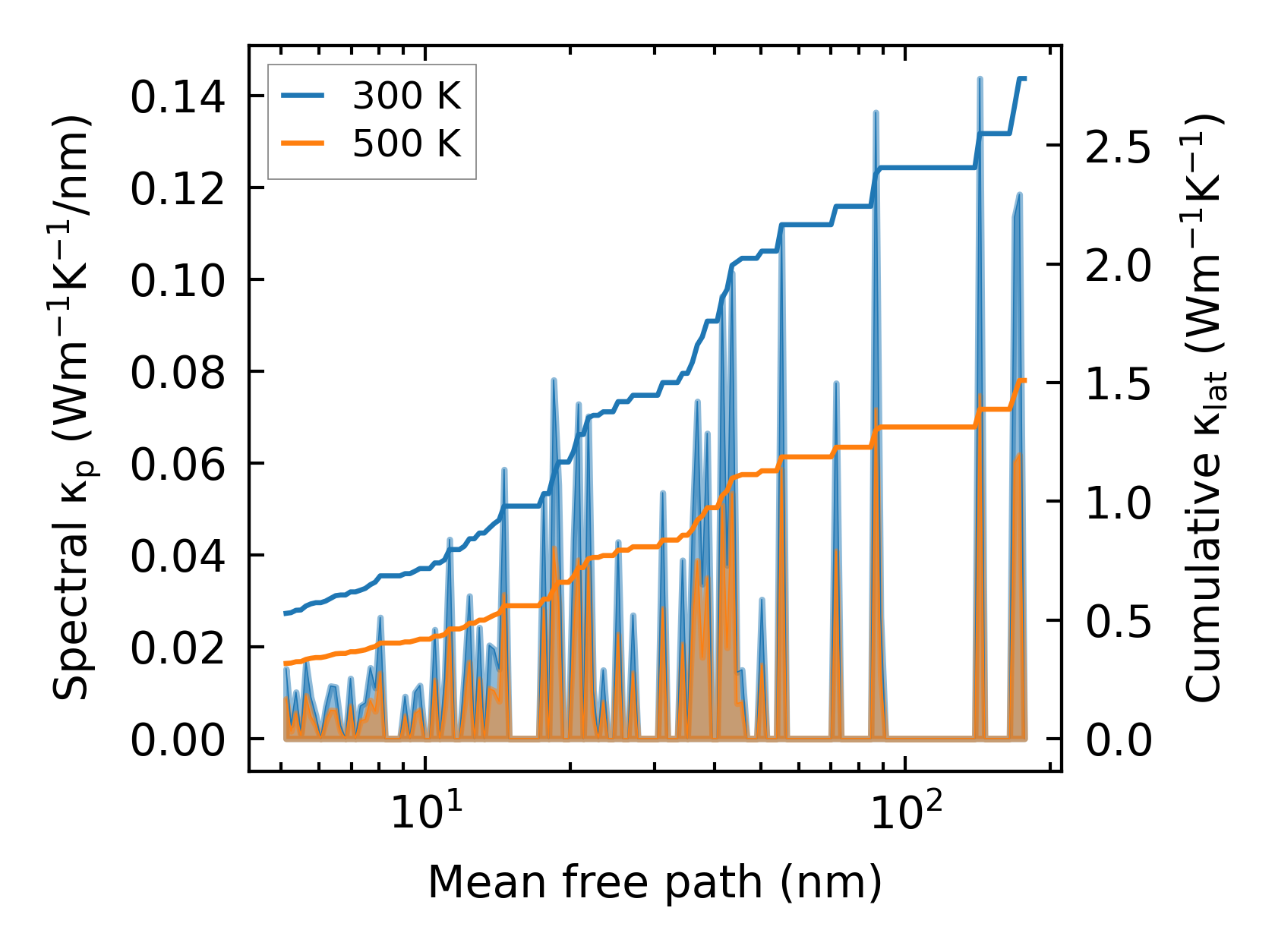

../../_images/fig_cumu_mfp7463.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

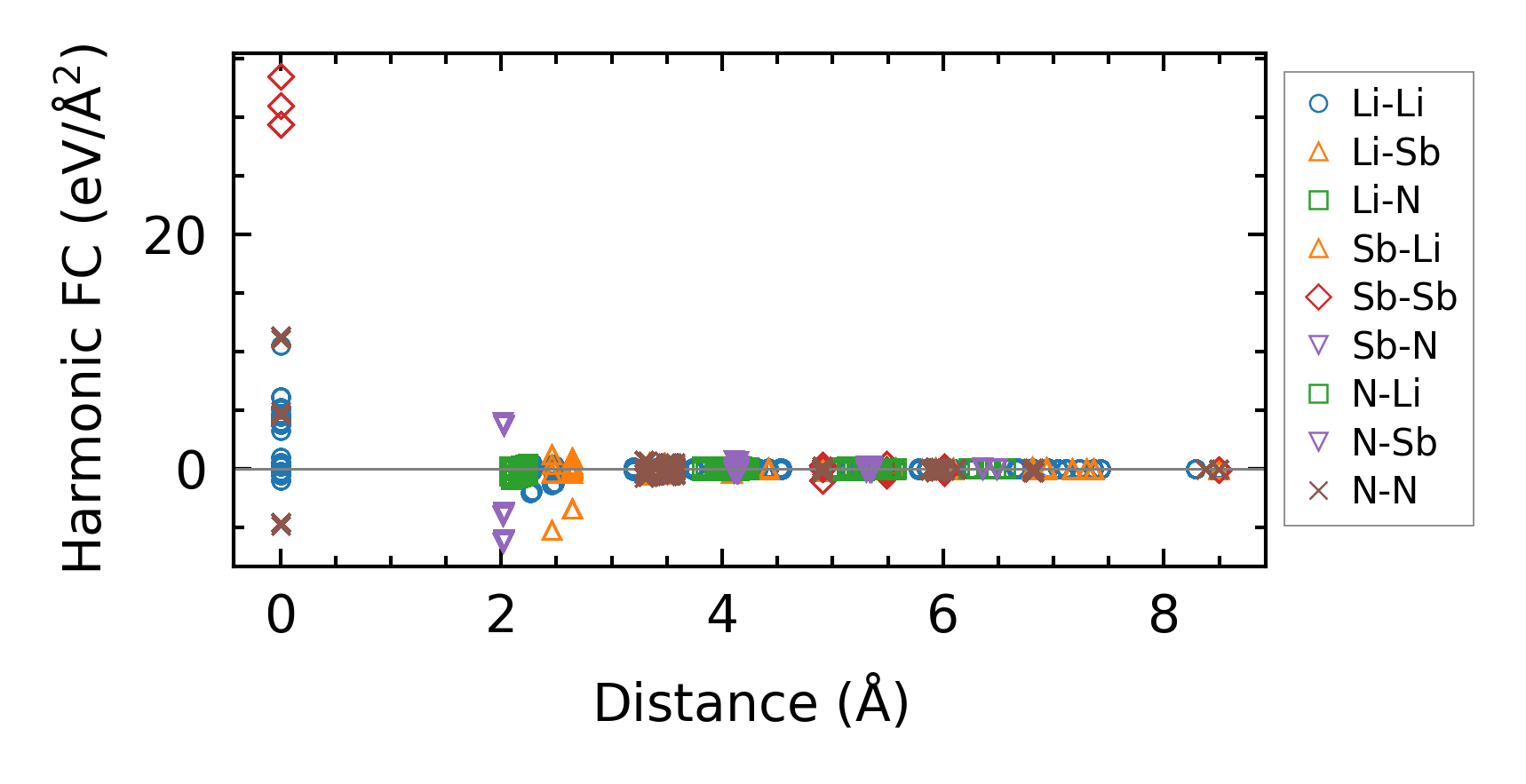

../../_images/fig_fc216731.png — (a) Force constants w.r.t atomic distance

Summary

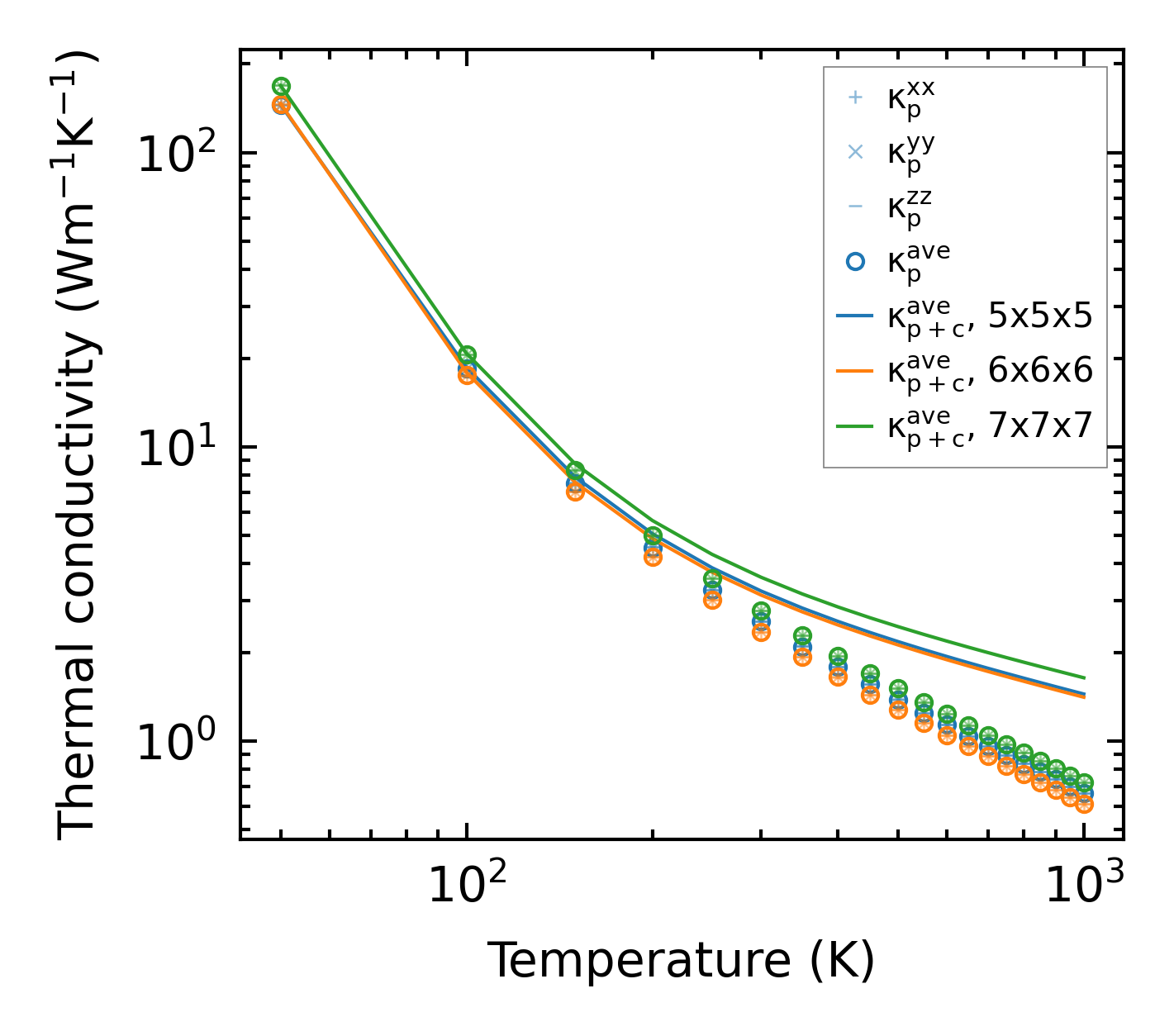

../../_images/fig_kappa14209.png — (a) Temperature-dependent lattice thermal conductivity

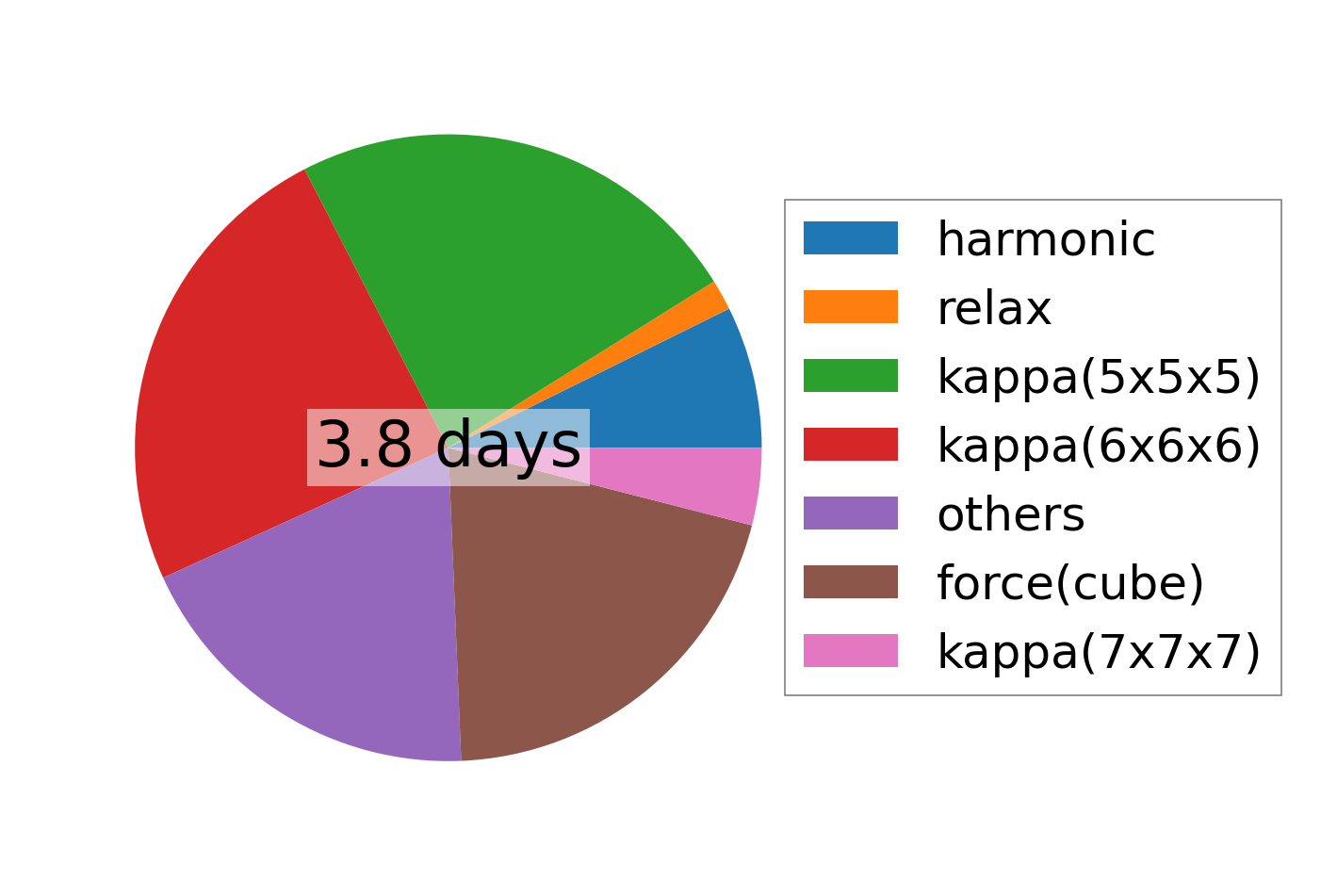

../../_images/fig_times28055.png — (b) Computation time
