mp-1029337/Zr2SeN2/anharm

Space group: P-3m1 (164)
Link: Materials Project
Download: mp-1029337.tar.gz

Harmonic properties

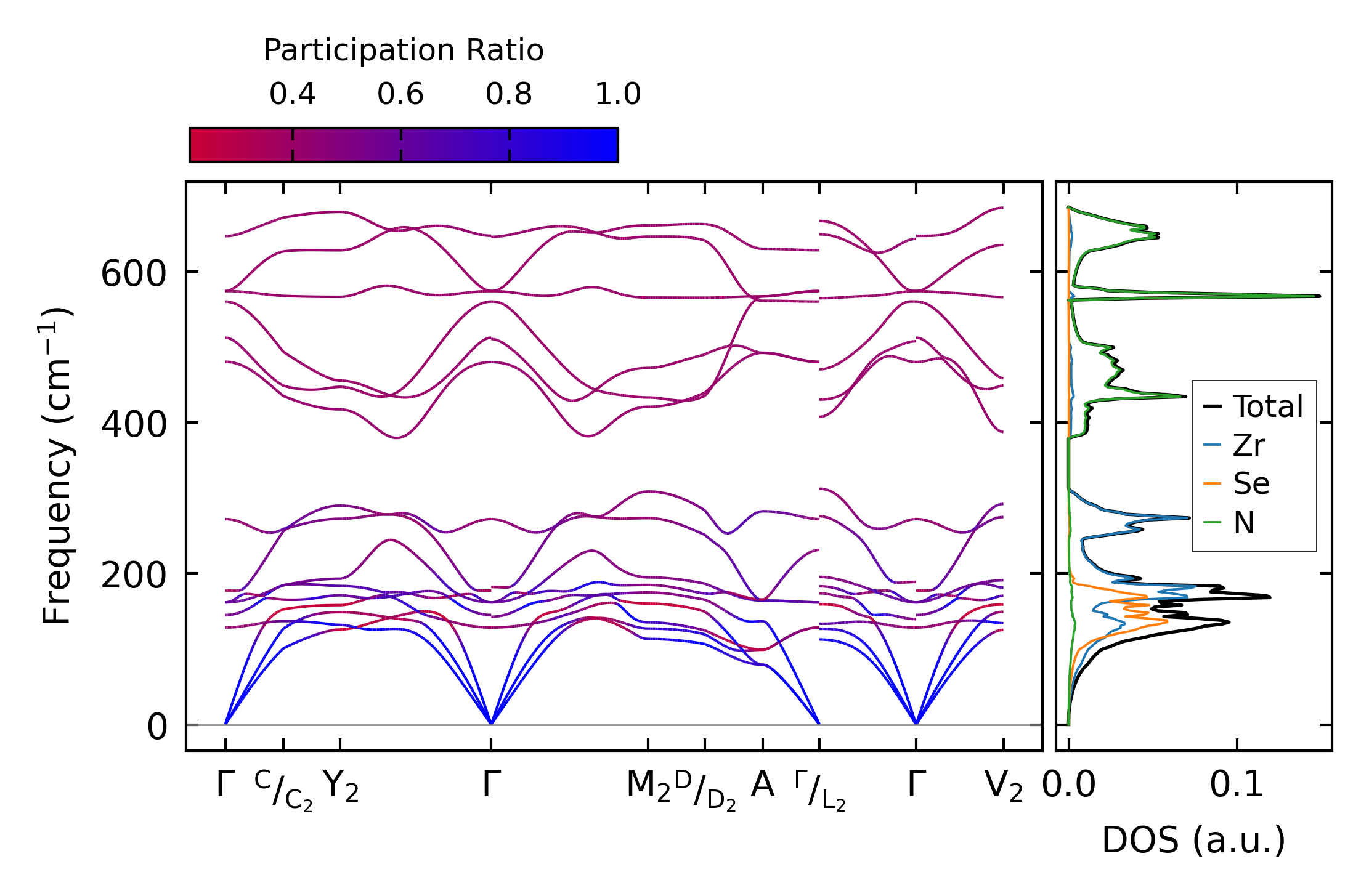

../../_images/fig_bandos_pr17180.png — (a) Phonon dispersion with participation ratio and DOS

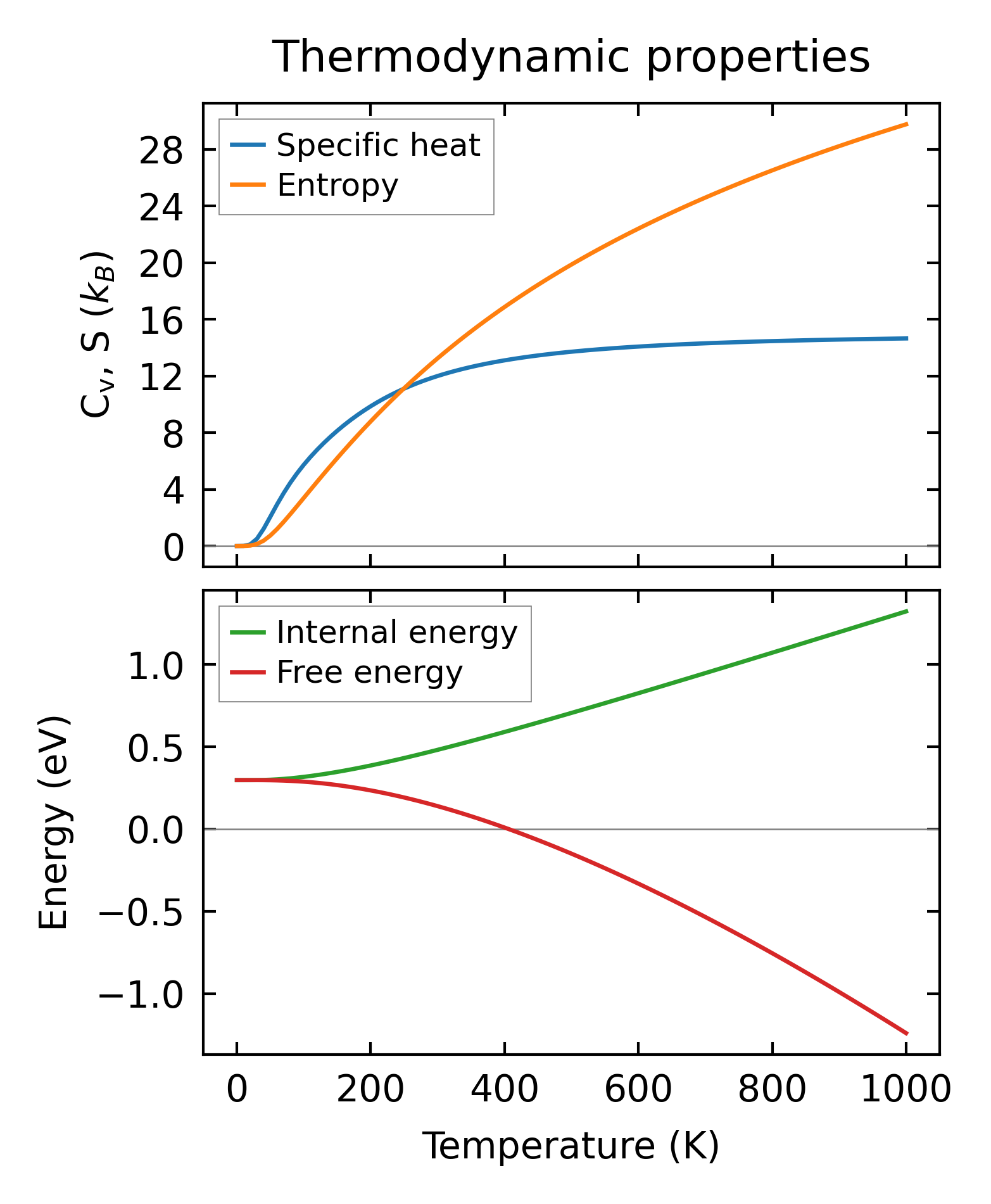

../../_images/fig_thermo17179.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all7524.png — (a) Grüneisen parameters

../../_images/fig_gruneisen7524.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 20x20x11, supercell: 2x3x2

../../_images/fig_kappa14192.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size7613.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

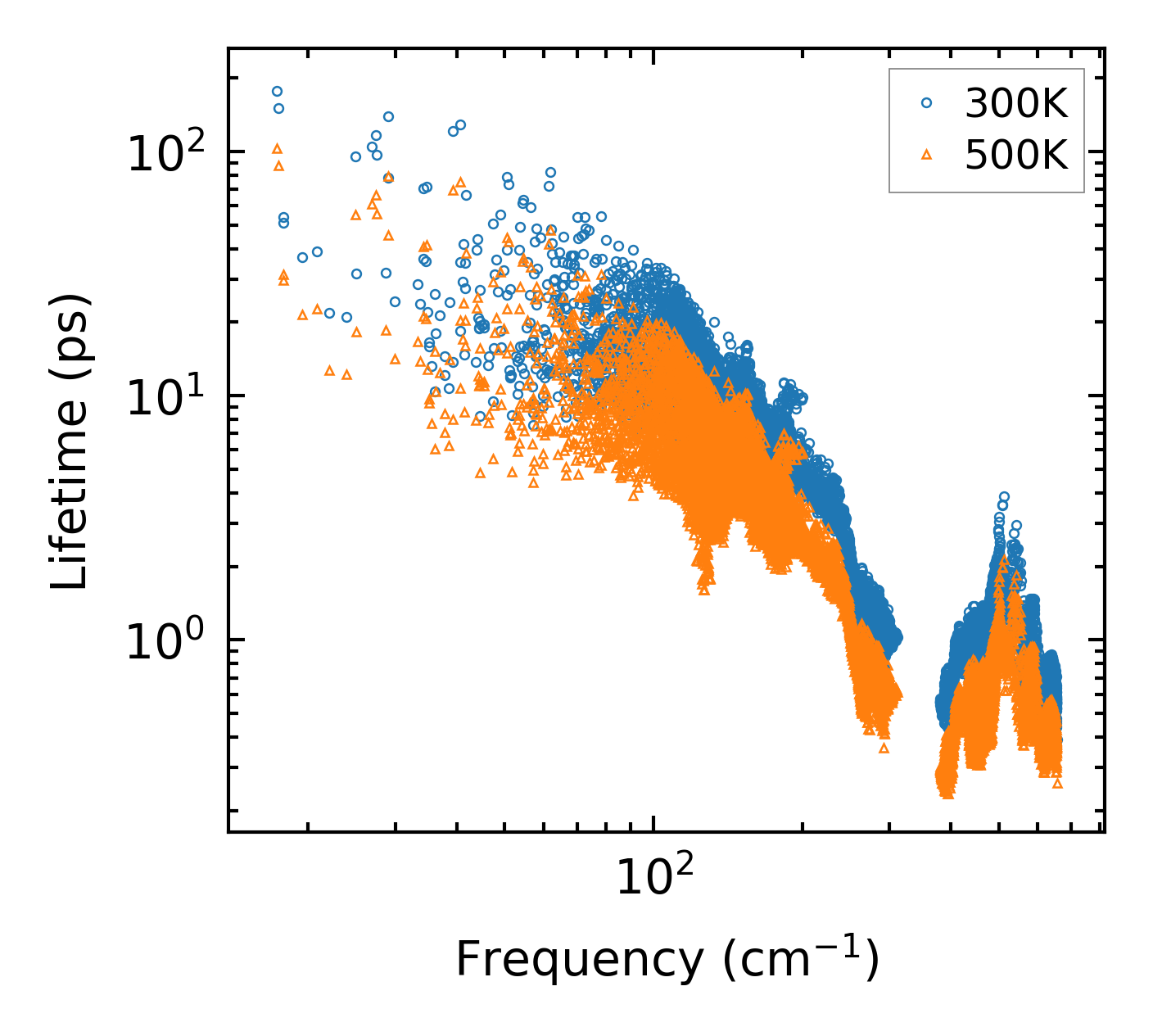

../../_images/fig_lifetime7456.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates7455.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

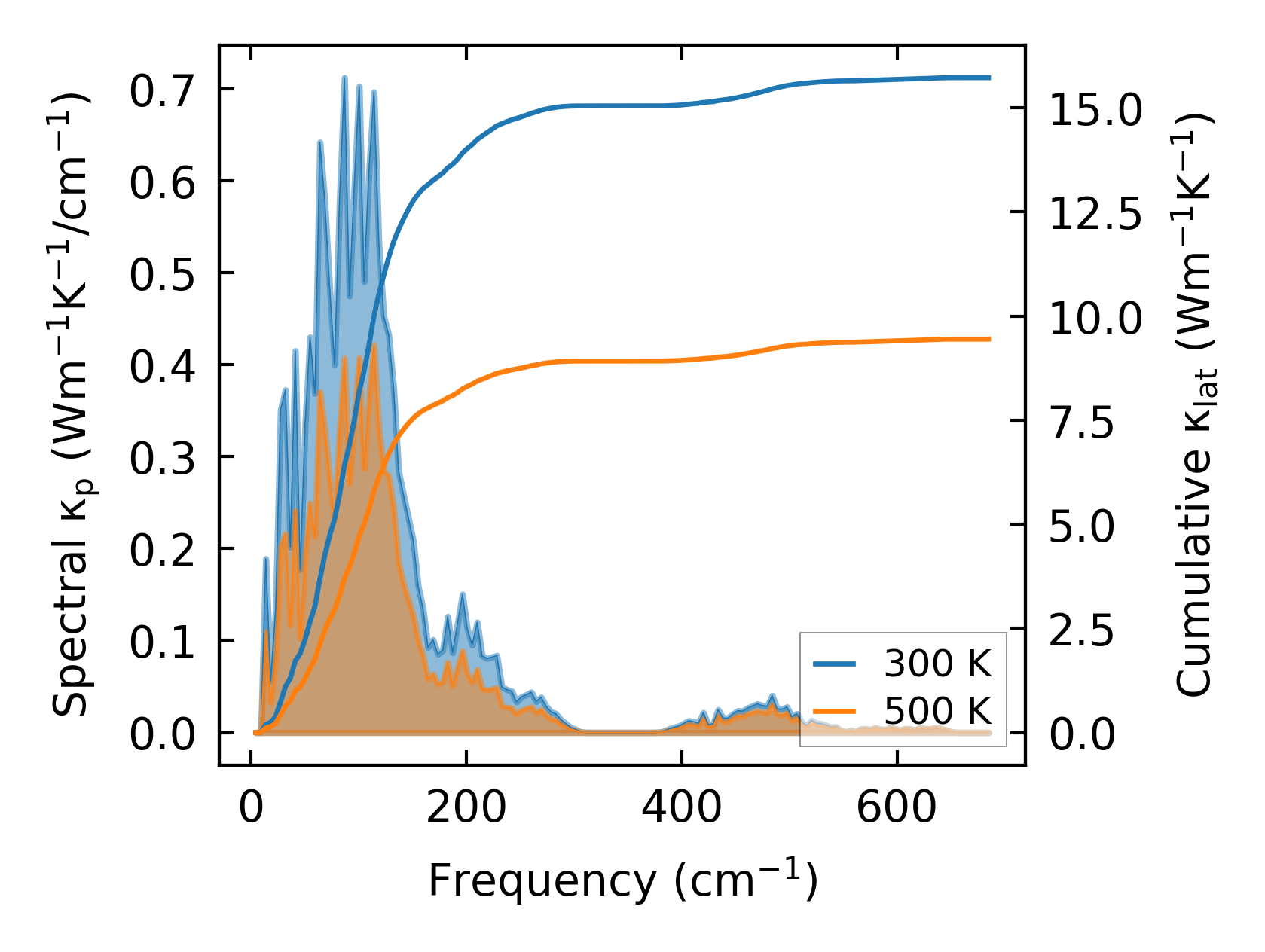

../../_images/fig_cumu_frequency7456.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

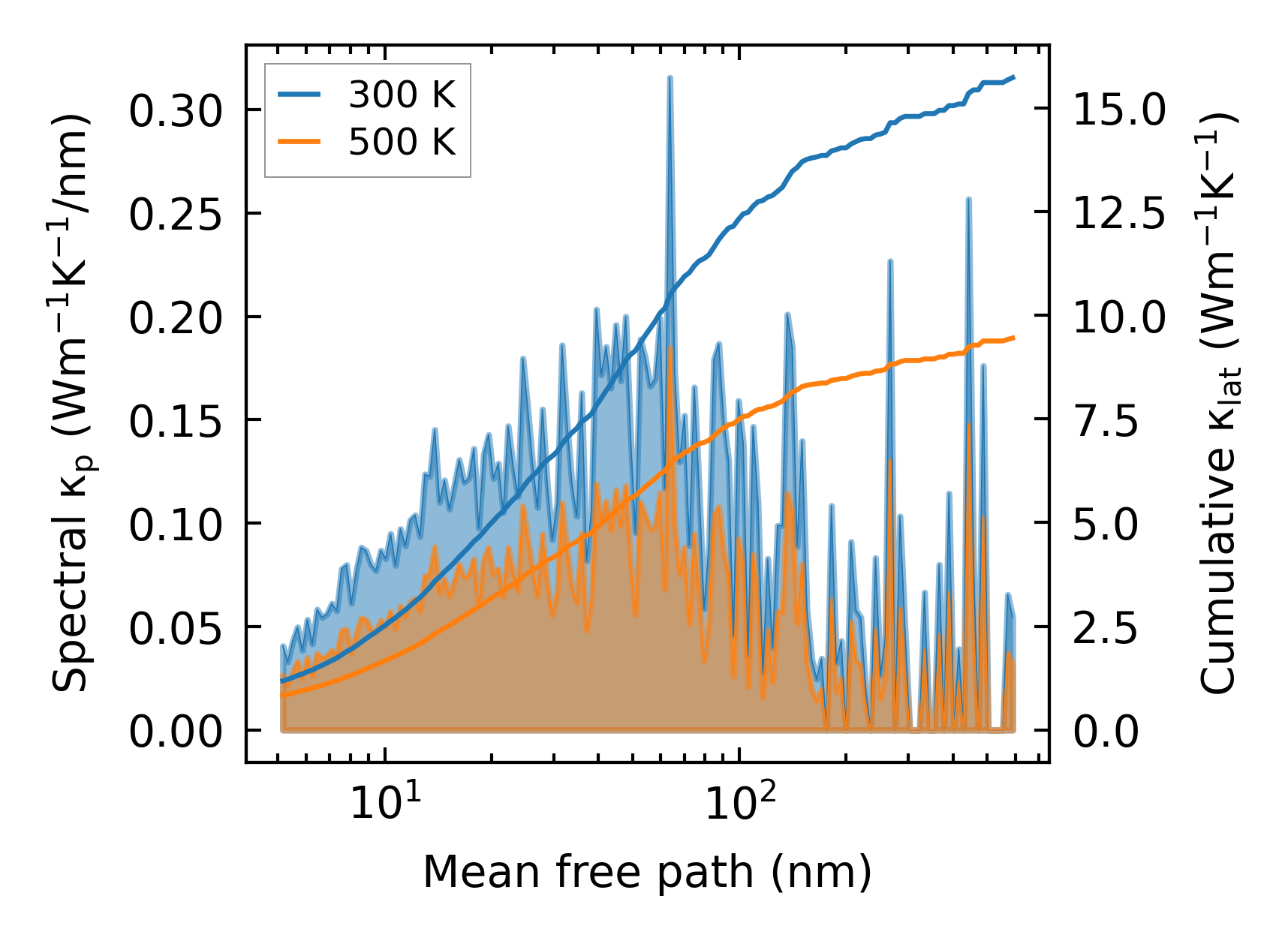

../../_images/fig_cumu_mfp7455.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

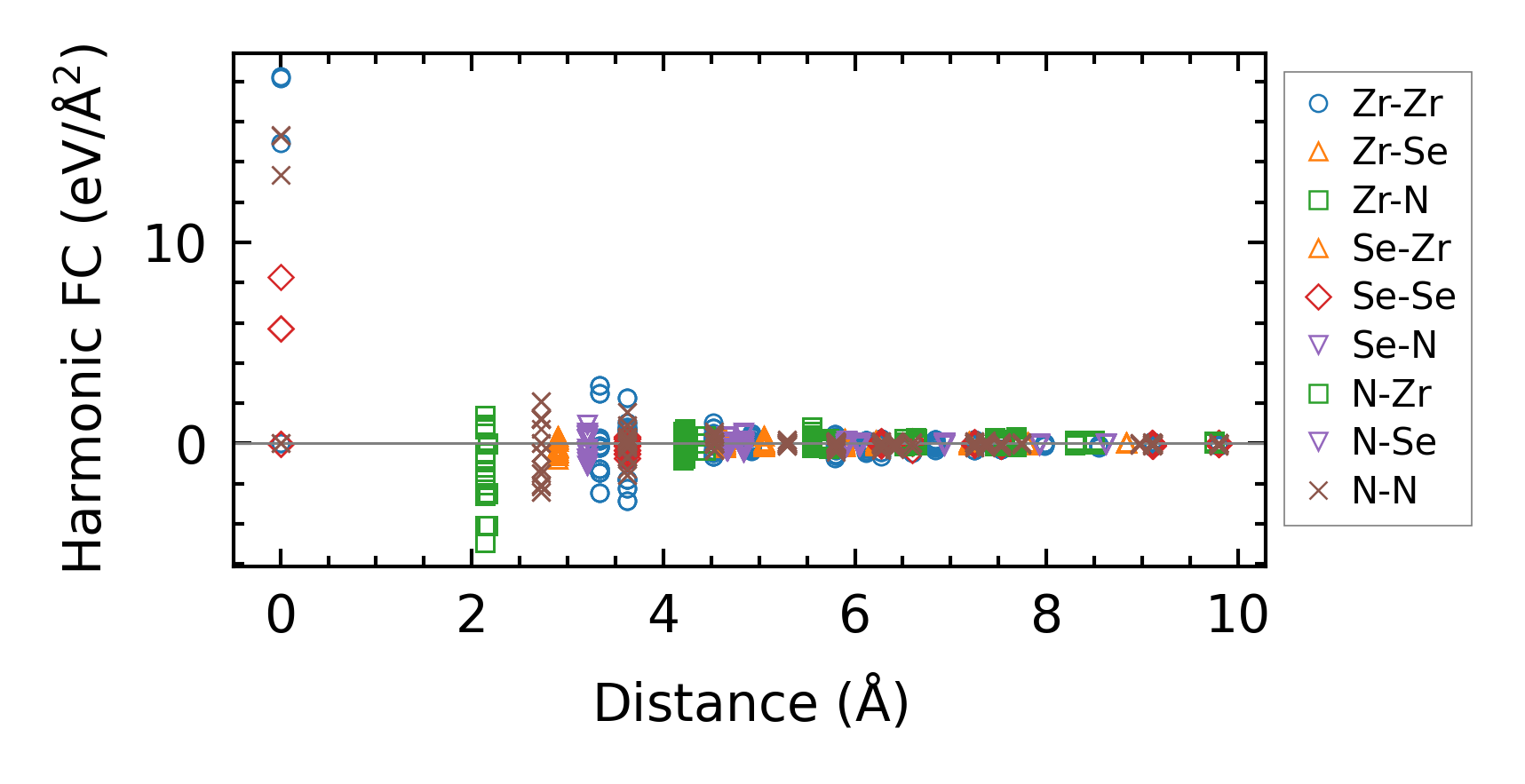

../../_images/fig_fc216721.png — (a) Force constants w.r.t atomic distance

Summary

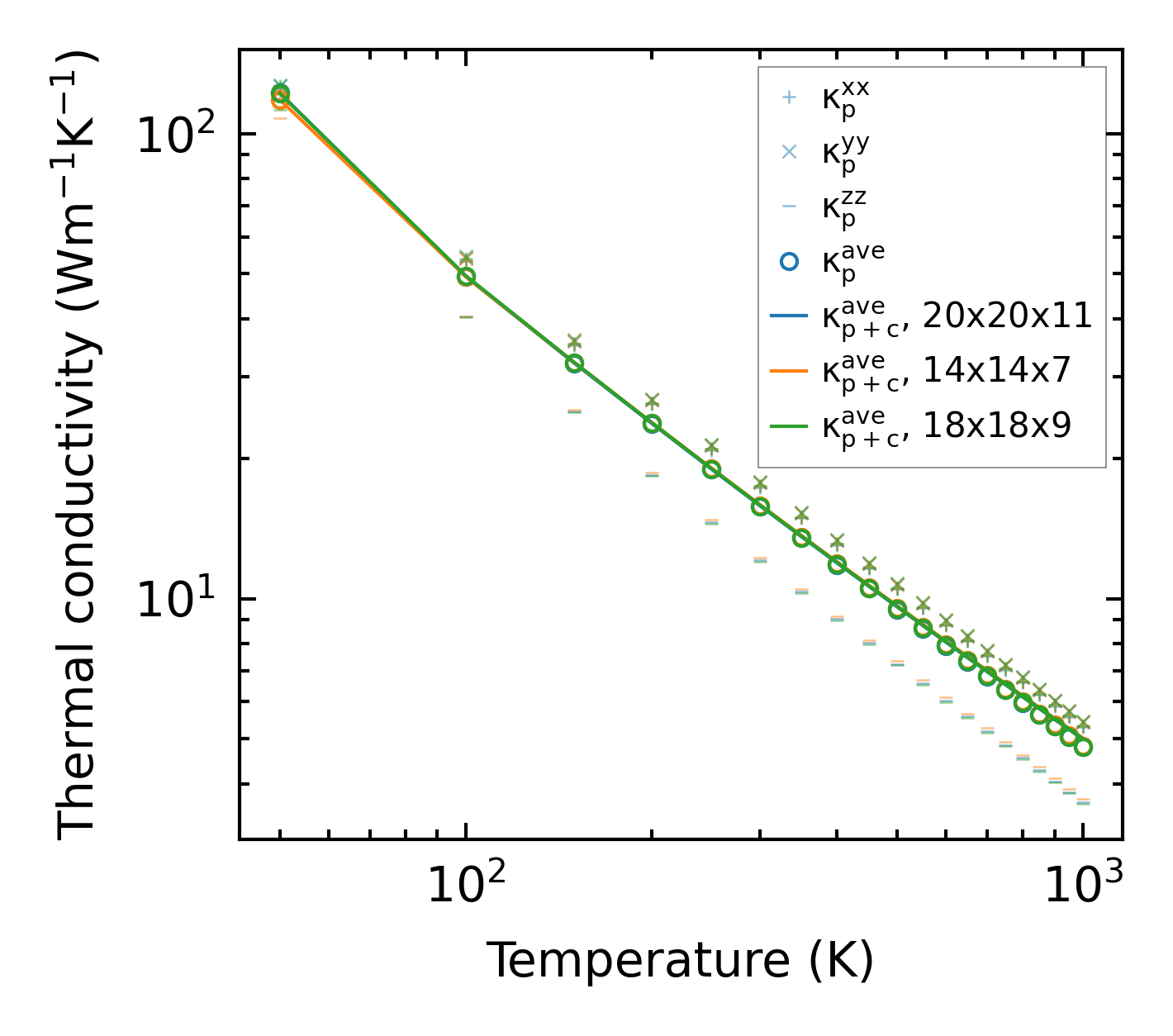

../../_images/fig_kappa14193.png — (a) Temperature-dependent lattice thermal conductivity

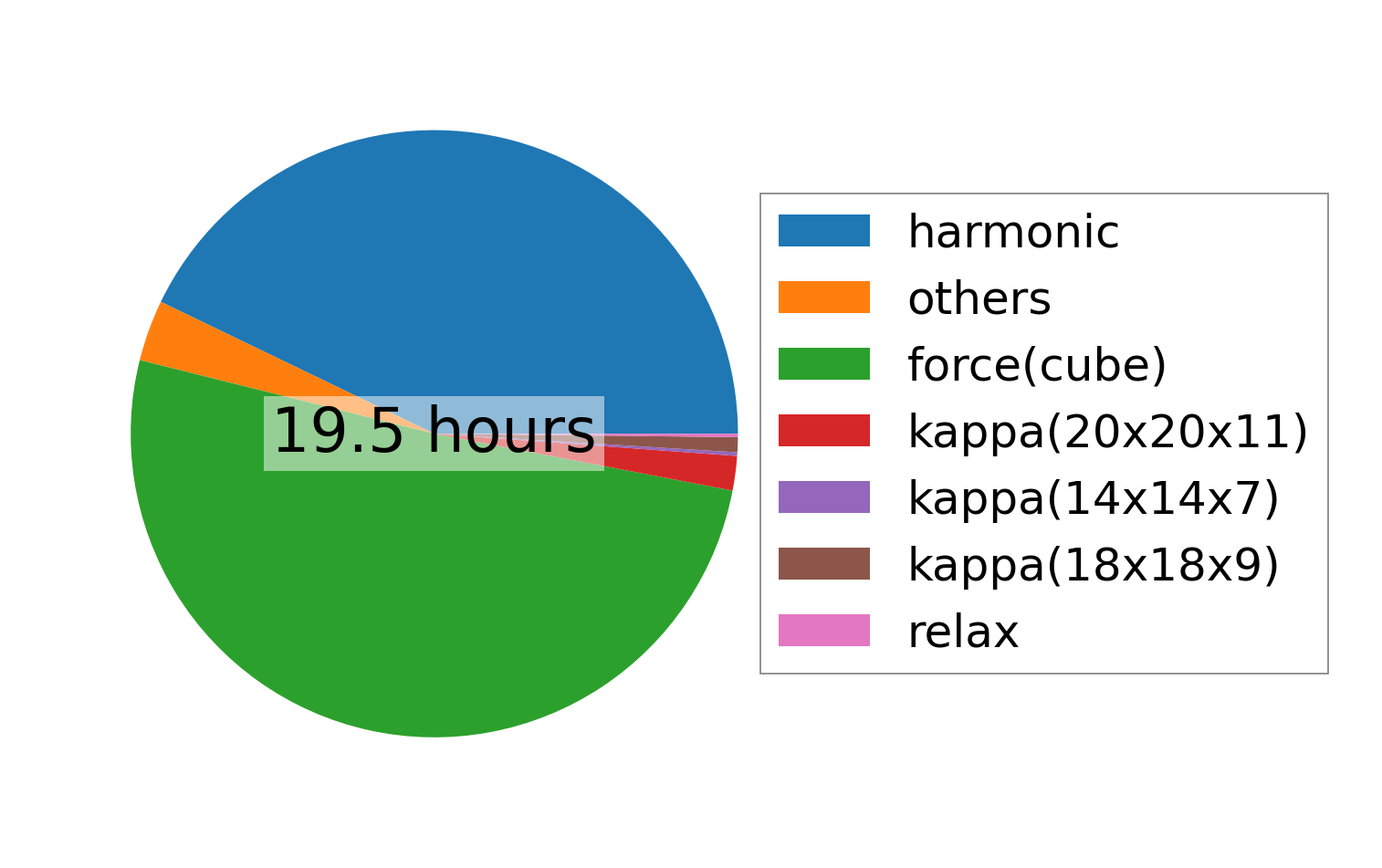

../../_images/fig_times28045.png — (b) Computation time
