mp-1029422/NbZn2N3/anharm

Space group: Cmc2_1 (36)
Link: Materials Project
Download: mp-1029422.tar.gz

Harmonic properties

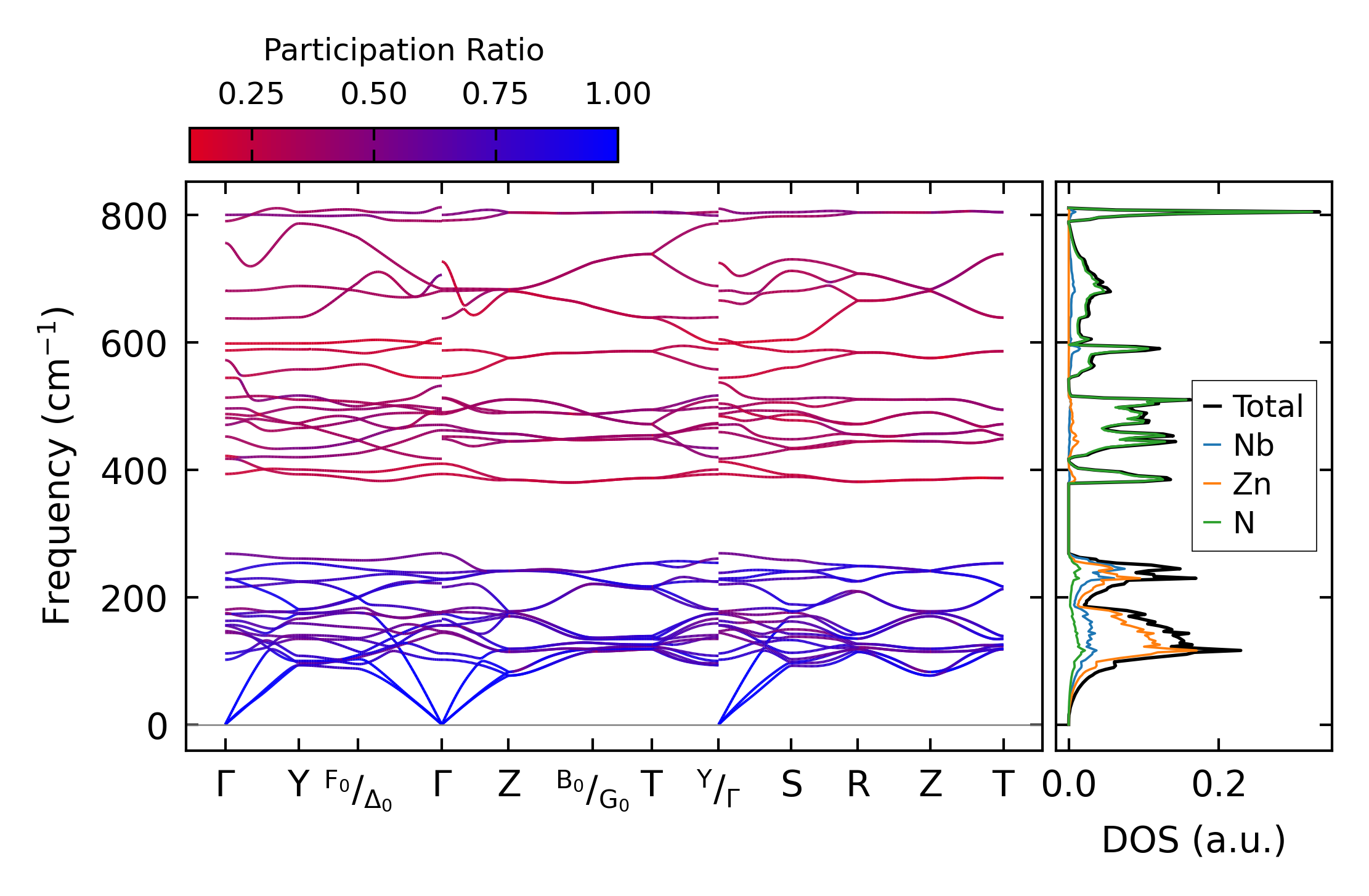

../../_images/fig_bandos_pr17188.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo17187.png — (b) Thermodynamic properties

Grüneisen parameters

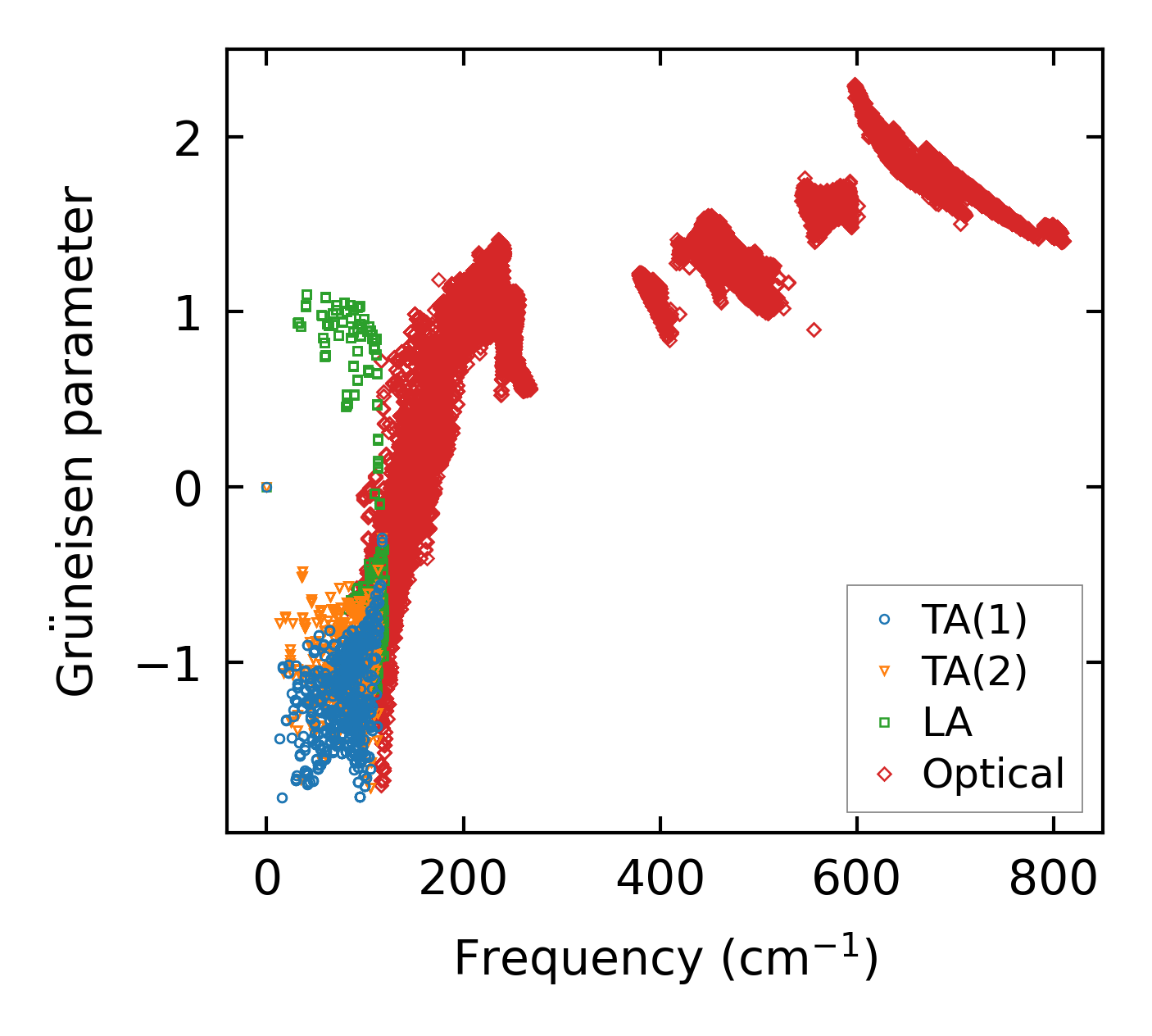

../../_images/fig_gru_all7530.png — (a) Grüneisen parameters

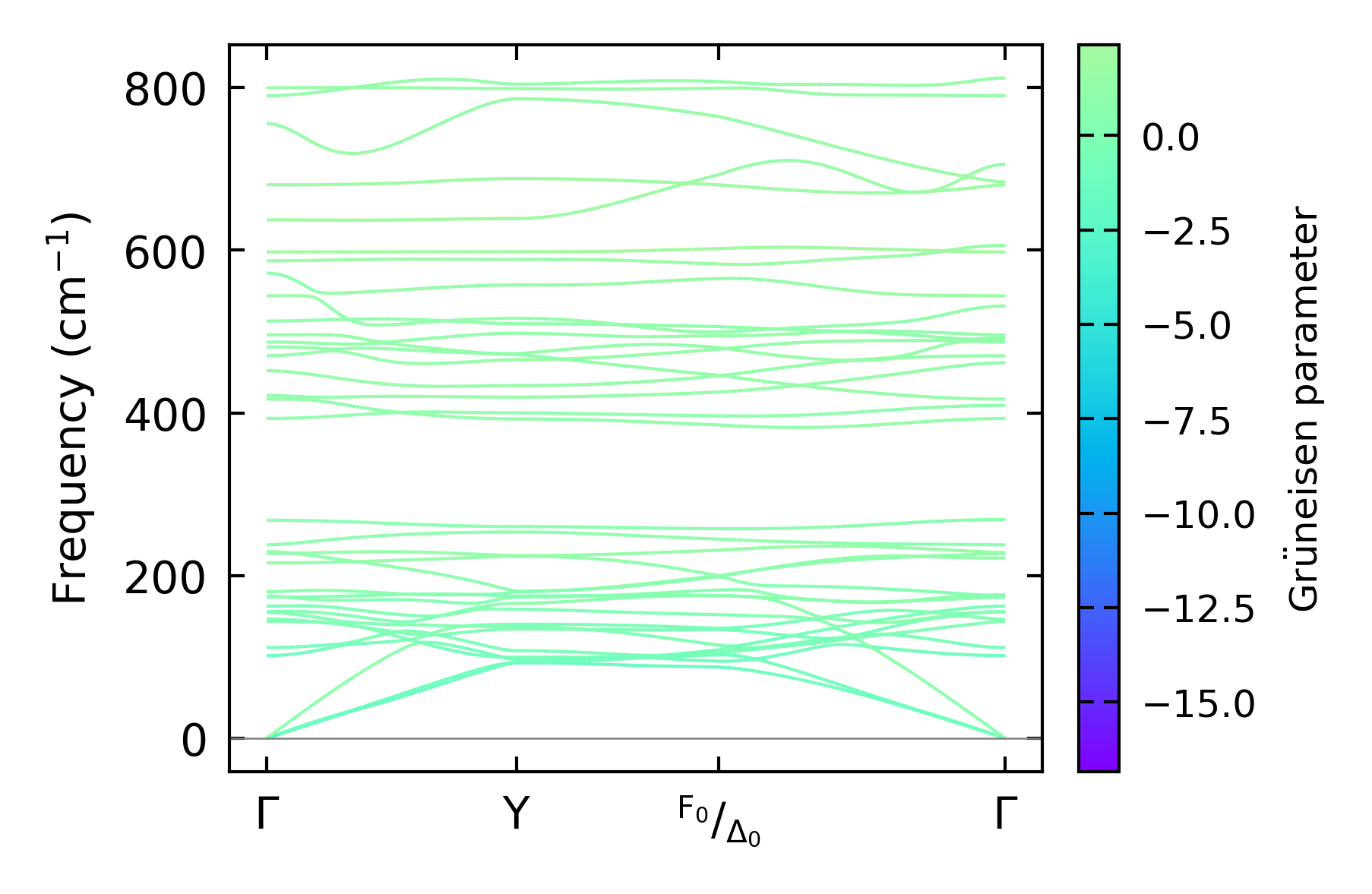

../../_images/fig_gruneisen7530.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x14, supercell: 1x2x2

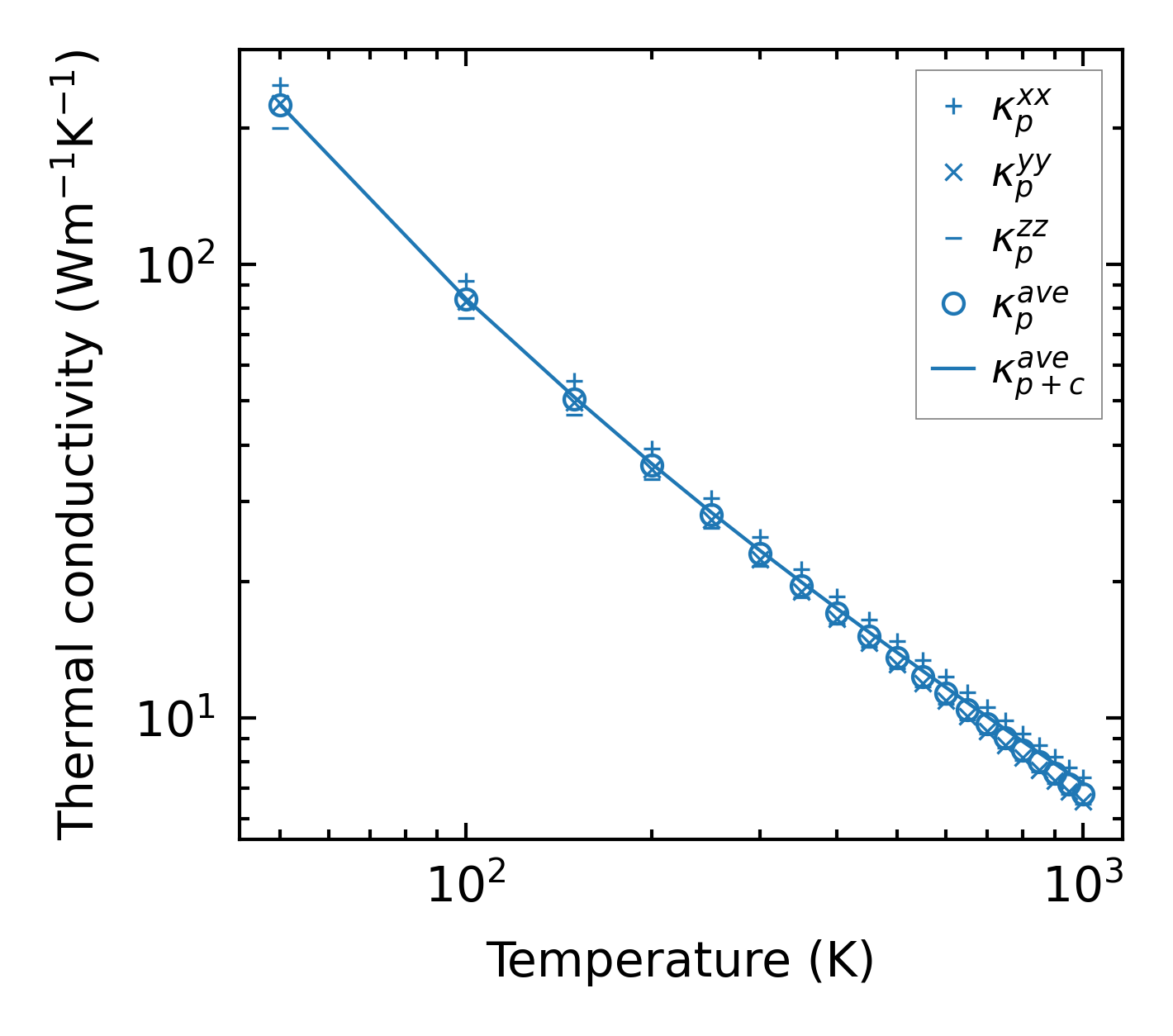

../../_images/fig_kappa14204.png — (a) Temperature-dependent lattice thermal conductivity

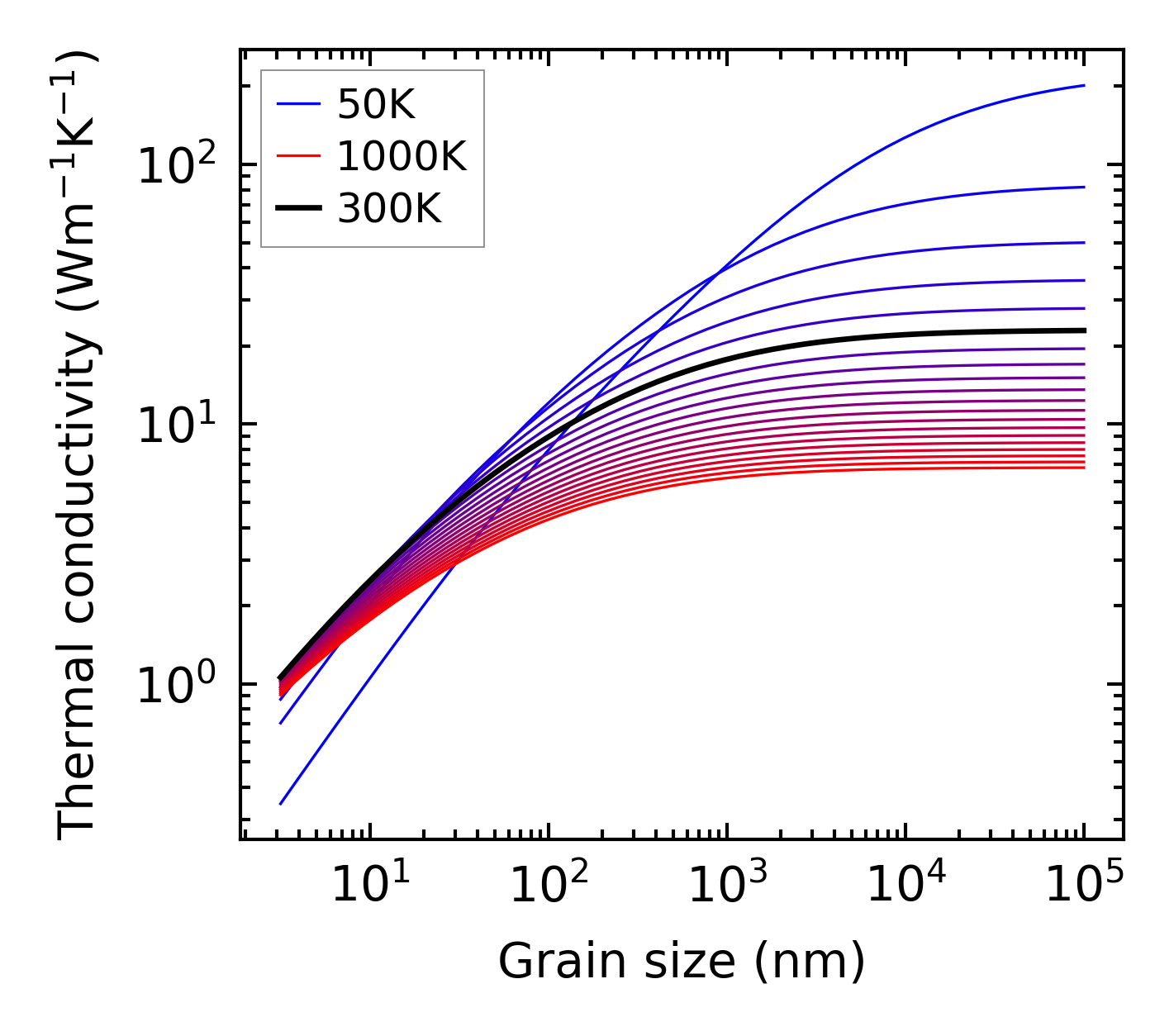

../../_images/fig_kappa_vs_grain_size7619.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

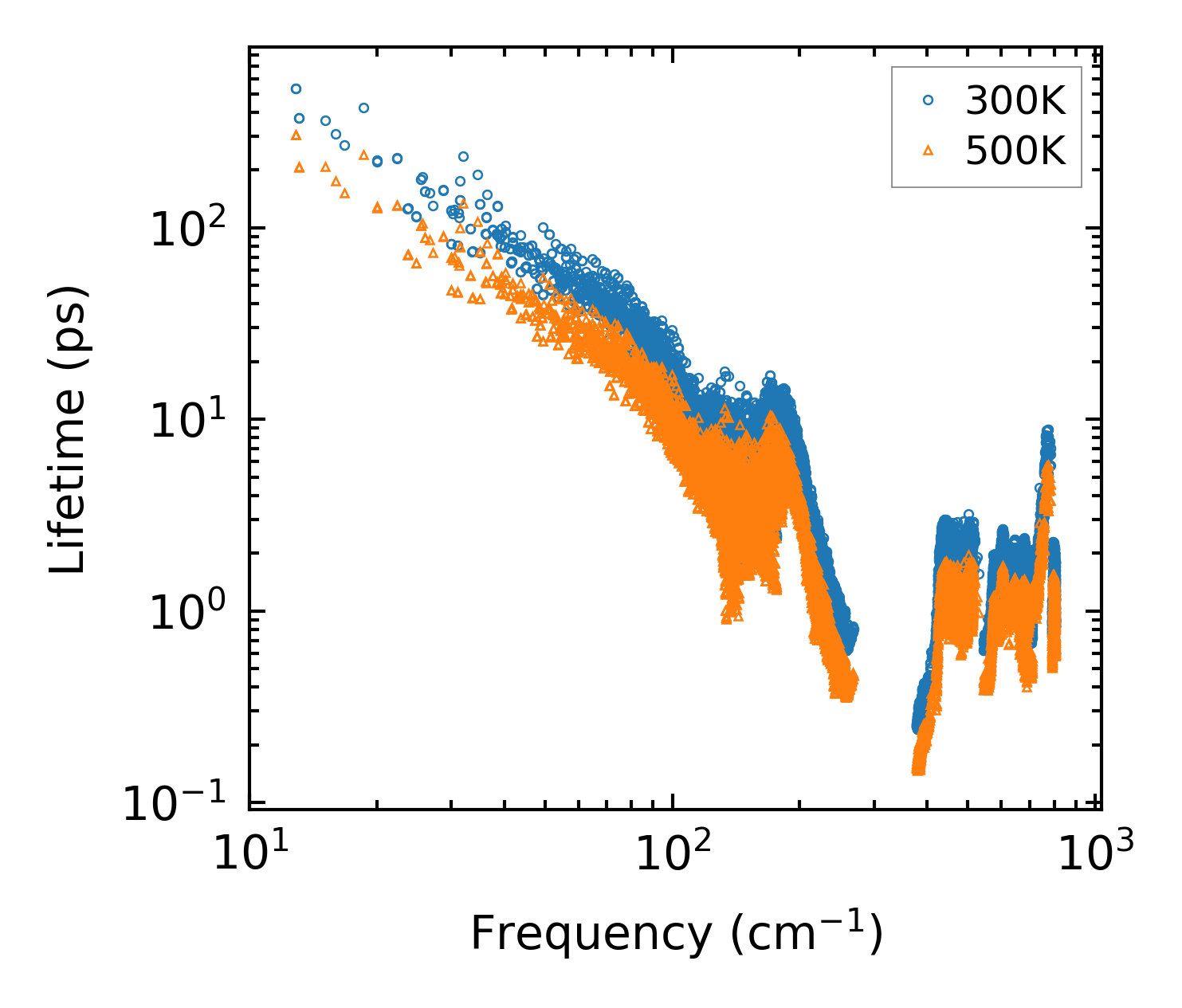

../../_images/fig_lifetime7462.png — (a) Phonon lifetime due to phonon-phonon scattering

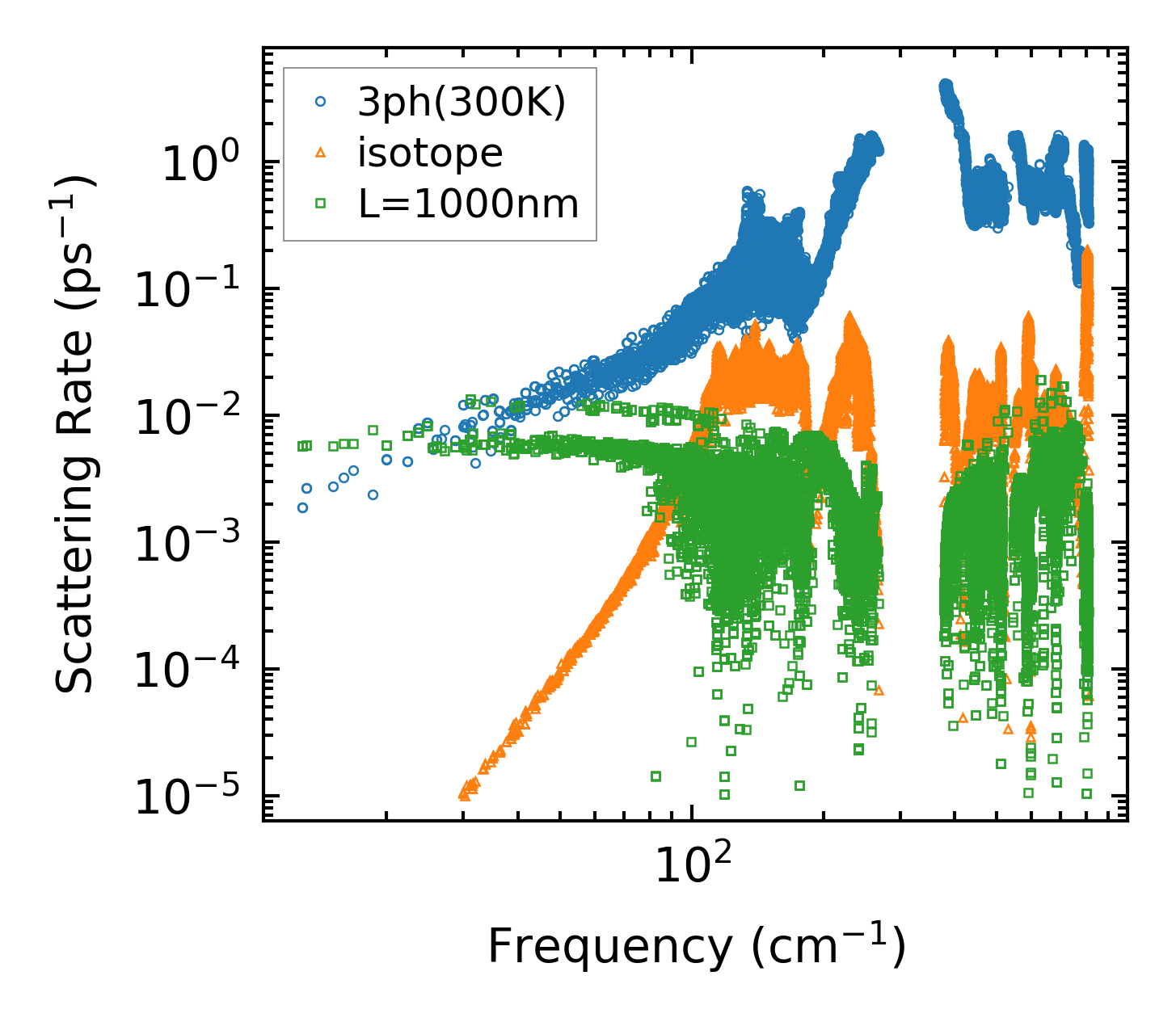

../../_images/fig_scat_rates7461.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

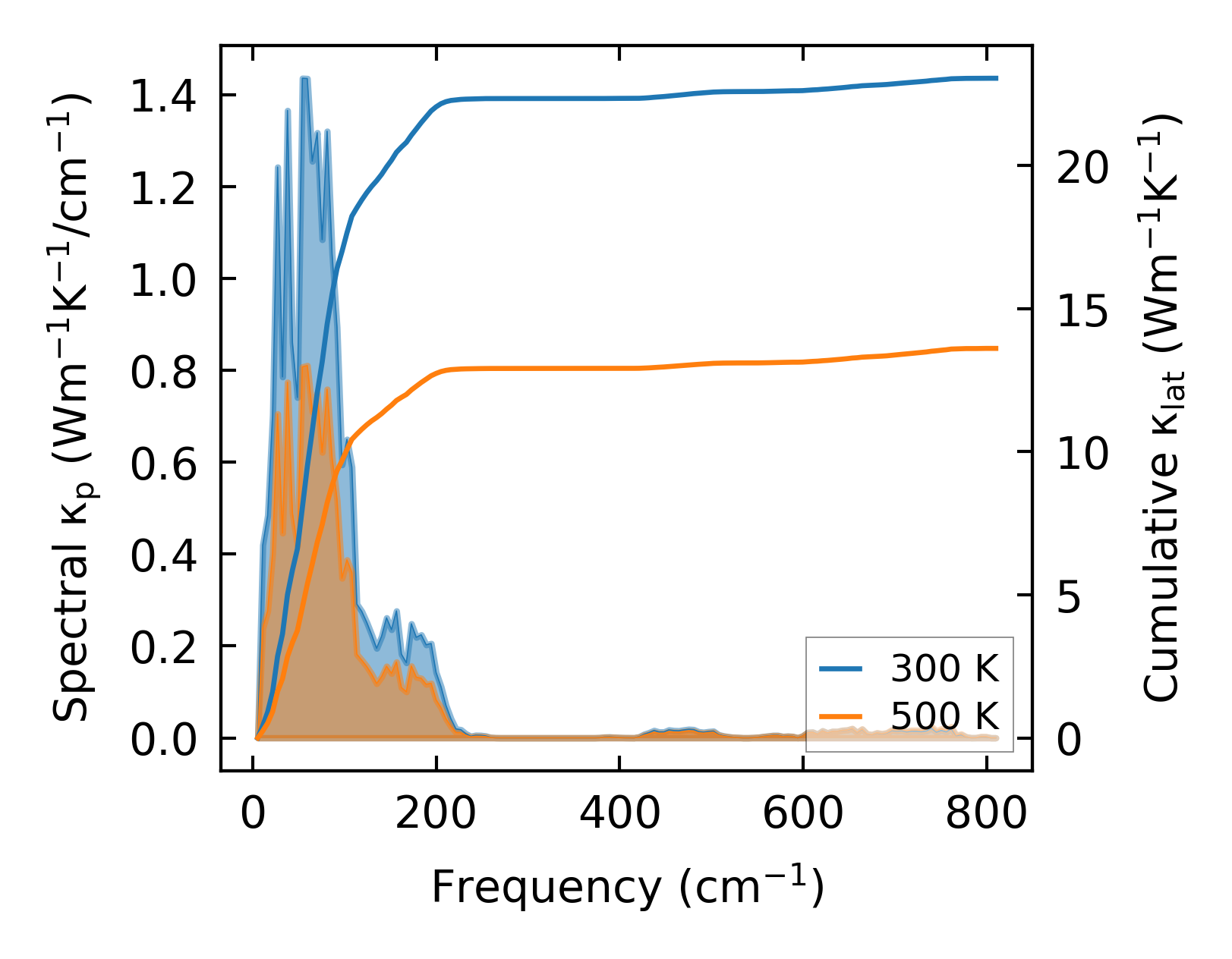

../../_images/fig_cumu_frequency7462.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

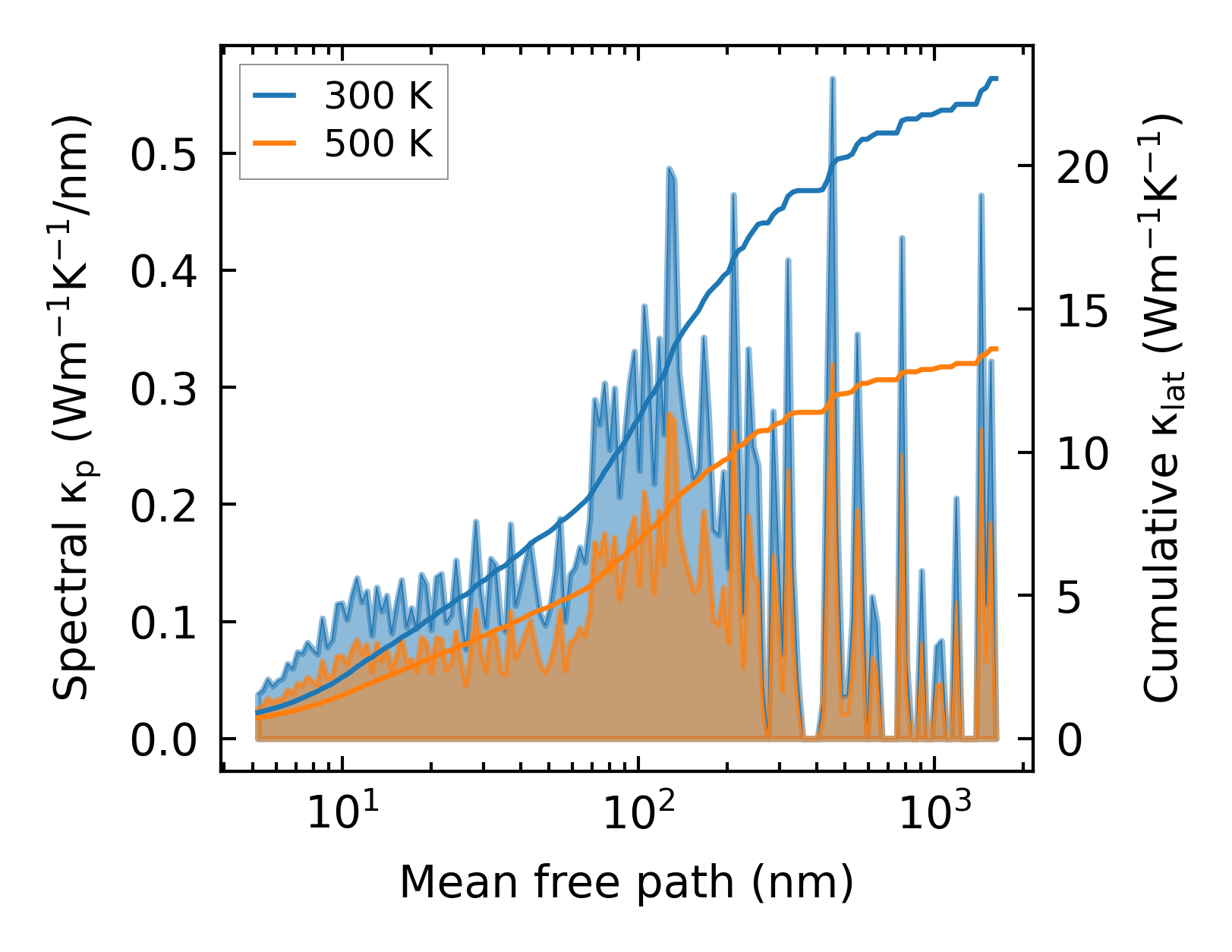

../../_images/fig_cumu_mfp7461.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

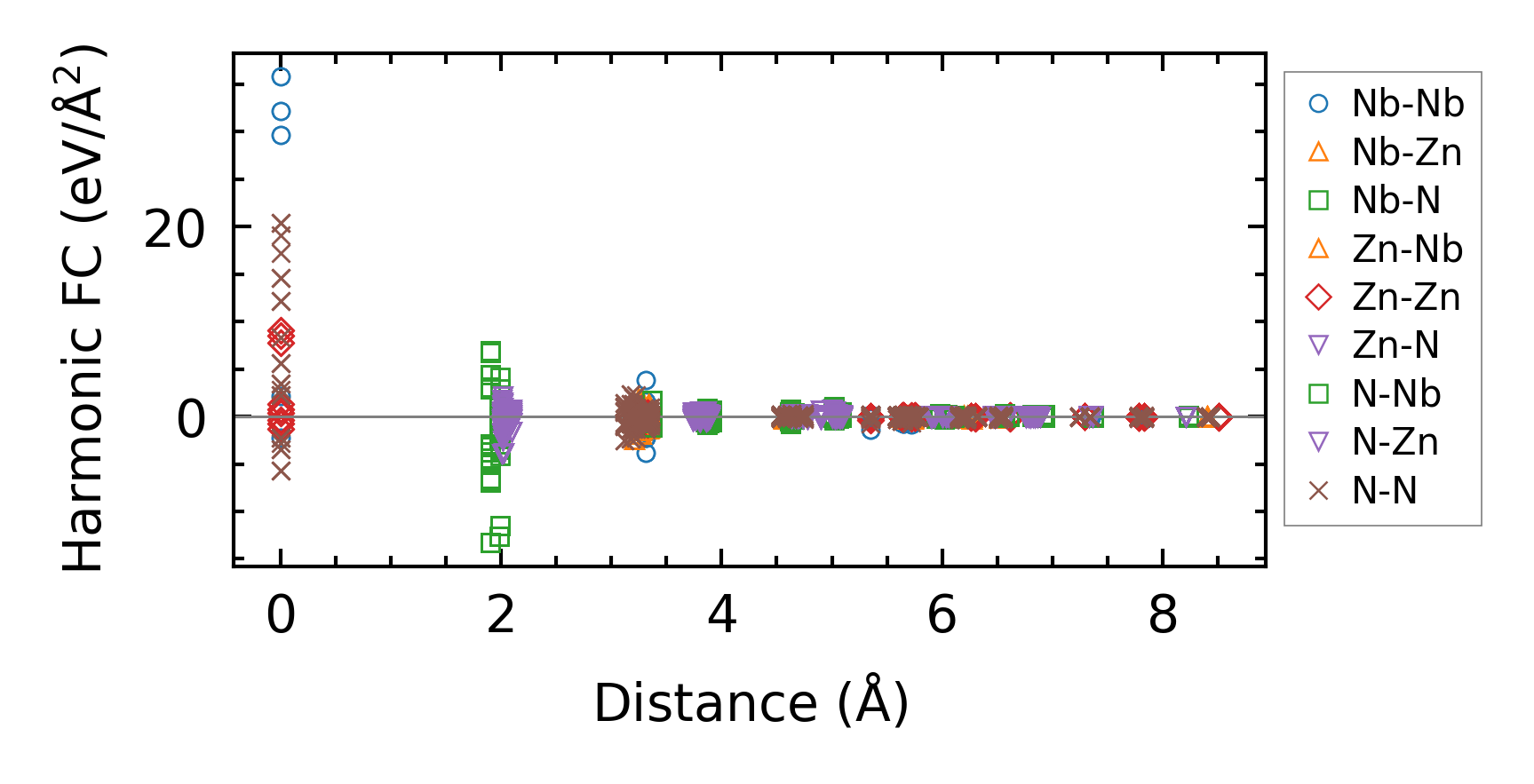

../../_images/fig_fc216729.png — (a) Force constants w.r.t atomic distance

Summary

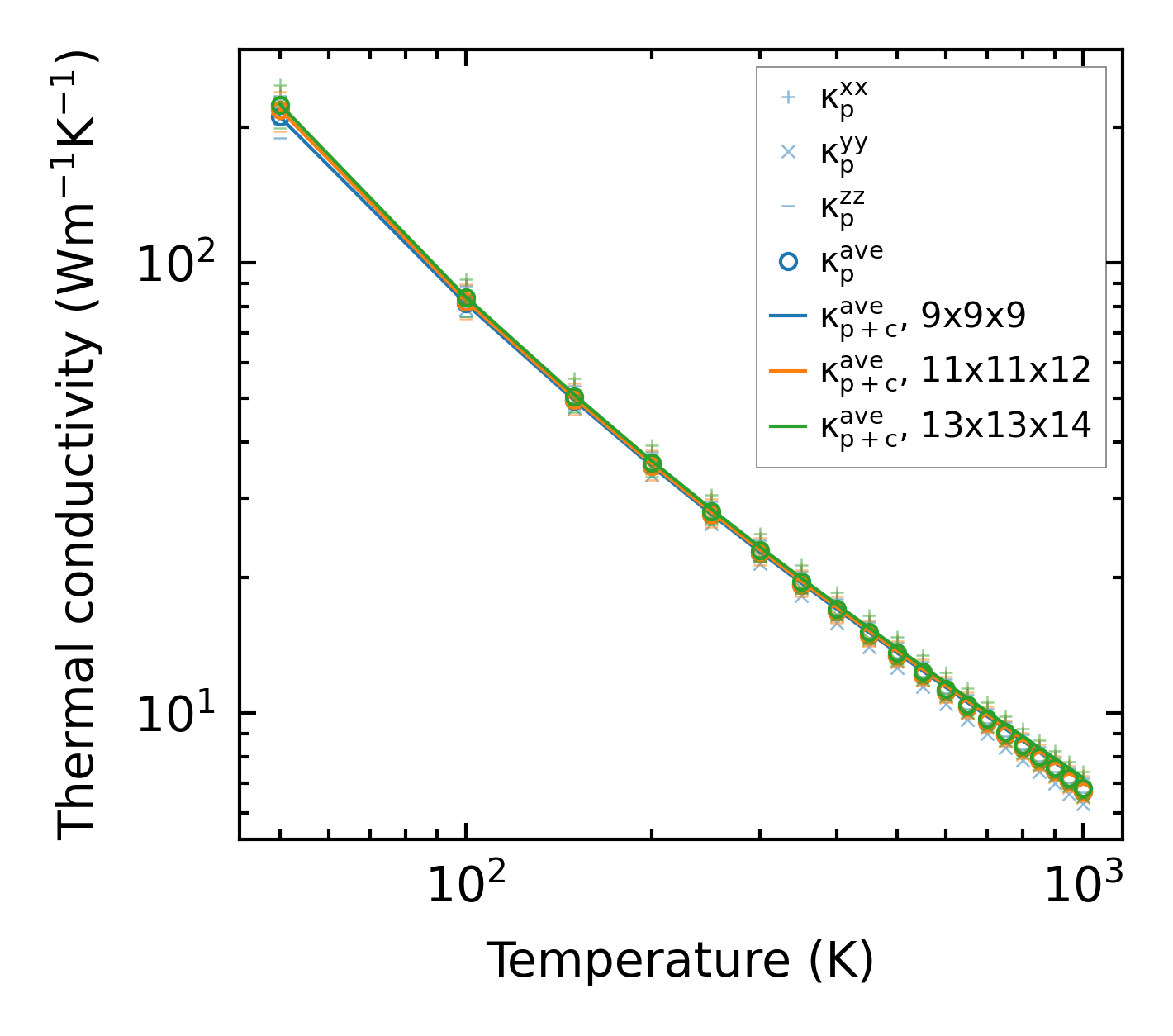

../../_images/fig_kappa14205.png — (a) Temperature-dependent lattice thermal conductivity

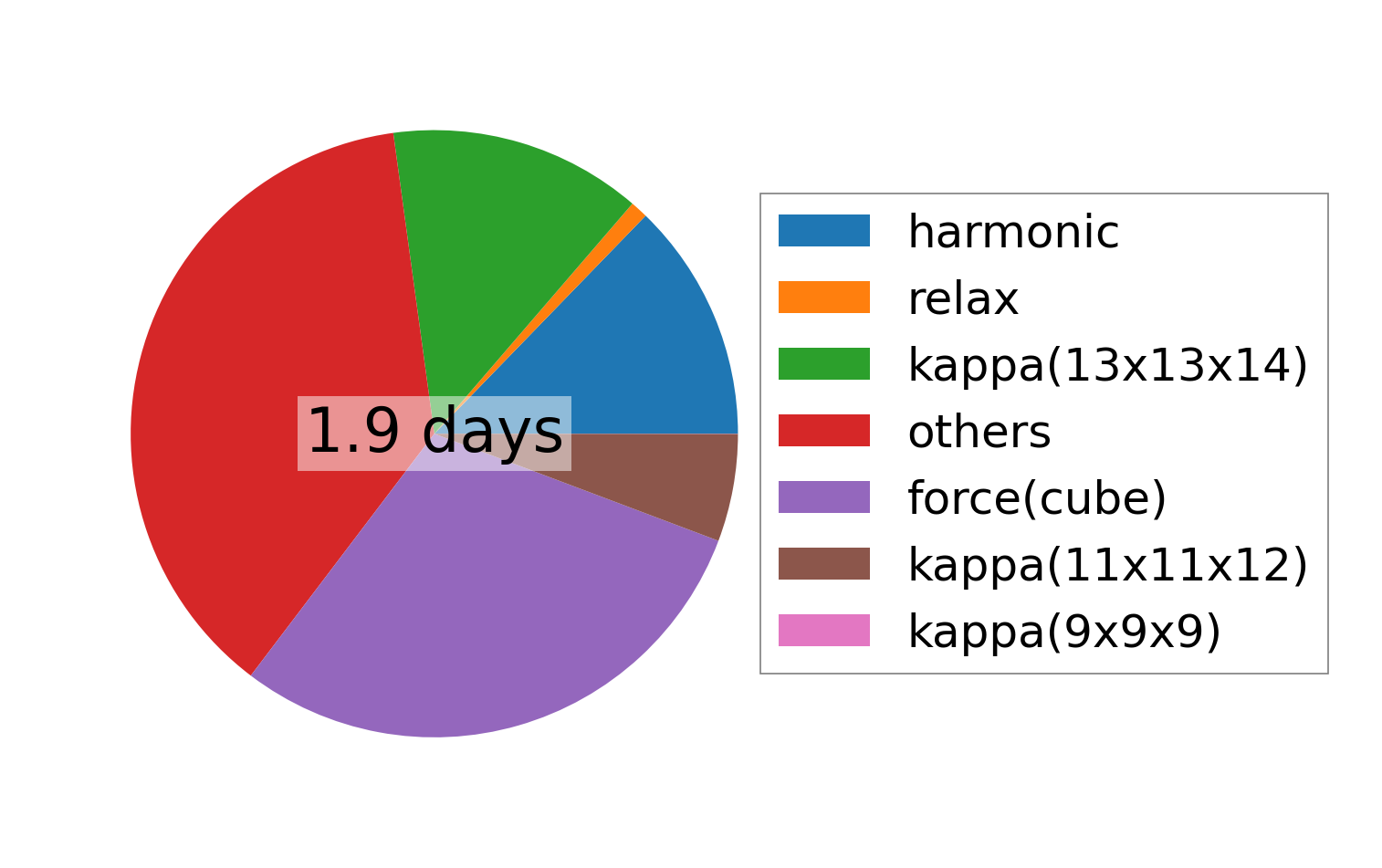

../../_images/fig_times28053.png — (b) Computation time
