mp-1029349/Y4Se3N2/anharm

Space group: C2/m (12)
Link: Materials Project
Download: mp-1029349.tar.gz

Harmonic properties

../../_images/fig_bandos_pr17181.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo17180.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all7525.png — (a) Grüneisen parameters

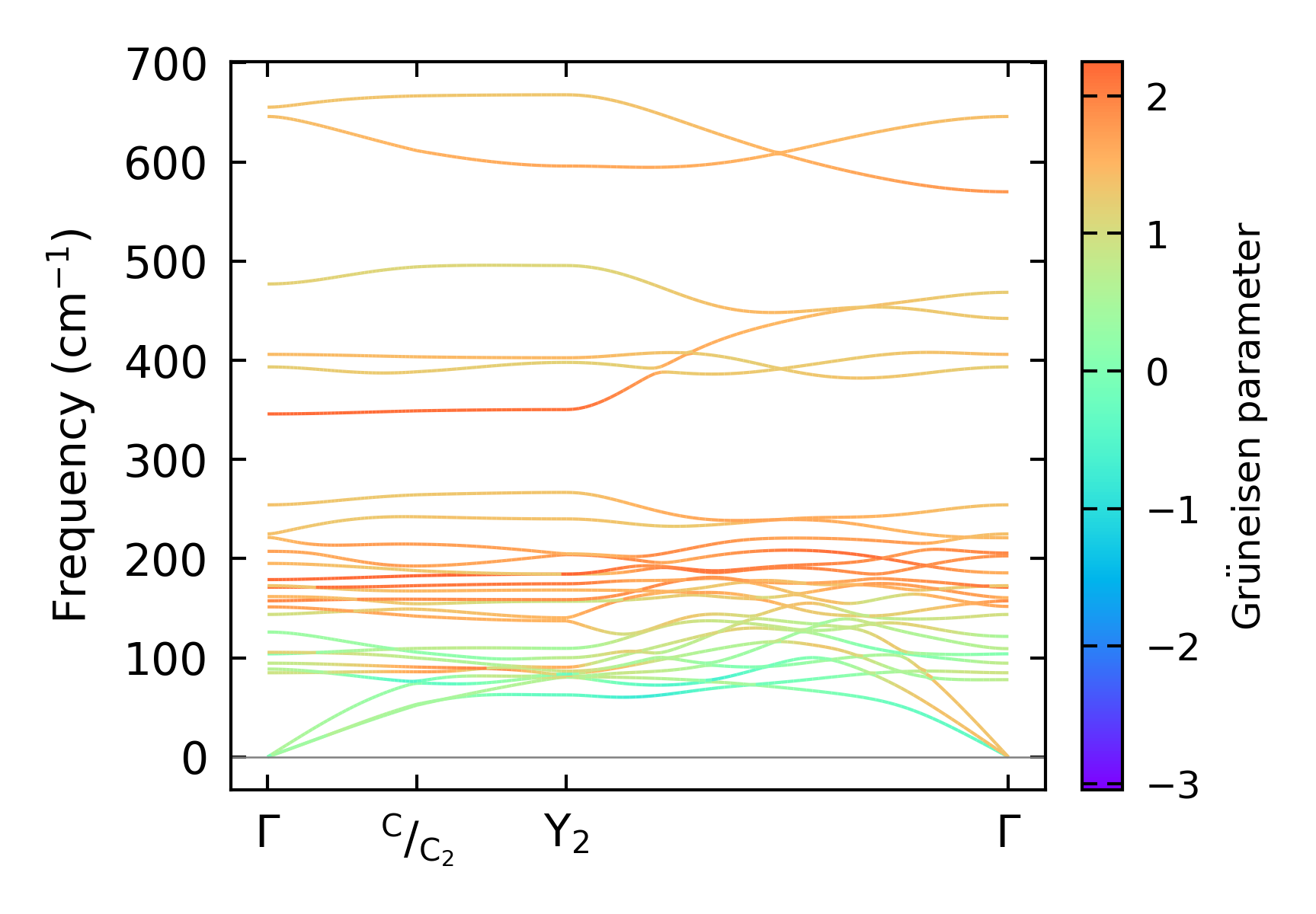

../../_images/fig_gruneisen7525.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x14x9, supercell: 1x4x2

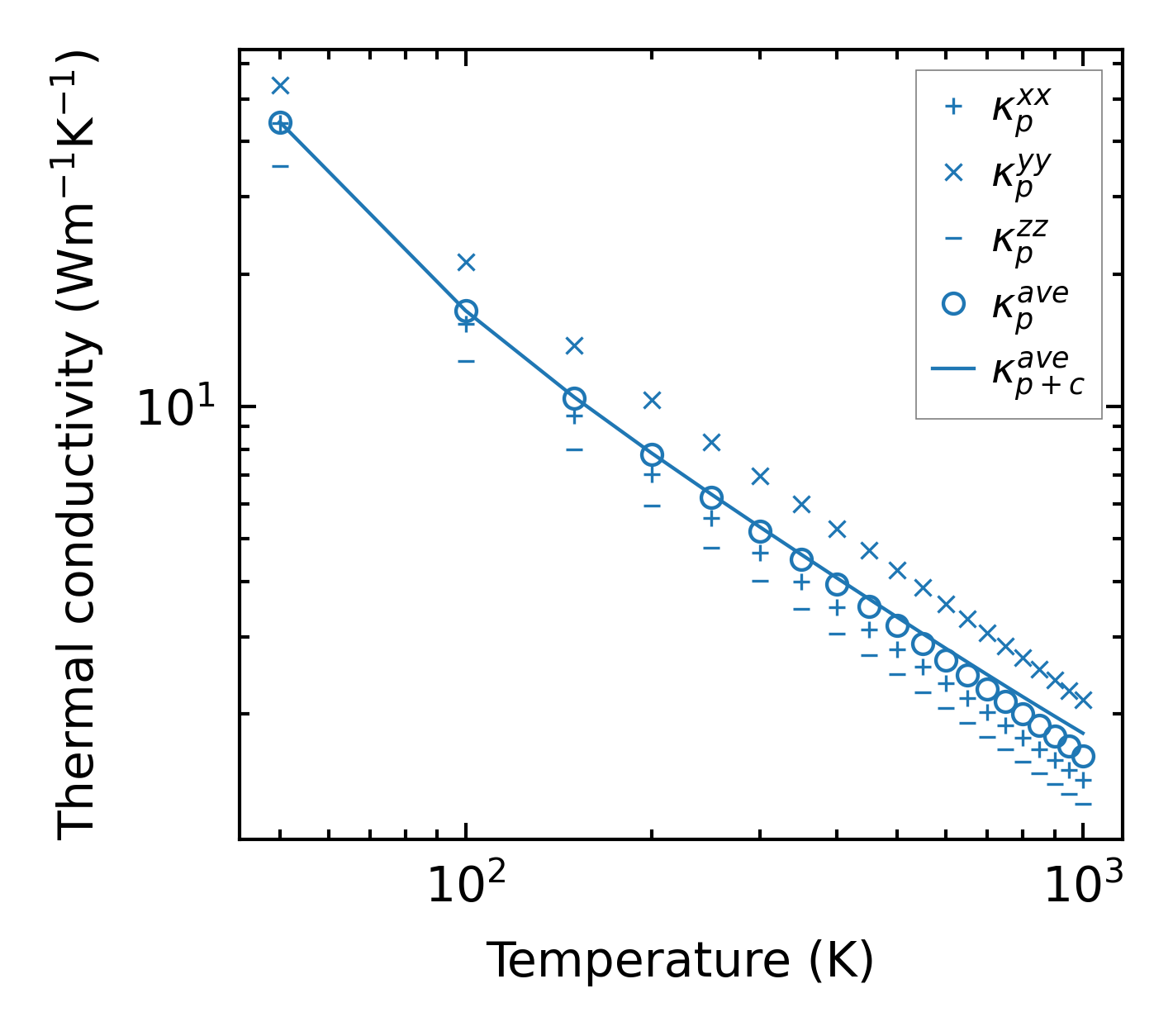

../../_images/fig_kappa14194.png — (a) Temperature-dependent lattice thermal conductivity

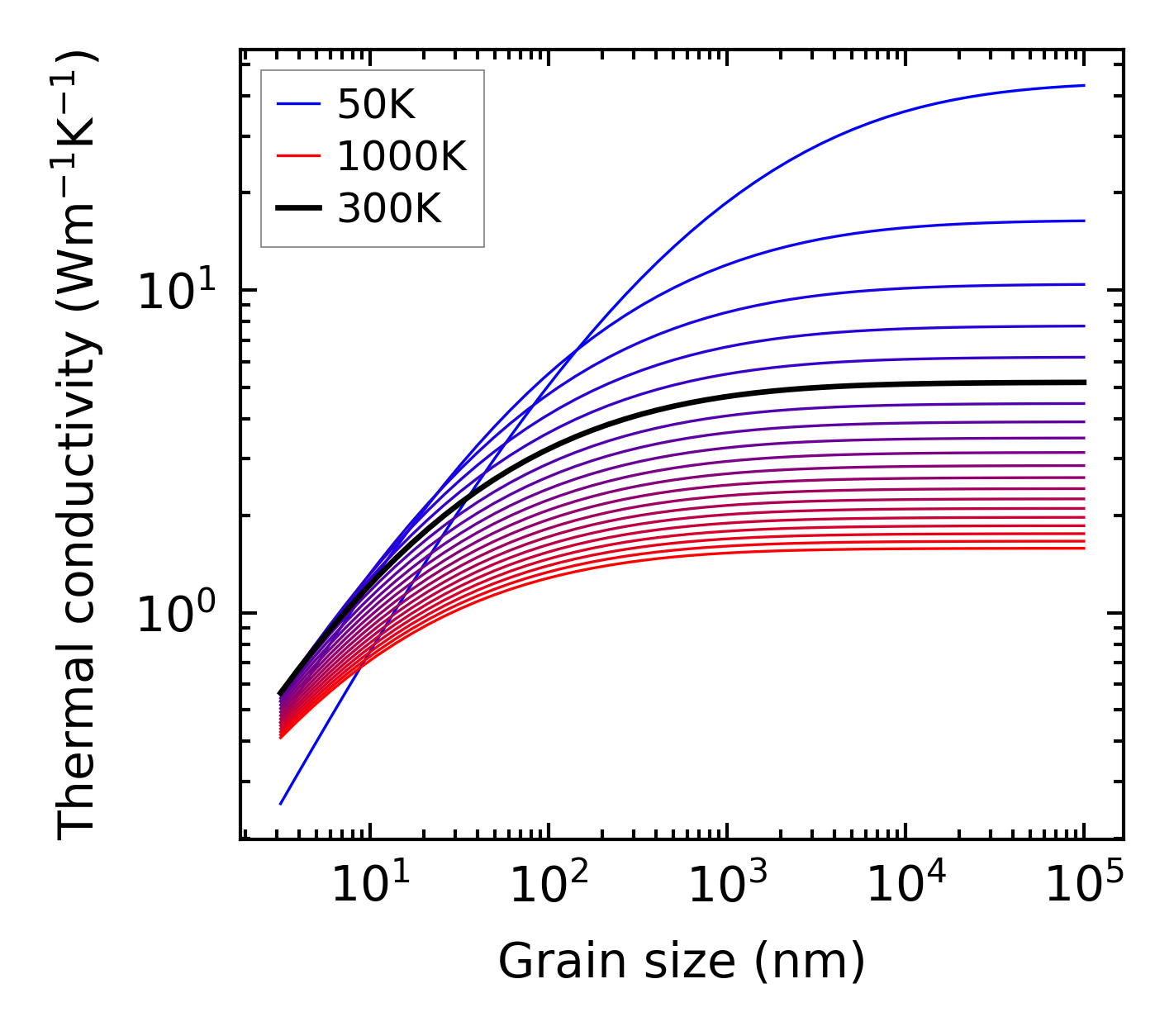

../../_images/fig_kappa_vs_grain_size7614.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime7457.png — (a) Phonon lifetime due to phonon-phonon scattering

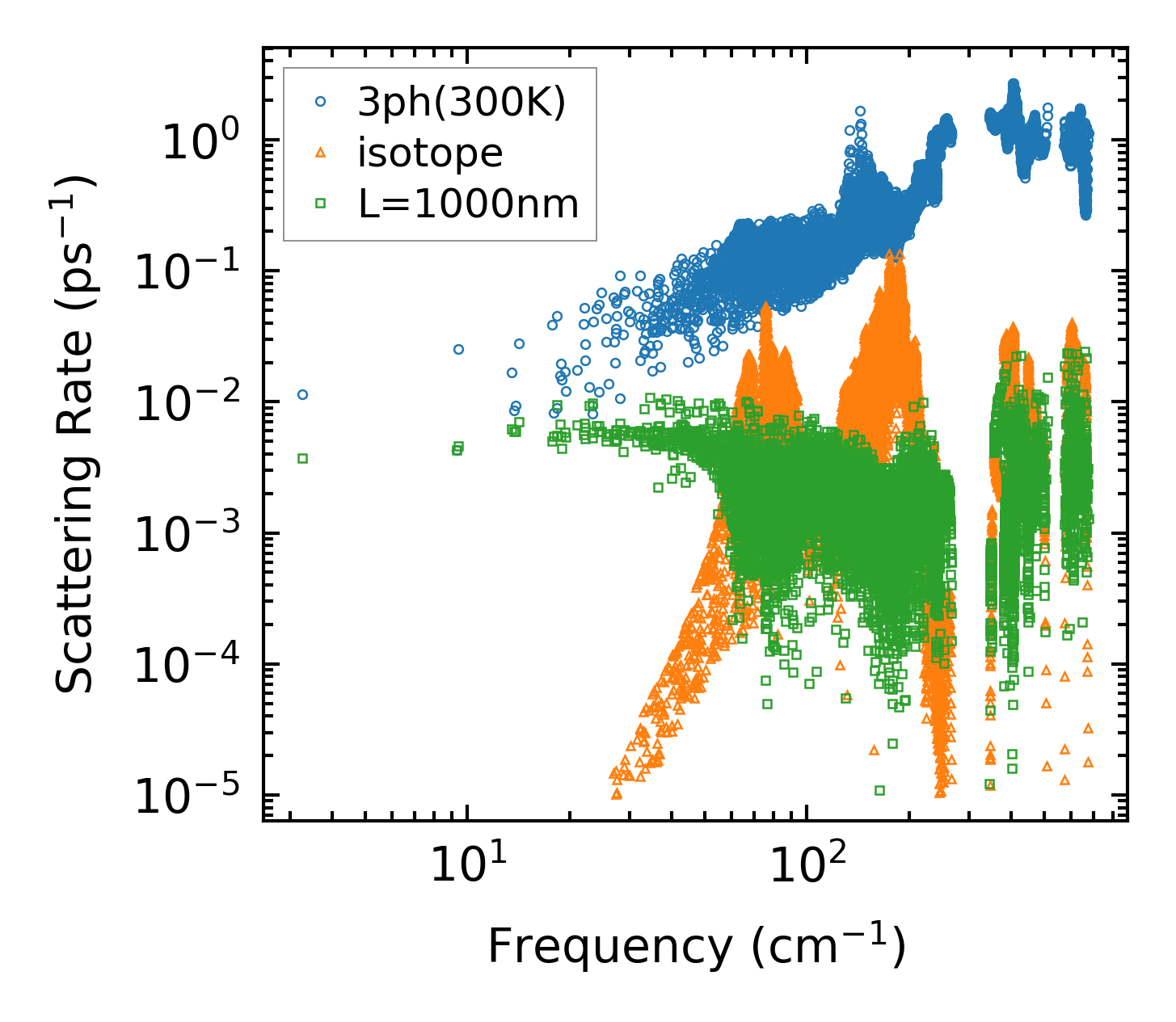

../../_images/fig_scat_rates7456.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

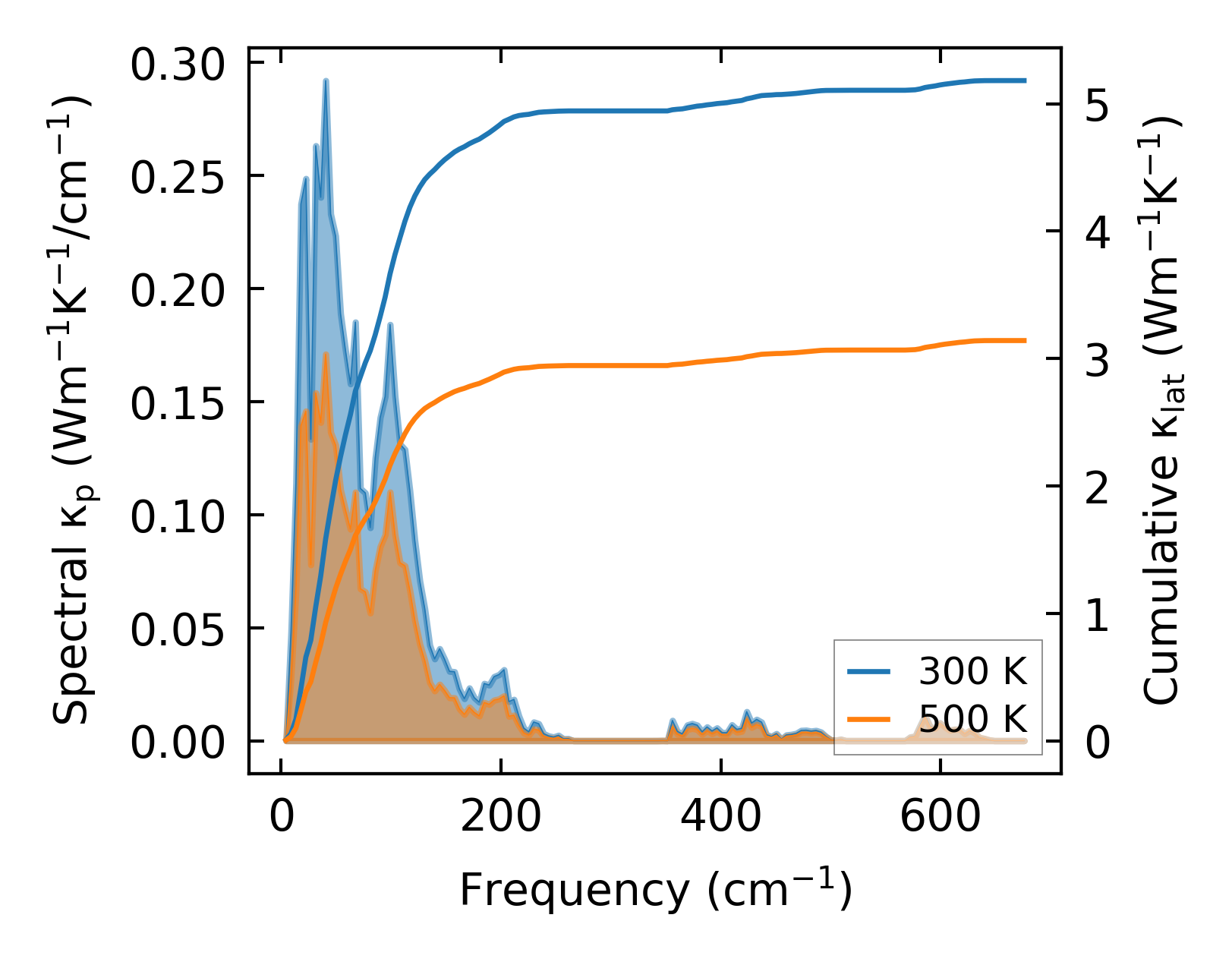

../../_images/fig_cumu_frequency7457.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

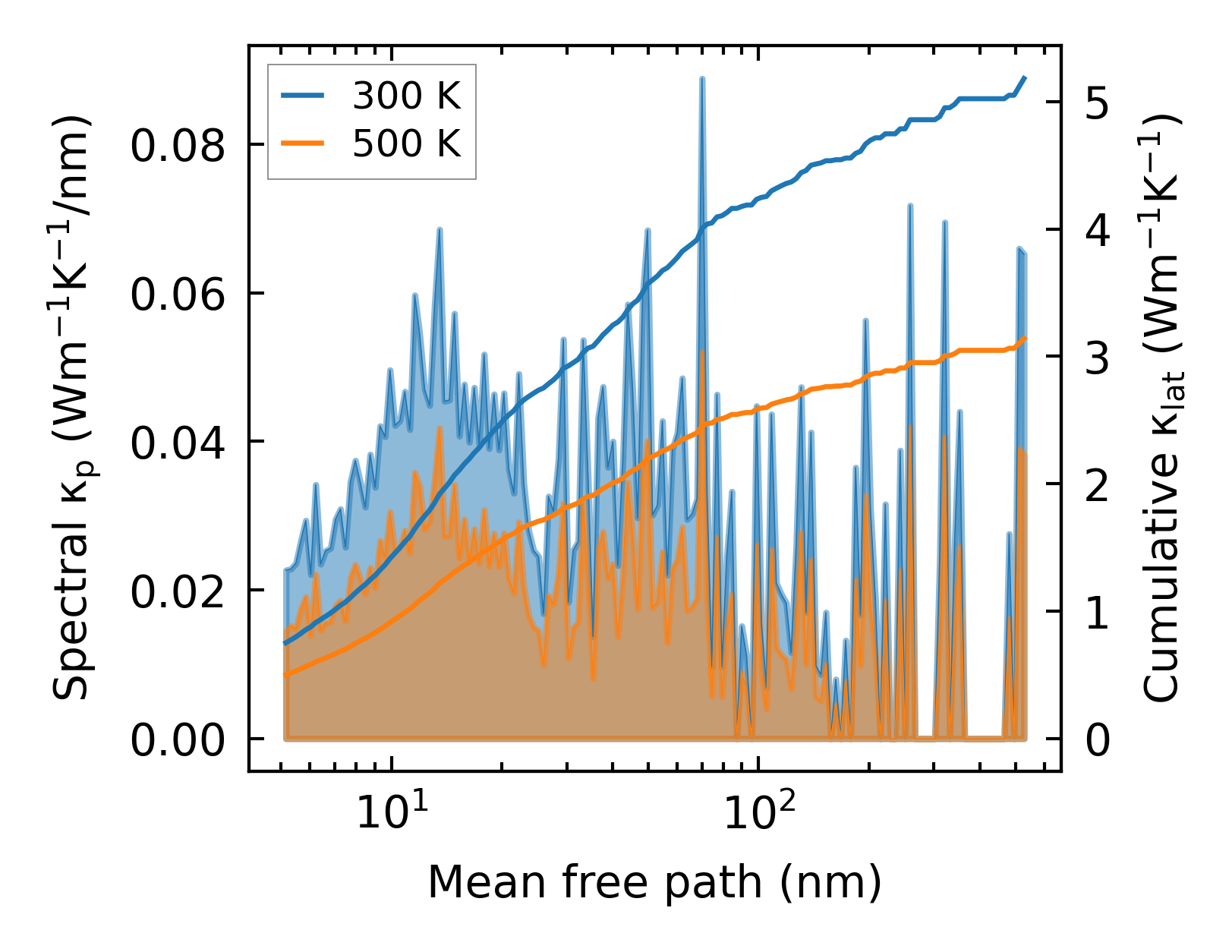

../../_images/fig_cumu_mfp7456.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc216722.png — (a) Force constants w.r.t atomic distance

Summary

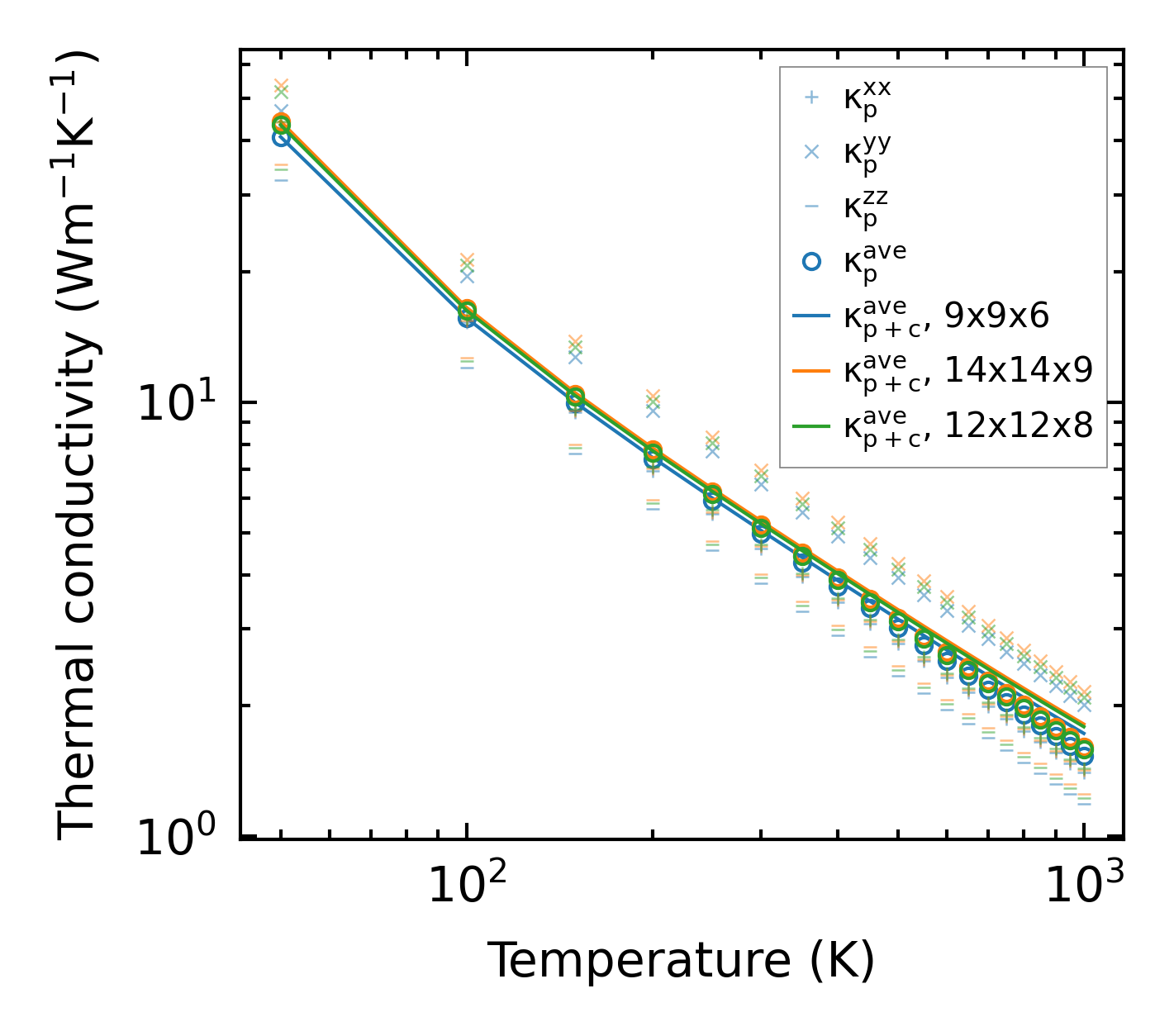

../../_images/fig_kappa14195.png — (a) Temperature-dependent lattice thermal conductivity

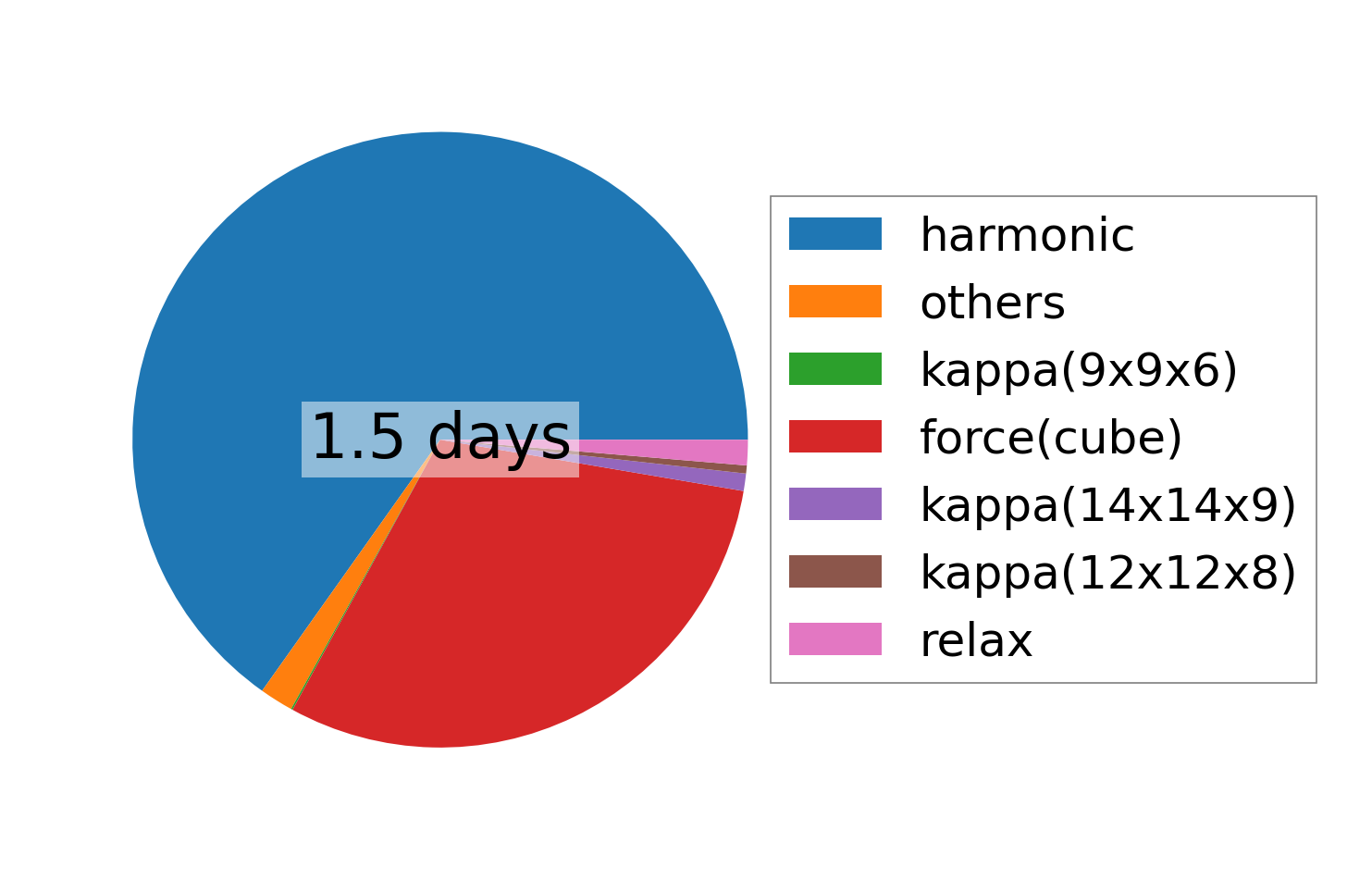

../../_images/fig_times28046.png — (b) Computation time
