mp-1018094/BaGaSnH/anharm

Space group: P3m1 (156)
Link: Materials Project
Download: mp-1018094.tar.gz

Harmonic properties

../../_images/fig_bandos_pr15.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all11.png — (a) Grüneisen parameters

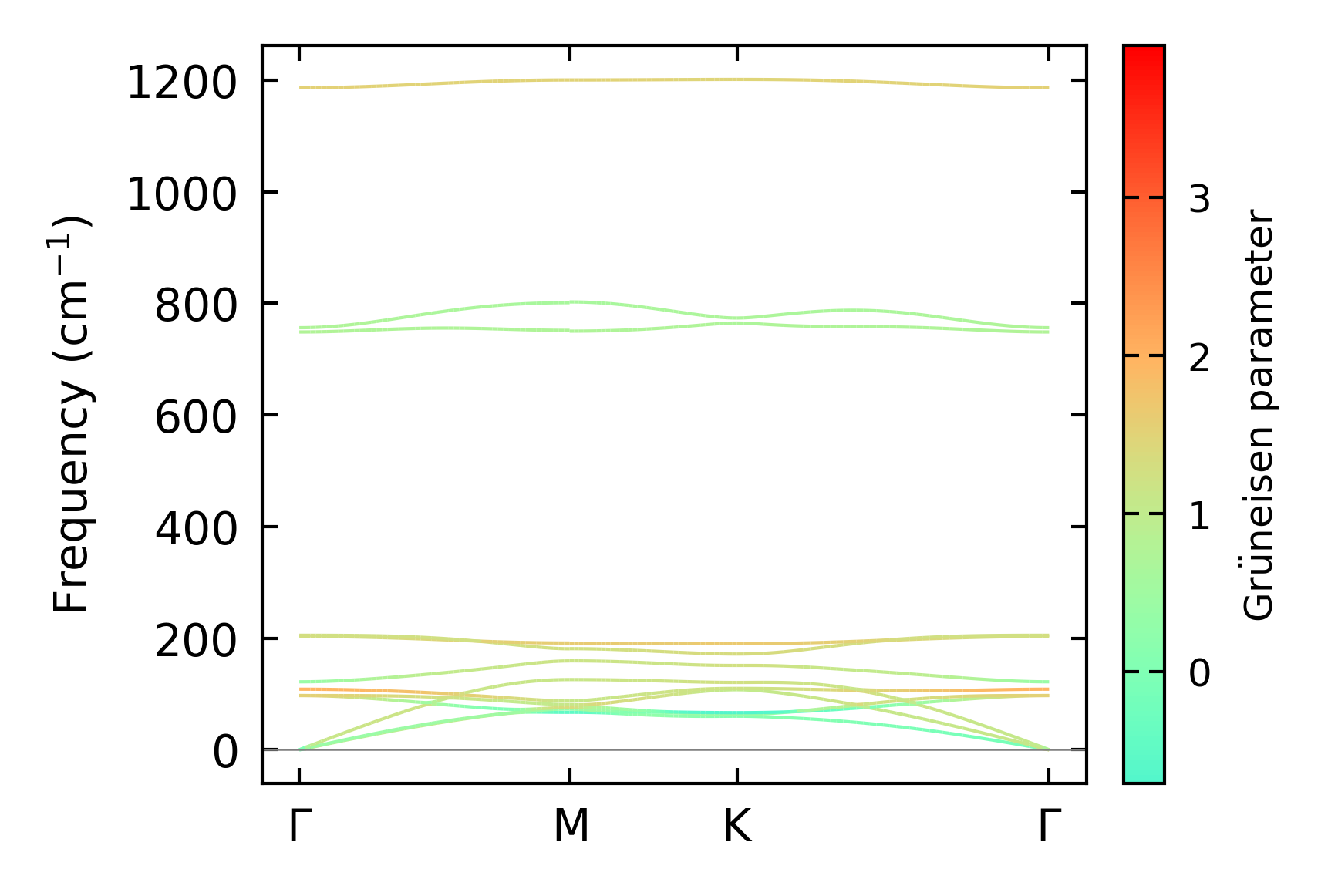

../../_images/fig_gruneisen11.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 16x16x14, supercell: 3x3x3

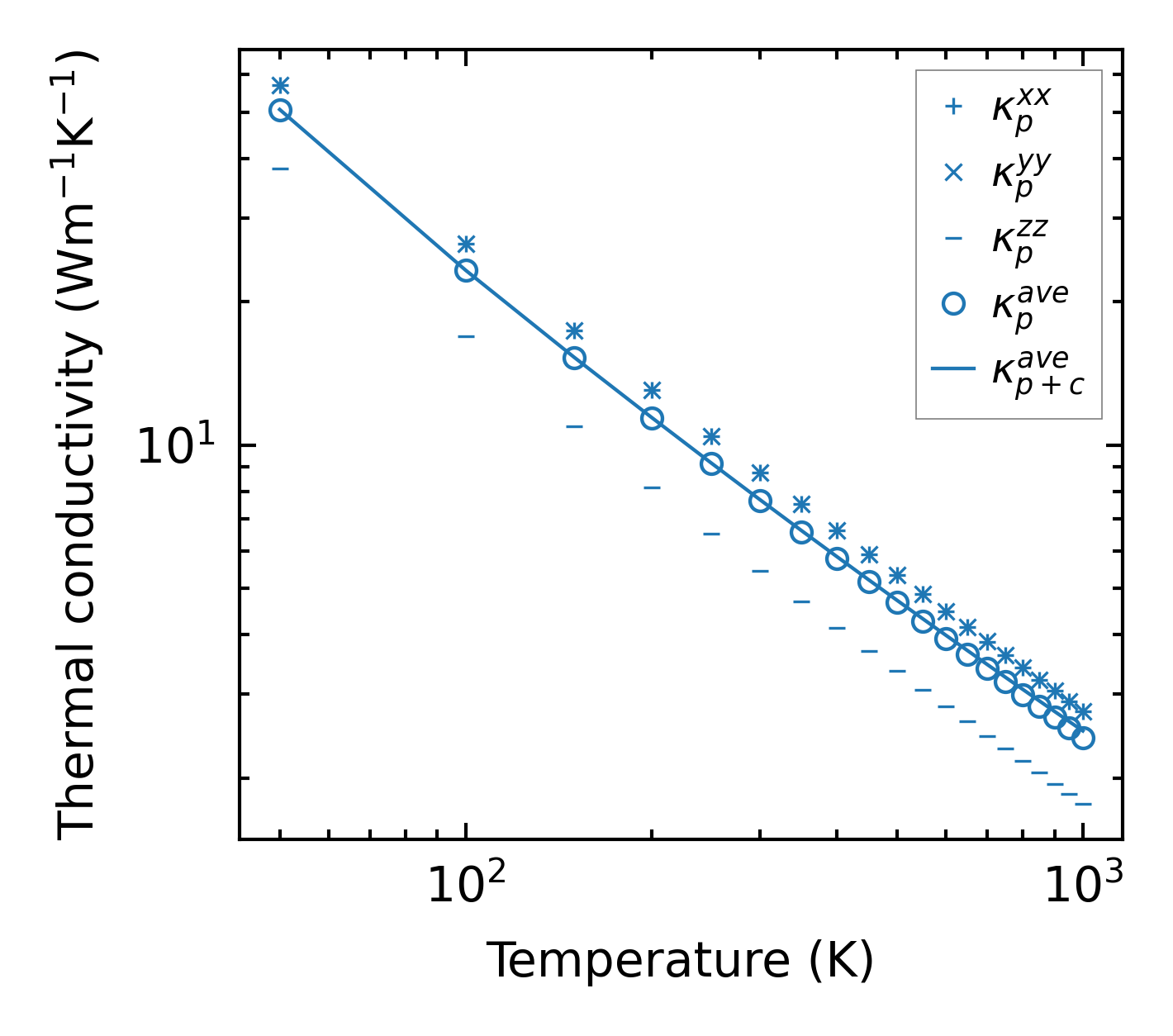

../../_images/fig_kappa22.png — (a) Temperature-dependent lattice thermal conductivity

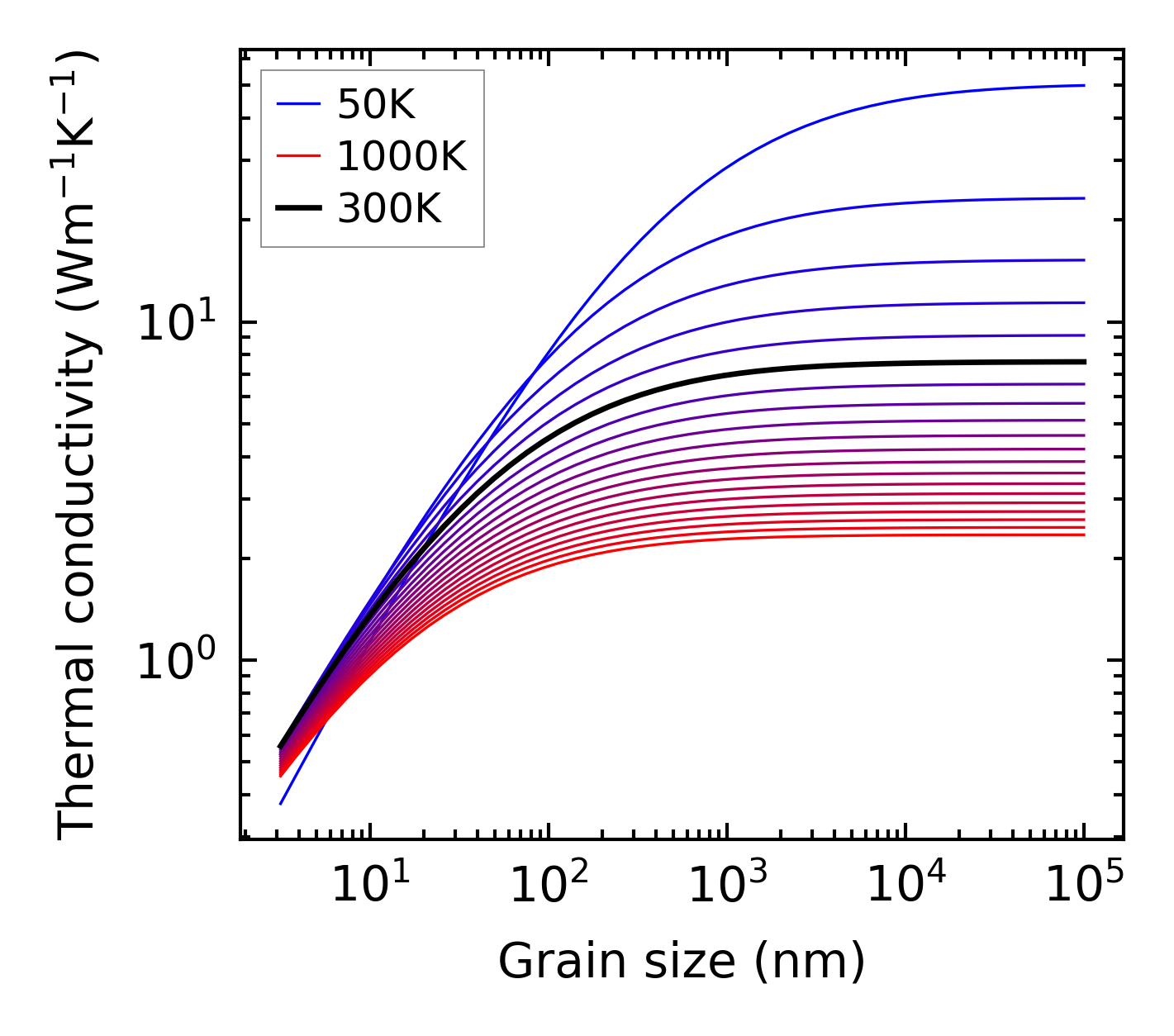

../../_images/fig_kappa_vs_grain_size11.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

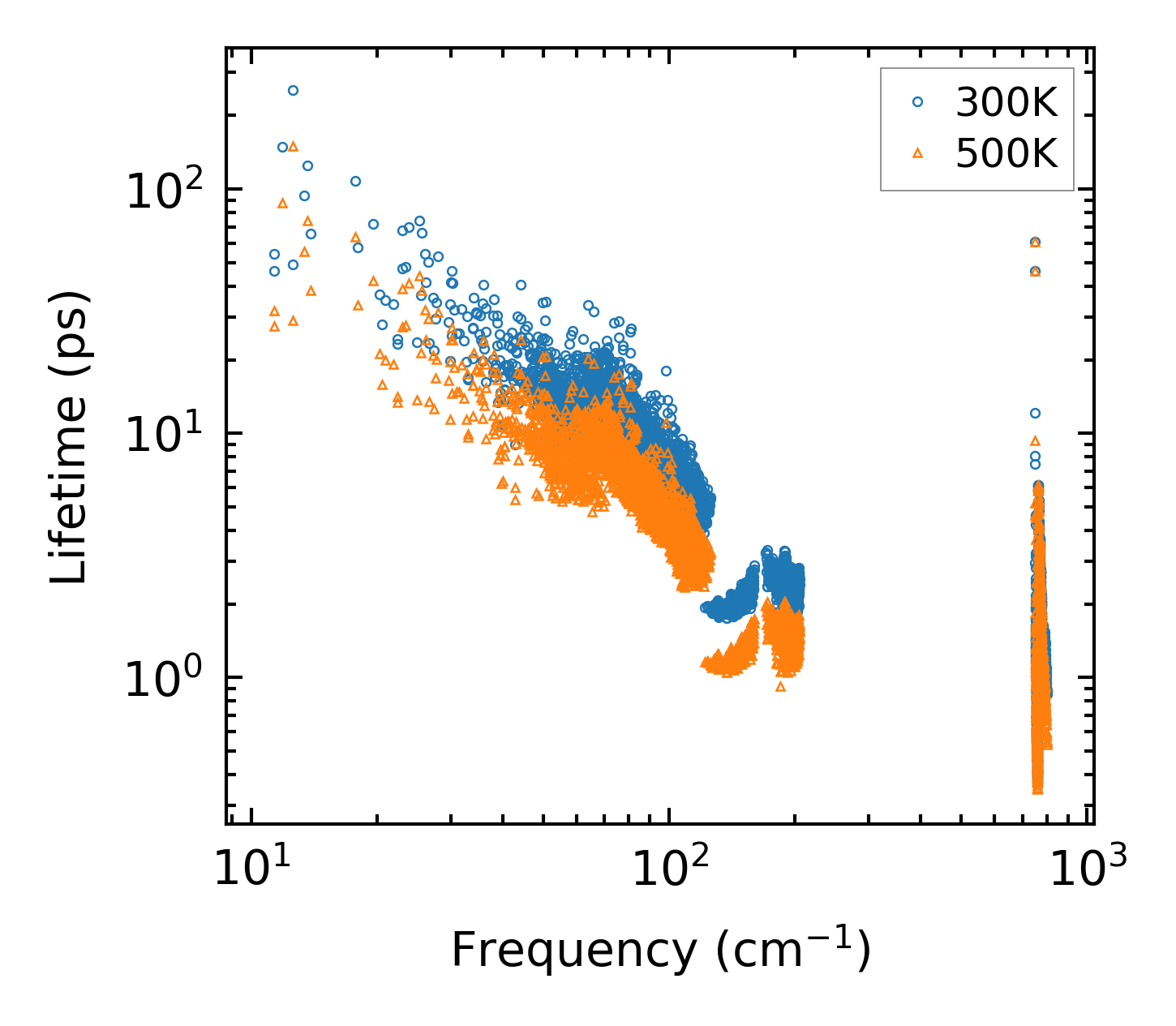

../../_images/fig_lifetime11.png — (a) Phonon lifetime due to phonon-phonon scattering

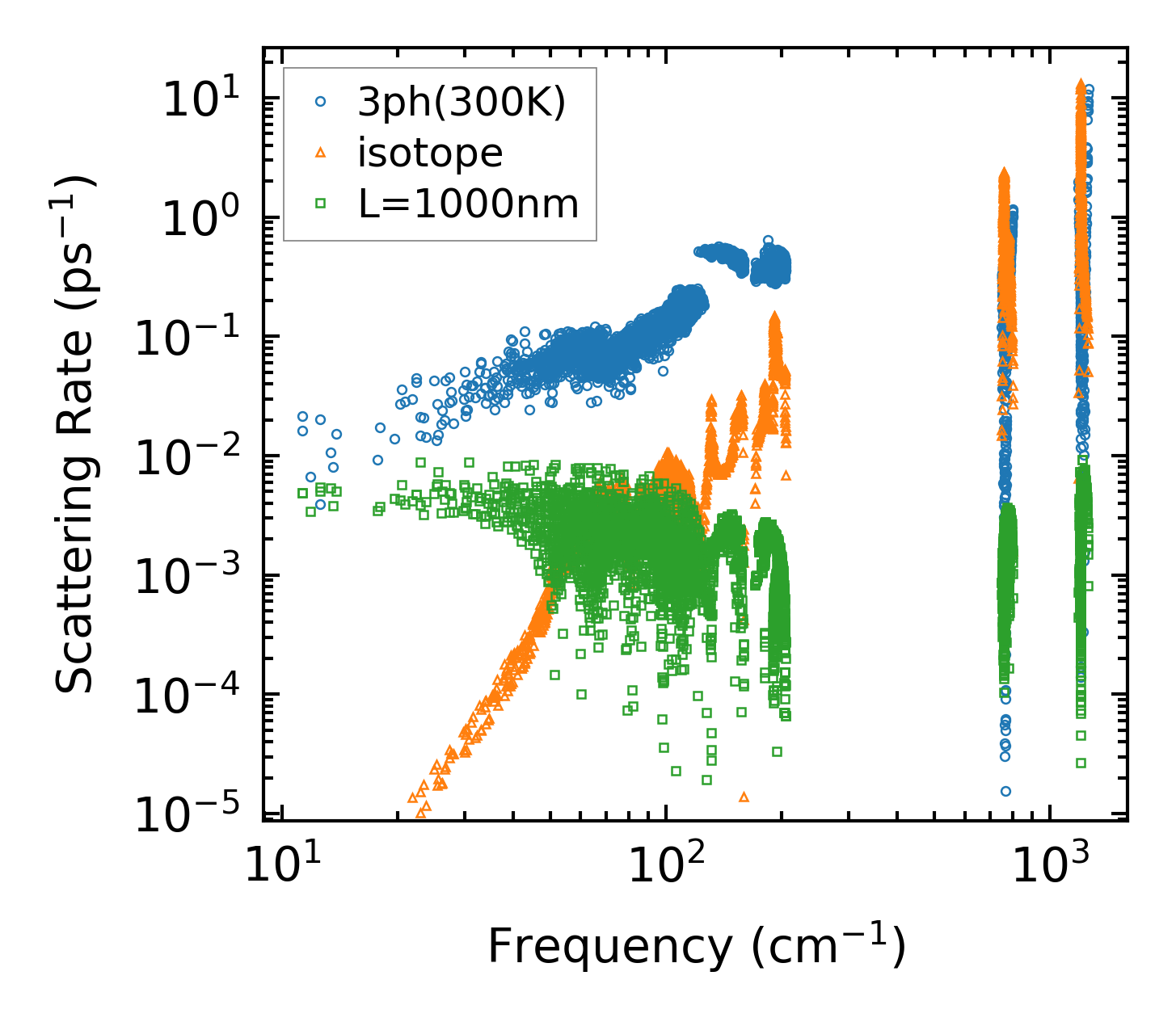

../../_images/fig_scat_rates11.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

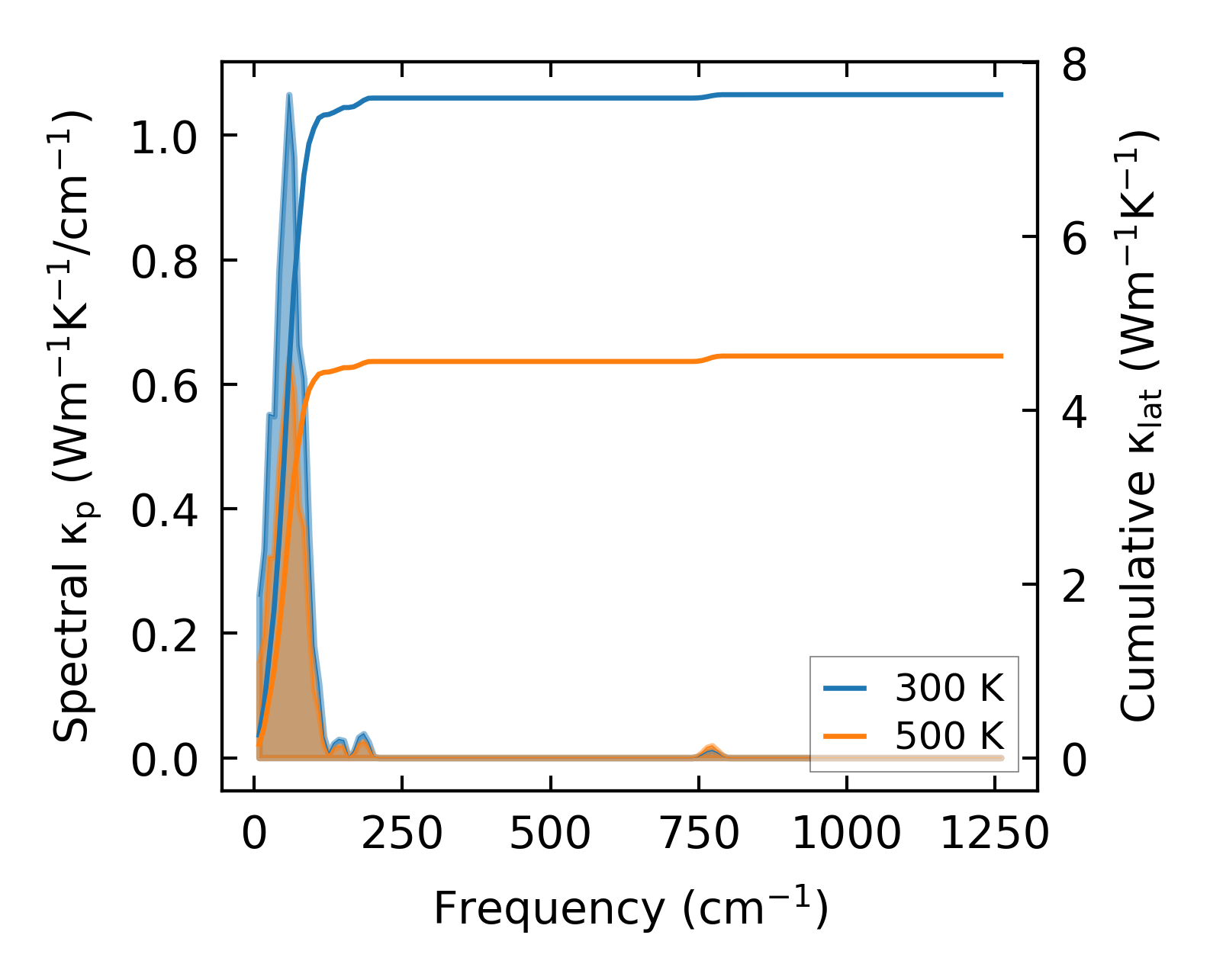

../../_images/fig_cumu_frequency11.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

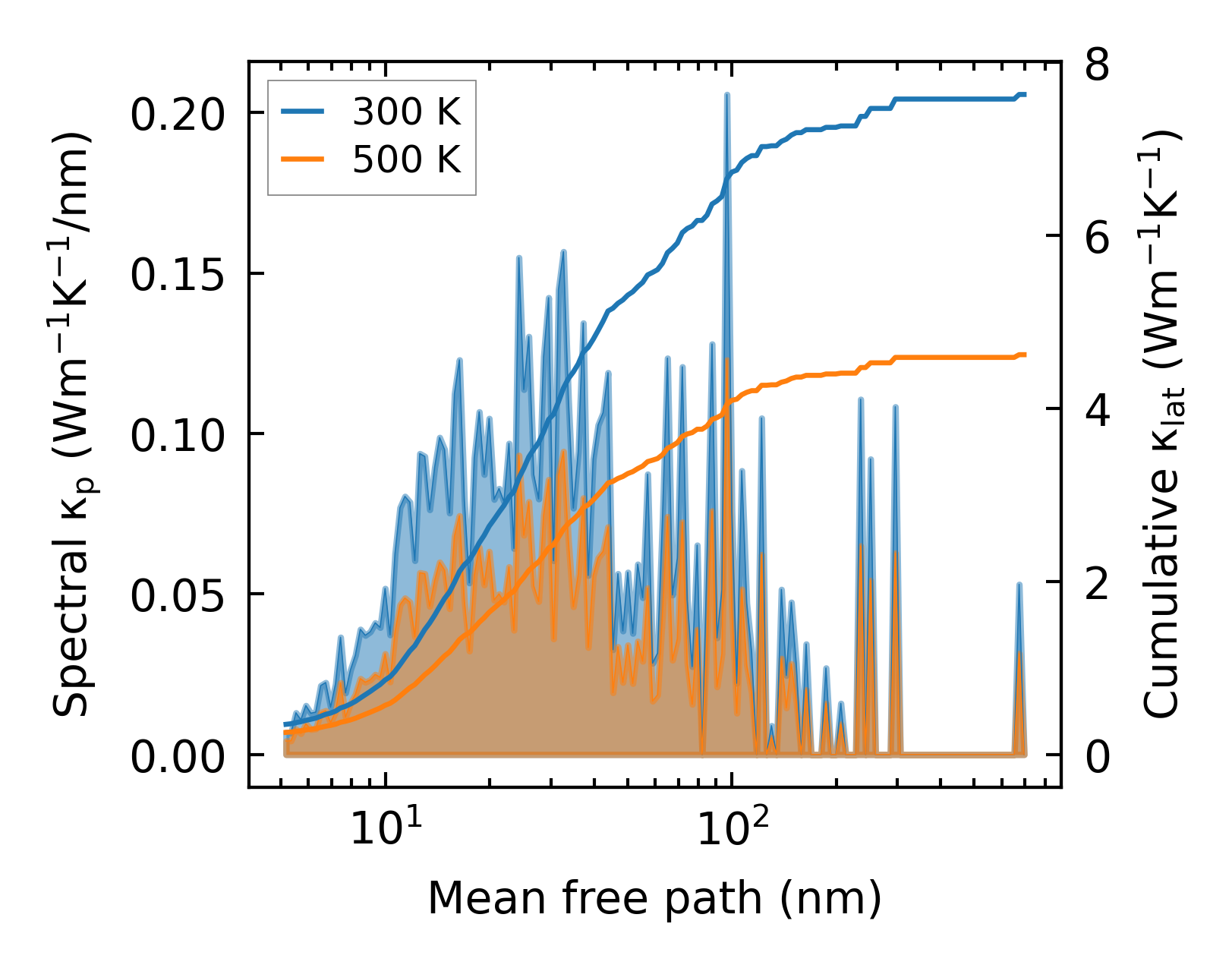

../../_images/fig_cumu_mfp11.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc215.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa23.png — (a) Temperature-dependent lattice thermal conductivity

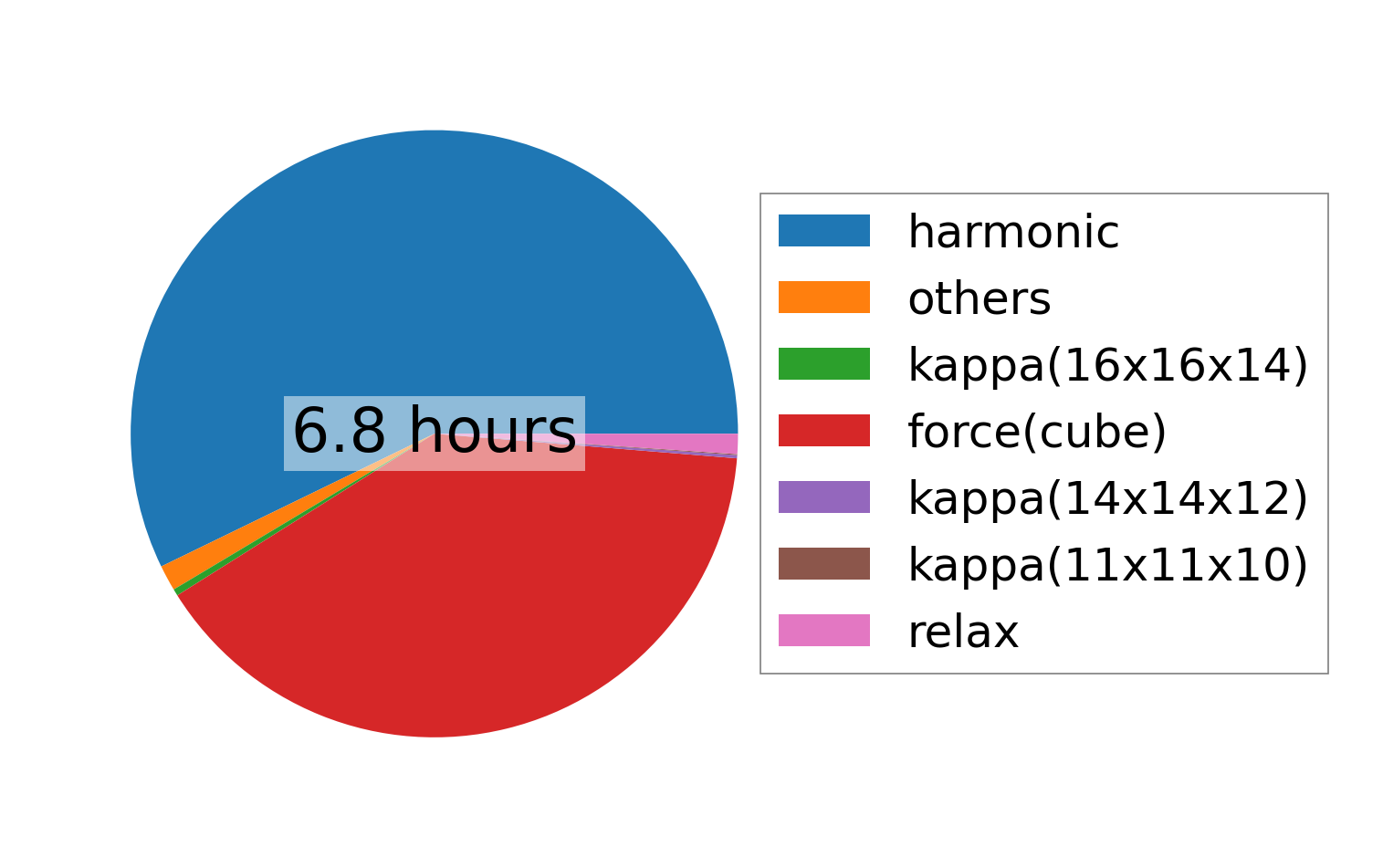

../../_images/fig_times33.png — (b) Computation time
